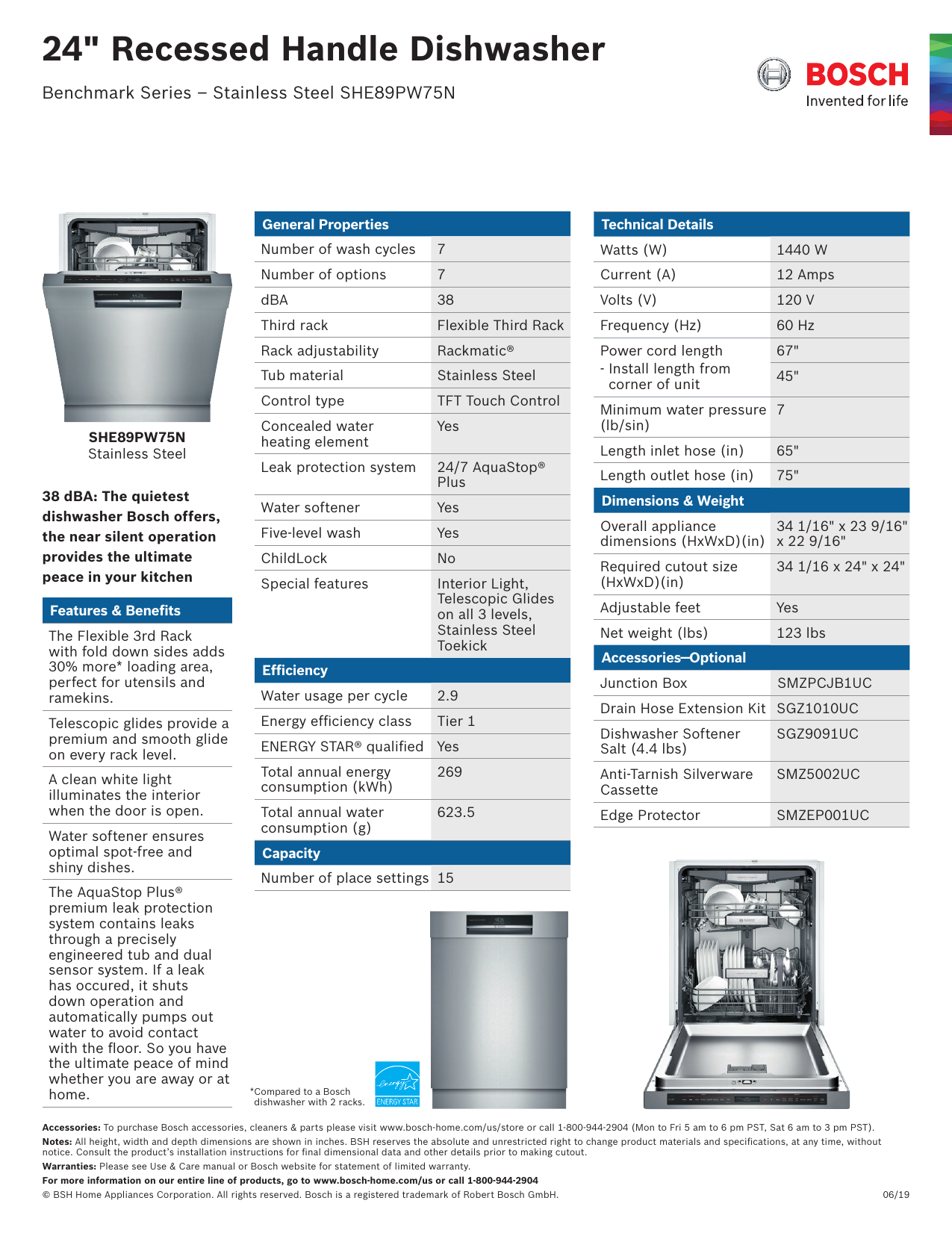

Bosch SHE89PW75N Dishwasher Specification Sheet

24" Recessed Handle Dishwasher
Benchmark Series – Stainless Steel SHE89PW75N
General Properties
SHE89PW75N
Stainless Steel
38 dBA: The quietest
dishwasher Bosch offers,
the near silent operation
provides the ultimate
peace in your kitchen
Number of wash cycles
7
Watts (W)
1440 W
Number of options
7
Current (A)
12 Amps
dBA
38
Volts (V)
120 V
Third rack
Flexible Third Rack
Frequency (Hz)
60 Hz
Rack adjustability
Rackmatic®
67"
Tub material
Stainless Steel
Control type
TFT Touch Control
Power cord length
- Install length from
corner of unit
Concealed water
heating element
Yes
Leak protection system
24/7 AquaStop®
Plus
Water softener
Yes
Dimensions & Weight
Five-level wash
Yes
ChildLock
No
Overall appliance
34 1/16" x 23 9/16"
dimensions (HxWxD)(in) x 22 9/16"
Special features
Interior Light,
Telescopic Glides
on all 3 levels,
Stainless Steel
Toekick
Features & Benefits
The Flexible 3rd Rack
with fold down sides adds
30% more* loading area,
perfect for utensils and
ramekins.
Telescopic glides provide a
premium and smooth glide
on every rack level.
A clean white light
illuminates the interior
when the door is open.
Water softener ensures
optimal spot-free and
shiny dishes.
The AquaStop Plus®
premium leak protection
system contains leaks
through a precisely
engineered tub and dual
sensor system. If a leak
has occured, it shuts
down operation and
automatically pumps out
water to avoid contact
with the floor. So you have
the ultimate peace of mind
whether you are away or at
home.
Technical Details
Efficiency
Water usage per cycle
2.9
Energy efficiency class
Tier 1
45"
Minimum water pressure 7
(lb/sin)
Length inlet hose (in)
65"
Length outlet hose (in)
75"
Required cutout size
(HxWxD)(in)
34 1/16 x 24" x 24"
Adjustable feet
Yes
Net weight (lbs)
123 lbs
Accessories—Optional
Junction Box
SMZPCJB1UC
Drain Hose Extension Kit SGZ1010UC
ENERGY STAR® qualified Yes
Dishwasher Softener
Salt (4.4 lbs)
SGZ9091UC
Total annual energy
consumption (kWh)
269
Anti-Tarnish Silverware
Cassette
SMZ5002UC
Total annual water
consumption (g)
623.5
Edge Protector
SMZEP001UC
Capacity
Number of place settings 15
*Compared to a Bosch
dishwasher with 2 racks.
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
06/19
24" Recessed Handle Dishwasher
Benchmark Series – Stainless Steel SHE89PW75N
Installation Details
Image 2: 2013 New Dish EU and ADA - Revised 2019 MCG
Included:
Pre-connected
drain hose
Pre-connected
AquaStop® Plus
inlet hose
Toe-kick
Power cord (3-prong plug)
(placed in the upper rack)
a: New Dish EU, ADA and 18 inch - Rev 2019 MCG
Image 3b: New Dish EU, ADA and 18 inch_Rev_2019_MCG
Ø 2 1/2"
(63.5 mm)
Ø 2 1/2"
(63.5 mm)
7"
(178 mm)
7"
(178 mm)
2 1/2"
(63.5 mm)
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
Junction box accessory
available for purchase
SMZPCJB1UC
(not included)
Example of Hardwire Installation
Note: Cutout
required on left or right
cabinet wall, depending on
location of water inlet, drain
and electrical connection
2 1/2"
(63.5 mm)
3-prong
power cord
included
Example of an Electrical Receptacle Installation
Accessories: To purchase Bosch accessories, cleaners & parts please visit www.bosch-home.com/us/store or call 1-800-944-2904 (Mon to Fri 5 am to 6 pm PST, Sat 6 am to 3 pm PST).
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout.
Warranties: Please see Use & Care manual or Bosch website for statement of limited warranty.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
06/19
24" Recessed Handle Dishwasher
Benchmark Series – Stainless Steel SHE89PW75N
Installation
Details
Image 5: New Dish 2019 with min 33" (84 cm)
Non-metallic tie
Non-metallic tie
Remove
plug
min 33" (84 cm)
max 43" (110 mm)
min 33" (84 cm)
max 43" (110 mm)
Note: Plumbing installations will vary - refer to local codes.
Drain hose included is 75" (190 cm) and can be extended
to a maximum of 151" (383 cm).
Always use the approved drain hose extension kit
(SGZ1010UC).
Ensure a portion of the drain hose is raised between min.
33" (84 cm) and max. 43" (110 cm) above the cabinet floor.
