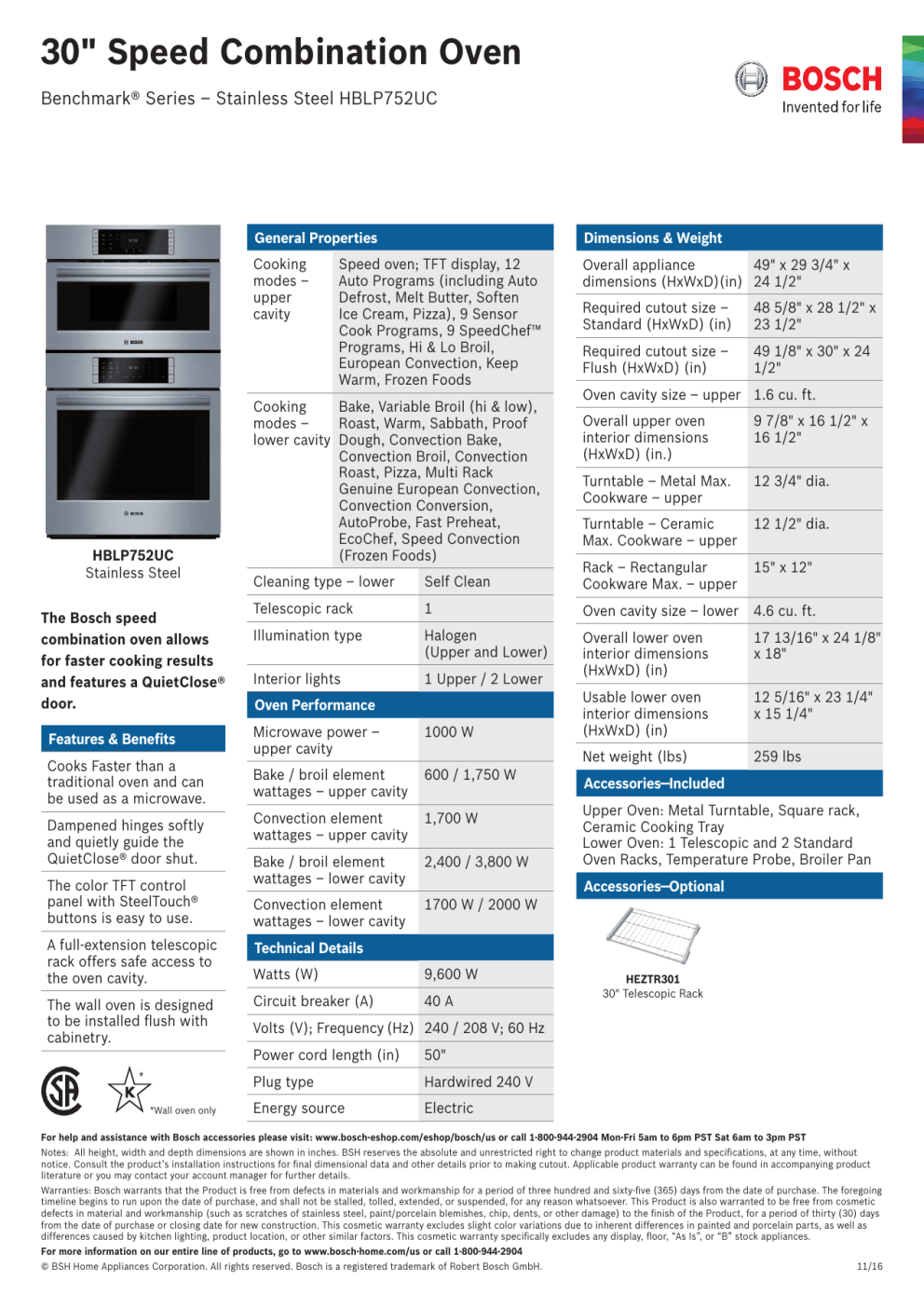

Bosch HBLP752UC Microwave Combination Oven Specifications

30" Speed Combination Oven
Benchmark® Series – Stainless Steel HBLP752UC
HBLP752UC
Stainless Steel
The Bosch speed
combination oven allows
for faster cooking results
and features a QuietClose®
door.
Features & Benefits
Cooks Faster than a
traditional oven and can
be used as a microwave.
Dampened hinges softly
and quietly guide the
QuietClose® door shut.
The color TFT control
panel with SteelTouch®
buttons is easy to use.
A full-extension telescopic
rack offers safe access to
the oven cavity.
The wall oven is designed
to be installed flush with
cabinetry.
*
*Wall oven only
General Properties
Dimensions & Weight
Cooking
modes –
upper
cavity
Overall appliance
49" x 29 3/4" x
dimensions (HxWxD)(in) 24 1/2"
Speed oven; TFT display, 12
Auto Programs (including Auto
Defrost, Melt Butter, Soften
Ice Cream, Pizza), 9 Sensor
Cook Programs, 9 SpeedChef™
Programs, Hi & Lo Broil,
European Convection, Keep
Warm, Frozen Foods
Cooking
Bake, Variable Broil (hi & low),
modes –
Roast, Warm, Sabbath, Proof
lower cavity Dough, Convection Bake,
Convection Broil, Convection
Roast, Pizza, Multi Rack
Genuine European Convection,
Convection Conversion,
AutoProbe, Fast Preheat,
EcoChef, Speed Convection
(Frozen Foods)
Required cutout size –
Standard (HxWxD) (in)
48 5/8" x 28 1/2" x
23 1/2"
Required cutout size –
Flush (HxWxD) (in)
49 1/8" x 30" x 24
1/2"
Oven cavity size – upper 1.6 cu. ft.
Overall upper oven
interior dimensions
(HxWxD) (in.)
9 7/8" x 16 1/2" x
16 1/2"
Turntable – Metal Max.
Cookware – upper
12 3/4" dia.
Turntable – Ceramic
Max. Cookware – upper
12 1/2" dia.
Cleaning type – lower
Self Clean
Rack – Rectangular
Cookware Max. – upper
15" x 12"
Telescopic rack
1
Oven cavity size – lower
4.6 cu. ft.
Illumination type
Halogen
(Upper and Lower)
17 13/16" x 24 1/8"
x 18"
Interior lights
1 Upper / 2 Lower
Overall lower oven
interior dimensions
(HxWxD) (in)
Usable lower oven
interior dimensions
(HxWxD) (in)
12 5/16" x 23 1/4"
x 15 1/4"
Net weight (lbs)
259 lbs
Oven Performance
Microwave power –
upper cavity
1000 W
Bake / broil element
wattages – upper cavity
600 / 1,750 W
Convection element
wattages – upper cavity
1,700 W
Bake / broil element
wattages – lower cavity
2,400 / 3,800 W
Convection element
wattages – lower cavity
1700 W / 2000 W
Accessories—Included
Upper Oven: Metal Turntable, Square rack,
Ceramic Cooking Tray
Lower Oven: 1 Telescopic and 2 Standard
Oven Racks, Temperature Probe, Broiler Pan
Accessories—Optional
Technical Details
Watts (W)
9,600 W
Circuit breaker (A)
40 A
HEZTR301
30" Telescopic Rack
Volts (V); Frequency (Hz) 240 / 208 V; 60 Hz
Power cord length (in)
50"
Plug type
Hardwired 240 V
Energy source
Electric
For help and assistance with Bosch accessories please visit: www.bosch-eshop.com/eshop/bosch/us or call 1-800-944-2904 Mon-Fri 5am to 6pm PST Sat 6am to 3pm PST
Notes: All height, width and depth dimensions are shown in inches. BSH reserves the absolute and unrestricted right to change product materials and specifications, at any time, without
notice. Consult the product’s installation instructions for final dimensional data and other details prior to making cutout. Applicable product warranty can be found in accompanying product
literature or you may contact your account manager for further details.
Warranties: Bosch warrants that the Product is free from defects in materials and workmanship for a period of three hundred and sixty-five (365) days from the date of purchase. The foregoing
timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended, for any reason whatsoever. This Product is also warranted to be free from cosmetic
defects in material and workmanship (such as scratches of stainless steel, paint/porcelain blemishes, chip, dents, or other damage) to the finish of the Product, for a period of thirty (30) days
from the date of purchase or closing date for new construction. This cosmetic warranty excludes slight color variations due to inherent differences in painted and porcelain parts, as well as
differences caused by kitchen lighting, product location, or other similar factors. This cosmetic warranty specifically excludes any display, floor, “As Is”, or “B” stock appliances.
For more information on our entire line of products, go to www.bosch-home.com/us or call 1-800-944-2904
© BSH Home Appliances Corporation. All rights reserved. Bosch is a registered trademark of Robert Bosch GmbH.
11/16
