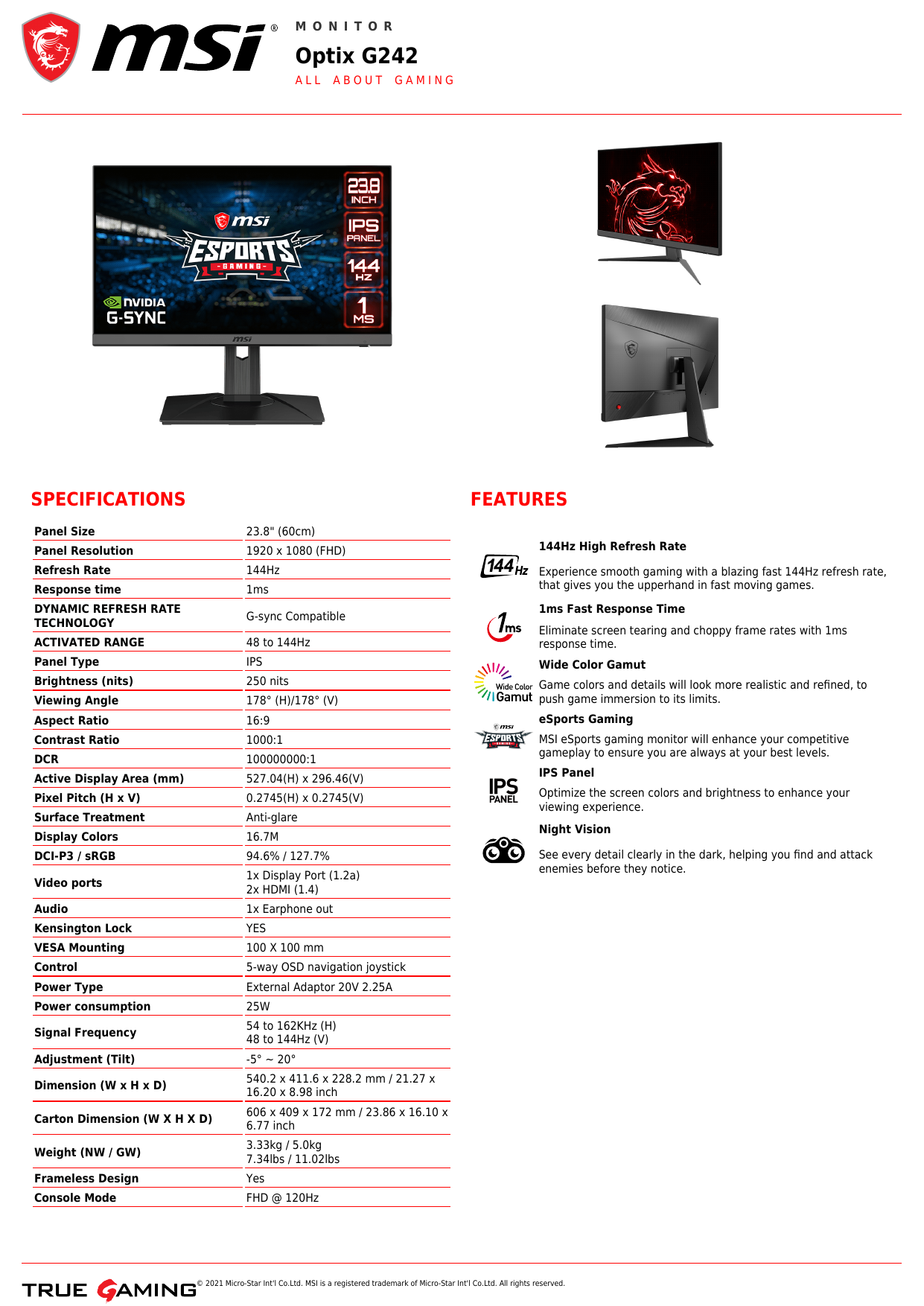

MSI OPTIXG242 Computer Monitor Specification Sheet

M O N I T O R
Optix G242
ALL
ABOUT
GAMING
SPECIFICATIONS
FEATURES
Panel Size
23.8" (60cm)
Panel Resolution
1920 x 1080 (FHD)
144Hz High Refresh Rate
Refresh Rate
144Hz
Response time
1ms
Experience smooth gaming with a blazing fast 144Hz refresh rate,
that gives you the upperhand in fast moving games.
DYNAMIC REFRESH RATE
TECHNOLOGY
G-sync Compatible
ACTIVATED RANGE
48 to 144Hz
Eliminate screen tearing and choppy frame rates with 1ms
response time.
Panel Type
IPS
Wide Color Gamut
Brightness (nits)
250 nits
Viewing Angle
178° (H)/178° (V)
Game colors and details will look more realistic and refined, to
push game immersion to its limits.
Aspect Ratio
16:9
eSports Gaming
Contrast Ratio
1000:1
DCR
100000000:1
MSI eSports gaming monitor will enhance your competitive
gameplay to ensure you are always at your best levels.
Active Display Area (mm)
527.04(H) x 296.46(V)
IPS Panel
Pixel Pitch (H x V)
0.2745(H) x 0.2745(V)
Surface Treatment
Anti-glare
Optimize the screen colors and brightness to enhance your
viewing experience.
Display Colors
16.7M
DCI-P3 / sRGB
94.6% / 127.7%
Video ports
1x Display Port (1.2a)
2x HDMI (1.4)
Audio
1x Earphone out
Kensington Lock
YES
VESA Mounting
100 X 100 mm
Control
5-way OSD navigation joystick
Power Type
External Adaptor 20V 2.25A
Power consumption
25W
Signal Frequency
54 to 162KHz (H)
48 to 144Hz (V)
Adjustment (Tilt)
-5° ~ 20°
Dimension (W x H x D)
540.2 x 411.6 x 228.2 mm / 21.27 x
16.20 x 8.98 inch
Carton Dimension (W X H X D)
606 x 409 x 172 mm / 23.86 x 16.10 x
6.77 inch
Weight (NW / GW)
3.33kg / 5.0kg
7.34lbs / 11.02lbs
Frameless Design
Yes
Console Mode
FHD @ 120Hz
1ms Fast Response Time
Night Vision
See every detail clearly in the dark, helping you find and attack
enemies before they notice.
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.
M O N I T O R
Optix G242
ALL
ABOUT
GAMING
Compatibility
PC, Mac, PS5™, PS4™, Xbox, Mobile,
Notebook
* All trademarks and the registered
trademarks are the property of their
respective owners.
Note
Display Port: 1920 x 1080 (Up to
144Hz)
HDMI: 1920 x 1080 (Up to 144Hz)
The color gamut follows the CIE 1976
testing standard.
CONNECTIONS
1. 5-way joystick navigator
2. DC Jack
3. 2x HDMI (1.4)
4. 1x Display Port (1.2a)
5. 1x Earphone out
6. Kensington lock
Generated 2021-01-29, check for the latest version www.msi.com/datasheet. The information provided in this document is intended for informational purposes only and is subject to change without notice.
7.
© 2021 Micro-Star Int'l Co.Ltd. MSI is a registered trademark of Micro-Star Int'l Co.Ltd. All rights reserved.
