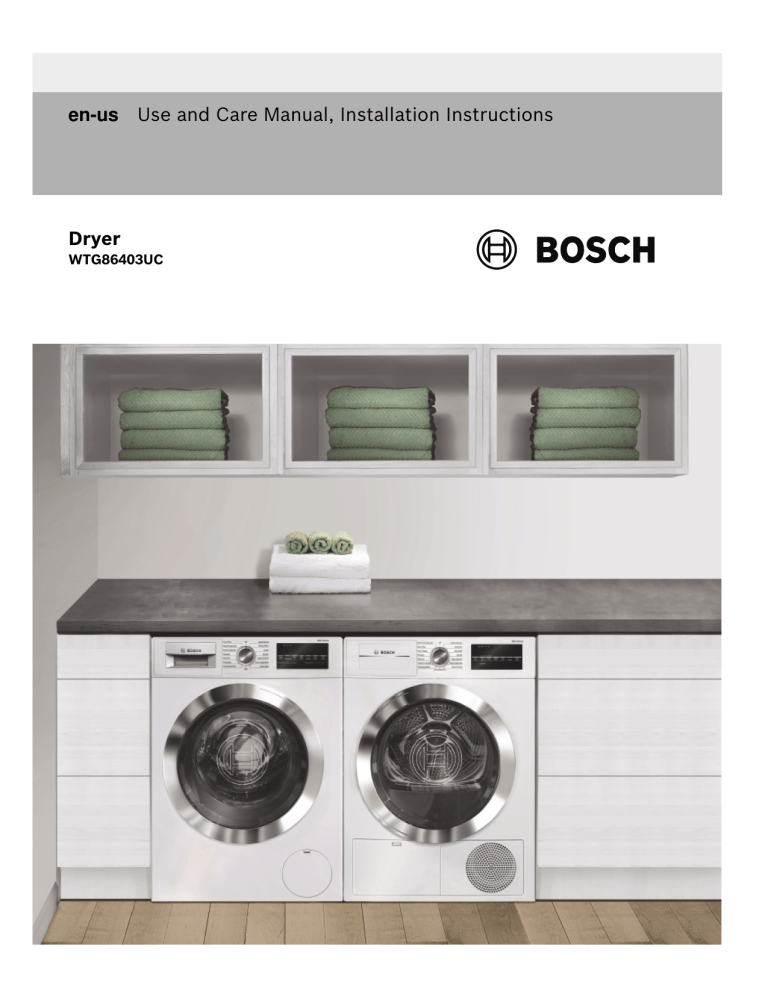

en-us Use and Care Manual, Installation Instructions
Dryer
WTG86403UC
Welcome to Your New Dryer!
Congratulations on your selection
of a new Bosch dryer for your
laundry needs. We are confident
you will enjoy the superior
performance and reliability.
Please do not hesitate to contact
our Customer Service department
if you have any questions or
comments about your new dryer.
Thank you for choosing Bosch.
Visit our website at www.boschhome.com/us (USA) or www.boschhome.ca (Canada) for more
information and to view a selection
of our products.
2
Table of contents
en-usUseandCreManul,InstalionIstrucions
Important information ................................................... 4
Purchase information ........................................................... 4
Customer service ................................................................. 4
Your dryer is intended for ............................................. 5
Safety Definitions .......................................................... 5
IMPORTANT SAFETY INSTRUCTIONS ........................ 6
Introduction to your new dryer .................................... 8
Standard features and helpful information ...................... 8
Special features .................................................................... 8
Environmentally friendly use of your dryer ...................... 8
Dimensions and clearances required .......................... 9
Installation for best performance ....................................... 9
Appliance dimensions ......................................................... 9
Length of power cord and drain hose .............................. 9
Minimum clearances ......................................................... 10
INSTALLATION INSTRUCTIONS ................................ 12
Introduction ......................................................................... 12
Before installing the dryer ................................................ 12
Waste disposal .................................................................. 13
Parts provided with your dryer ........................................ 13
Accessories for your appliance ...................................... 14
Installation - step by step and check list ...................... 14
Electrical Connections ...................................................... 16
Leveling the dryer .............................................................. 18
Check heating system ...................................................... 18
Preparing to transport the dryer - step by step ........... 18
Getting to know your appliance ................................. 19
Control panel ...................................................................... 19
Display area ....................................................................... 20
OPERATING INSTRUCTIONS ..................................... 21
Your new dryer ................................................................... 21
Before using the dryer for the first time ....................... 22
Temporary disconnection of the dryer .......................... 22
Using program selector to choose a drying cycle ..... 22
Program selection ............................................................. 23
Selecting program settings and additional options .... 23
Loading the laundry .......................................................... 24
Starting the program ......................................................... 24
Indicator of program sequence ...................................... 25
Childproof lock .................................................................. 25
Selecting a different program ......................................... 25
Cancel program ................................................................. 25
Program end ...................................................................... 25
Removing laundry/switching the appliance off ........... 25
Signal ............................................................................ 26
Laundry ........................................................................ 27
Preparing the laundry ....................................................... 27
Sorting the laundry ............................................................ 27
Drying tips .......................................................................... 27
Program selection table ............................................. 28
Default Program and Option settings ....................... 29
Dry Level ............................................................................. 29
Time dry .............................................................................. 29
Finish in ............................................................................... 29
Additional Program Option settings ......................... 29
Wrinkle Block ..................................................................... 29
Low Heat ............................................................................. 29
Spin speed ................................................................... 29
USER-MAINTENANCE INSTRUCTIONS .................... 30
Cleaning the Dryer's exterior .......................................... 30
Cleaning the lint filter area .............................................. 30
Cleaning the lint filter ........................................................ 30
Cleaning the Condenser ................................................ 32
Cleaning the moisture sensors ...................................... 33
Maintenance of drain hose ............................................. 33
Replacing fuses in the Power Adapter - step-by-step 33
Troubleshooting .......................................................... 34
Introduction ........................................................................ 34
General Troubleshooting ................................................. 34
STATEMENT OF LIMITED PRODUCT WARRANTY .. 37
Bosch Clothes Dryer ........................................................ 37
Additional information on products, accessories,
replacement parts and services can be found at
www.bosch-home.com/us (USA) or www.boschhome.ca (Canada) and in the online shop www.boschhome.com/us/store
4XHVWLRQV"
ZZZERVFKKRPHFRPXV 86$ RU
ZZZERVFKKRPHFD &DQDGD 0DLQ6WUHHW6XLWH
,UYLQH&$
:HORRNIRUZDUGWRKHDULQJIURP\RX
3
Important information
Purchase information
Importaniformatin
Please take a moment to record the following basic
information about the purchase of your new Bosch®
dryer.
This information will be helpful in the event you need to
contact Customer Service or would like to order
accessories or replacement parts for your dryer.
(1U
)'
Customer service
Your dryer does not require any special care other than
the maintenance and care mentioned in this manual. If
you have a problem with your dryer, please consult the
Troubleshooting section of this manual.
~ Troubleshooting; Page 34
If problems persist and service is necessary, please
contact our customer service department.
Do not attempt to repair the appliance yourself.
Bosch Customer Service
1-800-944-2904
(1
U
)'
The E-Nr. (model number) and the FD (serial) number
can be found on the rating plate label (shown above) or
in the Home Connect application under Appliance
Information.
The model number includes the slash and a two digit
number (eg: "/01"). Please be sure to include the final 2
digit number when filling in your model number. This
helps make sure any parts you may need are correctly
matched to your specific machine.
Date of Purchase:___/___/_____
Where Purchased:___________________________
E-Nr. :_______________/____ (ex: WTG86xxxUC/01)
FD :__________-_________ (ex: FD 9708|90007,
provides production date)
The manufacturer reserves the right to make changes in
the product or manual without notification.
Or by mail
BSH Home Appliances Corporation
1901 Main Street, Suite 600
Irvine, CA 92614
When writing or calling please have the following
information available:
▯ E-Nr. (model number, example: WTG86xxxUC/01)
▯ FD (serial number, example: 9708|90007)
▯ Date of Original Purchase (receipt may be required)
▯ Date Problem Occurred
▯ Explanation of Problem
If writing, please also include a daytime telephone
number and a copy of the sales invoice.
When calling Customer Service, please be ready to
provide the model number E-Nr. and FD number. This
information will help provide the best support for your
dryer.
Additional information is available at our website:
www.bosch-home.com/us (USA) or www.bosch-home.ca
(Canada).
4
Your dryer is intended for
▯
Yourdeyistnedfor
▯
▯
Only household use and in a non-commercial
environment.
Drying textiles washed in a residential style clothes
washer.
Operating conditions:
Recommended ambient temperatures:
59-86°F / 15-30°C.
Min/Max allowable temperatures: 41-95°F / 5-35°C.
Relative humidity: under 95%
Installation by qualified installers.
▯ Installation in accordance with all regulatory
requirements; if in doubt have the appliance installed
by a specialist familiar with these requirements.
Before using the appliance, read the use and installation
instructions and all other information included with the
appliance and act accordingly.
Keep all documents for future use.
▯
Safety Definitions
Important safety information is contained in this manual
and on the warning labels located on your dryer.
Standard symbols and headings are used to identify
areas where you should take precautions to avoid injury
or property damage. Please take a moment to become
familiar with each of these symbols and what they mean
before proceeding.
SafetyDintso
9
WARNING
This indicates that death or serious injuries may
occur as a result of non-observance of this warning.
9
CAUTION
This indicates that minor or moderate injuries may
occur as a result of non-observance of this warning.
NOTICE: This indicates that damage to the appliance or
property may occur as a result of non-observance of this
warning.
Tip: This symbol is used to draw the user's attention to
important matters.
5
9
I M P O R T A N T
S A F E T Y
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
I N S T R U C T I O N S IMPORTANSFETYINSRUCTIONSR E A D
A N D
S A V E
T H E S E
I N S T R U C T I O N S
WARNING
When properly cared for, your new appliance has been
designed to be safe and reliable. Read all instructions
before using the appliance. These precautions will
reduce the risk of burns, electric shock, fire, and injury to
persons. When using laundry appliances, basic safety
precautions must be followed, including those in the
following pages.
Examine the appliance after unpacking it. In the event of
transport damage, do not plug it in.
▯
▯
▯
▯
▯
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
SERIOUS INJURY OR DEATH WHEN USING YOUR
DRYER, FOLLOW BASIC PRECAUTIONS INCLUDING
THE FOLLOWING
▯ Bosch dryers are provided with a Use and Care Manual
with Installation Instructions. Read and understand all
instructions before using the dryer.
▯ Do not dry articles that have been previously cleaned,
washed, soaked, or spotted with gasoline, dry cleaning
solvents, other flammable or explosive substances as
they give off vapors that could ignite or explode.
▯ Before the appliance is removed from service or
discarded, remove the door (to the drying
compartment) to prevent children from playing or
hiding inside. Also remove the power cord/plug.
▯ Do not allow anyone to climb, lean or hang on any part
of the dryer including any protruding components such
as the appliance door or a pullout shelf.
▯ Do not reach into the appliance if the drum is moving.
▯ Do not tamper with the controls.
▯ Do not repair or replace any part of the appliance or
attempt any service unless specifically recommended
in these user maintenance instructions.
▯ Do not use replacement parts that have not been
recommended by the manufacturer (e.g. parts made by
using a 3D printer).
▯ Do not use fabric softeners or products to eliminate
static unless recommended by the manufacturer of the
fabric softener or product.
▯ Always unplug the dryer from the power supply before
attempting any service. Disconnect the power cord by
grasping the plug, not the cord.
▯ To reduce the risk of fire, clothes, cleaning rags, mop
heads and the like which have traces of any flammable
substance, such as vegetable oil, cooking oil,
petroleum based oils or distillates, waxes, fats, etc.,
must not be placed in the dryer. These items may
contain some flammable substance(s) even after
washing, which may smoke or catch fire by itself.
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
▯
6
Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
Do not use heat to dry articles containing foam rubber
(may be labeled latex foam) or similarly textured
rubber-like materials or equivalent. Foam rubber
materials can ignite by spontaneous combustion.
Keep flammable materials and vapors, such as
gasoline, away from the dryer.
Clean lint filter before or after each load.
Do not install or store this appliance where it will be
exposed to the weather. Hoses and internal parts may
be damaged if exposed to freezing temperatures.
Do not use the dryer if it has a worn power cord or
loose plug.
The dryer must only be used for its intended purpose.
Always
follow
the
fabric
care
instructions
recommended by the clothing manufacturer.
Do not operate the dryer if parts are missing or broken.
Do not sit on top of the dryer.
To reduce the risk of fire or electrical shock, DO NOT
use an extension cord to connect the dryer to the
electrical power supply.
Always check pockets and remove any objects.
Cigarette lighters are particularly hazardous.
Do not operate the dryer if any guards and/or panels
have been removed.
Do not bypass any safety devices.
Do not operate this dryer until you are sure that:
▯ All services connected to the dryer (power, drain,
etc.) have been installed according to the
Installation Instructions.
▯ Installation and grounding are in compliance with all
local regulations and/or other applicable
regulations and requirements.
Failure to install, maintain and/or operate the dryer
according to the manufacturer’s instructions may result
in injury and/or damage.
To avoid floor damage and mold growth, do not let
spills or splashout cause standing water around or
under the appliance.
See the Installation Instructions section in this manual
for grounding requirements.
~ Electrical Connections; Page 16
The IMPORTANT SAFEGUARDS and WARNINGS
presented in this manual do not cover all possible
conditions that may occur. Common sense, caution
and care must be exercised when installing,
maintaining or operating the dryer.
Always contact your dealer, distributor, service provider
or the manufacturer about any problems or conditions
that you do not understand.
Follow the Safety Information in the INSTALLATION
INSTRUCTIONS and the OPERATING INSTRUCTIONS.
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
WARNING
WARNINGS FOR CHILDREN AND PETS
▯ Do not allow children and pets to play on or in the
appliance. Close supervision of children is necessary
when the appliance is used near children.
▯ Make sure to utilize all child lock/safety features of your
appliance, and be sure to turn the appliance Off when
not in use.
▯ Appliances are not intended for use by children,
however when children become old enough to operate
the appliance, it is the responsibility of the parents or
legal guardians to ensure they are instructed in safe
practices by qualified persons.
▯ Keep all laundry aids (including detergents, bleach,
fabric softeners, etc.) out of the reach of children.
▯ Keep pets away from the appliance.
WARNING
PROPOSITION 65 WARNING
This product may contain a chemical known to the State
of California, which can cause cancer or reproductive
harm. Therefore, the packaging of your product may
bear the following label as required by California:
67$7(2)&$/,)251,$352326,7,21:$51,1*
:$51,1*
&DQFHUDQG5HSURGXFWLYH+DUPZZZ3:DUQLQJVFDJRY
SAVE THESE INSTRUCTIONS!
Keep these instructions for future reference and in case
of change of ownership, manual should be conveyed
with the dryer.
7
Introduction to your new dryer
9
Intrducoityournewdyr
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR INJURY
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY
INSTRUCTIONS of this manual before installing or
operating this appliance.
~ IMPORTANT SAFETY INSTRUCTIONS; Page 6
Special features
▯
▯
▯
Standard features and helpful information
Thank you for choosing Bosch for your laundry
appliance needs.
Please read and follow the use and care, important
safety instructions and troubleshooting information
contained in this manual. Please retain this manual for
future reference.
~ Troubleshooting; Page 34
This dryer complies with UL 2158 Electric Clothes
Dryers.
Standard features
▯
▯
▯
▯
▯
ENERGY STAR® certified to save energy, save money
and protect the climate.
Temperatures inside the drum are lower than
conventional dryers for gentle drying conditions and
fabric care.
Sensor controlled auto cycles.
15.4 lb (7 kg) large drum capacity (for regular cotton
loads).
Large door opening, 180° opening angle.
Quality tested
Each dryer which leaves our factory has undergone a
thorough performance test and is in full working
condition.
Website
Visit our website at www.bosch-home.com/us (USA) or
www.bosch-home.ca (Canada) for more information and
to view a selection of our products.
About this manual
These operating and installation instructions apply to
more than one model of dryer. Illustrations used may
show details that differ from your particular model.
Read your user manual. It contains valuable information
about the safety, installation and operation of your new
appliance.
This can save you time, make it easier to correctly install
and use your dryer, and improve your overall satisfaction
with your new appliance.
8
A distinctive feature of your dryer is low energy
consumption as it is ENERGY STAR certified.
Bosch dryers feature advanced operation philosophy,
customized drying programs and a solid touch and
feel making them a user-friendly household assistant.
Bosch load sensing feature controls power
consumption for each cycle based on the amount and
type of laundry. This automatic feature optimizes
energy efficiency.
Environmentally friendly use of your dryer
Your new Bosch dryer is designed to use energy in a
highly efficient way to help reduce operating costs,
conserve resources and protect the environment.
To save energy, money and time, Bosch recommends
the following:
▯ Spin the laundry thoroughly
Before drying, spin the laundry thoroughly in the
washing machine. Use the highest possible spin
speed for the type of laundry. Higher spin speeds
reduce the drying time and the energy consumption.
▯ Optimize load and selected drying program
▯ Use the maximum amount of laundry for the
appropriate drying program.
▯ Use automatic drying programs for the most energy
efficient use of your dryer. They perform according
to internal moisture and temperature sensors
delivering optimized efficiency and fabric care.
▯ Use the Time Dry program for touching up damp
loads or for small loads. This program will use more
energy than the automatic programs.
~ Program selection table; Page 28
NOTICE: The energy rating of this dryer is based on the
Cotton Dry program with the Dryness Level set to +2 (all
other option settings are off).
▯ Clean filter
Clean the lint filter before or after each drying process.
~ Cleaning the lint filter; Page 30
▯ Air inlet on the dryer
Do not cover or allow any articles/items to restrict the
air inlet on the front of the dryer.
▯ Energy-saving mode
The display panel lighting goes out after a few minutes
and Start/Pause flashes. To activate the display, touch
any button.
Energy-saving mode is not activated if a program is
running.
Dimensions and clearances required
Installation for best performance
Dimensoadclernsquired
9
Appliance dimensions
CAUTION
D
E
DO NOT INSTALL THE DRYER:
▯ outdoors,
▯ in an environment with dripping water,
▯ near flammable materials,
▯ in rooms which are at risk of freezing,
▯ in rooms which may contain gas or other fuels,
▯ on carpets.
H
F
Because many variables affect drying time we
recommend allowing as much free air space around your
dryer as possible for the shortest drying cycle time.
NOTICE: If your dryer is located in a closet, leave the
closet door open while the dryer is operating.
The recommended ambient temperatures (between 5986°F / 15-30°C) are for optimum drying times, outside
of this range drying times may be longer.
The installation surface (floor) must be level and
structurally sound. Using a bubble level and the heightadjustable feet installed on the appliance, level the
appliance side to side and front to back.
G
Label Dimension
U.S.
Metric
Inches cm
a
b
c
Width
Depth (to front of door)
Height (minimum)
Height (maximum)
Side clearance
(door open 180°)
23.6
25
33.2
34
16
60
63.5
84.3
86.4
40.6
Depth (door open 90°)
42.9
109
d
e
Length of power cord and drain hose
To Left*
U.S.
Inches
To Right*
Metric
cm
Power Cord
40
102
Drain Hose
19
48
* Facing the front of the dryer
U.S.
Inches
Metric
cm
57
40
145
102
9
Minimum clearances
Closet: Stand alone (shown) or Side by Side
Closet: Stacked
Only with one of the Bosch required Stacking Kits (sold
separately), can this Bosch Dryer be stacked on top of a
Bosch Washer of the same dimensions to save space.
9
CAUTION
▯
▯
▯
▯
Use only the dryer stacking kit noted in this User
Manual's Accessories section.
Do not stack washer on top of dryer.
Do not stack washer on top of another washer.
Ensure washer transportation bolts have been
removed and washer does not vibrate
excessively.
(
&
%
(
$
.
)
-
'
Label Dimension
+
)
&
$
*
'
For shortest drying times keep closet door open while
dryer is operating.
NOTICE: When closet doors are closed louvered areas
only allow minimal drying results (expect long drying
times).
10
U.S.
Metric
Inches cm
A
Both Sides
0.6
1.5
B
Top
6.3
16
C
Rear
2.5
6.2
D
Front
2.4
6
E & F are minimum area size!
E
Top Vent
63 sq. 404 sq.
F
Bottom Vent
63 sq. 404 sq.
Vent spacing is actual (not minimum dimensions)
G
37
94
H
26
66
J
3
7.6
K
29
73.6
Under counter (Preferred)
Under counter (Less Desirable)
(
$
&
+
*
)
%
Front of the appliance fully open.
No doors or coverings.
If front of the appliance is covered ventilation openings
must be installed.
Minimum opening dimensions
E & F are minimum area sizes
E
63 sq.in.
404 sq. cm
F
63 sq.in.
404 sq. cm
G&H
actual spacing dimensions for min. open area sizes
G
3 in.
7.6 cm
H
14 in.
35.6 cm
A
B
C
28 in.
23.8 in.
34.5 in.
71.1 cm
60.5 cm
87.6 cm
11
INSTALLATION INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Instal inoIstrcuino
9
Introduction
CAUTION
▯
Read these installation instructions completely and
carefully before starting to install your new dryer. The
information contained can save you time and effort and
will help to ensure optimum performance of your new
dryer. Be sure to observe all warnings and cautions.
▯
▯
▯
9
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO
PERSONS
▯ To reduce the risk of fire, electric shock or injury
to persons, read the Important Safety Instructions
at the beginning of this manual before installing
or operating this appliance.
▯ To reduce the risk of severe injury or death, follow
all installation instruction.
▯ Clothes dryer installation must be performed by a
qualified installer, according to these instructions
and according to all local codes.
▯ In addition to the installation and safety
information in this manual, the local water and
electric authorities (services) may have special
requirements that must be followed.
▯ Install the clothes dryer according to these
manufacturer’s instructions and local codes.
▯ Your dryer is supplied with a specific power
adapter that is only to be used with the Bosch
Washers and Dryers having NEMA 6-15P cords.
Any other use of this power adapter is prohibited.
Read and follow the Important Safety Instructions
supplied with the Power Adapter.
▯
▯
The appliance is heavy. Do not lift it by yourself,
use additional help and care when lifting and
positioning.
If in doubt, have the appliance installed by an
authorized service provider.
Take care to not damage the appliance. Do not
hold on to protruding parts (e.g. door) when
lifting. Do not push against the appliance door
glass due to risk of damage.
Do not install the appliance outdoors or in an
area exposed to freezing conditions.
If freezing conditions exist where appliance is
located all drain water must be removed from
hoses, sumps, pumps, etc.
Hidden surfaces may have sharp edges. During
service wear gloves and use caution when
reaching inside the dryer housing.
These installation instructions are intended for use by
qualified installers. In addition to these instructions, the
installation must comply with:
▯
▯
for the United States - National Electrical Code, ANSI/
NFPA70 - and latest editions of the state and
municipal and/or local regulations.
for Canada - Canadian Electrical Code C22.1 - and the
latest editions of the provincial, municipal and/or local
regulations.
Before installing the dryer
Unpacking the appliance
9
CAUTION
Remove the appliance packaging carefully to
prevent damage to the surfaces.
After removing the packaging, immediately remove
all objects from the drum.
Check the dryer for transportation damage. Do not
connect the utilities (power or drain) to a dryer which is
visibly damaged. If in doubt, contact your dealer.
12
Waste disposal
Disposal of Packaging Materials
After unpacking your new appliance dispose of the
protective packaging materials in an environmentally
friendly way. Ask your dealer or inquire with your local
authority regarding currently acceptable means of
disposal.
9
Dryer drum contents
A literature pack is shipped in the dryer drum. Be sure to
remove this item before using the dryer.
WARNING
WARNINGS FOR CHILDREN
Do not let children play with packaging and
associated parts to avoid risk of choking or
suffocation.
Disposal of Your Old Appliance
Your old appliance can be recycled if it is no longer to be
used. Prior to disposing of your old appliance observe
the following precautions to reduce safety risks.
9
WARNING
TO AVOID RISK OF INJURY OR DEATH, DO THE
FOLLOWING
▯ After unplugging the old appliance, remove the
electric power cord and dispose of properly.
▯ Remove the door or permanently disable the
door lock to prevent children from being locked
inside.
Parts provided with your dryer
Back side of the dryer
@ User Manual and Product Registration
H Power Adapter:
Supplied Power Adapter
▯ 2 spare fuses
▯ Instruction sheet
P Drain Set Pack:
▯ (2) plastic ties for securing drain hose
▯ Plastic elbow
▯ Plastic connector for alternate drain connections (see hose installation instructions).
▯ Summary of drain hose installation instructions
▯
( Power cord with plug
0 Drain hose connected to the dryer
8 Elbow to form the hose to fit the drain
13
9
WARNING
RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO
PERSONS
▯ The supplied Power Adapter is intended to be
used only for powering the Bosch Washers and
Dryers having NEMA 6-15P cords. This Power
Adapter is unique as it allows for both the Dryer
and Washer to plug into the home's existing 4prong dryer receptacle. If the home has an
existing 3-prong dryer receptacle it and its
complete branch circuit must be changed to a 4prong circuit.
▯ Use only Bosch replacement fuses in the Power
Adapter (Customer Service part number
10013781).
▯ If any parts are missing please notify your dealer
immediately.
Installation - step by step and check list
Review the following list and check off each step as it is
completed during installation, if necessary.
1. Unpack the dryer.
2. Remove all objects from the dryer drum.
3. Check the dryer for visible damage.
4. Position the dryer near the installation location.
5. Disconnect the power cord and drain hose from their
clips on the back of the dryer.
CAUTION
9
Do not disconnect the drain hose from the sump/
pump connection at the bottom of the dryer.
Tip: For correct adapter installation see ~ Electrical
Connections; Page 16
Accessories for your appliance
Drying rack
A drying rack placed inside the dryer for drying wool
items, shoes, etc. is available.
Drying rack item number: WMZ20600
Pedestal
The dryer can be mounted on a Bosch pedestal, noted
below, for easier loading and unloading (see washing
machine user manual for unique pedestal model number
for the washer).
Pedestal item number: WMZ20500 or replacement
WTZPW20D
Stacking kits
The dryer can be stacked on a Bosch washer of the
same dimensions to save space. Only the below
Stacking kits must be used when stacking this dryer on a
Bosch washer.
Stacking kit without a shelf: WTZ20410UC
(QVXUHWKHGUDLQKRVH
UHPDLQVFRQQHFWHG
WRVXPSSXPSRXWOHW
NOTICE: Do not reuse an old or different drain hose.
Only use the drain hose included with the dryer.
6. Connect the outlet end of the drain hose to a
standpipe or other drain inlet. Examples are shown
below.
CAUTION
9
Stacking kit with a shelf: WTZ11400UC
Power Adapter
The Power Adapter is for plugging into home's existing 4prong receptacle and has two power outlets, one each
for your current Bosch Dryer and Washer to plug into.
Power Adapter item number: WTZPA20UC
Tip: Your Bosch dryer comes with the Power Adapter
included in the drum. The accessory number is given
here only if it is lost or damaged and a replacement is
needed.
Accessories can be purchased from Customer Service
or your local dealer.
~ Customer service; Page 4
14
▯
▯
▯
▯
APPLIANCE DAMAGE COULD OCCUR IF DRAIN
WATER FLOWS BACK INTO THE APPLIANCE
In all drain conditions, scenarios, or connections
you must ensure:
The drain water from the hose is free flowing and
not obstructed allowing adequate water flow.
Drain opening must not be sealed in any way. It
must be open to avoided a back siphon
condition.
The end of the drain hose does not protrude into
the pumped out or standing water.
Be sure to follow all local codes and regulations
in draining the condensate water to a suitable
drain.
Secure hose and/or elbow as shown below. Sink “D”
or floor “E”.
Examples of connections:
Plumbing box or Standpipe connection:
For most plumbing box installations (with adjacent
washer) the plastic elbow supplied with the dryer will
not be used and must be removed from the dryer
drain hose.
1. Fasten the dryer drain hose to the washer drain/elbow
as shown in picture “A”. Secure with plastic ties
supplied.
▯
9
NOTICE: Examples shown are for reference only. Not all
fittings, connectors, nuts, brackets, ties, etc. are supplied
to accommodate every application.
'
CAUTION
PD[LQ
FP
Do not over tighten plastic ties pinching or
causing a restriction in the drain hose.
$
(
2. Place drain hose assembly into standpipe as shown in
picture “B”.
Maximum height of drain is 39 in. (100 cm).
▯
Sink/Basin or Floor drain:
If using the elbow supplied on the hose re-position
elbow closer to the drain end of hose and fasten with
the plastic ties as shown in picture “C”.
&
▯
Sink Drain Pipe:
Attach and secure drain hose as shown below in
picture “F”.
Use a standard hose clamp which can be purchased
from your local hardware store.
PLQLQ FP
PD[LQ FP
%
)
Minimum height of drain for installation shown above is
31.5 in. (80 cm). Maximum height of drain is 39 in. (100
cm).
15
NOTICES
▯
▯
▯
Examples shown are for reference only. Not all fittings,
connectors, nuts, brackets, ties, etc. are supplied to
accommodate every application.
Ensure there are no kinks or crimps along the entire
length of hose.
If installed in an upper floor of a multi-story building,
the dryer should be installed on a drained floor to
prevent water damage to lower floors in the event of a
leak.
Electrical Connections
Power Cord
The attached power cord is a standard NEMA 6-15P
cord and is UL approved and listed in the USA and
Canada. It meets the following requirements:
▯ 208-240 volt rated;
▯ 15 amps.
NOTICES
▯ This appliance is restricted to being powered by the
supplied power cord noted above.
▯ There are two allowable methods to connect the
appliance cord to power:
1. If the home has an existing 4-prong, 30A Dryer
receptacle use the supplied Power Adapter.
Plug the adapter into the 4-prong receptacle (Line
side) and then plug the Bosch Dryer and Washer
power cords into the adapter (Load side). See
following images of Power Adapter for Line/Load side
locations and appliance cord placement.
NOTICE:
This adapter can only be used with a 4-prong
receptacle. If the home has an existing 3-prong dryer
receptacle it and its complete branch circuit must be
changed to a 4-prong circuit.
16
2. Use an existing individual 240V, 15A minimum branch
circuit having a NEMA 6-15R outlet (or choose to have
one installed).
9
WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK.
Do not reuse this Power Adapter with a new
purchase of a Dryer. The old Power Adapter must
be discarded with the old Dryer. A new Power
Adapter must be used when a new Dryer is
installed.
ALL ELECTRICAL CONNECTIONS AND CIRCUITS
WARNING
9
▯
▯
9
ELECTRIC SHOCK HAZARD
▯ Do not pull on the power cord to unplug the
dryer.
▯ Protect the power cord from physical damage
such as being twisted, kinked, pinched, or walked
on.
▯ DO NOT use an extension cord to connect the
dryer to the power supply.
▯ Make sure:
The power cord fits into the outlet/receptacle.
The home’s internal power supply circuit wire size is
sufficient and electrically grounded.
▯ Do not cut, remove or bypass the grounding
prong on the power cord end.
▯ Do not modify the plug provided with the
appliance; if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
▯ The power cord must only be replaced by a
qualified service provider or licensed electrician
to help avoid a fire/electric shock hazard.
Use only manufacturer recommended
replacement power cords purchased through our
Customer Service department.
▯ Do not use NEMA 14-30P (4-prong) nor 10-30P
(3-prong) power cords on this appliance.
▯ Do not reuse old power cord.
▯ Do not make a sharp bend or crimp wiring or
conductors at connections.
GROUNDING INSTRUCTIONS
9
WARNING
ELECTRIC SHOCK HAZARD
This appliance must be electrically grounded. In the
event of malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path
of least resistance for electric current.
This appliance is equipped with a cord that has an
equipment grounding conductor and a grounding
plug.
The plug must be plugged into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
If a ground fault circuit breaker is used, ensure it
has this symbol: z.
Only this symbol can assure compliance with all
current regulations.
SAVE THESE INSTRUCTIONS!
WARNING
ELECTRIC SHOCK HAZARD
To reduce the risk of electrical shock:
▯ Only pull out the power cord by the plug end and
never by the cord, as this could damage it.
▯ Never touch or hold the plug end or power cord
with wet hands.
▯ Never unplug the plug end during operation.
9
WARNING
ELECTRIC SHOCK HAZARD
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock.
Check with a qualified electrician or servicer if you
are in doubt as to whether the appliance has been
properly grounded.
17
Leveling the dryer
Check heating system
Importance of leveling the dryer
It is important that your dryer is level and that all four
dryer feet press with equal pressure against the floor.
This will help assure the quietest, most vibration-free use
of your dryer.
1. Check that the drum is empty.
To adjust the dryer feet:
1. Install the dryer on a level and solid surface, preferably
in a corner of a room.
2. If the floor is uneven (or not level) adjust the dryer feet
as required to level the dryer. Do not place anything
under the dryer feet to help level the dryer.
3. Extend the dryer feet no more than is necessary. The
more the feet are extended, the more vibration the
dryer will experience. Start with the dryer feet turned all
the way in and adjust each foot as necessary.
4. Use a bubble level to check the top of the dryer to
make sure it is level side to side and front to rear.
5. Press down on each corner of the dryer top to make
sure the dryer does not “wobble“. There should be no
"give" or movement. All four dryer feet should press
equally against the floor. This is just as important as
the dryer being level to prevent vibration.
18
2. Close the dryer door.
3. Switch the dryer to Timed Dry Variable program and
then touch the Start/Pause button.
4. After 5-6 minutes touch the Start/Pause button and
open the door.
▯ If the interior of the dryer feels warm, the dryer has
been connected properly. Switch the dryer to Off.
▯ If the dryer does not work, switch the dryer to Off.
Look in the Troubleshooting section of this user
manual for hints in solving the problem.
Preparing to transport the dryer - step by
step
1. Rotate the program selector to Off.
2. Pull out power supply plug.
3. Place any accessories in the drum.
4. Close the door and secure with adhesive tape.
5. Screw the height-adjustable feet of the dryer into the
housing to prevent them from being damaged during
transportation.
Getting to know your appliance
Control panel
Getignowkyuraplince
( Dry Level, Time Dry, Finish in
Selectable Option Settings for customizing Programs as desired.
Indicator Symbol lights or desired time is displayed
if setting is active.~ Default Program and Option
settings; Page 29
0 Wrinkle Block, Low Heat, Signal
@ Program Selector
Selecting a program and switching on/off;
turns in both directions.
H Display area for settings and information.
Additional option settings.
Indicator Symbol lights if setting is
active.~ Additional Program Option
settings; Page 29
8 Start/Pause
▯
▯
▯
starts or pauses the selected cycle;
indicator lamp on (steady) - cycle running, can
be paused;
indicator lamp blinking - options can be
changed; cycle can be started; door is closed;
cycle is in Pause mode.
19
Display area
( Drying cycle status sequence
H Time Dry ñ and Finish in 0 indicators
0 Childproof lock indicator
P Indicator lamps for additional option settings: Wrinkle
8 Cleaning required indicator
X Check drain indicator
@ 4 Digit Display:
` Start/Pause indicator
h Dry Level indicator
▯
▯
20
Finish in time
adjustable in 1h (h=hour) steps to 24h
program duration 2:30
Block, Low Heat and Signal
OPERATING INSTRUCTIONS
9
OperatignIsrcutinso
WARNING
RISK OF FIRE, ELECTRIC SHOCK, OR INJURY
To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY
INSTRUCTIONS and OPERATING INSTRUCTIONS
before operating this appliance.
Your new dryer
#
3
+
( Control panel, display area, program selector
0 Drum with interior light (depending on model)
The interior light activates after the door is opened and after the program starts, it switches off automatically.
Close the door
8 Open the door
21
@ Lint filter
H Air inlet
P Open the maintenance flap
Close the maintenance flap
Condenser
9
WARNING
BEFORE USING YOUR DRYER
Read and follow all installation and operating
instructions.
Check the machine. Never connect the utilities (power or
water) to or start a damaged machine! Contact Customer
Service!
~ Customer service; Page 4
Check to be sure the dryer drain hose is installed
properly.
Turning the dryer on and off
The rotating Program Selector turns the dryer on as
drying cycle is selected and off when the selector is later
turned to the vertical Off position.
Before using the dryer for the first time
1. Read these operating instructions carefully.
2. Check that the supply voltage corresponds with the
voltage specifications on the rating plate on the dryer,
see top rear side of the dryer and/or rating plate label
inside the dryer door.
~ Electrical Connections; Page 16
3. Remove all objects from the drum.
22
4. Check the dryer for visible damage. If damage found
contact your dealer.
5. Wipe the inside of the drum with a damp cloth.
6. Check heating system.
~ Check heating system; Page 18
7. If the dryer does not work, switch the dryer to Off.
Look in the Troubleshooting section of the operating
instructions for support.
~ Troubleshooting; Page 34
Temporary disconnection of the dryer
If you intend to go on vacation or are not using your dryer
for an extended period of time, you should:
1. Turn off the circuit breaker.
2. Pull out the power supply plug if possible.
3. Clean the lint filter.
Using program selector to choose a
drying cycle
NOTICE: If the Child lock is activated, you must
deactivate it before you can select a program.
~ Childproof lock; Page 25
Use the program selector to select the desired drying
program. The dial turns in both directions and when a
cycle is selected its time duration appears in the display.
Program selection
For optimum drying results your dryer offers several
different types of programs to choose from.
Select the required drying program from the program
table according to the examples.~ Program selection
table; Page 28
Time programs
Time programs run at specific temperatures and are
suitable for delicate items, individual or a few small items
and for adding additional drying time if necessary.
~ Default Program and Option settings; Page 29
Automatic programs
There are automatic programs for different types of
textiles (regular/cotton, permanent press).
The program sequence of automatic programs is
controlled by sensors. The duration of the program
depends on the measured degree of moisture in the
laundry and on the selected degree of dryness (e.g.
Cotton Dry or Cotton Extra Dry).
▯
Regular/Cotton
▯
Permanent Press
Special programs
The programs Sanitize, Jeans, Towels, Hand Wash/Wool
and Heavy Duty (depending on model) are made for
special type fabric loads.
~ Program selection table; Page 28
Selecting program settings and additional
options
By selecting program settings and additional options,
you can adjust the drying process to better suit the items
you are drying.
The settings can be selected and deselected depending
on the cycle progress.
The indicator lamps of the buttons light up if the setting is
active.
For Time Dry, Finish in, Wrinkle Block, Low Heat and
Signal the settings are not retained after the appliance is
switched off.
~ Default Program and Option settings; Page 29
~ Additional Program Option settings; Page 29
For Dry Level the setting is retained after the appliance is
switched off.
~ Dry Level; Page 29
23
Loading the laundry
9
Load the laundry
WARNING
RISK OF EXPLOSION
Do not dry laundry that has ever been in contact
with solvents, oil, wax, grease or paint (e.g. nail
varnish remover, stain remover, cleaning solvent,
etc.).
1. Check lint filter.
Place laundry in the empty drum. Put each piece of
laundry into machine separately.
For best results the laundry should be sorted according
to type of laundry and desired degree of drying.
~ Sorting the laundry; Page 27
~ Program selection table; Page 28
~ Dry Level; Page 29
Starting the program
1. Rotate program selector to the desired program.
The filter should be cleaned after or before every
drying process. Cleaning the filter reduces the drying
time and saves energy.
~ Cleaning the lint filter; Page 30
2. Load the laundry into the drum and close the door.
Select the program which corresponds to the laundry
in the dryer from Program selection table.
~ Program selection table; Page 28
Tip: If the door has not been closed properly, the dryer
will not start.
L
The Start/Pause indicator light starts flashing.
2. Touch the Start/Pause button. Indicator lamp lights up
and the cycle starts.
Tips
After loading, close the door carefully so as not to trap
any items between the door and the rubber seal. The
door should close until a click is heard.
Foreign objects left in the drum may damage laundry.
Before inserting any laundry, check to make sure no
foreign objects are in the drum.
Recommended Load Size
Recommended maximum load size can be found in the
program selection table in this manual.
~ Program selection table; Page 28
24
During the cycle, the display area indicates the
estimated remaining time and symbols showing the
cycle progress are lit.~ Display area; Page 20
NOTICES
▯ If you want to protect the cycle against inadvertent
adjustment, select the Childproof lock.
~ Childproof lock; Page 25
▯ If é indicator lights up, clean the lint filter and/or
Condenser.
~ Cleaning the lint filter; Page 30
~ Cleaning the Condenser; Page 32
▯ If DR indicator lights up, check the drain hose and
its connection.
~ Cleaning the Condenser; Page 32
3. If required, select Low Heat by pressing the button.
~ Additional Program Option settings; Page 29
4. If required, select Wrinkle Block by pressing the
button.
~ Additional Program Option settings; Page 29
Program end
Tip: The estimated remaining time will be updated.
Indicator of program sequence
Bosch dryers use an advanced control system which
continually monitors the laundry’s remaining moisture.
The current state of the process and status of the
program is shown by indicator lights (Damp, =, Dry,
End).
End appears in the display area and the Start/Pause
button indicator lamp is off.
After the program end, rotate the program selector to
Off.
Removing laundry/switching the
appliance off
1. Open the door and remove the laundry.
2. Turn the program selector to the Off position.
Appliance is switched off and dryer light goes out.
3. Clean lint filter.
~ Cleaning the lint filter; Page 30
4. Close the door.
Childproof lock
You can secure the dryer against inadvertent changing of
the set functions. To do this, activate the childproof lock
after cycle start.
To Activate/Deactivate, touch Time dry and Finish in
buttons at the same time for 3 seconds. In the display
field, you will see the D symbol light indicating the
childproof lock is active.
Tip: If the display panel switches off and the Start/Pause
button indicator is blinking at the end of a program, the
Energy-saving mode is active. To activate the display,
press any button.
~ Environmentally friendly use of your dryer; Page 8
NOTICE: The childproof lock will remain activated until
the next cycle start even after switching the machine off.
You must deactivate the childproof lock before the next
cycle and, if necessary, activate it again after starting the
cycle.
Selecting a different program
If you have inadvertently started the wrong program, you
can change this as follows:
1. Touch Start/Pause.
2. Select another program.
3. Touch Start/Pause. The new drying cycle starts from
the beginning.
Cancel program
If required, you can cancel the selected program:
1. Touch Start/Pause.
2. Rotate the program selector to Off.
25
Signal
For switching the buzzer on and off touch the Signal
button.
The buzzer indicates program end if it is activated.
Other alarms are not influenced by this option.
You can also change the following settings:
▯ volume for buzzer
▯ volume for button signals
To change these settings always activate adjustment
mode first.
Activate adjustment mode
2II
1. Select Cotton Extra Dry on position 1.
The appliance is on.
2. Hold down Start/Pause and turn the program selector
to the right (position 3). Release Start/Pause button.
Adjustment mode is now activated and the default
volume for buzzer appears in the display.
Changing the volume
You can set the volume by touching the Time dry
(volume down) or Finish in (volume up) button with the
program selector in the following positions:
▯ Position 3 for buzzer volume
0 = off, 1 = soft, 2 =
mid, 3 = loud, 4 =
very loud
▯
Position 4 for button signals volume
0 = off, 1 = soft, 2 =
mid, 3 = loud, 4 =
very loud
Quit adjustment mode
Turn the program selector to Off position. The settings
were saved.
26
Laundry
Preparing the laundry
Laundry
NOTICE: Damage to the appliance/fabrics.
Foreign objects (e.g. coins, paper-clips, needles, nails)
may damage the laundry or components in the dryer.
Therefore, note the following tips when preparing your
laundry:
▯ Empty all pockets to ensure no loose debris (coins,
keys, other hard objects and cigarette lighters) are
placed in the dryer drum.
▯ Close any fasteners (such as zippers, hooks and
eyelets) that could cause laundry to catch or become
entangled. Button up covers. Tie cloth belts, apron
strings, etc. together or use a laundry bag.
▯ Remove any foreign objects or non-washable parts.
▯ The drum must be empty prior to loading textiles.
Drying tips
▯
▯
▯
▯
▯
▯
Sorting the laundry
Check the care labels on each laundry item prior to
drying. They provide valuable information as well as
limitations about laundry process (temperature etc.) to
help you choose an appropriate cycle.
Do not dry the following textiles in the dryer:
▯ air-tight textiles (e.g. rubberized),
▯ delicate fabrics (silk, synthetic curtains).
▯
▯
To ensure a uniform drying result, sort the laundry
according to fabric type and drying program.
Always dry very small items (such as socks and
handkerchiefs) and underwired bras together with
large items of laundry or in a laundry bag.
Do not over-dry easy-care laundry - risk of wrinkling!
Allow laundry to finish drying in the air.
Do not iron laundry immediately after drying. Place the
laundry in a pile for a short while. Residual moisture
will then be distributed uniformly.
Knitted fabrics (e.g. T-shirts, jerseys) often shrink when
tumble-dried for the first time. Do not use the Extra
Dry program.
Only dry wool fabrics with the use of drying rack
accessory. To refresh or fluff up wool articles use the
Hand Wash/Wool program and remove load from
dryer and layout on flat surface to finish drying.
For pre-dried, multi-layered fabrics or small, individual
items of laundry, use the Time program. Also suitable
for adding additional drying time if necessary.
~ Program selection; Page 23
~ Program selection table; Page 28
Some detergents and textile care products, starch or
softeners may contain chemicals that may become
deposited on the moisture sensors negatively affecting
their function and the drying results.
▯ When washing laundry to be tumble-dried, use the
correct amount of detergent and textile care
products as specified in the manufacturer's
instructions.
▯ Clean the moisture sensor regularly.
~ Cleaning the moisture sensors; Page 33
27
Program selection table
Progamselctinoable
Programs
Standard programs
Cotton Dry
Cotton Extra Dry
Perm P Damp
Perm P Dry
Perm Press Extra Dry
Delicates
Quick 40™
Timed Dry Variable
Hand Wash/Wool
Air Fluff/No Heat
Quick Dry Auto
Special programs
Towels
Max.
load up
to:
Type of laundry
full load Normal cotton and linen type load (bed linen, cotton clothes, etc.)
full load Terry bathrobes and terry bed linen (particularly thick or multi-ply)
1/2 load Trousers, dresses, skirts, shirts, blouses, leggings, sports clothing with syntheticrich fibers, lingerie (not to be or only lightly ironed)
1/2 load Shirts, blouses, sports clothing (not to be ironed)
1/2 load Bed linen and table linen, track suits, parkas, blankets (not to be ironed, thick or
multi-ply)
1/4 load Lingerie made of synthetic fibers, cotton or blended fabric
1/3 load Multi-layered fabrics.
Sensitive fabrics made of synthetic or acrylic fibers.
Also for adding additional drying time if necessary
1/3 load Multi-layered fabrics.
Sensitive fabrics made of synthetic or acrylic fibers.
Also for adding additional drying time if necessary.
1/3 load Wool fabrics suitable for washing or delicate hand washed items.
Use to freshen or fluff up wool articles. Remove items after program end and
spread out on flat surface to finish drying.
Use of Drying rack is recommended~ Drying rack; Page 14
1/3 load All types of fabrics.
For freshing up or airing out of garments that have been worn for a short period of
time.
1/4 load Laundry made of synthetic fibers, cotton or blended fabrics (for example) that
needs to be dried quickly
1/3 load Mix of cotton and synthetic textiles that do not require sensitive temperatures and
treatments.
Sanitize
1/2 load Cotton fabrics for drying at high temperatures.
Jeans
1/2 load Fabrics made from jeans/denim.
Heavy Duty
full load Terry towels, kitchen towels, hand towels, bed linen, underwear, cotton socks
Tip: For best results it is recommended to load the amount of textiles into the drum according to the fabric type and
amount shown in the above table.
28
Default Program and Option settings
At the factory initial settings are pre-set for all cycles.
You can change some program settings as follows.
Dry Level
This option adjusts the drying time in small steps for
certain programs.
Default setting = OFF (no LED Symbol shown)
Selectable values: OFF, +1, +2, +3
The Dry Level is retained until changed.
NOTICE: The higher the number value the increased
time of drying.
Time Dry
Available only for Time programs,
~ Program selection table; Page 28
can be selected from minimum 20 minutes to maximum
3 hours, in 10-minute steps.
Finish in
The program end (Finish in) time can be set in one hour
increments to a maximum of 24 h (hours).
After selecting the desired drying program (at the dial)
but before touching the Start button, touch the Finish in
button until the desired time is displayed, e.g. 8 h, then
touch the Start button to start the dryer.
NOTICE: The cycle duration is included in the set Finish
in time.
Here is an example of 1hr:30min cycle time and an 8 h
Finish in time. 8 h is displayed (until Energy-saving mode
activates) and counts down (approximately 6hr:30min)
until the drying cycle begins (at 1hr:30min) then the cycle
duration 1:30 is displayed and drying begins. Total time
approximately 8 hours.
Additional Program Option settings
Wrinkle Block
If the Wrinkle Block option is activated it prevents the
laundry from creasing or wrinkling. The drum rotates at
specific intervals after the drying process allowing the
load to remain loose and fluffy until removed.
If the Wrinkle Block button is touched, this function is set
to 60 (+60m) or 90 (+90m) minutes.
The laundry remains loose and fluffy until it is removed.
The laundry should be removed before this time has
elapsed.
Low Heat
Reduced temperature for delicate fabrics, e.g.
polyacrylic, polyamide or elastane, with longer drying
Spin speed
The Spin Speed setting is based on your washer’s
normal spin speed. Adjusting this setting allows the
dryer’s displayed time to be as close as possible to the
actual drying time.
NOTICE: The spin speed is not the same as the rotation
speed of the dryer drum.
To change the dryer’s Spin Speed setting follow the
instructions below.
Activate adjustment mode
2II
1. Select Cotton Extra Dry on position 1.
The appliance is on.
2. Touch and hold Start/Pause and turn the program
selector to the right (position 2). Release Start/Pause
button.
Adjustment mode is now activated and the default value
(1000 rpm) appears in the display.
Change spin speed
Press the Time dry or Finish in button to change the
setting (allowable values are between 600 and 1800 in
increments of 100).
Quit adjustment mode
Turn the program selector to Off position. The settings
were saved.
29
USER-MAINTENANCE INSTRUCTIONS
USER-MAINTENANCE INSTRUCTIONS
Your appliance is designed to give you years of service.
Observe the following instructions to maintain your
appliance and keep it in top operating condition.
User-maitnecsrcutino
9
Cleaning the lint filter area
WARNING
9
FIRE HAZARD
Follow these instructions when cleaning the lint filter
area.
▯ DO NOT extend any cleaning device or object
more than six inches (6") beyond the lint filter
opening.
▯ Only use a soft instrument (rubber, cloth or soft
bristles) for cleaning inside the lint filter area.
▯ With both lint filters removed, wipe or vacuum
around the lint filter opening and no more than six
inches below the opening.
WARNING
RISK OF EXPLOSION
Never use solvents or highly flammable liquids for
cleaning.
9
CAUTION
Regular Maintenance, especially cleaning the lint
filters is important!
Improper cleaning may damage the dryer or cause
injury.
Do not spray with a hose or pressure washer.
Do not use scouring agents or all-purpose cleaners.
Do not use steam cleaners.
Do not use bleach-based wipes.
Over time, lint from the drying process collects in the lint
filter area.
This lint can be easily removed using a vacuum cleaner.
Cleaning the Dryer's exterior
Clean the Dryer's exterior surfaces by wiping with a soft
cloth and soapy water only.
Wipe the drum, door seal and inside of the door with a
damp cloth only.
NOTICE: Do not clean with a water jet.
Remove detergent and cleaning agent residue
immediately.
During drying, water may occasionally accumulate
between the window and the seal. This does not affect
the proper operation of your dryer.
Cleaning the lint filter
Dirty filters prolong the drying time and increases energy
consumption.
The filter should be cleaned before or after each drying
process.
If é indicator lights up during a drying program, clean
the filter immediately.
Tip: The program is interrupted automatically.
To clean the lint filter:
1. Turn the Program Selector to switch off the appliance.
9
CAUTION
The inside of the door heats up during the drying
process. The drum, the door and the laundry may
be hot.
30
2. Open the door.
3. Pull out filter.
Remove the lint from the lint filter opening and area
below. Ensure that no lint falls into opening below.
4. Open the filter.
5. Remove lint (run hand over filter).
NOTICE: Severely dirty or clogged lint filter should be
rinsed under warm running water.
The filter must be dried thoroughly before being
placed back into dryer.
6. Close the filter and re-insert it.
7. Close the door.
31
Cleaning the Condenser
The Condenser requires periodic cleaning
(recommended once per month under normal drying
conditions). The frequency of cleaning depends on the
amount and type loads being dried.
7. Rinse the Condenser and the cap on all sides with a
jet of water to completely remove all of the lint and
fluff.
To clean the Condenser:
1. If the dryer is hot, run on Air Fluff/No Heat program to
allow the dryer to cool down.
2. Residual water may escape, place an absorbent cloth
under the maintenance flap.
3. Unlock the maintenance flap and open it completely.
8. Remove all lint and fluff from the seals on the dryer
and Condenser.
9. Allow the cap and the Condenser to dry fully.
10. First insert the Condenser, then the cap.
11. Turn back both locking levers.
4. Turn both locking levers towards each other.
12. Close the maintenance flap until it locks into position.
5. Pull out the Condenser cap.
13. Look in the Troubleshooting table to reset the
maintenance indication.
~ Troubleshooting; Page 34
6. Remove the Condenser.
NOTICE: Do not damage the Condenser! Clean with
warm water only. Do not use hard or sharp edged
objects!
32
Cleaning the moisture sensors
The dryer is equipped with a stainless-steel moisture
sensor. The moisture sensor measures how damp the
laundry is.
After long periods of use the moisture sensor may
become covered by a fine layer of limescale or residue
of detergents and textile care products. Such residue
must be removed regularly as the sensor function will be
impaired and the drying results less than desired.
Replacing fuses in the Power Adapter step-by-step
Fuses are a required safety device intended to last for
the life of the product. In the unlikely event one fails
follow the below steps to replace it.
1. Unplug the Washer and Dryer cords from the Power
Adapter.
Unplug the Power Adapter from the wall outlet.
To clean the moisture sensors:
1. Open the door.
2. Remove fuse holder using a pointed tool as shown
(e.g. pick or small screwdriver).
2. The deposit on the sensors can easily be removed by
wiping the sensors (the two bars next to the lint filter)
with a cloth and white vinegar.
3. Replace suspected bad fuse with a known good one.
NOTICE: USE ONLY THE REPLACEMENT FUSE,
PART NUMBER 10013781.
4. Reinstall the fuse and fuse holder in the Power
Adapter ensuring it snaps into place.
NOTICE: Use white vinegar only!
Clean the moisture sensors once a month.
Maintenance of drain hose
If DR indicator lights up check the drain hose for kinks,
restrictions or blockage.
NOTICE: If DR indicator still lights up after the above
steps are taken, you should contact Customer Service.
33
Troubleshooting
Introduction
Troubleshtign
NOTICE: Before doing maintenance work or trying to fix
a problem, rotate the program selector to Off.
If the power supply is interrupted during operation, the
program will not continue when power is restored. When
power is restored, confirm program and selected options
are as desired and then press the Start/Pause button.
9
WARNING
RISK OF INJURY TO SKIN
The door, the drum and the laundry may be hot.
9
WARNING
RISK OF ELECTRIC SHOCK! EXPLOSION HAZARD
Repairs or replacement of parts should be carried
out by authorized service providers only.
Before calling Customer Service, check whether you can
rectify the problem yourself by means of the following
table.
If a problem cannot be rectified or a repair is required:
1. Set program selector to Off.
2. Disconnect the dryer from the power outlet.
3. Call Customer Service.
~ Customer service; Page 4
General Troubleshooting
Often when you encounter a problem it will be something
minor. Before you call Customer Service, consider the
suggestions and instructions below:
NOTICE: The troubleshooting items listed below can
help resolve minor issues with your dryer quickly and
without the necessity of a service call.
34
Determing the Problem
Problem
Possible cause(s)
Solution(s)
Dryer does not start.
Start/Pause indicator
light does not flash.
Power cord end not inserted at all
or not inserted correctly.
A fuse is blown or breaker is
tripped.
Insert power cord end correctly.
Door not closed properly.
Program not selected.
The display panel and
indicator lights go out,
Start/Pause indicator
light flashes.
The display panel and
Start/Pause indicator
switch off.
Dryer does not start.
Start/Pause indicatorflashes.
é indicator light up.
Energy-saving mode is activated.
Sleep mode after setting the Finish Touch any button to activate the display.
in option is activated.
Start/Pause button not pressed.
Press the Start/Pause button to start the cycle.
Lint filter dirty.
Clean lint filter.
~ Cleaning the lint filter; Page 30
Touch the Start/Pause button to reset the displayed
indication and then touch Start/Pause button again to
reset the appliance if necessary.
Clean Condenser.
~ Cleaning the Condenser; Page 32
Touch the Start/Pause button to reset the displayed
indication and then touch Start/Pause button again to
reset the appliance if necessary.
Check drain hose.
~ Maintenance of drain hose; Page 33
Check drain hose connection conditions.
Condenser dirty.
DR indicator light up.
Water has not drained
completely.
Drain hose is blocked.
Water is leaking out.
Dryer is not leveled.
The Condenser seal is dirty.
Drain hose is leaking.
Program terminates
shortly after starting.
Laundry is not loaded.
Load too small for selected program.
Loaded laundry is too dry.
The door opens by
itself.
Replace fuse or reset breaker.
For replacing the fuses in the supplied Power
Adapter.~ Replacing fuses in the Power Adapter step-by-step; Page 33
Check if laundry is caught in the door. Close the door
until a click is heard.
Rotate the program selector to desired program.
~ Program selection table; Page 28
Touch any button to activate the display.
~ Environmentally friendly use of your dryer; Page 8
The door not closed properly.
Level the dryer.
~ Leveling the dryer; Page 18
Clean the Condenser seal.
~ Cleaning the Condenser; Page 32
Check entire length of drain hose for leaks; replace if
necessary.
Check that hose is clamped on hose barb at back of
the dryer securely.
Load the laundry.
~ Loading the laundry; Page 24
Use time program.
~ Program selection; Page 23
~ Program selection table; Page 28
Check the loaded laundry. If it is dry, open the door,
remove laundry and turn program selector to Off.
Close the door until a click is heard.
35
Problem
Possible cause(s)
Solution(s)
Creasing.
Laundry load exceeded.
Unsuitable program selected.
One or more indicator
lights are flashing.
Lint filter or/and Condenser is dirty. Clean lint filter or/and Condenser (see solution of the
problem(s) in this table above).
Installation conditions are not ade- Check the installation conditions.
quate.
~ Electrical Connections; Page 16
Fault in program sequence or mal- Switch off the dryer, allow it to cool down, switch back
function.
on and restart the program.
Remove laundry from the dryer immediately and
spread out. This allows the heat to dissipate. Be careful as the door, the drum and the laundry may be hot.
Do not exceed the maximum load for selected program. Remove items of laundry immediately after the
end of the program, hang them up and pull into shape.
Turn program selector to Off.
~ Program selection table; Page 28
Select Wrinkle Block button to prevent the laundry
from creasing or wrinkling.
~ Wrinkle Block; Page 29
Drying result is not sat- Warm laundry may feel more damp Remove items of laundry immediately after the end of
isfactory (laundry feels than it really is.
the program and turn the program selector to Off.
too damp).
The selected program does not suit Use another drying program or, in addition, select the
the load.
time program.
~ Program selection table; Page 28
Dryness level is not adjusted.
Use Dry Level to adjust the dryness level.
~ Dry Level; Page 29
Fine layer of limescale or detergent Clean the moisture sensors.
and textile care products residues ~ Cleaning the moisture sensors; Page 33
on the moisture sensors.
Program termination e.g. main
See the problem(s) mentioned in this table.
power supply failure, door open or
maximum drying time reached.
Initial load is too wet.
Spin laundry at higher speed in the washing machine,
before drying.
Switch off the dryer, and than turn it on again.
Drying time too long.
Lint filter and/or Condenser is dirty. Clean lint filter
~ Cleaning the lint filter; Page 30
and/or Condenser.
~ Cleaning the Condenser; Page 32
Insufficient supply of ambient air for Ensure that cool ambient room air can freely circulate
cooling.
near the dryer.
~ Installation for best performance; Page 9
Air inlet possibly blocked.
Do not obstruct the air inlet on the front of the dryer.
Ambient temperature is lower than Ensure the ambient room conditions are within this
range.
59°F/15°C or higher than 86°F/
30°C .
Program does not start A delayed starting time has been
Drying cycle will begin at proper time to complete at
Finish in (remaining)
selected and activated.
the selected Finish in time.
time is displayed.
Program does not start Childproof look is activated.
Deactivate Childproof look.
~ Childproof lock; Page 25
- D symbol lit up.
Power failure.
If troubleshooting did not solve your issue contact Customer Service ~ Customer service; Page 4
36
STATEMENT OF LIMITED PRODUCT WARRANTY
Bosch Clothes Dryer
STAEMNTOFLIMTEDPROUCTWARNTY
What this Warranty Covers & Who it Applies to:
The limited warranty provided by BSH Home Appliances
(“Bosch”) in this Statement of Limited Product Warranty
applies only to the Bosch appliance ("Product") sold to
you provided that the Product was purchased:
▯ For your normal, household (non-commercial) use,
and has in fact at all times only been used for normal
household purposes.
▯ New at retail (not a display, “as is”, or previously
returned model), and not for resale, or commercial
use.
▯ Within the United States or Canada, and has at all
times remained within the country of original purchase.
The warranties stated herein apply to the original
purchaser of the product warranted herein and to each
succeeding owner of the product purchased for ordinary
home use during the term of the warranty.
Please make sure to return your registration card; while
not necessary to effectuate warranty coverage, it is the
best way for Bosch to notify you in the unlikely event of a
safety notice or product recall.
Limitation for Third Party Accessories:
Third party accessories, other than those shipped with
your Bosch appliance, and any consequential damages
resulting therefrom, are not covered by this warranty. This
limitation expressly includes the implied warranties of
merchantability and fitness for a particular purpose,
which are also expressly excluded with respect to third
party accessories, other than those shipped with your
Bosch appliance. Use of third party accessories, other
than those shipped with your Bosch appliance, does not
void this warranty on any other part, and all other
provisions of this warranty remain in effect.
How Long the Warranty Lasts:
Bosch warrants that the Product is free from defects in
materials and workmanship for a period of three hundred
sixty-five days (365) days from the date of the original
purchase. The foregoing timeline begins to run upon the
date of the original purchase, and shall not be stalled,
tolled, extended, or suspended, for any reason
whatsoever. This product is also warranted to be free
from cosmetic defects in material and workmanship
(such as scratches of stainless steel, paint/porcelain
blemishes, chips, dents, or other damage to the finish) of
the Product, for a period of thirty (30) days from the date
of purchase or closing date for new construction. This
cosmetic warranty excludes slight color variations due to
inherent differences in painted and porcelain parts, as
well as differences caused by kitchen lighting, product
location, or other similar factors. This cosmetic warranty
specifically excludes any display, floor, “As Is”, or “B”
stock appliances.
SCOPE OF EXTENDED LIMITED WARRANTY
Bosch will repair or replace, free of charge, any printed
circuit boards, drive motor or component part of the drive
motor that proves defective under conditions of normal
home use during the first seven hundred thirty (730)
days from the date of the orginal purchase, labor
charges excluded.
Repair/Replace as Your Exclusive Remedy:
During this warranty period, Bosch or one of its
authorized service providers will repair your Product
without charge to you (subject to certain limitations
stated herein) if your Product proves to have been
manufactured with a defect in materials or workmanship.
If reasonable attempts to repair the Product have been
made without success, then Bosch will replace your
Product (upgraded models may be available to you, in
Bosch’s sole discretion, for an additional charge).
Nothing in this warranty requires damaged or defective
parts to be replaced with parts of a different type or
design than the original part. All removed parts and
components shall become property of Bosch at its sole
option. All replaced and/or repaired parts shall assume
the identity of the original part for purposes of this
warranty and this warranty shall not to be extended with
respect to such parts. Bosch’s sole liability and
responsibility hereunder is to repair manufacturerdefective Product only, using a Bosch authorized service
provider during normal business hours. For safety and
property damage concerns, Bosch highly recommends
that you do not attempt to repair the Product yourself, or
use a non--authorized servicer provider; Bosch will have
no responsibility or liability for repairs or work performed
by a non-authorized servicer provider. Authorized service
providers are those persons or companies that have
been specially trained on Bosch products, and who
possess, in Bosch’s opinion, a superior reputation for
customer service and technical ability (note that they are
independent entities and are not agents, partners,
affiliates or representatives of Bosch). Notwithstanding
the foregoing, Bosch will not incur any liability, or have
responsibility, for the Product if it is located in a remote
area (more than 100 miles from an authorized service
provider) or is in a reasonably inaccessible, hazardous,
threatening, or treacherous locale, surroundings, or
environment; in any such event, if you request, Bosch
would still pay for labor and parts and ship the parts to
the nearest authorized service provider, but you would
still be fully liable and responsible for any travel time or
other special charges by the service company, assuming
they agree to make the service call.
Out of Warranty Product:
Bosch is under no obligation, at law or otherwise, to
provide you with any concessions, including repairs,
prorates, or Product replacement, once this warranty has
expired.
37
Warranty Exclusions:
The warranty coverage described herein excludes all
defects or damage that are not the direct fault of Bosch,
including without limitation, one or more of the following:
Use of the Product in anything other than its normal,
customary and intended manner (including without
limitation, any form of commercial use, use or storage
of an indoor product outdoors, use of the Product in
conjunction with air or water-going vessels).
▯ Any party’s willful misconduct, negligence, misuse,
abuse, accidents, neglect, improper operation, failure
to maintain, improper or negligent installation,
tampering, failure to follow operating instructions,
mishandling, unauthorized service (including self
performed “fixing” or exploration of the appliance’s
internal workings).
▯ Adjustment, alteration or modification of any kind.
▯ A failure to comply with any applicable state, local,
city, or county electrical, plumbing and/or building
codes, regulations, or laws, including failure to install
the product in strict conformity with local fire and
building codes and regulations.
▯ Ordinary wear and tear, spills of food, liquid, grease
accumulations, or other substances that accumulate
on, in, or around the Product.
▯ Any external, elemental and/or environmental forces
and factors, including without limitation, rain, wind,
sand, floods, fires, mud slides, freezing temperatures,
excessive moisture or extended exposure to humidity,
lightning, power surges, structural failures surrounding
the appliance, and acts of God.
In no event shall Bosch have any liability or responsibility
whatsoever for damage to surrounding property,
including cabinery, floors, ceilings, and other structures
or objects around the Product. Also excluded from this
warranty are Products on which the serial numbers have
been altered, defected, or removed; service visits to
teach you how to use the Product, or visits where there is
nothing wrong with the Product; correction of installation
problems (you are solely responsible for any structure
and setting for the Product, including all electrical,
plumbing or other connecting facilities, for proper
foundation/flooring, and for any alterations including
without limitation cabinetry, walls, floors, shelving, etc.);
and resetting of breakers or fuses.
▯
38
TO THE EXTENT ALLOWED BY LAW, THIS WARRANTY
SETS OUT YOUR EXCLUSIVE REMEDIES WITH
RESPECT TO PRODUCT, WHETHER THE CLAIM ARISES
IN CONTRACT OR TORT (INCLUDING STRICT LIABILITY,
OR NEGLIGENCE) OR OTHERWISE. THIS WARRANTY
IS IN LIEU OF ALL OTHER WARRANTIES WHETHER
EXPRESS OR IMPLIED. ANY WARRANTY IMPLIED BY
LAW, WHETHER FOR MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, OR OTHERWISE,
SHALL BE EFFECTIVE ONLY FOR THE PERIOD THAT
THIS EXPRESS LIMITED WARRANTY IS EFFECTIVE. IN
NO EVENT WILL THE MANUFACTURER BE LIABLE FOR
CONSEQUENTIAL, SPECIAL, INCIDENTIAL, INDIRECT,
“BUSINESS LOSS”, AND/OR PUNITIVE DAMAGES,
LOSSES, OR EXPENSES, INCLUDING WITHOUT
LIMITATION TIME AWAY FROM WORK, HOTELS AND/
OR RESTAURANT MEALS, REMODELLING EXPENSES
IN EXCESS OF DIRECT DAMAGES WHICH ARE
DEFINITELY CAUSED EXCLUSIVELY BY BOSCH, OR
OTHERWISE. SOME STATES DO NOT ALLOW THE
EXCLUSIONS OR LIMITATIONS OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES, AND SOME STATES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED
WARRANTY LASTS, SO THE ABOVE EXCLUSIONS OR
LIMITATIONS MAY NOT APPLY TO YOU. THIS
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND
YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
No attempt to alter, modify or amend this warranty shall
be effective unless authorized in writing by an officer of
BSH.
How to Obtain Warranty Service:
To obtain warranty service for your Product, you should
contact Bosch Customer Service Department at 1-800944-2904 to schedule a repair.
*9001511678*
9001511678
0009
1901 Main Street, Suite 600 • Irvine, CA 92614 • 1-800-944-2904
www.bosch-home.com • © 2020 BSH Home Appliances Corporation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
