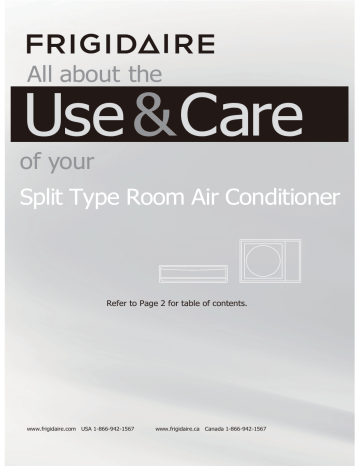

All about the
Use &Care
of your
Split Type Room Air Conditioner
Refer to Page 2 for table of contents.
www.frigidaire.com USA 1-866-942-1567
www.frigidaire.ca Canada 1-866-942-1567
Welcome to the world of
simple handling and no worries
Thank you for choosing Frigidaire. This manual contains all of the information
required to guarantee your safety and the appropriate use of your air
conditioner.
Please read all of the instructions before using the air conditioner and keep
this manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing
our product.
We hope you will consider us for future purchases.
Environmental advices
The packaging material used is recyclable. We
recommend that you separate plastic, paper and
cardboard and give them to recycling companies.
do NOT throw it away with the rest of your
domestic If you need to dispose of this appliance
in the future, garbage.
Attention!!
The air conditioner that you have bought may be slightly different from
the one illustrated in this manual. Please refer to the information related
to the model you have.
This air conditioner is for domestic use only. It is not recommended for
heavy commercial or industrial use.
01 Welcome
Contents
01.
02.
03.
04.
05.
06.
07.
08.
09.
Welcome..........................................................................................01
Environmental advices........................................................................01
Contents...........................................................................................02
Safety precautions............................................................................. 03
Operation:
5.1 Preparing the device for operation.........................................06
5.2 Product description.............................................................. 08
5.3 Remote control.................................................................... 09
- Remote control operation
- Remote control specifications
- Remote control battery
- When should the batteries be replaced
- To replace batteries
- Remote control instructions
5.4 Remote control description.................................................... 11
5.5 Special functions..................................................................12
5.6 How the air conditioner works...............................................13
- Automatic operation
- Cool/heat and fan only operation
- Dry operation
- Airflow direction adjustment
- Eco/Sleep mode
- Timer operation
- Optimal operation
5.7 How to use the indoor unit....................................................17
- Adjusting air flow direction
- Adjusting the vertical air flow direction (up/down)
- To set the horizontal air flow direction (left/right)
- To automatically swing the air flow direction (up/down)
5.8 Manual operation................................................................ 19
Maintenance.....................................................................................20
Operation tips...................................................................................22
Solution for problems......................................................................... 24
Warranty..........................................................................................26
Contents 02
Safety precautions
This appliance must be installed by a qualified licensed HVAC
technician in accordance with all applicable codes. All electrical
connections should be performed by a licensed electrician.
Manufacturer's warranty will be voided with failure to comply.
Incorrect Handling could result in Serious Injury or Death!
1. Do not attempt to install the split air
conditioner by yourself.
2. This air conditioner contains no
user-serviceable parts. Always call
an authorized Electrolux servicer
for repairs.
3. When moving the air conditioner,
always call an authorized Frigidaire
servicer for disconnection and reinstallation.
4. Do not insert fingers or place
objects into the discharge area in
the front of the indoor unit.
5. Do not insert fingers or place
objects into the discharge area in
the front of the outdoor unit.
6. Do not start or stop the air
conditioner by turning off the power
at the electrical box.
7. In the event of a malfunction (sparks,
burning smell, etc.) immediately
power off unit and call an
authorized Frigidaire servicer.
8. Do not operate the air conditioner
with wet hands.
9. Do not drink any water or
condensation that is drained from
the air conditioner.
10.Provide occasional ventilation
during use. Do not direct airflow
at fire places or other heat related
sources as this could cause flare
ups or make units run excessively.
03 Satety precautions
11. Do not climb on or place objects
on the outdoor unit.
12. Do not hang objects off the indoor
unit.
13. Do not place objects containing
water on the indoor and/or
outdoor units.
14. Turn off the air conditioner at the
power source when it will not be
used for an extended period of
time.
15. Periodically check the condition of
the outdoor unit’s installation base
for any damage.
16. Do not apply heavy pressure to
the coil fins of the indoor and/or
outdoor units.
17. Operate the indoor unit with air
filters in place.
18. Do not block or cover the intake
grille, discharge area and outlet
ports.
19. Ensure that any electrical/
electronic equipment is 36” away
from the indoor unit and outdoor
unit.
20. Do not use or store flammable
gases near the indoor and/or
outdoor units.
To prevent injury to the user or other people and property
damage, the following instructions must be followed.
Incorrect operation due to ignoring of instructions may cause
harm or damage. The seriousness is classified by the following
indications.
1. Connect with the power properly
(confirm voltage upon installation).
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Always ensure effective grounding.
No grounding may cause electric
shock.
3. Disconnect the power if strange
sounds, smell, or smoke comes from
it. It may cause fire and electric
shock.
4. Do not operate or stop the unit by
switching the power off and on. It
may cause electric shock or fire due
to heat generation.
5. Do not operate with wet hands or
in damp environment. It may cause
electric shock.
6. Do not allow water to run into
electric parts. It may cause
component failure, electric shock or
fire.
7. Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene,
thinner,etc. It may cause an
explosion or fire.
8. Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.
9. Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
10.Do not place heavy objects on the
power cord and ensure that the
cord will not be compressed. There
is danger of fire or electric shock.
Safety precautions 04
11. Do not open the unit during
operation. It may cause electric
shock or injury.
12. Do not drink water drained from
air conditioner. It may contain
contaminates that could make you
sick.
13. Do not disassemble or modify unit.
It may cause failure of appliance,
electric shock and void the
warranty.
14. When the air filter is to be
removed, do not touch the metal
parts of the unit. It may cause an
injury.
15. When the unit is to be cleaned,
power off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire,
electric shock or injury.
16. Avoid direct exposure of
occupants to air flow.
17. Turn off the main power switch
when not using the unit for a long
time.
18. The air conditioner may be dusted
with an oil free cloth or washed
with a cloth dampened in a
solution of warm water and mild
dishwashing detergent. Rinse
thoroughly and wipe dry. Wring
excess water from cloth before
wiping around controls.
19. Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may
cause failure.
20. Always install circuit breaker and
a dedicated power circuit. No
installation may cause fire and
electric shock.
05 Safety precautions
21. Do not place obstacles around
air-inlets or inside of air-outlet. It
may cause failure of appliance or
accident.
Preparing the device for operation
1. Contact a licensed specialist to install the device.
2. Guarantee that the unit is appropriately fastened and complies with all of the
aforementioned safety norms.
3. Before operating the air conditioner, ensure that the air filter is installed
correctly.
4. If the unit has been out of use for a long period of time, it is recommended
that the air filter be cleaned before use. During continuous use, clean the air
filter every two weeks.
5. This air conditioner was designed for use under the following conditions:
MODE
Cool
Heat *
Dehumidifier
Temperature
Temperature
Temperature
Indoor
Outdoor
61°F~86°F
0°F~110°F
Indoor
Outdoor
61°F~86°F -5°F~75°F
Indoor
Outdoor
61°F~86°F
0°F~115°F
* only for models with heating function
Attention!!
If air conditioner is used outside of the above conditions, certain safety
protection features may come into operation and cause the unit to
function abnormally. Room relative humidity should be less than 80%. If
the air conditioner operates in excess of this figure, the surface of the air
conditioner may attract condensation. Please set the horizontal louver to
its maximum angle (vertically to the floor), and set HIGH fan mode.
Optimum performance will be achieved within these operating
temperature.
Preparing the device for operation 06
Product description
Air inlet
3
4
2
1
12
5 Air Outlet
6
8
7
10
9
Air inlet (side)
Air inlet (rear)
11
13
14
Air outlet
1
2
3
4
5
6
7
Front panel
Digital display
Air filter
Pre-dust filter
Horizontal air flow grille
Vertical air flow louver (inside)
Manual control button
8
9
10
11
12
13
14
Cold plasma generator (if applicable)
Remote controller
Refregerant pipe
Drain hose
Power cable
Mounting plate
Connecting cable
Attention!!
All the pictures in this manual are for explanation purpose only. They
maybe slightly different from the airconditioner you purchased.
07 Product description
Display panel (indoor unit)
15 I Feel indicator:
Lights up when I Feel feature is
activated.
16 Turbo indicator:
Lights up when Turbo feature is
activated.
17 DIGITAL SCREEN:
• Displays the temperature
settings when the air conditioner
is operational.
• Displays the malfunction code
when fault occurs.
15
16
17
18
18 ECO indicator:
Lights up when Eco feature is
activated.
Attention!!
The description of the control is based on a typical model.The functions
are the same in your air conditioner, even if there are some differences
in the appearance.
Product description 08
Remote control
Remote control operation
1. Operation mode: Cool, Heat (Only
for models with heating function),
DRY, FAN, and AUTO (Automatic).
2. 24 hrs Timer.
3. Internal temperature range selection:
61ºF - 86ºF
4. LCD
REMOTE CONTROL SPECIFICATIONS
Rated voltage
Lowest voltage of CPU emiting signal
Transmission distance
Environment
3V
2.4 V
32-4/5'*
23ºF ~ 140ºF
* With 3 V, reaches 40'
Attention!!
1. The air conditioner will not operate when curtains, doors or other
materials block the signals between the remote control and the indoor
unit.
2. Avoid spilling any liquid in the remote control. Do not expose to
sunlight or any heat source.
3. If the infrared signal receiver in the indoor unit is exposed to sunlight,
the air conditioner unit might not work properly. Use curtains or
shades to avoid having sunlight directly to the receiver.
4. If other electrical equipments react to the signals sent by the remote
control, change their position or consult with you local dealer.
Remote control battery: To use the remote control, it is necessary
to install two alkaline AAA batteries.
09 Remote control
When should the batteries be
replaced
1. There is not a "beep" anymore
from the indoor unit when using the
control remote or the signal light
indicator does not light.
2. The indoor unit does not respond
to the remote control commands to
activate the programs.
To replace batteries
1. Slide out the battery compartment
cover ( located at the front of the
remote control).
2. Install two AAA batteries in
the compartment (indicated in
the drawing located inside the
compartment).
3. Slide on the battery component
cover.
4. If the remote control is not operated
for long period of times, batteries
should be discarded.
Reinstall
Remove
battery
Cover of battery box
Remote control instructions
1. The signal reach distance of the
remote control to the receiver that
is inside the indoor unit of the
air conditioner is 32 feet. Any
obstruction placed between the
receiver and the remote control
can cause interference, limiting the
capacity of the programming.
2. Any time when a button is pressed
on the remote control, the air
conditioner emits a "beep" that
indicates that a command has been
received and transmitted to the
indoor unit.
3. When selecting the function of timer,
the remote control (automatically)
sends a signal to the indoor unit at
the specific period. If the remote
control is left in a position that the
signal is blocked, a 15 minute
delay can be produced.
Attention!!
1. When replacing batteries, do not
use old batteries or a different
type battery. This may cause the
remote control to malfunction.
2. If you do not use the remote
controller for several weeks,
remove the batteries. Otherwise
battery leakage may damage
the remote controller.
3. The average battery life under
normal use is about 6 months.
4. Replace the batteries when there
is no answering beep from the
indoor unit or if the transmission
indicator fails to light.
Remote control 10
Remote control description
1 ON/OFF: Press this button to start
the unit operation. Push the button
again to stop the unit operation.
2 UP/DOWN: Press the button to
increase/decrease the temperature.
Keep the button pressed for two
seconds to accelerate the process.
Release the button to set the
temperature and the °C/°F icon will
be displayed constantly.
In Timer-On/Off or Clock functions,
use the button to set the clock or
timer adjustment.
3 MODE: Press the button to set the
operation mode: AUTO, DRY, FAN,
COOl and HEAT*. Default setting:
AUTO.
AUTO
DRY
FAN
COOL
1
2
3
4
8
9
10
11
5
12
6
13
7
14
HEAT*
* Note: Only for models with Heat
function.
4 SWING: Press this button, the
louver will swing up and down
automatically. Press again to
cancel it and the louver will stay
at its last position.
5 TIMER ON: Press the button to set
the timer function for switching on
the unit. If the TIMER ON symbol
”
” blinks, press the UP or
DOWN button to set the time.
Keep the button pressed for two
seconds to accelerate the process.
Press the button to set the timer.
11 Remote control description
Default setting: 8:00 (24-hour
mode). Press the button again
to cancel the timer function.
6 TIMER OFF: Press the button
to set the timer function for
switching off the unit. If the
TIMER OFF symbol ”
”
blinks, press the UP or DOWN
button to set the time. Keep the
button pressed for two seconds
to accelerate the process. Press
the button to set the timer.
Default setting: 17:00 (24-hour
mode). Press the button again
to cancel the timer function.
7 I FEEL: Press the button to
enable or disable the I FEEl
function. If the I FEEl function
is enabled, the I FEEl symbol
” will be shown.
”
If the I FEEl symbol is
enabled, the remote control
will send the ambient
temperature to the main unit
every 10 minutes or when
you press one of the buttons.
8 FAN SPEED: Press the button
to set the fan speed: AUTO,
lOW, MEDIUM and HIGH.
Default setting: AUTO. In the
DRY mode, only lOW can be
set.
the process. Press the ClOCK
button again to set the clock.
The clock symbol stops
blinking.
11 TEMP: Press this button
to change the Indoor Unit
temperature Display between
Set temperature and Room
temperature. After display
Room temperature 5s, it will
turn into set temperature.
When the symbol ” ” is
shown, the indoor unit displays
the Set temperature.
” is
When the symbol ”
shown, the indoor unit displays
the Room temperature.
12 LIGHT: Press the button to
switch the display of the indoor
9 TURBO: In COOl or HEAT
unit on or off. When switch on,
mode, press the button to
the light symbol ” ” will be
enable or disable the turbo
showed. Default setting: ON.
function. If the turbo function is
enabled, the turbo symbol
13 X-FAN: In COOl or DRY mode,
”
” will be shown.
press the button to enable or
disable the X-FAN function. If
If the turbo function is enabled,
the X-FAN function is enabled,
the unit will operate at turbo
speed to cool or heat rapidly so
the X-FAN symbol ” ” will be
that the ambient temperature
shown. Default setting: OFF.
approaches the set temperature
14 ECO: In COOl or DRY mode,
as soon as possible.
press this button to enable or
10 ClOCK: Press the button to set
disable Eco operation. If the
the clock. If the clock symbol
ECO function is enabled, the
”
” blinks, press the UP
” will be
ECO symbol ”
or DOWN button to set the
shown. Default setting: OFF.
time. Keep the button pressed
This is ideal for the users to
for two seconds to accelerate
use while sleeping.
AUTO
LOW
MEDIUM
HIGH
Remote control description 12
Special functions
About LOCK: Press Mode and
Fan buttons at the same time,
you can lock and unlock the
remote controller. The icon "
"
will display when Lock function is
eabled.
To switch between Fahrenheit
and Celsius: Turn the remote
controller off and the °C/°F can
be switched by pressing Mode
and DOWN buttons at the same
time with keeping for 3 seconds.
How the air conditioner works
Automatic operation
When the Air Conditioner is ready for use, switch on the power and the
OPERATION indicator lamp on the display panel of the indoor unit starts
illuminating.
1. Use the MODE button to select AUTO.
2. Use the "MODE" button to select Auto. The unit will automatically select Cool,
Fan, Heat and Dehumidifying operation depending on the difference ambient
temperature and system difference temperature. The temperature can be set
within a range of 16ºC/61ºF~30ºC/86ºF in 1ºC/1ºF increments. Keep the
button pressed for two seconds to accelerate the process.
3. Press the ON/OFF button again to stop the unit operation.
Attention!!
1. In the AUTO mode, the air conditioner can logically choose the
mode of Cooling, Fan, Heating and Dehumidifying by sensing the
difference between the actual ambient room temperature and the set
temperature on the remote controller.
2. In the AUTO mode, the fan speed can be switched.
3. If the AUTO mode is uncomfortable, you can select desired conditions
manually.
COOL / HEAT / DRY (DEHUMIDIFICATION) and FAN ONLY operation
1. If the AUTO mode is not comfortable, you may manually override the settings
by using COOL, HEAT*, DEHUMIDIFICATION or FAN ONLY** mode.
2. Press the "^"/"v" button to set the desired room temperature. When in COOL
mode, the most comfortable settings are 70 ºF or above. When in HEAT
mode, the most comfortable settings are 82 ºF or below.
3. Press the FAN to select the FAN mode of AUTO,
,
or
.
13 How the air conditioner works
4. Press the ON/OFF button, the operation lamp lights and the air conditioner
start to operate as your settings. Press the ON/OFF button again to stop this
unit operation.
* Note: Only for models with heating function.
**Note: The FAN ONLY mode can not be used to control the temperature. While
in this mode, only steps 1,3 and 4 may be performed.
DRY (DEHUMIDIFICATION) operation
Attention!!
ng
oli
no
Fa
Room
Temperature
Co
nly
ng
oli
Co
nly
no
Fa
oli
ng
Due to the difference between the
set temperature of the unit and
the actual indoor temperature, the
Air Conditioner in DRY mode will
automatically switch the operation
modes between COOL and FAN
ONLY many times.
Co
The dry mode will automatically select
the drying operation based on the
difference between the set temperature
and the actual room temperature.
The temperature is regulated while
dehumidifying by repeatedly turning
on and off of the cooling operation or
fan only. In the Dehumidifying mode,
you can not switch the fan speed. It
has already been automatically set at
low speed.
1. Press the MODE button to select
DRY.
2. Press the "^"/"v" button to set the
desired temperature from 61 ºF to
86 ºF.
3. Press the ON/OFF button, the
operation lamp lights and the air
conditioner starts to operate in the
DRY mode. FAN SPEED is Low.
Push the ON/OFF button again to
stop this unit operation.
Time
Set temperature
DRY FUNCTION
Air flow direction adjustment
Press the SWING button
"
" once and quickly, the air
flow direction setting feature of the
louver is activated. The horizontal
louver would swing up/down
automatically. Press it again to stop
at its last place.
Attention!!
If the louver oscillates or moves
in a position that could affect the
cooling or heating (only for models
with heating function) of the air
conditioner, the direction of the
oscillation/movement would alter
automatically.
How the air conditioner works 14
Eco(Sleep) mode
Set
temperature
In cooling mode:
• The fan speed will be automatically
controlled.
• The air conditioner will automatically
increase 1 oF per hour in a 2 hour
period(The indoor unit always
displays the set temperature). The set
temperature will be steady for the
next 5 hours, then this mode will be
terminated.
1 °F
1 °F
1 hour
1 hour
7 hours
SLEEP FUNCTION (Cooling mode)
Set
temperature
Press the Eco/Sleep button to activate
the sleep mode. To deactivate, press
the button again.
In heating mode (only for models with
heating function)
• The fan speed will be automatically
controlled.
• The air conditioner will automatically
decrease 1 oF per hour in a 2 hour
period.(The indoor unit always
displays the set temperature). The set
temperature will be steady for the
next 5 hours, then this mode will be
terminated.
1 °F
1 °F
1 hour
1 hour
7 hours
SLEEP FUNCTION (Heating mode)
TIMER Operation
TIMER button can set the auto-on time
of the unit.
To set the starting time:
1. Press the "TIMER ON" button to activate the auto start timer function.Auto start
can be set from 0~24 hours. After pressing "TIMER ON" button, "ON" on the
display will blink, and during 5 seconds blinking, the value can be adjusted
by pressing "^"/"v" button. Every press of this button,1 minute will be
increased or decreased, but continuously press the "^"/"v" button, 2 seconds
later the value will be increased or decreased automalically, and after 10
minutes increase or decreased, the value will be changed 10 minutes every 0.5
second; Press the "TIMER ON" button to conform the time.
2. when repressing the "TIMER ON" button, the "TIMER ON" setting will be
canceled.
15 How the air conditioner works
To set the stopping time
1. Press the "TIMER OFF" button to activate the auto stop timer function.
2. The method of setting is the same as above of"TIMER ON".
Examples:
ON
ON
OFF
6h
(Timer On)
ON
OFF
6h
(Timer Off)
ON
ON
OFF
OFF
12h
(Timer Off)
14h
(Timer On)
20h
(Timer On)
OFF
23h
(Timer Off)
Optimal operation
To achieve optimal performance, please note the following:
1. Adjust the air flow direction correctly so that it is not directed on people.
2. Adjust the temperature to achieve the highest comfort level. Do not adjust the
unit to excessive temperature levels.
3. Close doors and windows on COOL or HEAT (only for models with heating
function) mode, or performance may be reduced.
4. Use TIMER ON button on the remote controller to select a time you want to
start your air conditioner.
5. Do not put any object near air inlet or air outlet, as the efficiency of the air
conditioner may be reduced and the air conditioner may stop running.
6. Clean the air filter periodically, otherwise cooling or heating (only for models
with heating function) performance may be reduced.
7. Do not operate unit with horizontal airflow grille in closed position.
How the air conditioner works 16
How to use the indoor unit
Adjusting air flow direction
Adjust the air flow direction properly,
otherwise it might cause discomfort
or uneven room temperatures. Adjust
the vertical louver using the remote
controller. Adjust the horizontal louver
manually.
To set the horizontal air flow
direction (left/ right)
Adjust the horizontal louver manually
using the lever on the left or right side
of the vertical louver arm (Depending
on the specific model you choose),
or move the lever at the left (or right,
or middle which is only for 2140036000 Btu's, depending on the
specific model you choose) end of
the air outlet to the desired position.
Perform these adjustments before you
start the unit because once it has been
started, there is risk of your fingers
getting caught on the fan.
To automatically swing the air flow
direction (up/down)
Perform this function while the air
conditioner is in operation.
Press the "
controller.
" button on the remote
To stop the function, press the "
button again.
"
Press "
" to lock louver in desired
position.
17 How to use the indoor unit
Lever
The"
" button will be disabled when
the air conditioner is not in operation
(including when the TIMER ON is set).
Do not operate the air conditioner for
long periods with the air flow direction
set downward in cooling or dry
mode. Otherwise, condensation may
occur on the surface of the horizontal
louver and drop on to the floor or on
furnishings.
Do not move the horizontal louver
manually. Always use the "
" button.
If youmove this louver manually, it
may malfunction during operation.
If the louver malfunctions, stop the
airconditioner and restart it.
Open angle of the horizontal
louver should not be set too small,
as COOLING or HEATING (only
for models with heating function)
performance may be impaired due to
too restricted air flow area.
Do not operate unit with horizontal
louver in closed position.
When the air conditioner is connected
to power (initial operation), the
horizontal louver may generate a
sound for 10 seconds, this is a normal
operation.
How to use the indoor unit 18
Manual operation (without remote control)
Manual operation can be used
temporarily in case you can not find
the remote controller or its batteries
are exhausted.
1. Open and lift the front panel up to
an angle until it remains fixed with
a clicking sound.
2. One press of the manual control
button will lead to the forced AUTO
operation.
3. Close the panel firmly to its original
position.
Manual control
button
Auto/OFF
Attention!!
Once you press the manual button, the operation mode is shifted in an
order as: AUTO and OFF.
The manual operation is mainly used for testing purpose. Do not choose
it unless it is necessary. To return to the remote controller operation, use
the remote controller.
19 Manual operation
Maintenance
Cleaning the indoor unit and
remote controller.
1. It is necessary to stop the air
conditioner and disconnect the
power supply before cleaning.
2. Use a dry cloth to wipe the indoor
unit and remote controller.
3. A cloth dampened with cold water
may be used on the indoor unit if it
is very dirty.
4. The front panel of the indoor unit can
be removed and cleaned with water.
Then wipe it with a dry cloth.
5. Do not use a chemically treated cloth
or duster to clean the unit.
6. Do not use benzine, thinner,
polishing powder, or similar solvents
for cleaning. These may cause the
plastic surface to crack or deform.
Cleaning the air filter
A clogged air filter reduces the cooling
efficiency of this unit. Please clean the
filter once every 2 weeks.
1. Lift the indoor unit panel up to an
angle until it stops with a clicking
sound.
2. Grab the handle of the air filter and
lift it up slightly to take it out from the
filter holder, then pull it downwards.
3. Remove the air filter (Fresh air filter if
so equipped + support frame) from
the unit.
air filter
air filter
Maintenance 20
Maintenance
If you plan to idle the unit for a long time, perform the following:
1. Operate in fan mode for about half a day to dry the inside of the unit.
2. Stop the air conditioner and disconnect power. Remove the batteries from the
remote controller.
3. The outdoor unit requires periodic maintenance and cleaning. Do not attempt
to do this yourself. Contact your dealer or servicer.
If you plan to idle the unit for a long time, perform the following:
1. Check that the wiring is not broken or disconnected.
2. Check that the air filter is installed.
3. Check whether the air outlet or inlet is blocked after the air conditioner has
not been used for a long time.
21 Maintenance
Operation tips
The following events may occur during normal operation.
Protection of the air conditioner.
Compressor protection
This unit comes with a time delay function to help protect the compressor,please
allow 3 minutes for the compressor to restart upon turning on the unit.
Anti-cold air (Only for models with heating function)
The unit is designed not to blow cold air in HEAT mode when the indoor heat
exchanger is in one of the following three situations and the set temperature has
not been reached.
1. When heating has just starting.
2. Defrosting.
3. Low temperature heating.
Defrosting (Only for models with heating function)
Frost may be generated on the outdoor unit during heat cycle when outdoor
temperature is low and humidity is high resulting in lower heating efficiency
of the air conditioner. During this condition, air conditioner will stop heating
operation and start defrosting automatically.
The time of defrosting may vary from 0 to 8 minutes according to the outdoor
temperature and the amount of frost buildup on the outdoor unit.
The indoor or outdoor fan will stop running when defrosting (Only for models
with heating function).
The indoor unit will display "H1" code when defrosting, it's normal.
A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between
air inlet and air outlet in COOL mode in an indoor environment that has high
relative humidity.
A white mist may generate due to moisture generated from defrosting process
when the air conditioner restarts in HEAT mode operation after defrosting.
Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just
stopped running. This sound is the sound of the refrigerant flowing or coming to
stop.
You can also hear a craching sound when the compressor is running or has just
stopped running. This is caused by heat expansion and cold contraction of the
plastic parts in the unit when the temperature is changing.
A noise may be heard due to louver returning to its original position when power
is first turned on.
Operation tips 22
Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a long
time or during first use of the unit.
A peculiar smell comes out from the indoor unit.
This is because the indoor unit gives off smells permeated from building material,
furniture or smoke.
The air conditioner turns to FAN only mode from COOL or HEAT
(Only for models with heating function) mode.
When indoor temperature reaches the temperature setting on air conditioner,
the compressor will stop automatically, and the air conditioner turns to FAN only
mode. The compressor will start again when the indoor temperature rises in
COOL mode or falls in HEAT mode (Only for models with heating function) to the
set point.
Dripping water condenses on the surface of indoor unit
Dripping water may generate on the surface of the indoor unit when cooling in a
high relatively humidity (relative humidity higher than 80%). Adjust the horizontal
louver to the maximum air outlet position and select HIGH fan speed.
Heating mode (Only for models with heating function)
The air conditioner draws in heat from the outdoor unit and releases it via the
indoor unit during heating operation. When the outdoor temperature falls, heat
drawn in by the air conditioner decreases accordingly. At the same time, heat
loading of the air conditioner increases due to larger difference between indoor
and outdoor temperature. If a comfortable temperature can't be achieved by the
air conditioner, we suggest you use a supplementary heating device.
Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the
OPERATION indicator on the indoor unit starts illuminating. To restart the
operation,press the ON/OFF button on the remote controller. For the unit with
Auto-restart feature, when the power restores, the unit restarts automatically with
all the previous settings preserved by the memory function.
Lightning or a wireless telephone operating nearby may cause the
unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again.
Push the ON/OFF button on the remote controller to restart operation.
23 Operation tips
Solution for problems
If your air conditioner malfunctions, check the following information to find
solutions or probable causes of the failure. Do not try to repair the unit by
yourself, if these solutions do not solve the failures, call your local service repair
team.
Poor Equipment performance
1. The air outlet or inlet of outdoor unit is obstructed.
2. The air outlet or inlet of indoor unit is obstructed.
3. The outdoor temperature is high due to direct sunlight or another heat source.
4. A heater or a cooking stove is being used in the same room.
5. The room is occupied by multiple people, thus raising the heat load.
6. The air filter is obstructed by dust or is dirty.
7. Inappropriate temperature adjustment.
8. The capacity of the equipment is not adequate for the size of the room.
9. Air conditioner was just turned on.
10.Windows or doors are open.
The unit does not start
1.
2.
3.
4.
5.
6.
No power supply.
The voltage is not sufficient or incorrect.
Temperature is not adjusted properly.
Fuse may have blown.
The remote control batteries need to be replaced.
The time you have set with timer is incorrect.
Attention!!
Stop the air conditioner immediately if one of the following
malfunctions occur
1. The operation indicator flashes (5 times per second) and the
flashing does not stop by disconnecting the power and then
restarting the unit.
2. Fuse blows frequently or circuit breaker trips frequently. (If this
occurs, please contact your installer or licensed contractor).
3. Water spills over the equipment.
4. Remote control does not work.
5. Any other abnormal situations.
Solution for problems 24
Major Appliance 5 Year Parts Only Limited Warranty
Your appliance is covered by a five year parts only limited warranty. For five years
from your original date of purchase, Electrolux will pay for the cost of replacement
parts used in the repair of the appliance if the original parts prove to be defective in
materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions
25
This limited warranty does not cover the following:
1. Products with original serial numbers that have been removed,
altered or cannot be readily determined.
2. Product that has been transferred from its original owner to
another party or removed outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls to correct the installation of your appliance or to
instruct you how to use your appliance.
8. Service calls which do not involve malfunction or defects in
materials or workmanship, or for appliances not in ordinary
household use or used other than in accordance with the provided
instructions.
9. Expenses for making the appliance accessible for servicing,
such as removal of trim, cupboards, shelves, etc., which are not a
part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air
filters, water filters, other consumables, or knobs, handles, or
other cosmetic parts.
11. Surcharges including, but not limited to, any after hour,
weekend, or holiday service calls, tolls, ferry trip charges, or
mileage expense for service calls to remote areas, including the
state of Alaska.
12. Damages to the finish of appliance or home incurred during
installation, including but not limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized
service companies; use of parts other than genuine Electrolux
parts or parts obtained from persons other than authorized service
companies; or external causes such as abuse, misuse, inadequate
power supply, accidents, fires, or acts of God.
14. The consumer will be responsible for diagnostic, labor, and parts
costs as well as any removal, transportation and reinstallation
expenses which are incurred during service.
15. Labor costs for any and all repairs.
Major Appliance 5 Year Parts Only Limited Warranty
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF
REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED
PARTS ONLY WARRANTY SHALL BE THE COST OF REPLACEMENT PARTS
AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE
SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE
YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL
OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND
INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS
WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME
STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR
LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO
THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS.
YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO
STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment
Service
record to establish the warranty periodshould service be required. If
service is performed, it is in your best interest to obtain and keep all
receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This limited warranty only applies in the USA and Canada. In the USA, your appliance
is warranted by Electrolux Major Appliances NorthAmerica, a division of Electrolux
Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this
warranty. Obligations for service and parts under this warranty must be performed
by Electrolux or an authorized service company. Product features or specifications
as described or illustrated are subject to change without notice.
USA
1.866.942.1567
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Canada
1.866.942.1567
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
26
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
