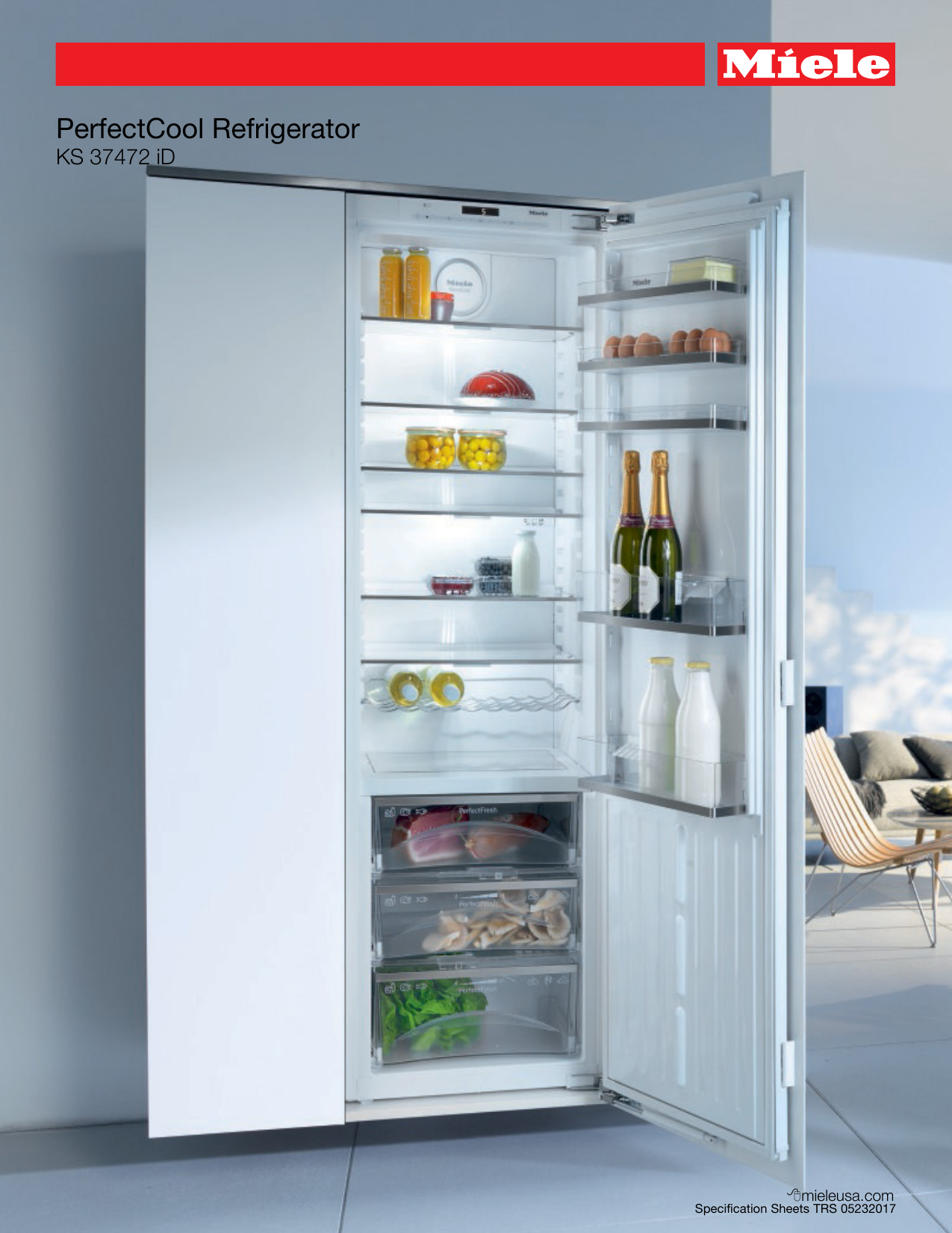

Miele KS37472ID Refrigerator Specification

PerfectCool Refrigerator
KS 37472 iD
8mieleusa.com
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
SPECIFICATIONS
KS 37472 iD — Item 36374722USA
- Right Hinged (Convertible)
Overall Unit Width
22” (559 mm)
Overall Unit Height
6911/16” (1770 mm)
Overall Unit Depth
217/16” (544 mm)
Niche
Minimum Cabinet Opening Width
221/16 ” (560 mm)
Minimum Cabinet Opening Height
693/4” (1772 mm)
Minimum Cabinet Opening Depth
215/8” (550 mm)
Interior Volume
Fresh Food Volume
10.88 cu-ft (308 L)
Electrical
Features:
• Miele PerfectCool Series
• FlexiLight - Shelf mounted LED
lighting
• PerfectFresh Drawers
• Self Close Storage Drawers
Electrical Requirements - Volts/Amps
110V / 120V, 60Hz, 15A (single)
110V / 120V, 60Hz, 20A (2 Individual units
installed side-by-side, using a Duplex outlet)
Power Cord - Plug and length
Yes - NEMA 5-15 plug, 6’ 6” (2 m)
Custom Panel
Refer to manual for further detail
Maximum Panel Weight
50.7 lbs (23 kg)
Maximum Panel Thickness
3/4” (19 mm)
Minimum Panel Thickness
5/8” (16 mm)
Shipping
Shipping Weight
166.5 lbs
Shiipping Dimensions
241/2” W x 7315/16” H x 225/8” D
Support
Call Miele
800.843.7231
Miele Website
8www.mieleusa.com
20/20 Link
82020technologies.com
• Soft Close Hinges
• Easy Sensor Controls
• Bottle Rack
• Comfort Clean Shelves (dishwasher
safe)
• Bottle Fins
• Sabbath Mode
KS 37472 iD
Page 2 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
Installation Dimension
KS 37472 iD
Page 3 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
Ventilation Dimension
- Air intake (1) occurs via the plinth at the bottom of
the appliance and the air escapes at the top (2) at the
rear of the housing unit.
- A ventilation gap of at least 1 5/8” (40 mm) depth
must be provided behind the appliance for air to
circulate.
- The ventilation cross-sections in the plinth
housing unit and above the appliance must amount
to at least 78 3/4”2 to ensure that air can circulate
without obstruction.
- Please refer to the manual for further ventilation
details.
KS 37472 iD
Page 4 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
Top Ventilation Cross-section
(1) Directly above the appliance with a ventilation
grill (free airflow of at least 78 3/4”2).
(2) In between the housing unit and ceiling.
(3) Through a suspended ceiling.
- Please refer to manual for further ventilation
details.
KS 37472 iD
Page 5 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
Bottom Ventilation Slits Dimensions
If you would like to use the ventilation slits:
- Cut an opening in the plinth (2) as shown in the figure.
- Place the ventilation grille (1) inot the opening.
- Push the snap connector (3) into the ventilation slits
from the rear until the hooks are touching the plinth
- Reinstall the plinth with the ventilation slits
KS 37472 iD
Page 6 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
CUSTOM PANEL
j - Custom door panel
k - Unit's door
KS 37472 iD
Page 7 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
Custom Panel
SPECIFICATIONS
Custom Panel
Refer to manual for further detail
Maximum Panel Weight
50.7 lbs (23 kg)
Maximum Panel Thickness
3
Minimum Panel Thickness
5
/4” (19 mm)
/8” (16 mm)
Inset Panel
Minimum Vertical Gap - Between Cabinet Walls
and Door Panel
1
Minimum Horizontal Gap - Between Top Cabinet
Panel and Door Panel
1
/8” (3 mm)
/8” (3 mm)
Framed Cabinet with Inset Door
Panel Calculation
Panel Width = Niche Opening Width - 1/4” (6 mm)
Panel Height = Niche Opening Height - 1/4” (6 mm)
Frameless Style Cabinet Panel
Calculation
Panel Width = Niche Opening Width + Left Side Panel Thickenss
+ Right Side Panel Thickness
Panel Height = Niche Opening Height + Top Panel/Shelf Thickness
+ Bottom Shelf Thickness
KS 37472 iD
Page 8 of 9
Specification Sheets TRS 05232017
PerfectCool Refrigerator
KS 37472 iD
Adjustable Door Hinge
90o or 120o Opening
The door hinges are factory set so that the door can be
opned wide.
However if the opening angle of the door needs to be
limited for any reason, the hinge can be adjusted to
accommadate this.
Insert the limit pins provided into the hinges from above.
This will limit the opening angle of the applinace door to
90 o.
KS 37472 iD
Page 9 of 9
Specification Sheets TRS 05232017
