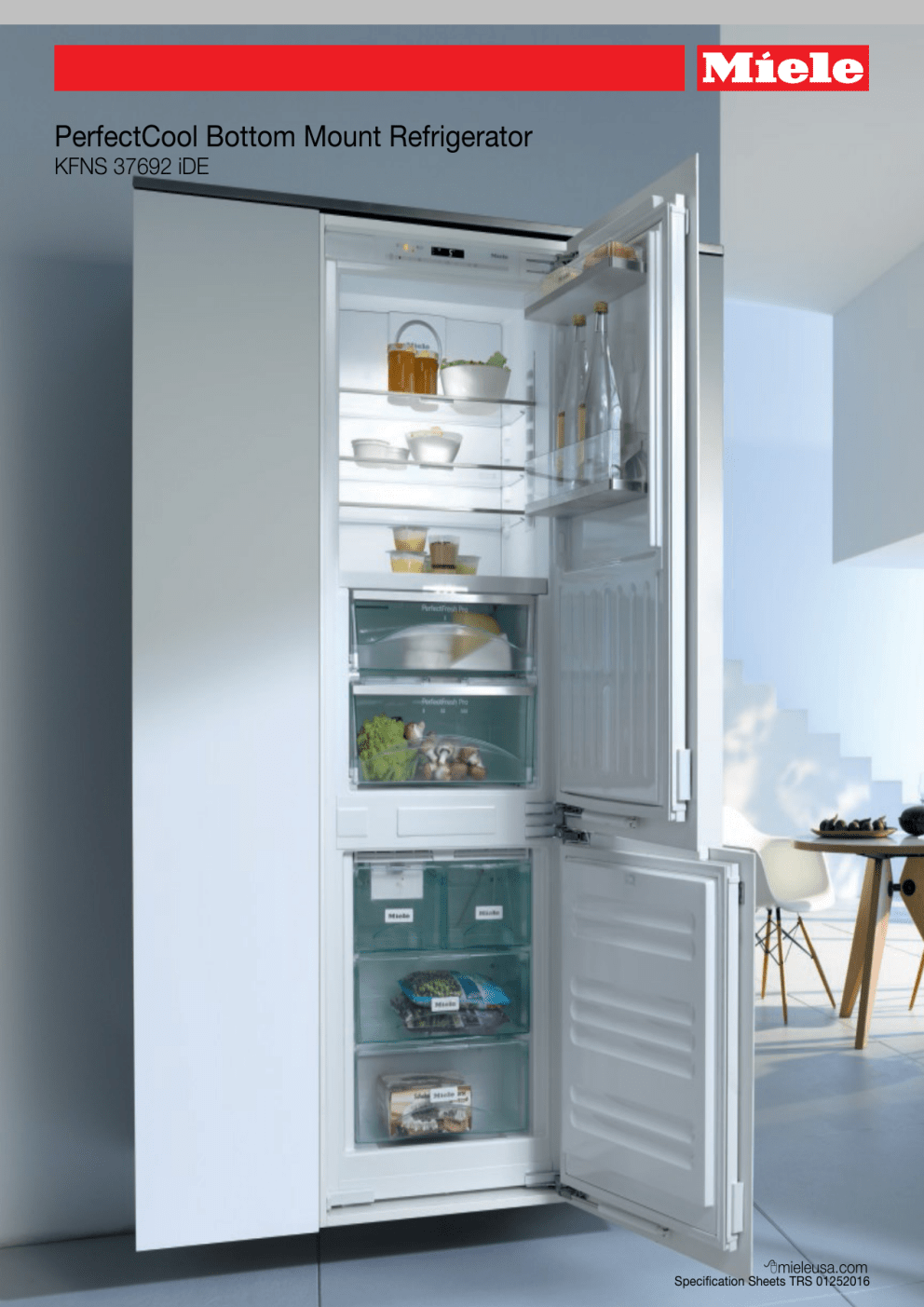

Miele KFNS37692IDE Refrigerator Specification

FOREVER BETTER
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
8mieleusa.com
Specification Sheets TRS 01252016
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
FOREVER BETTER
SPECIFICATIONS
KFNS 37692 iDE — Item 38376921USA
Overall Unit Width
22” (559 mm)
Overall Unit Height
6911/16” (1770 mm)
Overall Unit Depth
211/2” (545 mm)
Niche
Minimum Cabinet Opening Width
221/16 ” (560 mm)
Minimum Cabinet Opening Height
693/4” (1772 mm)
Minimum Cabinet Opening Depth
215/8” (550 mm)
Plumbing
Water Supply Requirements
Connect to a cold water supply only. Must
be connected to a shut-off valve. The water
shut-off valve must be accessible after
installation. The water pressure must be
between 22 psi (1.5 bar) and may not exceed
87 psi (6 bar). If the pressure is higher than
87 psi (6 bar), a pressure reducing valve
must be installed.
Water Connection Line
Unit comes with a male 3/4” BPT connection
on back of unit. The connection parts
included with the appliance permit the connection of various water lines (including
1/4” compression fitting). Water line is not
included.
Features:
• NEW: Miele PerfectCool Series
Electrical
• FlexiLight - Shelf mounted LED
Electrical Requirements - Volts/Amps
110V / 120V, 60Hz, 15A (single)
110V / 120V, 60Hz, 20A (2 Individual units
installed side-by-side, using a Duplex outlet)
Power Cord - Plug and length
Yes - NEMA 5-15 plug, 6’ 6” (2 m)
Custom Panel
Refer to manual for further detail
Maximum Panel Weight
Top Panel - 44 lbs (20 kg)
Bottom Panel - 26 lbs (12 kg)
Maximum Panel Thickness
3
/4” (19 mm)
Minimum Panel Thickness
5
/8” (16 mm)
lighting
• Right hinged, convertible
• Soft Close Door
• DynaCool
• Dishwasher Safe door shelves
• Easy Sensor Controls
Shipping
• Plumbed Ice Maker
Shipping Weight
192.7 lbs (87.4 kg)
Shiipping Dimensions
241/2” W x 731/2” H x 225/8” D
• PerfectFresh Pro
Support
• Bottle Fins
Call Miele
800.843.7231
• Sabbath Mode
Miele Website
8www.mieleusa.com
20/20 Link
82020technologies.com
KFNS 37692 iDE
Page 2 of 6
Specification Sheets TRS 01252016
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
FOREVER BETTER
Installation Dimension
For additional information on Plumbing, please refer to the Plumbing section in the Install Manual.
For Side-by-Side installations two niche cutouts are required.
KFNS 37692 iDE
Page 3 of 6
Specification Sheets TRS 01252016
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
FOREVER BETTER
Ventilation Dimension
- Air intake (1) occurs via the plinth at the bottom of
the appliance and the air escapes at the top (2) at the
rear of the housing unit.
- A ventilation gap of at least 1 5/8” (40 mm) depth
must be provided behind the appliance for air to
circulate.
- The ventilation cross-sections in the plinth
housing unit and above the appliance must amount
to at least 78 3/4”2 to ensure that air can circulate
without obstruction.
- Please refer to the manual for further ventilation
details.
KFNS 37692 iDE
Page 4 of 6
Specification Sheets TRS 01252016
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
FOREVER BETTER
Top Ventilation Cross-section
(1) Directly above the appliance with a ventilation
grill (free airflow of at least 78 3/4”2).
(2) In between the housing unit and ceiling.
(3) Through a suspended ceiling.
- Please refer to manual for further ventilation
details.
KFNS 37692 iDE
Page 5 of 6
Specification Sheets TRS 01252016
PerfectCool Bottom Mount Refrigerator
KFNS 37692 iDE
FOREVER BETTER
Custom Panel
SPECIFICATIONS
Custom Panel
Refer to manual for further detail
Maximum Panel Weight
Top Panel - 44 lbs (20 kg)
Bottom Panel - 26 lbs (12 kg)
Maximum Panel Thickness
3
Minimum Panel Thickness
5
/4” (19 mm)
/8” (16 mm)
Inset Panel
Minimum Vertical Gap - Between Cabinet
and Door Panel
1
Minimum Horizontal Gap - Between Cabinet
and Top of Door Panel, Between Door Panels
1
/8” (3 mm)
/8” (3 mm)
Framed Cabinet with Inset Door
Panel Calculation
Panel Width = Niche Opening Width - 1/4” (6 mm)
Panel Height = Niche Opening Height - 1/4” (6 mm)
Frameless Style Cabinet Panel
Calculation
Panel Width = Niche Opening Width + Left Side Panel Thickenss
+ Right Side Panel Thickness
Panel Height = Niche Opening Height + Top Panel Thickness
+ Bottom Panel Thickness
KFNS 37692 iDE
Page 6 of 6
Specification Sheets TRS 01252016
