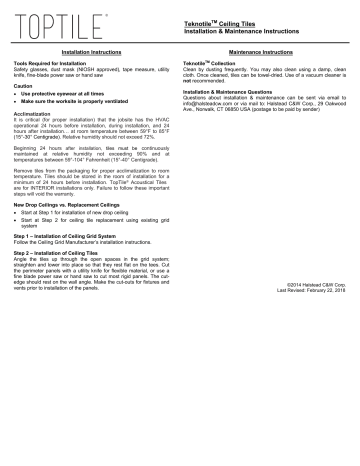

TeknotileTM Ceiling Tiles
Installation & Maintenance Instructions
Installation Instructions
Tools Required for Installation
Safety glasses, dust mask (NIOSH approved), tape measure, utility
knife, fine-blade power saw or hand saw
Caution
Use protective eyewear at all times
Make sure the worksite is properly ventilated
Acclimatization
It is critical (for proper installation) that the jobsite has the HVAC
operational 24 hours before installation, during installation, and 24
hours after installation… at room temperature between 59°F to 85°F
(15°-30° Centigrade). Relative humidity should not exceed 72%.
Maintenance Instructions
TM
Teknotile Collection
Clean by dusting frequently. You may also clean using a damp, clean
cloth. Once cleaned, tiles can be towel-dried. Use of a vacuum cleaner is
not recommended.
Installation & Maintenance Questions
Questions about installation & maintenance can be sent via email to
[email protected] or via mail to: Halstead C&W Corp., 29 Oakwood
Ave., Norwalk, CT 06850 USA (postage to be paid by sender)
Beginning 24 hours after installation, tiles must be continuously
maintained at relative humidity not exceeding 90% and at
temperatures between 59°-104° Fahrenheit (15°-40° Centigrade).
Remove tiles from the packaging for proper acclimatization to room
temperature. Tiles should be stored in the room of installation for a
minimum of 24 hours before installation. TopTile® Acoustical Tiles
are for INTERIOR installations only. Failure to follow these important
steps will void the warranty.
New Drop Ceilings vs. Replacement Ceilings
Start at Step 1 for installation of new drop ceiling
Start at Step 2 for ceiling tile replacement using existing grid
system
Step 1 – Installation of Ceiling Grid System
Follow the Ceiling Grid Manufacturer’s installation instructions.
Step 2 – Installation of Ceiling Tiles
Angle the tiles up through the open spaces in the grid system;
straighten and lower into place so that they rest flat on the tees. Cut
the perimeter panels with a utility knife for flexible material, or use a
fine blade power saw or hand saw to cut most rigid panels. The cutedge should rest on the wall angle. Make the cut-outs for fixtures and
vents prior to installation of the panels.
©2014 Halstead C&W Corp.
Last Revised: February 22, 2018
