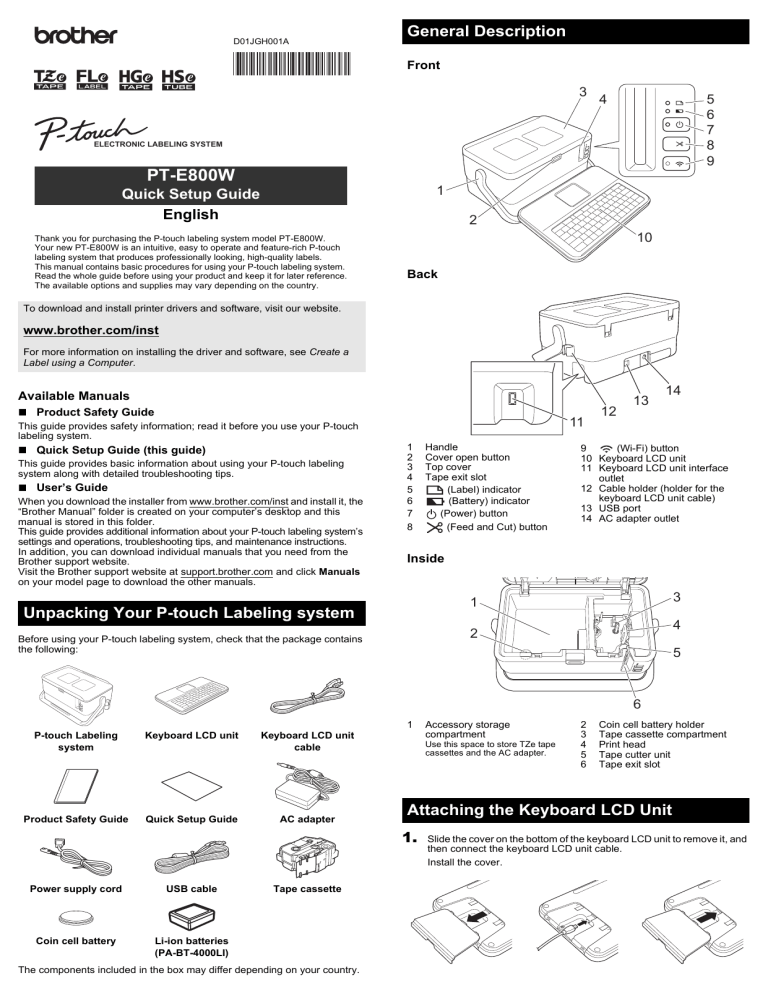

Brother PT-E800W Quick setup guide

Brother PT-E800W Quick setup guide
D01JGH001A
General Description
Front
3
5
6
7
8
9
4
ELECTRONIC LABELING SYSTEM
PT-E800W
1
Quick Setup Guide
English
2
Thank you for purchasing the P-touch labeling system model PT-E800W.
Your new PT-E800W is an intuitive, easy to operate and feature-rich P-touch
labeling system that produces professionally looking, high-quality labels.
This manual contains basic procedures for using your P-touch labeling system.
Read the whole guide before using your product and keep it for later reference.
The available options and supplies may vary depending on the country.
10
Back
To download and install printer drivers and software, visit our website.
www.brother.com/inst
For more information on installing the driver and software, see Create a
Label using a Computer.
Available Manuals
 Product Safety Guide
11
This guide provides safety information; read it before you use your P-touch
labeling system.
 Quick Setup Guide (this guide)
This guide provides basic information about using your P-touch labeling
system along with detailed troubleshooting tips.
 User’s Guide
When you download the installer from www.brother.com/inst and install it, the
“Brother Manual” folder is created on your computer’s desktop and this
manual is stored in this folder.
This guide provides additional information about your P-touch labeling system’s
settings and operations, troubleshooting tips, and maintenance instructions.
In addition, you can download individual manuals that you need from the
Brother support website.
Visit the Brother support website at support.brother.com and click Manuals
on your model page to download the other manuals.
1
2
3
4
5
6
7
8
Handle
Cover open button
Top cover
Tape exit slot
(Label) indicator
(Battery) indicator
(Power) button
(Feed and Cut) button
12
13
14
9
(Wi-Fi) button
10 Keyboard LCD unit
11 Keyboard LCD unit interface
outlet
12 Cable holder (holder for the
keyboard LCD unit cable)
13 USB port
14 AC adapter outlet
Inside
3
1
Unpacking Your P-touch Labeling system
4
2
Before using your P-touch labeling system, check that the package contains
the following:
5
6
1
P-touch Labeling
system
Keyboard LCD unit
Keyboard LCD unit
cable
Product Safety Guide
Quick Setup Guide
AC adapter
Use this space to store TZe tape
cassettes and the AC adapter.
USB cable
Coin cell battery
Li-ion batteries
(PA-BT-4000LI)
Tape cassette
The components included in the box may differ depending on your country.
2
3
4
5
6
Coin cell battery holder
Tape cassette compartment
Print head
Tape cutter unit
Tape exit slot
Attaching the Keyboard LCD Unit
1.
Power supply cord
Accessory storage
compartment
Slide the cover on the bottom of the keyboard LCD unit to remove it, and
then connect the keyboard LCD unit cable.
Install the cover.
2.
Connect the USB cable on the keyboard LCD unit to the outlet on the
side of the P-touch labeling system.
4.
Install the battery.
IMPORTANT
Be sure to insert the new battery with the + and – sides facing the correct
direction.
5.
NOTE
•
•
•
When you turn on the P-touch labeling system, the keyboard LCD
unit is also turned on.
The keyboard LCD unit can be installed on the P-touch labeling
system by sliding it on the top cover.
When storing the keyboard LCD unit, turn it upside down and install
it to the top cover to prevent it from becoming dusty or dirty.
You can place the excess cable in the cable holder.
Return the coin cell battery cover to its original position. To install the
coin cell battery cover, use a coin or similar object to slowly turn the coin
cell battery cover in the opposite direction of the arrow on the battery
cover until it stops.
For more information, see the User’s Guide.
Connecting the Power Supply
AC Adapter
Use the AD9100ESA (AC adapter) for this P-touch labeling system. Connect
the AC adapter directly to the P-touch labeling system.
1.
2.
Insert the plug on the AC adapter cord into the AC adapter outlet
marked DC IN 24 V on the P-touch labeling system.
Insert the plug on the power supply cord into the AC adapter.
Installing the Coin Cell Battery
A coin cell battery is used as a backup power supply to maintain the settings
for the internal clock of the keyboard LCD unit. The battery will be consumed
even if the P-touch labeling system is not used for a long period of time.
1
2
IMPORTANT
•
3.
(Battery insulation example)
1
2
1
2
•
•
1.
2.
3.
1
2
When storing or discarding the battery, wrap it (for example with
cellophane tape) to prevent it from short-circuiting.
Cellophane tape
Coin cell battery
We recommend replacing the battery every two years.
Dispose of the batteries at an appropriate collection point, not in the
general waste stream. In addition, be sure to observe all applicable
federal, state, and local regulations.
Make sure your P-touch labeling system is turned off.
Press the cover open button to open the top cover.
Using a coin or similar object, slowly turn the coin cell battery cover in
the direction of the arrow on the battery cover until it stops, and then
remove the coin cell battery cover.
IMPORTANT
If the coin cell battery cover is forcibly turned past the stop position, it
may become damaged.
AC adapter
Power supply cord
Insert the power supply plug into a standard AC power outlet.
IMPORTANT
•
•
•
Turn off the P-touch labeling system before disconnecting the AC
adapter.
Do not pull or bend the AC adapter cord and power supply cord.
After the power supply plug is inserted into the AC power outlet, it
may take a few seconds until the
(Power) button is enabled.
NOTE
To safeguard and back up the P-touch labeling system memory, when
the power supply is unplugged it is recommended to leave the
rechargeable Li-ion batteries (PA-BT-4000LI) installed in the P-touch
labeling system.
Using the Rechargeable Li-ion Battery
 Installing the Rechargeable Li-ion Battery
1.
2.
3.
4.
Press and hold the
system.
(Power) button to turn off your P-touch labeling
Open the battery cover on the bottom of the P-touch labeling system.
Insert the battery into the battery compartment.
Close the battery cover.
 Removing the Rechargeable Li-ion Battery
Press and hold the
(Power) button to turn off the P-touch labeling system.
Remove the battery cover and the battery, and then reattach the battery
cover.
 Charging the Rechargeable Li-ion Battery
NOTE
•
•
1.
2.
Before use, fully charge the battery.
Up to three hours may be needed to fully charge the battery.
Inserting a Tape Cassette
The TZe tape, FLe label, HGe tape and HSe tube cassettes can be used in
your P-touch labeling system.
IMPORTANT
If the new tape cassette has a cardboard stopper,
be sure to remove the stopper before inserting the
cassette.
Make sure the battery is installed in the P-touch labeling system.
Use the AC adapter and power supply cord to connect the P-touch
labeling system to an AC power outlet.
Press the
(Power) button to turn on the P-touch labeling system if it
is not on already.
1.
The
(Battery) indicator lights in orange during charging, and it goes
off when the battery is fully charged.
Check that the end of the tape is not bent and that it passes through the
tape guides. If it does not, pass it through the tape guides as shown in
the illustration.
1
1
2
2
1
1
2
2
1
2
AC adapter
Power supply cord
NOTE
2.
3.
Although the charging stops if the P-touch labeling system is used to
print, feed, or perform another operation, the charging will start again
automatically after the operation is finished if the charging is not
completed.
End of tape
Tape guides (The actual shape may be different depending on
the tape width.)
Press the cover open button to open the top cover.
Carefully insert the tape cassette into the tape cassette compartment
with the end of the tape facing the P-touch labeling system’s tape exit
slot, then push down evenly until the tape cassette is installed correctly.
 Stopping Rechargeable Li-ion Battery Charging
To stop the battery charging, disconnect the AC adapter.
1
Notes on Using the Rechargeable Li-ion Battery
 Before use, fully charge the battery. Do not use it before it is fully
charged.
 The battery charging must take place in environments between 32°F
and 104°F (0°C and 40°C), otherwise the battery will not charge, and the
(Battery) indicator will remain lit. If the charging stops because the
environment temperature is too low or too high, place the P-touch
labeling system with a temperature between 32°F and 104°F (0°C and
40°C) and try charging again.
 If the P-touch labeling system is used to print, feed, or perform another
operation when both the battery is installed and the AC adapter is
connected, the
(Battery) indicator may turn off and charging may
stop even if the battery is not fully charged.
1
IMPORTANT
•
•
Rechargeable Li-ion Battery Characteristics
To ensure the highest performance and longest life from the battery:
 Do not use or store the battery in a location exposed to extreme high or
low temperatures as it may discharge more quickly. This may happen
when using a rechargeable Li-ion battery with a high charge (90%
charged or more) in a location exposed to high temperatures.
 Remove the battery when storing the P-touch labeling system for long
periods of time.
 Store a battery with less than a 50% charge in a cool dry place out of
direct sunlight.
 Recharge the battery every six months if it is stored for long periods of
time.
 If you touch a part of the P-touch labeling system while the Li-ion battery
is charging, that part of the P-touch labeling system may feel warm. This
is normal, and the P-touch labeling system may be used safely.
However, if the P-touch labeling system becomes extremely hot,
discontinue use.
Tape exit slot
•
4.
When inserting the tape cassette, make sure that the tape and ink
ribbon do not catch on the print head.
Make sure that there is no slack in
the tape. Otherwise the tape may
catch on the protrusion (2) and
become bent or wrinkled, causing
the tape to jam.
To fix the slack in the tape, refer to
the illustration in step 1 and pull
2
the tape outside of the tape guide.
When removing the tape cassette,
make sure that the tape does not catch on the protrusion (2).
Close the top cover.
IMPORTANT
Store tape cassettes in a cool dark location, away from direct sunlight
and high temperature, high humidity, or dusty locations. After opening
the sealed package, use the tape cassette as quickly as possible.
Turning Power On/Off
On: Press the
(Power) button to turn on the P-touch labeling system. The
(Power) indicator lights in green.
23 Letter
• Enters letters or numbers.
• Enters upper-case letters or symbols when used in combination with
the Caps or Shift key.
LCD
 Home Screen
NOTE
When the P-touch labeling system is turned on for the first time, the
language selection screen appears. Select the language you want using
the
or
key. The language setting can also be changed later. (See
Setting Language and Unit.)
1
3
2
4
Off: Press and hold the
(Power) button again to turn off the P-touch
labeling system. The
(Power) indicator may light in orange until the power
is off.
5
7
6
8
9
10
IMPORTANT
When turning off the P-touch labeling system, do NOT remove the
battery or disconnect the AC adapter until the
(Power) indicator turns
off.
1
2
3
Keyboard LCD Unit Description
4
Key Names and Functions
1
2
3
4
5
5
6
7
8
6
23
9
22
10
21
11
8
12
12
9
13
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
19
18
17
16
15
7
Auto Format (Templates)
Specifies the label format from the preset templates.
Create Label
Displays the label creation screen.
Auto Format (Block Layouts)
Specifies the label format from the preset layouts.
File
Retrieves data that is saved in the file memory.
Cable Label
Specifies the label type from the following seven types: Faceplate/Cable
Wrap/Cable Flag/Patch Panel/Punch-Down Block/Die-cut Flag/Inverted
Label.
Transferred Templates
Retrieves data that was transferred from a computer.
Settings
Specifies various settings for the P-touch labeling system.
Register Programmable Function
Registers, deletes, and renames programs.
Wireless Connection
The left icon indicates the status of the Wi-Fi® connection and the right
icon indicates the status of the Wireless Direct connection.
14
Home
Returns to the Home screen to select a menu.
Format
Sets characters and attributes.
PF (Programmable Function)
Select programmable function.
Clear
Clears all text entered, or all text and current settings.
Save
Saves the created data in the file memory.
Preview
Displays an image of the label that will be printed in the set layout.
Cancel
Deletes the print job.
Print/Print Option
• Prints the current data onto the tape.
• Prints multiple copies or changes the print settings when used in
combination with the Shift key.
BS (Backspace)
Deletes the character to the left of the cursor.
Next
Creates the next page.
Enter
Adds a new line when entering text.
Selects the displayed option.
Shift
Enters upper-case letters or symbols when used in combination with the
letter keys or number keys.
OK
Selects the displayed option.
Cursor (
)
Moves the cursor in the direction of the arrow.
Esc (Escape)
Cancels the current command and returns the display to the data entry
screen or the previous step.
Space
• Inserts a blank space.
• Returns a setting to the default value.
Accent
Selects and enters an accented character.
Symbol
Selects and enters a symbol from a list of available symbols.
Serialize/Adv.Serialize
Sets serialized numbers.
Insert
Inserts a time stamp, barcode, database, or transferred symbol.
Caps
Turns the Caps mode on and off.
Tab
Inserts a tab.
Connected in Wi-Fi mode
Disconnected in Wi-Fi mode
Wireless direct mode ON
(Blinking)
(Off)
Connecting using the Setup Wizard
Wireless connection OFF
10 Battery Level
Indicates the remaining battery level. It appears only when using the
Li-ion battery.
- Full
- Low
- Half
- Empty
- Charging
 Label Creation Screen
1
2
NOTE
3
4 5 6 7 8
To exit or cancel this function press the Esc key.
9
12
10
13
11
14
15
16
17
18
19
1
Caps mode
Indicates that the Caps mode is on.
2-8 Style Guidance
Indicates the current font (2), character size (3), character width (4),
character style (5), line (6), frame (7), and alignment (8) settings.
9 Layout Guidance
Indicates the orientation, layout, separator, reverse, and repeated text
settings. The displayed items vary according to the selected label type.
10 Block Number
Indicates the block number.
11 Line Number
Indicates the line number within the label layout.
12 Page Separator Line
Indicates the end of one page and the beginning of the next page.
13 Block Separator Line
Indicates the end of a block.
14 Enter/Return Symbol
Indicates the end of a line of text.
15 Cursor
Indicates the current data input position. Characters are entered to the
left of the cursor.
16 Wireless Connection
Indicates the current status of the wireless connection. See Wireless
Connection in the Home Screen section.
17 Tab Length Setting
Indicates the set tab length.
18 Tape Size
Indicates the tape size as follows for the text entered: Tape width × Label
length. If the label length has been specified,
also appears on the right
side of the tape size.
19 Battery Level
Indicates the remaining battery level. It appears only when using the
Li-ion battery. See Battery Level in the Home Screen section.
Feeding Tape
IMPORTANT
•
•
•
Be sure to feed tape to remove any slack in the tape and ink ribbon
after inserting the tape cassette.
Do not pull the label when the P-touch labeling system is
ejecting it from the tape exit slot. Doing so will cause the ink ribbon
to be discharged with the tape. The tape may no longer be functional
after the ink ribbon discharges.
Do not block the tape exit slot during printing or when feeding tape.
Doing so will cause the tape to jam.
Feed and Cut
The Feed and Cut function feeds approximately 22.3 mm of blank tape, and
then cuts the tape.
1.
2.
Press the
(Feed and Cut) button.
[Feed & Cut?] appears on the LCD.
Select [Feed & Cut] using the
or
key, and then press the OK or
Enter key. The message [Feeding Tape... Please Wait] appears
while the tape is fed, and then the tape is cut.
Setting Language and Unit
Language
1.
2.
3.
4.
1.
2.
3.
4.
2.
Select [Feed Only] using the
or
key, and then press the OK or
Enter key. The message [Feeding Tape... Please Wait] appears
while the tape is fed.
key,
key, and then press the OK
Select a language for menu commands and messages shown on the
LCD using the
or
key.
The following languages are available: [Čeština], [Dansk],
[Deutsch], [English], [Español], [Français], [Hrvatski],
[Italiano], [Magyar], [Nederlands], [Norsk], [Polski],
[Português], [Português(Brasil)], [Română], [Slovenski],
[Slovenský], [Suomi], [Svenska], and [Türkçe].
Press the OK or Enter key.
Select [Settings] in the Home screen using the
and then press the OK or Enter key.
Select [Unit] using the
key.
or
,
,
or
key,
key, and then press the OK or Enter
Select a unit for dimensions shown on the LCD using the
Either [inch] or [mm] can be selected.
or
key.
Press the OK or Enter key.
NOTE
The default setting is [inch].
To return to the previous step, press the Esc key.
Adjusting the LCD Settings
LCD Contrast
You can change the contrast setting of the LCD to one of five levels (+2, +1,
0, -1, or -2) to make the screen easier to read. The default setting is “0”.
1.
2.
3.
Select [Settings] in the Home screen using the
and then press the OK or Enter key.
Select [LCD Contrast] using the
or Enter key.
Set the value using the
key.
or
or
,
,
or
key,
key, and then press the OK
key, and then press the OK or Enter
NOTE
•
•
To return to the previous step, press the Esc key.
Pressing the Space key on the contrast setting screen sets the
contrast to the default value of “0”.
Backlight
You can change the backlight setting either to “On” or “Off”.
The display is easier to see with the backlight on. The default setting is “On”.
1.
3.
Press the
(Feed and Cut) button.
[Feed & Cut?] appears on the LCD.
or
Unit
Feed Only
1.
or
,
To return to the previous step, press the Esc key.
2.
This function ejects the tape approximately 22.3 mm, resulting in a blank label
sticking out of the tape cassette. This action is recommended when using
Fabric tapes, which should be cut with scissors.
Select [
Language] using the
or Enter key.
,
NOTE
NOTE
To exit or cancel this function press the Esc key.
Select [Settings] in the Home screen using the
and then press the OK or Enter key.
Select [Settings] in the Home screen using the
and then press the OK or Enter key.
Select [Backlight] using the
Enter key.
Select [On] or [Off] using the
Enter key.
or
or
,
,
or
key,
key, and then press the OK or
key, and then press the OK or
NOTE
•
•
Power can be saved when the backlight is turned off.
The backlight automatically turns off. Press any key to turn the
backlight on again.
During printing, the backlight is turned off. The backlight turns on during data
transmissions.
 Battery indicator
LED Indicators
(Battery)
The indicators light and flash to indicate the your P-touch labeling system’s
status. The symbols used in this section explain the meaning of the different
indicator colors and patterns:
(Off)
=
Indicator is lit
=
Indicator is flashing
=
Indicator can be off, lit or flashing in any color
=
Indicator is off
Example: G
G = Green
O = Orange
R = Red
(Off)
(Off)
R
G
G
(Power)
R
(1 time in 1 second)
R
(2 times in 1.8 seconds)
O
O
Charging
Rechargeable battery power:
half
O
(1 time in 4 seconds)
Rechargeable battery power:
low
O
G
(1 time in 1
second)
Power is turning off
Top cover open
R
Rechargeable battery error
R
G
Rechargeable battery power:
empty
O
O
Adapter
connection/disconnection
error
 Wi-Fi indicator
Transferring data
O
Now cooling
R
System error 1
System error 2
System error 3
O
Reset mode (when the mode is
starting)
O
Reset mode (when the button
is pressed 2/4/6 times)
O
R
Condition
When blinking alternately:
Cutter error
O
Rechargeable battery power:
full
O
 Label, Power indicator
Condition
(Off)
(2 times in 4 seconds)
= Indicator is flashing in green
(Label)
(Power)
When blinking simultaneously:
High temperature error
O
Wrong media error
G
No cassette error
Media end error
G
Top cover open error when
printing
(Wi-Fi)
R
R
(1 time in 1 second)
R
(2 times in 1.8 seconds)
O
(2 times in 1.8 seconds)
G
(Power)
Condition
O
No available WPS access
point was found
O
WPS access point connection
error
O
Incorrect security settings
O
WPS access point search error
Wi-Fi on, not connected
G
Wi-Fi on, connected
(Off)
Wi-Fi off
Product Specifications
Model Name
PT-E800W
Size
Dimensions
approx. 13.78" (W) x 7.40" (D) x 6.81" (H)
(350 mm (W) × 188 mm (D) × 173 mm (H))
(including keybord LCD unit)
Weight
approx. 7.50 lb (3.4 kg) (including keybord
LCD unit)
Printing
Method
Thermal Transfer
Cassette
• Brother TZe tape cassette:
0.13" (3.5 mm), 0.23" (6 mm), 0.35" (9 mm),
0.47" (12 mm), 0.70" (18 mm), 0.94" (24 mm),
1.4" (36 mm)
• Brother FLe label cassette:
0.82" (21 mm) × 1.77" (45 mm)
• Brother HSe tube cassette:
0.23" (5.8 mm), 0.34" (8.8 mm), 0.46" (11.7 mm),
0.69" (17.7 mm), 0.93" (23.6 mm)
• Brother HGe tape cassette:
0.23" (6 mm), 0.35" (9 mm), 0.47" (12 mm),
0.70" (18 mm), 0.94" (24 mm), 1.4" (36 mm)
Interface
USB
Version 2.0 Full Speed
Wi-Fi
•
•
•
•
Wireless Direct: IEEE802.11n
Ad-Hoc mode: IEEE802.11b
Infrastructure mode: IEEE802.11b/g/n
WPS 2.0
Environment
Operating
temperature/humidity
When running: between 50°F and 95°F (10°C
and 35°C) /
between 20% and 80%
max. wet bulb temperature:
80.6°F (27°C)
Brother support website
Please visit our support website at support.brother.com.
You can find following information:
• Software downloads
• Manuals/Documents
• Frequently Asked Questions (Troubleshooting, Useful tips on using printer)
• Consumable information
• Latest OS compatibility information
The contents of this website are subject to change without notice.
You can use the P-touch labeling system’s keyboard LCD unit to create and
print data for labels. Because the P-touch labeling system is portable, it can
be used as a single unit without worrying about the strength of the wireless
signal or connecting to other devices, and can be used anytime and
anywhere.
1. GETTING STARTED
Reference
Preparing the P-touch
labeling system.
Quick Setup Guide (this guide)
2. CREATING A LABEL
Reference
The labels are created using the label creation screen. To open the label
creation screen, select [Create Label] in the Home screen.
User’s Guide
Editing labels:
• Entering and editing
text.
• Entering symbols,
accented characters,
time stamps, and
serialized text.
• Creating a barcode
label.
Note:
In addition to entering text, the P-touch labeling
system has a large range of formatting options.
3. LABEL PRINTING
Reference
Setting cut options.
User’s Guide
Adjusting the label length.
Printing the label.
Your P-touch labeling system can be used as a stand-alone P-touch labeling
system, or it can be connected to a mobile device and used with the Brother
applications to create labels and print directly from your mobile device.
To print labels from your mobile device, install the Brother applications to your
mobile device, and then connect your P-touch labeling system to your mobile
device.
For more information about the mobile
applications available for your printer,
visit support.brother.com/g/d/f5f9.
 Connecting Your P-touch labeling system to a Mobile Device
1.
2.
3.
Turn on your P-touch labeling system, and then press and hold the
(Wi-Fi) button until the
(Wi-Fi) indicator is lit in green.
Turn on the Wi-Fi function on your Apple iPhone/iPad/iPod touch or
Android™ device.
Start the application on your Apple iPhone/iPad/iPod touch or
Android™ device, and then select your P-touch labeling system as the
printer in the application.
Select “PT-E800W” or “DIRECT-*****_PT-E800W”.
“*****” is the last five digits of the product serial number.
You can find the serial number label on the bottom of the P-touch
labeling system.
When the password (network key) is required, type “00000000”.
Create a Label using a Computer
NOTE
You must install P-touch software and the printer driver to use your
P-touch labeling system with your computer.
Download the installer from www.brother.com/inst.
Your P-touch labeling system can be connected to a computer and used with
the P-touch Editor or Cable Label Tool software to create more complex
labels.
For more information, see the User’s Guide.
Available
Applications
Create a Label
Selecting an auto format.
Selecting a label type.
Create a Label using a Mobile Device
Note:
Before printing, you can check the layout of
your label using the preview function.
Cable Label
Tool
Features
Computer
Connection
Create and print labels for
cables, patch panels,
faceplates, electrical
equipment and more.
Windows
Wi-Fi / USB
P-touch Editor Design and print custom
labels with built in drawing
tools, text using different
fonts and styles, imported
graphic images and
barcodes.
Windows /
Mac
Installing the Software and Printer Driver to a Computer
To print from your Windows computer or Mac, install the printer driver,
P-touch Editor and other applications to your computer.
1.
2.
Printing Problems
Problem
Solution
The label is not printed.
• Check that text has been entered and that
the tape cassette is installed correctly with
sufficient tape remaining.
• If the tape is bent, cut off the bent section and
thread the tape through the exit slot or tape
guides.
• When printing from a computer or mobile device,
make sure the computer or mobile device is
connected correctly to the P-touch labeling system.
The label is not printed
correctly.
• Remove the tape cassette and reinstall it,
pressing it firmly until it locks into place.
• If the print head is dirty, clean it with a cotton
swab or optional print head cleaning cassette
(TZe-CL6).
The tape is jammed.
• If the tape is jammed, remove the tape
cassette from the P-touch labeling system.
• Check the tape cassette compartment and tape
exit slot for tape scraps, jammed tape or debris
that may prevent the tape from correctly exiting
the machine. Remove if present.
• Examine the tape cassette and cut away any
damaged tape that is present past the tape
guides on the tape cassette.
• Check that the end of the tape is not bent and
that is passes through the tape guides. For
more information, see section Inserting a
Tape Cassette of this guide.
• Insert the tape cassette into the tape cassette
compartment.
Visit our website (www.brother.com/inst) and download the installer
for the software and manuals.
Double-click the downloaded .exe file and follow the on-screen
instructions to proceed with the installation.
NOTE
To connect the P-touch labeling system to a computer using a wireless
connection:
• We recommended configuring the wireless network settings while
installing the software. You can change the settings later using
[Settings] in the Home screen or the Printer Setting Tool. For more
information, see the User’s Guide.
• We recommended installing the software on a computer wirelessly
connected to your network and configuring the P-touch labeling
system using a USB cable.
• We recommend preparing the SSID (network name) and password
(network key) of the wireless network in advance.
• If your wireless access point/router supports WPS, you can use
one-push WPS (Wi-Fi Protected Setup) to quickly configure the
wireless network settings.
3.
Close the dialog box when the installation is complete.
Connecting the P-touch Labeling System to a Computer
You can connect the P-touch labeling system to a Windows computer or Mac
using a USB cable, or wireless LAN. For more information, see the User’s
Guide.
 Connecting Using USB
1.
2.
3.
Connect the P-touch labeling system end of the USB cable to the USB
port on the back of the P-touch labeling system.
The ink ribbon is separated If the ink ribbon is broken, replace the tape
from the ink roller.
cassette. If not, leave the tape uncut and
remove the tape cassette, then wind the loose
ink ribbon onto the spool as shown in the figure.
1
Connect the other end of the USB cable to the USB port on the
computer.
Turn on the P-touch labeling system.
1
 Connecting Using Wi-Fi
1.
2.
Note: Do not pull the label when the P-touch
labeling system is ejecting it from the tape exit
slot. Doing so will cause the ink ribbon to be
pulled out with the tape. The tape may no longer
be functional after the ink ribbon is pulled out.
Turn on the P-touch labeling system.
Press and hold the
(Wi-Fi) button on your P-touch labeling system
for one second to turn the Wi-Fi function on. The
(Wi-Fi) indicator
starts flashing in green once every three seconds.
• Ad-Hoc Mode
For Windows, after installing the printer driver and other applications
to your computer, set the Ad-Hoc mode using the Printer Setting Tool
installed on the computer. (See the User’s Guide.)
For Mac, set the Ad-Hoc mode using the Wireless Device Setup
Wizard.
The P-touch labeling
• Replace the tape cassette if striped tape is
visible, as this indicates that you have
system stops while printing
a label.
reached the end of the tape.
• Connect the AC adapter directly to the
P-touch labeling system, or charge the
rechargeable Li-ion battery.
The label is not cut
automatically.
Troubleshooting
Check the Cut Option setting. For more
information, see the User’s Guide.
To cut labels manually, press the
(Feed
and Cut) button to feed and cut the tape.
A tape jam error cannot be Contact Brother customer service.
cleared despite following
the troubleshooting steps.
LCD Problems
Problem
Solution
The screen is locked, or
the P-touch labeling
system does not respond
normally.
Reset the internal memory to the factory
settings. For more information, see the User’s
Guide. If resetting the P-touch labeling system
does not solve the problem, disconnect the AC
adapter and remove the battery for more than
10 minutes.
The display remains blank The P-touch labeling system is receiving no
after turning on the power. power.
If using AC power, connect the AC adapter
The POWER indicator
correctly to the P-touch labeling system and an
does not light
AC power outlet.
If using a rechargeable Li-ion battery, make
sure the rechargeable Li-ion battery is firmly
installed in the P-touch labeling system and is
fully charged.
Check that the keyboard LCD unit cable is
securely connected to the keyboard LCD unit
and keyboard LCD unit interface of the P-touch
labeling system.
The LCD messages are
displayed in a foreign
language.
Spool
See Setting Language and Unit in this guide to
select the language you want.
I want to make fine
adjustments to the print
result.
The length and margins can be adjusted in the
Printer Setting Tool. For more information, see
User’s Guide.
Version Information
Problem
Solution
I do not know the version
number of the firmware of
my P-touch labeling
system.
The version number and other information for
the firmware can be confirmed using the
following procedure:
1 Select [Settings] in the Home screen
using the , ,
or
key, and then
press the OK or Enter key.
2 Select [Version Information] using the
or
key, and then press the OK or
Enter key.
In addition, you can also use the following
procedure.
1 Turn on your P-touch labeling system.
2 Press and hold the
(Feed and Cut)
button for more than 10 seconds to print the
report.
(Use 0.94" (24 mm) or 1.4" (36 mm) tape.)
For more information, see the User’s Guide.
I want to confirm whether I Use the P-touch Update Software to confirm if
am using the latest version you have the latest version.
For more information, refer to the User's Guide.
of the software.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
