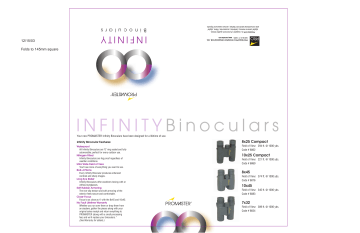

B i n o c u l a r s
INFINITY
12/15/03
Folds to 145mm square
INFINITYBinoculars
Your new PROMASTER Infinity Binoculars have been designed for a lifetime of use.
Infinity Binocular Features:
8x25 Compact
Waterproof
All Infinity Binoculars are "O" ring sealed and fully
submersible; perfect for every outdoor use.
Nitrogen Filled
Infinity Binoculars are fog proof regardless of
weather conditions.
Ultra Wide Field of View
You'll see more of everything you want to see.
BAK-4 Prisms
Every Infinity Binocular produces enhanced
contrast and sharp images.
Long Eye Relief
Infinity Binoculars offer excellent viewing with or
without eyeglasses.
Soft Rubber Armoring
The non-slip texture and soft armoring of the
exterior feels secure and comfortable.
Close-Focus
Focus to as close as 4' with the 8x45 and 10x45.
No Fault Lifetime Warranty
Whether you run over them or drop them from
an airplane, gather the pieces along with your
original sales receipt and return eveything to
PROMASTER (along with a small processing
fee) and we'll replace your binoculars.*
(See Warranty for details.)
Field of View: 294 ft. @ 1000 yds.
Code # 6862
10x25 Compact
Field of View: 221 ft. @ 1000 yds.
Code # 6869
8x45
Field of View: 374 ft. @ 1000 yds.
Code # 6876
10x45
Field of View: 345 ft. @ 1000 yds.
Code # 6883
7x32
Field of View: 389 ft. @ 1000 yds.
Code # 8654
INFINITYBinoculars
Instructions for Use
Your PROMASTER binocular is a precision instrument designed to provide
many years of pleasurable viewing. These instructions will help you achieve
optimum performance by explaining how you can adjust the binocular to your
eyes and how to care for this instrument. Read the instructions carefully before
using your binocular.
8. Your binocular should be adjusted for your eyes. Focus at any far or near
distances can now be attained simply by turning the center focus wheel.
Make a note of the diopter setting for your eyes for future reference.
Waterproof • Fog Proof
Your PROMASTER binocular is designed and built utilizing the latest waterproof
and fog proof technology. PROMASTER waterproof models are O-ring sealed
for complete protection. Fog proof protection is achieved from dry nitrogen
purging to remove all internal moisture.
Eyecups
Eye Adjustments (Figure 1)
How to adjust for distance between your eyes. The distance between the eyes,
called “interpupillary distance,” varies from person to person. To achieve perfect
alignment of lens to eye, follow these simple steps:
1. Hold your binocular in the normal viewing position.
2. Grasp each barrel firmly. Move the barrels closer together or further apart
until you see a single circular field. Always reset your binocular to this
position before using.
How to adjust for individual eye strength. As individual eyesight varies from
one person to another, all PROMASTER binoculars have a diopter setting
feature which allows you to fine tune the binocular to your vision. Follow the
focusing instructions below for your type of binocular.
Focusing
1. Adjust interpupillary distance. (Figure 1)
2. Set the “diopter setting” (Figure 2) to zero and view a distant object.
3. Keep both eyes open at all times.
4. Using a lens cover or your hand, cover the objective (front) lens of the same
side of the binocular that has the “diopter setting.” This is usually the right
side. (The left side on zoom models.)
5. Using the center focus wheel, focus on a distant object with fine detail (e.g.,
brick wall, tree branches, etc.) until it appears as sharp as possible.
6. Uncover the objective lens on the diopter side, cover the other objective lens,
then view the same object.
7. Using the “diopter setting” adjustment ring, focus the same object being
viewed. Caution should be used as over turning or forcing the diopter
eyepiece can cause damage or cause the eyepiece to break away from the
chassis.
Your PROMASTER binocular is fitted with twist-up eyecups designed for your
comfort and to exclude extraneous light. If you wear sun/eyeglasses, leave
the eyecups in the down position. This will bring your eyes closer to the
binocular lens thus providing improved field of view.
Instructions for Care
Your PROMASTER binocular will provide years of trouble-free service if it
receives the normal care you would give any fine optical instrument. Nonwaterproof models should not be exposed to excessive moisture.
1. If your binocular has roll-down, flexible eyecups, store it with the eyecups
up. This avoids excessive stress and wear on the eyecups in the down
position.
2. Avoid banging and dropping.
3. Store in a cool, dry place.
4. Looking directly at the sun with your binocular may be very harmful to your
eyes.
Cleaning
1. Blow away any dust or debris on the lens (or use a PROMASTER lens pen).
2. To remove dirt or finger prints, clean with a “microfiber” cleaning cloth like
the PROMASTER SoftClean or MicroClean soft cleaning cloth. Rub lightly in a
circular motion. Use of a coarse cloth or unnecessary rubbing may scratch
the lens surface and eventually cause permanent damage.
3. For a more thorough cleaning, photographic-type lens cleaning fluid like
PROMASTER OpticClean may be used. Always apply the fluid to the cleaning
cloth ~ never directly on the lens.
