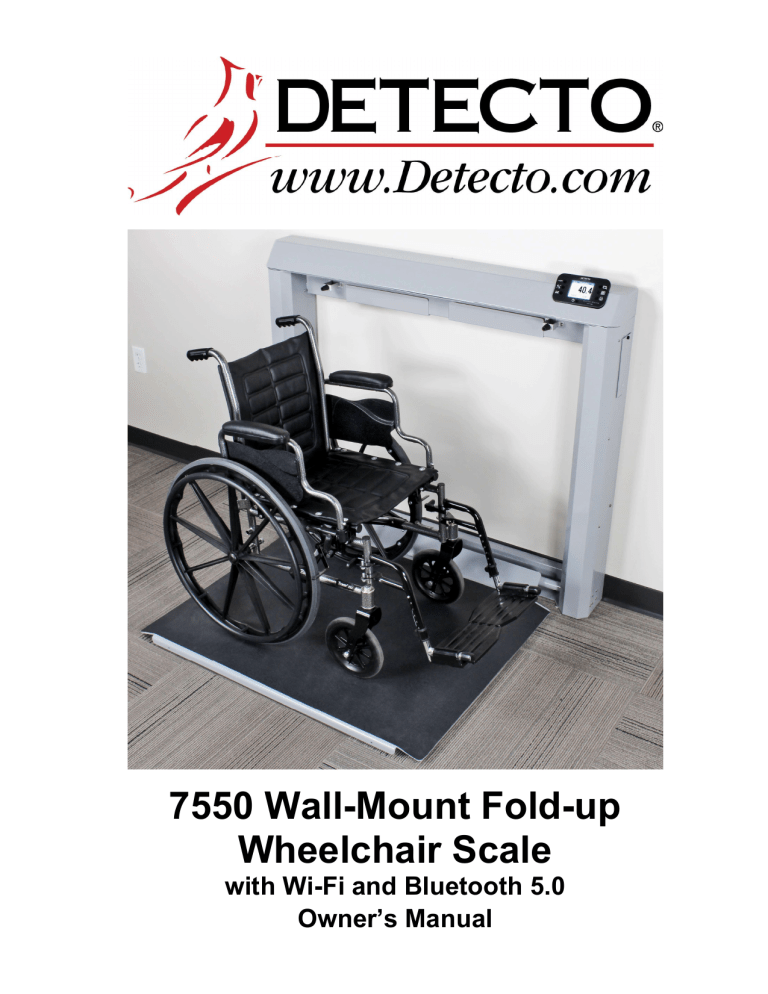

7550 Wall-Mount Fold-up
Wheelchair Scale
with Wi-Fi and Bluetooth 5.0
Owner’s Manual
0065-0647-OM Rev E
7550 OWNER’S MANUAL
1
2
0065-0647-OM Rev E
7550 OWNER’S MANUAL
INTRODUCTION
Thank you for purchasing our Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale. The 7550
wall-mount wheelchair scale features a unique fold-up storage design that saves space when
not in use. The 7550 easily accommodates most wheelchairs with its spacious 36 in W x 33 in
D / 91 cm W x 84 cm D platform, and yet requires very little floor space when folded up. The
slim 7.3 in / 18.5 cm profile takes up minimal space when installed in a medical facility hallway,
clinical office, or patient room. When you’re ready to weigh, simply lower the platform and the
gas spring lifting mechanism will gently lower it into place. The patient may be easily rolled
onto the scale in a wheelchair, weighed in a chair, or while standing. The scale features a high
1,000 lb x 0.2 lb / 450 kg x 0.1 kg capacity for bariatric weighing, two-way ramps, and built-in
Wi-Fi and Bluetooth 5.0 for EMR/EHR.
This manual is provided to guide you through the setup and operation of your scale. Please
read it thoroughly before attempting to set up or operate your scale and keep it available for
future reference.
This manual is for the following models of the 7550 Wall-Mount Fold-Up Wheelchair Scales:
7550, 7550-AC, and 7550KGEU
COPYRIGHT
All rights reserved. Reproduction or use, without expressed written permission, of editorial or
pictorial content, in any manner, is prohibited. No patent liability is assumed with respect to the
use of the information contained herein.
DISCLAIMER
While every precaution has been taken in the preparation of this manual, the Seller assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting
from the use of the information contained herein. All instructions and diagrams have been
checked for accuracy and ease of application; however, success and safety in working with
tools depend to a great extent upon individual accuracy, skill, and caution. For this reason, the
Seller is not able to guarantee the result of any procedure contained herein. Nor can they
assume responsibility for any damage to property or injury to persons occasioned from the
procedures. Persons engaging in the procedures do so entirely at their own risk.
Serial Number _____________________
Date of Purchase __________________
Purchased From ___________________
__________________________________
PRECAUTIONS
Before using this scale, read this manual
and pay special attention to all
"NOTIFICATION" symbols:
__________________________________
__________________________________
IMPORTANT
RETAIN THIS INFORMATION FOR FUTURE USE
0065-0647-OM Rev E
7550 OWNER’S MANUAL
ELECTRICAL
WARNING
I3
PROPER DISPOSAL
When this device reaches the end of its useful life, it must be properly disposed of. It must not
be disposed of as unsorted municipal waste. Within the European Union, this device should be
returned to the distributor from where it was purchased for proper disposal. This is in
accordance with EU Directive 2002/96/EC. Within North America, the device should be
disposed of in accordance with the local laws regarding the disposal of waste electrical and
electronic equipment.
It is everyone’s responsibility to help maintain the environment and to reduce
the effects of hazardous substances contained in electrical and electronic
equipment on human health. Please do your part by making certain that this
device is properly disposed of. The symbol shown to the right indicates that
this device must not be disposed of in unsorted municipal waste programs.
CAUTION
CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
ATTENTION: RISQUE D'EXPLOSION SI LA BATTERIES EST REMPLACE'E PAR
UN TYPE INCORRECT. REJETEZ LES BATTERIES UTILISE'ES SELON LES
INSTRUCTIONS.
Contains FCC ID: 2ADHKWINC3400
1. This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter. This equipment must be installed and operated with a minimum
distance of 20 cm between the radiator and user body.
4II
0065-0647-OM Rev E
7550 OWNER’S MANUAL
TABLE OF CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1
Standard Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 1
SITE PREPARATION REQUIREMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Electrical Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Electrical Noise Interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
UNPACKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Choose the Scale Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 4
Install the Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 5
Install the Scale on the Wall Mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 6
Battery Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 7
Battery Installation or Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
AC Power Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 8
WEIGHING UNITS/HEIGHT MEASUREMENT SELECTION . . . . . . . . . . . . . . . . . . . . Page 9
KEYPAD FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 11
ANNUNCIATORS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 13
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Basic Weighing Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 14
Basic Weighing Operation with ID – (No BMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 16
Body Mass Index (BMI) Operation (Using Previously Measured Height) . . . . . . . . . Page 17
Body Mass Index (BMI) Operation with ID (Using Previously Measured Height) . . . Page 18
SCALE SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 19
CALIBRATE SCALE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29
Calibration Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 29
LOAD CELL TRIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 42
WI-FI AND BLUETOOTH 5.0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 45
Wi-Fi Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 45
WI-FI SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 45
Enable and Configure Wi-Fi Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 45
Configure Wi-Fi Network Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 48
Changing the Network Credentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 50
Display Wi-Fi Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 50
WI-FI OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 51
Web Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 51
TCP/IP Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 52
SMA Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 52
0065-0647-OM Rev E
7550 OWNER’S MANUAL
III5
TABLE OF CONTENTS
BLUETOOTH LOW ENERGY (BLE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 53
Features Available with BLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 53
Enable Bluetooth (BLE) Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 53
Bluetooth Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 55
INTERFACING TO BLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56
Standard Services per Bluetooth SIG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56
Device Information Service (0x180A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56
Battery Service (0x180F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56
Weight Scale Service (0x181D) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 56
BLUETOOTH INTERFACE STANDARD PROTOCOLS . . . . . . . . . . . . . . . . . . . . . . Page 57
Bluetooth Characteristic – Weight_Measurement: 0x2A9D . . . . . . . . . . . . . . . . . . . . Page 57
Weight_Measurement: 0x2A9D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 57
Custom Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 58
Detecto SMA Service (0x907a0000-8699-47dd-ab30-d7aad5f83e54) . . . . . . . . . Page 58
SMA Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 58
WI-FI AND BLUETOOTH SMA COMMANDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 59
DISPLAY SCALE WI-FI AND BLUETOOTH SETTINGS . . . . . . . . . . . . . . . . . . . . . . Page 61
ERROR AND OPERATION MESSAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62
BEFORE YOU CALL SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 62
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 63
PARTS IDENTIFICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 64
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 64
Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 66
Support Tray Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 68
SCALE WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 71
STATEMENT OF LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 72
6IV
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SPECIFICATIONS
Capacity:
1,000 lb x 0.2 lb / 450 kg x 0.1 kg
Platform Size (Flat Portion):
36.0 in W x 33.0 in D / 91.4 cm W x 83.8 cm D
Overall Dimensions
Width:
Depth:
Height:
50.3 in / 127.6 cm
39.3 in / 99.7 cm (with platform extended)
7.3 in / 18.4 cm (without platform extended)
44.0 in / 111.7 cm
Display Type:
3.2 in (diagonal) full color TFT display
320 x 240 resolution
Number of Characters:
Weight: 5 digits, 0.8 in (20 mm) high
Height: 4 digits, 0.35 in (9 mm) high
BMI: 3 digits, 0.35 in (9 mm) high
Touch Screen:
Resistive touch panel covering the display
Keys:
Mechanical switch type, Power, Zero, Lock/Release, ID,
Cycle Display Mode, Menu, Print
Power Requirements:
Six C-size Alkaline, Ni-Cad, or NiMH batteries (not included)
Domestic models: Optional 100 to 240V AC 50/60Hz 12V
DC 1A wall plug-in UL/CSA listed AC power adapter
(Cardinal part number 6800-1045)
International models: Optional 100 to 240V AC 50/60Hz 12V
DC 1A Multi-Pin Input AC power adapter (Cardinal part
number 6800-1047)
Operating Environment:
Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC)
Humidity: 0 to 90% non-condensing
Communication Interfaces:
Wi-Fi and Bluetooth 5.0
Weight:
180 lb
Standard Features:
Slim 7.3 in / 18.5 cm Profile
2-Way Easy Access Ramps
Compact Vertical Fold-Up Platform
Gas Spring Lifting Mechanism
Sturdy Steel Construction
1
Units Locking into LB or KG
Auto Weight Lock Feature
8-Digit Numeric Patient ID
StableSENSE® 1 Adjustable Filtering
Wi-Fi and Bluetooth 5.0
StableSENSE® is a digital filter utilizing proprietary software algorithms to remove or greatly
reduce changes in the weight display resulting from movement on the scale platform.
StableSENSE® can be used with clinical scales to lessen the effects of the patient’s
movement or vibration on the scale. Any application affected by vibration or movement on
the scale platform can benefit from using StableSENSE®.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
1
SITE PREPARATION REQUIREMENTS
The Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale is a precision weight indicating
instrument. As with any precision instrument, it requires an acceptable environment to operate
at peak performance and reliability. This section will assist you in obtaining such an
environment.
Environmental
For indoor use only.
Suitable for dry environments only RH < 90% and non-condensing environments.
NEVER allow the scale to get wet.
The scale meets or exceeds all certification requirements within a temperature range
of 14 to 104 °F (-10 to +40 °C).
The scale should be placed out of direct sunlight and to provide adequate air circulation, keep
the area around the scale clear.
Do not place the scale directly in front of a heating or cooling vent. Such a location will subject
it to sudden temperature changes, which may result in unstable weight readings.
When using the AC power adapter, ensure that the scale has good, clean AC power and is
properly grounded. In areas subject to lightning strikes, additional protection to minimize
lightning damage, such as surge suppressors, should be installed.
Electrical Power
The Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale has been designed to operate from a
100V to 240V AC 50/60Hz 12V DC 1A wall plug-in UL/CSA listed AC power adapter (Cardinal
part number 6800-1045). NOTE: On installations using 220V to 240V AC, use the optional 100
to 240V AC 12V DC 1A Multi-Pin Input AC power adapter (Cardinal part number 6800-1047).
The socket-outlet supplying power to the indicator should be on a separate circuit from
the distribution panel and dedicated to the exclusive use of the indicator.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Electrical Noise Interference
To prevent electrical noise interference, make certain all air conditioning and heating
equipment, lighting, or other equipment with heavily inductive loads, are on circuits separate
from the system. These sources of disturbances can affect the operation of the scale. Steps
must be taken to prevent possible adverse effects on the scale. For example, using simple line
filters, isolation transformers, power regulators, or uninterruptible power supplies.
2
0065-0647-OM Rev E
7550 OWNER’S MANUAL
UNPACKING
IMPORTANT: UNPACKING AND INSTALLATION OF THIS PRODUCT
SHOULD BE PERFORMED BY TWO PEOPLE. PLEASE READ THROUGH THE
INSTRUCTIONS CAREFULLY BEFORE STARTING TO INSTALL THE SCALE.
NOTE: Make certain the scale has been received in good condition. Check for any damage
incurred in shipping. If the scale has been damaged, place a claim with the carrier. It is the
responsibility of the purchaser to file all claims for any damages or losses incurred during
transit. Keep the carton and packing material for return shipment if it should become
necessary.
1. Cut the shipping straps and remove the shipping carton top to unpack the scale.
Remove All
Cardboard
Inserts
Cut Tape
2. Remove all cardboard inserts from around
the scale, and then cut the tape securing
the flaps on one end of the carton.
3. Turn back the packing material, exposing
the scale. With an assistant, lift the scale
high enough in the shipping carton to
remove the box containing the shims,
owner’s manual, and other documents, and
the Wall Mount from under the scale. Lower
the scale back down into the carton.
Shims,
Owner’s
Manual
Wall
Mount
4. With an assistant, slide the scale out of the
carton and raise it to an upright position.
NOTE: DO NOT lift the scale by the
strap securing the weighing platform
to the scale frame to raise the scale
to the upright position.
CAUTION! DO NOT remove the
strap securing the weighing platform
to the scale frame until instructed to
remove.
0065-0647-OM Rev E
Leave this strap on until
instructed to remove!
DO NOT lift the scale by
this strap!
7550 OWNER’S MANUAL
3
INSTALLATION
Choose the Scale Location
The scale should be installed in a location with a flat, level floor. Note that the weighing
platform will not sit completely against the floor. This will not affect the accuracy of the scale as
the weighing platform will settle to the floor when the patient is placed on the scale.
Back Load Cell
Front Load Cell
1/8” – 1/4” Clearance
NOTE: The front load cells of the weighing platform will be off the floor.
The rear load cells must be sitting completely on the floor.
There should be 1/8” to 1/4” clearance
between the sides of the scale frame and the
floor. This clearance is required for the lift
mechanism to close completely. The included
shims can be used to raise the scale if there
are slight imperfections with the floor or wall
mount installation that sits the wall mount too
low and prevents the scale from closing
completely. If the wall mount is too high, the
rear load cells will not touch the floor when the
weighing platform is lowered. If the wall mount
is too high, it must be moved lower on the wall
or the scale will not function correctly.
NOTE: It may be necessary to remove any base molding/chair rail/wall guard or to
remove a section of the base molding/chair rail/wall guard to provide space to mount
the scale in a true vertical position. An alternative method would be to shim the wall
mount away from the wall to accommodate any base molding/chair rail/wall guard.
4
0065-0647-OM Rev E
7550 OWNER’S MANUAL
INSTALLATION, CONT.
Install the Wall Mount
NOTE: Due to the various types of wall construction, no mounting hardware is
furnished with the scale. Appropriate mounting hardware suitable to the wall’s
construction will need to be obtained to secure the wall mount to the wall.
The wall mount allows the scale to be adjusted up or down and left or right to accommodate
floors that may not be perfectly flat. This ensures the accuracy of the weighing platform and
prevents undue stress to the scale.
The wall mount should be secured to the wall
using mounting hardware suitable to the wall’s
construction. The six (6) holes (in groups of
two, sixteen (16) inches apart) in the wall
mount, allow for 1/4" hardware to be used to
secure the wall mount to the wall.
1. Determine the desired location where the
scale is to be mounted.
2. With an assistant, place the wall mount
against the wall. Make sure it’s level and
35 1/2” from the top edge of the wall mount
to the floor.
3. Mark the holes to mount the wall mount.
4. Remove the wall mount and drill the
required diameter holes for the mounting
hardware used.
35 1/2”
Top Edge
to Floor
5. Fasten the wall mount to the wall.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
5
INSTALLATION, CONT.
Install the Scale on the Wall Mount
1. Remove the strap securing the weighing platform to the scale frame, and then remove the
foam inserts between the weighing platform and frame. Refer to the notes and picture in
Step 4 of the UNPACKING section.
2. With an assistant, lift the scale above the wall mount and then lower it into position in the
channel of the wall mount.
3. Center the scale side to side (between the rubber bumpers) in the channel of the wall mount.
Rubber
Bumper
Wall
Mount
Rubber
Bumper
6
0065-0647-OM Rev E
7550 OWNER’S MANUAL
INSTALLATION, CONT.
Battery Operation
The scale can use six C-size Alkaline, Ni-Cad, or
NiMH batteries (not included). You must first obtain
and install the batteries before operations can begin.
The batteries are contained in a battery holder that is
attached to a removable panel on the side frame of
the scale and secured in place with a thumbscrew.
CAUTION! The scale can be operated
from Alkaline, Ni-Cad, or NiMH batteries.
All six batteries must be of the same type.
They must all be Alkaline, all Ni-Cad, or all
NiMH. DO NOT mix Alkaline and Ni-Cad or
NiMH batteries.
NOTE: The scale does not have a battery
charging circuit. Should you wish to use
rechargeable batteries (Ni-Cad or NiMH),
they must be fully charged before
installing. When discharged, the Ni-Cad or
NiMH batteries must be removed and
placed in an external charger to recharge.
Battery Status
Removable
Battery
Panel
The battery status will be displayed when
batteries are installed. A number will be displayed
in the upper right corner of the touchscreen
indicating the level of charge remaining in the
batteries. For example, 100 = 100% charge,
75 = 75% charge, and etc...
When the batteries are at the point they need to
be replaced (Alkaline) or recharged (NiCad or
NiMH) and the battery voltage drops too low for
accurate weighing, the scale will automatically
shut off and you will be unable to turn it back on.
Using Alkaline Batteries
When the batteries are low enough that the
scale turns off, remove the old batteries, and
replace them with new ones.
AC Power
Adapter
Jack
Using NiCad or NiMH Batteries
When the batteries are low enough that the
scale turns off, remove the discharged
batteries, and replace them with fully charged
ones. Place the discharged batteries in an
external charger to recharge.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
7
INSTALLATION, CONT.
Battery Installation or Replacement
To install or remove the batteries, the following steps should be followed:
1. Make sure the AC power adapter is unplugged.
2. Referring to the image on the previous page and facing the
scale, locate the rectangular panel on the right side of the
scale frame, and remove the thumbscrew.
3. Remove the panel (lift straight up and slide it out) exposing
the battery holder.
4. If installing new batteries, proceed to step 5. If replacing
the batteries, remove all six batteries from the battery
holder and then proceed to step 5.
5. Install six new C-size batteries in the holder, noting the
polarity markings located in the battery holder. Refer to the
adjacent figure.
6. After placing all six batteries in the holder, replace the
panel on the side of the scale frame (slide the tab into the
slot on the bottom of the opening in the scale frame) and
then install the thumbscrew.
7. Press
the key to turn the scale on.
8. If the scale display turns on, the batteries have been
installed correctly. If not, remove the panel and check for
one or more improperly positioned batteries.
9. Your 7550 Wall-Mount Fold-Up Wheelchair Scale is now
ready for operation.
AC Power Adapter
To power the scale using the optional 12V DC wall plug-in UL/CSA listed AC power adapter,
6800-1045, connect the plug from the adapter into the power jack on the side of the scale
frame and then plug the power adapter into the proper electrical outlet. On installations using
220V to 240V AC, use the optional 6800-1047, AC power adapter.
NOTE: Referring to the image on the previous page and facing the scale, the AC power
adapter jack is located approximately 15 inches below the removable battery panel.
8
0065-0647-OM Rev E
7550 OWNER’S MANUAL
WEIGHING UNITS/HEIGHT MEASUREMENT SELECTION
When the scale is turned on for the first time, it will display a prompt to select the
weighing units and height measurement to use for your operation, LB/IN
(pounds/inches), or KG/CM (kilograms/centimeters). The weighing units and
height measurement selection can ONLY be made at this time and cannot be
changed afterward. Make sure you select the correct weighing units and height
measurements before proceeding.
WARNING!
Make sure you select the correct weighing
units/height measurement. Once selected
the weighing units/height measurement is
permanent and cannot be changed.
Press
the key to turn the scale on.
1. The scale display will show the
software version for a few seconds,
the Detecto logo briefly, and then
change to a WARNING screen. This
screen is displayed to inform and warn
you that once you have made the
weighing units/height measurement
selection, it is PERMANENT and
cannot be changed.
!!!WARNING!!!
OK
Units Selection
Will Be
PERMANENT
3. After reading and understanding the
warning screen, press OK on the
screen to continue.
4. If weighing in pounds (LB) and
measuring in inches (IN) is required
for your operation, press LB/IN at the
bottom left of the screen.
5. If your operation requires weighing in
kilograms (KG) and measuring in
centimeters (cm), press KG/CM on
the bottom right of the screen.
Select Units
LB/IN
KG/CM
6. Your 7550 Wall-Mount Fold-Up Wheelchair Scale is now ready for operation.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
9
10
0065-0647-OM Rev E
7550 OWNER’S MANUAL
KEYPAD FUNCTIONS
DO NOT operate the keys or touchscreen with pointed objects (pencils, pens,
etc..). Damage to keys or touchscreen resulting from this practice is NOT
covered under warranty.
This is the Power key. With the scale off, pressing this key will apply power to
the scale and turn on the display. If the scale is already on, pressing this key
will turn it off.
This is the Zero key. Press and release this key to reset the display to zero.
Note that when this key is pressed with weight on the scale platform, the
display will zero the weight up to 100% of the scale capacity, and the display
will change to zero (0.0). When the weight is removed, the display will show a
negative weight. Press the 0 key again to reset the display to zero (0.0).
This is the Lock/Release key. Press and release this key, or touch the weight
readout on the display to cause the weight, height, and BMI to lock on the
current values until the key is pressed again or the weight readout on the
display is touched again. While the weight is locked, the weight status will
change to LOCKED to denote that the weight is being held.
This is the ID key. Press and release this key to open the ID entry screen, and
then using the touchscreen, enter a numeric ID. Note that the ID is NOT used
for tracking patient measurements, it is only transmitted out of the selected
communication port when the
key is pressed. To change or edit the ID,
simply press the ID key again to return to the ID entry screen.
This is the Display Mode key. Press and release this key to cause the display
to cycle between display modes: Weight/Height/BMI or Weight only.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
11
KEYPAD FUNCTIONS, CONT.
This is the Menu key. Press and release this key to launch the Menu screen.
The first screen that is displayed is the Setup Review screen where you can
see all of the settings at a glance. To continue into setup, touch the Setup key
at the bottom right of the touchscreen.
This is the Enter key. It serves two purposes. First, pressing and releasing this
key is used to signal the completion of data entry and cause the scale to output
the current date, time, weight, height, and BMI for data capture for EMR/EHR
purposes. Note that the output options include Cardinal SMA, Welch Allyn,
Tanita, or IEEE 11073-10415 formats.
Second, the Enter key is used as a Print key when using the Wi-Fi and
Bluetooth features of the scale. Pressing and releasing the Enter key will signal
the completion of data entry and cause the scale to output (print) the current
date, time, weight, height, and BMI using the Wi-Fi and Bluetooth wireless
transmitter.
12
0065-0647-OM Rev E
7550 OWNER’S MANUAL
ANNUNCIATORS
The annunciators are displayed on the Weight screen to show that the indicator is in the mode
corresponding to the annunciator label or that the status indicated by the label is active.
Weight Mode
Status
Messages
WEIGHT:
POUNDS/GROSS
XX%
CENTER ZERO
Power
Status
0.0
Weight
Display
TARE
G/N
Operation
Messages
POUNDS/GROSS
This is shown on the Weight screen to indicate that the weight displayed is gross weight in
pounds.
KILOGRAMS/GROSS
This is shown on the Weight screen to indicate that the weight displayed is gross weight in
kilograms.
CENTER ZERO
This is shown on the Weight screen to indicate that the weight is within +/- 1/4 division of the
center of zero.
LOCK
This is shown on the Weight screen to indicate that the indicator is locked onto the
displayed weight. In operation after obtaining a stable weight value, pressing the
key
will cause the indicator to lock onto the weight and turn on the annunciator. Pressing this
key, a second time will unlock the display and turn off the annunciator.
XX%
This is shown on the Weight screen to indicate that the scale is powered by the six C-size
batteries. The number displayed is the level of charge remaining in the batteries. For
example, 100 = 100% charge, 75 = 75% charge, etc.
AC (Replaces XX%)
This is shown on the Weight screen instead of the battery charge percentage to indicate
that the indicator is powered by the AC power adapter.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
13
OPERATION
Basic Weighing Operation
1. With the weighing platform in the closed (stored) position, grasp the top edge of the platform
and pull it down into the operating position.
2. With the weighing platform in the operating position,
press the
key to turn the scale on.
3. When the indicator reads Zero, place the empty wheelchair on the weighing platform and
press the 0 key to zero off the weight of the wheelchair.
Pull
Wheelchair
onto Scale
Never Push
Wheelchair
onto Scale
4. Position the patient on the weighing platform by pulling the wheelchair onto the platform.
NEVER PUSH a patient in a wheelchair onto the weighing platform. ALWAYS lock the
wheelchair wheels while weighing the patient.
WARNING! Always PULL the wheelchair on and off the platform. Serious injury
to the patient could occur when pushing a wheelchair on and off the platform.
ALWAYS lock the wheelchair wheels when weighing the patient, and NEVER
leave the patient unattended while on the scale platform. Failure to maintain
control of the patient and/or wheelchair at all times can result in serious injury
to the patient and/or you.
14
0065-0647-OM Rev E
7550 OWNER’S MANUAL
OPERATION, CONT.
WEIGHT:
POUNDS/GROSS
93%
CENTER ZERO
155.7
TARE
G/N
5. When the weight is stable, a beep will sound, the weight reading will automatically lock
and AUTO LOCK will be displayed. Note that the amount of time the reading will hold is
dependent upon the Auto Locking setting in Setup. NOTE: If more time is needed, press
the
key to hold the locked weight reading.
6. Read and record the weight displayed.
7. If “Auto” has been selected for the Print: setting in Setup, the scale will output EMR/EHR
data when the weight is stable.
If “Manual” has been selected for the Print: setting in Setup, press the
EMR/EHR data when the weight is stable.
key to output
8. Remove the patient by unlocking the wheels and then pulling the wheelchair, back down the
weighing platform. NEVER PUSH a patient in a wheelchair off the weighing platform.
9. Lift the weighing platform up to return it to the closed (stored) position.
Weighing platform in closed
(stored) position
Lift weighing platform up to return to
the closed (stored) position.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
15
OPERATION, CONT.
Basic Weighing Operation with ID – (No BMI)
1. With the weighing platform in the operating position, press the
key to turn the scale on.
2. When the indicator reads Zero, place the empty wheelchair on the weighing platform and
press the 0 key to zero off the weight of the wheelchair.
3. Press the
key.
4. The display will change to show the PATIENT ID screen.
PATIENT ID
12345678
Key in the numeric
patient ID to be
transmitted when
the Print key is
pressed.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. Using the numeric keys, enter up to an 8-digit numeric identification number for the patient,
and then press Save.
6. Position the patient on the weighing platform by pulling the wheelchair onto the platform.
NEVER PUSH a patient in a wheelchair onto the weighing platform. ALWAYS lock the
wheelchair wheels while weighing the patient.
WARNING! Always PULL the wheelchair on and off the platform. Serious injury
to the patient could occur when pushing a wheelchair on and off the platform.
ALWAYS lock the wheelchair wheels when weighing the patient, and NEVER
leave the patient unattended while on the scale platform. Failure to maintain
control of the patient and/or wheelchair at all times can result in serious injury
to the patient and/or you.
8. When the weight is stable, a beep will sound, the weight reading will automatically lock
and AUTO LOCK will be displayed. Note that the amount of time the reading will hold is
dependent upon the Auto Locking setting in Setup. NOTE: If more time is needed, press
the
key to hold the locked weight reading.
9. Read and record the weight displayed.
10. If “Auto” has been selected for the Print: setting in Setup, the scale will output EMR/EHR
data when the weight is stable.
If “Manual” has been selected for the Print: setting in Setup, press the
EMR/EHR data when the weight is stable.
key to output
11. Remove the patient by unlocking the wheels and then pulling the wheelchair, back down
the weighing platform. NEVER PUSH a patient in a wheelchair off the weighing platform.
12. Lift the weighing platform up to return it to the closed (stored) position.
16
0065-0647-OM Rev E
7550 OWNER’S MANUAL
OPERATION, CONT.
Body Mass Index (BMI) Operation (Using Previously Measured Height)
1. With the weighing platform in the operating position, press the
key to turn the scale on.
2. When the indicator reads Zero, place the empty wheelchair on the weighing platform and
press the 0 key to zero off the weight of the wheelchair.
3. Press HEIGHT on the touchscreen.
4. If POUNDS/INCHES were selected for Weighing/Height Units, the display will change to
show HEIGHT IN INCHES on the touchscreen.
Using the numeric keys, enter up to 3 digits and the decimal point (# #.#) for height in
inches, and then press Save.
5. If KILOGRAMS/CENTIMETERS were selected for Weighing/Height Units, the display will
change to show HEIGHT IN CENTIMETERS on the touchscreen.
Using the numeric keys, enter up to 2 digits and the decimal point (#.#) for height in
centimeters, and then press Save.
6. Position the patient on the weighing platform by pulling the wheelchair onto the platform.
NEVER PUSH a patient in a wheelchair onto the weighing platform. ALWAYS lock the
wheelchair wheels while weighing the patient.
WARNING! Always PULL the wheelchair on and off the platform. Serious injury
to the patient could occur when pushing a wheelchair on and off the platform.
ALWAYS lock the wheelchair wheels when weighing the patient, and NEVER
leave the patient unattended while on the scale platform. Failure to maintain
control of the patient and/or wheelchair at all times can result in serious injury
to the patient and/or you.
7. When the weight is stable, a beep will sound, the weight reading will automatically lock
and AUTO LOCK will be displayed. Note that the amount of time the reading will hold is
dependent upon the Auto Locking setting in Setup. NOTE: If more time is needed, press
the
key to hold the locked weight reading.
8. The scale will calculate the patient’s BMI using their weight and entered height.
9. Read and record weight, height, and BMI displayed.
11. If “Auto” has been selected for the Print: setting in Setup, the scale will output EMR/EHR
data when the weight is stable.
If “Manual” has been selected for the Print: setting in Setup, press the
EMR/EHR data when the weight is stable.
key to output
13. Remove the patient by unlocking the wheels and then pulling the wheelchair, back down
the weighing platform. NEVER PUSH a patient in a wheelchair off the weighing platform.
14. Lift the weighing platform up to return it to the closed (stored) position.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
17
OPERATION, CONT.
Body Mass Index (BMI) Operation with ID (Using Previously Measured Height)
1. With the weighing platform in the operating position, press the
key to turn the scale on.
2. When the indicator reads Zero, place the empty wheelchair on the weighing platform and
press the 0 key to zero off the weight of the wheelchair.
3. Press the
key.
4. The display will change to show the PATIENT ID screen.
5. Using the numeric keys, enter up to an 8-digit numeric identification number for the patient,
and then press Save.
6. Press HEIGHT on the touchscreen.
7. If POUNDS/INCHES were selected for Weighing/Height Units, the display will change to
show HEIGHT IN INCHES on the touchscreen.
Using the numeric keys, enter up to 3 digits and the decimal point (# #.#) for height in
inches, and then press Save.
6. If KILOGRAMS/CENTIMETERS were selected for Weighing/Height Units, the display will
change to show HEIGHT IN CENTIMETERS on the touchscreen.
Using the numeric keys, enter up to 2 digits and the decimal point (#.#) for height in
centimeters, and then press Save.
10. Position the patient on the weighing platform by pulling the wheelchair onto the platform.
NEVER PUSH a patient in a wheelchair onto the weighing platform. ALWAYS lock the
wheelchair wheels while weighing the patient.
WARNING! Always PULL the wheelchair on and off the platform. Serious injury
to the patient could occur when pushing a wheelchair on and off the platform.
ALWAYS lock the wheelchair wheels when weighing the patient, and NEVER
leave the patient unattended while on the scale platform. Failure to maintain
control of the patient and/or wheelchair at all times can result in serious injury
to the patient and/or you.
11. When the weight is stable, a beep will sound, the weight reading will automatically lock
and AUTO LOCK will be displayed. Note that the amount of time the reading will hold is
dependent upon the Auto Locking setting in Setup. NOTE: If more time is needed, press
the
key to hold the locked weight reading.
12. The scale will calculate the patient’s BMI using their weight and entered height.
13. Read and record weight, height, and BMI displayed.
14. If “Auto” has been selected for the Print: setting in Setup, the scale will output EMR/EHR
data when the weight is stable.
If “Manual” has been selected for the Print: setting in Setup, press the
EMR/EHR data when the weight is stable.
key to output
15. Remove the patient by unlocking the wheels and then pulling the wheelchair, back down
the weighing platform. NEVER PUSH a patient in a wheelchair off the weighing platform.
16. Lift the weighing platform up to return it to the closed (stored) position.
18
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SCALE SETUP
Your Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale has been pre-configured at the
factory and should not require changes for use in most applications. However, if the factory
settings do not meet the requirements of your operation, the following describes the setup
process for your indicator.
NOTE: The keypad and touchscreen are not to be operated with pointed
objects (pencils, pens, fingernails, etc.). Damage to the keypad or touchscreen
resulting from this practice will NOT be covered under warranty.
Menu Functions
After pressing the Menu key to enter the Setup menu, the first screen of the menu is a
Setup Review screen where all of the settings can be reviewed at a glance. The Audit Trail
Counters for the metrological settings and the non-metrological settings are available for
review on this screen as well. Each prompt in the menu screens will show the current
value of the setting next to the prompt to easily identify what the current setting for that
parameter is.
Setup Menu Keys
The Sonar Height Rod is not used with the 7550 Wall-Mount Fold-Up Wheelchair Scale
and should be disabled. To ensure the sonar height is disabled, press Sonar, then using
the numeric keys enter a 0, and finally press Save. The sonar height rod is now disabled,
and the display will change back to the Settings Overview 1 screen.
Press Exit to exit Setup and return to the Weight screen.
Press Setup on the Settings Overview screen to enter into the scale setup.
Press >>> on the Settings screen to advance to the next menu page.
Press <<< at the Settings screen to return to the previous menu page.
To Enter Setup
1. Press the
key to turn the indicator on.
2. The indicator will show the Detecto logo briefly and then change to the Weight screen.
3. With the Weight screen displayed, press the Menu key.
4. The display will change to show the Settings Overview 1 screen.
SETTINGS OVERVIEW 1
>>>
Revision 1.00.11, Display Rev. 1.0.21
Audit Trail -- Cal=4, Cfg=2
Range 1: 1000.0 x 0.2
Weight Units=lb
Height Units=in
Auto Lock=0 s
Sonar Ht=0.0 cm
Motion=3 div.
Filter=Off
OIML=No
ZeroTrack=10/2 d
USB: SMA
Gravity=0.000000
Power up zero=No
Sonar Exit Setup
Press >>> on the touchscreen to advance to the Settings Overview 2 screen.
Press Exit to exit Setup and return to the Weight screen.
Press Setup to advance to the Password screen and proceed with scale setup.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
19
SCALE SETUP, CONT.
To Enter Setup, Cont.
SETTINGS OVERVIEW 2
<<<
Wi-Fi/BLE Module Rev: 1.0.01
Bluetooth: On
BLE Adv: Icon Scale F8:F0:05:D8:9D:DD
Wi-Fi: On, Status: Disconnected
Network SSID: Dynex617
DHCP: On
IP: 192.168.0.133
Mask: 255.255.255.0
Gate: 192.168.0.1
This value will
not be shown if
Bluetooth: = Off.
These values will not be
shown if Wi-Fi = Off.
Sonar Exit Setup
Press <<< on the touchscreen to return to the Settings Overview 1 screen.
Press Exit to exit Setup and return to the Weight screen.
Press Setup to advance to the Password screen and proceed with scale setup.
5. After pressing Setup on the touchscreen, the display will change to show
the ENTER PASSCODE screen.
ENTER PASSCODE
Enter passcode to
access settings.
Press CANCEL to
exit.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
6. Using the 10-key on the touchscreen, enter 64870 and then press Save.
7. The scale is now ready for setup and calibration
20
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SCALE SETUP, CONT.
Settings Page 1
SETTINGS
PAGE 1
Model: Wheelchair
Date: 12/11/2020
Time: 12:24:44
Language: English
<<< Exit >>>
Model:
This selection sets the default settings and operation of the scale and should be set to
“Wheelchair” to use the software designed for Wheelchairs.
If the model selection is not “Wheelchair”, touch this key to open the model selection screen.
Using the numeric keys, enter a 1 (1 = Wheelchair), and then press Save.
NOTE: The other settings are: 0 = icon, 2 = Other, 3 = Dialysis and are not applicable for
use with the 7550 Wall-Mount Fold-Up Wheelchair Scale.
Date:
Touching this key allows entering the date, starting with the year. After pressing Date: the
touchscreen will show “Key in the Year and press SAVE”.
Year
Enter the 4-digits (YYYY) for the year and then press Save.
Month
Enter the 2-digits (MM) for the month and then press Save.
Day
Enter the 2-digits (DD) for the day and then press Save.
Time:
Touching this key allows entering the time starting with the hour. After pressing Time: the
touchscreen will show “Key in the Hour HH”.
Hour
Enter the 2-digits (HH) for the hour and then press Save.
Minute
Enter the 2-digits (MM) for the minute and then press Save.
Second
Enter the 2-digits (SS) for the seconds and then press Save.
Language:
This will change the language for the Setup and Operation screens of the scale.
Touch this key to open the language selection screen. Using the numeric keys, enter a new
setting, and then press Save.
Allowable settings are: 0 = English, 1 = Spanish, 2 = German, 3 = French
Press >>> to advance to the Settings Page 2.
Press <<< to return to the Settings Overview screen.
Press Exit to exit Setup and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
21
SCALE SETUP, CONT.
Settings Page 2
SETTINGS
PAGE 2
OIML: No
Units: lb, in
Filter Mode: 0
Zero Tracking: 10
<<< Exit >>>
OIML:
Touching this key will toggle the OIML setting to Yes or No. NOTE: This setting should be
enabled for all EU models to comply with regulations.
Allowable settings for OIML are: Yes or No.
Units:
This is for reference only. The weighing/height units selection can ONLY be made when the
scale is turned on for the first time. At that time, a prompt will be displayed to select the
weighing/height units to use, pounds/inches (lb/in), or kilograms/centimeters (kg/cm). Once
the weighing/height units have been set, they cannot be changed.
Refer to the WEIGHING UNITS/HEIGHT MEASUREMENT section of this manual.
Filter Mode:
Pressing this key will open the weight filtering screen. This will allow you to set the amount
of digital filtering being applied to the scale. Using the numeric keys, enter a new setting,
and then press Save.
Allowable settings are: 0 = Off, 1 = Minimal, 2 = Moderate, and 3 = Maximum
Zero Tracking:
Touching this key will open the zero-tracking screen. This will allow you to set the number of
half (1/2) divisions that the scale will attempt to maintain zero. Using the numeric keys, enter
a new setting, and then press Save.
Allowable settings for Zero Tracking are 0 – 20.
Press >>> to advance to the Settings Page 3.
Press <<< to return to the Settings Page 1.
Press Exit to exit Setup and return to the Weight screen.
22
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SCALE SETUP, CONT.
Settings Page 3
SETTINGS
PAGE 3
Capacity 1: 1000.0
Capacity 2: 0
Interval 1: 2
Interval 2: 1
<<< Exit >>>
Capacity 1:
Touching this key will open the Capacity 1 screen. This will allow you to set the capacity of
the scale. The setting for Capacity 1 should be set to 1000.0.
If the setting for Capacity 1 is not 1000.0, touch this key to open the Capacity 1 screen.
Using the numeric keys enter 1000.0, and then press Save.
Capacity 2:
This setting is not used with the Wheelchair Model selection and should be set to (0) zero.
If the setting for Capacity 2 is not 0 (zero), touch this key to open the Capacity 2 screen.
Using the numeric keys enter a 0, and then press Save.
Interval 1:
Touching this key will open the interval entry screen. This will allow you to set the scale
interval. The setting for Interval 1 should be set to 2.
If Interval 1 is not 1, touch this key to open the Interval 1 screen. Using the numeric keys
enter a 1, and then press Save.
Interval 2:
Interval 2 is only used when Capacity 2 is used. The Wheelchair Model selection does not
use Capacity 2 and Interval 2. Note that even though Interval 2 is not used, the factory
setting for Interval 2 is set to 1.
If Interval 2 is not 1, touch this key to open the Interval 2 screen. Using the numeric keys
enter a 1, and then press Save.
Press >>> to advance to Settings Page 4.
Press <<< to return to Settings Page 2.
Press Exit to exit Setup and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
23
SCALE SETUP, CONT.
Settings Page 4
SETTINGS
PAGE 4
Decimal 1: 1
Decimal 2: 1
Motion Range: 3
Gravity: 0.000000
<<< Exit >>>
Decimal 1:
Touching this key will open the decimal entry screen. This will allow you to set the decimal
point precision for the first weight range. Using the numeric keys, enter a new setting, and
then press Save.
Allowable settings for Decimal 1 are 0 – 3.
Decimal 2:
Decimal 2 is only used when Capacity 2 is used. The Wheelchair Model selection does not
use Capacity 2 and Decimal 2. Note that even though Decimal 2 is not used, the factory
setting for Decimal 2 is set to 1.
If Decimal 2 is not 1, touch this key to open the Interval 2 screen. Using the numeric keys
enter a 1, and then press Save.
Motion Range:
Touching this key will open the motion range entry screen. This will allow you to set the
number of scale divisions of movement that will be allowed for a stable weight. Using the
numeric keys, enter a new setting, and then press Save.
Allowable settings for Motion Range are 0 – 20.
Gravity:
Gravity compensation accounts for latitudes and elevations that are different from where the
scale was calibrated. To calculate the setting for this parameter, use the gravitational
constant of the location where the scale was calibrated divided by the gravitational constant
of where the scale will be installed:
Gravitational Constant (Calibration location)
---------------------------------------------------------- = setting
Gravitational Constant (Operation location)
This should give you a setting close to 1 that you can enter in to compensate for variation in
gravity due to elevation/latitude.
Touching this key will open the gravity compensation entry screen. Using the numeric keys,
enter a new setting, and then press Save.
NOTE: Set Gravity to 0 (zero) to disable the gravity compensation feature.
Press >>> to advance to the Settings Page 5.
Press <<< to return to the Settings Page 3.
Press Exit to exit Setup and return to the Weight screen.
24
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SCALE SETUP, CONT.
Settings Page 5
SETTINGS
PAGE 5
Calibrate Scale
Load Cell Trim
Power up Zero: No
Auto Locking: 0 s
<<< Exit >>>
Calibrate Scale
Touching this key will allow for calibration of the scale. Refer to the CALIBRATION section
of this manual for instructions to select the calibration mode and how to perform calibration.
Load Cell Trim
Touching this key will allow for trimming (adjusting the output of) the load cells in the scale.
Refer to the LOAD CELL TRIM section of this manual for instructions on how to trim the
load cells.
Auto Locking:
This setting is used by the scale to hold a stable patient weight for a desired amount of time.
For example, if a setting of 5 seconds is used, then when the scale locks onto a stable
patient weight, it will remain locked for 5 seconds before automatically releasing the weight.
Touching this key will open an entry screen for the auto-locking feature of the scale. The
setting entered is a time in seconds. Using the numeric keys, enter a new setting, and then
press Save.
Allowable settings for Auto Locking are 0 to 10.
Power up Zero:
Touching this key will toggle the power up zeroing of the scale to Yes or No. If enabled, this
will cause the scale to attempt to zero the scale upon power up.
Allowable settings for Power up Zero are: Yes or No.
Press >>> to advance to the Settings Page 6.
Press <<< to return to the Settings Page 4.
Press Exit to exit Setup and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
25
SCALE SETUP, CONT.
Settings Page 6
SETTINGS
PAGE 6
Serial Type: Pass
USB: SMA
Print: Manual
<<<
Exit
>>>
Serial Type:
The Wheelchair Model selection does not use the Serial RS232 port. Note that even though
the Serial Type is not used, the factory setting for Serial Type is set to Pass (pass-through
printing).
If Serial Type is not Pass, touch this key to open the serial type selection screen. Using the
numeric keys enter a 0, and then press Save.
USB:
The Wheelchair Model selection does not use the USB port. Note that even though the USB
Port is not used, the factory setting for USB Port is set to SMA.
If USB Port is not SMA, touch this key to open the USB Port selection screen. Using the
numeric keys enter a 0, and then press Save.
Print:
Touching this key will toggle the Print setting to Auto or Manual for printing (outputting data)
when a stable weight has been obtained on the scale.
If “Auto” is selected, the scale will automatically print (output data) as soon as a stable
weight is obtained.
If “Manual” is selected, after a stable weight has been obtained, you must press the
key to print (output data).
Allowable settings for Print are: 0 = Manual, 1 = Auto
Press >>> to advance to the Settings Page 7.
Press <<< to return to the Settings Page 5.
Press Exit to exit Setup and return to the Weight screen.
26
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SCALE SETUP, CONT.
Settings Page 7
SETTINGS
PAGE 7
Bluetooth: On
Wi-Fi: Off
SSID: Dynex617
<<<
Exit
The SSID: value will not
be shown if Wi-Fi: = Off.
>>>
Bluetooth:
Touch this key to open a selection screen to turn the Bluetooth 5.0 wireless transmitter “On”
or “Off”. This setting should be “On” if pairing to a Bluetooth-capable device is desired.
Using the numeric keys, enter a new setting, and then press Save.
Allowable settings for Bluetooth are: 0 = Off, 1 = On
Wi-Fi:
Touch this key to open a selection screen to turn the Wi-Fi wireless transmitter “On” or “Off”.
This setting should be “On” if interfacing through a Wi-Fi network is desired. Using the
numeric keys, enter a new setting, and then press Save.
Allowable settings for Wi-Fi are: 0 = Off, 1 = On
NOTE: If the Wi-Fi setting is 0 = Off, you will not see the SSID: setting and >>> on
the touchscreen to advance to Settings Page 8.
SSID:
This will show you the current SSID of the Wi-Fi network that is saved in memory for the
Icon to connect to.
Touching this key will prompt you to CLEAR SSID. Press 1 on the touchscreen, and then
press Save to clear the Wi-Fi credentials.
Press >>> to advance to the Settings Page 8.
Press <<< to return to the Settings Page 6.
Press Exit to exit Setup and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
27
SCALE SETUP, CONT.
Settings Page 8
SETTINGS
PAGE 8
DHCP: On
IP: 192.168.0.133
NM: 255.255.255.0
GW: 192.168.0.1
<<< Exit
The settings for NM:
and GW: will not be
shown if DHCP: = On.
DHCP:
Touching this key will open an entry screen to allow you to select the DHCP setting. This
setting selects whether the Wi-Fi wireless transmitter will use a dynamic IP address
assigned by a DHCP server or a static IP address. Consult with your network administrator
for the proper selection. Using the numeric keys, enter a new setting, and then press Save.
Allowable settings for DHCP are: 0 = Static IP (Off), 1 = DHCP (On)
NOTE: If the setting for DHCP: = Off, the settings for NM: (Netmask) and GW:
(Gateway Address) will be shown on the touchscreen.
NM: (Netmask)
Touching this key will open an entry screen to allow you to enter the Wi-Fi network Netmask
for the network the scale will be connected to. Using the numeric keys, enter a new setting,
and then press Save.
The format for the Netmask is: ### . ### . ### . # (e.g., 255.255.255.0).
IMPORTANT! The Netmask of the scale should match the Netmask of the other computers
on your network.
GW: (Gateway Address)
Touching this key will open an entry screen to allow you to enter the Wi-Fi network Gateway
Address for the network the scale will be connected to. Using the numeric keys, enter a new
setting, and then press Save.
The format for the Gateway Address is: #, #, #, # (e.g., 192.168.0.1).
Press <<< to return to the Settings Page 7.
Press Exit to exit Setup and return to the Weight screen.
28
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
Calibration Modes
The 7550 Wall-Mount Fold-Up Wheelchair Scale has four modes that can be used to perform
calibration. The modes are as follows:
1 = SMARTCAL
SmartCal is the most precise method of calibration. It requires that a calibrated load be
placed over each load cell of the scale platform only once. In this method, the scale will be
able to derive calibration constants, which will be used to combine information from each
load cell into scale weight.
During SmartCal, the display will prompt for the test load to be applied over a particular load
cell. With a scale that has four load cells, the order will simply be cell 1, cell 2, cell 3, and
cell 4. This order is used so that calibration can be done using a test weight with a minimal
amount of maneuvering required. Refer to the illustration below.
3
START
1
LOAD
FINISH
(Test Weight)
4
NOTE: This is the side of the
scale against the wall.
2
Load Cell and Load Placement
2 = Two Calibration Points
This is a standard calibration method requiring an empty scale and one weight. This method
uses two calibration points (an empty scale and the full test load on the scale) to establish a
zero (no load) calibration value and to span the indicator.
3 = Three Calibration Points
This method requires an empty scale, two weights, and uses three calibration points (an
empty scale, half the test load, and the full test load on the scale). The three points
correspond to zero (no load) weight, mid-point weight, and test load (weight).
4 = Four Calibration Points
This method requires an empty scale, three weights, and uses four calibration points (an
empty scale, one-fourth of the test load, half the test load, and the full test load on the
scale). The four points correspond to zero weight, quarter-point weight, mid-point weight,
and test load (weight).
0065-0647-OM Rev E
7550 OWNER’S MANUAL
29
CALIBRATE SCALE, CONT.
To Enter Calibration
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
SETTINGS OVERVIEW 1
>>>
Revision 1.00.11, Display Rev. 1.0.21
Audit Trail -- Cal=4, Cfg=2
Range 1: 1000.0 x 0.2
Weight Units=lb
Height Units=in
Auto Lock=0 s
Sonar Ht=0.0 cm
Motion=3 div.
Filter=Off
OIML=No
ZeroTrack=10/2 d
USB: SMA
Gravity=0.000000
Power up zero=No
Sonar Exit Setup
3. Press Setup on the touchscreen.
4. The display will change to show the ENTER PASSCODE screen.
ENTER PASSCODE
Enter passcode to
access settings.
Press CANCEL to
exit.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. Using the 10-key on the touchscreen, enter 64870 and then press Save.
6. The display will change to show the Settings Page 1 screen.
SETTINGS
PAGE 1
Model: Wheelchair
Date: 12/11/2020
Time: 12:24:44
Language: English
<<< Exit >>>
7. Press >>> to advance to the Settings Page 5 screen.
30
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
To Enter Calibration, Cont.
SETTINGS
PAGE 5
Calibrate Scale
Load Cell Trim
Power up Zero: No
Auto Locking: 0 s
<<< Exit >>>
8. Select Calibrate Scale from the Settings Page 5 screen.
9. The display will change to show the “Number of Points” screen.
CALIBRATE SCALE
2
Number of points
at which the
scale will be
calibrated.
1 = SmartCal
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
10. With the “Number of Points” screen displayed, select 1, 2, 3, or 4 on the touchscreen and
then press Save.
1 = SmartCal Calibration
(calibrated load placed over each load cell only once)
2 = Two Calibration Points
(empty scale and full test load)
3 = Three Calibration Points
(empty scale, half test load, and full test load)
4= Four Calibration Points
(empty scale, one fourth test load, half test load, and full test load)
11. Proceed to the next sections of the manual for the type of calibration selected.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
31
CALIBRATE SCALE
1 = SMARTCAL
1. With the “Number of Points” screen displayed, press 1 on the touchscreen and then press
Save.
CALIBRATE SCALE
1
Number of points
at which the
scale will be
calibrated.
1 = SmartCal
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
2. The display will change to show “Enter the known test weight”. Enter the value for the test
weight and then press Save.
CALIBRATE SCALE
0
Enter the known
test weight.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
3. The display will change to show “To calibrate zero, remove any weight from the scale before
proceeding”. Make certain the scale is empty and then press Save.
CALIBRATE SCALE
0
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
32
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
1 = SMARTCAL, CONT.
4. The display will change to show “Working” for a few seconds and then change to show “Set
test weight over Cell 1”.
CALIBRATE SCALE
Working
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. Place the calibrated test weight on the scale over Cell 1 and then press Save.
CALIBRATE SCALE
Set test weight
over Cell 1 and
press Save.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
6. The display will change to show “Working” for a few seconds and then change to show “Set
test weight over Cell 2”.
CALIBRATE SCALE
Set test weight
over Cell 2 and
press Save.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
7. Place the calibrated test weight on the scale over Cell 2 and then press Save.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
33
CALIBRATE SCALE
1 = SMARTCAL, CONT.
8. The display will change to show “Working” for a few seconds and then change to show “Set
test weight over Cell 3”.
CALIBRATE SCALE
Set test weight
over Cell 3 and
press Save.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
9. Place the calibrated test weight on the scale over Cell 3 and then press Save.
10. The display will change to show “Working” for a few seconds and then change to show
“Set test weight over Cell 4”.
CALIBRATE SCALE
Set test weight
over Cell 4 and
press Save.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
11. Place the calibrated test weight on the scale over Cell 4 and then press Save.
12. The display will change to show “Working” for a few seconds and then return to the
Settings Page 5 screen.
13. Calibration is now complete.
14. Press Exit to exit Setup and return to the Weight screen.
34
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
2 = Two Calibration Points
1. With the “Number of Points” screen displayed, press 2 on the touchscreen and then
press Save.
CALIBRATE SCALE
2
Number of points
at which the
scale will be
calibrated.
1 = SmartCal
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
2. The display will change to show “To calibrate zero, remove any weight from the scale before
proceeding”. Make certain the scale is empty and then press Save.
CALIBRATE SCALE
0
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
3. The display will change to show “Working” for a few seconds.
CALIBRATE SCALE
Working
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
4. The display will then change to show the “Known test weight”
.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
35
CALIBRATE SCALE
2 = Two Calibration Points, Cont.
5. Place the calibrated test weight (full test load) on the scale, enter the value for the test
weight, and then press Save.
CALIBRATE SCALE
1000.0
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
NOTE: A minimum of
50% of the scale's
capacity is required,
however 70% to 100%
is recommended.
6. The display will change to show “Working” for a few seconds and then return to the
Settings Page 5 screen.
CALIBRATE SCALE
Working
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
7. Calibration is now complete.
8. Press Exit to exit Setup and return to the Weight screen.
36
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
3 = Three Calibration Points
1. With the “Number of Points” screen displayed, press 3 on the touchscreen and then
press Save.
CALIBRATE SCALE
3
Number of points
at which the
scale will be
calibrated.
1 = SmartCal
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
2. The display will change to show “To calibrate zero, remove any weight from the scale before
proceeding”. Make certain the scale is empty and then press Save.
CALIBRATE SCALE
0
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
3. The display will change to show “Working” and after a few seconds change to show the
“Known test weight” screen.
CALIBRATE SCALE
Working
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
0065-0647-OM Rev E
7550 OWNER’S MANUAL
37
CALIBRATE SCALE
3 = Three Calibration Points, Cont.
4. With the “Known test weight” screen displayed, place the first calibrated test weight (half the
test load) on the scale, enter the value for the test weight and then press Save.
CALIBRATE SCALE
500.0
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. The display will change to show “Working” for a few seconds.
CALIBRATE SCALE
Working
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
6. With the “Known test weight” screen displayed, place the second calibrated test weight (full
test load) on the scale, enter the setting for the test weight, and then press Save.
CALIBRATE SCALE
1000.0
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
NOTE: A minimum of 50%
of the scale's capacity is
required for the full test
load, however 70% to 100%
is recommended.
7. The display will change to show “Working” for a few seconds and then return to the Settings
Page 5 screen.
8. Calibration is now complete.
9. Press Exit to exit Setup and return to the Weight screen.
38
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
4 = Four Calibration Points
1. With the “Number of Points” screen displayed, press 4 on the touchscreen and then
press Save.
CALIBRATE SCALE
4
Number of points
at which the
scale will be
calibrated.
1 = SmartCal
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
2. The display will change to show “To calibrate zero, remove any weight from the scale before
proceeding”. Make certain the scale is empty and then press Save.
CALIBRATE SCALE
0
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
3. The display will change to show “Working” and after a few seconds change to show the
“Known test weight” screen.
CALIBRATE SCALE
Working
To calibrate zero,
remove any weight
from the scale
before proceeding
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
0065-0647-OM Rev E
7550 OWNER’S MANUAL
39
CALIBRATE SCALE
4 = Four Calibration Points, Cont.
4. With the “Known test weight” screen displayed, place the first calibrated test weight
(one-fourth of the test load) on the scale, enter the setting for the test weight and then
press Save.
CALIBRATE SCALE
250.0
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. The display will change to show “Working” and after a few seconds change to show the
“Known test weight” screen.
6. With the “Known test weight” screen displayed, place the second calibrated test weight
(half the test load) on the scale, enter the setting for the test weight and then press Save.
CALIBRATE SCALE
500.0
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
7. The display will change to show “Working” for a few seconds.
40
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CALIBRATE SCALE
4 = Four Calibration Points, Cont.
8. With the “Known test weight” screen displayed, place the third calibrated test weight (full
test load) on the scale, enter the setting for the test weight, and then press Save.
CALIBRATE SCALE
1000.0
This is the known
test weight
that is currently
on the scale.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
NOTE: A minimum of 50%
of the scale's capacity is
required for the full test
load, however 70% to 100%
is recommended.
9. The display will change to show “Working” for a few seconds and then return to the Settings
Page 5 screen.
10. Calibration is now complete.
11. Press Exit to exit Setup and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
41
LOAD CELL TRIM
Performing Load Cell Trim
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
SETTINGS OVERVIEW 1
>>>
Revision 1.00.11, Display Rev. 1.0.21
Audit Trail -- Cal=54, Cfg=12
Range 1: 1000.0 x 0.2
Weight Units=lb
Height Units=in
Auto Lock=0 s
Sonar Ht=0.0 cm
Motion=3 div.
Filter=Off
OIML=No
ZeroTrack=10/2 d
USB: SMA
Gravity=0.000000
Power up zero =No
Sonar Exit Setup
3. Press Setup on the touchscreen.
4. The display will change to show the ENTER PASSCODE screen.
ENTER PASSCODE
Enter passcode to
access settings.
Press CANCEL to
exit.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. Using the 10-key on the touchscreen, enter 64870 and then press Save.
6. The display will change to show the Settings Page 1 screen.
SETTINGS
PAGE 1
Model: Wheelchair
Date: 12/11/2020
Time: 12:24:44
Language: English
<<< Exit >>>
7. Press >>> to advance to the Settings Page 5 screen.
42
0065-0647-OM Rev E
7550 OWNER’S MANUAL
LOAD CELL TRIM, CONT.
Performing Load Cell Trim, Cont.
SETTINGS
PAGE 5
Calibrate Scale
Load Cell Trim
Power up Zero: No
Auto Locking: 0 sec.
<<< Exit >>>
8. Select Load Cell Trim from the Settings Page 5 screen.
LOAD CELL TRIM
1:
2:
3:
4:
2.941 mV
3.334 mV
3.148 mV
1.747 mV
0.00
- +
- +
- +
- +
Exit
9. Place a test weight of at least 10% of the scale
capacity on each corner of the scale, one at a time,
and note the reading for each corner.
10. Place a test weight on the corner with the lowest
reading and adjust the appropriate cell mV reading
until the reading agrees with the highest reading
obtained in Step 9.
Press the
key to increase the mV reading.
Press the
key to decrease the mV reading.
Test
Weight
Place test weight of at least
10% of scale capacity on each
corner of scale, one at a time,
and note the weight reading of
each corner.
11. Repeat Step 10 until all corners have the same
reading.
12. Press Exit to exit Load Cell Trim and return to the Settings Page 5 screen.
13. Press Exit again to exit Setup and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
43
44
0065-0647-OM Rev E
7550 OWNER’S MANUAL
WI-FI AND BLUETOOTH 5.0
The Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale has a Wi-Fi and Bluetooth 5.0
wireless transmitter inside the weight display that has been designed to interface the scale to a
Wi-Fi network or pair to a Bluetooth-capable device.
The following sections will guide you through the setup and operation of the Wi-Fi and
Bluetooth 5.0 features of the scale.
Wi-Fi Features
Soft Access Point (AP) for setting credentials for Wi-Fi module
Setup option to select a static or dynamic IP address
Built-in webserver to display weight, height, and BMI
TCP/IP connection for continuous output of weight, height, and BMI
WI-FI SETUP
Enable and Configure Wi-Fi Networking
NOTE: Default Network Settings are: Wi-Fi = Off, Bluetooth = Off, and DHCP = On.
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
SETTINGS OVERVIEW 1
>>>
Revision 1.00.11, Display Rev. 1.0.21
Audit Trail -- Cal=4, Cfg=2
Range 1: 1000.0 x 0.2
Weight Units=lb
Height Units=in
Auto Lock=0 s
Sonar Ht=221.5 cm
Motion=3 div.
Filter=Off
OIML=No
ZeroTrack=10/2 d
USB: SMA
Gravity=0.000000
Power up zero=No
Sonar Exit Setup
3. Press Setup on the touchscreen.
4. The display will change to show the ENTER PASSCODE screen.
ENTER PASSCODE
Enter passcode to
access settings.
Press CANCEL to
exit.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. Using the 10-key on the touchscreen, enter 64870, and then press Save.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
45
WI-FI SETUP, CONT.
Enable and Configure Wi-Fi Networking, Cont.
6. The display will change to show the Settings Page 1 screen.
SETTINGS
PAGE 1
Model: Wheelchair
Date: 12/11/2020
Time: 12:24:44
Language: English
<<< Exit >>>
7. Press >>> to advance to the Settings Page 7 screen.
SETTINGS
PAGE 7
Bluetooth: Off
Wi-Fi: Off
SSID: Dynex617
<<<
Exit
The SSID: value will not
be shown if Wi-Fi: = Off.
>>>
The page advance will not
be shown if Wi-Fi: = Off.
8. Touch Wi-Fi: to open a selection screen to turn the Wi-Fi wireless transmitter “On”. Press 1
on the entry screen, and then press Save.
9. Touch SSID: to open a screen that will prompt you to CLEAR SSID. Press 1 on the entry
screen, and then press Save to clear the Wi-Fi credentials.
CLEAR SSID
0
1= Clear
wireless
profile
SAVE
46
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
0065-0647-OM Rev E
7550 OWNER’S MANUAL
WI-FI SETUP, CONT.
Enable and Configure Wi-Fi Networking, Cont.
10. Press >>> to advance to the Settings Page 8.
SETTINGS
PAGE 8
DHCP: On
IP: 192.168.0.133
NM: 255.255.255.0
GW: 192.168.0.1
<<< Exit
The settings for NM:
and GW: will not be
shown if DHCP = On.
11. Touch DHCP: to open an entry screen to allow you to select the DHCP setting. This setting
selects whether the Wi-Fi wireless transmitter will use a dynamic IP address assigned by a
DHCP server or a static IP address. Consult your network administrator for the proper
selection.
Using the numeric keys, enter a new setting, 0 = Static IP (Off) or 1 = DHCP (On), and
then press Save.
NOTE: If the setting for DHCP: = Off, the settings for NM: (Netmask) and
GW: (Gateway Address) will be shown on the touchscreen.
12. Touch NM: to open an entry screen to enter the Wi-Fi network Netmask for the network the
scale will be connected to, and then press Save.
The Netmask of the scale should match the Netmask of the other computers on your
network. The format for the Netmask is ### . ### . ### . # (e.g., 255.255.255.0).
13. Touch GW: to open an entry screen to enter the Wi-Fi network Gateway Address for the
network the scale will be connected to, and then press Save.
The format for the Gateway address is: # . # . # . # (e.g., 192.168.0.1).
14. Press Exit to exit Setup and return to the Weight screen.
15. Proceed to the Configure Wi-Fi Network Module section.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
47
WI-FI SETUP, CONT.
Configure Wi-Fi Network Module
Without Wi-Fi credentials, the Wi-Fi module will enter listening mode, in which it functions as a
Wi-Fi access point. The SSID of the AP is of the form “REDBIRD_WIFI_XX:XX”, where XX:XX
is the last 4-digits of the MAC address. Use a Wi-Fi device, such as a Smartphone, tablet, or
laptop to connect to the scale. If the connection fails, try moving the scale to another location
or cycling power to the scale.
When the connection has been made, open a web browser, and then go to the location
redbird.com. The “Configure Wi-Fi” page should appear.
Click on the Scan button to see a list of available Wi-Fi networks.
48
0065-0647-OM Rev E
7550 OWNER’S MANUAL
WI-FI SETUP, CONT.
Configure Wi-Fi Network Module, Cont.
icon scale
Enter the Network Name (SSID), Password, and Device Name (optional) for the network you
wish to connect to. Note that the Device Name can be anything.
Click on the Connect button and the module should try to connect to that network. This may
take several seconds. The module will store these network credentials and connect to this
network each time the scale is turned on.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
49
WI-FI SETUP, CONT.
Changing the Network Credentials
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
3. Press Setup on the touchscreen.
4. The display will change to show the ENTER PASSCODE screen.
5. Using the 10-key on the touchscreen, enter 64870 and then press Save.
6. The display will change to show the Settings Page 1 screen.
7. Press >>> to advance to the Settings Page 7 screen.
8. Touch SSID: on the touchscreen.
9. You will be prompted to clear the network credentials.
CLEAR SSID
0
1= Clear
wireless
profile
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
10. Press 1 on the entry screen, and then press Save to clear the credentials.
11. Press Exit to exit Setup, and return to the Weight screen.
12. Repeat the steps in the Configure Wi-Fi Network Module on the previous page to set the
new network credentials.
Display the Wi-Fi Network Settings
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
3. Press >>> to advance to the Settings Overview 2 screen.
4. The scale’s Wi-Fi network settings will be shown.
5. Press Exit to exit Settings Overview 2 and return to the Weight screen.
You should see the status of the Wi-Fi on the Settings Overview 2 screen. If a scan of Wi-Fi
networks shows the “REDBIRD_WIFI_XX:XX” AP, then the module is in listening mode. Refer
to the Configure Wi-Fi Network Module section for the procedure to set the Wi-Fi credentials.
50
0065-0647-OM Rev E
7550 OWNER’S MANUAL
WIFI OPERATION
Web Server
While the scale is connected to a network you can access the hosted web page. To view the
web page, proceed to the IP address of the Redbird module with “/webserver.html” added to it.
For example, if the IP address is “192.168.0.5”, enter 192.168.0.5/webserver.html and a page
like the following should appear.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
51
WIFI OPERATION, CONT.
TCP/IP Connection
Continuous output is available by TCP/IP connection to the scale’s IP address at port 10001.
The scale will transmit a single set of weight data each time the SMA weight request
<LF>W<CR> is received.
Each time the SMA weight request <LF>R<CR> is received, the scale will transmit
weight data continually until another SMA command is received.
SMA format for both command <LF>W<CR> and <LF>R<CR>.
<LF><s><r><n><m><f><xxxxxx.xxx><uuu><CR>
Where:
LF =
Line feed (hex 0A) = Start of response message
s=
Scale Status definition
Z = Center of Zero <xxxxxx.xxx>= 0.000
O = Over Capacity <xxxxxx.xxx>= +weight
U = Under Capacity <xxxxxx.xxx>= -weight
E = Zero Error (clears when the condition clears)
<space> = None of the above conditions
NOTE: For “E” error condition <xxxxxx.xxx>= —————
(center dashes) and “Z”, “O”, “U” is overridden
r=
Range (“1”, “2”, “3”, etc.) always “1” for a single range
n=
Mode of Operation (Gross/Net status)
G = Gross normal weight
T = Tare weight (in response to “M” command)
N = Net normal weight
g = gross weight in high-resolution
n = net weight in high-resolution
m=
Motion status
M = Scale in Motion
<space> = Scale not in Motion
f=
Future = Reserved for future or custom use
xxxxxx.xxx =
Weight with a decimal point if necessary
uuu =
Units = e. g. lb, kg
CR =
Carriage Return (hex 0D) = End of response message
SMA Commands
Once a TCP/IP connection has been made to the scale, you can issue SMA commands to it.
The scale will respond to the SMA commands in the format shown in the Response column of
the WI-FI AND BLUETOOTH SMA COMMANDS table on pages 55 and 56 of this manual.
52
0065-0647-OM Rev E
7550 OWNER’S MANUAL
BLUETOOTH LOW ENERGY (BLE)
The Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale has a wireless transmitter inside the
scale weight indicator that can be configured for Bluetooth Low Energy (BLE). When possible,
BLE standard specifications are used (those that are adopted by the Bluetooth SIG). Custom
services were created to request indicator and scale information whose communication
protocol was developed by the Scale Manufacturers Association (SMA).
Features Available with BLE
Device Information Service
o Manufacturer Name
o Model Number
o Software Revision
Battery Service
o Battery Level Percentage
Weight Scale Service
o Weight Measurement
o Weight Scale Feature
Custom Services
o Detecto SMA Service
Enable Bluetooth (BLE) Networking
NOTE: Default Network Settings are: Wi-Fi = Off, Bluetooth = Off, and DHCP = On.
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
SETTINGS OVERVIEW 1
>>>
Revision 1.00.11, Display Rev. 1.0.21
Audit Trail -- Cal=4, Cfg=2
Range 1: 1000.0 x 0.2
Weight Units=lb
Height Units=in
Auto Lock=0 s
Sonar Ht=221.5 cm
Motion=3 div.
Filter=Off
OIML=No
ZeroTrack=10/2 d
USB: SMA
Gravity=0.000000
Power up zero=No
Sonar Exit Setup
3. Press Setup on the touchscreen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
53
BLUETOOTH LOW ENERGY (BLE), CONT.
Enable Bluetooth (BLE) Networking, Cont.
4. The display will change to show the ENTER PASSCODE screen.
ENTER PASSCODE
Enter passcode to
access settings.
Press CANCEL to
exit.
SAVE
CANCEL
1
2
3
4
5
6
7
8
9
0
.
DEL
5. Using the 10-key on the touchscreen, enter 64870, and then press Save.
6. The display will change to show the Settings Page 1 screen.
SETTINGS
PAGE 1
Model: Wheelchair
Date: 12/11/2020
Time: 12:24:44
Language: English
<<< Exit >>>
7. Press >>> to advance to the Settings Page 7 screen.
SETTINGS
PAGE 7
Bluetooth: Off
Wi-Fi: On
SSID: Dynex617
<<<
Exit
>>>
8. Touch Bluetooth: to open a selection screen to turn the Bluetooth wireless transmitter “On”.
Press 1 on the entry screen, and then press Save.
9. Press Exit to exit Setup and return to the Weight screen.
10. The scale is now ready to pair with a Bluetooth-capable device.
54
0065-0647-OM Rev E
7550 OWNER’S MANUAL
BLUETOOTH LOW ENERGY (BLE), CONT.
Enable Bluetooth (BLE) Networking, Cont.
IMPORTANT! If an attempt is made to turn Bluetooth (BLE) off when a device is
connected to the scale, the display will show the error message Error - BLE Off.
SETTINGS
PAGE 7
Error – BLE Off
Wi-Fi: On
SSID: Dynex617
<<<
Exit
>>>
This message will be shown until <<< or >>> are pressed to change to a different settings
page, Exit is pressed to return to the Weight screen, or the error message Error - BLE Off is
touched, and then CANCEL is selected on the Bluetooth selection screen.
Note that at this time, Bluetooth (BLE) is still on, only the message has been cleared.
To turn Bluetooth (BLE) off, the device must be disconnected from the scale or the scale must
be turned “Off” and back “On”.
Bluetooth Pairing
To pair a Bluetooth-capable device with the scale, select the name of the scale from the list of
available connections: Icon Scale XX:XX:XX:XX:XX:XX. Note that the X’s represents the MAC
address of the BLE wireless transmitter in the scale’s weight indicator.
NOTE: If there are multiple 7550 scales nearby, perform the steps below to proceed to the
Settings Overview 2 page to view the scale’s Bluetooth Advertisement name (BLE Adv:).
BLE Adv: Icon Scale XX:XX:XX:XX:XX:XX
1. With the scale turned on and the Weight screen displayed, press the Menu key.
2. The display will change to show the Settings Overview 1 screen.
3. Press >>> to advance to the Settings Overview 2 screen.
4. The scale’s Bluetooth setting and Bluetooth Advertisement name will be shown.
5. Press Exit to exit Settings Overview 2 and return to the Weight screen.
When a stable reading is achieved, and if the scale is paired with a Bluetooth-capable device,
the reading will transmit when the device sends a request to receive data.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
55
INTERFACING TO BLE
Note: 16-bit (4-digit) UUID’s are adopted standards. 128-bit (32-digit) UUID’s are custom
services or characteristics.
Standard Services per Bluetooth SIG
Reference adopted specifications at https://www.bluetooth.com/specifications/gatt
Device Information Service (0X180A)
Characteristics
Number
Value(s)
Attributes
Manufacturer
Name String
0x2A29
“Detecto”
READ
Model Number
String
0x2A24
“Icon”
READ
“1.0.XX” software of scale
READ
Software Revision 0x2A28
String
Battery Service (0x180F)
Characteristics
Number
Value(s)
Attributes
Battery Level
0x180F
0x00 – 0x64 (uint16), represents 0 – 100
percent
READ
Attributes
Weight Scale Service (0X181D)
Characteristics
Number
Value(s)
Weight
Measurement
0x2A9D
<8bit Flag><uint16 weight><uint16 bmi> READ
<uint16 ht>
INDICATE
Supported Flags:
Flag bit0: 0 = SI, 1 = Imperial
bit3: 0 = BMI and Height not present
1 = BMI and Height present
bit4: 0 = Not below zero*
1 = Below zero*
SI:
Wt is KG with resolution 0.0005
Ht is meters with resolution 0.001
Imperial:
Wt is lbs with resolution 0.01
Ht is inches with resolution 0.1
Weight Scale
Feature
0x2A9E
NOT YET IMPLEMENTED
If the weight is below zero (0), the weight you will see is zero (0).
If the weight is below zero (0), bit 4 of Weight Measurement will be set to 1, otherwise, bit
4 is set to zero (0).
NOTE: Maximum weight value displayed is 655.35 in both pounds (lb) and kilograms (kg).
56
0065-0647-OM Rev E
7550 OWNER’S MANUAL
BLUETOOTH INTERFACE STANDARD PROTOCOLS
Bluetooth Characteristic – Weight_Measurement: 0x2A9D
Widely accepted BLE GATT profiles are used to transmit data to other devices/software that
have implemented these profiles. Data is passed via BLE using the GATT characteristic
“Weight Measurement” (0x2A9D) as defined by Bluetooth SIG. Refer to the data table below
about Weight Measurement Characteristics.
Weight_Measurement: 0x2A9D
1
Below Zero
0
1
Not Below Zero
Below Zero
uint16
uint16
uint8
uint16
uint16
uint16
0065-0647-OM Rev E
7550 OWNER’S MANUAL
57
BLUETOOTH INTERFACE STANDARD PROTOCOLS, CONT.
Custom Services
Detecto SMA Service (0X907A0000-8699-47DD-AB30-D7AAD5F83E54)
All custom characteristics have the same base number of the Service UUID 0x907aXXXX8699-47dd-ab30-d7aad5f83e54 where the XXXX part distinguishes the service.
Characteristics
Sub
Number
Value(s)
Attributes
Rx Cmd
0001
SMA string received by scale (up to 20
chars)
WRITE
Tx Cmd
0002
SMA string sent by scale (up to 20 chars)
NOTIFY
SMA Commands
The SMA commands shown in the WI-FI AND BLUETOOTH SMA COMMANDS table on
pages 55 and 56 of this manual can be sent using the Detecto SMA Service’s Rx Cmd
characteristic (0x907a0001-8699-47dd-ab30-d7aad5f83e54).
Responses will put out a notification on the Tx Cmd characteristic (0x907a0002-8699-47ddab30-d7aad5f83e54).
58
0065-0647-OM Rev E
7550 OWNER’S MANUAL
WI-FI AND BLUETOOTH SMA COMMANDS
The format used to send SMA commands to the scale is:
<LF>command<CR>
Where “command” is the ASCII letter(s), or the Hex Rep. listed in the table below. For
example, <LF>Z<CR> or 0A5A0D would send the command to zero the scale. Note that the
response of each command is listed under the Response column of the table.
Any invalid command sent will return a question mark for a response. For example,
sending a <LF>XZ<CR> will return 0A 3F 0D (<LF>?<CR>).
Command
Hex Rep.
Response
Z – zero scale
0A5A0D
None. You should see scale zero itself.
D – scale
diagnostics
0A440D
0A 20 20 20 20 0D
= means there are no errors, EEPROM error will show an
E in the second space and C will show in the third space
if there is a calibration error. 20 = SPACE
W – request
weight
0A570D
0A 5A 31 47 20 20 30 30 30 30 30 30 2E 30 30 6C 62 0D
= Z1G 000000.00lb
H – request high
resolution
weight
0A480D
0A 5A 31 67 20 20 30 30 30 30 30 30 2E 30 31 6C 62 0D
= Z1g 000000.01lb
A – about scale
first line
0A410D
0A 53 4D 41 3A 32 2F 31 2E 31 0D
= SMA:2/1.1
B – about scale
scroll
0A420D
Each time sent you will get the next line of information
until there is no longer any information.
1. 0A 4D 46 47 3A 44 65 74 65 63 74 6F 0D
= MFG:Detecto
2. 0A 4D 46 44 3A 41 70 65 78 0D
= MOD:Icon
3. 0A 52 45 56 3A 31 2E 30 2E 31 34 0D
= REV:X.X.XX
5. 0A 45 4E 44 3A 0D
= END:
6. If B is sent again you will get the unknown command
response until the A command is sent again. 0A 3F 0D
=?
I – scale
information
0A490D
0A 53 4D 41 3A 32 2F 31 2E 31 0D
= SMA:2/1.1
0065-0647-OM Rev E
7550 OWNER’S MANUAL
59
WI-FI AND BLUETOOTH SMA COMMANDS, CONT.
Command
Hex Rep.
Response
N – scale
information
scroll
0A4E0D
Each time sent you will get the next line of scale
information until there is no longer any information.
1. 0A 54 59 50 3A 53 0D
= TYP:S
2. 0A 43 41 50 3A 20 6C 62 3A 36 30 30 2E 30 3A 32 3A
31 0D
= CAP: lb:600.0:2:1, this depends on the settings of the
Icon.
600.0 – Capacity, 2 – Interval, & 1 – Decimal
3. 0A 43 4D 44 3A 48 52 49 4E 58 0D
= CMD: HRINX
4. 0A 45 4E 44 3A 0D
= END:
5. If N is sent again you will get the unknown command
response until the I command is sent again. 0A 3F 0D
=?
R – repeat
displayed
weight
continuously
0A520D
0A 5A 31 47 20 20 30 30 30 30 30 30 2E 30 30 6C 62 0D
= Z1G 000000.00lb, you should get this continuously
until another SMA command is received.
XB – battery level
percentage
0A58420D
0A 38 36 2E 32 35 0D
= 86.25
60
0065-0647-OM Rev E
7550 OWNER’S MANUAL
DISPLAY SCALE WI-FI AND BLUETOOTH SETTINGS
To View the Settings:
1. Press the
key to turn the scale on.
2. The scale will show the Detecto logo briefly and then change to the Weight screen.
3. With the Weight screen displayed, press the Menu key.
4. The display will change to show the Settings Overview 1 screen.
SETTINGS OVERVIEW 1
>>>
Revision 1.00.11, Display Rev. 1.0.21
Audit Trail -- Cal=4, Cfg=2
Range 1: 1000.0 x 0.2
Weight Units=lb
Height Units=in
Auto Lock=0 s
Sonar Ht=0.0 cm
Motion=3 div.
Filter=Off
OIML=No
ZeroTrack=10/2 d
USB: SMA
Gravity=0.000000
Power up zero=No
Sonar Exit Setup
5. Press >>> on the touchscreen to advance to the Settings Overview 2 screen.
SETTINGS OVERVIEW 2
<<<
Wi-Fi/BLE Module Rev: 1.0.01
Bluetooth: On
BLE Adv: Icon Scale F8:F0:05:D8:9D:DD
Wi-Fi: On, Status: Disconnected
Network SSID: Dynex617
DHCP: On
IP: 192.168.0.133
Mask: 255.255.255.0
Gate: 192.168.0.1
This value will
not be shown if
Bluetooth: = Off.
These values will not be
shown if Wi-Fi = Off.
Sonar Exit Setup
6. Press Exit to exit the Settings Overview screen and return to the Weight screen.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
61
ERROR AND OPERATION MESSAGES
The Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale is equipped with diagnostic software
that tests various portions of the scale’s circuitry and verifies proper operation. Should a
problem be detected, an error or status message will be displayed. The following lists these
messages and their meaning.
AUTO LOCKED
This message appears if the weight/height has been automatically locked.
BELOW ZERO
The scale weight reading is below zero.
CAL REQUIRED
The indicator requires calibration. Weight will show as dashes. Consult your scale service
representative.
CENTER ZERO
The scale weight reading is at the center of zero.
ERROR CANNOT ZERO
Scale cannot zero due to motion on scale.
LOCKED
This message appears if the weight/height has been manually locked.
MOTION
The scale is in motion based on the motion range setting.
OVER CAPACITY
The scale weight exceeds scale capacity.
OVERFLOW ERROR
This message appears if there are too many characters to display on the screen.
BEFORE YOU CALL FOR SERVICE
PROBLEM
POSSIBLE SOLUTIONS
AC Operation:
Is the AC power supply fully inserted into the wall receptacle?
Check the wall receptacle for proper AC power. Try another
electrical appliance in the same receptacle. Does it work?
Check the circuit breaker.
Has there been a power failure?
The display does not
turn on.
Incorrect weight is
displayed
Weight is not displayed
62
Battery operation:
Check if the batteries are installed and correctly.
If Alkaline, remove the old batteries and replace them with
new ones.
If NI-CAD or NiMH, remove the discharged batteries and
replace them with fully charged ones. Place the discharged
batteries in an external charger to recharge.
Make sure the weighing platform is not touching an adjacent
object. Have proper operation procedures been followed?
Refer to Error and Operation Messages.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
CARE AND CLEANING
NOTE: The Detecto 7550 Wall-Mount Fold-Up Wheelchair Scale contains no userserviceable parts and maintenance should be limited to cleaning it thoroughly on a
routine basis and battery replacement as required.
Always remove the power before cleaning.
DO NOT pour or spray water directly on the indicator to clean. The indicator is not
waterproof and covering it with water will damage it and void the warranty.
DO NOT use wire brushes, abrasives, or cleaning tools such as steel pads and
scrapers, which will scratch the surface. Instead, use soft cloths or plastic scouring
pads for cleaning.
DO clean the indicator with a damp soft cloth and mild non-abrasive detergent.
When possible, use treated water. Hard water can leave behind deposits. Soft water is
much gentler on the indicators and painted steel’s surface.
Avoid the use of acetone, thinner or other volatile solvents, and abrasive type cleaners
for cleaning. If required, a mild solvent such as mineral spirits can be used to remove
oil, grease, tars, wax, and similar substances. Use a cloth dampened with mineral
spirits, and apply only to contaminated areas. Follow up the use of this mild solvent
with detergent cleaning and rinsing.
0065-0647-OM Rev E
7550 OWNER’S MANUAL
63
PARTS IDENTIFICATION, CONT.
FINAL ASSEMBLY – FRONT VIEW
(SHOWN WITHOUT COVERS)
FINAL ASSEMBLY – REAR VIEW
64
0065-0647-OM Rev E
7550 OWNER’S MANUAL
PARTS IDENTIFICATION, CONT.
FINAL ASSEMBLY – FRONT VIEW
SECTION B-B and SECTION A-A
Item
Qty.
Part Number
Description
1
1
0065-0844-0A
FRAME ASSEMBLY
2
1
0065-0846-08
MAT-DECK, 7550 GRAY
3
1
0065-0843-0A
SUPPORT TRAY ASSEMBLY
4
2
0065-B610-08
BUSHING
5
2
0065-B613-08
CYLINDER SLIDE
6
2
0065-B621-18
BUMPER MOUNT
7
2
0065-C609-08
PIVOT BLOCK
8
1
0065-0840-08
WEIGHBRIDGE, NO WC STOPS, 7550
9
2
0065-0862-08
FRAME COVER
10
2
6021-1058
SCW TRUSS-HEAD MACHINE-SCW 10-32 X .375
11
4
6021-1801
SCW FLAT-HEAD, SOCKET CAP .25-20 X .375
BLACK OXIDE
12
2
6021-1801
SCW SHOULDER SOCKET HEAD 5/16-18 X 1.0”
13
2
6031-0219
CYLINDER, GAS SPRING, 191 LBS,
TWO SOCKET, 8 INCH STROKE
14
2
6680-0021
SPACER NYLON 1.000 OD X .450 ID X .219 LONG
15
1
6980-0014
CABLE TIE, 4”
16
2
8529-B215-08
17
2
6031-0221
CYLINDER, GAS SPRING, 191 LBS,
ONE SOCKET, 8 INCH STROKE
18
.001
6050-3049
GREASE, FOOD GRADE, MOLYKOTE G-4500 14oz
19
1
6610-5007
CABLE CLIP 1" x 1"
20
.001
6560-1125
ADHESIVE LOCTITE 290 THRD LCKR, WICKING
21
24
6021-1006
SCW ROUND-HEAD SELF-TAP 10-32 X .500 S.S.
22
1
593GR986
SERIAL TAG ASSEMBLY
SUPPORT, TRAY
0065-0647-OM Rev E
7550 OWNER’S MANUAL
65
PARTS IDENTIFICATION
FRAME ASSEMBLY, 0065-0844-0A
66
0065-0647-OM Rev E
7550 OWNER’S MANUAL
PARTS IDENTIFICATION, CONT.
FRAME ASSEMBLY, 0065-0844-0A – SECTION A-A and DETAIL D
ITEM
QTY
PART NUMBER
DESCRIPTION
1
1
0065-0841-0A
FRAME WELDMENT
2
1
0065-C624-0A
CYLINDER MOUNT WELDMENT LEFT
3
1
0065-C624-1A
CYLINDER MOUNT WELDMENT RIGHT
4
1
6021-1065
SCREW, THUMB, MACHINE-SCREW, 06-32 X .375
5
2
6024-0126
WASHER FLAT FOR 5/32 POP RIVET
6
2
6031-0220
BALL STUD, GAS SPRING, 13 MM DIA, 5/16 - 18
7
1
6610-5119
BATTERY HOLDER, 6 "C" CELL, 9V SNAP
CONNECTOR
8
2
6680-0214
RIVET POP, BH AL 5/32 DIA x .126-.187 GR
9
1
8555-0529-18
BATTERY COVER, 7550 GRAY
10
1
3300-0321-4A
PCB ASS’Y 855/7550 ANALOG/CONTROLLER
11
1
3300-0427-0A
CABLE, POWER JACK 7550
12
1
0065-0856-0A
TOP COVER WITH 855 MOUNT WELDMENT
13
1
0065-0855-08
ICON MOUNTING STRAP FOR 7550
14
20
6021-1006
SCW ROUND-HEAD SELF-TAP, 10-32 X .500 S.S.
15
2
6610-5007
CABLE CLIP 1" X 1"
16
1
17
4
6021-0654
18
1
3300-0365-0A
CONTROLLER TO DISPLAY CABLE
19
1
3300-0366-0A
CABLE: BATTERY
20
2
6013-0295
NUT, #10-32 HEX, ZINC PLATED
21
2
6021-1293
SCREW, FLAT-HEAD, THREAD CUTTING TYPE 25,
#4-24 X 5/16, PHILLIP DRIVE, ZINC PLATED
SUB-ASSY, DISPLAY, 7550
SCREW, PAN-HEAD, MACHINE SCW, 06-32 X .250
0065-0647-OM Rev E
7550 OWNER’S MANUAL
67
PARTS IDENTIFICATION, CONT.
SUPPORT TRAY ASSEMBLY, 0065-0843-0A
ITEM
QTY
PART NUMBER
1
1
0065-0842-0A
2
8
6013-0295
NUT #10-32 HEX Z/P
3
4
6031-0220
BALL STUD, GAS SPRING, 13 MM DIA, 5/16" - 18
10
1
0065-0859-0A
11
5
6610-5007
CABLE CLIP 1" x 1"
12
2
6021-0654
SCW PAN-HEAD. MACHINE-SCW 06-32X.250
13
1
3300-0367-0A
17
8
6013-0255
68
DESCRIPTION
SUPPORT TRAY WELDMENT
7550 LOAD CELL WIRING EXTENDER PCB
LOAD CELL CABLE, 7550-855
NUT #8-32 Z/P
0065-0647-OM Rev E
7550 OWNER’S MANUAL
PARTS IDENTIFICATION, CONT.
SUPPORT TRAY ASSEMBLY, 0065-0843-0A
SECTION A-A and SECTION B-B
ITEM
QTY
PART NUMBER
DESCRIPTION
2
8
6013-0295
NUT #10-32 HEX Z/P
3
4
6031-0220
BALL STUD, GAS SPRING, 13 MM DIA, 5/16" - 18
4
8
0031-B014-08
SPACER
5
4
0065-0870-0A
FOOT WELDMENT, FP-240
6
8
0065-B635-08
LOAD CELL MOUNT SPRING
7
8
0065-B637-08
LOAD CELL WASHER
8
4
3300-0440-08
LOAD CELL SPACER
9
4
FP-240
17
4
6031-0222
LOAD CELL, FLAT PLATE, 240LBS
1/4-20 VIBRATION MOUNT
0065-0647-OM Rev E
7550 OWNER’S MANUAL
69
70
0065-0647-OM Rev E
7550 OWNER’S MANUAL
SCALE WIRING DIAGRAM
SCALE
ANALOG
CONTROLLER
LOAD CELL CABLE
FROM SCALE
TERMINAL BOARD
SCALE
TERMINAL
BOARD
LOAD CELL CABLE
TO SCALE ANALOG
CONTROLLER
0065-0647-OM Rev E
7550 OWNER’S MANUAL
71
STATEMENT OF LIMITED WARRANTY
Detecto Scale warrants its equipment to be free from defects in
material and workmanship as follows: Detecto warrants to the
original purchaser only that it will repair or replace any part of
equipment which is defective in material or workmanship for a
period of two (2) years from date of shipment. Detecto shall be
the sole judge of what constitutes a defect.
During the first ninety (90) days Detecto may choose to replace
the product at no charge to the buyer upon inspection of the
returned item.
After the first ninety (90) days, upon inspection of the returned
item, Detecto will repair or replace it with a remanufactured
product. The customer is responsible for paying for the freight both
ways.
This warranty does not apply to peripheral equipment not
manufactured by Detecto; this equipment will be covered by
certain manufacturer’s warranty only.
This warranty does not include replacement of expendable or
consumable parts. This does not apply to any item which has
deteriorated or damaged due to wear, accident, misuse, abuse,
improper line voltage, overloading, theft, lightning, fire, water or
acts of God, or due to extended storage or exposure while in
purchaser’s possession. This warranty does not apply to
maintenance service. Purchased parts will have a ninety (90) day
repair or replacement warranty only.
Detecto may require the suspect product to be returned to the
factory; item(s) must be properly packed and shipping charges
prepaid. A return authorization number must be obtained for all
returns and marked on the outside of all returned packages.
Detecto accepts no responsibility for loss or damage in transit.
72
0065-0647-OM Rev E
7550 OWNER’S MANUAL
STATEMENT OF LIMITED WARRANTY
Conditions Which Void Limited Warranty
This warranty shall not apply to equipment which:
A.) Has been tampered with, defaced, mishandled or has had
repairs and modifications not authorized by Detecto.
B.) Has had serial number altered, defaced, or removed.
C.) Has not been grounded according to Detecto’s recommended
procedure.
Freight Carrier Damage
Claims for equipment damaged in transit must be referred to the
freight carrier in accordance with freight carrier regulations.
This warranty sets forth the extent of our liability for breach of any
warranty or deficiency in connection with the sale or use of the
product. Detecto will not be liable for consequential damages of
any nature, including but not limited to, loss of profit, delays or
expenses, whether based on tort or contract. Detecto reserves the
right to incorporate improvements in material and design without
notice and is not obligated to incorporate improvements in
equipment previously manufactured.
The foregoing is in lieu of all other warranties, express or implied
including any warranty that extends beyond the description of the
product including any warranty of merchantability or fitness for a
particular purpose. This warranty covers only those Detecto
products installed in the forty-eight (48) contiguous continental
United States.
Ph. (800) 641-2008
E-mail: [email protected]
102 E. Daugherty
Webb City, MO 64870
0065-0647-OM Rev E
08/27/2014
Printed in USA
D268-WARRANTY-DET-A
7550 OWNER’S MANUAL
73
Cardinal Scale Manufacturing Co.
102 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008
Fax: 417-673-2153
Printed in USA
0065-0647-OM
Rev E 0065-0647-OM
03/21
74
Rev E
Technical Support: 1-866-254-8261
E-mail: [email protected]
7550 OWNER’S MANUAL
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
