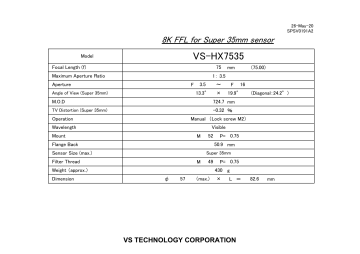

Basler VST Lens VS-HX7535 F3.5 f75mm Super 35 Datasheet

Basler VST Lens VS-HX7535 F3.5 f75mm Super 35 Datasheet
26-May-20
SPSV0191A2
8K FFL for Super 35mm sensor
VS-HX7535
Model
Focal Length (f)
75
Maximum Aperture Ratio
mm
1: 3.5
Aperture
F
Angle of View (Super 35mm)
3.5
~
13.3°
×
F
724.7 mm
TV Distortion (Super 35mm)
-0.32 %
Operation
16
19.9°
M.O.D
(Diagonal:24.2°)
Manual (Lock screw M2)
Wavelength
Visible
Mount
M
52
Flange Back
P= 0.75
50.9 mm
Sensor Size (max.)
Super 35mm
Filter Thread
M
49
Weight (approx.)
Dimension
(75.00)
P= 0.75
430 g
φ
57
(max.)
×
L =
VS TECHNOLOGY CORPORATION
82.6
mm
