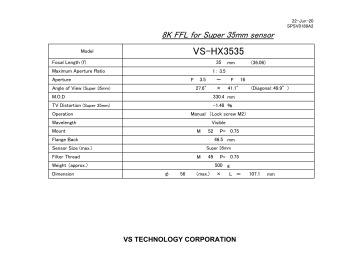

Basler VST Lens VS-HX3535 F3.5 f35mm Super 35 Datasheet

Basler VST Lens VS-HX3535 F3.5 f35mm Super 35 Datasheet
22-Jun-20
SPSV0189A2
8K FFL for Super 35mm sensor
VS-HX3535
Model
Focal Length (f)
35
Maximum Aperture Ratio
mm
1: 3.5
Aperture
F
Angle of View (Super 35mm)
3.5
~
27.6°
×
F
330.4 mm
TV Distortion (Super 35mm)
-1.48 %
Operation
16
41.1°
M.O.D
(Diagonal:49.9°)
Manual (Lock screw M2)
Wavelength
Visible
Mount
M
52
Flange Back
P= 0.75
46.5 mm
Sensor Size (max.)
Super 35mm
Filter Thread
M
49
Weight (approx.)
Dimension
(36.06)
P= 0.75
500 g
φ
56
(max.)
×
L =
VS TECHNOLOGY CORPORATION
107.1
mm
