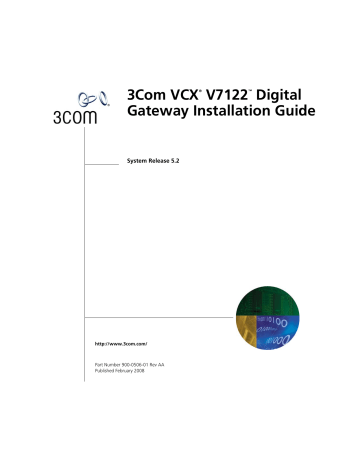

3Com VCX V7122 Digital
Gateway Installation Guide
®
System Release 5.2
http://www.3com.com/
Part Number 900-0506-01 Rev AA
Published February 2008
™
3Com Corporation
350 Campus Drive
Marlborough, MA
01752-3064
Copyright © 2008, 3Com Corporation. All rights reserved. No part of this
documentation may be reproduced in any form or by any means or used to make any
derivative work (such as translation, transformation, or adaptation) without written
permission from 3Com Corporation.
3Com Corporation reserves the right to revise this documentation and to make
changes in content from time to time without obligation on the part of 3Com
Corporation to provide notification of such revision or change.
3Com Corporation provides this documentation without warranty of any kind, either
implied or expressed, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. 3Com may make improvements
or changes in the product(s) and/or the program(s) described in this documentation
at any time.
UNITED STATES GOVERNMENT LEGENDS:
If you are a United States government agency, then this documentation and the
software described herein are provided to you subject to the following:
United States Government Legend: All technical data and computer software is
commercial in nature and developed solely at private expense. Software is delivered
as Commercial Computer Software as defined in DFARS 252.227-7014 (June 1995)
or as a commercial item as defined in FAR 2.101(a) and as such is provided with only
such rights as are provided in 3Com’s standard commercial license for the Software.
Technical data is provided with limited rights only as provided in DFAR 252.227-7015
(Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to
remove or deface any portion of any legend provided on any licensed program or
documentation contained in, or delivered to you in conjunction with guide.
Unless otherwise indicated, 3Com registered trademarks are registered in the United
States and may or may not be registered in other countries.
3Com and the 3Com logo are registered trademarks of 3Com Corporation. VCX is a
trademark of 3Com Corporation.
Other brand and product names may be registered trademarks or trademarks of their
respective holders.
3
CONTENTS
ABOUT THIS GUIDE
How to Use This Guide 5
Conventions 6
Documentation Comments 6
Notices 6
WEEE EU Directive 6
Abbreviations and Terminology
6
QUICK START
INSTALLING THE V7122 MEDIA GATEWAYS
Unpacking 12
Package Contents 13
Mounting the V7122 13
Desktop Mounting 13
19-inch Rack Mounting 13
Cabling the V7122 15
Connecting the E1/T1 Trunk Interfaces 16
Installing the Ethernet Connection 18
Connecting the Power Supply 18
CONFIGURING THE V7122 MEDIA GATEWAYS
Assigning the V7122 IP Address 21
Assigning an IP Address Using HTTP 22
Assigning an IP Address Using the CLI 23
Restoring Networking Parameters to their Initial State
Accessing the Embedded Web Server 24
24
4
Configuring the V7122 Basic Control Protocol Parameters
Configuring Basic SIP Parameters 25
Configuring the Trunk Settings 28
25
CHANGING THE V7122 MEDIA GATEWAY USERNAME AND
PASSWORD
RESTORING AND BACKING UP THE V7122 MEDIA GATEWAY
CONFIGURATION
MONITORING THE V7122 MEDIA GATEWAYS
Monitoring the V7122 Chassis LEDs 37
TP-1610 Front Panel LED Indicators 37
Monitoring Trunks and B-channels using Web Interface
39
UPGRADING THE V7122 MEDIA GATEWAYS
Software Upgrade Wizard 41
Updating the Auxiliary Files 47
REGULATORY INFORMATION
OBTAINING SUPPORT FOR YOUR 3COM PRODUCT
Customer Support
57
ABOUT THIS GUIDE
This guide describes the installation of the V7122 Digital Gateway.
Information contained in this document is believed to be accurate and
reliable at the time of printing. However, because of on-going product
improvements and revisions, 3Com cannot guarantee the accuracy of
printed material after the Date Published nor can it accept responsibility
for errors or omissions. Updates to this document and other documents
can be viewed by registered Technical Support customers at
www.3Com.com under Support / Downloads & Drivers.
When viewing this manual electronically, all cross-references are
hyperlinked. Click the link (blue and underlined) to navigate to the target
location. To return to your original location, simultaneously press the ALT
key and the Left Arrow key.
How to Use This
Guide
This book covers these topics:
■
Chapter 1: Quick Start
■
Chapter 2: Installing the V7122 Media Gateways
■
Chapter 3: Configuring the V7122 Media Gateways
■
Chapter 4: Changing the V7122 Media Gateway Username and
Password
■
Chapter 5: Restoring and Backing Up the V7122 Media Gateway
Configuration
■
Chapter 6: Monitoring the V7122 Media Gateways
■
Chapter 7: Upgrading the V7122 Media Gateways
6
ABOUT THIS GUIDE
Conventions
Table 1 lists conventions that are used throughout this guide.
Table 1 Notice Icons
Icon
Documentation
Comments
Notice Type
Description
Information note
Information that describes important features or
instructions
Caution
Information that alerts you to potential loss of data or
potential damage to an application, system, or device
Warning
Information that alerts you to potential personal injury
Your suggestions are important to us because we want to make our
documentation more useful to you.
Please send e-mail comments about this guide or any of the V7122
gateway documentation and Help systems to:
[email protected]
Please include the following information with your comments:
■
Document title
■
Document part number (usually found on the front page)
■
Page number
■
Your name and organization (optional)
See the Appendix Obtaining Support for Your 3Com Product for how to
register your product and get support from 3Com.
Notices
WEEE EU Directive
Pursuant to the WEEE EU Directive, electronic and electrical waste must
not be disposed of with unsorted waste. Please contact your local
recycling authority for disposal of this product.
Abbreviations and
Terminology
Each abbreviation, unless widely used, is spelled out in full when first
used. Only industry-standard terms are used throughout this manual.
Hexadecimal notation is indicated by 0x preceding the number.
Notices
7
Where network appears in this manual, it means LAN, WAN, etc.
accessed via the gateway's Ethernet interface.
FXO (Foreign Exchange Office) is the interface replacing the analog
telephone and connects to a Public Switched Telephone Network (PSTN)
line from the Central Office (CO) or to a Private Branch Exchange (PBX).
The FXO is designed to receive line voltage and ringing current, supplied
from the CO or the PBX (just like an analog telephone). An FXO VoIP
gateway interfaces between the CO/PBX line and the Internet.
FXS (Foreign Exchange Station) is the interface replacing the Exchange
(that is, the CO or the PBX) and connects to analog telephones, dial-up
modems, and fax machines. The FXS is designed to supply line voltage
and ringing current to these telephone devices. An FXS VoIP gateway
interfaces between the analog telephone devices and the Internet.
WARNING: Ensure that you connect FXS ports to analog telephone or to
PBX-trunk lines only and FXO ports to Central Office (CO)/PBX lines only.
The V7122 gateway is supplied as a sealed unit and must be installed or
serviced only by qualified service personnel.
8
ABOUT THIS GUIDE
1
QUICK START
This guide provides you with step-by-step procedures on how to quickly
setup the 3Com V7122 VoIP Gateways for the first time. Prior knowledge
of IP networks is recommended.
The following steps provide a quick setup flow.
1 Unpack the V7122 Gateways
2 Mount the V7122 Gateways
3 Cable the V7122 Gateways
4 Assign the V7122 Gateway IP Addresses
5 Configure the V7122 Gateways basic control protocol parameters
6 Configure the PSTN parameters
10
CHAPTER 1: QUICK START
2
INSTALLING THE V7122 MEDIA
GATEWAYS
This section provides information on the hardware installation procedure
for the V7122 Digital Gateways.
WARNING: Electrical Shock
The equipment must be installed or serviced only by qualified service
personnel.
The figure below shows the front panel of the V7122 media gateway. For
information on the V7122 LEDs, see Monitoring the V7122 Chassis LEDs.
Figure 1 V7122 Front View
Table 2 V7122 Front View Component Descriptions
Item
Label
Component Description
1
FAULT
Dual AC Power LED
2
--
cPCI board locking screws
3
--
cPCI latches
4
--
TP 1610 cPCI board, 16-trunk configuration
5
--
Status LED indicators
6
T1/E1 STATUS E1/T1 Trunk Status LED indicators
12
CHAPTER 2: INSTALLING THE V7122 MEDIA GATEWAYS
Table 2 V7122 Front View Component Descriptions (continued)
Item
Label
Component Description
7
ETH
Ethernet LED indicators
8
--
Reset button
9
--
cPCI LED indicators
10
--
Power and Fan LEDs
11
--
An available cPCI slot for an optional third-party CPU board
The following main sequential steps need to be performed for installing
the V7122:
1 Unpack the V7122 (see Unpacking).
2 Check the package contents (see Package Contents).
3 Mount the V7122 (see Mounting the V7122).
4 Cable the V7122 (see Cabling the V7122).
After powering-up the V7122, the Ready and LAN LEDs on the front
panel turn to green (after a self-testing period of about three minutes).
Any malfunction changes the Ready LED to red (see Monitoring the
V7122 Chassis LEDs for details on the V7122 LEDs).
Once you have completed these hardware installation steps, you can
begin configuring the gateway (see Configuring the V7122 Media
Gateways).
Unpacking
Follow the procedure below for unpacking the box in which the V7122 is
delivered.
To unpack the V7122, perform these steps:
1 Open the carton and remove packing materials.
2 Remove the V7122 unit from the carton.
3 Check that there is no equipment damage.
4 Check, retain and process any documents.
5 Notify 3Com or your local supplier of any damage or discrepancies.
Package Contents
Package Contents
13
Ensure that in addition to the V7122 unit, the package contains the
following items:
■
Two AC power cables (for the dual AC power supply hardware version
only).
■
One AC power cable (for the single AC power supply hardware
version only).
■
One DC power cable (crimp connection type) and one DC adaptor
(screw connection type) connected to the V7122 rear panel -- use only
one type. (For the DC power supply hardware version only.)
■
Small plastic bag containing the following (see Figure 2):
■
Two brackets and four bracket-to-device screws for 19-inch rack
installation option.
■
Four anti-slide bumpers for desktop mounting.
■
This Installation Guide.
Figure 2 19-inch Rack & Desktop Accessories
Mounting the
V7122
Desktop Mounting
19-inch Rack
Mounting
The V7122 can be mounted on a desktop, or installed in a standard
19-inch rack.
Optionally, attach the four (supplied) anti-slide bumpers to the base of
the V7122 and place it on a desk in the required position.
You can install the device in a standard 19-inch rack either by placing the
device on a shelf pre-installed in the rack (preferred method), or by
attaching the device directly to the rack’s frame using the V7122 integral
brackets.
14
CHAPTER 2: INSTALLING THE V7122 MEDIA GATEWAYS
CAUTION: Rack Mount Safety Instructions (UL)
When installing the chassis in a rack, be sure to implement the following
safety instructions recommended by Underwriters Laboratories:
■
Elevated Operating Ambient Temperature: If installed in a closed or
multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient temperature.
Therefore, consideration should be given to installing the equipment
in an environment compatible with the maximum ambient
temperature (Tma) specified by the manufacturer.
■
Reduced Air Flow: Installation of the equipment in a rack should be
such that the amount of air flow required for safe operation on the
equipment is not compromised.
■
Mechanical Loading: Mounting of the equipment in the rack should
be such that a hazardous condition is not achieved due to uneven
mechanical loading.
■
Circuit Overloading: Consideration should be given to the connection
of the equipment to the supply circuit and the effect that overloading
of the circuits might have on overcurrent protection and supply
wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
■
Reliable Earthing: Reliable earthing of rack-mounted equipment
should be maintained. Particular attention should be given to supply
connections other than direct connections to the branch circuit (e.g.,
use of power strips.)
Before rack mounting the V7122, you need to attach the two brackets
(supplied) to the front sides of the chassis (see Figure 3).
To attach the two front side brackets, perform these steps:
1 Remove the two screws nearest the front panel on either side of the
device.
2 Align a bracket over two holes on one side (so that the bracket’s larger
holes face front) and with the two supplied replacement screws, screw in
the bracket.
3 Perform the same procedure on the other side.
Cabling the V7122
15
Figure 3 V7122 Front Panel with 19-inch Rack Mount Brackets
To attach the V7122 to a 19-inch rack, perform these steps:
1 Position the device in your 19-inch rack and align the left-hand and
right-hand bracket holes to the required holes in the vertical tracks of the
19-inch rack.
2 Use standard 19-inch rack bolts (not provided) to fasten the device to the
frame of the rack.
3Com recommends using two additional rear mounting brackets (not
supplied) to provide added support.
If you are assembling the rear brackets, note the following:
■
The distance between the screws on each bracket is 26.5 mm.
■
To attach the brackets, use 4-40 screws with a maximal box
penetration length of 3.5 mm.
To install the V7122 on a 19-inch rack shelf, perform these steps:
1 Place the gateway on the pre-installed shelf.
2 You’re now recommended to perform the optional steps of fastening the
device to the frame of the rack (as described above) while it is placed on
the shelf. This prevents it from sliding when inserting cables into
connectors on the rear panel.
Cabling the V7122
The V7122 is available in various configurations (i.e.,16-, 8-, 4-, 2-, or
1-trunk gateway). The 16-trunk dual AC (Figure 4) configuration is
illustrated here as a representative product.
16
CHAPTER 2: INSTALLING THE V7122 MEDIA GATEWAYS
Figure 4 V7122 (16 Trunks, Dual AC Power H/W Configuration) Rear-Panel
Cabling
Table 3 V7122 (16 Trunks, Dual AC Power) Rear-Panel Cabling
Item Label
Component Description
1
--
RTM locking screws.
2
ETHERNET
Two Category 5 network cables, connected to the two
Ethernet RJ-45 ports.
3
TRUNKS
Two 50-pin Telco connector cables, each supporting eight
trunks.
4
5
Protective earthing screw.
100-240~1.5A Dual AC power cables.
CAUTION: Electrical Earthing
The unit must be permanently connected to earth using the screw
provided on the rear panel. Use 14-16 AWG wire and a proper ring
terminal for the earthing.
To cable the V7122, perform these steps:
1 Permanently connect the device to a suitable earth with the protective
earthing screw on the rear panel, using 14-16 AWG wire.
2 Connect the E1/T1 trunk interfaces (see Connecting the E1/T1 Trunk
Interfaces).
3 Install the Ethernet connection (see Installing the Ethernet Connection).
4 Connect the power supply (see Connecting the Power Supply).
Connecting the E1/T1
Trunk Interfaces
Connect the V7122 E1/T1 Trunk interfaces using either Telco (V7122 with
16 spans) or RJ-48 (V7122 with 1, 2, 4, or 8 spans) connectors, as
described in the procedure below:
Cabling the V7122
17
To connect E1/T1 trunk interface using 50-pin Telco connectors (16-trunk
device), perform these steps:
1 Attach the Trunk cable with a 50-pin male Telco connector to the 50-pin
female Telco connector labeled Trunks 1-->8 on the Rear Transition
Module (RTM).
2 Connect the other end of the Trunk cable to the PBX/PSTN switch.
3 Repeat steps 1 and 2 for the other Trunk cable, but this time connect it to
the connector labeled Trunks 9-->16.
The 50-pin male Telco cable connector must be wired according to the
pinouts described in Table 4, and to mate with the female connector
illustrated in the figure below.
Figure 5 50-pin Female Telco Board-Mounted Connector
25
Pin Numbers
1
26
50
Table 4 E1/T1 Connections on each 50-pin Telco Connector
E1/T1 Number
Tx Pins (Tip/Ring)
Rx Pins (Tip/Ring)
9
27/2
26/1
2
10
29/4
28/3
3
11
31/6
30/5
4
12
33/8
32/7
5
13
35/10
34/9
6
14
37/12
36/11
7
15
39/14
38/13
8
16
41/16
40/15
1 to 8
9 to 16
1
To connect E1/T1 trunk interface using RJ-48c connectors, perform these
steps:
1 Connect the E1/T1 trunk cables to the ports labeled Trunks 1 to 8 (in the
case of the 8-trunk device) on the V7122 RTM.
2 Connect the other ends of the Trunk cables to the PBX/PSTN switch.
18
CHAPTER 2: INSTALLING THE V7122 MEDIA GATEWAYS
RJ-48c trunk connectors are wired according to Figure 6.
Figure 6 Pinout of RJ-48c Trunk Connectors
RJ-48c Connector and Pinout
12345678
Installing the
Ethernet Connection
1 = Rx Ring
2 = Rx Tip
4 = Tx Ring
5 = Tx Tip
3, 6, 7, 8
not connected
body = shield
Connect a standard Category 5 network cable to the Ethernet RJ-45 port
(located on the rear panel). Connect the other end of the Category 5
network cables to your IP network. Connect the other Ethernet port for
optional redundancy/backup. The Ethernet connectors (labeled Ethernet
1 and Ethernet 2) are wired according to the figure below.
When assigning an IP address to the V7122 using HTTP (see Assigning an
IP Address Using HTTP), you may be required to disconnect this cable and
re-cable it differently.
Figure 7 Pinout of RJ-45 Connectors
RJ-45 LAN Connector and Pinout
12345678
1 = Tx+
2 = Tx3 = Rx+
6 = Rx-
4, 5, 7, 8
not connected
For redundancy, it's recommended to connect each of the Ethernet
connectors to a different switch.
Connecting the
Power Supply
Connect the V7122 to the power supply using one of the following
methods:
Connecting AC Power Supply
To connect power when using a single AC power cable attach one end of
the supplied 100/240 VAC power cable to the rear AC socket and
connect the other end to the correct earthed AC power supply.
Cabling the V7122
19
WARNING: Units providing power sockets with three pins must be
connected by service personnel to a socket-outlet with a protective
earthing connection.
To connect power when using a dual AC power cable:
1 Before connecting the dual AC power cable, see the cautionary note
below.
2 Attach one end of the supplied 100/240 VAC power cables to the rear
AC sockets and connect the other end to a separate earthed mains
circuits (for power source redundancy).
CAUTION: For the dual AC power supply note the following:
■
The LED on the left side of the chassis is only connected when the
dual AC is used. It is not relevant to the single AC power connection.
■
If only a single socket is connected to the AC power, (while the other
plug is left unconnected) the chassis’ LED (on the left side) is lit red,
indicating that one of the dual power inlets is disconnected.
■
When both the AC power cables are connected, one of the plugs can
be disconnected under power without affecting operation, in which
case the chassis’ left LED is lit red.
■
UPS can be connected to either (or both) of the AC connections.
■
The dual AC connections operate in a 1+1 configuration and provides
load-sharing redundancy.
■
Each of the dual power cables can be connected to different power
phases.
20
CHAPTER 2: INSTALLING THE V7122 MEDIA GATEWAYS
3
CONFIGURING THE V7122 MEDIA
GATEWAYS
The V7122 gateway is supplied with application software already resident
in flash memory (with factory default 3Com parameters).
Assigning the V7122 IP Address below describes how to assign IP
addresses to the V7122. Configuring the V7122 Basic Control Protocol
Parameters describes how to set up the V7122 with basic parameters
using a standard Web browser (such as Microsoft Internet Explorer).
Assigning the
V7122 IP Address
The V7122 is composed of one or two identical media gateway modules.
These media gateways are fully independent, each gateway having its
own MAC and IP addresses.
To assign an IP address to each of the V7122 modules use one of the
following methods:
HTTP using a Web browser (see Assigning an IP Address Using HTTP).
The embedded Command Line Interface (CLI) accessed using Telnet (see
Assigning an IP Address Using the CLI).
Table 5 lists the default IP addresses of the V7122. You can use the Reset
button at any time to restore the V7122 networking parameters to their
factory default values (see Restoring Networking Parameters to their
Initial State).
Table 5 V7122 Default Networking Parameters
V7122 Version
Default Value
Single module (up to 8 trunks
10.1.10.10
Double module (up to 16 trunks)
10.1.10.10 (Trunks 1-8)
and
10.1.10.11 (Trunks 9-16)
22
CHAPTER 3: CONFIGURING THE V7122 MEDIA GATEWAYS
Table 5 V7122 Default Networking Parameters (continued)
V7122 Version
Default Value
Default subnet mask is 255.255.0.0, default gateway IP address is 0.0.0.0
Assigning an IP
Address Using HTTP
To assign an IP address using HTTP, perform these steps:
1 Disconnect the V7122 from the network and reconnect it to your PC
using one of the following two methods:
■
Use a standard Ethernet cable to connect the network interface on
your PC to a port on a network hub / switch. Use a second standard
Ethernet cable to connect the V7122 to another port on the same
network hub / switch.
■
Use an Ethernet cross-over cable to directly connect the network
interface on your PC to the V7122.
2 Change your PC’s IP address and subnet mask to correspond with the
V7122 factory default IP address and subnet mask (see Restoring
Networking Parameters to their Initial State). For details on changing the
IP address and subnet mask of your PC, refer to Windows™ Online Help
(Start > Help).
3 Access the V7122 first module’s Embedded Web Server (see Accessing
the Embedded Web Server).
4 In the Quick Setup screen (Quick Setup menu), set the V7122 IP
Address, Subnet Mask, and Default Gateway IP Address fields under IP
Configuration to correspond with your network IP settings.
5 Click the Reset button, and then at the prompt, click OK; the V7122
applies the changes and restarts. This takes approximately three minutes
to complete. When the V7122 completes the reset, the Ready and LAN
LEDs on the front panel are lit green.
Record and retain the IP address and subnet mask you assign the V7122.
Do the same when defining new username or password.
6 Repeat steps 3 to 5 for the V7122 second module (if used).
7 Disconnect your PC from the V7122 or from the hub / switch (depending
on the connection method you used in step 1).
8 Reconnect the V7122 and your PC (if necessary) to the network.
Assigning an IP Address Using the CLI
23
9 Restore your PC’s IP address and subnet mask to what they originally
were. If necessary, restart your PC and re-access the V7122 via the
Embedded Web Server with its new assigned IP address.
Assigning an IP
Address Using the
CLI
To assign an IP address using the CLI, perform these steps:
1 Enable the Embedded Telnet Server:
a Access the V7122 Embedded Web Server (see Accessing the
Embedded Web Server).
b Set the parameter Embedded Telnet Server (under Advanced
Configuration > Network Settings > Application Settings) to
Enable (Unsecured).
c Reset the gateway. On the main menu bar, click the Maintenance
button; the Maintenance Actions screen appears. From the Burn to
FLASH drop-down list, select Yes, and then click the Reset button;
the V7122 is shut down and re-activated. A message about the
waiting period is displayed. The screen is refreshed.
2 Use a standard Telnet application to connect to the V7122 Embedded
Telnet Server.
3 Login using the username (Admin) and password (Admin).
4 At the prompt type conf, and then press Enter; the configuration folder
is accessed.
5 To check the current network parameters, at the prompt, type GCP IP,
and then press Enter; the current network settings are displayed.
6 Change the network settings by typing: SCP IP [ip_address]
[subnet_mask] [default_gateway] (e.g., SCP IP 10.13.77.7
255.255.0.0 10.13.0.1); the new settings take effect on-the-fly.
Connectivity is active at the new IP address.
This command requires you to enter all three network parameters (each
separated by a space).
7 To save the configuration, at the prompt, type SAR, and then press
Enter; the V7122 restarts with the new network settings.
24
CHAPTER 3: CONFIGURING THE V7122 MEDIA GATEWAYS
Restoring
Networking
Parameters to their
Initial State
You can use the Reset button on the V7122 chassis to restore
networking parameters to their factory default values (see Table 5) and to
reset the username and password.
Note that the V7122 returns to the software version burned in flash. This
process also restores the V7122 parameters to their factory settings.
Therefore, you must load your previously backed-up ini file, or the default
ini file (received with the software kit) to set them to their correct values.
This option is currently supported on one media gateway module (trunks
1-8) only.
To restore networking parameters to their initial state, perform these
steps:
1 Disconnect the V7122 from the power and network cables.
2 Reconnect the power cable; the gateway is powered up. After
approximately 45 seconds, the ACT LED blinks for about four seconds.
3 While the ACT LED is blinking, press shortly on the reset button (located
on the front panel); the gateway resets a second time and is restored with
factory default parameters (username: Admin, password: Admin).
4 Reconnect the network cable.
5 Assign the V7122 an IP address (see Assigning the V7122 IP Address).
6 Load your previously backed-up ini file, or the default ini file (received
with the software kit). To load the ini file via the Embedded Web Server,
see Accessing the Embedded Web Server.
Accessing the
Embedded Web
Server
To access the Embedded Web Server, perform these steps:
1 Open a standard Web-browsing application such as Microsoft™ Internet
Explorer™ (Version 6.0 and higher) or Netscape™ Navigator™ (Version
7.2 and higher).
2 In the URL field, specify the IP address of the gateway (e.g.,
http://10.1.10.10 for the first module of the V7122); the Embedded Web
Server’s Enter Network Password screen appears, shown in Figure 8.
Configuring the V7122 Basic Control Protocol Parameters
25
Figure 8 Embedded Web Server Login Screen
3 Enter the username (default: Admin), and password (default: Admin).
Note that the User Name and Password fields are case-sensitive.
4 Click OK; the Home page appears.
Configuring the
V7122 Basic Control
Protocol
Parameters
To configure the V7122 basic control protocol parameters, use the
Embedded Web Server’s ‘Quick Setup’ screen.
When you have completed the configuration, you are then ready to start
using the V7122.
Once the gateway is configured correctly, back up your settings by saving
the gateway configuration (ini file) in a directory on your PC. This saved
file can be used to restore configuration settings at a future time. For
information on backing up and restoring the gateway’s configuration, see
Restoring and Backing Up the V7122 Media Gateway Configuration.
Configuring Basic SIP
Parameters
The basic SIP parameters are configured in the Quick Setup screen, as
displayed below.
26
CHAPTER 3: CONFIGURING THE V7122 MEDIA GATEWAYS
Figure 9 V7122 / SIP Quick Setup
To configure basic SIP parameters, perform these steps:
1 Access the Quick Setup screen, by clicking the Quick Setup menu (see
Figure 9).
2 If the V7122 is connected to a router with NAT enabled, perform the
following procedure. If it isn’t, leave the NAT IP Address field undefined.
■
Determine the public IP address assigned to the router (by using, for
instance, router Web management). Enter this public IP address in the
NAT IP Address field.
■
Enable the DMZ configuration on the residential router for the LAN
port where the V7122 gateway is connected. This enables unknown
packets to be routed to the DMZ port.
3 Under SIP Parameters, enter the V7122 domain name in the field
Gateway Name. If the field is not specified, the V7122 IP address is used
instead (default).
4 When working with a Proxy server, set Working with Proxy field to Yes,
and then enter the IP address of the primary Proxy server in the field
Proxy IP address. When no Proxy is used, the internal routing table is
used to route the calls.
Configuring the V7122 Basic Control Protocol Parameters
27
5 Enter the Proxy name in the field Proxy Name. If Proxy name is used, it
replaces the Proxy IP address in all SIP messages. This means that
messages are still sent to the physical Proxy IP address but the SIP URI
contains the Proxy name instead.
6 Configure Enable Registration to Yes or No:
■
Disable = the V7122 does not register to a Proxy server/Registrar
(default).
■
Enable = the V7122 registers to a Proxy server/Registrar at power up
and every Registration Time seconds.
7 Select the coder (i.e., vocoder) that best suits your VoIP system
requirements. The default coder is: G.723.1 30 msec.
8 Map outgoing calls to IP addresses (when Proxy isn’t used) by completing
these steps:
a Click the arrow button next to the Tel to IP Routing Table label; the
Tel to IP Routing screen opens.
Any telephone number whose destination number matches the prefix
defined in the Destination Phone Prefix field and whose source
number matches the prefix defined in the adjacent Source Phone
Prefix field, is sent to the IP address entered in the IP Address field.
b Click the Submit button; the Tel to IP Routing table is automatically
updated.
c Click Quick Setup; you’re returned to the Quick Setup screen.
9 Enable E1/T1 B-channels by completing these steps:
a Click the arrow button next to the Trunk Group Table label; the
Trunk Group Table screen opens.
b Select the number of the trunk you want to enable from the Trunk ID
drop-down list.
c Enter the number of B-channels you want to enable in the Channels.
d Enter the starting phone number in the adjacent Phone Number
(these are virtual numbers used only to define enabled B channels).
e Click the Submit button; the Trunk Group Table table is
automatically updated.
f Click Quick Setup; you’re returned to the Quick Setup screen.
10 Click the Reset button, and then at the prompt click OK; the V7122
applies the changes and restarts. This takes approximately three minutes
28
CHAPTER 3: CONFIGURING THE V7122 MEDIA GATEWAYS
to complete. When the V7122 completes the restart, the Ready and LAN
LEDs on the front panel are lit green.
11 After the gateway is reset, configure the V7122 trunk parameters. For
information on configuring the trunk parameters, see Configuring the
Trunk Settings, next.
Configuring the
Trunk Settings
To configure the trunk settings, perform these steps:
1 Access the Embedded Web Server (see Accessing the Embedded Web
Server).
2 Open the Trunk Settings screen (Advanced Configuration menu >
Trunk Settings); the screen appears with the parameter fields grayed
(indicating read-only), and the Stop Trunk button is displayed at the
bottom of the screen (indicating that the trunk is currently active). The
Trunk Status indicators appear colored. Table 6 shows the possible
indicators and their descriptions.
Figure 10 Trunk Settings Screen
Configuring the Trunk Settings
29
Table 6 Trunks Status Color Indicator Keys
Indicator Color
Description
Gray
Disabled
Green
Active - OK
Yellow
RAI Alarm
Red
LOS / LOF Alarm
Blue
AIS Alarm
Orange
D-channel Alarm (ISDN only)
3 Select the trunk you want to configure, by clicking the Trunk Status icon
pertaining to the trunk. The read-only Trunk ID field displays the trunk
number that you selected. The parameters displayed in the screen pertain
to the selected trunk only.
4 Click the Stop Trunk button (unless modifying a Dial Plan -- refer to the
note below); the trunk is stopped. This is indicated by the following:
■
The Trunk Configuration State read-only field displays Inactive.
■
The Stop Trunk button is replaced by the Apply Trunk Settings
button. (When all trunks are stopped, the Apply to all Trunks button
also appears.)
■
The parameters are no longer grayed and can now be modified.
If the trunk can’t be stopped because it provides the gateway’s clock
(assuming the V7122 is synchronized with the E1/T1 clock), assign a
different E1/T1 trunk to provide the gateway’s clock or enable TDM Bus
PSTN Auto Clock on the TDM Bus Settings screen.
To assign a different E1/T1 trunk that provides the gateway’s clock, access
the TDM Bus Setting screen and change the TDM Bus Local Reference
number to any other trunk number (this operation can be performed
on-the-fly).
30
CHAPTER 3: CONFIGURING THE V7122 MEDIA GATEWAYS
5 From the Protocol Type drop-down list, select the required protocol.
Note that different trunks can be defined with different protocols (CAS or
ISDN variants) on the same gateway.
When modifying the Protocol Type field, the menu is automatically
updated according to the selected protocol (ISDN, CAS or Transparent).
Additional parameters are appropriate to the selected protocol type.
6 From the Framing Method drop-down list, select the required Framing
Method (for E1 trunks, always set the Framing Method to Extended
Super Frame).
7 From the Clock Master drop-down list, select the trunk clock source.
Choose either Recovered (the clock is recovered from the trunk -default) or Generated (the trunk’s clock source is provided by the
internal TDM bus clock source, according to the parameter TDM Bus
Clock Source).
8 From the Line Code drop-down list, select the line code. Choose either
B8ZS (bipolar 8-zero substitution) for T1 trunks only; HDB3 (high-density
bipolar 3) for E1 trunks only; or AMI (alternate mark inversion, used for
both T1 and E1).
9 From the ISDN Termination Side drop-down list (applicable only to ISDN
protocols), select User Side when the PSTN or PBX side is configured as
Network side, and vice versa. If you don’t know the V7122 ISDN
termination side, choose User Side and then open the Channel Status
screen (by clicking the Home button). If the D-channel alarm is indicated,
choose Network Side.
10 To configure the different behavior bits, either enter the exact
hexadecimal value of the bits in the field to the right of the relevant
behavior parameter, or directly configure each bit field by completing the
following steps:
a Click the arrow button (-->) to the right of the relevant behavior
parameter; the relevant behavior screen appears.
b Modify each bit field according to your requirements.
c Click the Submit button to save your changes.
11 After modifying the parameters:
■
To apply the changes to the selected trunk only, click the Apply Trunk
Settings button.
■
To apply the changes to all the trunks, click the Apply to all Trunks
button.
Configuring the Trunk Settings
31
The screen is refreshed and parameters become read-only (indicated by
being grayed). The Stop Trunk button appears at the bottom of the
screen.
12 Access the TDM Bus Settings screen (Advanced Configuration >
TDM Bus Settings). From the PCM Law Select drop-down list, select
Alaw for E1 trunks and MuLaw for T1 trunks.
13 To save the changes so they are available after a power fail, perform the
following:
a Click the Maintenance button on the main menu bar; the
Maintenance Actions screen appears.
b From the Burn to FLASH drop-down list, select Yes, and then click
the Reset button; a confirmation message appears when the save is
complete.
32
CHAPTER 3: CONFIGURING THE V7122 MEDIA GATEWAYS
4
CHANGING THE V7122 MEDIA
GATEWAY USERNAME AND
PASSWORD
To prevent unauthorized access to the Embedded Web Server, two user
accounts are available: a primary and secondary.
It is recommended that you change the default username and password
of the account you use to access the Embedded Web Server.
To change the username and password, perform these steps:
1 Open the Web User Accounts screen (Advanced Configuration menu
> Security Settings > Web User Accounts option); the Web User
Accounts screen is displayed. See Figure 11.
34
CHAPTER 4: CHANGING THE V7122 MEDIA GATEWAY USERNAME AND PASSWORD
Figure 11 Web User Accounts Screen
2 To change the username of an account, enter the new username in the
field User Name and click the button Change User Name; the new
username is applied immediately and the Enter Network Password
screen appears (see Figure 8). Enter the updated username in the Enter
Network Password screen. Note that the username can be a maximum
of 19 case-sensitive characters.
3 To change the password of an account, perform these steps:
a In the Current Password field, enter the current password.
b In the New Password and Confirm Password fields, enter the new
password. Note that the password can be a maximum of 19
case-sensitive characters.
c Click the button Change Password; the new password is applied
immediately and the Enter Network Password screen appears (see
Figure 8). Enter the updated password in the Enter Network
Password screen.
5
RESTORING AND BACKING UP THE
V7122 MEDIA GATEWAY
CONFIGURATION
The ‘Configuration File’ screen (see Figure 12), enables you to restore
(load a new ini file to the gateway), or back up (save the VoIP gateway ini
file in a directory on your PC) the current gateway configuration. For a
description of the ini file, see Table 13.
Back up your configuration if you want to protect your VoIP gateway
configuration. The backup ini file includes only those parameters that
were modified and contain other than default values.
Restore your configuration if the VoIP gateway has been replaced or has
lost its configuration. You can restore the VoIP gateway configuration
from a previous backup or from a newly created ini file. To restore the
VoIP gateway configuration from a previous backup you must have a
backup of the VoIP gateway configuration stored on your PC.
Figure 12 Configuration File Screen
36
CHAPTER 5: RESTORING AND BACKING UP THE V7122 MEDIA GATEWAY CONFIGURATION
To back up the ini file, perform these steps:
1 Open the Configuration File screen (Advanced Configuration menu
> Configuration File); the Configuration File screen is displayed.
2 Click the Get ini File button; the File Download window opens.
3 Click the Save button; the Save As window opens.
4 Navigate to the folder where you want to save the ini file.
5 Click the Save button; the VoIP gateway copies the ini file to the folder
you selected.
To restore the ini file, perform these steps:
1 Open the Configuration File screen (Advanced Configuration menu
> Configuration File); the Configuration File screen appears.
2 Click the Browse button.
3 Navigate to the folder that contains the ini file you want to load.
4 Select the file, and then click the Open button; the name and path of the
file appear in the field beside the Browse button.
5 Click the Send ini File button, and then at the prompt, click OK; the
gateway is automatically reset (from the cmp version stored on the flash
memory).
6
MONITORING THE V7122 MEDIA
GATEWAYS
The V7122 provides several ways for monitoring the status of the
gateway:
Monitoring the
V7122 Chassis LEDs
■
Monitoring the V7122 LEDs (see Monitoring the V7122 Chassis LEDs
and TP-1610 Front Panel LED Indicators below).
■
Monitoring the V7122 trunks and B-channels using the embedded
Web server (see Monitoring Trunks and B-channels using Web
Interface).
Table 7 provides a detailed description of the V7122 chassis’ LED
indicators.
Table 7 Chassis LEDs Description
TP-1610 Front Panel
LED Indicators
Location
Color
Description
Right side of front panel
Green
Power is on.
Right side of front panel
Red
At least one of the internal fans has
significantly reduced its speed or has stopped
(i.e., fan failure).
Left side of front panel
Red
One of the two AC redundant power supplies
is faulty or disconnected from the AC/mains
outlet (i.e., power supply failure). This LED is
only relevant for the dual AC power supply.
The functionality of the front panel LEDs for the TP-1610 board is
described in the following tables. Note that there is a choice of front
panels according to the number of channels.
Table 8 Status LEDs Description
Label
Color
Description
Fail
Red
Gateway failure (fatal error)
38
CHAPTER 6: MONITORING THE V7122 MEDIA GATEWAYS
Table 8 Status LEDs Description
Label
ACT
Color
Description
--
Normal operation
Green
Gateway initialization sequence terminated OK
Yellow
N/A
Bi-color
LED
Table 9 E1/T1 Trunk Status LEDs Description
Label
Color
Description
T1/E1 Status 1 to 8
and
Green
Trunk is synchronized (normal
operation)
T1/E1 Status 9 to 16 Red
Bi-color
LED
Loss due to any of the following 4
signals
LOS Loss of Signal
LFA Loss of Frame Alignment
AIS Alarm Indication Signal (the Blue Alarm)
RAI Remote Alarm Indication (the Yellow Alarm)
On the front panel, 16 LEDs are provided for 16-span units and 8 LEDs
are provided for 1-span, 2-span, 4-span, and 8-span units. In the case of
1-, 2-, and 4-span units, the extra LEDs are unused.
Table 10 Ethernet LEDs Description
Label
LED
Description
LINK
Green
Link all OK
ACT
Yellow Transmit / receive activity
Table 11 cPCI LED Indicators
Label
LED
Description
PWR
Green
Power is supplied to the board
SWAP READY Blue
The cPCI board can now be removed.
The cPCI board was inserted successfully.
During correct V7122 operation, the ACT LED is lit green and the FAIL
LED is off.
Monitoring Trunks and B-channels using Web Interface
Monitoring Trunks
and B-channels
using Web Interface
39
To monitor the status of the trunks and B-channels, open the Home page
by clicking the Home icon.
Figure 13 Home Page
The color-coding of the Trunk status icons in the Home page is described
in Table 12:
Table 12 Colors of Trunk Status Icons
(White) — Disabled
(Green) — Active
(Yellow) — RAI alarm
(Red) — LOS / LOF alarm
(Blue) — AIS alarm
(Orange) — D-channel alarm
To monitor the details of a Trunk's B-channel, perform these steps:
1 Open the Trunk & Channel Status screen (Status & Diagnostics >
Channel Status). See Figure 14.
40
CHAPTER 6: MONITORING THE V7122 MEDIA GATEWAYS
Figure 14 Home Page
2 Click the required B-channel icon whose detailed status you want to
view; the B-channel specific Channel Status screen appears.
3 Click the submenu links to view a specific B-channel’s parameter settings.
7
UPGRADING THE V7122 MEDIA
GATEWAYS
The Software Update menu enables you to upgrade the V7122
software by loading a new cmp file along with the ini and a suite of
auxiliary files, or to update the existing auxiliary files.
The Software Update menu comprises two submenus:
■
Software Upgrade Wizard (see Software Upgrade Wizard).
■
Load Auxiliary Files (see Updating the Auxiliary Files).
When you upgrade the V7122 Gateway software you must load the new
cmp file with all other related configuration files.
Software Upgrade
Wizard
The Software Upgrade Wizard guides you through the process of
software upgrade -- selecting files and then loading them to the gateway.
The wizard also enables you to upgrade software (cmp file) while
maintaining the existing configuration. Using the wizard obligates you to
load a cmp file. You can choose to also use the wizard to load the ini and
auxiliary files (e.g., Call Progress Tones), but this option cannot be
pursued without loading the cmp file. For the ini and each auxiliary file
type, you can choose to reload an existing file, load a new file, or not load
a file at all.
CAUTION: The Software Upgrade Wizard requires the gateway to be
reset at the end of the process, which may disrupt traffic. To avoid this,
disable all traffic on the device before initiating the wizard by performing
a graceful lock.
■
When you activate the wizard, the rest of the Web interface is
unavailable. After the process is complete, access to the full Web
interface is restored.
■
The wizard allows you to load an ini auxiliary file only after you have
loaded a cmp file.
42
CHAPTER 7: UPGRADING THE V7122 MEDIA GATEWAYS
To use the Software Upgrade Wizard, perform these steps:
1 Stop all traffic on the V7122 (see the note above).
2 Open the Software Upgrade Wizard (Software Update menu >
Software Upgrade Wizard); the Start Software Upgrade screen
appears.
Figure 15 Start Software Upgrade Screen
At this point, the process can be canceled with no consequence to the
V7122 (click the Cancel button). If you continue the process (by clicking
the Start Software Upgrade button, the process must be followed
through and completed with a V7122 reset at the end. If you click the
Cancel button in any of the subsequent screens, the V7122 is
automatically reset with the configuration that was previously burned in
flash memory.
3 Click the Start Software Upgrade button; the Load a cmp file screen
appears (see Figure 16).
Software Upgrade Wizard
43
Figure 16 Load a cmp File Screen
4 Click the Browse button, navigate to the cmp file, and then click Send
File; the cmp file is loaded to the V7122 and you’re notified as to a
successful loading (see Figure 17).
44
CHAPTER 7: UPGRADING THE V7122 MEDIA GATEWAYS
Figure 17 cmp File Successfully Loaded into the Device Notification
5 Note that the four action buttons (Cancel, Reset, Back, and Next) are
now activated (following cmp file loading).
You can now choose to either:
■
Click Reset; the V7122 resets, utilizing the new cmp you loaded and
utilizing the current configuration files.
■
Click Cancel; the V7122 resets utilizing the cmp, ini and all other
configuration files that were previously stored in flash memory. Note
that these are NOT the files you loaded in the previous Wizard steps.
■
Click Back; the Load a cmp File screen is reverted to (see Figure 16).
■
Click Next; the Load an ini File screen opens (see Figure 18). Loading
a new ini file or any other auxiliary file listed in the Wizard is optional.
Note that as you progress, the file type list on the left indicates which file
type loading is in process by illuminating green (until Finish).
Software Upgrade Wizard
45
Figure 18 Load an ini File Screen
6 In the Load and ini File screen, you can now choose to either:
■
Click Browse and navigate to the ini file; the check box Use existing
configuration, by default checked, becomes unchecked. Click Send
File; the ini file is loaded to the V7122 and you’re notified as to a
successful loading.
■
Ignore the Browse button (its field remains undefined and the check
box Use existing configuration remains checked by default.
■
Ignore the Browse button and uncheck the User existing configuration
check box; no ini file is loaded, the V7122 uses its
factory-preconfigured values.
You can now choose to either:
■
Click Cancel; the V7122 resets utilizing the cmp, ini and all other
configuration files that were previously stored in flash memory. Note
that these are NOT the files you loaded in the previous Wizard steps.
■
Click Reset; the V7122 resets, utilizing the new cmp and ini file you
loaded up to now as well as utilizing the other configuration files.
■
Click Back; the Load a cmp file screen is reverted to; see Figure 16.
46
CHAPTER 7: UPGRADING THE V7122 MEDIA GATEWAYS
■
Click Next; the Load a CPT File screen opens, see Figure 19; Loading
a new CPT file or any other auxiliary file listed in the Wizard is
optional.
Figure 19 Load a CPT File Screen
7 Follow the same procedure you followed when loading the ini file (see
the previous step in this section). The same procedure applies to the Load
a coefficient file screen.
8 In the Finish screen (see Figure 20), the Next button is disabled. Complete
the upgrade process by clicking Reset or Cancel.
■
Click Reset; the V7122 burns the newly loaded files to flash memory.
The Burning files to flash memory screen appears. Wait for the
burn to finish. When it finishes, the End Process screen appears,
displaying the burned configuration files (see Figure 21).
■
Click Cancel; the V7122 resets, utilizing the files previously stored in
flash memory. (Note that these are NOT the files you loaded in the
previous Wizard steps.)
Updating the Auxiliary Files
47
Figure 20 Finish Screen
Figure 21 End Process Screen
9 Click the End Process button; the Home page appears and the full Web
application is reactivated.
Updating the
Auxiliary Files
The auxiliary files are configuration dat files that are loaded to the
gateway (in addition to the ini file) to enable enhanced gateway
48
CHAPTER 7: UPGRADING THE V7122 MEDIA GATEWAYS
provisioning. Table 13 presents a brief description of the ini file and the
auxiliary files.
Table 13 ini and Auxiliary Files Descriptions
File Type
Description
ini
Load this file to provision the V7122 parameters. The
Embedded Web Server enables practically full device
provisioning but customers may occasionally require new
feature configuration parameters in which case this file is
loaded.
Note that loading the ini file only provisions parameters that
are contained in the ini file. If a parameter is not specified in
the ini file, values associated with that parameter are reset to
a default value. These values may not be the same as the
values that were configured for the VoIP gateway at the time
of manufacture.
Note: After the file has completed loading, the VoIP
gateway automatically restarts (software is loaded from the
flash).
CAS
(Only applicable for digital interfaces.) Up to eight different
CAS files containing specific CAS protocol definitions.
These files are provided to support various types of CAS
signaling.
Dial Plan
The Dial Plan file.
Voice Prompts
The voice announcement file contains a set of Voice Prompts
to be played by the V7122 during operation on Call Agent
request.
Call Progress Tones This is a region-specific, telephone exchange-dependent file
that contains the Call Progress Tones levels and frequencies
that the VoIP gateway uses. Default CPT file: U.S.A.
Prerecorded Tones
The dat PRT file enhances the gateway’s capabilities of
playing a wide range of telephone exchange tones that
cannot be defined in the Call Progress Tones file.
User Information
The User Information file maps PBX extensions to IP
numbers. This file can be used to represent PBX extensions as
IP phones in the global ‘IP world’.
To load an auxiliary file via the Embedded Web Server, perform these
steps:
1 Open the Auxiliary Files screen (Software Update menu > Load
Auxiliary Files); the Auxiliary Files screen is displayed (see Figure 22).
2 Click the Browse button corresponding to the type of file you want to
load.
Updating the Auxiliary Files
49
3 Navigate to the folder that contains the file you want to load.
4 Click the file and click the Open button; the name and path of the file
appear in the field next to the Browse button.
5 Click the Send File button adjacent to the field that contains the name of
the file you want to load. An asterisk in the screen section indicates that
the file’s loading takes effect immediately (e.g., Voice Prompts file).
6 Repeat steps 2 through 5 for each file you want to load.
Figure 22 Auxiliary Files Screen (e.g., SIP Gateways)
To save the loaded auxiliary files (e.g., CPT) to flash memory and reset the
gateway, perform these steps:
1 On the main menu bar, click the Maintenance button; the
Maintenance Actions screen appears.
2 Saving an auxiliary file to flash memory may disrupt traffic. Therefore,
disable all traffic on the device by performing a Graceful Lock:
a Under the LOCK / UNLOCK group, select Yes from the Graceful
Option drop-down list.
b In the Lock Timeout field, enter the time (in seconds) after which the
gateway locks.
50
CHAPTER 7: UPGRADING THE V7122 MEDIA GATEWAYS
c Click LOCK; now new calls are accepted and the gateway locks and
terminates all calls after the Lock Timeout value expires. Note that if
no traffic exists and the time has not yet expired, the gateway locks.
3 Under the RESET group, select the Yes option from the Burn to FLASH
drop-down list, and then click Reset; the auxiliary files are saved into
flash and the V7122 Gateway restarts. This takes approximately three
minutes to complete. When the V7122 has finished restarting, the Ready
and LAN LEDs on the front panel are lit green.
8
REGULATORY INFORMATION
Table 14 Declaration of Conformity
Application of Council Directives:
73/23/EEC (including amendments),
89/336/EEC (including amendments),
1999/5/EC Annex-II of the Directive
Standards to which Conformity is Declared:
EN55022: 1998 + A1: 2000 + A2: 2003
EN55024:1998 + A1: 2001 + A2: 2003
EN61000-3-2: 2000 + A2: 2005 EN61000-3-3:
1995 + A1: 2001 EN60950-1: 2001
Manufacturer’s Name:
AudioCodes Ltd.
Manufacturer’s Address:
1 Hayarden Street, Airport City, Lod 70151,
Israel.
Type of Equipment:
Analog VoIP System.
Model Numbers:
MP-11x/FXS+FXO Mixed Series (MP-114/
2FXS/2FXO; MP-118/ 4FXS/4FXO) MP-11x/FXS
Series (MP-112/ 2FXS; MP-114/ 4FXS; MP-118/
8FXS) MP-11x/FXO Series (MP-112/ 2FXO;
MP-114/ 4FXO; MP-118/ 8FXO) MP-124/FXS
Series (MP-124D/FXS)
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directives and
Standards.
Signature Date: 27th June 2006
Location: Airport City, Lod, Israel
I. Zusmanovich, Compliance Engineering Manager
52
CHAPTER 8: REGULATORY INFORMATION
Czech
[AudioCodes Ltd] tímto prohlašuje, že tento [MP-11x/FXS & FXO Series & MP-124] je ve shodě se základními požadavky a dalšími příslušnými ustanoveními
směrnice 89/336/EEC, 73/23/EEC.
Danish
Undertegnede [AudioCodes Ltd] erklærer herved, at følgende udstyr [MP-11x/FXS & FXO Series & MP-124] overholder de væsentlige krav og øvrige relevante
krav i direktiv 89/336/EEC, 73/23/EEC.
Dutch
Hierbij verklaart [AudioCodes Ltd] dat het toestel [MP-11x/FXS & FXO Series & MP-124] in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 89/336/EEC, 73/23/EEC
English
Hereby, [AudioCodes Ltd], declares that this [MP-11x/FXS & FXO Series & MP-124] is in compliance with the essential requirements and other relevant
provisions of Directive 89/336/EEC, 73/23/EEC.
Estonian
Käesolevaga kinnitab [AudioCodes Ltd] seadme [MP-11x/FXS & FXO Series & MP-124] vastavust direktiivi 89/336/EEC, 73/23/EEC põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
Finnish
[AudioCodes Ltd] vakuuttaa täten että [MP-11x/FXS & FXO Series & MP-124] tyyppinen laite on direktiivin 89/336/EEC, 73/23/EEC oleellisten vaatimusten ja
sitä koskevien direktiivin muiden ehtojen mukainen.
French
Par la présente [AudioCodes Ltd] déclare que l'appareil [MP-11x/FXS & FXO Series & MP-124] est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 89/336/EEC, 73/23/EEC
German
Hiermit erklärt [AudioCodes Ltd], dass sich dieser/diese/dieses [MP-11x/FXS & FXO Series & MP-124] in Übereinstimmung mit den grundlegenden
Anforderungen und den anderen relevanten Vorschriften der Richtlinie 89/336/EEC, 73/23/EEC befindet". (BMWi)
Greek
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [AudioCodes Ltd] ΔΗΛΩΝΕΙ ΟΤΙ [MP-11x/FXS & FXO Series & MP-124] ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ
ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 89/336/EEC, 73/23/EEC
Hungarian
Alulírott, [AudioCodes Ltd] nyilatkozom, hogy a [MP-11x/FXS & FXO Series & MP-124] megfelel a vonatkozó alapvetõ követelményeknek és az 89/336/EEC,
73/23/EEC irányelv egyéb elõírásainak
Icelandic
æki þetta er í samræmi við tilskipun Evrópusambandsins 89/336/EEC, 73/23/EEC
Italian
Con la presente [AudioCodes Ltd] dichiara che questo (MP-11x/FXS & FXO Series & MP-124) è conforme ai requisiti essenziali ed alle altre disposizioni
pertinenti stabilite dalla direttiva 89/336/EEC, 73/23/EEC.
Latvian
Ar šo [AudioCodes Ltd] deklarē, ka [MP-11x/FXS & FXO Series & MP-124] atbilst Direktīvas 89/336/EEC, 73/23/EEC būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lithuanian
[AudioCodes Ltd] deklaruoja, kad irenginys [MP-11x/FXS & FXO Series & MP-124] tenkina 89/336/EEC, 73/23/EEC Direktyvos esminius reikalavimus ir kitas
sios direktyvos nuostatas
Maltese
Hawnhekk, [AudioCodes Ltd], jiddikjara li dan [MP-11x/FXS & FXO Series & MP-124] jikkonforma mal-?ti?ijiet essenzjali u ma provvedimenti o?rajn relevanti li
hemm fid-Dirrettiva 89/336/EEC, 73/23/EEC
Norwegian
Dette produktet er i samhørighet med det Europeiske Direktiv 89/336/EEC, 73/23/EEC
Polish
[AudioCodes Ltd], deklarujemy z pelna odpowiedzialnoscia, ze wyrób [MP-11x/FXS & FXO Series & MP-124] spelnia podstawowe wymagania i odpowiada
warunkom zawartym w dyrektywie 89/336/EEC, 73/23/EEC
Portuguese
[AudioCodes Ltd] declara que este [MP-11x/FXS & FXO Series & MP-124] está conforme com os requisitos essenciais e outras disposições da Directiva
89/336/EEC, 73/23/EEC.
Slovak
[AudioCodes Ltd] týmto vyhlasuje, že [MP-11x/FXS & FXO Series & MP-124] spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice
89/336/EEC, 73/23/EEC.
Slovene
Šiuo [AudioCodes Ltd] deklaruoja, kad šis [MP-11x/FXS & FXO Series & MP-124] atitinka esminius reikalavimus ir kitas 89/336/EEC, 73/23/EEC Direktyvos
nuostatas.
Spanish
Por medio de la presente [AudioCodes Ltd] declara que el (MP-11x/FXS & FXO Series & MP-124) cumple con los requisitos esenciales y cualesquiera otras
disposiciones aplicables o exigibles de la Directiva 89/336/EEC, 73/23/EEC
Swedish
Härmed intygar [AudioCodes Ltd] att denna [MP-11x/FXS & FXO Series & MP-124] står I överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 89/336/EEC, 73/23/EEC.
Safety Notice
1 Installation and service of this gateway must only be performed by
authorized, qualified service personnel.
2 To avoid risk of fire use 26 AWG or higher wiring to connect the FXS or
FXO telecom ports.
3 The equipment must be connected by service personnel to a
socket-outlet with a protective earthing connection.
4 The protective earth terminal on the back of the MP-124 must be
permanently connected to protective earth.
53
Telecommunication Safety
The safety status of each port on the gateway is declared and detailed in
the table below:
Ports
Safety Status
Ethernet (100 Base-TX)
SELV
FXS
TNV-3
FXO
TNV-3
TNV-3:
Circuit whose normal operating voltages exceeds the limits for an SELV
circuit under normal operating conditions and on which over voltages
from Telecommunication Networks are possible
SELV:
Safety extra low voltage circuit.
FCC Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference
to radio communications. However there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
■
Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Notice
This equipment meets the applicable Industry Canada Terminal
Equipment technical specifications. This is confirmed by the registration
54
CHAPTER 8: REGULATORY INFORMATION
numbers. The abbreviation, IC, before the registration number signifies
that registration was performed based on a declaration of conformity
indicating that Industry Canada technical specifications were met. It does
not imply that Industry Canada approved the equipment.
FXO Ports: The Ringer Equivalence Number (REN) for this terminal is 0.05
The REN assigned to each terminal equipment provides an indication of
the maximum number of terminals allowed to be connected to a
telephone interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the sum of
Ringer Equivalence Number of all devices do not exceed five.
Network Compatibility of FXO Ports
The products support the Telecom networks in EU that comply with
TBR21.
ACTA Customer information
1 This equipment, the VoIP Analog Gateway, models MP-118, MP-114 and
MP-112 complies with Part 68 of the FCC Rules and the requirements
adopted by the ACTA. On the bottom of the unit of this equipment is a
label, that contains among other information, a product identifier in the
format US:AC1IT00BMP11X3AC. If requested, this number must be
provided to the telephone company.
2 This equipment is designed to be connected to the telephone network
using an RJ-11C connector, which is Part 68 compliant. The service order
code (SOC) is 9.0Y and the Facility interface code (FIC) is 02LS2.
3 The REN is used to determine the number of devices that may be
connected to a telephone line. Excessive RENs on a telephone line may
result in the devices not ringing in response to an incoming call. In most
but not all areas, the sum of RENs should not exceed five (5.0). To be
certain of the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone company. The
REN for this product is part of the product identifier that has the format
US:AC1IT00BMP11X3AC The digits represented by 00 are the REN
without a decimal point.
4 Should the product causes harm to the telephone network, the
telephone company will notify you in advance that temporary
discontinuance of service may be required. If advance notice is not
practical, you will be notified as soon as possible. Also, you will be
advised of your right to file a compliant with the FCC if it is necessary.
55
5 The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the
equipment. If this happens the telephone company will provide advance
notice in order for you to make necessary modifications to maintain
uninterrupted service.
6 If trouble is experienced with this equipment, for repair or warranty
information please contact AudioCodes Inc., 2099 Gateway Place, Suite
500, San Jose, CA, 95110, phone number 1-408-441-1175. If the
equipment is causing harm to the telephone network, the telephone
company may request to disconnect the equipment until the problem is
resolved.
7 Installation is described in the Product User’s manual. Connection to
Telephone Company-provided coin service is prohibited. Connection to
party lines service is subject to State tariffs.
56
CHAPTER 8: REGULATORY INFORMATION
A
Customer Support
OBTAINING SUPPORT FOR YOUR
3COM PRODUCT
Customer technical support and service are provided by 3Com
Distributors, Partners, and Resellers from whom the product was
purchased. To obtain Customer Support for products purchased directly
from 3Com, contact [email protected]
58
APPENDIX A: OBTAINING SUPPORT FOR YOUR 3COM PRODUCT
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
