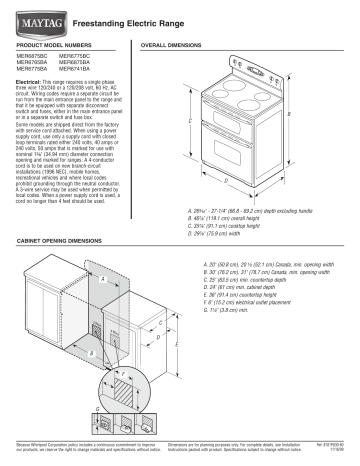

Freestanding Electric Range
PRODUCT MODEL NUMBERS
MER6875BC
MER6765BA
MER6775BA
OVERALL DIMENSIONS
MER6775BC
MER6875BA
MER6741BA
Electrical: This range requires a single phase
three wire 120/240 or a 120/208 volt, 60 Hz, AC
circuit. Wiring codes require a separate circuit be
run from the main entrance panel to the range and
that it be epuipped with separate disconnect
switch and fuses, either in the main entrance panel
or in a separate switch and fuse box.
Some models are shipped direct from the factory
with service cord attached. When using a power
supply cord, use only a supply cord with closed
loop terminals rated either 240 volts, 40 amps or
240 volts, 50 amps that is marked for use with
nominal 1³⁄₈" (34.94 mm) diameter connection
opening and marked for ranges. A 4-conductor
cord is to be used on new branch-circuit
installations (1996 NEC), mobile homes,
recreational vehicles and where local codes
prohibit grounding through the neutral conductor.
A 3-wire service may be used when permitted by
local codes. When a power supply cord is used, a
cord no longer than 4 feet should be used.
36"cm)
4
.
(91
B
C
D
A. 26⁵⁄₁₆" - 27-1/4" (66.8 - 69.2 cm) depth excluding handle
B. 46⁷⁄₈" (119.1 cm) overall height
C. 35⁷⁄₈" (91.1 cm) cooktop height
D. 29⁷⁄₈" (75.9 cm) width
CABINET OPENING DIMENSIONS
A. 20" (50.8 cm), 20 ¹⁄₂ (52.1 cm) Canada, min. opening width
B. 30" (76.2 cm), 31" (78.7 cm) Canada, min. opening width
C. 25" (63.5 cm) min. countertop depth
D. 24" (61 cm) min. cabinet depth
E. 36" (91.4 cm) countertop height
F. 6" (15.2 cm) electrical outlet placement
G. 1¹⁄₂" (3.8 cm) min.
A
3W
C
ire
4W
ire
D
E
B
F
G
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. 8101P630-60
11/16/09
