AOpen AX4SG WLAN Manual

AX4SG Max
Online Manual
AX4SG Max

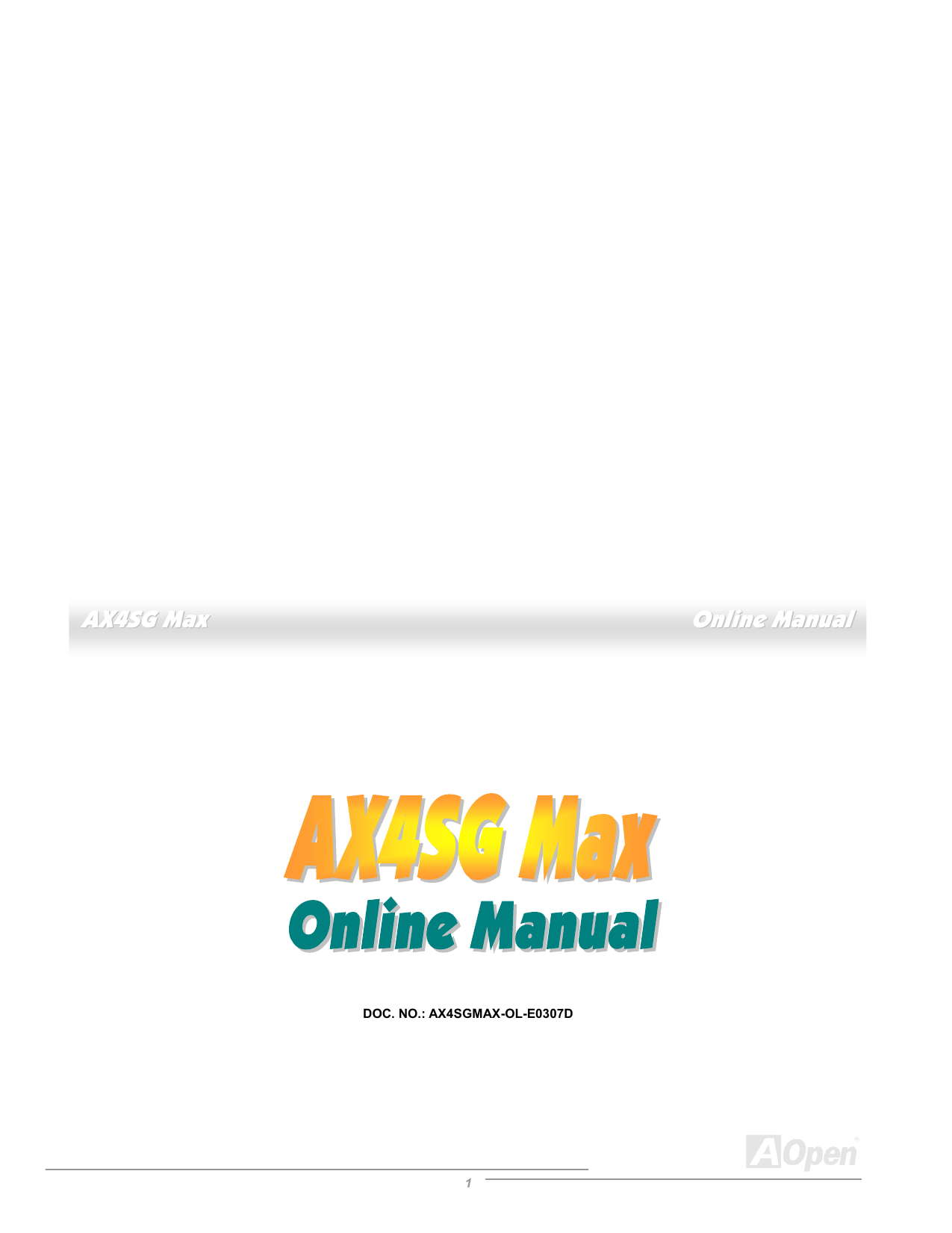

DOC. NO.: AX4SGMAX-OL-E0307D
1
AX4SG Max
Online Manual
What’s in this manual
AX4SG Max .................................................................................................................................................1
What’s in this manual .................................................................................................................................................................... 2
You Must Notice ............................................................................................................................................................................ 9
Before You Start .......................................................................................................................................................................... 10
Overview ..................................................................................................................................................................................... 11
Feature Highlight ......................................................................................................................................................................... 12
Quick Installation Procedure ....................................................................................................................................................... 17
Motherboard Map ........................................................................................................................................................................ 18
Block Diagram ............................................................................................................................................................................. 19
Hardware Installation ............................................................................................................................20
About “User Upgrade Optional” and “Manufacture Upgrade Optional”… ................................................................................... 21
JP14 Clear CMOS Data .............................................................................................................................................................. 22
CPU Installation........................................................................................................................................................................... 23
CPU Fan Installation ................................................................................................................................................................... 25
CPU Over-current Protection ...................................................................................................................................................... 27
AOpen “Watch Dog ABS” ............................................................................................................................................................ 29
Full-range Adjustable CPU Core Voltage .................................................................................................................................... 30
CPU and System Fan Connector (with H/W Monitoring) ............................................................................................................ 32
2
AX4SG Max
Online Manual
JP28 Keyboard/Mouse Wake-up Jumper.................................................................................................................................... 33
DIMM Sockets ............................................................................................................................................................................. 34
AC Power Auto Recovery............................................................................................................................................................ 36
IDE and Floppy Connector .......................................................................................................................................................... 37
Serial ATA Supported .................................................................................................................................................................. 39
Connecting Serial ATA Disk......................................................................................................................................................... 40
Support RAID 0 and RAID 1........................................................................................................................................................ 43
Front Panel Connector ................................................................................................................................................................ 44
AGP (Accelerated Graphic Port) 8X Expansion Slot ................................................................................................................... 45
AGP Protection Technology and AGP LED ................................................................................................................................. 46
WOL (Wake on LAN)................................................................................................................................................................... 47
IrDA Connector............................................................................................................................................................................ 49
Support 10/100/1000 Mbps LAN onboard................................................................................................................................... 50
Support USB 2.0 Ports ................................................................................................................................................................ 51
IEEE 1394 Connectors................................................................................................................................................................ 52
COM2 Connector ........................................................................................................................................................................ 53
Game Port Bracket Supported .................................................................................................................................................... 54
Color Coded Back Panel ............................................................................................................................................................. 55
S/PDIF (Sony/Philips Digital Interface) Connector ...................................................................................................................... 56
3
AX4SG Max
Online Manual
Super 5.1 Channel Audio Effect .................................................................................................................................................. 57
Front Audio Connector ................................................................................................................................................................ 58
Die-Hard BIOS II ......................................................................................................................................................................... 59
JP15/JP16 Dr. Voice Language Select Jumpers......................................................................................................................... 60
JP2 Speaker Output Jumper ....................................................................................................................................................... 61
CD Audio Connector.................................................................................................................................................................... 62
AUX-IN Connector....................................................................................................................................................................... 63
Case Open Connector................................................................................................................................................................. 64
STBY LED (Standby LED)........................................................................................................................................................... 65
Resetable Fuse ........................................................................................................................................................................... 66
Enlarged Aluminum Heatsink ...................................................................................................................................................... 67
Low ESR Capacitor ..................................................................................................................................................................... 68
V4 Power Engine......................................................................................................................................................................... 69
The noise is gone!! ---- SilentTek................................................................................................................................................. 71
EzClock ....................................................................................................................................................................................... 74
Hyper Threading Technology ...................................................................................................................................................... 78
AOConfig Utility ........................................................................................................................................................................... 80
RAID Introduction ..................................................................................................................................82
What’s RAID? .............................................................................................................................................................................. 82
4
Online Manual
AX4SG Max
What are the RAID levels? .......................................................................................................................................................... 83
HDD Capacity of RAID Levels..................................................................................................................................................... 86
Serial ATA RAID for Intel ICH5R.................................................................................................................................................. 87
Serial ATA RAID for Silicon Image 3112A ................................................................................................................................... 89
Phoenix-AWARD BIOS ............................................................................................................................94
How To Use Phoenix-Award™ BIOS Setup Program ................................................................................................................. 95
How To Enter BIOS Setup........................................................................................................................................................... 96
WinBIOS Utility............................................................................................................................................................................ 97
BIOS Upgrade under Windows environment .............................................................................................................................. 99
Vivid BIOS technology............................................................................................................................................................... 101
Driver and Utility ..................................................................................................................................102
Auto-run Menu from Bonus CD ................................................................................................................................................. 102
®
Installing Intel Chipset Software Installation Utility................................................................................................................... 103
Installing Intel Extreme Graphic Driver...................................................................................................................................... 104
Installing Onboard Sound Driver ............................................................................................................................................... 105
Installing Intel Application Accelerator RAID Edition Driver in Windows 2000/XP .................................................................... 106
Installing LAN Driver in Windows 2000/XP ............................................................................................................................... 107
Install LAN Driver in Windows NT 4.0 ........................................................................................................................................111
Installing USB 2.0 Driver ........................................................................................................................................................... 114
5
AX4SG Max
Online Manual
Installing Silicon Image SiI3112A SATA Raid Driver.................................................................................................................. 126
Glossary ...............................................................................................................................................133
AC97 CODEC ........................................................................................................................................................................... 133
ACPI (Advanced Configuration & Power Interface)................................................................................................................... 133
ACR (Advanced Communication Riser) .................................................................................................................................... 133
AGP (Accelerated Graphic Port) ............................................................................................................................................... 134
AMR (Audio/Modem Riser) ....................................................................................................................................................... 134
ATA (AT Attachment) ................................................................................................................................................................. 134
BIOS (Basic Input/Output System)............................................................................................................................................ 135
Bluetooth ................................................................................................................................................................................... 135
CNR (Communication and Networking Riser)........................................................................................................................... 136
DDR (Double Data Rate) RAM.................................................................................................................................................. 136
ECC (Error Checking and Correction)....................................................................................................................................... 136
EEPROM (Electronic Erasable Programmable ROM) .............................................................................................................. 136
EPROM (Erasable Programmable ROM).................................................................................................................................. 137
EV6 Bus .................................................................................................................................................................................... 137
FCC DoC (Declaration of Conformity)....................................................................................................................................... 137
FC-PGA (Flip Chip-Pin Grid Array)............................................................................................................................................ 137
FC-PGA2 (Flip Chip-Pin Grid Array).......................................................................................................................................... 137
6
AX4SG Max
Online Manual
Flash ROM ................................................................................................................................................................................ 138
Hyper Threading........................................................................................................................................................................ 138
IEEE 1394 ................................................................................................................................................................................. 138
Parity Bit .................................................................................................................................................................................... 139
PCI (Peripheral Component Interface) Bus............................................................................................................................... 139
PDF Format ............................................................................................................................................................................... 139
PnP (Plug and Play) .................................................................................................................................................................. 139
POST (Power-On Self Test) ...................................................................................................................................................... 140
PSB (Processor System Bus) Clock ......................................................................................................................................... 140
RDRAM (Rambus Dynamic Random Access Memory) ............................................................................................................ 140
RIMM (Rambus Inline Memory Module).................................................................................................................................... 140
SDRAM (Synchronous DRAM) ................................................................................................................................................. 140
SATA (Serial ATA)...................................................................................................................................................................... 141
SMBus (System Management Bus) .......................................................................................................................................... 141
SPD (Serial Presence Detect)................................................................................................................................................... 141
USB 2.0 (Universal Serial Bus) ................................................................................................................................................. 141
VCM (Virtual Channel Memory) ................................................................................................................................................ 142
Wireless LAN – 802.11b ............................................................................................................................................................ 142
ZIP file ....................................................................................................................................................................................... 142
7
AX4SG Max
Online Manual
Troubleshooting ...................................................................................................................................143
Technical Support................................................................................................................................147
Product Registration............................................................................................................................151
How to Contact Us...............................................................................................................................152
8
AX4SG Max
Online Manual
You Must Notice
Adobe, the Adobe logo, Acrobat is trademarks of Adobe Systems Incorporated.
AMD, the AMD logo, Athlon and Duron are trademarks of Advanced Micro Devices, Inc.
Intel, the Intel logo, Intel Celeron, Pentium II, Pentium III and Pentium 4 are trademarks of Intel Corporation.
Microsoft, Windows, and Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or
other countries.
All product and brand names used on this manual are used for identification purposes only and may be the registered trademarks of their
respective owners.
All of the specifications and information contained in this manual are subject to change without notice. AOpen reserves the right to revise
this publication and to make reasonable changes. AOpen assumes no responsibility for any errors or inaccuracies that may appear in this
manual, including the products and software described in it.
This documentation is protected by copyright law. All rights are reserved.
No part of this document may be used or reproduced in any form or by any means, or stored in a database or retrieval system
without prior written permission from AOpen Corporation.
©
Copyright 1996-2003, AOpen Inc. All Rights Reserved.
9
AX4SG Max
Online Manual
Before You Start
This Online Manual will introduce to the user how this product is installed. All useful information will be described in later chapters. Please
keep this manual carefully for future upgrades or system configuration changes. This Online Manual is saved in PDF format, we
recommend using Adobe Acrobat Reader 5.0 for online viewing, it is included in Bonus CD or you can get free download from Adobe web
site.
Although this Online Manual is optimized for screen viewing, it is still capable for hardcopy printing, you can print it by A4 paper size and set
2 pages per A4 sheet on your printer. To do so, choose File > Page Setup and follow the instruction of your printer driver.
Thanks for the help of saving our earth.
10
AX4SG Max
Online Manual
Overview
®
Thank you for choosing AOpen AX4SG Max motherboard. AX4SG Max is Intel Socket 478 motherboard (M/B) based on the ATX form
®
factor featuring the Intel 865-G chipsets. As high performance chipset built in the M/B, AX4SG Max motherboard supports Intel Socket 478
®
Pentium 4 1.6GHz~3.06GHz. It supports 400/533/800MHz Front Side Bus (FSB) clock and Hyper-Threading Technology which brings
additional intelligence to systems. In the AGP performance, it has one AGP slot to support AGP 8X/4X mode and pipelined spilt-transaction
long burst transfer up to 2112MB/sec.The slot also support ADD card. According to different customer’s requirements, this motherboard
supports DDR266, DDR333 and DDR400 RAM up to 4GB maximum. The onboard IDE controller supports Ultra DMA 33/66/100 mode,
Serial ATA 150 MB/s and IDE Raid 0, Raid 1 mode. There are 6
PCI slots provided on this board and two IEEE1394 connectors.
A total of 6 USB 2.0 ports on the back panel and one connector
on the board give you the best use of all USB devices with the
fancy speed up to 480Mbps. More than that, on the strength of
integrated BCM LAN controller on board, which is a highly
integrated
Platform
LAN
Connect
devices,
it
provides
10/100/1000M bps Ethernet for office and home use. Besides,
AX4SG Max has S/PDIF connector and an AC97 CODEC
RealTek ALC650 chipset onboard, providing high performance
and magic surround stereo sound to let people enjoy working
with it. Now, let’s enjoy all features from AOpen AX4SG Max
motherboard.
11
AX4SG Max
Online Manual
Feature Highlight
CPU
®
®
Supports Intel Socket 478 Pentium 4 (Northwood) 1.6GHz~3.06GHz+ with 400/533/800MHz Front Side Bus (FSB) designed for Socket
478 technology.
Chipset
Intel 865 is a Graphics Memory Controller Hub (GMCH) designed for use with the Pentium 4 processor with 512-KB L2 cache on 0.13
micron processor. It provides CPU, DDR, AGP, Hub, CSA Interfaces and integrated graphics with display interfaces. The CPU interface
supports Pentium 4 processor subset of the Extended Mode of the Scalable Bus Protocol. The GMCH memory interface supports one up to
two channels of DDR, and the AGP interface supports 0.8/1.5V signaling with 8X/4X data transfers and 8X/4X AGP Fast Writes. The
integrated graphics controller provides 3D, 2D, and display capabilities while using a portion of system memory for graphics memory (UMA)
to provide a cost effective, high performance graphics solution. The Intel 865 platform supports the fifth generation I/O Controller Hub
(ICH5R).
The ICH5R integrates an Ultra ATA 100 controller, two Serial ATA host controllers, one EHCI host controller and four UHCI host controllers
supporting eight external USB 2.0 ports, LPC interface controller; flash BIOS interface controller, PCI interface controller, AC’97 digital
controller, integrated LAN controller, an ASF controller and a hub interface for communication with the 865 GMCH.
Memory
12
AX4SG Max
Online Manual
With Intel 865 chipset, this motherboard can support dual channel Double-Data-Rate (DDR) RAM. The dual channel mode allows chipsets
to get data in 128 bit and zero wait state bursting between the RAM. The data transfer at 266/333/400MHz. The four slots of DDR RAM can
be composed of an arbitrary mixture of 64, 128, 256, 512 MB or 1GB DDR RAM and maximum up to 4GB.
Expansion Slots
Including six 32-bit/33MHz PCI and one AGP 8X/4X slots. The PCI local bus throughput can be up to 132MB/s. Of six PCI slots provided,
all of them are master PCI slots with arbitration and decoding for all integrated functions and LPC bus. AX4SG Max motherboard includes
one AGP expansion slot for a bus mastering AGP graphic card. The Accelerated Graphics Port (AGP) specification provides a new level of
video display sophistication and speed. The AGP video cards support data transfer rate up to 2112MB/s. Or you may have ADD card cabled
to this AGP slot to provide high-speed digital connection for digital displays.
AGP Protection Technology
With AGP Protection Technology implemented, this motherboard will automatically detect the voltage of AGP card and prevent your
chipsets from being burnt out.
Hyper-Threading Technology
Support Hyper-Threading Technology which brings additional intelligence to systems so that multiple tasks received from the processor can
be managed and prioritized more effectively.
Watch Dog ABS
Includes AOpen “Watch Dog ABS” function that can auto-reset system in 4.8 seconds when you fail the system overclocking.
13
AX4SG Max
Online Manual
1MHz Stepping CPU Frequency Adjustment
Provides “1MHz Stepping CPU Frequency Adjustment” function in the BIOS. This magic function allows you to adjust CPU FSB frequency
from 100~400MHz by 1MHz stepping adjustment, and helps your system get maximum performance.
LAN Port
On the strength of BCM5705, a fourth-generation triple-speed 10/100/100 base-T Ethernet LAN Controller solution for high-performance
network applications, this motherboard provides 10/100/1000 Mbps Ethernet for office and home use.
Ultra DMA 33/66/100 Bus IDE
Comes with an on-board PCI Bus Master IDE controller with two connectors that support four IDE devices in two channels, supports Ultra
DMA 33/66/100, PIO Modes 3 and 4 and Bus Master IDE DMA Mode 5, and supports Enhanced IDE devices.
Serial ATA
Integrated in ICH5R that contains independent DMA operation on two ports, the SATA controllers are completely software transparent with
the IDE interface, while providing a lower pin count and higher performance. The ICH5R SATA interface supports data transfer rates up to
150MB/s.In this motherboard the SATA interfaces support RAID 0 and RAID 1 modes.
On-board AC’97 Sound
AX4SG Max uses RealTek AC97 CODEC RealTek ALC650 sound chip. This on-board audio includes a complete audio recording and
playback system.
14
AX4SG Max
Online Manual
Eight USB 2.0 Ports
Provides six ports on the back panel and one USB 2.0 connector on the board, providing a total of eight USB 2.0 interface to connect
devices such as mouse, keyboard, modem, scanner, etc.
Dr. Voice II
The Dr. Voice II can identify what kind of problems had occurred in the operating system. It provides four kinds language versions.
S/PDIF Connector
S/PDIF (Sony/Philips Digital Interface) is the newest audio transfer file format, which provides impressive quality through optical fiber and
allows you to enjoy digital audio instead of analog audio.
Power Management/Plug and Play
Supports the power management function which confirms to the power-saving standards of the U.S. Environmental Protection Agency (EPA)
Energy Star program. It also offers Plug-and-Play, which helps save users from configuration problems, thus making the system much
user-friendlier.
Hardware Monitoring Management
Supports CPU or system fans status, temperature and voltage monitoring and alert, through the on-board hardware monitor module.
15
AX4SG Max
Online Manual
SilentTek
Combines “Hardware-Status Monitoring”, “Overheat Warning” and “Fan Speed Control” with user-friendly interfaces to provide a perfect
balance among noises, system performance and stability.
Enhanced ACPI
®
Fully implement the ACPI standard for Windows 98/ME/2000/XP series compatibility, and supports Soft-Off, STR (Suspend to RAM, S3),
STD (Suspend to Disk, S4) and S5 features.
16
AX4SG Max
Online Manual
Quick Installation Procedure
This page gives you a quick procedure on how to install your system. Follow each step accordingly.
1.
Installing CPU and Fan
2.
Installing System Memory (DIMM)
3.
Connecting Front Panel Cable
4.
Connecting IDE and Floppy Cable
5.
Connecting ATX Power Cable
6.
Connecting Back Panel Cable
7.
Power-on and Load BIOS Setup Default
8.
Setting CPU Frequency
9.
Reboot
10. Installing Operating System (such as Windows XP)
11. Installing Driver and Utility
17
AX4SG Max
Online Manual
Motherboard Map
AC’97 CODEC
Colored Back Panel
AUX-IN Connector
JP28 Keyboard/Mouse
Wakeup Jumper
CD-IN Connector
COM2 Connector
SYSFAN2 Connector
Game Port Connector
32-bit PCI Expansion Slot x6
Low ESR Capacitors
4-pin 12V. ATX Power Connector
Resetable Fuse
IrDA Connector
AGP 8x Expansion Slot
supports ADD card
478-pin CPU socket (Northwood)
with Voltage and Frequency
Auto-detection that supports Intel®
Pentium® 4 1.6~3.06GHz+ CPU
Front Audio Connector
S/PDIF Connector
USB 2.0 Connector
SATA Port x 4
CPUFAN1 connector
Intel 865-G Chipset that
supports 533/800MHz FSB,
DDR 400 and AGP 8X
JP14 CMOS Clear Jumper
IEEE1394 Connector x 2
Wake on LAN Connector
SYSFAN3 Connector
184-pin DIMMx4 support
DDR400/333/266 SDRAM
maximum up to 4GB
Front Panel Connector
Die-hard BIOS
ATX Power Connector
JP2 Speaker Output Connector
JP15/JP16 Dr. Voice II
Language Select Jumper
JP24 BIOS Rescue Jumper
Case Open Connector
18
ATA66/100 IDE Connector x2
FDD Connector
AX4SG Max
Online Manual
Block Diagram
DDR400/333/266 Dual Channel
RAM Up to 4GB
32-bit PCI Slot x6
DIMM Socket x4
PCI Bus
SATA 1
4 Serial ATA Ports
Socket 478
Intel Pentium 4
CPU
533/800MHz
System Bus
150MB/s
SATA 2
SATA 3
SATA 4
Intel
865-G
AGP bus
ATA 66/100
Primary
Channel
IDE Drive x4
Secondary
Channel
AGP 8X Slot
ICH5R
VGA onboard
RealTek
AC97
CODEC
USB Port
LAN connect Component
Gigabit
BCM5705
USB Port
USB Port x8
USB Port
4Mbit Flash EEPROM
4Mbit Flash EEPROM
Parallel Port
USB Port
Serial Port x2
IEEE1394 x2
IEEE1394 x2
Floppy Disk Drive x2
19
AX4SG Max
Online Manual
Hardware Installation
This chapter describes jumpers, connectors and hardware devices of this motherboard.
Note: Electrostatic discharge (ESD) can damage your processor, disk drives, expansion boards, and other
components. Always observe the following precautions before you install a system component.
1.
Do not remove a component from its protective packaging until you are ready to install it.
2.
Wear a wrist ground strap and attach it to a metal part of the system unit before handling a component. If
a wrist strap is not available, maintain contact with the system unit throughout any procedure requiring
ESD protection.
20
AX4SG Max
Online Manual
About “User Upgrade Optional” and “Manufacture Upgrade Optional”…
When you read this online manual and start to assemble your computer system, you may notice that some of the functions are marked as
“User Upgrade Optional” or “Manufacture Upgrade Optional”. Although all of AOpen’s motherboards have included many amazing and
powerful features, sometimes not every user is familiar with these powerful features. As a result of this we define features that can be
upgraded by users as “User Upgrade Optional”. You can upgrade these functions by purchasing additional devices. As for functions that
cannot be upgraded by users, we define them as “Manufacture Upgrade Optional”. If need be, you can contact our local distributors or
resellers to purchase “Manufacture Upgrade Optional” components, and again you are also welcome to visit our official website at
english.aopen.com.tw for detail information.
21
AX4SG Max
Online Manual
JP14 Clear CMOS Data
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.
1.
Turn off the system and unplug the AC power.
2.
Remove ATX power cable from connector PWR2.
3.
Locate JP14 and short pins 2-3 for a few seconds.
4.
Return JP14 to its normal setting by shorting pin1 & pin2.
5.
Connect ATX power cable back to connector PWR2.
Pin 1
1
Normal
(default)
1
Tip: When should I Clear CMOS?
Clear CMOS
1. Boot fails because of overclocking…
2. Forget password…
3. Troubleshooting…
22
AX4SG Max
Online Manual
CPU Installation
®
This motherboard supports Intel Pentium 4 Socket 478 series CPU (Northwood). Be careful of CPU orientation when you plug it into CPU
socket.
1. Pull up the CPU socket lever and
up to 90-degree angle.
2. Locate Pin 1 in the socket and look for mark on the CPU upper interface.
Match Pin 1 and cut edge, then insert the CPU into the socket.
CPU socket
Lever
CPU pin 1 and
cut edge
CPU cut edge
Note: Those pictures are for example only; they may not look the same with the motherboard you purchased.
23
AX4SG Max
Online Manual
3. Press down the CPU socket lever and finish CPU
installation.
CPU cut edge
Note: If you do not match the CPU
socket Pin 1 and CPU cut edge well, you
may damage the CPU.
Note:
This
socket
supports
Micro-FC-PGA2 package CPU, which is
the latest CPU package developed by
Intel. Other forms of CPU package are
impossible to be fitted in.
Note: This picture is for example only; it may not look the same with the motherboard you purchased.
24
AX4SG Max
Online Manual
CPU Fan Installation
This motherboard comes with a retention module attached on the CPU socket when shipped, we strongly recommend you to install AOpen
special designed CPU Fan as shown below on the retention module for better heat dissipation. Please install the CPU Fan correctly as the
following pictures shown.
2. Pressing down the four clips with force one by one
on the retention module.
1. Gently put the CPU Fan down on the
retention module with clips aligning correctly
to the four corners.
Clip
Note: The picture above may look different from the product you purchased.
25
AX4SG Max
Online Manual
CPU Jumper-less Design
CPU VID signal and SMbus clock generator provide CPU voltage auto-detection and allows the user to set the CPU frequency through the
BIOS setup, therefore no jumpers or switches are used. The disadvantages of the Pentium based jumper-less designs are eliminated.
There will be no worry of wrong CPU voltage detection.
Clock Generator
Intel Socket 478
BIOS
Pentium 4
Controlled
®
CPU Freq. Ratio
CPU voltage
CPU VID signal
Power Regulator
(Automatically generates CPU voltage)
26
Circuit
AX4SG Max
Online Manual
CPU Over-current Protection
The Over Current Protection is a popular implementation on ATX 3.3V/5V/12V switching power supply. However, the new generation CPU
uses different voltage with a regulator to transfer 12V to CPU voltage (for example, 2.0V), and thus makes 5V over current protection
useless. This motherboard is with switching regulator onboard supporting CPU over-current protection; in conjunction with 3.3V/5V/12V
power supply provide the full line over-current protection.
12V (Protected by power supply)
3.3V (Protected by power supply)
ATX Switching Power Supply
5V (Protected by power supply)
Onboard Power Regulator
(Over-Current Protection)
Note: Although we have implemented protection circuit try to prevent any human operating mistake,
there is still certain risk that CPU, memory, HDD, add-on cards installed on this motherboard may be
damaged because of component failure, human operating error or unknown nature reason. AOpen
cannot guaranty the protection circuit will always work perfectly.
27
CPU Core Voltage
AX4SG Max
Online Manual
Battery-less and Long Life Design
This Motherboard implements a Flash ROM and a special circuit that provide you no batter power consumption of current CPU and CMOS
Setup configurations. The RTC (real time clock) can also keep running as long as the power cord is plugged. If you lose your CMOS data
by accident, you can just reload the CMOS configurations from Flash ROM and the system will recover as usual.
Battery
ATX Stand-by Power
Auto Switch
Auto switch to ATX standby
power as long as AC power line
RTC
(Real Time Clock)
00:00:00
Flash ROM
is plugged. This smart design
increases battery life if you still
plug battery on motherboard.
CMOS
Backup by EEPROM
28
AX4SG Max
Online Manual
AOpen “Watch Dog ABS”
AOpen provides a special and useful feature on this motherboard for overclockers. When you
power-on the system, the BIOS will check last system POST status. If it succeeded, the BIOS will
enable “Watch Dog ABS” function immediately, and set the CPU FSB frequency according to
user’s settings stored in the BIOS. If system failed in BIOS POST, the “Watch Dog Timer” will reset the system to reboot in five seconds.
Then, BIOS will detect the CPU’s default frequency and POST again. With this special feature, you can easily overclock your system to get
a higher system performance without removing the system housing and save the hassle from setting the jumper to clear CMOS data when
system hangs.
Enable/Disable Signal from
BIOS
BIOS
Reset Signal
AOpen
Clock Generator
Watch Dog ABS
Countdown about
5 seconds if fails
in POST
CPU
29
CPU ID Signal
AX4SG Max
Online Manual
Full-range Adjustable CPU Core Voltage
This function is dedicated to overclockers and supports Adjustable CPU Core Voltage from 1.10V to 1.85V. However, this motherboard can
also automatically detect CPU VID signal and generates proper CPU core voltage.
Setting CPU Frequency
BIOS Setup > Frequency/Voltage Control > CPU Bus Frequency
This motherboard is CPU jumper-less design, you can set CPU frequency in BIOS; no jumpers or switches are needed. The default setting
is "table select mode". You can adjust the FSB from "CPU Host/RAM/PCI Clock" for overclocking.
Core Frequency = CPU FSB Clock * CPU Ratio
PCI Clock = CPU FSB Clock / Clock Ratio
AGP Clock = PCI Clock x 2
CPU Ratio
8x, 10x… 21x, 22x, 23x, 24x
CPU FSB (By BIOS table)
100-400MHz
30
AX4SG Max
Northwood CPU
Online Manual
CPU Core
Frequency
FSB
Clock
System
Bus
Ratio
Pentium 4
1.6G
1600MHz
100MHz
400MHz
16x
Pentium 4
1.6G
1600MHz
133MHz
533MHz
12x
Pentium 4
1.7G
1700MHz
133MHz
533MHz
13x
Pentium 4
1.8G
1800MHz
100MHz
400MHz
18x
Pentium 4
2.0G
2000MHz
100MHz
400MHz
20x
Pentium 4
2.2G
2200MHz
100MHz
400MHz
22x
clock ratio automatically, you may not be
Pentium 4
2.2G
2200MHz
133MHz
533MHz
16x
Pentium 4
2.26G
2260MHz
133MHz
533MHz
17x
able to adjust the clock ratio in BIOS
manually.
Pentium 4
2.4G
2400MHz
100MHz
400MHz
24x
Pentium 4
2.4G
2400MHz
133MHz
533MHz
18x
Pentium 4
2.53G
2530MHz
133MHz
533MHz
19x
Pentium 4
2.6G
2600MHz
200MHz
800MHz
13x
maximum 800MHz (200MHz*4) system bus
Pentium 4
2.66G
2660MHz
133MHz
533MHz
20x
and 66MHz AGP clock; higher clock setting
may cause serious system damage.
Pentium 4
2.8G
2800MHz
133MHz
533MHz
21x
Pentium 4
2.8G
2800MHz
200MHz
800MHz
14x
Pentium 4
3.06G
3000MHz
200MHz
800MHz
15x
Pentium 4
3.20G
3200MHz
200MHz
800MHz
16x
31
Note: Intel 865-G chipset don’t support
Willamette
or
Celeron
processors.
Northwood processor would detect the
Warning: Intel 865-G chipset supports
AX4SG Max
Online Manual
CPU and System Fan Connector (with H/W Monitoring)
Plug in the CPU fan cable to the 3-pin CPUFAN1 connector. If you have chassis fan, you can also plug it on SYSFAN2 or SYSFAN3
connector.
GND
+12V
SENSOR
SYSFAN3 Connector
CPUFAN1 Connector
Note: Some CPU fans do not have
sensor pin, so that they cannot support
hardware monitoring function.
SYSFAN2 Connector
32
AX4SG Max
Online Manual
JP28 Keyboard/Mouse Wake-up Jumper
This motherboard provides PS2 keyboard / mouse wake-up function. You can use JP28 to enable or disable this function, which could
resume your system from suspend mode with keyboard or mouse. The factory default setting is set to “Disable” (1-2), and you may enable
this function by setting the jumper to 2-3.
Pin 1
1
Disable
(Default)
33
1
Enable
AX4SG Max
Online Manual
DIMM Sockets
This motherboard has four 184-pin DDR DIMM sockets that allow you to install 128-bit dual channel DDR400, DDR333 or DDR266 memory
up to 4GB. Only non-ECC DDR RAM is supported. Please install suitable modules; otherwise serious damage may occur on memory
sockets or you RAM modules. Please note that when you install DDR333 memory module and have your CPU FSB set at 800MHz,
the memory can only run with the speed of DDR320. It is limitation of Intel. For other limitation of CPU types, please see the table
below.
Item
DDR266
DDR333
DDR400
CPU FSB 400MHz
V
X
X
CPU FSB 533MHz
V
V
X
CPU FSB 800MHz
V
⊙
V
DIMMA1
DIMMA2
DIMMB1
DIMMB2
Warning: This motherboard supports DDR RAM. Please do
Note: To run dual channel speed, you have to use
not install the SDRAM on the DDR RAM sockets; otherwise it
the same type memory modules installed on two
will cause serious damage on memory sockets or SDRAM
module.
DIMMs. If you install two different sized modules,
the system can only run single channel mode and
with the speed of that lower memory module.
34
AX4SG Max
Online Manual
How to Install Memory Modules
Note: Please pay attention to
Please follow the procedure as shown below to finish memory installation.
1.
Make sure the DIMM module’s pin face down and match the socket’s size as depicted below.
the Blue slots. To run dual
channel speed, you should
insert the RAM in the slot of
DIMM A1 and DIMM B1 or
DIMM A2 and DIMM B2.
Please
don't
use
the
different frequency DIMM on
dual channel
40 pins
2.
52 pins
Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.
Note: The tabs of the DIMM slot
will close-up to hold the DIMM in
place when the DIMM touches the
slot’s bottom.
Tab
Key
3.
Pin 1
Repeat step 2 to finish additional DIMM modules installation.
Note: These images are for example only; they may not be exactly the same as the motherboard you purchased.
35
AX4SG Max
Online Manual
ATX Power Connector
This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you plug in the right direction. We strongly recommend
you to connect the 4-pin 12V ATX connector before connecting the 20-pin ATX power connector and use standard power supply specially
designed for Pentium 4 system.
AC Power Auto Recovery
A traditional ATX system should remain at power off stage when AC power resumes from power failure. This design is inconvenient for a
network server or workstation, without an UPS, that needs to keep power-on. This motherboard implements an AC Power Auto Recovery
function to solve this problem.
36
AX4SG Max
Online Manual
IDE and Floppy Connector
Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDD and IDE connector. Be careful of the pin1 orientation. Wrong
orientation may cause system damage.
Secondary
Secondary
Slave (4th)
Master (3rd)
IDE 2 (Secondary)
IDE 1 (Primary)
Pin 1
Primary
Slave (2nd)
ATA 66/100 IDE
Connector
Pin 1
FDD Connector
37
Primary
Master (1st)
AX4SG Max
Online Manual
IDE1 is also known as the primary channel and IDE2 as the secondary channel. Each channel supports two IDE devices that make a total
of four devices. In order to work together, the two devices on each channel must be set differently to Master and Slave mode. Either one
can be the hard disk or the CDROM. The setting as master or slave mode depends on the jumper on your IDE device, so please refer to
your hard disk and CDROM manual accordingly.
Tip:
1.
For better signal quality, it is recommended to set the far end side device to
master mode and follow the suggested sequence to install your new device.
Please refer to above diagram
2.
To achieve the best performance of Ultra DMA 66/100 hard disks, a special
80-wires IDE cable for Ultra DMA 66/100 is required.
Warning: The specification of the IDE cable is a maximum of 46cm (18 inches);
make sure your cable does not exceed this length.
38
AX4SG Max
Online Manual
Serial ATA Supported
The traditional parallel ATA specification has defined the standard storage interface for PCs with its original speed of just 3 Mbytes/second
since the protocol was introduced in the 1980s. And the latest generation of the interface, Ultra ATA-133, has been developed further with a
burst data transfer rate of 133 Mbytes/second. However, while ATA has enjoyed an illustrious track record, the specification is now showing
its age and imposes some serious design issues on today’s developers, including a 5-volt signaling requirement, high pin count, and
serious cabling headaches.
The Serial ATA specification is designed to overcome these design limitations while enabling the storage interface to scale with the growing
media rate demands of PC platforms. Serial ATA is to replace parallel ATA with the compatibility with existing operating systems and drivers,
adding performance headroom for years to come. It reduces voltage and pins count requirements and can be implemented with thin and
easy to route cables.
SATA port 1 (ICH5R)
SATA port 4 (Sil 3112)
Serial ATA Ports
SATA port 3 (Sil 3112)
SATA port 2 (ICH5R)
39
AX4SG Max
Online Manual
Connecting Serial ATA Disk
To connect a Serial ATA disk, you have to have a 7-pin serial ATA cable. Connect two ends of the serial ATA cable to the serial ATA header
on the motherboard and the disk. Like every other traditional disk, you also have to connect a power cable.
Please be noted that it is a
jumper free implement; you don’t need to set jumpers to define a master or slave disk. When serial ATA hard disks are installed on serial
ATA ports, the one connected on Port 0(SATA 1) will be set as the first boot device automatically. Please be noted that it doesn’t support
Hot-Plug in function.
Item
Bandwidth
Parallel ATA
100/133 MB/Sec
Serial ATA
150/300/600 MB/Sec
Volts
5V
250mV
Pins
40
7
Length Limitation
18 inch (45.72cm)
1 meter (100cm)
Cable
Wide
Thin
Ventilation
Bad
Good
Peer-to-Peer
No
Yes
Comparison between Parallel ATA and Serial ATA
40
AX4SG Max
Online Manual
Adjusting Your Hard Disk
Except its original 2 sets of parallel IDE, this motherboard does come with the support for the latest Serial ATA hard disk. If you are unable
to find your newly installed Serial ATA hard disks on your operating system after you have had installed them on, the problem mainly lies in
the BIOS setting. You may simply adjust BIOS settings to have them work properly.
After having properly installed your hard disks, you may directly get into the BIOS setting screen for adjustment. You may simply press
“Integrated Peripherals Æ On-Chip IDE Device Æ On-Chip Serial ATA” to choose your preferable mode. If you have no intention of
changing its setting, the default would be Auto.
41
AX4SG Max
Online Manual
If you intend to change the default setting, simply press Enter for a list of selection:
1.
Disabled: You may choose this item if you’re sure that only traditional IDE hard
disks had been installed on your system. Disabling this item may also cancel the
detection to Serial ATA hard disk during POST, which theoretically, could speed up
your boot-up timing for a little bit; however, please remember to re-adjust the
settings here if you intend to use Serial ATA hard disk later.
2.
Auto: This is the default setting upon receipt of the motherboard. Basically, if your
system functions properly, it’s not necessary to change it. The system will
automatically recognize the first hard disk on IDE1 as the first boot device.
Note: Please be informed that when you are using Windows98/ME with six hard disks fully installed, Auto mode is not able to function
properly, it’s just because Windows98/Me is not able to energize Enhanced Mode to detect all hard disks.
3.
Combined Mode: If you have had installed traditional IDE hard disks and Serial ATA hard disks at the same time, then you may
choose this Combined Mode. Under this mode, you may randomly choose either IDE hard disks or Serial ATA had disk as your first
boot device. But please be aware that Serial ATA will exist with IDE in a mapping way, which also means it will occupy one of the IDE
Channel and left you with one IDE Channel only.
4.
Enhanced Mode: If you are using the latest operating system (say, Windows XP, Windows.NET Server), it is highly recommended to
select Enhanced Mode. The system would be able to detect all six devices (traditional IDE x4, Serial ATA x 2) completely and functions
perfectly under this mode. But please be noted that it is defaulted with using traditional IDE as the first boot device.
Note: From our practical lab tests, we found no obvious problem or mistakes happened under Windows2000 operating system, but,
however, it is not within the regulation recommended by Intel.
5.
SATA Only: You may select this SATA Only mode if you have had installed Serial ATA hard disks only. It also allows you to select
booting sequence from Port0 (SerialATA1) or Port1 (SerialATA2).
42
AX4SG Max
Online Manual
Support RAID 0 and RAID 1
With Intel ICH5R chipset and Silicon Image Sil3112A onboard, this motherboard provides a cost-effective, high performance stripping
(RAID 0) and mirroring (RAID 1) solution. With stripping, identical drives can read and write data in parallel to increase performance.
Mirroring increase read performance through load balancing and elevator seeking while creating a complete backup of your files. When
supporting RAID 0 or RAID 1, you should connect SATA hard driver disks to SATA Header 1and 2. You can set in BIOS which mode you
want to support.
43
AX4SG Max
Online Manual
Front Panel Connector
Attach the power LED, Keylock, speaker, power and reset switch connectors to the
corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI &
Power LED will keep flashing while the system is in suspend mode.
Locate the power switch cable from your ATX housing. It is 2-pin female connector
from the housing front panel. Plug this connector to the soft-power switch connector
marked SPWR.
Suspend Type
ACPI LED
Power on Suspend (S1) or Suspend to RAM (S3)
Flashing for every second
Suspend to Disk (S4)
The LED will be turned off
1
1
Pin1
SPWR
ACPI & PWR LED
IDE LED
ACPI LED (BLUE)
Speaker
Reset
44
NC
NC
+5V
IDE LED
IDE LED
+5V
+5V
GND
NC
SPEAKER
5VSB
SPWR
ACPI LEDGND
ACPILED
NC
ACPI_B
GND
RESET
GND
AX4SG Max
Online Manual
AGP (Accelerated Graphic Port) 8X Expansion Slot
AX4SG Max provides an AGP 8x slot. The AGP 8X is a bus interface targeted for high-performance 3D graphic. AGP uses both rising and
falling edge of the 66MHz clock, for 4X AGP, the data transfer rate is 66MHz x 4bytes x 4 = 1056MB/s. AGP is now moving to AGP 8x mode,
which is 66MHz x 4bytes x 8 =2.1GB/s. This AGP slot could automatically become an AGP slot or a Multiplexed Intel DVO Output
depending on what kind of cards inserted, like AGP, or ADD (AGP Digital Display) cards. With ADD card cabled to this slot, Multiplexed Intel
DVO output could provide high-speed digital connection for digital displays or TV-OUT functionality. You can also adjust AGP voltage in
BIOS within a rage from 1.5V to 1.7V.
Warning:
It
is
strongly
recommended not to adjust
voltage/clock of AGP/PCI
when connecting any SATA
service. It is because when
the
voltage/clock
for
AGP/PCI is adjusted, the
clock for SATA couldn’t
keep 100MHz, and the
system will be unstable.
45
AX4SG Max
Online Manual
AGP Protection Technology and AGP LED
With the outstanding R&D ability of AOpen and its specially developed circuit, this motherboard implements a blend new technology to
protect your motherboard from being damaged by over-voltaging of AGP card. When AGP Protection Technology is implemented, this
motherboard will automatically detect the voltage of AGP card and prevent your chipsets from being burnt out. Please note that if you install
a AGP card with 3.3V, which is not supported by Intel 865 chipset, the AGP LED on the motherboard will light up to warn you the possible
damage of the exceeding voltage. You may contact your AGP card vendor for further support.
AGP LED
Warning:
It is strongly recommended not to
install a 3.3V AGP card, which is not
supported by Intel 865 chipset. When you do
so, the AGP LED on the motherboard will light
up to warn you the possible damage.
46
AX4SG Max
Online Manual
WOL (Wake on LAN)
To use Wake on LAN function, you must have a network card with chipset that supports this feature, and connect a cable from LAN card to
motherboard WOL connector. The system identification information (probably IP address) is stored on network card and because there is a
lot of traffic on the Ethernet, you need to install network management software, such as ADM, for the checking of how to wake up the
system. Note that, at least 600mA ATX standby current is required to support the LAN card for this function.
+5VSB
GND
LID
WOL Connector
47
AX4SG Max
Online Manual
WOL Connector
(Ethernet Card Side)
WOL Connector
(Motherboard Side)
Note: This picture is for example only, it may not exactly be the same motherboard.
48
AX4SG Max
Online Manual
IrDA Connector
The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or
Windows 98 Direct Cable Connection, the user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector
supports HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps).
Install the infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, make sure to have the
correct orientation when you plug in the IrDA connector.
Pin 1
IrDA Connector
1
NC
KEY
+5V
GND
IR_TX
IR_RX
49
AX4SG Max
Online Manual
Support 10/100/1000 Mbps LAN onboard
On the strength of BCM5705, a fourth-generation triple-speed 10/100/100 base-T Ethernet LAN Controller solution for high-performance
network applications, this motherboard provides 10/100/1000M bps Ethernet for office and home use. The Ethernet RJ45 connector is
located on top of USB connectors. The right hand side LED indicates link mode, it lights in orange whenever linking to network. The left
hand side LED indicates the transfer mode and it lights in green when data is transferring in 100Mbps (never lights while in 10Mbps), but
lights in orange when transferring in Gigabit’s mode. To enable or disable this function, you may simply adjust it through BIOS.
Linking (Right)
Orange
Transferring (Left)
Green 100Mbps
Orange Gigabit
50
AX4SG Max
Online Manual
Support USB 2.0 Ports
This motherboard provides eight USB 2.0 ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There is one USB
connector on the board for you to connect two USB devices and six other ports on the back panel. You can use proper cables to connect
USB devices from back panel or connect the front USB connector to the front panel of chassis.
Compared to traditional USB 1.0/1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps which is 40 times faster than
the traditional one. Except for the speed increase, USB 2.0 supports old USB 1.0/1.1 software and peripherals, offering impressive and
even better compatibility to customers. On this motherboard, all eight ports support USB 2.0 function.
1
+5V
SBD6SBD6+
GND
KEY
+5V
SBD7SBD7+
GND
NC
Pin 1
USB 2.0 Connector
Note: Please note that if you would like to use
USB devices (Example: keyboard, mouse etc.)
under DOS environment, you must install driver
that comes with the devices to make it work.
51
AX4SG Max
Online Manual
IEEE 1394 Connectors
With IEEE1394 MAC Embedded in Intel ICH5R (with AGERE FW323), the IEEE 1394 provides data transfer rate up to 400Mb/s, and USB
1.0/1.1 just has 12Mbps. Hence, the IEEE 1394 interface can connect with the devices that need high data transferring performance, such
as digital camera, scanner or others IEEE 1394 devices. Please use the proper cable to connect with devices.
10
9
SHIED GND
+12V (Fused)
+12V (Fused)
TPB-
TPB+
GND
GND
TPA-
TPA+
2
Pin 1
1
Pin 1
Warning: Please be noted that
Hot-Plug in is not allowed on
IEEE 1394 header, because it
IEEE 1394
Port 1 & 2
will burn the IC of the controller
and damage the motherboard.
52
AX4SG Max
Online Manual
COM2 Connector
This motherboard provides two serial ports. One of them is on back panel connector, and the other is on the upper left of board. With proper
cable, you can connect it to the back panel of chassis.
Pin 1
1
DCD#
SOUT
GND
RI#
RTS#
2
SIN
DTR#
DSR#
CTS#
COM2 Connector
53
AX4SG Max
Online Manual
Game Port Bracket Supported
This motherboard comes with a game port (Joystick-Midi) for you to connect any midi devices or joysticks. To use this function you have to
have a joystick module and connect it with a game port cable to this port on the motherboard.
Joystick Module
(User Upgrade Optional)
Pin1
Game Port Connector
1
+5V
JAB1
JACX
GND
GND
JACY
JAB2
+5V
+5V
JBB1
JBCX
MIDI_TXD
JBCY
JBB2
MIDI_RXD
KEY
Note: This picture is for example only; it may not exactly look the same with the motherboard you purchased.
54
AX4SG Max
Online Manual
Color Coded Back Panel
The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, RJ-45 LAN Connector, COM1, VGA port, Printer, USB, AC97 sound and game
ports. The view angle of drawing shown here is from the back panel of the housing.
PS/2 Mouse
Connector
USB 2.0
Ports
SPP/EPP/ECP
Parallel Port
RJ-45 LAN
Connector
Line-In
Speaker Out
MIC-In
PS/2 Keyboard
Connector
PS/2 Keyboard:
PS/2 Mouse:
USB Port:
Parallel Port:
COM1 Port:
RJ-45 LAN connector
VGA Connector:
Speaker Out:
Line-In:
MIC-In:
COM 1 Port
VGA Port
USB 2.0 Ports
For standard keyboard, which use a PS/2 plug.
For PC-Mouse, which use a PS/2 plug.
Available for connecting USB devices.
To connect with SPP/ECP/EPP printer.
To connect with pointing devices, modem or others serial devices.
To connect Ethernet for home or office use.
To connect with PC monitor.
To External Speaker, Earphone or Amplifier.
Comes from the signal sources, such as CD/Tape player.
From Microphone.
55
AX4SG Max
Online Manual
S/PDIF (Sony/Philips Digital Interface) Connector
S/PDIF (Sony/Philips Digital Interface) is a latest audio transfer file format that provides impressive quality through optical fiber and allows
you to enjoy digital audio instead of analog. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common
one used for consumer audio products, and the other for optical connector with a even better audio quality. Through a specific audio cable,
you can connect the S/PDIF connector to a S/PDIF audio module bearing S/PDIF digital output. However, you must have a S/PDIF
supported speaker with S/PDIF digital input to make the most of this function.
S/PDIF OUT
Pin 1
S/PDIF Cable
S/PDIF IN
S/PDIF OUT
S/PDIF IN
(Optical)
S/PDIF Connector
S/PDIF Module
(User Upgrade Optional)
1
5
+5V
NC
SPDIFOUT
GND
SPDIFIN
56
AX4SG Max
Online Manual
Super 5.1 Channel Audio Effect
This motherboard comes with an ALC650E CODEC, which supports high quality of 5.1 Channel audio effects, bringing you a brand new
audio experience. On the strength of the innovative design of ALC650, you're able to use standard line-jacks for surround audio output
without connecting any external module. To apply this function, you have to install the audio driver in the Bonus Pack CD as well as an
audio application supporting 5.1 Channel. Picture bellow represents the standard location of all speakers in 5.1 Channel sound tracks.
Please connect the plug of your front speakers to the green “Speaker out” port, rear speakers’ plug to the blue “Line in” port and both of the
center and subwoofer speakers to the red “MIC in” port.
57
AX4SG Max
Online Manual
Front Audio Connector
If the housing has been designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this
connector. By the way, please remove the jumper cap from the Front Audio Connector before you connect the cable. Do not remove this
yellow jumper cap if your housing doesn’t have an audio port on the front panel.
Pin 1
1
AUD_MIC
AUD_MIC_BIAS
AUD_FPOUT_R
NC
AUD_FPOUT_L
AUD_GND
AUD_VCC
AUD_RET_R
KEY
AUD_RET_L
Front Audio Connector
Note: Please remove the jumper cap from the front audio connector before you
connect the cable. Do not remove this yellow jumper cap if your housing doesn’t
have an audio port on the front panel.
58
AX4SG Max
Online Manual
Die-Hard BIOS II
Inherited DieHard BIOS, the steps of rescuing your crashed BIOS 1 back to life is the same. First step is to set JP24 to Pin2-3 to boot up
the system with BIOS 2. After that, please set the JP24 back to Pin1-2, go to AOpen website to get your BIOS version suited for your
motherboard, and have it downloaded. There are two kinds of ways to flash the BIOS 1; you may flash it under Window environment with
EZWinflash or under DOS system. To flash under Window environment is easy; you may just download the BIOS version and implement it
with EZWinflash. For Flashing BIOS under DOS system, please unzip the BIOS version after downloading from website, and execute it
under DOS. These two versions of BIOS have been provided on our website for your downloading. DieHard BIOS II is further enhanced
with data saving function. In addition to read-only ROM, DieHard BIOS II allows you to turn your second ROM into a Read-and-write ROM
with larger space provided. You may download fancy skins from our website (http://download.aopen.com.tw/downloads) to apply them on
JukeBox, JukeBox FM or VividBIOS by adjusting JP25 to Pin2-3 (No Protection).
1
1
JP24
Normal
Rescue ROM
Pin1
JP24
Note: Please be noted that you will not be able to
use the second BIOS ROM for boot-up after setting
JP25 to Pin 2-3 for the purpose of saving skins of
JukeBox, JukeBox FM or VividBIOS.
59
AX4SG Max
Online Manual
JP15/JP16 Dr. Voice Language Select Jumpers
Dr. Voice is a great feature of AX4SGMax, which can identify the problems you may encounter in the operating system. It can
clearly “tell you” whether the problem is caused from components or improper installation such as CPU, memory module, VGA,
PCI add-on card, FDD, HDD or keyboard. Dr. Voice provides four language versions: English, German, Japanese and Chinese.
You can select your preferred language by JP15 & JP16 jumpers. However, you may also set JP2 to choose making out voices
from buzzer or speaker.
JP15
JP16
Pin1
Pin1
Dr. Voice Language
Select Jumper
JP15
JP16
English
(Default)
Japanese
Chinese
German
Pin1
Pin1
60
AX4SG Max
Online Manual
JP2 Speaker Output Jumper
This motherboard comes with another considerate option that allows you to turn off the voice from buzzer and speaker. You can choose not
to be bothered by the warning made from Dr. Voice when it detects any error in operating system. You may also set JP2 to choose sending
out voices from buzzer or speaker.
Pin 1
JP2 Speaker Output Jumper
61
1
1
Buzzer
(default)
Speaker
AX4SG Max
Online Manual
CD Audio Connector
This connector is used to connect CD Audio cable from CDROM or DVD drive to onboard sound.
L
GND
GND
R
CD-IN Connector
Note: Though some of the latest versions of Windows
support “Digital Audio” through IDE bus. However, in
order to use Open Jukebox player, which is driven under
BIOS, it is a MUST to connect audio cable to CD-IN
connector on the motherboard.
62
AX4SG Max
Online Manual
AUX-IN Connector
This connector is used to connect MPEG Audio cable from MPEG card to onboard sound.
L
GND
GND
R
AUX-IN Connector
63
AX4SG Max
Online Manual
Case Open Connector
The “CASE OPEN” header provides chassis intrusion-monitoring function. To make this function works, you have to enable it in the system
BIOS, connect this header to a sensor somewhere on the chassis. So, whenever the sensor is triggered by lights or by the opening of the
chassis, the system will beep to inform you. Please be informed that this useful function only applies to advanced chassis, you may
purchase an extra sensor, attach it on your chassis, and make a good use of this function.
Pin 1
1
GND
Sensor
Case Open Connector
64
AX4SG Max
Online Manual
STBY LED (Standby LED)
STBY LED is AOpen’s considerate design that we aim at providing you friendly system information. The STBY LED will light up when power
is provided to the motherboard. This is a convenient indication for you to check the system power status in many circumstances such as
power on/off, stand-by mode and RAM power status during Suspend to RAM mode.
STBY LED
Warning: Do not install or remove the
DIMM module or others devices when the
STBY LED lights on.
65
AX4SG Max
Online Manual
Resetable Fuse
Traditional motherboard uses fuses to prevent Keyboard and USB port from over-current or shortage. These fuses are soldered onboard
that when it is broken (function to protect motherboard), user cannot replace them and result in malfunction of motherboard.
With expensive Resetable Fuse, the motherboard can be resumed back to normal function even after the fuse had done its protection job.
Resetable Fuse
66
AX4SG Max
Online Manual
Enlarged Aluminum Heatsink
Cool down CPU and Chipset are important for system reliability. Enlarged aluminum heat sink provides better heat consumption especially
when you are trying to over-clock the CPU.
67
AX4SG Max
Online Manual
Low ESR Capacitor
The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the stability of
CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail calculation.
Not only that, AX4SG Max implements 3300μF capacitors, which is much larger than normal capacitor (1000 & 1500μF) and it provides
better stability for CPU power.
68
AX4SG Max
Online Manual
V4 Power Engine
While the market are flooded with low quality, cost-down power materials on motherboard by treacherous manufacturers that subsequently
cause the stability of your system, unknown system crashing, overheating of your motherboard, we, AOpen have decided to maintain our
long-lasting reputation of refined manufacturer by keep providing solid materials on our products.
As if V6 engine gives more horsepower to your car driving on the road, so as motherboard needed to have stronger and more robust power
to protect your system. Adopted 4 parelelled PWM (Pulse Width Modulation) controller channels in 4-phase form, this motherboard provide
optimized power density, transient response and thermal performance for satisfying the increasing high CPU temperature. And one thing for
sure, 4-phase PWM controller would definitely be better for 3-phase PWM controller as the same theory of 3000c.c car would certainly be
better than 2000c.c car. Therefore, It is a must for motherboard these days to get prepared with stronger, more stable power.
If we take 60W power consumption shared by 3-phase PWM controller for example, testings shows that it transmits higher temperature to
its surrounding components and thus increasing the temperature of motherbaord, which is very frustrating for CPU overclocking or for
system stability concern at high loading. However, with 4-phase PWM controller implemented, voltage are averagely shared in 4-phase
PWM controller and transmit less temperature onto the board and thus cool down motherboard temperature, so as to protect your system.
69
AX4SG Max
Online Manual
Comprison Transient of 3-phase and 4-phase PWM
As test report shows, while most of the motherboards on the market are powered by 3-phase PWM controller, this motherboard does
comes with 4-phase PWM controller providing stronger power, and could lower down the temperature of motherboard from 15℃ to 30℃.
4-phase
Vcore tolerance of - 116 mv
3-phase
Vcore tolerance
顯示桌面.scf
of - 126 mv
4-Phase PWM
3-Phase PWM
Transient difference between 3-phas and 4-phase PWM
70
AX4SG Max
Online Manual
The noise is gone!! ---- SilentTek
As the clock of CPU keeps rocketing higher and higher, it inevitably brings higher heat and
system temperature in a relative way. The way we deal with this heat problem, however, is to
spare no effort to add one fan after another to protect our pampered system, expecting these
fans could cool down our machine as much as they could.
But at the same time, we believe that same users are affected terribly by the irritating noises of these fans while working with
their PC. As a matter of fact, we do not have to get our fans running at such a high speed in most cases; on the contrary, we
discovered that having your fans running
at appropriate time and speed not only
reduces the noise, but also consumes the
least power the system needs, so as to
prevent over-wasting of energy resource.
Today, AOpen Motherboard is honored to
bring you a new overall solution, SilentTek,
to make your system quiet. To collocate
with hardware circuit, BIOS and the utility
under
Windows,
SilentTek
combined
“Hardware-Status Monitoring”, “Overheat
Warning” and “Fan Speed Control” with
user-friendly interfaces to provide you a
perfect balance among noises, system
performance and stability.
71
AX4SG Max
Online Manual
In “Temp/Fan/Case” page, you may get aware of the
current temperature of CPU and the heat inside chassis.
Also, you can check if fans are running properly.
The first image you have here is the Voltage Status
page. You can find current status of all voltages and set
your expected margins of warning level.
You may check your
system voltage from the
indicating bar here.
Of course, you may set your
defaulted lowest margin for
your fans and SilentTek would
also pop up a message box to
alarm you when the fan is
rotating
slower
than
this
specified speed.
72
You may set the highest
margin of your CPU and
system
temperature
as
default, and SilentTek would
pop up a message box to alert
you with alarm when the
temperature goes beyond the
specified margin.
AX4SG Max
Online Manual
The following page is surely the most important part of this utility. You may control the rotation speed of specific fans that you have got the
options inside in this page.
1. Smart FAN Control: This is the default setting of
SilentTek and can be used for any branded computer
housing. With a special algorithm developed by AOpen,
the fan speed is automatically adjusted by the factors of
CPU and ambient temperature. Ease-of-use and trouble
free at your service.
2.
Fixed FAN Control: Under this setting, a desired fan
speed is set fixed when operating.
3.
Multiple Level Control: This is the most versatile
setting that allows you to set fan speed in relation to
temperature. You may find that this setting fits you best.
4.
AOpen Recommend Setting: This setting is designed
specifically for AOpen housing. A series of lab tests were
conducted under the real world scenario to determine
optimum fan speed to reduce noise level within CPU
working condition and temperature. Most of the time, the
fan would remain still when CPU is not fully utilized.
CD-ROM Rotation Speed Control: by enabling the CD-ROM
Note: Due to hundreds different brands of fan on the
Rotation Speed Control, you can adjust the rotation speed of your
market, inaccuracy may happen in some cases when you
CD-ROM. When you set the speed to high level, the CD-ROM will
had your rotation speed adjusted. It is still under the
work at its fastest speed and it will run at basic required speed
while you set the value to low speed.
criterion and please rest assured that it won’t cause any
problem to your system.
73
AX4SG Max
Online Manual
EzClock
Have you ever thought how great it would be if you can adjust the frequency setting on your motherboard under Windows environment
and be a real master of your system? Everybody knows that the ratio and frequency setting are key factors to influence the system
performance, however, it’s absolutely not an easy task for an amateur to adjust the setting value. On most traditional motherboards, you
have to get into BIOS screen for the frequency and
reboot the system again and again. But from now on,
you don’t have to surfer the boring stuffs anymore.
With brand-new and user-friendly EzClock that
AOpen specially designs for his users, you can adjust
those important values as you please and think of
suitable. This tailor-made EzClock allows you to set
the voltage and frequency of CPU, VGA, PCI and
memory under Windows environment as well as in
BIOS setting page; even better, those settings will be
displayed realtime. Having this handy EzClock, you
can monitor the system when you’re fine-tuning the
performance of your system. It provides you detailed
and necessary information. Now let’s take a look how
it works on utility, BIOS and POST.
74
AX4SG Max
Online Manual
How You Adjust the Settings in EzClock Utility
In EzClock utility, you can adjust CPU Front Side Bus (FSB), the voltage and frequency of VGA, AGP, PCI and DRAM. Besides, the
CPU related information such as CPU voltage, temperature and CPUFAN rotation speed will also be displayed on this utility.
CPU Color Bars:
The color bar will
light on and show
different colors as
values change. On
default values, it
will show green.
On the left circle area shows Ratio, FSB and frequency information
about CPU. When the values are set to factory default, the light on
the top and bottom of the circle will show green and it will vary as you
change these CPU settings.
CPU Ratio, FSB and frequency displaying area:
You can adjust CPU FSB here by entering preferred value.
On the right part of the panel is the section that you adjust the settings of
VGA, AGP, PCI and memory. To adjust the voltage and clock frequency of
those installments, you can press “-“ or “+” on corresponding items. The
color parts represent the situation of values. The higher value you set, the
light on the color bar goes to right and turns red. After finishing those value
settings, you can press “S” button on the upper right hand corner to save
changes to CMOS.
VGA, AGP, PCI and DRAM Voltage / Clock Area:
Pressing “_” and “+” buttons, you can adjust 75
the
voltage and clock frequency values of onboard
VGA, AGP, PCI and DRAM.
Control buttons:
“_” button allows you
to minimize the utility
and “X” button to close
the utility. Pressing
“Apply” button you can
save the changes to
CMOS.
AX4SG Max
Online Manual
On the bottom rectangular panel represents CPU fan speed, CPU voltage and CPU temperature. The three color bars on the right hand
side will light on according to operation temperature. Please refer to the picture shown above.
CPU Color Bars:
CPU Fan, Voltage and Temperature:
The color bars will light on
representing CPU fan speed, CPU
according to CPU operation
voltage and CPU temperature in
Celsius and Fahrenheit degrees.
temperature.
How You Adjust the Settings in BIOS
Apart from EzClock utility, the voltage and frequency values of CPU, PCI and memory can also be adjusted on BIOS page. By pressing
“+”, “-“, “PgUp” or “PgDn” keys, you can
adjust the frequency values of CPU Bus,
PCI Bus and DRAM.
Also, the same keys help you adjust the
voltage of CPU and DDR settings. Some
values may change while you adjust the
settings. You can press “F10” to save the
changes you’ve made.
Function Keys
Description
76
AX4SG Max
Online Manual
How Your Boot Screen Looks Like
After you finish setting BIOS, these setting values will
be displayed on the boot screen like the shown
picture here.
Every time you boot your system, both default and
current settings will pop up on the screen. Your
personal settings that had been adjusted earlier will
be highlighted; thus, you can have clear idea how
your system functions and monitor your system more
easily.
Current values of
your system
Default settings of this
The
motherboard
value you manually adjust
77
highlighted
setting
AX4SG Max
Online Manual
Hyper Threading Technology
What is Hyper-Threading?
Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads in
parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average improvement of
~40% in CPU resource utilization yields higher processing throughput.
How Hyper-Threading Works
A form of simultaneous multi-threading technology (SMT), Hyper-Threading technology allows multiple threads of software applications to
be run simultaneously on one processor by
duplicating the architectural state on each
processor while the same processor execution
resources
is
shared.
The
figure
below
represents how a Hyper-Threading based
processor
differentiates
multiprocessor.
The
a
left-hand
traditional
configuration
shows a traditional multiprocessor system with
two physical processors. Each processor has its
own independent execution resources and
architectural state. The right-hand configuration
represents an Intel Hyper-Threading technology
based
processor.
architectural
state
You
can
for
each
see
that
processor
the
is
duplicated, while the execution resources is
shared.
78
AX4SG Max
Online Manual
For multiprocessor-capable software applications, the Hyper-Threading based processor is considered two separate logical processors on
which the software applications can
run without modification. Also, each
logical
processor
interrupts
logical
responds
independently.
processor
can
to
The
first
track
one
software thread, while the second
logical
processor
software
thread
tracks
another
simultaneously.
Because the two threads share the
same execution resources, the second
thread can use resources that would
be otherwise idle if only one thread
was executing. This results in an
increased utilization of the execution
resources
processor.
within
each
physical
The figure below represents how
Hyper-Threading saves time when it
works. With two logical processors available on every single physical processor, multi-threaded applications can now take advantage of
thread-level parallelism on each physical processor for additional performance. As software applications continue to be optimized to take
greater advantage of processor parallelism, Hyper-Threading technology provides an additional boost for newer capabilities and the
growing needs of today’s users.
79
AX4SG Max
Online Manual
AOConfig Utility
AOpen always dedicated to provide users a much friendly computer environment. We now
bring you a comprehensive system detection utility. AOConfig is a Windows based utility with
user-friendly interface that allows users to obtain information of the operation system and
hardware such as motherboard, CPU, memory, PCI devices and IDE devices. The powerful utility also displays the version of BIOS and
firmware for your convenience of maintenance.
Moreover, AOConfig allows users to save information in *.BMP or *.TXT format which users may collect the system information in detail and
send them to AOpen directly for technical support or for further diagnose of system problems.
1.
2.
The system page shows the
detailed information of the
motherboard, operating
system, processor, and
BIOS version.
The PCI device page shows
the configurations of all PCI
devices installed in your
motherboard.
80
AX4SG Max
Online Manual
3.
This page presents the IDE
device information, such as
serial number, manufacturer,
firmware version, and capacity.
4. From this page, users can
obtain the technical support
information of AOpen. Moreover,
detailed information could be
saved in .bmp or .txt format.
NOTE:
AOConfig can be used under Windows 98SE/ME, NT4.0/2000, or Windows XP. Please also note that AOConfig can
only be operated in a system equipped with an AOpen motherboard. Before running AOConfig, all applications must
be closed.
81
AX4SG Max
Online Manual
RAID Introduction
What’s RAID?
Two major challenges facing the storage industry today are keeping pace with the increasing performance demands of computer systems
by improving disk I/O throughput and providing data accessibility in the face of hard disk failures.
The idea of RAID (Redundant Array of Independent Disks) was first introduced by David A. Patterson, Garth Gibson and Randy H. Katz at
the University California at Berkeley in 1988. RAID is a purpose of storing the same data in different places on multiple hard disks and
improves storage subsystem performance. The advantage of RAID is to provide better throughput performance and/or data fault tolerance.
Better performance is accomplished by sharing the workload in parallel among multiple physical hard drives. Fault-tolerance is achieved
through data redundant operation where if one (or more) drive fails or has a sector failure, a mirrored copy of the data can be found on
another drive(s).
A RAID appears to the operating system to be a single logical hard disk. The RAID controller manages how the data is stored and
accessed across the physical and logical arrays. The RAID controller help users to ensure that the operating system only sees the logical
drives and users do not need to worry about managing the complicated schema.
For optimal performance results, select identical hard drives to install in disk arrays. The drives’ matched performance allows the array to
function better as a single drive.
Warning: The Serial ATA RAID function
can be supported under Windows XP and
Windows .Net environments.
82
AX4SG Max
Online Manual
What are the RAID levels?
Striping / Span (RAID 0)
RAID level 0, which is the fastest drive array you can have, is a performance-oriented disk mapping method. The data in this array gets
written across a stripe or different disks for a faster transfer. This technique has striping but no redundancy of data. It offers the best
performance but no fault-tolerance. Reads and writes sector of data interleaved between multiple drives. When any disk member fails, it
affects the entire array. Performance is better than a single drive since the workload is balanced between the array members. This array
type is for high performance systems. Identical drives are recommended for performance as well as data storage efficiency. The disk array
data capacity is equal to the number of members times the smallest member capacity. For example, one 40GB and one 60GB drives will
form an 80GB (40GBx2) disk array.
Block 1
Block 1
Block 3
Block 2
Block 5
Block 3
Block 5
Block 7
Striping
Block 4
Block 2
Block 6
Block 4
Block 7
Block 6
Block 8
Block 8
Logical Drive
Physical Disks
83
AX4SG Max
Online Manual
Mirroring (RAID 1)
Block 1
RAID level 1 uses at least two duplicate hard drives and store the exact same
Block 2
blocks of information between them. This is the slowest form of fault
Block 3
tolerance because the data has to be replicated onto two disks at the same
time. However, this is the simplest way to provide high reliability.
Block 4
If one of the mirrored drives suffers a mechanical failure or does not respond,
the remaining drive will continue to serve and provide correct data. If one
drive has a physical sector error, the mirrored drive will continue to function.
Due to redundancy, the drive capacity of the array is half the total drive
Block 6
Block 2
Block 7
Block 3
80GB would have 40GB of usable storage. With drives of different capacities,
Block 4
there may be unused capacity on the larger drive. RAID 1 increases cost as it
takes twice as much hard drives to build our arrays.
Block 5
Block 6
Block 7
Block 8
Logical Drive
Mirroring
capacity. For example, two 40GB drives that have a combined capacity of
Block 5
Block 1
Block 8
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 7
Block 8
Physical Disks
84
AX4SG Max
Online Manual
Striping with Mirroring (RAID 0+1)
As the name would suggest, RAID 0+1 is striping and mirroring combined. This RAID combines the best of both RAID 0 and RAID 1. It
takes a Disk stripe using two disks, and mirrors it to another set of disks for fault tolerance. Data is stripped across several disks, each disk
has partner with exactly the same data on it. You get the benefits of fast data access as in RAID 0, with the fault tolerance of RAID 1. This
configuration provides optimal speed and reliability. You need double the number of disks as a RAID 0, half for each side of the mirror. At
least 4 hard disks are needed while performing RAID 0+1. There is other RAID configurations in addition to those described here, but these
are the types most commonly used in the industry.
Block 1
Block 2
Block 3
Block 3
Block 5
Striping
Mirroring
Block 1
Block 1
Block 3
Block 5
Block 7
Block 6
Block 2
Block 2
Block 7
Block 4
Block 8
Block 6
Block 5
Logical Drive
Block 8
Physical Disks
85
Mirroring
Block 7
Block 4
Block 4
Block 6
Block 8
Physical Disks
AX4SG Max
Online Manual
HDD Capacity of RAID Levels
Striping / Span (RAID 0)
Striping with Mirroring (RAID 0 +1)
Striping
Physical Disks
40 GB
Physical Disks
40 GB
Logical Drive
80 GB
Physical Disks 40GB
Physical Disks 40 GB
Mirroring
Mirroring (RAID 1)
Physical Disks
40 GB
Physical Disks
40 GB
Logical Drive
80 GB
Logical Drive
40 GB
Physical Disks 40GB
Striping
86
Physical Disks 40 GB
Online Manual
AX4SG Max
Serial ATA RAID for Intel ICH5R
With the latest chipsets implemented, Intel ICH5R provides RAID 0, 1 function in Windows 2000/XP for the Serial ATA hard disks. You may
follow the steps shown below to setup your disk array.
Arouse RAID function in BIOS
After having properly installed your Serial ATA hard disks, you may directly get into the BIOS setting screen for adjustment. You may simply
press “Integrated Peripherals Æ On-Chip IDE Device Æ On-Chip Serial ATA” to choose Enhanced mode. In order to utilize Serial ATA
function, please select RAID in SATA Mode. Finally, do save the changes and exit BIOS setup screen.
87
AX4SG Max
Online Manual
RAID Configuration Utility
In order to make sure your system can recognize and operate Serial ATA RAID device smoothly, we have to enter RAID Configuration Utility
to do some configuration. After finishing the BIOS setup and reboot, you will see [Press CTRL + I to enter configuration Utility] about half
way through the boot up. Please press these two buttons simultaneously. When you enter you will be presented with a screen as shown
below:
1.
Create RAID Volume:
This section allows users to choose the strip
size and disk volume of RAID.
2.
Delete RAID Volume:
This section allows users to delete the volume of
RAID. Please be noted that deleting a volume
will destroy volume data and cause any member
disks to become available as non-RAID disks.
3.
Reset Disks to Non-RAID:
Users can remove any internal RAID structures
from all RAID disks, including disks with working
volume. Select “Yes” will cause all data on any
disk to be lost.
88
AX4SG Max
Online Manual
Serial ATA RAID for Silicon Image 3112A
TM
Silicon Image’s SATARaid
provides Serial ATA Software RAID including Striping and Mirroring to enhance the industry’s first proven
PCI-to-SATA host controller product.
Standard with SATARaid software is a Graphical User Interface (GUI) that provides easy-to-use configurations for the different RAID
Sets supported.
Installing Drivers and SATARaid GUI in Windows 98SE/ME/2000/NT/XP
The driver is located on the provided floppy disk. Insert the floppy disk into the floppy disk drive and click Browse. Most floppy disk
drives are configured as [A:]. Choose the [A:] drive in your browser and the Si3112r.inf file for the SiI 3112. Select the file and click
Open.
For Windows NT system, please select the file Oemsetup.inf and click Open. The next window allows you to select which driver to install.
Select SiI 3112 Raid Controller and click on OK.
For Windows 98/ME, please use the driver installation files (siI3112r.sys) on the provided floppy disk if necessary.
Now, a window verifying that the new Driver for the board has been properly installed. Click Finish.
It is always good to restart the computer after an installation. When asked to do so, click yes.
To install SATARaid, use Windows InstallShield by performing the following:
1.
After computer restarts, insert CD in disk drive.
2.
Double-click on Install SATARaid.exe.
3.
Follow on-screen instructions to complete installation.
Note: Do NOT install in the Start Up folder. Choose the Default folder (normally Accessories or Administrative Tools or something
similar).
89
AX4SG Max
Online Manual
90
AX4SG Max
Online Manual
Creating and Deleting Raid Sets
Creating and Deleting RAID Sets is a function set in the BIOS and please press <CRTL-S> or F4 to enter RAID utility during boot.
Creating RAID Sets
1.
Select “Create RAID Set”.
2.
Choose either a “Striped” or “Mirrored” RAID Set.
3.
Select if you want the utility to Auto Configure the RAID Set or if you want to manually configure the RAID Set.
For Striped Sets, you can change the chunk size. For Mirrored Sets, you assign which is the Source and Target drives, as well as if you
want Disk Copy.
The utility will ask “Are You Sure?” before completing the configuration.
Deleting RAID Sets
1.
To remove one or more RAID sets, select “Delete RAID Set”.
2.
Select desired set and press Y when asked “Are You Sure?”
91
AX4SG Max
Online Manual
Creating and Naming Partitions
The creating and naming of partitions is something done within the Windows operating system. Windows XP/2000 and Windows NT
both use the Disk Management window to start this work. And Windows 98/ME uses FDISK to realize this function.
Windows XP/2000
SECTION 1: System listing of all formatted and available disks/RAID Sets.
SECTION 2: Report of physical connection of disks/RAID Sets.
SECTION 3: Report of partition status, disk letter, and volume name.
Windows NT
Button 1: opens the Disk Administrator Volumes window which lists the
recognizable Volumes, their capacity, free space, type of format, etc.
Button 2: opens the Disk Configuration window (shown above), detailing
all disks (or RAID Sets), partitions, and allows the user to format and
name each partition and volume.
Section 1: reports the size of each disk (or RAID Set).
Section 2: reports on each partition, and allows the user to format or
delete partitions.
92
AX4SG Max
Online Manual
Using Silicon Image SATARaid GUI
The SATARaid GUI offers the user the ability to easily monitor your RAID Set. To launch the GUI, simply double-click on the icon located in
the bottom right hand corner of the Desktop.
93
AX4SG Max
Online Manual
Phoenix-AWARD BIOS
System parameters can be modified by going into BIOS Setup menu, this menu allows you to configure the system parameters and save
the configuration into the 128 bytes CMOS area, (normally in the RTC chip or in the main chipset).
Phoenix-Award BIOS™ installed in the Flash ROM of the motherboard is a custom version of an industry standard BIOS. The BIOS
provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports.
Most BIOS settings of AX4SG Max have been optimized by AOpen’s R&D engineering team. But, the default setting of BIOS still can’t
fine-tune the chipset controlling entire system. Therefore, the rest of this chapter intends to guide you the process of configuring your
system setup.
To enter to BIOS setup menu, press <Del> when POST (Power-On Self Test) screen is shown on your monitor.
Note: Because the BIOS code is the most often
changed part of the motherboard design, the BIOS
information contained in this manual may be different
with actual BIOS that come with your motherboard.
94
AX4SG Max
Online Manual
How To Use Phoenix-Award™ BIOS Setup Program
Generally, you can use arrow keys to highlight items that you want to choose, then press <Enter> key to select, and use the <Page Up>
and <Page Down> key to change setting values. You can press <Esc> key to quit Phoenix-Award™ BIOS setup program. The following
table provides details about how to use keyboard in the Phoenix-Award™ BIOS setup program. Alternatively, it's strongly recommended to
install AOpen’s newest WinBIOS Utility to get more detailed description, further powerful functions and advanced setting of BIOS.
Key
Description
Page Up or +
Changing setting to next value or increase the value.
Page Down or -
Changing setting to previous value or decrease value.
Enter
Select the item.
Esc
1.
In main menu: Quit and don’t save any change.
2.
In sub menu: Exit current menu to main menu.
Up Arrow
Highlight previous item.
Down Arrow
Highlight next item.
Left Arrow
Move the light bar to left side of menu.
Right Arrow
Move the light bar to right side of menu.
F6
Load fail-save setting value from CMOS.
F7
Load turbo setting value from CMOS.
F10
Save changed setting and exit setup program.
95
AX4SG Max
Online Manual
How To Enter BIOS Setup
After you finish jumper settings and connect correct cables, power on and enter the BIOS Setup. Press <Del> during POST (Power-On Self
Test) and choose "Load Setup Defaults" for recommended optimal performance.
Del
Warning: Please avoid of using "Load Turbo Defaults", unless you
are sure your system components (CPU, DRAM, HDD, etc.) are
good enough for turbo setting.
96
AX4SG Max
Online Manual
Wi n B I O S U t i l i t y
In the past, users have to keep
punching the DEL key at a
good timing during POST (Power-On-Self-Test) screen to get
into the BIOS, which is inconvenient and clumsy. From now on,
AOpen provides an easier way to configure your BIOS. WinBIOS
is a customized utility for running exclusively on AOpen
motherboards, which allows you to setup your BIOS under
Windows environment. Designed with traditional-BIOS-alike
interface, you may adjust BIOS parameter with clear descriptions
for each item.
WinBIOS is natively designed with multi-language support. There
are various widely-use languages provided on our website for
your downloading, which also helps to prevent wrong settings
caused by misunderstanding of the languages. The only thing
you have to do is to visit our official website and download your
respective language pack (of few KB size), then double-click on it to activate the support with your chosen language.
Moreover, with high scalability, either for newly bought motherboard or the latest BIOS version with new function, you don’t have
to re-install the whole program again and again. All you have to do is to grab the latest profile from our website, simply
double-click on it as well to support the latest version of your BIOS. You don’t have to spend any extra effort to have your
motherboard supported by WinBIOS.
97
AX4SG Max
Online Manual
Function keys:
Hotkey
Function Description
It’s definitely easy to handle WinBIOS as if you’re using traditional
F1
Get help description.
F2
Item Help
F3
Changing menu language.
F5
Load previous setting
table may help you and save your time. Some settings may not come
F6
Load setup default setting
into effect until you reboot your system.
F7
Load turbo setting
F10
Save changed setting and exit setup program.
F12
Full Screen / Normal Mode
BIOS setting. Users can use the arrow keys such as
to move around the items in WinBIOS screen. And use
“+” or “-” to change the setting value if they are available. Press
,
to
get back to the previous screen. Furthermore, the hotkeys shown in the
Caution: After updating your BIOS, please remember to update
WinBIOS profile as well. If the upgraded BIOS version is newer
than WinBIOS profile, WinBIOS will not be able to launch and a
dialog box with error message will pop up. This verification is
designed on purpose to protect your BIOS from damaged by
wrong profile version.
For the latest WinBIOS profile and language pack modules, you may
find them from AOpen official web site as shown below:
(http://english.aopen.com.tw/tech/download/WinBIOS/default.htm)
Note: Due to BIOS versions are updated in an extremely fast speed, it's strongly recommended to download the latest BIOS
version and WinBIOS profile from our website upon receipt of the motherboard.
98
AX4SG Max
Online Manual
BIOS Upgrade under Windows environment
With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard ---EzWinFlash. With an eye to users convenience, EzWinFlash combines the BIOS binary code
and flash module together, so the only thing you have to do is just clicking on the utility you downloaded from web and let it helps you
complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your
system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be
using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or Windows XP.
In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have
multi-language function to provide easier way for users’ usage in changing BIOS setting.
Caution: By updating your motherboard,
you are taking a risk of BIOS flash failure. If
your motherboard is working stable, and
there are no major bugs that had been fixed
by a latter BIOS revision, we recommend
that you DO NOT try to upgrade your BIOS.
If you intent on upgrading, PLEASE BE
SURE to get the right BIOS revision for the
right motherboard model to avoid any
possibility failure.
99
AX4SG Max
Online Manual
You may accomplish BIOS upgrade procedure with EzWinFlash by the following steps, and it’s STRONGLY RECOMMENDED to close all
the applications before you start the upgrading.
1. Download the new version of BIOS package zip file from AOpen official web site. (ex: http://www.aopen.com)
2. Unzip the download BIOS package (ex: WSGMAX102.ZIP) with WinZip (http://www.winzip.com) in Windows environment.
3. Save the unzipped files into a folder, for example, WSGMAX102.EXE & WSGMAX102.BIN.
4. Double click on the WSGMAX102.EXE; EzWinFlash will detect the model name and BIOS version of your motherboard. If you had
got the wrong BIOS, you will not be allowed to proceed with the flash steps.
5. You may select preferred language in the main menu, then click [Start Flash] to start the BIOS upgrade procedure.
6. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. You may click
[YES] to reboot Windows.
7. Press <Del> at POST to enter BIOS setup; choose "Load Setup Defaults", then “Save & Exit Setup”. Done!
It is strongly recommended NOT to turn off the power or run any application during FLASH PROCESS.
Warning: The new BIOS upgrade will permanently replace your
original BIOS’s settings when flashing. You may need to reconfigure
your BIOS setting so that your system can go back to work as normal.
100
AX4SG Max
Online Manual
Vivid BIOS technology
Have you been fed up with the conservative and immutable POST screen? Let’s rule out the tradition
idea that POST screen are stiff and frigid, and let AOpen show you the newly developed VividBIOS to
experience the lively vivid colourful POST screen!
Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen VividBIOS deals
with graphics and texts separately, and makes them running simultaneously during POST. With this innovative design, VividBIOS now
brings you a beautiful and sleek 256 colours screen without missing any important information shown on POST screen.
In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show space-consuming and
uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the smaller-sized GIF format and even
dynamic-showing GIF animation.
Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player, you may use the same EzSkin utility to change your
Vivid BIOS screen or to download your favourite Open JukeBox skin. If you see this little logo
shown beside your model name on
the BIOS download page, http://english.aopen.com.tw/tech/download/skin, it is assured that your motherboard supports this
innovative feature!
101
AX4SG Max
Online Manual
Driver and Utility
There are motherboard drivers and utilities in AOpen Bonus CD. You don’t need to install all of them to boot your system. But after you
finish the hardware installation, you have to install your operation system first (such as Windows XP) before you install any drivers or
utilities. Please refer to your operation system’s installation guide.
Auto-run Menu from Bonus CD
You can use the auto-run menu of Bonus CD. Choose the utility and driver and select model name.
102
AX4SG Max
Online Manual
Installing Intel® Chipset Software Installation Utility
The Intel® Chipset Software Installation Utility should be installed onto the target system and the Windows * INF files outline the operating
system how the chipset components will be configured. It is recommended that the Intel® Chipset Software Installation utility be installed
onto the target system prior to the installation of other drivers.
103
AX4SG Max
Online Manual
Installing Intel Extreme Graphic Driver
You can install Intel Extreme graphic driver to get the best graphics function of the chipset. You can find it in the Bonus Pack CD disc.
104
AX4SG Max
Online Manual
Installing Onboard Sound Driver
This motherboard comes with AC97 CODEC. This audio driver supports Windows 98SE and upper Windows OS; you can find the audio
driver from the Bonus Pack CD auto-run menu.
105
Online Manual
AX4SG Max
Installing Intel Application Accelerator RAID Edition Driver in Windows
2000/XP
You can install Intel IAA RAID Edition Driver in Windows 2000/XP to increase the performance of software applications and reduce PC boot
times. The IAA RAID Edition is designed to provide functionality for the Intel ICH5R SATA RAID Controller. This product is available for use
on Pentium (R) 4 processor-based systems with an ICH5R I/O Controller Hub and running Microsoft Windows 2000/XP. Software
installation is flexible and fully automated for Windows 2000/XP. You can find it in the AOpen Bonus Pack.
106
AX4SG Max
Online Manual
Installing LAN Driver in Windows 2000/XP
This motherboard integrates BCM5705 Gigabit Ethernet Chip. You can find this driver from the Bonus Pack CD auto-run menu.
107
AX4SG Max
Online Manual
Install LAN Driver in Windows 98SE/ME
1. Open the Device Manager and check if there is a "PCI Ethernet Controller" in "Other devices"
2. Insert the supplied "Bonus CD"
Click "PCI Ethernet Controller " ->" Driver" -> "Update Driver" and Select "Install the software automatically (Recommended) " And then
Click "Next".
When prompted, insert the media to be searched into your CD-ROM drive, type the path to the driver, and select OK.
Example: e:\Driver\Lan\BCM5705 Where is the designation of the driver on your system.
In the Driver Files Search Results window, verify that the correct path to the driver software is shown, and then click Next
108
AX4SG Max
Online Manual
3. Then OS will request to insert the Bonus CD into CD-ROM Drive
109
AX4SG Max
Online Manual
4. Type the path of the BroadCom Ethernet driver and select "OK"
Example: e:\Driver\Lan\BCM5705 Where is the designation of the “b57w2k.sys “on your Bonus CD.
BroadCom Ethernet driver installation finish
110
AX4SG Max
Online Manual
Install LAN Driver in Windows NT 4.0
1.
Verify that the Windows NT system is upgraded with Service Pack 4 or later.
2.
Start your Windows NT system and log in. You must have System Administrator privileges to install the driver software.
3.
Open the Control Panel.
4.
In the Control Panel, double-click the Network icon.
5.
When the Network window opens, select the Adapters tab
6.
Click "Add" to install a new adapter. All previously installed drivers are listed under Network Adapters
111
AX4SG Max
Online Manual
7.
When the Select Network Adapter window opens, click "Have Disk"....
8.
When prompted, insert the driver installation media, or choose a location to install the driver from. Type the path to the driver, and click
"OK".
For example, to install the adapter driver software for Windows NT, type D:\Driver\Lan\BCM5705 in the Insert Disk location box (where
is the designation of the LAN driver on Bonus CD)
9.
With "Gigabit Ethernet Controller" highlighted in the Select OEM Option window, click "OK".
112
AX4SG Max
Online Manual
The adapter files are installed, and then the Network window is displayed showing the newly installed adapter
Click "Close", then the Microsoft TCP/IP Properties window appears.
Configure the TCP/IP protocol and click "OK". When prompted to restart your computer, click "Yes".
113
AX4SG Max
Online Manual
Installing USB 2.0 Driver
* Windows 98SE Installation Guide
***********************************************************
Installing Drivers during Windows 98SE Installation
***********************************************************
The following details the installation of the USB 2.0 driver while installing Windows 98SE (with the USB 2.0 controller is enabled already).
1. After enabling the USB 2.0 controller, install Windows 98/98SE normally.
2. After installation, go the "Start" menu and choose "Settings."
3. From the "Settings" menu, choose "Control Panel."
4. In the "Control Panel" window, double-click on the "System" icon.
5. In the "System" window, choose the "Device Manager" tab.
6. In the hierarchical display under "Other Devices" is a listing for "PCI Universal Serial Bus." Choose it and then press the "Properties"
button.
7.
Choose the "Driver" tab in the "Properties" window, choose "Update Driver," and then press "Next."
8.
Choose "Search for a better driver than the one your device is using now (recommended)," then press "Next."
9. Insert the "Bonus CD" in CD-ROM.
10. Choose "Specify a Location," and then type "[CD-ROM]:\Driver\Intel\USB2.0\Win98ME" in the text box
114
AX4SG Max
Online Manual
11. Press the "Next" button. A message informing you that Windows has found "Intel USB 2.0 Enhanced Host Controller" should appear.
12. Press "Next," then "Finish," then "Yes" when asked if you want to restart your computer.
115
AX4SG Max
Online Manual
*****************************************************
Installing Drivers with Existing Windows 98SE
*****************************************************
The following section details the installation of USB 2.0 driver on a system that has Windows 98SE already installed.
1. Enable the USB 2.0 controller and boot Windows.
2. The "Add New Hardware Wizard" will appear, informing you that it has found a "PCI Universal Serial Bus."
3. Click on "Next," and from the generated list box, choose "Search for best driver for your device (Recommended)".
4. Insert the "Bonus CD" in CD-ROM.
5. Click on "Next," and from the generated choices, choose "Specify a location."
6. Type "[CD-ROM]:\Driver\Intel\USB2.0\Win98ME" in the text box that appears.
7. Click on "Next." A message informing you that Windows has found "Intel USB 2.0 Enhanced Host Controller" should appear.
8. Click on "Next," and then on "Finish."
******************************************************
Confirming Driver Installation in Windows 98SE
******************************************************
To confirm that the driver has been properly loaded in Windows 98SE, perform the following steps:
116
AX4SG Max
Online Manual
1. Choose "Settings" from the "Start" menu.
2. Choose "Control Panel," and then double-click on the "System" icon.
3. Choose the "Device Manager" tab, and then click the "+" in front of "Universal Serial Bus Controllers." "Intel USB 2.0 Enhanced Host
Controller" should appear.
117
AX4SG Max
Online Manual
* Windows Me Installation Guide
********************************************************
Installing Drivers During Windows Me Installation
********************************************************
The following details the installation of the USB 2.0 driver while installing Windows Me (with the USB 2.0 controller is enabled already).
1. Install Windows Me fully.
2. After installation, go the "Start" menu and choose "Settings."
3. From the "Settings" menu, choose "Control Panel."
4. In the "Control Panel" window, double-click on the "System" icon.
5. In the "System" window, choose the "Device Manager" tab.
6. In the hierarchical display under "Other Devices" is a listing for "PCI Universal Serial Bus." Choose it and then press the "Properties"
button.
7.
Choose the "Driver" tab in the "Properties" window, choose "Update Driver," and then press "Next."
8.
Choose "Specify the location of the driver (Advanced)," then press "Next".
9. Insert the Bonus CD in CD-ROM.
10. Choose "Specify a Location," and then type "[CD-ROM]:\Driver\Intel\USB2.0\Win98ME" in the text box
11.
Press the "Next" button. A message informing you that Windows Me has found "Intel USB2.0 Enhanced Host Controller" should
appear.
118
AX4SG Max
12.
Online Manual
Press "Next," then "Finish".
119
AX4SG Max
Online Manual
************************************************************
Installing Drivers with Existing Windows Me System
************************************************************
The following section details the installation of USB 2.0 driver on a system that has Windows Me already installed and running.
1. After installing the USB 2.0 controller, boot system.
2. The "Add New Hardware Wizard" will appear, informing you that it has found a "PCI Universal Serial Bus."
3. Click on "Next," and from the generated list box, choose "Specify the location of the driver (Advanced)."
4. Click on "Next," and from the generated choices, choose "Specify a location."
5. Insert the Bonus CD in CD-ROM.
6. Type "[CD-ROM]:\Driver\Intel\USB2.0\Win98ME" in the text box that appears.
7. Click on "Next." A message informing you that Windows Me has found "Intel USB2.0 Enhanced Host Controller" should appear.
8. Click on "Next," and then on "Finish."
***************************************************
Confirming Driver Installation in Windows Me
***************************************************
To confirm that the driver has been properly loaded in Windows Me, perform the following steps:
120
AX4SG Max
Online Manual
1. Choose "Settings" from the "Start" menu.
2. Choose "Control Panel," and then double-click on the "System" icon.
3. Choose the "Device Manager" tab, and then click the "+" in front of "Universal Serial Bus Controllers." "Intel USB2.0 Enhanced Host
Controller" should appear.
121
AX4SG Max
Online Manual
* Windows 2000 Installation Guide
**********************************************************
Installing Drivers during Windows 2000 Installation
**********************************************************
The following details the installation of the USB 2.0 driver while installing Windows 2000 (with the USB 2.0 controller is enabled already).
1.
After enabling the USB 2.0 controller, install Windows 2000 normally.
2.
After installation, go the "Start" menu and choose "Settings."
3.
From the "Settings" menu, choose "Control Panel."
4.
In the "Control Panel" window, double-click on the "System" icon.
5.
In the "System" window, choose the "Hardware" tab.
6.
Press the "Device Manager..." button in the "Hardware" window.
7. In the hierarchical display under "Other Devices" is a listing for "Universal Serial Bus (USB) Controller". Choose it and then press the
mouse right button and click "Properties"
8.
Choose the "Driver" tab in the "Properties" window, choose "Update Driver," and then press "Next."
9.
Choose "Search for a suitable driver for my device (Recommended)". from the list, and then press "Enter".
10.
Choose "Specify a location." and then press "Next"
11. Insert the Bonus CD in CD-ROM.
12. Type "[CD-ROM]:\Driver\Intel\USB2.0\Win2000" in the text box that appears. Press " OK ".
13. Click on "Next." A message informing you that Windows has found "Intel PCI to USB Enhanced Host Controller - ICH5" should appear.
14. Click on "Next," and then on "Finish."
122
AX4SG Max
Online Manual
123
AX4SG Max
Online Manual
*********************************************************
Installing Driver in Existing Windows 2000 System
*********************************************************
After enabling the USB 2.0 controller and rebooting your system, Windows 2000 setup will show a "New Hardware Found" dialog box.
Under Windows 2000, "Universal Serial Bus (USB) Controller" will be displayed.
1. Choose "Search for a suitable driver for my device (Recommended)". from the list, and then press "Enter".
2. Choose "Specify a location." and then press "Next"
3. Insert the Bonus CD in CD-ROM.
4. Type "[CD-ROM]:\Driver\Intel\USB2.0\Win2000" in the text box that appears. Press " OK ".
5. Click on "Next." A message informing you that Windows has found "Intel PCI to USB Enhanced Host Controller - ICH5" should appear.
6. Click on "Next," and then on "Finish."
********************************************
Confirming Windows 2000 Installation
********************************************
1. From Windows 2000, open the Control Panel from "My Computer" followed by the System icon.
124
AX4SG Max
Online Manual
2. Choose the "Hardware" tab, and then click the "Device Manager" tab.
3. Click the "+" in front of "Universal Serial Bus controllers". "Intel PCI to USB Enhanced Host Controller - ICH5R" should appear.
125
AX4SG Max
Online Manual
Installing Silicon Image SiI3112A SATA Raid Driver
--------------------------------------------------------------------------------1) Windows NT 4.0 and Windows 2000/XP Fresh Installation
--------------------------------------------------------------------------------Follow the instructions in this section if you are performing a new installation of Windows NT 4.0 or Windows 2000/XP, and you wish to boot
from a device attached to the SiI 3112 controller.
1. Power off the system.
Connect the hard drives to the SiI 3112 controller and insert the controller into a PCI slot. Power up the system.
2. Put your Windows NT/2000/XP CD into the CD-ROM/DVD drive, or the NT/2000/XP boot diskette #1 in the floppy drive if your system
cannot boot from the CD.
3. Press F6 for third party SCSI or driver installation at the beginning of text mode installation. Press’s’ when setup asks if you want to
specify an additional device, and insert the diskette labeled 'Silicon Image SiI 3112 SATA Raid Driver Installation Disk' . Press 'Enter' and
select 'Silicon Image SiI 3112 SATA Raid Controller'
4. Press 'Enter' to continue on with text mode setup.
5. Follow the setup instructions to select your choice for partition and file system.
6. After setup examines your disks, it will copy files to Windows 2000 installation folders and restart the system. The setup program will
continue and finish the installation after Restart.
7. Wait until Windows 2000 finishes installing devices, regional settings, networking settings, components, and final set of tasks, reboot the
system if it is required.
8. See instructions in section 4 to verify controller was installed correctly.
126
AX4SG Max
Online Manual
---------------------------------------------------------------------------------------------------2) Adding the SiI RAID controller to an existing Windows NT 4.0 installation
---------------------------------------------------------------------------------------------------Follow the instructions in this section to install the Silicon Image SiI 3112 driver on a system already running Windows NT 4.0.
1. Power off the system.
Connect the hard drives to the SiI 3112 controller and insert the controller into a PCI slot. Power up the system.
2. After OS boots up, Click 'Start'
3. Under 'Settings', click 'Control Panel'.
4. Select 'SCSI Adapters' from the Control Panel.
5. Select the 'Drivers' tab and click 'Add'.
6. Click 'Have Disk'.
7. Insert the diskette labeled ' Silicon Image SiI 3112 SATA Raid Driver Installation Disk' into A: and press 'Enter'.
8. Choose 'Silicon Image SiI 3112 SATA Raid Controller' and click 'OK'.
9. See instructions in section 4 to verify controller was installed correctly.
-----------------------------------------------------------------------------------------------------3) Adding the SiI RAID controller to an existing Windows 2000/XP installation
-----------------------------------------------------------------------------------------------------Follow the instructions in this section to install the Silicon Image SiI 3112 driver on a system already running Windows 2000.
1.
Power off the system. Connect the hard drives to the SiI 3112 controller and insert the controller into a PCI slot. Power up the system.
127
AX4SG Max
Online Manual
2.
During OS boot up, Windows 2000 will display the 'Found New Hardware Wizard'. Click 'Next'.
3.
Select 'Search for a suitable driver for my device (Recommended)' and Click 'Next'.
4.
Under 'Optional search locations' insure that 'Floppy disk drives' is checked.
5.
Insert the diskette labeled ' Silicon Image SiI 3112 SATA Raid Driver Installation Disk’ into A: and click 'Next'.
6.
When the wizard indicates that it found a driver for the device click 'Next'.
7.
If the 'Digital Signature Not Found' dialog appears, click 'Yes' to continue installing the driver.
8.
The wizard will now copy the required files to the system and start the driver. After starting the driver the wizard will display a
completion dialog, click 'Finish' to exit the wizard.
9.
See instructions in section 4 to verify controller was installed correctly.
----------------------------------------------------------------------------------------4) Verifying controller installation under Windows NT, 2000 and XP
----------------------------------------------------------------------------------------Follow the instructions in this section to verify that the controller was installed correctly.
For Windows 2000/XP
1. Right click on 'My Computer' icon, select 'Properties', left click on 'Hardware' tab, and then on 'Device Manager' button.
2. Double click on 'SCSI and RAID Controllers', If there is no yellow '! 'or' ? 'in front of 'Silicon Image SiI 3112 SATA Raid Controller', the
driver is started correctly.
3. To view information about the devices attached to the controller, use the SiICfg Utility and click on the device from the list.
For Windows NT 4.0
128
AX4SG Max
Online Manual
1. Double click on 'My Computer' icon, select 'Control Panel', click on 'SCSI Adapters' icon, 'Silicon Image SiI 3112 SATA Raid Controller'
should displayed correctly under 'Device' and 'Driver' tab.
2. To view information about the devices attached to the controller, use the SiICfg Utility and click on the device from the list.
---------------------------------------------------------------------------------------------------------5) Update SiI RAID driver on Windows NT 4.0 with existing Silicon Image driver
---------------------------------------------------------------------------------------------------------1. After OS boots up, Click 'Start'
2. Under 'Settings', click 'Control Panel'.
3. Select 'SCSI Adapters' from the Control Panel.
4. Select the 'Drivers' tab and click 'Add'.
5. Click 'Have Disk'.
6. Insert the diskette labeled 'Silicon Image SiI 3112 SATA Raid Driver Installation Disk' into A: and press 'Enter'.
7. Choose 'Silicon Image SiI 3112 SATA Raid Controller' and click 'OK'.
8. Refer to instructions in section 4 to verify controller was installed correctly.
-----------------------------------------------------------------------------------------------------------6) Update SiI RAID driver on Windows 2000/XP with existing Silicon Image driver
------------------------------------------------------------------------------------------------------------
129
AX4SG Max
Online Manual
With the Silicon Image controller already plugged in and the driver already installed. Follow the instructions to update SiI RAID driver.
1. Right click on 'My Computer' and select 'Properties'. Under the 'System Properties' section, click on 'Hardware' tab, and then on 'Device
Manager' click 'SCSI and RAID Controller’ and right click 'Silicon Image Ultra-133 Medley ATA Raid Controller'.
2. Click 'Driver', 'Update Driver' and select 'Search for a suitable driver for my device [Recommended]'. Insert the driver diskette into floppy
drive. Click 'Next' and complete the driver installation.
3. System will go through the enumeration process and install the driver. At the end of the process, click 'Yes' to reboot your system when
necessary.
4. See instructions in section 4 to verify controller was installed correctly.
--------------------------------------------------------------------------------------7) Windows 98SE and Windows ME Fresh Installation Instructions
--------------------------------------------------------------------------------------Follow the instructions in this section if you are performing a new installation of Windows 98SE/ME and you wish to boot from a device
attached to the SiI 3112 controller.
You may start up the Windows 98SE/ME installation from CD. If either your Windows 98SE/ME CD or CD-ROM drive is not bootable, your
can start up with floppy diskettes.
1. Power off the system.
Connect the hard drives to the SiI RAID controller and insert the controller into a PCI slot. Power up the system
2. Put your Windows 98SE/ME CD into the CD-ROM/DVD drive, and the Windows 98SE/ME boot diskette in the floppy drive if your system
cannot boot from the CD.
3. Follow the normal Windows 98SE/ME setup instructions to select your choice for partition and file system.
4. Wait until Windows 98SE/ME finishes installing devices, regional settings, networking settings, components, and final set of tasks, reboot
130
AX4SG Max
Online Manual
the system.
5. After the system reboot, right click on 'My Computer' and select 'Properties'. From the 'System Properties' , select 'Device Manager', right
click on the '?PCI RAID controller' and select 'Properties' from the pop-up menu.
6. Click ‘Driver’,'Update Driver’ and select 'Automatic search for a better driver [Recommended]'. Insert the driver diskette into floppy drive.
Click 'Next' and complete the driver installation.
7. System will go through the enumeration process and install the driver. At the end of the process, click 'Yes' to reboot your system.
8. See instructions in section A to verify controller was installed correctly.
--------------------------------------------------------------------------------------------8) First time installing SiI RAID driver with existing Windows 98SE/ME
---------------------------------------------------------------------------------------------
If you have an existing Windows 98SE/ME system and just obtained a Silicon Image SiI 3112 controller card, you need to run the update
program to install Silicon Image driver. The driver package is located in the Silicon Image driver diskette or the diskette provided by OEM
vendor.
1. Power off the system.
Connect the hard drives to the SiI 3112 controller and insert the controller into a PCI slot. Power up the system.
2. During the system boot up, the Hardware Wizard will display that it found a ' PCI RAID Controller' , click ' Next' . Select ' Search for the
best driver for your device [Recommended]'
and click ' Next' .
3. Check the ' Floppy disk drives' and insert the driver diskette into floppy drive. Click ' Next' .
4. System will go through the enumeration process and install the driver. At the end of the process, Click ' Finish'
installation. Reboot the system if your Windows 98SE/ME drive is connected on the SiI RAID Controller.
131
to complete the
AX4SG Max
Online Manual
5. See instructions in section A to verify controller was installed correctly.
------------------------------------------------------------------------------------------------------------9) Update SiI RAID driver on Windows 98SE/ME with existing Silicon Image driver
------------------------------------------------------------------------------------------------------------With the Silicon Image controller already plugged in and the driver already installed. Follow the instructions to update SiI 3112 driver.
1. Right click on 'My Computer' and select 'Properties'. Under 'System Properties', click 'SCSI and RAID Controller' and right click 'Silicon
Image Ultra-133 Medley ATA Raid Controller'.
2. Click 'Driver', 'Update Driver' and select 'Automatic search for a better driver [Recommended]'. Insert the driver diskette into floppy drive.
Click 'Next' and complete the driver installation.
3. System will go through the enumeration process and install the driver. At the end of the process, click 'Yes' to reboot your system.
4. See instructions in section A to verify controller was installed correctly.
------------------------------------------------------------------A) Using Control Panel Utility (Windows 98SE/ME)
------------------------------------------------------------------Follow the instructions in this section to verify that the controller was installed correctly on Win98SE and Windows ME.
1. Right click on 'My Computer' icon, select 'Properties'. Click on 'Device Manager' tab.
2. Double click on 'SCSI and RAID Controllers', if there is no yellow '! ‘or ' ? ‘in front of 'Silicon Image SiI 3112 SATA Raid Controller', the
driver is started correctly.
3. To view information about the devices attached to the controller, use the SiICfg Utility and click on the device from the list.
132
AX4SG Max
Online Manual
G l os s a r y
AC97 COD EC
Basically, AC97 CODEC is the standard structure of PCI sound card. As we know, computer is digital-based, but music is based
on analog-based. Therefore, there must be a process to turn digital into analog during the last stage processing of sound in
computer. Hence, the component on sound card that play this important task is what we called CODEC.
Audio CODEC 97 (briefly called AC97) is the specification regulated by Intel, and it’s about the structure of audio conversion.
The special place about CODEC is that it is separated from sound card (CODEC is an independent chipset). Therefore, PCI
sound card could possess with 90db and do other application process as well. We called CODEC that meets this structure AC97
CODEC.
A C P I ( A dv a nce d C o nf i g ura t io n & P owe r In t e rf a ce)
ACPI is the power management specification of PC97 (1997). It intends to save more power by taking full control of power
management to operating system and bypass BIOS. The chipset or super I/O chip needs to provide standard register interface
to operating system (such as Windows 98). This is a bit similar as the PnP register interface. ACPI defines ATX momentary soft
power switch to control the power state transition.
A C R ( A dv an ced C o m mu n ica t io n R is er)
Building on the PC motherboard riser architecture, ACR slot is backward compatible with AMR but beyond the limitation of it.
The ACR specification is designed to support modem, audio, Local Area Network (LAN) and Digital Subscriber Line (DSL).
133
AX4SG Max
Online Manual
A GP ( A cc e l era t ed Gr ap h ic Po rt )
The main function of AGP simply put is to tell monitor what screen information had to be shown, a visual transmission device
actually. With the rapid developing of AGP card, we can see that it had been developed from single colorful AGP card to 2D and
3D graphic. AGP supports only memory read/write operation and single-master single-slave one-to-one only. Though AGP and
PCI share the same algorithm of 32-bit, its frequencies are 66MHz and 33MHz respectively.
AGP interface had been
developed from 2X to 8x.
1X AGP, data transfer rate is 66MHz x 4byte x 1 = 264MB/s
2X AGP, data transfer rate is 66MHz x 4byte x 2 = 528MB/s
4X AGP, data transfer rate is 66MHz x 4byte x 4 = 1056MB/s.
8X AGP, data transfer rate is 66MHz x 4byte x 8 = 2112MB/s.
A MR ( A u d i o / M o d e m R i s e r )
The CODEC circuit of AC97 sound/modem solution can be put on motherboard or put on a riser card (AMR card) that connects
to motherboard through AMR connector.
ATA (AT Attachment)
Before talking about ATA (AT Attachment), we must understand DMA (Direct Memory Access), which allows devices to skip the
CPU devices and access memory directly. DMA specification could not only eliminate the workload of CPU, but also accelerate
the transmission of data. DMA begins with a data transfer rate of 16.6MB/Sec, but afterward developed to new data rate of
33.3MB/Sec, which is twice the data rate and we called it Ultra DMA.
ATA details power and data signals between the drive
and integrated drive controller and the computer's motherboard. Two drives (master and slave) are supported. The ATA
specification allows the drive to connect directly to the ISA bus on the computer. ATA transfer rate then had been developed to
133MHz/Sec and would come out with fastest rate later (please refer to Serial ATA).
134
AX4SG Max
Online Manual
DMA, data transfer rate is 16.6MHz/s
Ultra DMA, data transfer rate is 16.6MHz x 2 = 33MB/s.
ATA/66, data transfer rate is 16.6MHz x 4 = 66MB/s.
ATA/100, data transfer rate is 16.6MHz x 6 = 100MB/s.
ATA/133, data transfer rate is 16.6MHz x 8 = 133MB/s.
(ATA/133 uses both rising edge and falling edge as ATA/66 but clock cycle time is reduced to 30ns.)
B IO S ( B as i c I np ut /O ut p ut Sys t e m)
BIOS, is a set of assembly routine/program that reside in EPROM or Flash ROM. BIOS controls Input/output devices and other
hardware devices of motherboard. In general, to provide hardware independent portability, operation system and drivers is
required to access BIOS without directly access hardware devices.
Bluet oo th
Bluetooth is a wireless transferring technology that enables short-range wireless connections between desktop and laptop
computers, personal digital assistants (PDAs), cellular phones, printers, scanners, digital cameras and even home
appliances. The principle of Bluetooth (a chipset) is to transfer information and voices at the frequency of ISM Band. Every
Bluetooth technology devices do come with a standard address for you to connect one-to-one or one-to-seven (to form a
Pico-net), with transferring range up to 10 meters (100 meters to follow), using low power radio. Bluetooth do not only possess
high transfer rate of 1MB/s, it also could be encrypted with pin code. With hopping rate of 1600 hops per second, it’s difficult to
be intercepted and are less interrupted by electromagnetic wave.
135
AX4SG Max
Online Manual
CNR (C o mmun icat ion a nd N etw or k ing R ise r)
The CNR specification provides the PC industry the opportunity to deliver a flexible and cost reduced method of implementing LAN,
home networking, DSL, USB, wireless, audio and modem subsystems widely used in today's "connected PCs". The CNR
specification is an open industry specification and is supported by OEMs, IHV card manufacturers, silicon supplier and Microsoft.
DDR (D o ub le D ata Rat e) RA M
DDR RAM utilizes the existing SDRAM (For ex, PC-100, PC-133) infrastructure and technology while doubling the nominal
bandwidth available to systems in an easy to design and simple to adopt way. Based on FSB frequency, DDR RAM on the market
are DDR200, DDR266 and DDR333 with more coming around soon.
DDR200,
DDR266,
DDR333,
DDR400,
transfer
transfer
transfer
transfer
bandwidth
bandwidth
bandwidth
bandwidth
up
up
up
up
to
to
to
to
200x64/8=1600MB/s
266x64/8=2100MB/s
333x64/8=2700MB/s
400x64/8=3200MB/s
(PC1600)
(PC2100)
(PC2700)
(PC3200)
EC C ( E rr or C hec k in g a nd C or re ct i on)
The ECC mode needs 8 ECC bits for 64-bit data. Each time memory is accessed; ECC bits are updated and checked by a special
algorithm. The ECC algorithm has the ability to detect double-bit error and automatically correct single-bit error while parity mode
can only detect single-bit error.
E E P R O M ( E l e c t r o n i c E r a s a b l e P r o g r a m m a b l e R O M)
2
Also known as E PROM. Both EEPROM and Flash ROM can be re-programmed by electronic signals, but the interface technology
is different. Size of EEPROM is much smaller than flash ROM.
136
AX4SG Max
Online Manual
E P R O M ( E r a s a b l e P r o g r a m m a b l e R O M)
Traditional motherboard stores BIOS code in EPROM. EPROM can only be erased by ultra-violet (UV) light. If BIOS has to be
upgraded, you need to remove EPROM from motherboard, clear by UV light, re-program, and then insert back.
E V6 B us
EV6 Bus is the technology of Alpha processor from Digital Equipment Corporation. EV6 bus uses both rising and falling clock edge
to transfer data, similar as DDR RAM or ATA/66 IDE bus.
EV6 Bus Speed = CPU external bus clock x 2.
200 MHz EV6 bus, 200MHz = 100 MHz external bus clock x 2
FC C D oC ( D ec la rat i on o f C on f o r m it y)
The DoC is component certification standard of FCC EMI regulations. This standard allows DIY component (such as motherboard)
to apply DoC label separately without a shielding of housing.
FC - PGA ( F l i p C h i p- P in Gr i d A r ray )
FC means Flip Chip, FC-PGA is a package of Intel for Pentium III for 0.18µm process CPU, which can be plugged into SKT370
socket.
FC - PGA 2 (F l i p C h i p- P i n Gr i d A r ray )
After FC-PGA, FC-PGA2 is the package for 0.13µm process CPU developed by Intel, which can be plugged into SKT423/478
socket as well.
137
AX4SG Max
Online Manual
F las h R O M
Flash ROM can be re-programmed by electronic signals. It is easier for BIOS to upgrade by a flash utility, but it is also easier to be
infected by virus. Because of increase of new functions, BIOS size is increased from 64KB to 512KB (4M bit).
H ype r T h rea d in g
Hyper-Threading technology is an innovative design from Intel that enables multi-threaded software applications to process threads
in parallel within each processor resulting in increased utilization of processor execution resources. As a result, an average
improvement of ~40% in CPU resource utilization yields higher processing throughput.
IEEE 13 94
IEEE 1394, which also called Firewire, is a serial data transfer protocol and interconnection system. The main feature of the
Firewire that assures its adoption for the digital video and audio (A/V) consumer application is its low cost. Fire wire interface is
capable of supporting various high-end digital A/V applications, such as consumer A/V device control and signal routing, Digital
Video (DV) editing, home networking, and more than 32 channels of digital mixing. Gone are those days of expensive video
capture cards. Firewire allows for video capture from both newer DV camcorders with Firewire ports and older analog equipment
using A/V to Firewire converters.
The advantages of the IEEE1394:
High data transfer rate – Start from 400 Mbps, (with 800/1600/3200 Mbps coming soon), which is about 30 times faster than USB
1.1.
Supports up to 63 devices (16 - daisy chained) with cable length up to about 4.5 m (14 feet).
Hot-pluggable (like USB). No need to turn of your device to connect or disconnect, and you don't need to reboot your PC. Also, it is
a plug-and-play bus.
IEEE1394 is very easy to connect (Like USB1.1/2/0).
138
AX4SG Max
Online Manual
Pa r it y B it
The parity mode uses 1 parity bit for each byte, normally it is even parity mode, that is, each time the memory data is updated,
parity bit will be adjusted to have even count "1" for each byte. When next time, if memory is read with odd number of "1", the parity
error is occurred and this is called single bit error detection.
PC I ( Pe r i ph era l C o mp o nen t In t er f a ce) B us
Developed by Intel, Peripheral Component Interconnect (PCI) is a local bus standard. A bus is a channel used to transfer data to
(input) and from (output) a computer and to or from a peripheral device. Most PCs have a PCI bus usually implemented at 32-bits
providing a 33 MHz clock speed with a throughput rate of 133 MBps.
PD F F or ma t
With PDF file, it is easy to do universal document exchange. Virtually any document may be converted in Portable Document
Format (PDF). Contents in PDF documents are exactly the same as the original file, including fonts and graphics, and they can be
distributed by e-mail or stored on the World Wide Web, an intranet, a file system, or a CD-ROM for other users to view on any
platforms. You may download Acrobat Reader in order to read PDF file from its website (www.adobe.com).
Pn P ( P l ug a nd P la y)
Oversimplified, Plug-and-Play automatically tells the software (device drivers) where to find various pieces of hardware (devices)
such as modems, network cards, sound cards, etc. Plug-and-Play's task is to match up physical devices with the software (device
drivers) that operates them and to establish channels of communication between each physical device and its driver.
139
AX4SG Max
Online Manual
POST (Power-On Self Test)
The BIOS self-test procedure after power-on, sometimes, it is the first or the second screen shown on your monitor during system
boot.
P SB ( Pr oc e sso r Sy st e m B us) C l oc k
PSB Clock means the external bus clock of CPU.
CPU internal clock = CPU PSB Clock x CPU Clock Ratio
R D R A M ( R a mb us D yn a m ic R an do m A c ces s Mem or y)
A DRAM technology developed by Rambus Corporation*, to achieve high speed of memory through the use of multiple channels in
parallel by 16-bits. Basically, RDRAM uses new structure of Multibank, which is quite different from FPM, EDO, SDRAM. Using
different memory module as well, RDRAM uses “RIMM” with transfer rate of 600/700/800MHz, providing bandwidth as high to
1.6GB.
R I MM ( R a m bus I n l i ne M em or y Mod u le)
184-pin memory module that supports RDRAM memory technology. A RIMM memory module may contain up to maximum of 16
RDRAM devices.
S D R A M ( S y n c h r o n o u s D R A M)
SDRAM is one of the DRAM technologies that allow DRAM to use the same clock as the CPU host bus (EDO and FPM are
asynchronous and do not have clock signal). It is similar as PBSRAM to use burst mode transfer. SDRAM comes in 64-bit 168-pin
DIMM and operates at 3.3V, and have been gradually replaced by DDR RAM.
140
AX4SG Max
Online Manual
SATA (Serial ATA)
The Serial ATA specification is designed to overcome speed limitations while enabling the storage interface to scale with the
growing media rate demands of PC platforms. Serial ATA is to replace parallel ATA with the compatibility with existing operating
systems and drivers, adding performance headroom for years to come. It is developed with data transfer rate of 150 Mbytes/second,
and 300M/bs, 600M/bs to come. It reduces voltage and pins count requirements and can be implemented with thin and easy to
route cables.
S MB u s ( S y s t e m M a n a g e m e n t B u s )
2
SMBus is also called I C bus. It is a two-wire bus developed for component communication (especially for semiconductor IC). For
example, set clock of clock generator for jumper-less motherboard. The data transfer rate of SMBus is only 100Kbit/s, it allows one
host to communicate with CPU and many masters and slaves to send/receive message.
S PD ( Se r ia l Pr es enc e D et ec t )
SPD is a small ROM or EEPROM device resided on the DIMM or RIMM. SPD stores memory module information such as DRAM
timing and chip parameters. SPD can be used by BIOS to decide best timing for this DIMM or RIMM.
U SB 2 . 0 ( U n iv er sa l Se r i al B us )
A Universal Serial Bus (USB) is an external bus (an interconnect) standard that supports data transfer rates of 12 Mbps. A single
USB port can be used to connect up to 127 peripheral devices, such as mouse, modems and keyboards. Introduced in 1996, USB
has completed replaced serial and parallel ports. It also supports plug-and-play installations and hot plugging Plug-and-play is the
ability to add and remove devices to a computer while the computer is running and have the operating system automatically
recognize the change. USB 2.0, which supports data transfer rates of 480 Mbps, has been widely used in motherboard these days.
141
AX4SG Max
Online Manual
VCM (Virtual Channel Memory)
NEC’s Virtual Channel Memory (VCM) is a new DRAM core architecture that dramatically improves the memory system’s ability to
service multimedia requirements. VCM increases memory bus efficiency and performance of any DRAM technology by providing a
set of fast static registers between the memory core and I/O pins. Using VCM technology results in reduced data access latency
and reduced power consumption.
Wireless LAN – 802.11b
802.11 is a specification developed by IEEE and Wireless LAN technology, which is an interface between a wireless client and a
base station or between two wireless clients.
802.11 families include the following specifications and with more coming:
802.11 = 1 or 2 Mbps transmission in the 2.4 GHz band, using either frequency hopping spread spectrum (FHSS) or direct
sequence spread spectrum (DSSS)).
802.11a = 54 Mbps in the 5GHz band, using orthogonal frequency division multiplexing)
802.11b (11 Mbps transmission in the 2.4 GHz band, using direct sequence spread spectrum (DSSS).
Z IP f i le
A compressed file format to reduce file size. To unzip file, run shareware PKUNZIP (http://www.pkware.com/) for DOS and other
operating system or WINZIP (http://www.winzip.com/) for windows environment.
142
AX4SG Max
Online Manual
Troubleshooting
If you encounter any trouble to boot you system, follow the procedures accordingly to resolve the problem.
Start
Turn off the power and unplug the AC power cable, then remove all of the add-on
cards and cables, including VGA, IDE, FDD, COM1, COM2 and printer.
Make sure if all jumper settings are correct.
Clear CMOS, then plug the ATX power cord correctly
(For P4 system, please also plug the 4pin(+12V) cord)
Next
143
AX4SG Max
Online Manual
Continue
Install the VGA card. Then connect your monitor and keyboard.
Turn on the power
Yes
and check if the power
No
supply and CPU fan work
properly.
The problem is probably caused by
power supply or motherboard failure.
Next
Please contact your reseller or local
distributor for repairing.
144
AX4SG Max
Online Manual
Continue
No
Check if there is display?
Perhaps your VGA card
or monitor is defective.
Yes
Press <Ctrl> and <Alt> key at the same time, hold them
and then press <Del> to reboot the system.
No
Check if the system
It is very possible that your
keyboard is defective.
reboots?
Yes
Next
145
AX4SG Max
Online Manual
Continue
During system rebooting, press <Del> to enter BIOS setup.
Choose “Load Setup Default”.
Turn off the system and re-connect IDE cable.
Check if the system can
No
reboot successfully?
Yes
Re-install the operating system such as Windows XP.
End
146
The problem should be
caused by the IDE cable
or HDD itself.
AX4SG Max
Online Manual
T e c h n ic a l S u p p or t
Dear Customer,
Thanks for choosing AOpen products. To provide the best and fastest service to our customer is our first priority. However, we
receive numerous emails and phone-calls worldwide everyday, it is very hard for us to serve everyone on time. We recommend
you follow the procedures below and seek help before contact us. With your help, we can then continue to provide the best
quality service to more customers.
Thanks very much for your understanding!
AOpen Technical Supporting Team
1
2
3
Online Manual: To download manual, please log on and then select your preferred language. Under “Type” directory,
4
Download Software: After log on and having language selected, you may get the latest updated BIOS/utility and
choose “Manuals” to go to our manual database. You can also find the manual and EIG in AOpen Bonus Pack.
http://download.aopen.com.tw/downloads
Test Report: We recommend you to choose board/card/device from the compatibility test reports for assembling
your PC. It may prevent incompatibility problems.
http://english.aopen.com.tw/tech/report/default.htm
FAQ: Here we list problems that users often encounter and FAQ (Frequently Asked Questions). You may be able to
find a solution to your problem.
http://club.aopen.com.tw/faq/
drivers you need under “Type” directory. In most case, newer versions of drivers and BIOS have solved earlier bugs
or compatibility problems.
http://download.aopen.com.tw/downloads
147
AX4SG Max
Online Manual
5
eForum: AOpen eForum is provided to discuss our products with other users, in which your problem probably had
6
Contact Distributors/Resellers: We sell our products through resellers and integrators. They should know your
7
Contact Us: Please prepare detail system configuration and error symptom before contacting us. The part number,
serial number and BIOS version are also very helpful.
been discussed before or will be answered. After log on, you may select your preferred language under
“Multi-language”.
http://club.aopen.com.tw/forum/
system configuration very well and should be able to solve your problem efficiently and provide important reference
for you.
148
AX4SG Max
Online Manual
Pa rt N u mbe r a nd Se r ia l N um be r
The Part Number and Serial number are printed on bar code label. You can find this bar code label on the outside packing, or on
component side of PCB. For example:
Part No.
Serial No.
P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.
149
AX4SG Max
Online Manual
Model name and BIOS version
Model name and BIOS version can be found on upper left corner of first boot screen (POST screen). For example:
AX4SG Max R1.00 Jun. 1. 2003 AOpen Inc.
Phoenix-Award Plug and Play BIOS Extension v1.0A
Copyright © 2003, Award Software, Inc.
AX4SG Max is model name of motherboard, R1.00 is BIOS version.
150
AX4SG Max
Online Manual
Product Registration
Thank you for choosing AOpen product. AOpen encourages you to spend few minutes in completing the following product registration. To
register your product will ensure the high quality of services from AOpen. After the registration, you will:
•
Have opportunities to play online slot machine and win a prize from AOpen by accumulating your bonuses for later prize
exchange.
•
Be upgraded to gold membership of Club AOpen program.
•
Receive email notification about product safety alerts. Its purpose is to alert consumers quickly and conveniently when products
contain technical issues.
•
Receive email notification about latest product's announcements.
•
Be able to personalize your AOpen web pages.
•
Receive e-mail notification about latest BIOS/Driver/Software release information.
•
Have opportunities to participate special product promotional programs.
•
Enjoy higher service priority to receive technical assistance provided by AOpen specialists worldwide.
•
Be able to join the discussions of web-based news groups.
AOpen makes sure that the information you provide is encrypted, so that it cannot be read or intercepted by other people or companies.
Further, AOpen will not disclose any of information you submitted under any conditions. Please consult our online privacy policy for further
information on our company policy.
Note: If registering products purchased from different
dealers/retails and/or purchased on different dates,
please submit a separate form for each product.
151
AX4SG Max
Online Manual
How to Contact Us
Please do not hesitate contact us if you have any problem about our products. Any opinion will be appreciated.
Pacific Rim
Europe
America
AOpen Inc.
AOpen Computer b.v.
AOpen America Inc.
Tel: 886-2-3789-5888
Tel: 31-73-645-9516
Tel: 1-510-498-8928
Fax: 886-2-3789-5899
Email: [email protected]
Fax: 1-408-922-2935
China
Germany
Japan
艾爾鵬國際貿易(上海)有限公司
AOpen Computer GmbH.
AOpen Japan Inc.
Tel: 86-21-6225-8622
Tel: 49-2131-1243-710
Tel: 81-048-290-1800
Fax: 86-21-6225-7926
Fax: 49-2131-1243-999
Fax: 81-048-290-1820
Web Site: http://www.aopen.com.tw
E-mail: Send us email by going through the contact form below.
English
http://english.aopen.com.tw/tech/default.htm
Japanese
http://www.aopen.co.jp/tech/default.htm
Chinese
http://www.aopen.com.tw/tech/default.htm
German
http://www.aopencom.de/tech/default.htm
Simplified Chinese
http://www.aopen.com.cn/tech/default.htm
152

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
