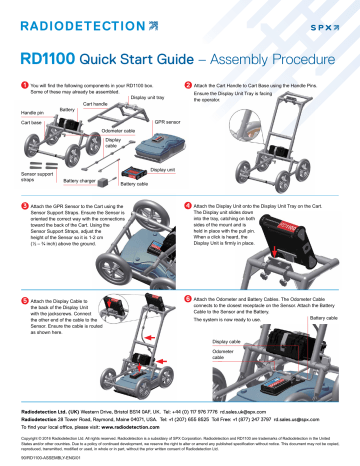

RD1100 Quick Start Guide – Assembly Procedure
1
You will find the following components in your RD1100 box.
Some of these may already be assembled.
Display unit tray
Cart handle
Battery
Handle pin
2
Attach the Cart Handle to Cart Base using the Handle Pins.
Ensure the Display Unit Tray is facing
the operator.
GPR sensor
Cart base
Odometer cable
Display
cable
Sensor support
straps
Display unit
Battery charger
Battery cable
3
Attach the GPR Sensor to the Cart using the
Sensor Support Straps. Ensure the Sensor is
oriented the correct way with the connections
toward the back of the Cart. Using the
Sensor Support Straps, adjust the
height of the Sensor so it is 1-2 cm
(½ – ¾ inch) above the ground.
5
Attach the Display Cable to
the back of the Display Unit
with the jackscrews. Connect
the other end of the cable to the
Sensor. Ensure the cable is routed
as shown here.
4
Attach the Display Unit onto the Display Unit Tray on the Cart.
The Display unit slides down
into the tray, catching on both
sides of the mount and is
held in place with the pull pin.
When a click is heard, the
Display Unit is firmly in place.
6
Attach the Odometer and Battery Cables. The Odometer Cable
connects to the closest receptacle on the Sensor. Attach the Battery
Cable to the Sensor and the Battery.
Battery cable
The system is now ready to use.
Display cable
Odometer
cable
Radiodetection Ltd. (UK) Western Drive, Bristol BS14 0AF, UK. Tel: +44 (0) 117 976 7776 [email protected]
Radiodetection 28 Tower Road, Raymond, Maine 04071, USA. Tel: +1 (207) 655 8525 Toll Free: +1 (877) 247 3797 [email protected]
To find your local office, please visit: www.radiodetection.com
Copyright © 2016 Radiodetection Ltd. All rights reserved. Radiodetection is a subsidiary of SPX Corporation. Radiodetection and RD1100 are trademarks of Radiodetection in the United
States and/or other countries. Due to a policy of continued development, we reserve the right to alter or amend any published specification without notice. This document may not be copied,
reproduced, transmitted, modified or used, in whole or in part, without the prior written consent of Radiodetection Ltd.
90/RD1100-ASSEMBLY-ENG/01
RD1100 Quick Start Guide – Operation
Start
To start the RD1100, press the power button on the Display Unit. The
first time you turn the system on, it will run through a start-up wizard to
configure the system, then it will restart. Once bootup is complete, and
every subsequent bootup, you will see the following screen:
You are ready to start collecting data by simply pushing the system.
The data scrolls from right to left.
When you cross an object of interest, move the system back along the
same path until the red vertical line is exactly over the response (typically
a hyperbola). Now the unit is physically over that object. You can put a
mark on the ground and continue surveying.
LED light
Power button
Swipe your finger from the top of the screen towards the bottom. This will
show a drop-down menu displaying date, battery level, GPS status and
Wi-Fi status. To close the drop-down menu, touch anywhere on the screen
below the menu.
The menu at the bottom of the screen allows you to change viewing
parameters, such as gain, filter, colour and zooming (for depth and
horizontal position).
Data Collection
From the main screen, press Start to start acquiring data.
Press the Camera button on the display unit to save an image of the data
on the screen. This is saved as a screenshot (.JPG) file. These images
can be accessed via the Screenshot Gallery from the main screen.
