Gigabyte GV-R9500 User Manual

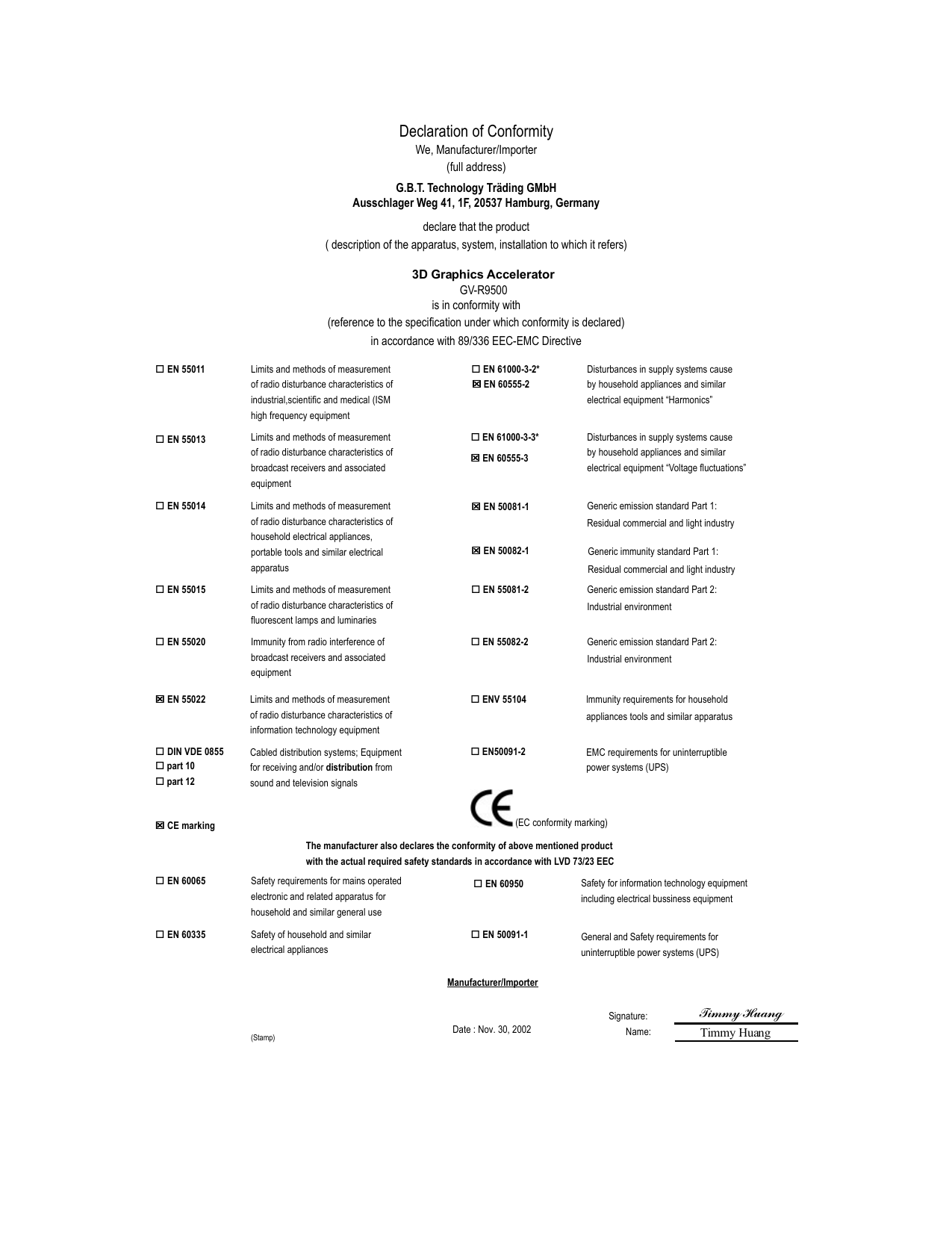

Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Technology Träding GMbH
Ausschlager Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
3D Graphics Accelerator
GV-R9500
is in conformity with
(reference to the specification under which conformity is declared)
in accordance with 89/336 EEC-EMC Directive
o EN 55011
Limits and methods of measurement
of radio disturbance characteristics of
o EN 61000-3-2*
7 EN 60555-2
industrial,scientific and medical (ISM
high frequency equipment
o EN 55013
Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment
o EN 55014
Limits and methods of measurement
electrical equipment “Harmonics”
o EN 61000-3-3*
7 EN 60555-3
7 EN 50081-1
of radio disturbance characteristics of
household electrical appliances,
o EN 55015
o EN 55020
electrical equipment “Voltage fluctuations”
Generic emission standard Part 1:
portable tools and similar electrical
apparatus
7 EN 50082-1
Generic immunity standard Part 1:
Limits and methods of measurement
of radio disturbance characteristics of
fluorescent lamps and luminaries
o EN 55081-2
Generic emission standard Part 2:
Immunity from radio interference of
o EN 55082-2
Residual commercial and light industry
Industrial environment
Limits and methods of measurement
Cabled distribution systems; Equipment
for receiving and/or distribution from
Generic emission standard Part 2:
Industrial environment
o ENV 55104
of radio disturbance characteristics of
information technology equipment
o DIN VDE 0855
o part 10
o part 12
Disturbances in supply systems cause
by household appliances and similar
Residual commercial and light industry
broadcast receivers and associated
equipment
7 EN 55022
Disturbances in supply systems cause
by household appliances and similar
lmmunity requirements for household
appliances tools and similar apparatus
o EN50091-2
EMC requirements for uninterruptible
power systems (UPS)
sound and television signals
(EC conformity marking)
7 CE marking
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
o EN 60065
Safety requirements for mains operated
electronic and related apparatus for
o EN 60950
Safety for information technology equipment
including electrical bussiness equipment
household and similar general use
o EN 60335
Safety of household and similar
electrical appliances
o EN 50091-1
General and Safety requirements for
uninterruptible power systems (UPS)
Manufacturer/Importer
Signature:
(Stamp)
Date : Nov. 30, 2002
Name:
Timmy Huang
Timmy Huang
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name: G.B.T. INC. (U.S.A.)
Address: 17358 Railroad Street
City of Industry, CA 91748
Phone/Fax No: (818) 854-9338/ (818) 854-9339
hereby declares that the product
Product Name: 3D Graphics Accelerator
Model Number: GV-R9500
Conforms to the following specifications:
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
Supplementary Information:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name: ERIC LU
Signature: Eric Lu
Date: Nov. 30, 2002
Radeon 9500 Graphics Accelerator
USER'S MANUAL
Rev. 103
12MD-R9500-103
Upgrade your Life
GV-R9500 Series
English
Chapter 1 User's Manual
Copyright
Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT") No part of this manual may
be reproduced or transmitted in any from without the expressed, written permission of
GBT.
Trademarks
Third-party brands and names are the property of their respective owners.
Notice
Due to rapid change in technology, some of the specifications might be out of date before
publication of this booklet.
The author assumes no responsibility for any errors or omissions which may appear in this
document nor does it make a commitment to update the information contained herein.
Please do not remove any labels on VGA card, this may void the warranty of this VGA card.
This product incorporates copyright protection technology that is protected by method
claims of certain U.S. patents and other intellectual property rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended for home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
Dec. 20, 2002 Taipei, Taiwan
GV-R9500 Series Graphics Accelerator
-2-
1. INTRODUCTION ................................................................................. 4
1.1. PREFACE .................................................................................................. 4
1.2. KEY FEATURES ........................................................................................ 4
2. HARDWARE INSTALLATION .............................................................. 5
2.1. UNPACKING .............................................................................................. 5
2.2. BOARD LAYOUT ........................................................................................ 6
2.3. HARDWARE INSTALLATION ..................................................................... 8
3. SOFTWARE INSTALLATION ............................................................ 10
3.1. WINDOWS® 98 /98SE / WINDOWS® ME / WINDOWS® XP DRIVER
AND UTILITIES INSTALLATION ............................................................... 10
3.1.1. Operating system requirement ....................................................................................... 10
3.1.2. DirectX Installation ........................................................................................................... 11
3.1.3. Driver Installation ............................................................................................................ 13
3.1.4. Utilities on driver CD ....................................................................................................... 16
3.1.5. Taskbar Icon .................................................................................................................... 19
3.1.6. Display Properties pages ................................................................................................ 23
3.2. WINDOWS 2000 DRIVER INSTALLATION .............................................. 32
3.3. BIOS FLASH UTILITY .............................................................................. 32
4. Troubleshooting Tips ......................................................................... 33
5. Appendix ........................................................................................... 34
5.1. How to reflash the BIOS ........................................................................... 34
5.2. Resolutions and Color Depth Table (In Windows® XP) ............................. 36
-3-
Table of Content
English
Table of Contents
English
1. INTRODUCTION
1.1. PREFACE
GV-R9500 Series features 4-pipeline architecture for twice the rendering power, 64MB/
128MB(C3) of memory to accelerate latest 3D games and new SMARTSHADER™ 2.0
technology supporting DirectX® 9.0 and the latest OpenGL® functionality to give developers
the freedom to create more complicated and realistic visual effects than ever before. GVR9500 Series supports the new AGP 8X standard, which allows large volumes of texture
and vertex data to be transferred faster from system memory to the chip.
1.2. KEY FEATURES
n
Powered by RADEON™ 9500 Visual Processing Unit (VPU)
n
Fully support DirectX® 9.0
n
Supports the new AGP 8X standard
n
4-pixel pipeline architecture
n
All new 128-bit memory interface
n
64MB / 128MB(C3) DDR memory accelerates the latest 3D games
n
First to use pixel shaders to accelerate video
n
DVI-I and TV-Out connector supported
GV-R9500 Series Graphics Accelerator
-4-
2.1. UNPACKING
The GV-R9500 Series package contains the following:
z
The GV-R9500 Series graphics accelerator
z
This USER'S MANUAL
The GV-R9500 Series Driver CD x 1
z
z
z
Power DVD XP CD x 1
Game CD x 3
z
One cable supports S-video and AV-Output; DVI-I to D-Sub connector
WARNING!
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against
damage from static electricity, you should follow some precautions whenever you work on
your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the
power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static
electricity, so the card should be left in its original packing until it is installed.
Unpacking and installation should be done on a grounded anti-static mat. The operator should
be wearing an anti-static wristband, grounded at the same point as the anti-static mat.
Inspect the card carton for obvious damage. Shipping and handling may cause damage to
your card. Be sure there are no shipping and handling damages on the card before proceeding.
0 DO NOT APPLY POWER TO YOUR SYSTEM IF IT HAS BEEN DAMAGED ON THE CARD.
0 In order to ensure your graphics card working correctly, please use official Gigabyte
BIOS only. Use none official gigabyte BIOS might cause problem on the graphics card.
-5-
Hardware Installation
English
2. HARDWARE INSTALLATION
English
2.2. BOARD LAYOUT
1) GV-R9500 (64MB DDR)
VGA Monitor
Connector
(15pin)
TV-Out
DVI Connector
Type A
VGA Monitor
Connector
(15pin)
TV-Out
DVI Connector
Type B
GV-R9500 Series Graphics Accelerator
-6-
English
2) GV-R9500-C3 (128MB DDR)
VGA Monitor
Connector
(15pin)
TV-Out
DVI Connector
OR
VGA Output
Analog LCD Monitor
Analog Monitor
VGA Monitor
Connector
(15pin)
AV Output
NTSC / PAL TV
TV-out
S-VideoOutput
Projector
DVI Output
DVI Connector
Digital LCD Monitor
OR
DVI-I to D-sub
Connector
VGA Output
Analog LCD Monitor
-7-
Hardware Installation
English
2.3. HARDWARE INSTALLATION
Installing Your Graphics card.
Now that you have prepared your computer, you are ready to install your graphics
accelerator card.
To install your graphics accelerator card:
1. Power off the computer and monitor, then
disconnect the display cable from the back
of your computer.
2. Remove the computer cover. If necessary,
consult your computer's manual for help
in removing the cover.
3. Remove any existing graphics card from
your computer.
Or, if your computer has any on-board
graphics capability, you may need to
disable it on the motherboard. For more
information, see you computer
documentation.
GV-R9500 Series Graphics Accelerator
-8-
English
4. Locate the AGP slot. If necessary, remove
the metal cover from this slot; then align
your Graphics card with the AGP slot, and
press it in firmly until the card is fully eated.
GV-R9500 Series Graphics card
AGP Slot
5. Replace the screw to fasten the card in
place, and replace the computer cover.
After installation, please connect the power cable to your
GV-R9500 Series graphics card, or system will not boot.
6. Plug the display cable into your card; then
turn on the computer and monitor.If your
Graphics card came with a DVI connector,
you can connect a flat panel display to the
appropriate connector, as shown below...
To TV or VCR
To Flat Panel Display
To VGA Monitor
You are now ready to proceed with the installation of the Graphics card driver. For detailed
instructions, select your operating system from the list below.
-9-
Hardware Installation
English
3. SOFTWARE INSTALLATION
In this manual, we assume that your CD-ROM Drive letter to be Drive D:
3.1. WINDOWS® 98 /98SE / WINDOWS® ME / WINDOWS® XP DRIVER
AND UTILITIES INSTALLATION
The installation of Win® 98/98SE / WINDOWS® 2000 / Win® ME / Win® XP drivers is very
simple. When you insert the driver CD into your CD-ROM drive, you can see the AUTORUN
window (if it does not show up, run "D:\setup.exe"). Then you can follow guides to setup
your GV-R9500 Series driver (Please follow the subsection 3.1.3 "Step By Step Installation"
to install the driver for your GV-R9500 Series graphics accelerator.
3.1.1. Operating system requirement
z If your OS is Microsoft Windows, when loading the GV-R9500 Series drivers for
the system, please make sure your system (Windows 98/98SE, Windows2000 or
Windows ME) has installed DirectX8.1 or later version.
z If you install the GV-R9500 Series drivers for the motherboard, which consist of
SIS, ALI or VIA chipsets, please install the appropriate Driver program for that
motherboard. Or please contact your motherboard nearest dealer for M/B Driver.
GV-R9500 Series Graphics Accelerator
- 10 -
Install Microsoft DirectX 8.1(or later version) to enable 3D hardware acceleration support
for Windows ® 98/98SE/ Windows ® 2000 or Windows ® ME to achieve better 3D
performence.
0 Note: For software MPEG support in Windows® 98/ 98SE/ Windows® 2000 or
Windows® ME, you must install DirectX8.1(or later version) first. (If your OS is
Windows® XP, please skip this section.)
Here we use DirectX 8.1 as installation example:
1. Install DirectX Driver:
Click "Install DirectX 8.1" Item.
2.Click "Yes" icon.
3.Click "Yes" icon.
- 11 -
Software Installation
English
3.1.2. DirectX Installation
English
4.Click "OK" item.
Then the DirectX 8.1 installation is completed.
GV-R9500 Series Graphics Accelerator
- 12 -
English
3.1.3. Driver Installation
The following is the step-by-step installation guide.
Step 1: New Hardware Found
After GV-R9500 Series is inserted into your computer at the first time, the windows will
automatically detect a new hardware in the system and pop out a "New Hardware Found"
message. Please select "Do not install a driver" and press OK.
Step 2: Update Device Driver Wizard: Standard PCI Graphics Adapter(VGA)
1.Click "Next" icon.
0Don't click "Cancel", because the
system will hang if you press it.
Step 3: Update Device Driver Wizard: Finish
At this time, system will ask for your Windows CD in order to complete the VGA driver
installation.
If you don't have the CD, you can press C:\Windows\System directory.
Step 4: System Setting Change
2.Click "Finish" icon.
- 13 -
Software Installation
English
3..Click "No" icon.
After the system has finished loading, insert the GV-R9500 Series driver CD disk into
your CD-ROM, and then you can see the AUTORUN window. If it does not show up,
please run "D:\setup.exe".
Step 5: Driver Setup
(Pictures below are shown in Windows XP)
1. Click "Install Display Drivers (Radeon
9500 Series)" item.
2.Click "Next".
GV-R9500 Series Graphics Accelerator
- 14 -
English
3.Click "Yes".
4. Click "Express" or "Custom" icon.
5. Click "Finish" to restart computer.
- 15 -
Software Installation
English
3.1.4. Utilities on driver CD
The utilities include Display Driver and V-Tuner utilities. Please follow the steps.
z Install V-Tuner :
1. Click "V-Tuner" item.
2.Click "Next".
3. Enter your name and company.
4. Click "Finish" to restart computer.
GV-R9500 Series Graphics Accelerator
- 16 -
English
z Install Hydravision :
1. Click "Hydravision Install" item.
2.Click "Next".
3.Click "Yes".
4.Click "Next".
- 17 -
Software Installation
English
5.Click "Next".
6. Click "Finish" to restart computer.
GV-R9500 Series Graphics Accelerator
- 18 -
After installation of the display drivers, you will find an GBT icon
on the taskbar's
status area. Right-clicking this icon opens the GBT control panel, showing a menu
composed of shortcute of the graphics card's enhanced and other functions.
You may click the "Display Properties" item, and then click Settings. Click "Advanced"
after clickng Settings. Click the appropriate tab to change your display settings.
Right click the icon.
You can link to GBT website for
updated information about the
graphics card, latest drivers,
and other information.
- 19 -
Software Installation
English
3.1.5. Taskbar Icon
English
V-Tuner (Overclock Utility)
V-Tuner lets you adjust the working frequency of the graphic engine and video memory
(Core Clock and Memory Clock)
Min V-Tuner
Display & Adjust
Close V-Tuner
Core Clock
Display Core Clock
Display Memory Clock
Display & Adjust
Memory Clock
Link to the Websit of Gigabyte
GV-R9500 Series Graphics Accelerator
Help Description Close V-Tuner To
system Tray
- 20 -
English
VGA Information
VGA Info lists the relevant information about your card.
Color Adjust
Color Adjust allows you to make color adjustments, such as brightness, contrast and
gamma values for each or all of RGB colors.
- 21 -
Software Installation
English
After installation of the display drivers, you will find an ATi icon
on the taskbar's status
area. Clicking this icon open the ATi control panel.
1.Rotate Screen
2.Using Single Display
HYDRAVISION™
HYDRAVISION™ and the Desktop Manager are activated whenever Windows® starts.
Installing HYDRAVISION™ adds menu options to the ATI Icon.
Click on the ATI icon to access the application's features and help, or to unload the
HYDRAVISION™ Desktop Manager.
3.Hydravision
HYDRAVISION™ is primarily software designed for multiple monitor settings. RADEON
9500 graphic cards that have more than one display output can benefit fully from this
software. A RADEON 9500 with only one display output can still take advantage of the
many features of HYDRAVISION™.
HYDRAVISION™ installation enables the Desktop Manager and creates a Windows®
program group for HYDRAVISION™ display management software.
GV-R9500 Series Graphics Accelerator
- 22 -
The screen shows the information of display adapter, color, the range of display area
and the refresh rate.
Settings (Resolutions and Color depth for windows)
The Setting properties page allows you to adjust the Direct 3D settings.
You can move the slider to the
change resolution.
You can click the item to change
the color depth.
Click "Advanced" icon for adapter and setting.
Click "Advanced", into details settings:
Options Properties
„ Version Information provides the Catalyst version
number, 2D version number and the driver build
information.
„ Details button access to the Details tab which lists the
card's hardware details and driver information.
„ Re-activate all warning messages allows you to
reactivate any disabled graphics warning messages.
„ Enable ATI taskbar icon application enables or disables
the ATI taskbar icon. However, this feature must be
enabled for ATI hotkey support.
„ Show ATI icon on taskbar adds or removes the ATI icon from the taskbar.
„ Disable quick resolution feature is accessible by left-clicking the ATI icon in the taskbar.
„ Reduce DVI frequency on high-resolution displays enables or disables to reduce the DVI
frequency when using high-resolution.
„ Alternate DVI operational mode enables or disables alternate DVI operational mode.
- 23 -
Software Installation
English
3.1.6. Display Properties pages
English
OpenGL Properties:
The OpenGL properties page gives you complete control of the OpenGL settings.
„ Main Settings slider
Moving the slider to the left will maximize application
performance, while moving the slider to the right will provide excellent 3D image quality. Moving this slider from one
position to the next changes the individual Custom Settings sliders found below.
z Custom Settings checkbox
When Custom Settings is checked, the Main Settings
slider is disabled, allowing you to move each individual
slider in the Custom Settings section below. Setting the
individual sliders gives you complete control over your
application experience. Using Custom Settings is recommended for advanced users only.
„ SMOOTHVISION II
z Anti-Aliasing checkbox improves image quality by removing jagged edges from 3D images,
resulting in smoother, more natural looking objects.
z Anti-Aliasing slider can be applied using different sample patterns and sample points such
as 2X, 4X, or 6X. Moving this slider to the right increases sampling to provide the most
realistic 3D image.
z Anisotropic Filtering checkbox uses a texture filtering technique that blends multiple
texture samples together. Selecting Application Preference will result in high quality textures,
with a negligible reduction in the application's performance.
z Anisotropic Filtering slider By moving this slider to the right, as the number of samples
taken increases, the quality of the final image increases significantly. 16X provides extremely
detailed,crisp-looking images as a result of the largest number of texture samples possible.
„ Texture Preference slider
Selecting this decides whether your application should use high quality or high performance
textures. Moving the slider to the right delivers the highest quality experience. Moving the slider
to the left emphasizes a high performance solution while still providing good visuals.
„ Mipmap Detail Level slider
This will allow you to choose the texture quality of the mipmaps the application will use. Mipmaps
are a collection of different sized textures of the same image. As the user moves closer to a 3D
object the image quality should increase, requiring a higher quality texture of the same image.
The base mipmap is the highest quality texture, and all subsequent mipmaps are smaller sized
GV-R9500 Series Graphics Accelerator
- 24 -
quality mipmap, delivering the highest application performance.
„ Wait for Vertical Sync
This will lower the frame rate of full screen games but reduce the image tearing that can occur
with the higher frame rate. Selecting Application Preference allows the application to decide
whether or not it should display its frames at the refresh rate of the monitor. Selecting Always
Off allows the application to run at its highest possible frame rate, regardless of the monitor’s
refresh rate which is typically less than the frame rate at which the application will run.
„ TRUFORM makes the curved surfaces of 3D objects look smoother and more lifelike.
„ Compatibility Settings button
This button allows you to access advanced settings that can solve compatibility issues for a few
specific OpenGL applications.
z Force Z-buffer depth allows you to explicitly set the ZBuffer depth. Most applications will work best when Disabled is selected.
z Support KTX buffer region extension Enabling this feature allows rapid updates of those portions of your screen
that have changed. Note that most applications will not be
affected by activating this feature.
z Defaults button allows you to reset the OpenGL Compatibility Settings to default values.
„ Defaults button
This button allows you to reset the OpenGL Settings to default values.
- 25 -
Software Installation
English
textures of the same image. Moving the slider to the right selects a higher quality base mipmap,
delivering the highest quality application experience. Moving the slider to the left selects a lower
English
Direct 3D Properties:
The Direct 3D properties page allows you to adjust the Direct 3D settings.
„ Main Settings slider
Moving the slider to the left will maximize application
performance, while moving the slider to the right will provide
excellent 3D image quality. Moving this slider from one position to the next changes the individual Custom Settings sliders found below.
z Custom Settings checkbox
When Custom Settings is checked, the Main Settings
slider is disabled, allowing you to move each individual
slider in the Custom Settings section below. Setting the
individual sliders gives you complete control over your application experience. Using Custom Settings is recommended for advanced users only.
„ SMOOTHVISION II
z Anti-Aliasing checkbox improves image quality by removing jagged edges from 3D images,
resulting in smoother, more naturallooking objects. Selecting Application Preference will
result in high quality images, with negligible reduction in the application's performance.
z Anti-Aliasing slider can be applied using different sample patterns and sample points such
as 2X, 4X, or 6X. Moving this slider to the right increases sampling to provide the most
realistic 3D image.
z Anisotropic Filtering checkbox uses a texture filtering technique that blends multiple texture samples together. Selecting Application Preference will result in high quality textures,
with a negligible reduction in the application's performance.
z Anisotropic Filtering slider By moving this slider to the right, as the number of samples
taken increases, the quality of the final image increases significantly. 16X provides extremely
detailed,crisp-looking images as a result of the largest number of texture samples possible.
„ Texture Preference slider
Selecting this decides whether your application should use high quality or high performance
textures. Moving the slider to the right delivers the highest quality experience. Moving the slider
to the left emphasizes a high performance solution while still providing good visuals.
„ Mipmap Detail Level slider
This will allow you to choose the texture quality of the mipmaps the application will use. Mipmaps
are a collection of different sized textures of the same image. As the user moves closer to a 3D
object the image quality should increase, requiring a higher quality texture of the same image.
The base mipmap is the highest quality texture, and all subsequent mipmaps are smaller sized
GV-R9500 Series Graphics Accelerator
- 26 -
quality mipmap, delivering the highest application performance.
„ Wait for Vertical Sync
This will lower the frame rate of full screen games but reduce the image tearing that can occur
with the higher frame rate. Selecting Application Preference allows the application to decide
whether or not it should display its frames at the refresh rate of the monitor. Selecting Always
Off allows the application to run at its highest possible frame rate, regardless of the monitor’s
refresh rate which is typically less than the frame rate at which the application will run.
„ TRUFORM makes the curved surfaces of 3D objects look smoother and more lifelike.
„ Compatibility Settings button
This button allows you to access advanced settings that can solve compatibility issues for a few
specific Direct 3D applications.
z Support DTX texture formats allows applications to use
this kind of texture format. There are a few applications
that can only support a limited number of texture formats.
By selecting Disabled, the driver will not support DTX texture formats, thus reducing the number of texture formats
supported.
z Alternate pixel center This may eliminate problems with
some Direct 3D games which display vertical and horizontal lines around textures, or text that appears incorrect.
However, this setting should only be used if you are experiencing the symptoms mentioned, as
it maycause problems with other games.
z Defaults button allows you to reset the Direct 3D Compatibility Settings to default values.
„ Defaults button
This button allows you to reset the Direct 3D Settings to default values.
- 27 -
Software Installation
English
textures of the same image. Moving the slider to the right selects a higher quality base mipmap,
delivering the highest quality application experience. Moving the slider to the left selects a lower
English
Color Properties:
The Color Properties is used to adjust the color settings. It also allows gamma control
for video playing of the Video Overlay. The color settings affect all display devices mapped
to the view. You can change red, green, and blue display colors. Set Desktop and Video
Overlay brightness (gamma) levels can also be changed.
„ Desktop brightness increases or decreases the color brightness of your desktop. The higher
the gamma value, the higher the brightness and contrast of your display.
„ Color Curve adjusts the selected color (red, green or blue) by moving the color curve with
your mouse.
„ Game Gamma button accesses Game Gamma properties.
„ Default resets the desktop brightness and color settings to the default values.
„ Red / Green / Blue sliders These controls allow you to increase or decrease the color brightness of Direct 3D and OpenGL games played in fullscreen mode.
(NOTE: Game Gamma is NOT supported in Windows NT4.0)
„ RGB Lock adjust the RGB sliders individually or adjust all three sliders at the same time.
„ Default resets the Game Gamma settings to the default values.
GV-R9500 Series Graphics Accelerator
- 28 -
Select Display Type
Enable / Disable "Extend my windows
desktop onto this monitor"
The Display tab provides the multi monitor features. Here you
can enable/disable display devices and swap the assignment
of Primary and Secondary displays.
Connecting your graphics card to a TV or VCR
To connect your GV-R9500/GV-R9500 PRO graphics card to a TV (or VCR), use an S-Video
cable. However, most TVs (and VCRs) have a Composite video input, in which case you can use
the supplied S-Video-to-Composite video adapter.
1. Turn off your computer and your television (or VCR).
2. Ensure your graphics card was installed correctly. (For information about placing the card in
your computer and installing the enhanced graphics driver, see the user's manual.)
3. Determine if your television (or VCR) has an S-Video or Composite video connection.
4. Looking at the back of your computer, locate your S-Video Out. Using an S-Video cable or the
supplied adapter cable, attach one end of the cable to your graphics card and the other to your
television (or VCR).
5. Turn on your television (or VCR) then your computer.
- 29 -
Software Installation
English
Display Properties:
If your VGA card is equipped with a S-Video connector, you can use a second output
device (e.q. a TV or a computer monitor) as part of your operating desktop extending
your desktop to second device or copying your desktop on the second device.
English
Overlay Properties:
The Overlay Properties is used to adjust the Brightness / Contrast / Saturation / Hue /
Gamma settings.
Overlay properties allows for the viewing of full-motion video on your PC. However, there is only
one video overlay, which is only available on the Primary display. The video overlay controls are
automatically activated during playback of any video file type that supports overlay adjustments.
„ Overlay Adjustments
z Brightness allows you to adjust the brightness of the
video image.
z Contrast allows you to adjust the contrast in the video
image.
z Saturation allows you to adjust the vividness of the
color. Sliding it all the way to the left removes all color
and produces a black and white picture.
z Hue allows you to adjust the pureness or tint of the red,
green and blue components of the color.
z Gamma allows you to adjust the overall intensity of the
video image.
„ Defaults button allows you to reset the Overlay settings to default values.
GV-R9500 Series Graphics Accelerator
- 30 -
„ Rotation
z Standard Landscape allows you to set the screen
at standard landscape.
z Rotate 90° Right allows you to rotate the screen
clockwise 90°.
z Rotate 180° allows you to rotate the screen 180°.
z Rotate 90° Left allows you to rotate the screen counterclockwise 90°.
„ Configure Hotkeys allows you to set the screen rotation by Hotkeys.
„ Defaults button allows you to reset the hotkey.
SMARTGART™ Properties:
The SMARTGART™ Properties ensures system stability by automatically performing a
variety of bus tests that determine your optimal graphics accelerator settings. Changing
these settings might result in system instability.
- 31 -
Software Installation
English
Rotation Properties:
The Rotation Properties is used to rotate the screen. If your monitor is capable of
operating in either Landscape or Portrait mode, you can adjust the screen by this
properties.
English
3.2. WINDOWS 2000 DRIVER INSTALLATION
Please make sure the Windows 2000 have installed Windows ® 2000 Service Pack version
2 (or later) before installing the graphics accelerator driver.
With Windows® 2000 running on your computer, you need to install the GV-R9500/GVR9500 PRO driver to take advantage of the higher performance, resolutions, and special
graphic features of the Graphics card. To ensure you install the latest driver, use the
Installation CD that shipped with your GV-R9500 Series Graphics card.
To install the GV-R9500 Series driver for Windows® 2000
1. Insert the INSTALLATION CD into your CD-ROM drive. If Windows® runs the CD
automatically.
2. Click Start.
3. Select Run.
4. Type the following:
D:\SETUP
(If D is not your CD-ROM drive, substitute D with the correct drive letter.)
5. Click "OK".
6. Click on "Install Display Drivers(Radeon 9000 Series)" to begin the Installation
Wizard.
7. Click "Next".
8. Click "Yes" to the license agreement.
9. Follow the Wizard's on-screen instructions to complete the installation.
3.3. BIOS FLASH UTILITY
GV-R9500 Series BIOS update procedure:
0Note: Please download the newest BIOS from our website (www.gigabyte.com.tw)
or contact your local dealer for the file.
0If you want to realize the BIOS flash information, please refer to detail on P.34
GV-R9500 Series Graphics Accelerator
- 32 -
The following troubleshooting tips may help if you experience problems. Contact your
dealer or GBT for more advanced troubleshooting information.
„ Check that the card is seated properly in the AGP slot.
„ Ensure that the display cable is securely fastened to the card's display connector.
„ Make sure that the monitor and computer are plugged in and receiving power.
„ If necessary, disable any built-in graphics capabilities on your motherboard. For
more information, consult your computer's manual or manufacturer.
(NOTE: Some manufacturers do not allow the built-in graphics to be disabled or to
become the secondary display.)
„ Make sure you selected the appropriate display device and graphics card when
you installed the graphics driver.
„ If you have problems during bootup, start your computer in Safe Mode. In Windows® 98 SE and Windows® Me, press and hold the CTRL key until the Microsoft®
Windows® Startup Menu appears on the screen. Then select the number for Safe
Mode, and press Enter. (You can also use F8 to bring up the Microsoft Windows®
Startup Menu.) In Safe Mode, bring up the Device Manager and check for duplicate display adapter and monitor entries if you are only using one graphics card.
„ For more assistance, use the Troubleshooting Guide located in the Windows® Help
or contact your computer manufacturer.
If necessary, adjust your monitor's setting by monitor's adjust panel to make the
screen looks focused, crisp, and sharp. (Please refer to the monitor’s manual.)
- 33 -
Troubleshooting Tips
English
4. Troubleshooting Tips
English
5. Appendix
5.1. How to reflash the BIOS
0We use GV-AR64SH VGA card and Atiflash BIOS flash utility as
example.
How to reflash the BIOS for your graphics card?
1. Extract the Zip file to the drive C: or A:
2. Restart your PC in MS-DOS mode
(This function only for Windows® 95 or Windows® 98 AIf your OS is Windows 2000 /
Windows Me / Windows XP. Aplease use the bootable disk to MS-DOS mode)
GV-R9500 Series Graphics Accelerator
- 34 -
English
3. Change the command path to the file location C:\> or A:\>
4. Reflash BIOS command as below : C:\> atiflash -p 0 <filename>
5. Reboot your PC when it's done.
- 35 -
Appendix
English
5.2. Resolutions and Color Depth Table (In Windows® XP)
Radeon 9500 2D Single Display Modes
Display
Refresh
Color Depth (bpp)
Screen
Resolution
Rate
(Hz)
8bpp(256 color)
Standard mode
16bpp(65K color)
High mode
32bpp(16.7M)
True mode
640 x 480
60
3
3
3
72
75
3
3
3
3
3
3
85
3
3
3
90
100
3
3
3
3
3
3
120
3
3
3
160
200
47
3
3
3 (interlaced)
3
3
3 (interlaced)
3
3
3 (interlaced)
56
60
70
3
3
3
3
3
3
3
3
3
72
75
3
3
3
3
3
3
85
90
100
3
3
3
3
3
3
3
3
3
120
160
200
43
60
70
72
75
85
90
100
120
150
160
200
3
3
3
3 (interlaced)
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3 (interlaced)
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3 (interlaced)
3
3
3
3
3
3
3
3
3
3
3
To be continued...
800 x 600
1024 x 768
GV-R9500 Series Graphics Accelerator
- 36 -
Refresh
Color Depth (bpp)
Screen
Rate
8bpp(256 color)
16bpp(65K color)
32bpp(16.7M)
Resolution
1152 x 864
(Hz)
43
Standard mode
3 (interlaced)
High mode
3 (interlaced)
True mode
3 (interlaced)
47
3 (interlaced)
3 (interlaced)
3 (interlaced)
60
3
3
3
70
75
3
3
3
3
3
3
85
100
3
3
3
3
3
3
56
3
3
3
60
75
3
3
3
3
3
3
85
60
3
3
3
3
3
3
70
72
3
3
3
3
3
3
75
85
100
3
3
3
3
3
3
3
3
3
120
160
43
3
3
3 (interlaced)
3
3
3 (interlaced)
3
3
3 (interlaced)
47
60
3 (interlaced)
3
3 (interlaced)
3
3 (interlaced)
3
70
75
85
90
100
120
60
70
75
85
100
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
To be continued...
1280 x 768
1280 x 960
1280 x 1024
1600 x 1200
- 37 -
Appendix
English
Display
English
Display
Refresh
Color Depth (bpp)
Screen
Rate
8bpp(256 color)
16bpp(65K color)
32bpp(16.7M)
Resolution
1792 x 1344
(Hz)
60
Standard mode
3
High mode
3
True mode
3
1800 x 1440
75
85
60
3
3
3
3
3
3
3
3
3
70
3
3
3
60
72
3
3
3
3
3
3
75
3
3
3
1920 x 1080
60
75
3
3
3
3
3
3
1920 x 1200
60
75
3
3
3
3
3
3
85
60
3
3
3
3
3
3
75
60
66
3
3
3
3
3
3
3
3
3
1856 x 1392
1920 x 1440
2048 x 1536
* Lower maximum refresh rates at some resolutions when using lower bandwidth memory configuration.
GV-R9500 Series Graphics Accelerator
- 38 -

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
