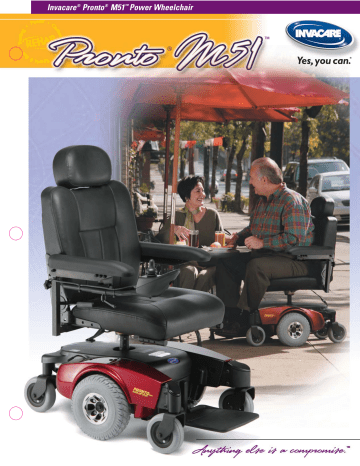

Invacare ® Pronto ® M51 ™ Power Wheelchair
™
®
Invacare ® Pronto ® M51 ™ Power Wheelchair
Versatility comes standard with the Invacare® Pronto® M51™ power wheelchair with SureStep®. The M51 boasts true
center-wheel-drive performance for exceptional maneuverability and intuitive driving. New seat-to-floor heights
allow for ideal seating and positioning selections. The new captain’s seat (optional) offers a plush charcoal grey
vinyl semi-recline seat and adjustable height arms, providing optimal consumer comfort. The M51-R also offers a
standard rehab (Adjustable Seat and Back Angle – ASBA) seat. The M51 provides a smooth ride over transitions and
thresholds up to two-inches while maintaining stability. The M51 design offers sleek styling and comfort while
optimizing maneuverability and accessibility.
Pronto M51 with Van Seat
• SureStep technology allows for
smooth driving over thresholds
and transitions
• Light grey medium back van seat
with flip-up, adjustable width arms
• Compact size for the tightest
overall turning radius
• Rehab (ASBA) seat available on
M51-R
• True center-wheel-drive system
for intuitive driving
• Powerful 350-watt, high-torque
motors for reliable performance
• Six wheels on the ground provide
optimum stability
• Regenerative braking and
automatic motor locks for
dependable stopping
• Charcoal grey semi-recline seat
(optional) with standard flip-up,
• Stylish design with choice of Candy
adjustable width arms
Red or Deep Blue shroud colors
Invacare® Pronto® M51™ Power Wheelchair
• Fully programmable MK5™ NX™
electronics for maximum function
and precise driver control
• Adjustable joystick mount
• 3-amp on-board charger for
convenience
• 300 lb. weight capacity
Specifications
Center-Wheel Drive
Center-wheel-drive offers the tightest turning radius, as well as improved
tracking and ease of driving, over all other Invacare configurations.
SureStep®
This patented automatic system ensures that everyday obstacles and
thresholds are handled elegantly for a smooth ride.
Optional Rehab Seating
Available (ASBA) on M51-R
Customize the M51-R for consumers with moderate seating and
positioning needs.
Overall dimensions
Length (with footboard folded)
Length (with footboard down)
Width (excluding joystick)
Height
Seat dimensions
Width
Depth
Weight
With batteries
Without batteries
Wheel and caster sizes
Front casters
Drive wheels (flat-free)
Rear casters
Maximum speed
Incline capability
Weight capacity
Turning radius
Front (with footboard down)
Rear
Ground clearance
Limited warranties
Base frame
Seat frame
Electronics
Motor/gearbox
34"
38" - 40"
24"
35" - 37"
Invacare Corporation
www.invacare.com
USA
One Invacare Way
Elyria, Ohio
44035-4190
(800) 333-6900
Canada
570 Matheson Blvd. E.,
Unit 8
Mississauga, Ontario
L4Z 4G4 Canada
(800) 668-5324
Invacare, the Blue
Medallion Design,
Yes, you can., Pronto
and SureStep are
registered trademarks
and Anything else is a
compromise, M51, MK5,
NX and SPJ are trademarks of Invacare
Corporation.
Specifications are
subject to
change without
notification.
© 2006
Invacare Corporation
Form No. 02-066
Rev. 06/06
16", 18", 20"
16" - 18"
198 lb.
151 lb.
6" x 2"
10.5" x 3.5"
6" x 2"
4.25 mph
9˚
300 lb.
19.5"
19.5"
2.6"
60 months
60 months
12 months
12 months
