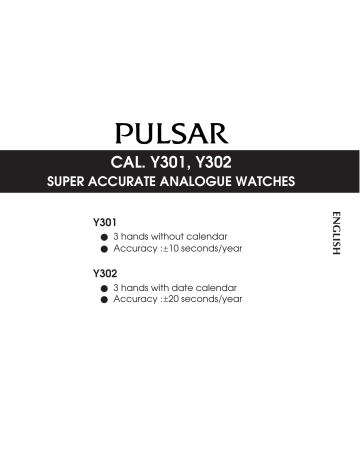

CAL. Y301, Y302
SUPER ACCURATE ANALOGUE WATCHES
● 3 hands without calendar
● Accuracy : ±10 seconds/year
Y302
● 3 hands with date calendar
● Accuracy : ±20 seconds/year
ENGLISH
Y301
■ SCREW DOWN CROWN [for models with screw down crown]
English
Unlocking the crown
1 Turn Crown counterclockwise until you no
longer feel the threads turning.
2 Crown can be pulled out.
Locking the crown
1 Push Crown back in to normal position.
2 Turn Crown clockwise while pressing it lightly
until tight.
* When using the watch in water:
Before using the watch in water, be sure the crown is screwed in completely.
Do not operate the crown when the watch is wet or in water.
2
TIME SETTING FOR CAL. Y301
CROWN
English
1 Pull out when Second hand points at 12
o’clock.
2 Turn in the desired direction to set the
time.
3 Push back in to normal position in
accordance with a time signal.
TIME/CALENDAR SETTING FOR CAL. Y302
CROWN
1 Pull out to the first click.
2 Turn until the previous day’s date
appears in the calendar frame.
3 Pull out to the second click when Second
hand points at 12 o’clock.
10
3
4 Turn until the desired date appears.
* Turn Crown to advance Hour and Minute hands.
English
5 Turn in the desired direction to set the time.
6 Push back in to normal position in accordance with a time signal.
4
NOTES:
1 Do not set the date between 9:00 p.m. and 1:00 a.m. Otherwise, it may not
change properly.
* If it is necessary to set the date during that time period, first change the time
to any time outside it, set the date and then reset the correct time.
2 When setting Hour hand, check that AM/PM is correctly set.
* The watch is so designed that the date changes once in 24 hours. Turn the
hands past the 12 o’clock marker to determine whether the watch is set for
the A.M. or P.M. period. If the date changes, the time is set for the A.M.
period. If the date does not change, the time is set for the P.M. period.
3 When setting Minute hand, first advance it 4 to 5 minutes ahead of the desired
time and then turn it back to the exact minute.
4 It is necessary to adjust the date at the end of February and 30-day months.
3
Years
Battery life : Approx. 3 years
Battery
: SEIKO SR716SW
English
● As the battery is inserted at the factory to check the function and performance of
the watch, its actual life once in your possession may be less than the specified
period.
● When the battery expires, be sure to replace it as soon as possible to prevent any
malfunction.
● We recommend that you contact an AUTHORIZED PULSAR DEALER for battery
replacement.
WARNING
● Do not remove the battery from the watch.
● If it is necessary to take out the battery, keep it out of the reach of
children. If a child swallows it, consult a doctor immediately.
● Never short-circuit, tamper with or heat the battery, and never expose
it to fire. The battery may burst, become very hot or catch fire.
5
CAUTION
English
● The battery is not rechargeable. Never attempt to recharge it, as this
may cause battery leakage or damage to the battery.
● Loss/gain in normal temperatures of between 5°C ~ 35°C (41°F ~ 95°F).
Annual rate : Approximately 10 seconds (Cal. Y301) / 20 seconds (Cal.
Y302) when used on the wrist approximately 12 hours a
day.
Monthly rate : ±2 seconds (Cal. Y301) / ±4 seconds (Cal. Y302)
depending on the manner in which the watch is used.
● Note on annual rate:
6
Annual rate is not an aggregate of monthly loss/gain that accumulates in a
year. The amount of loss/gain fluctuates depending on the condition of use
as shown in the figure below. Annual rate specifies the range of loss/gain
that is never exceeded at any given time of a year.
Examples of monthly fluctuations of loss/gain:
In case of a watch with the yearly loss/gain of 10 seconds
Gain
(sec.)
+ 10
A1
7
0
1
Loss
2
3
4 B1
5
8
6
(Ex. 2)
9
10
11
12
(month)
A2
English
+5
–5
(Ex. 1)
(Ex. 3)
B2
– 10
* None of A1, A2, B1 and B2 will exceed 10 seconds.
NOTE:
To maintain the accuracy of the watch, it is recommended that it be kept in a
temperature range between 5° C and 35° C when it is not worn on the wrist.
7
WATER RESISTANCE
● Non-water resistant
English
• If the watch becomes wet, have it checked by an AUTHORIZED
PULSAR DEALER or SERVICE CENTER.
● Water resistant 5/10/15/20 bar
5 bar
WR
10/15/20
bar WR
8
• Before using in water, be sure the crown is pushed in completely.
• Do not operate the crown when the watch is wet or in water.
If used in sea water, rinse the watch in fresh water and dry it
completely.
• When taking a shower with the water resistant 5 bar watch, or
taking a bath with the water resistant 10, 15 or 20 bar watch, be
sure to observe the following:
* Do not operate the crown when the watch is wet with soapy water
or shampoo.
* If the watch is left in warm water, a slight time loss or gain may
be caused. This condition, however, will be corrected when the
watch returns to normal temperature.
* Pressure in bar is a test pressure and should not be considered as corresponding
to actual diving depth since swimming movement tends to increase the pressure
at a given depth. Care should also be taken on diving into water.
** We recommend that you wear a PULSAR Diver’s Watch for scuba diving.
TEMPERATURES
MAGNETISM
The watch will be
Your watch works with
adversely affected by
stable accuracy within a
strong magnetism. Keep
temperature range of 5°
-10°C
S
N
it away from close contact
C and 35° C (41° F and
with magnetic objects.
95° F).
Temperatures over 60° C or 140° F Normal accuracy will return if the watch
may cause battery leakage or shorten is moved away from the magnetic field.
the battery life.
Do not leave your watch in very low
CARE OF CASE AND BRACELET
temperatures below –10° C or +14°
F for a long time since the cold may
To prevent possible
cause a slight time loss or gain.
rusting of the case and
However, the above conditions will
bracelet caused by dust,
be corrected when the watch returns
moisture and perspiration,
to normal temperature.
wipe them periodically
with a soft dry cloth.
+60°C
English
9
English
SHOCKS & VIBRATION
10
PERIODIC CHECK
Light activities will not
It is recommended that the
affect your watch, but be
watch be checked once
2-3
careful not to drop your Years
every 2 to 3 years. Have
watch or hit it against hard
your watch checked by an
surfaces, as this may
AUTHORIZED PULSAR
DEALER or SERVICE CENTER to
cause damage.
ensure that the case, crown, gasket
and crystal seal remain intact.
CHEMICALS
Be careful not to expose
the watch to solvents,
mercury, cosmetic spray,
detergents, adhesives or
paints. Otherwise, the
case, bracelet, etc. may become
discolored, deteriorated or damaged.
PRECAUTION REGARDING
CASE BACK PROTECTIVE FILM
If you r watch has a
protective film and/or a
sticker on the case back,
be sure to peel them off
before using your watch.
