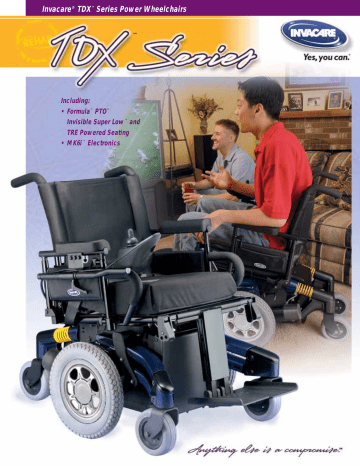

Invacare ® TDX ™ Series Power Wheelchairs
™
Including:
• Formula™ PTO™
Invisible Super Low ™ and
TRE Powered Seating
• MK6i ™ Electronics
Invacare ® TDX ™ Series Power Wheelchairs
TABLE OF CONTENTS
Invacare® TDX™ Series Power Wheelchairs
2
TDX Core Technologies & Key Features
3
TrueTrack Technology
4
TDX Series Power Wheelchairs
5
TDX Common Options
6
TDX Power Wheelchairs for Pediatrics
7
TDX with Formula™ and Formula TRE Powered Seating
8 - 13
TDX with Formula Invisible Super Low™ Tilt
14
TDX with Formula PTO Plus (Power Tilt Only)
15
MK6i™ Electronics
TDX Series with Transport Tie-Down Options
TDX Series with Specifications
16 - 17
18
19 - 20
™ ®
™
®
Invacare ® TDX
Pronto
Series
M91
Invacare
Power
PowerWheelchairs
Wheelchair
Pronto ® M91 ™ Power Wheelchair
TDX – Total Driving eXperience
Core Technologies & Key Features
Core Technologies
MK6i ™ Electronics
Built on the MK5™ platform, MK6i™ electronics make
programming intuitive and set-up a breeze.
Center-Wheel Drive
Center-wheel drive offers the tightest turning radius
possible, as well as improved tracking and ease of
driving, over our other configurations.
This patented automatic system ensures that everyday
obstacles and thresholds are handled elegantly for a
smooth ride.
Stability Lock
An important issue with more maneuverable chairs is
stability. This patented technology helps ensure that the
chair remains stable with the consumer in control.
TrueTrack ( TT )
The benefits of TT to switch drivers and those
with marginal control have been proven, making these
consumers more successful and efficient drivers.
Invacare® TDX™ Series Power Wheelchairs
SureStep®
Key Features
TCD ™
Traction Control Design
Adjustable
ASBA Rehab Seat
Traction Control Design increases the overall weight
distribution on the center drive wheels. This improves
the overall traction in forward and reverse and allows
the TDX to climb p to a 1" obstacle from a deadstop
in reverse.
Seat frame is adjustable in width and depth within a
range to accommodate changing consumer needs while
maintaining the same seat pan.
3
Invacare® TrueTrack Technology
Gearless-Brushless GB™ Motor
Invacare’s GB motors are not only a key component of the TrueTrack technology, the
design is 75% efficient resulting in 17% more battery range than Invacare’s
4-pole motors. Battery range is an important feature for active users and users
requiring powered seating systems.
TrueTrack Technology
The patented TrueTrack technology features GB motors and motor controller. This
feature helps keep the power wheelchair on a true forward path – even on many
slopes, thresholds and uneven terrains. TrueTrack minimizes the need for veer
correction, diminishing fatigue for joystick and switch drivers.
TrueTrack Technology is beneficial for the client for the following reasons:
Invacare® TDX™ Series Power Wheelchair
4
• As the power wheelchair holds a truer course, the driver needs to make fewer
course corrections. This makes driving more efficient by reducing the necessary
amount of movement. Reducing the required movement can increase overall
speed (i.e. the client may be able to move down a hallway faster, as less
compensatory movements are required), decrease fatigue, and promote
safety/independence while driving, because the chair is not pulled off course.
This is true for drivers using a proportional control as well as a digital or non-proportional system.
• This feature is critical for clients who fatigue easily, as less compensatory
movements are required.
• This feature also is critical for clients who use a non-proportional or digital
access method (i.e. a head array with proximity switches or pneumatic sip-n-puff
controls). Driving with switches can be very tedious and inefficient. Making
frequent course corrections significantly increases the effort, time and energy
required. Fewer course corrections translates to a more efficient, safer driver.
®
Invacare ® TDX ™ SeriesInvacare
Power Wheelchairs
Pronto ® M91 ™ Power Wheelchair
You wanted one chair that does it all
for your clients. Will three be okay?
TDX Series Power Wheelchairs
TDX4
TDX3
The TDX5 comes standard with all five
core technologies. This product was
designed to meet the needs of the most
challenging and demanding clients today
and will continue to meet their needs as
they change over time.
The TDX4 comes standard with four core
technologies. This product is the mid-range
model of the TDX line. This model is
esigned to meet the needs of many rehab
consumers today and allows additional
technologies to be added over time.
The TDX3 comes standard with four core
technologies. This product is the well
appointed economy model of the TDX
series. Any number of options can be
easily added to the TDX3’s standard
configuration.
Standard Features
Standard Features
• Reliable 4-pole motor package with
300 lb. weight capacity and a top speed
of 6.5 mph
• Reliable 4-pole motor package with
300 lb. weight capacity and a top
speed of 6 mph
• MK6i electronics with the MK690
controller and MPJ+ driver control
• MK6i electronics with the MK690
controller and SPJ™+ driver control
• Adjustable ASBA Rehab Seat
• Adjustable ASBA Rehab Seat
• Accepts two 22NF or Group 24
batteries or three 22NF batteries if
• Accepts two 22NF or Group 24
Standard Features
• TT® TrueTrack Technology, up to
400 lb. weight capacity and a top
speed of 7.5 mph
• MK6i™ electronics with the MK6TT
controller and MPJ™+ driver control
• Adjustable ASBA Rehab Seat
• Accepts two Group 24 batteries or
three 22NF batteries if a ventilator
back-up battery is needed
a ventilator back-up is needed
Invacare® TDX™ Series Power Wheelchairs
TDX5
batteries or three 22NF batteries if a
ventilator back-up battery is needed
Optional Features
• Transport Tie-Down Options.
Optional Features
Optional Features
• Transport Tie-Down Options
• Transport Tie-Down Options
• TT TrueTrack technology, up to 400 lb.
weight capacity and top speed of
7.5 mph
• TT TrueTrack technology, up to
• Heavy-duty 4-pole motor package with
400 lb. weight capacity and top speed
of 5 mph
• Heavy-duty 4-pole motor package with
400 lb. weight capacity and a top
speed of 5 mph
400 lb. weight capacity and a top
speed of 7.5 mph
All models come standard with SureStep® suspension, Stability Lock and TCD™ Traction Control Design.
5
Invacare
Invacare® ®Pronto
TDX ™ ®Common
M91 ™ Power
Options
Wheelchair
Center-Pivot Style
Pin-and-Saddle Style
Footplate Options
1
2
3
1. Extra large – 1350
2. Angle-adjustable – AT5543
3. Standard composite – 1651
70STAPER
70NTAPER
PHW93
Elevating Center-Pivot Style
Power Elevating Legrests
Rigging Accessories
Invacare® TDX™ Common Options
1
2
3
Elevating – AT5544
(with extra-large footplate – 1350)
Power elevating legrests feature
anti-rotational footplate design,
actuator built into the legrests,
low-profile mounting, easy swingaway and disconnect.
1. Calf strap – 1337
2. Heel loop with ankle strap –
1600BK
3. Extensions – ALPT
Center Mount Rigging
Center mount rigging provides
excellent 90˚ foot positioning for
tight hamstrings.
6
Allows for in-the-field knee angle
adjustment from 90˚ to 60˚.
• Incorporating the gear mechanism from the Invacare® Solara®, the new
center mount rigging features an in-the-field knee angle adjusment from
90˚ to 60˚ in 2˚ increments
• Lever release allows rigging to swing back for transfers
• Individual knee-to-heel length adjusts with anti-rotational footplate
design
- ASBA - 12.25" to 15" and 16" to 18.75"
- Junior - 9.25" to 12"
• Planar and dorsi flexion adjustment is built into the standard footplate
• Footplate has a slight ridge to maximize foot area while assisting with
foot placement
®
Invacare ® TDX ™ Power
Invacare
Wheelchair
Pronto
for®Pediatrics
M91 ™ Power Wheelchair
The TDX is not just
for adults!
Invacare® TDX™ Power Wheelchair for Pediatrics
Intuitive, Successful
Driving
With seat sizes starting
at 12" wide x 12" deep,
combined with fun,
recreational frame styling, the
TDX offers the technology,
durability and flexibility that a
pediatric consumer needs.
There are two technologies
that make the TDX ideal for
pediatric driving: centerwheel drive and MK6i™
electronics. Center-wheel
driving is a more natural and
intuitive way of moving, one
that’s ideal for new drivers.
With “on a dime” turning,
consumers know that if they
clear their feet, they’ve
cleared the rest of the chair.
Features
• Junior size adjustable ASBA seat
frame is adjustable in width and
depth and can be easily replaced
by an adult-sized seat frame
• MK6i electronics offer the most
customizable power chair controls
available for pediatrics
• Seat frame can be adjusted in
width from 12" - 16" and in depth
from 12" - 18"
• Formula™ Powered Seating
Systems available as small as
16" x 16", some models available
with ventilator tray
7
Invacare ® TDX ™ with Formula™ Powered Seating
Options for everyone’s comfort.
The TDX power chair was engineered to avoid the compromising that can occur when powered seating systems are combined with traditional
power bases. Thanks to the design of the TDX base, the addition of powered seating is practically invisible to the base. The combination of center
wheel drive and Stability Lock allows all seat depths and vent options to interface with one base length–which means no more short and long
bases, no more compromising.
Formula Powered Seating
Invacare® TDX™ with Formula™ Powered Seating
8
Formula PTO Plus
Formula Invisible Super Low™ Tilt
Formula TRE
Available on the TDX Series, Pronto®
M91™ and Pronto M71™ bases
Available on the TDX Series bases
Available on the TDX Series bases
• Low Seat-to-Floor height of 16.5"
• Two Seating Styles Available:
- Conventional
- Contoura
• Economy Tilt Only
• Center-of-Gravity Shifting Technology
• Center-of-Gravity Shifting Technology
• Six Powered Seating Combinations:
- Tilt only
- Recline only
- Elevate only
- Tilt/Recline
- Tilt/Elevate
- Tilt/Recline/Elevate
™
Invacare ® TDX ™ with Formula
Invacare™®Powered
Pronto ® M91
Seating
Power Wheelchair
Invacare® TDX™ with Formula™ Powered Seating
9
™
Invacare
Invacare® ®Pronto
TDX ™ ®with
M91Formula
Power™Wheelchair
TRE Powered Seating
Invacare’s Formula TRE powered seating system, available on the TDX, raises Invacare’s powered seating systems to a new level by
offering Tilt, Recline, Tilt/Recline, and also the option of Elevate, Tilt/Elevate, and Tilt/Recline/Elevate. The TRE was engineered to integrate seamlessly onto the most revolutionary base from Invacare–the TDX.
Formula Power Tilt
The Formula Tilt enhances comfort through independent positioning with optimal pressure relief. Drive lock-out
is achieved at 20˚ of tilt for safety.
Features
• Tilt range of 0˚- 55˚ or 5˚- 60˚
Invacare® TDX™ with Formula™ TRE Powered Seating
Formula Power Tilt.
• 18" seat-to-floor height
• 300 lb. or 400 lb. weight
capacity (base dependent)
• Conventional or Contoura™
Seating
• Standard with round canes on
Conventional seating
Formula Power Recline
Utilizing a simplified one actuator design, the Formula
Recline system has three inches of mechanical shear
reduction for independent positioning and pressure relief.
Features
• Recline range of 170˚
• 18" seat-to-floor height
• Conventional or Contoura
Seating
• 300 lb. or 400 lb. weight
capacity (base dependent)
• Mechanical shear reduction of
3" is based on a t-slot channel
design for interfacing of aftermarket custom backs, while
maintaining shear reduction
• Power elevating legrests and
ventilator tray can be added
at any time
Formula Power Recline.
Formula Power Tilt and Recline
The Formula Tilt and Recline system combines the pressure
relief and positioning benefits of both tilt and recline.
Features
• Tilt range of 0˚- 55˚ or 5˚- 60˚
• Recline range of 170˚
• 18" seat-to-floor height
• Conventional or Contoura
Seating
• 300 lb. or 400 lb. weight
capacity (base dependent)
10
Formula Power Tilt and Recline.
• Mechanical shear reduction of
3" is based on a t-slot channel
design for interfacing of aftermarket custom backs, while
maintaining shear reduction
• Power elevating legrests and
ventilator tray can be added
at any time
®
Invacare ® TDX ™ with Formula
Invacare™®TRE
Pronto
Powered
M91 ™Seating
Power Wheelchair
Formula Power Elevate
The Formula Elevate is designed to provide consumers with
improved independence and assistance to perform daily
living activities, such as transfer assistance or access to
items that otherwise would be out of reach.
Features
• 7" elevate range
• 300 lb. weight capacity
•18" seat-to-floor height
• Speed inhibit feature reduces
the speed of the chair to 20%
of maximum while elevated
• Traditional rehab seating
(ASBA)
Formula Power Elevate.
The integration of the Formula Tilt with Elevate gives
consumers the independence they seek and provides the
function they need with transfer assistance, pressure relief
and positioning benefits.
Features
• Tilt range of 0˚- 55˚ or 5˚- 60˚
• 7" elevate range
• 18" seat-to-floor height
• Conventional or Contoura™
Seating
• Speed inhibit feature reduces
the speed of the chair to 20%
of maximum while elevated
• Standard with round canes on
Conventional seating
• 300 lb. weight capacity
Formula Power Tilt with Elevate.
Formula Power Tilt, Recline and Elevate
The Formula Tilt, Recline and Elevate provides a multifunctional solution for consumers who need these
combined benefits. This system provides independence,
transfer assistance, pressure relief, and positioning
benefits making this an appealing option.
Invacare® TDX™ with Formula™ TRE Powered Seating
Formula Power Tilt with Elevate
Features
• Tilt range of 0˚- 55˚ or 5˚- 60˚
• 300 lb. weight capacity
• Recline range of 170˚
• Speed inhibit feature reduces
the speed of the chair to 20%
of maximum while elevated
• 7" elevate range
• 18" seat-to-floor height
• Conventional or Contoura
Seating
Formula Power Tilt, Recline and Elevate.
11
™
Invacare
Invacare® ®Pronto
TDX ™ ®with
M91Formula
Power™Wheelchair
TRE Powered Seating Options
Designed with simplicity in mind, an adjustable seat frame is the foundation of the Formula TRE. In
order to accommodate changing consumer needs efficiently, the TRE offers both width and depth
adjustment while maintaining the same seat pan for each range. There are two TRE seating options
available, including Conventional Seating and Contoura™ Seating.
Invacare® TDX™ with Formula™ TRE Powered Seating Options
Conventional
Contoura
• Three-panel back design
• Widths available in 16", 18", 20", 22" and 24"
• Width ranges from 16" - 20" and 20" - 24"
• Depths available in 16" - 22"
• Depth ranges from 16" - 19" and 20" - 22"
• Depth is adjustable
• Fixed back heights available from 16" - 26"
• Back heights available in 25" or 29.5"
Width is adjustable in 1" increments
through a telescoping design.
12
Depth adjustment within the range
is based on channel design.
®
Invacare ® TDX ™ with Formula
Invacare™®TRE
Pronto
Powered
M91 ™Seating
Power Wheelchair
Power Elevating Center Mount
Maximizing maneuverability while providing a range of
adjustments, the new Power Elevating Center Mount is
the ideal selection for any of the TRE options on the
TDX base.
Features
• Individual knee-to-heel
length adjustment
• Articulating and elevating
design
• Planar and dorsi flexion
adjustment is built into the
standard footplate
• Elevation range 90˚ - 25˚
Power Elevating Center Mount.
The articulating ventilator tray was designed to accommodate a wide variety of ventilators, including the PuritanBennett® LP10 and LP8. Securely held with four links, the
tray articulates to clear the base when tilting or reclining,
all while keeping the ventilator level.
Features
• Compact design translates
into minimal increase of
turning radius
Ventilator Tray.
• Can be retrofitted at any
time to the Formula TRE
seating systems, with no
need to change base length
or seat location
• Reduces weight capacity
by 50 lb.
• Not available with elevate
options
Vent Battery Arrangement
• The positioning of the ventilator back-up battery is easily
solved on the TDX™ base: when a ventilator is added to the
TDX, the battery arrangement allows three 22NF batteries.
This places the ventilator battery in front of the battery
compartment for easy recharging
Invacare® TDX™ with Formula™ TRE Powered Seating Options
Ventilator Tray Option
• A fused harness is provided from the battery to the rear of
the chair, terminated with standard Anderson connectors,
for simple interfacing with the ventilator harness
• Please consult ventilator manufacturer for proper charging of
the back-up battery, as the power chair charger will not
charge a third battery
• Deep-dish door, longer tray and harness are all that is needed
to add this option to the TDX base
Vent Battery Arrangement.
13
™
Invacare
Invacare® ®Pronto
TDX ™®with
M91Formula
Power™Wheelchair
Invisible Super Low ™ Tilt
Ideal access for
everyday
environments.
Invacare® TDX™ with Formula™ Invisible Super Low™ Tilt
14
The Invisible Super Low Tilt
on the TDX enables
consumers to achieve a
seat-to-floor height of only
16.5 inches, creating ideal
access for everyday environments, such as furniture, desks and vans. The
seating system is integrated seamlessly with the
base in a way that makes
it appear to be a standard
seat, virtually eliminating
the bulk usually associated
with comparable seating
systems. The Invisible
Super Low Tilt also
provides easy access to
batteries, which can be
serviced without removing
the tilt system frame.
Features
• Tilt range of 0˚- 55˚ or 5˚- 60˚
• 16.5" seat-to-floor height
• Adjustable ASBA Rehab seat that is
adjustable in width and depth within a
range to accommodate changing consumer needs while maintaining the
same seat pan
• Curved ABS back
• 300 lb. weight capacity
The actuator is integrated into the
base and can be easily removed for
battery servicing.
Invacare ® TDX ™ with Formula
Invacare™®PTO
Pronto
Plus® M91 ™ Power Wheelchair
The tilt-only choice
that offers you value
and more.
Features
Invacare® TDX™ with Formula™ PTO Plus
The Invacare Formula
PTO Plus (Power Tilt Only)
is designed for active
consumers who require a
basic tilt for positioning
and pressure relief. The
PTO Plus is available on
the Pronto® M71™ and
M91™ and the TDX™, while
still maintaining sleek
style, indoor and outdoor
maneuverability and a
tight turning radius. With
the features of the PTO
Plus on the M71, M91 and
TDX, consumers are
offered the powered tilt
they need on the bases
they want.
• Tilt range of 0˚- 55˚ or 5˚- 60˚
• 18" seat-to-floor height
• Adjustable ASBA Rehab seat that is
adjustable in width and depth within a
range to accommodate changing consumer needs while maintaining the
same seat pan
• Curved ABS back
• Up to 275 lb. or 375 lb. weight capacity
(base dependent)
15
Invacare ® TDX ™ Series ® with MK6i ™ Electronics
Invacare MK6i Electronics
MK Series electronics are the benchmark in power wheelchair electronics. This is
the result of years of experience in the design and manufacture of these electronics
specifically for the needs of wheelchair users.
MK6i electronics take the MK Series to the next level by offering features that are
easier to use than any other MK Series electronics system. Advantages of MK6i
include:
• Based on the MK5™ programming logic, so users don’t need to learn a new system
• Reduced set up and programming time with the memory card feature
• Improved simplicity with universal connectors
• Better information for programmers and technicians
SPJ+ Basic Joystick
MPJ + Rehab Joystick
Personal Switch
Rehab Joystick
Invacare® Storm Series® with MK6i™ Electronics
Standard Features
Standard Features
Standard Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Single Drive
Push button on/off
Push button up/down
Push button horn
LED battery & speed indicators
Charger Port
Quick disconnect cord
Optional Features for Powered
Seating Applications
• 2 mono ports for operation of a single
actuator control outside joystick (left for
tilt or right for elevate)
16
• Mode button for operation of single
actuator control through the joystick
Four programmable drives
Toggle on/off – drive select
Speed control dial
LCD backlit graphics
Memory card reader
Charger Port
Four programmable drives
Customized switch type and placement
Front or rear placement of inductive
LCD backlit graphics display
Memory card reader
Charger Port
Standard Features for Powered
Seating Applications
Standard Features for Powered
Seating Applications
• 2 standard programmable mono ports:
remote on/off and emergency stop/mode
or emergency stop/drive select
• 2 standard programmable mono ports:
remote on/off and emergency stop/mode
or emergency stop/drive select
• Mode button for operation of powered
seating functions through the joystick
when multiple actuator control is installed
• Mode button for operation of powered
seating functions through the joystick
when multiple actuator control is installed
Invacare ® TDX™ Series® with MK6i ™ Electronics
MK6i Controllers
MK6i electronics take a different approach
to expandability. Under previous electronic
systems, the brain of the system was located
in the controller so the “expandability” of the
system was dependent upon the controller.
In MK6i electronics, the controller drives the
motors and the system memory is located in
options such as the driver controls.
MK6i Display
MK6i Memory Card
MK6i Handheld Programmer
Standard Features
Standard Features
•
•
•
•
•
• Large LCD backlit graphics display
allows you to see all drives at once
• MK6i or MK5™ compatible
• Memory card reader
• “Info” key for programming definitions
• Programmer remains on until turned
off or unplugged
Four programmable drives
Attendant toggle on/off
Large LCD backlit graphics display
Memory card reader
Charger Port
Standard Features for Powered
Seating Applications
• 2 standard programmable mono
ports: remote on/off and emergency
stop/mode or emergency stop/driver
select/single actuator control outside driver controller
Invacare® TDX™ Series® with MK6i™ Electronics
MK6i Universal Connectors
Egg Switch with 611 Mount
Standard Features for Powered
Seating Applications
• Powered seating programming is
through the handheld programmer
with MK6i™ system.
4-Way Toggle Switch
4-Way Switch Box
4-push Button Switch
17
® ®
Invacare
Invacare
Pronto
TDX ™®Series
M91 ™ Power
PowerWheelchair
Wheelchair Transfer Tie-Down
Invacare® Transport Tie-Down Options
Invacare transport tie-down options have been tested to ANSI/RESNA WC Vol. 1
Section 19 and go beyond the traditional “securement” brackets on other wheelchair designs. The transport tie-down options include four tie-down locations that
have been crash-tested and are clearly marked for the caregiver to see. The options
also include a battery securement system that prevents batteries from becoming
dislodged in the case of an accident.
Invacare order forms will include two transport tie-down selections, TRRO* and TRBKTS.** All Invacare wheelchairs with TRRO have been
tested and passed the ANSI/RESNA W/C Vol. 1 Section 19 standard using a specific seating system and configuration. See order forms and
the owners manual for more information.
* TRRO includes four factory-installed transport brackets and a wheelchair anchored pelvic belt. TRRO has been crash-tested in accordance with ANSI/RESNA W/C Vol. 1 Section 19 Frontal Impact Test
requirements for wheelchairs with a 168 lb. crash dummy, which corresponds to a person with a weight of 114 to 209 lb.
** TRBKTS includes four factory-installed wheelchair transport brackets. TRBKTS has not been crash-tested in accordance with WC 19. Use these transport brackets only to secure an unoccupied wheelchair during transport.
Invacare® TDX™ Series Power Wheelchair Transport Tie-Down
18
As of this date, the Department of Transportation has not approved any tie-down systems for transportation of a user while in a wheelchair, in a moving vehicle of any type. It is Invacare’s position that
users of wheelchairs should be transferred into appropriate seating in vehicles for transportation and use be made of the restraints made available by the auto industry. Invacare cannot and does not
recommend any wheelchair transportation systems.
ANSI/RESNA W/C 19 sec 6.2 Presale Literature Notification – TDX Series
A. Minimum turning radius 23.2"
Minimum turn-around width 46.4"
B. TDX5, TDX4, and TDX3 wheelchairs have a maximum length of 43.7" or 1110 mm, meeting the ADA definition of
a common wheelchair and the minimum length requirements of lifts on public wheelchairs.
C. Total wheelchair mass = 330 lb. (150 kg) TDX5
322 lb. (146 kg) TDX4
318 lb. (134 kg) TDX3
including front riggings, wheel locks, TRO brackets, wheelchair-anchored pelvic belt, and seating.
D. Average lateral dummy displacement =
approximately .54" (13.8 mm) TDX5
approximately .54" (13.8 mm) TDX4
approximately .40" (10.1 mm) TDX3
E. Overall Score = 20
Overall Rating = A TDX5
Overall Score = 20
Overall Rating = A TDX4
Overall Score = 17
Overall Rating = A TDX3
F. i.
The TDX5 and TDX4 wheelchairs were sized to accommodate a 168 lb. test dummy (17"x17"x18" high and 14"
Center-Wheel Drive tires.) The TDX3 wheelchair was sized to accomodate a 168 lb. test dummy (17"x17"x18" high
and 12.5" Center-Wheel Drive tires.)
ii.
The TDX5, TDX4, and TDX3 wheelchairs were tied down using four tie-down brackets – 2 brackets located on the
front of the base frame and 2 brackets located on the rear of the base frame.
iii. The TDX5, TDX4, and TDX3 wheelchairs were tested with a 168 lb. test dummy.
iv. The TDX5, TDX4, and TDX3 wheelchairs tested used a wheelchair-anchored pelvic belt and vehicle-anchored
shoulder belt.
v.
The TDX5, TDX4, and TDX3 wheelchairs tested complied with the performance requirements of ANSI/RESNA W/C
19 sec. 5.3.
G. For all types of vehicles, the TDX5, TDX4, and TDX3 require four SAE J2249-compliant tie-down strap assemblies for
effective securement.
H. The TDX5, TDX4, and TDX3 provide a location for anchoring of an Invacare-provided pelvic belt. This belt has been tested
in accordance with ANSI/RESNA W/C 19.
I. The wheelchair-anchored pelvic belt is supplied by Invacare.
™
Invacare ® TDX ™ SeriesInvacare
Power ®Wheelchair
Pronto ® M91
Specifications
Power Wheelchair
TDX™ Specifications ( Notice: Due to manufacturing variances, all dimensions and specifications may be ± .5" or ± 10%)
Standard TDX Technologies
Optional TDX Technologies
Standard motor
Optional motor upgrades
Standard wheel size*
TDX5
MK6i™ electronics, SureStep® suspension
Center-Wheel Drive, Stability Lock,
TrueTrack technology
TrueTrack HD
14" x 3"
TDX4
MK6i electronics, SureStep suspension
Center-Wheel Drive, Stability Lock
TDX3
MK6i electronics, SureStep suspension
Center-Wheel Drive, Stability Lock
TrueTrack technology
4-pole
TrueTrack HD or Heavy-Duty 4-pole
14" x 3"
TrueTrack technology
4-pole
True Track HD or Heavy-Duty 4-pole
12" x 2.5"
400 lb. or 300 lb.
300 lb.
400 lb.
400 lb.
300 lb.
400 lb.
400 lb.
7.5 mph
Two Group 24 batteries
Three 22NF with ventilator tray
6 mph
5 mph
7.5 mph
Two 22NF batteries
Two Group 24 or three 22NF with
ventilator tray
MK690
SPJ™+
* pneumatic tires are standard
Weight Capacity
4-pole
Heavy Duty 4-pole
TrueTrack HD
Speed
4-pole
Heavy Duty 4-pole
TrueTrack HD
Standard battery tray
Battery options
MK6TT
Standard joystick
MPJ™+
MPJ+
Formula™ Powered Seating Specifications for TDX
Weight capacity
Seat-to-floor @ 0˚
Tilt range
Recline range
Elevate range
Seat sizes*
Width
Depth
Formula TRE
300 lb. (elevate options),
400 lb. (HD 4-pole, TTHD)
Low
Tall
18"
19.25"
0˚ - 55˚ 5˚ - 60˚
90˚ - 170˚
7"
Conventional*
16" - 24"
16" - 22"
( Notice: Due to manufacturing variances, all dimensions and specifications may be ± .5" or ± 10%)
Formula Invisible Super Low™ Tilt
300 lb.
Low
Tall
16.5"
n/a
0˚ - 55˚ 5˚ - 60˚
Curved ABS
16" - 22"
16" - 22"
Formula PTO Plus
275 lb. (4-pole motors),
375 lb. (HD 4-pole, TTHD)
Low
Tall
18"
20"
0˚ - 55˚ 5˚ - 60˚
Curved ABS
16" - 22"
16" - 22"
*Formula TRE (only with Conventional seat style) seat sizes are adjustable in width and depth within a range in 1" increments
Contoura™
Width
Depth
Back height
Conventional
Contoura
Curved ABS
Overall height*
Conventional (24” back)
Contour
Curved ABS
16", 18", 20", 22", 24"
16" - 22" in 1" increments
n/a
n/a
n/a
n/a
20" - 26"
25" or 29.5"
-
16" - 24"
16" - 24"
41.5"
46.5"
-
40"
42.25"
9" - 13"
11" - 16"
9" - 13"
11" - 16"
9" - 13"
11" - 16"
401 lb.
355 lb.
361 lb.
12 months
36 months
12 months
36 months
Invacare® TDX™ Series Power Wheelchair Specifications
Standard electronics
6.5 mph
5 mph
7.5 mph
Two Group 24 batteries
Two 22NF or three 22NF with
ventilator tray
MK690
* Does not include headrest
Arm height
Tilt/ASBA
Other
Product weight*
With batteries
* Product weight measured on a TDX5 with Group 24 Batteries without riggings
Limited warranty
Electronics/Actuator
Seat frame
12 months
36 months
19
Invacare ® TDX ™ Series Power Wheelchair Specifications
TDX™ with ASBA Seat Specifications
( Notice: Due to manufacturing variances, all dimensions and specifications may be ± .5" or ± 10%)
Seat sizes*
Width (adjustable)
Depth (adjustable)
12" - 24" Ranges: 12"-16", 16"-20", 20"-24"
12" - 22" Ranges: 12"-18", 16"-19", 19"-22"
* Seat sizes are adjustable in width and depth within a range in 1" increments
Seat-to-floor height
Low
Medium
Tall
Turning radius
Center mount
70NHD
Overall height (@ low STF, 16" Back Height)
Overall width
Base
Invacare® TDX™ Series Power Wheelchair Specifications
Seat width to outside
of joystick (16" width)
Seat width to outside
of joystick (20" width)
Overall length
Base (caster to caster trailing)
Incline capability
Curb climbing
Back angle adjustment
Arm height
Product weight*
With batteries
* Product weight measured on a TDX5 with Group 24 Batteries
Invacare Corporation
www.invacare.com
16.5" @ 0˚
18.5" @ 0˚
20.5" @ 0˚
@ 5˚ adds .5"
USA
One Invacare Way
Elyria, Ohio
44035-4190
(800) 333-6900
22"
24"
33.25"
Canada
570 Matheson Blvd. E.,
Unit 8
Mississauga, Ontario
L4Z 4G4 Canada
(800) 668-5324
25" (TDX3/TDX5)
25.5" (TDX4)
24.5"
28.5"
35.25"
9˚
3"
85˚ to 105˚
9" - 13"
310 lb.
Invacare, the Blue Medallion
Design, Yes, you can., Pronto,
Storm Series, SureStep, TT
Design and Solara are registered trademarks and
Anything else is a compromise, EX, Contoura, DPJ,
Formula, Invisible Super Low,
MK6i, MK5, MPJ, MKIV, M71,
M91, NX, SPJ, TCD, TDX and
GB are trademarks of Invacare
Corporation.
Specifications are
subject to change
without notice.
© 2006
Invacare Corporation
Form No. 03-018
Rev. 07/06
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
