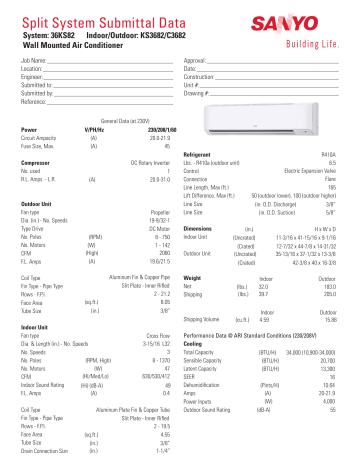

Split System Submittal Data
System: 36KS82 Indoor/Outdoor: KS3682/C3682
Wall Mounted Air Conditioner
Job Name:
Location:
Engineer:
Submitted to:
Submitted by:
Reference:
Power
Circuit Ampacity
Fuse Size, Max.
Compressor
No. used
R.L. Amps - L.R.
Outdoor Unit
Fan type
Dia. (in.) - No. Speeds
Type Drive
No. Poles
No. Motors
CFM
F.L. Amps
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area
Tube Size
Approval:
Date:
Construction:
Unit #:
Drawing #:
General Data (at 230V)
V/PH/Hz
230/208/1/60
(A)
20.0-21.9
(A)
45
DC Rotary Inverter
1
20.0-31.0
(A)
Propeller
19-9/32-1
DC Motor
8 - 750
1 - 142
2060
19.6/21.5
(RPM)
(W)
(High)
(A)
(sq.ft.)
(in.)
Aluminum Fin & Copper Pipe
Slit Plate - Inner Rifled
2 - 21.2
8.05
3/8”
Indoor Unit
Fan type
Dia. & Length (in.) - No. Speeds
No. Speeds
(RPM, High)
No. Poles
(W)
No. Motors
(HI/Med/Lo)
CFM
Indoor Sound Rating
(Hi) (dB-A)
(A)
F.L. Amps
Coil Type
Fin Type - Pipe Type
Rows - F.P.I.
Face Area
Tube Size
Drain Connection Size
Cross Flow
3-15/16 L32
3
8 - 1370
47
630/530/412
49
0.4
Aluminum Plate Fin & Copper Tube
Slit Plate - Inner Rifled
2 - 19.5
(sq.ft.)
4.55
(in.)
3/8”
(in.)
1-1/4”
Refrigerant
Lbs. - R410a (outdoor unit)
Control
Connection
Line Length, Max (ft.)
Lift Difference, Max (ft.)
Line Size
Line Size
Dimensions
Indoor Unit
Outdoor Unit
R410A
6.5
Electric Expansion Valve
Flare
165
50 (outdoor lower), 100 (outdoor higher)
(in. O.D. Discharge)
3/8”
(in. O.D. Suction)
5/8”
(in.)
(Uncrated)
(Crated)
(Uncrated)
(Crated)
HxWxD
11-3/16 x 41-15/16 x 9-1/16
12-7/32 x 44-7/8 x 14-31/32
35-13/16 x 37-1/32 x 13-3/8
42-3/8 x 40 x 16-3/8
Weight
Net
Shipping
(lbs.)
(lbs.)
Indoor
32.0
39.7
Outdoor
183.0
205.0
Shipping Volume
(cu.ft.)
Indoor
4.59
Outdoor
15.88
Performance Data @ ARI Standard Conditions (230/208V)
Cooling
Total Capacity
(BTU/H)
34,000 (10,900-34,000)
Sensible Capacity
(BTU/H)
20,700
Latent Capacity
(BTU/H)
13,300
SEER
16
Dehumidification
(Pints/H)
10.64
(A)
20-21.9
Amps
(W)
4,000
Power Inputs
Outdoor Sound Rating
(dB-A)
55
Dimensions
Features
Controls
Remote Controller
Temperature Control
Timer
Night Setback
Air Louver
Microprocessor
LCD Wireless Type, Temp. Sensor Built In
IC Thermostat
24 Hr. Program
Built-In
(Horizontal)
Manual
(Vertical)
Automatic
Power Failure Automatic Restart
Built-In
Self-Diagnosis
Built-In
Air Filter
Washable, Anti-Mold
Options
Refrigerant Line Set
Fresh Air Intake
Airduct Extension
Indoor Frame Extension
Condensate Drain Pump
Non-Removeable Remo-con Bracket
Operating Range
Cooling
Maximum
Minimum
