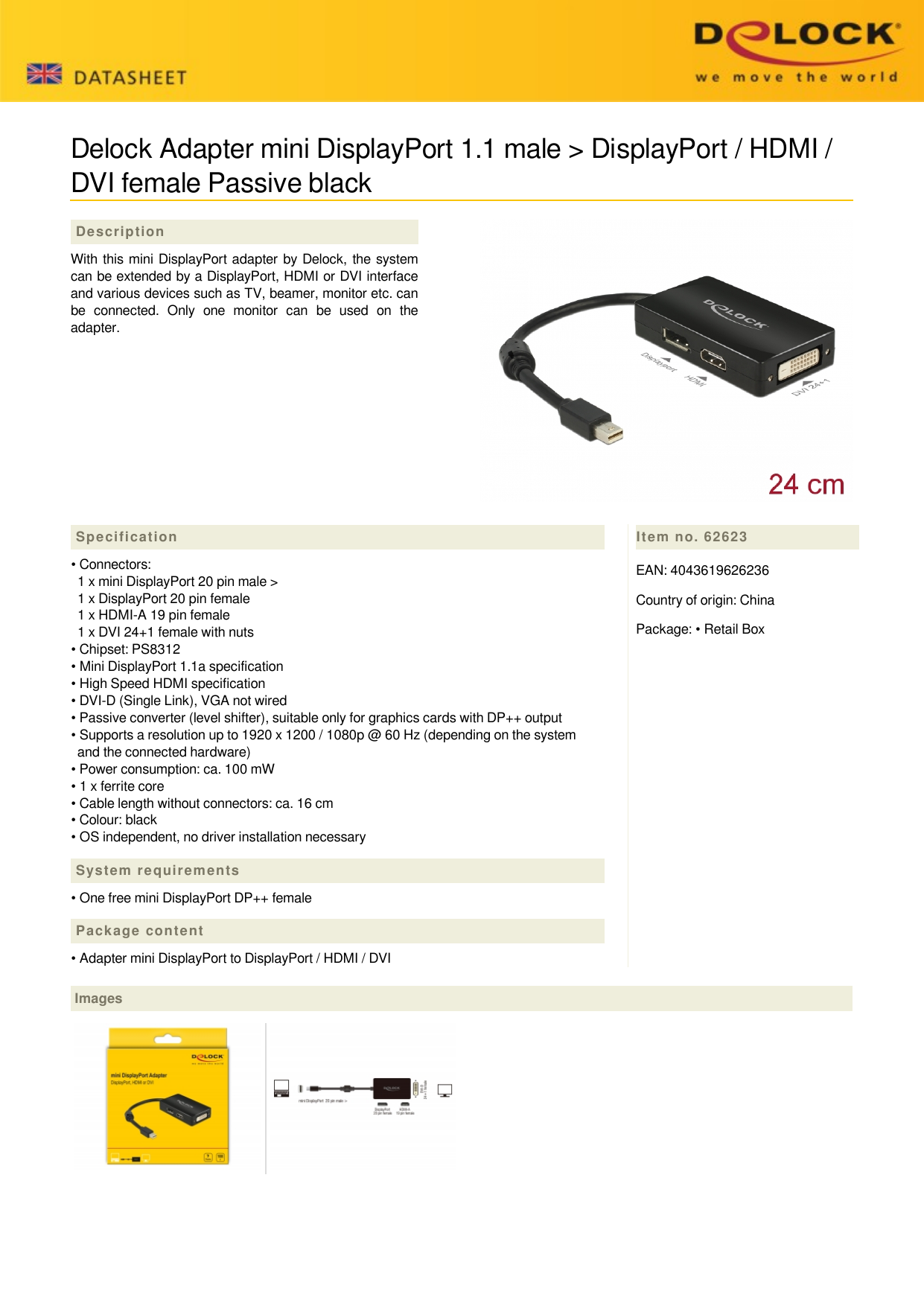

DeLOCK 62623 Adapter mini DisplayPort 1.1 male > DisplayPort / HDMI / DVI female Passive black Data Sheet

Delock Adapter mini DisplayPort 1.1 male > DisplayPort / HDMI /
DVI female Passive black
Description
With this mini DisplayPort adapter by Delock, the system
can be extended by a DisplayPort, HDMI or DVI interface
and various devices such as TV, beamer, monitor etc. can
be connected. Only one monitor can be used on the
adapter.
Specification
• Connectors:
1 x mini DisplayPort 20 pin male >
1 x DisplayPort 20 pin female
1 x HDMI-A 19 pin female
1 x DVI 24+1 female with nuts
• Chipset: PS8312
• Mini DisplayPort 1.1a specification
• High Speed HDMI specification
• DVI-D (Single Link), VGA not wired
• Passive converter (level shifter), suitable only for graphics cards with DP++ output
• Supports a resolution up to 1920 x 1200 / 1080p @ 60 Hz (depending on the system
and the connected hardware)
• Power consumption: ca. 100 mW
• 1 x ferrite core
• Cable length without connectors: ca. 16 cm
• Colour: black
• OS independent, no driver installation necessary
System requirements
• One free mini DisplayPort DP++ female
Package content
• Adapter mini DisplayPort to DisplayPort / HDMI / DVI
Images
Powered by TCPDF (www.tcpdf.org)
Item no. 62623
EAN: 4043619626236
Country of origin: China
Package: • Retail Box
