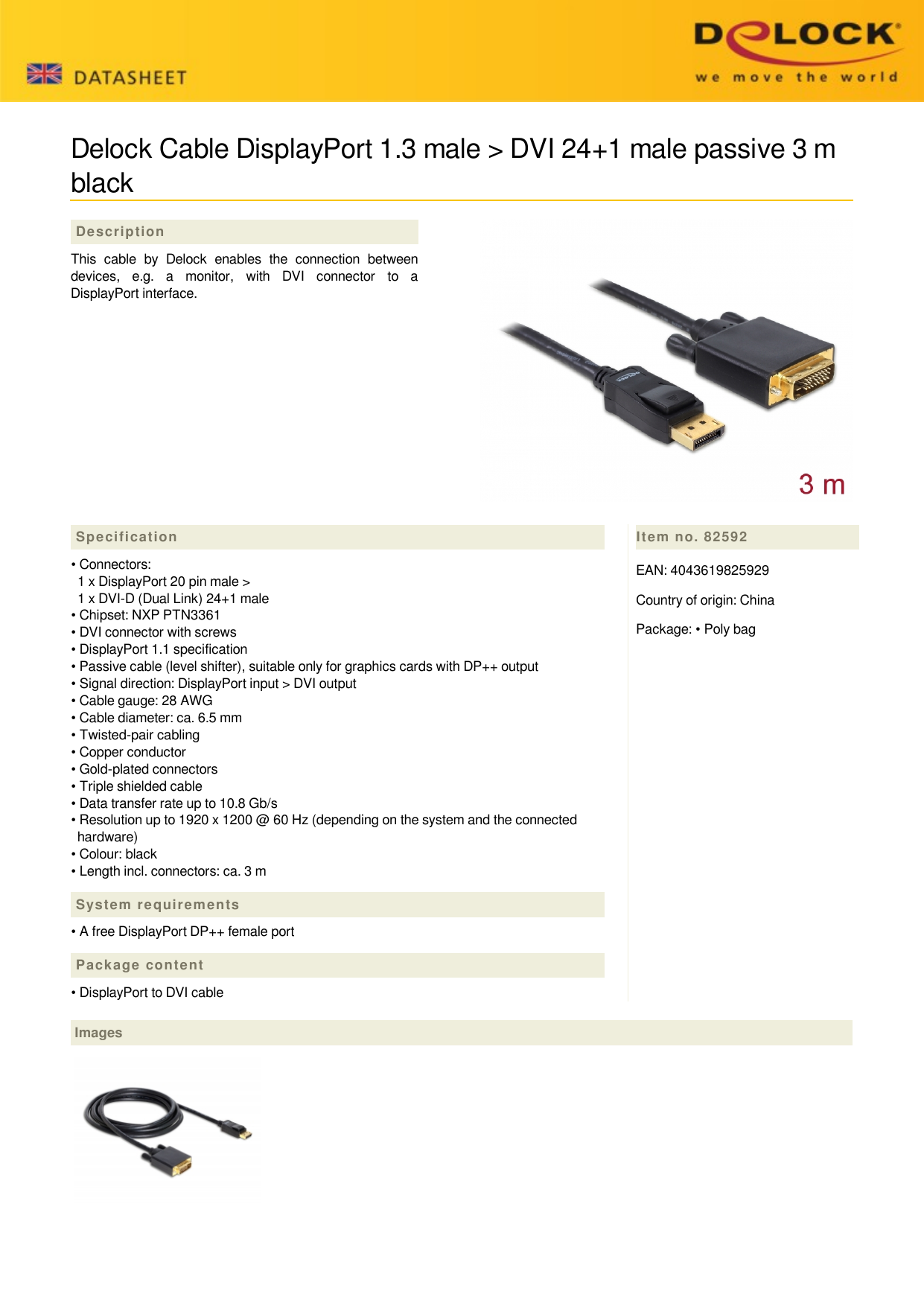

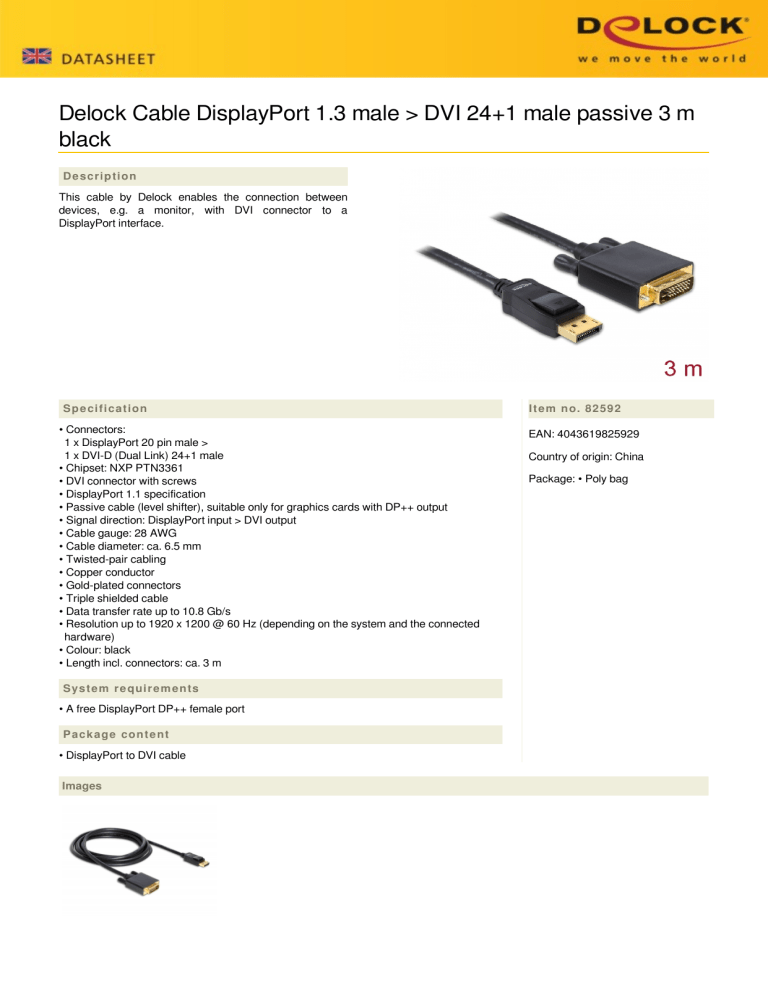

DeLOCK 82592 Cable DisplayPort 1.3 male > DVI 24+1 male passive 3 m black Data Sheet

Delock Cable DisplayPort 1.3 male > DVI 24+1 male passive 3 m
black
Description
This cable by Delock enables the connection between
devices, e.g. a monitor, with DVI connector to a
DisplayPort interface.
Specification
• Connectors:
1 x DisplayPort 20 pin male >
1 x DVI-D (Dual Link) 24+1 male
• Chipset: NXP PTN3361
• DVI connector with screws
• DisplayPort 1.1 specification
• Passive cable (level shifter), suitable only for graphics cards with DP++ output
• Signal direction: DisplayPort input > DVI output
• Cable gauge: 28 AWG
• Cable diameter: ca. 6.5 mm
• Twisted-pair cabling
• Copper conductor
• Gold-plated connectors
• Triple shielded cable
• Data transfer rate up to 10.8 Gb/s
• Resolution up to 1920 x 1200 @ 60 Hz (depending on the system and the connected
hardware)
• Colour: black
• Length incl. connectors: ca. 3 m
System requirements
• A free DisplayPort DP++ female port
Package content
• DisplayPort to DVI cable
Images
Powered by TCPDF (www.tcpdf.org)
Item no. 82592
EAN: 4043619825929
Country of origin: China
Package: • Poly bag
