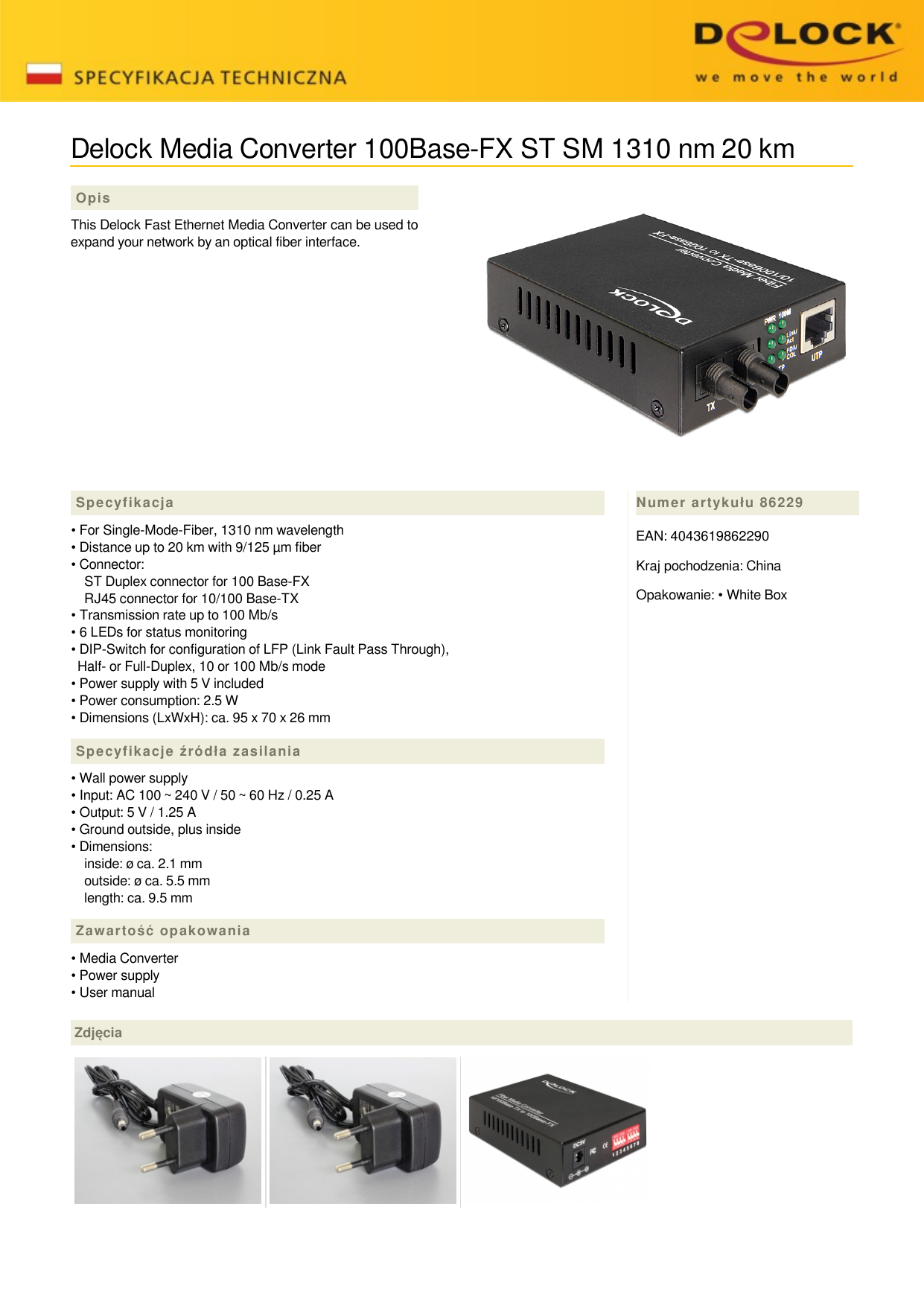

Delock 86229 Media Converter 100Base-FX ST SM 1310 nm 20 km Data Sheet

Delock Media Converter 100Base-FX ST SM 1310 nm 20 km
Opis
This Delock Fast Ethernet Media Converter can be used to
expand your network by an optical fiber interface.
Specyfikacja
• For Single-Mode-Fiber, 1310 nm wavelength
• Distance up to 20 km with 9/125 µm fiber
• Connector:
ST Duplex connector for 100 Base-FX
RJ45 connector for 10/100 Base-TX
• Transmission rate up to 100 Mb/s
• 6 LEDs for status monitoring
• DIP-Switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10 or 100 Mb/s mode
• Power supply with 5 V included
• Power consumption: 2.5 W
• Dimensions (LxWxH): ca. 95 x 70 x 26 mm
Specyfikacje źródła zasilania
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.25 A
• Output: 5 V / 1.25 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
Zawartość opakowania
• Media Converter
• Power supply
• User manual
Zdjęcia
Powered by TCPDF (www.tcpdf.org)
Numer artykułu 86229
EAN: 4043619862290
Kraj pochodzenia: China
Opakowanie: • White Box
