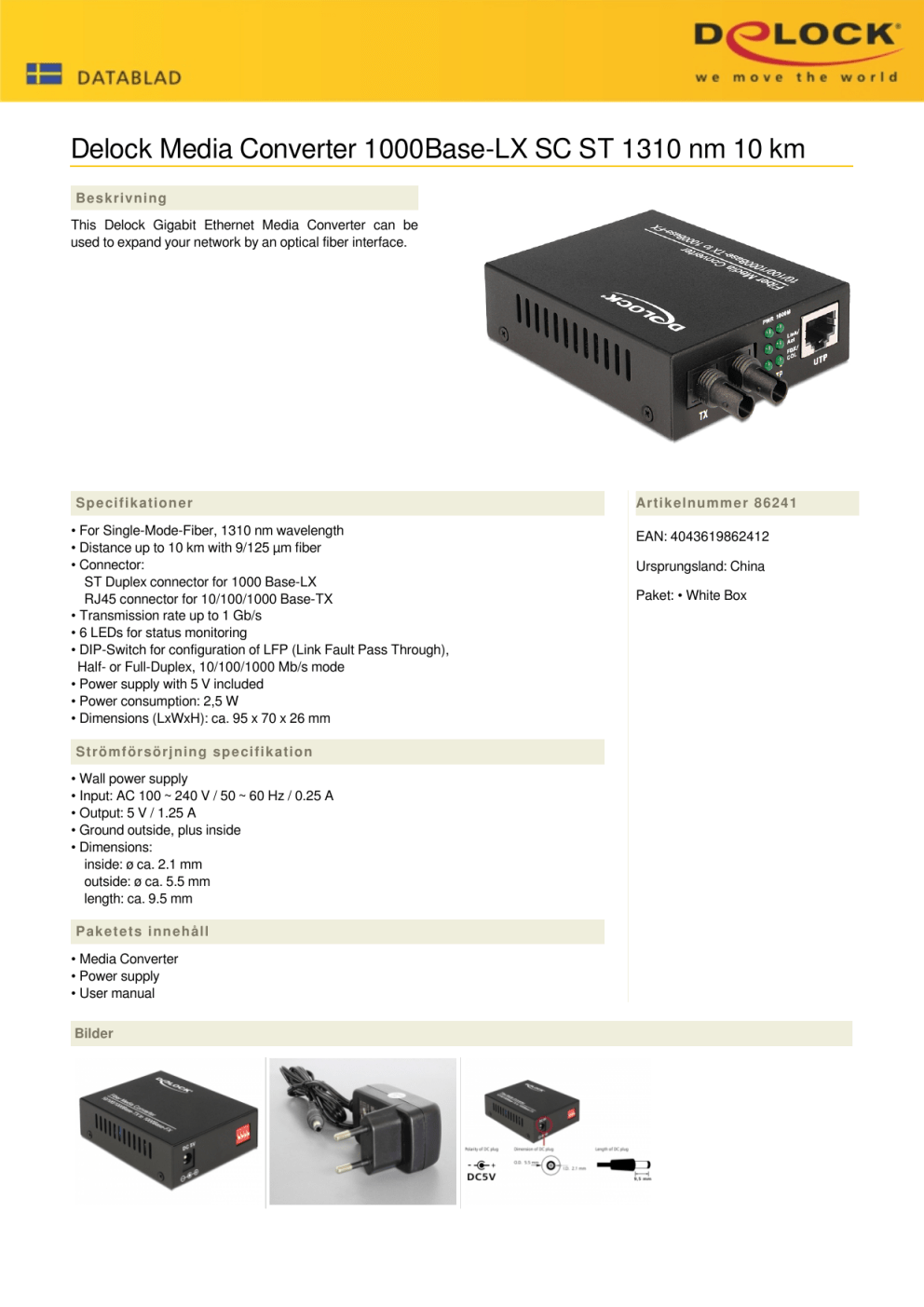

Delock 86241 Media Converter 1000Base-LX SC ST 1310 nm 10 km Data Sheet

Delock Media Converter 1000Base-LX SC ST 1310 nm 10 km
Beskrivning
This Delock Gigabit Ethernet Media Converter can be
used to expand your network by an optical fiber interface.
Specifikationer
• For Single-Mode-Fiber, 1310 nm wavelength
• Distance up to 10 km with 9/125 µm fiber
• Connector:
ST Duplex connector for 1000 Base-LX
RJ45 connector for 10/100/1000 Base-TX
• Transmission rate up to 1 Gb/s
• 6 LEDs for status monitoring
• DIP-Switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100/1000 Mb/s mode
• Power supply with 5 V included
• Power consumption: 2,5 W
• Dimensions (LxWxH): ca. 95 x 70 x 26 mm
Strömförsörjning specifikation
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.25 A
• Output: 5 V / 1.25 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca. 2.1 mm
outside: ø ca. 5.5 mm
length: ca. 9.5 mm
Paketets innehåll
• Media Converter
• Power supply
• User manual
Bilder
Powered by TCPDF (www.tcpdf.org)
Artikelnummer 86241
EAN: 4043619862412
Ursprungsland: China
Paket: • White Box
