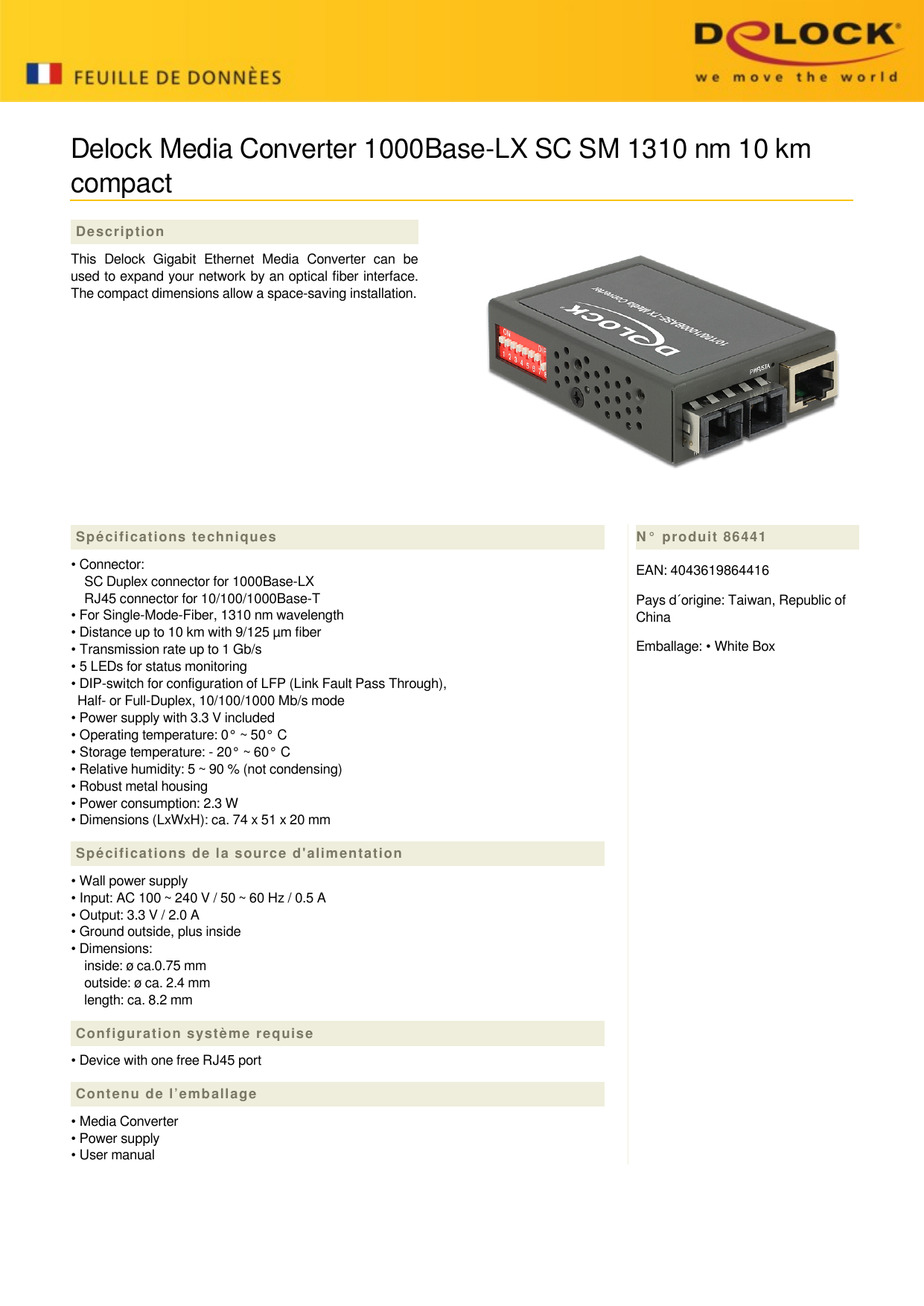

Delock 86441 Media Converter 1000Base-LX SC SM 1310 nm 10 km compact Data Sheet

Delock Media Converter 1000Base-LX SC SM 1310 nm 10 km
compact
Description
This Delock Gigabit Ethernet Media Converter can be
used to expand your network by an optical fiber interface.
The compact dimensions allow a space-saving installation.
Spécifications techniques
• Connector:
SC Duplex connector for 1000Base-LX
RJ45 connector for 10/100/1000Base-T
• For Single-Mode-Fiber, 1310 nm wavelength
• Distance up to 10 km with 9/125 µm fiber
• Transmission rate up to 1 Gb/s
• 5 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100/1000 Mb/s mode
• Power supply with 3.3 V included
• Operating temperature: 0° ~ 50° C
• Storage temperature: - 20° ~ 60° C
• Relative humidity: 5 ~ 90 % (not condensing)
• Robust metal housing
• Power consumption: 2.3 W
• Dimensions (LxWxH): ca. 74 x 51 x 20 mm
Spécifications de la source d'alimentation
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 3.3 V / 2.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca.0.75 mm
outside: ø ca. 2.4 mm
length: ca. 8.2 mm
Configuration système requise
• Device with one free RJ45 port
Contenu de l’emballage
• Media Converter
• Power supply
• User manual
N° produit 86441
EAN: 4043619864416
Pays d´origine: Taiwan, Republic of
China
Emballage: • White Box
