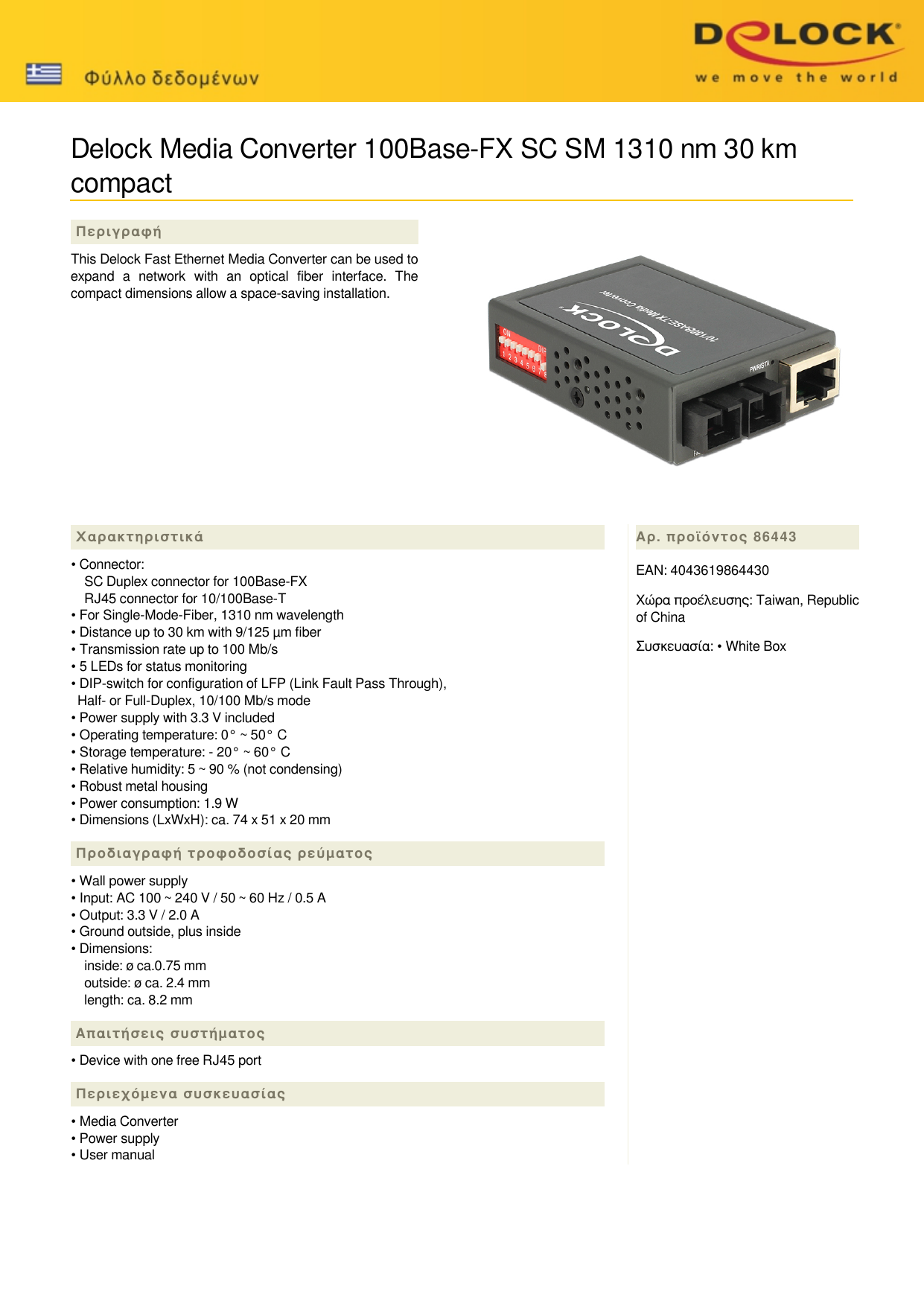

Delock 86443 Media Converter 100Base-FX SC SM 1310 nm 30 km compact Data Sheet

Delock Media Converter 100Base-FX SC SM 1310 nm 30 km
compact
Περιγραφή
This Delock Fast Ethernet Media Converter can be used to
expand a network with an optical fiber interface. The
compact dimensions allow a space-saving installation.
Χαρακτηριστικά
• Connector:
SC Duplex connector for 100Base-FX
RJ45 connector for 10/100Base-T
• For Single-Mode-Fiber, 1310 nm wavelength
• Distance up to 30 km with 9/125 µm fiber
• Transmission rate up to 100 Mb/s
• 5 LEDs for status monitoring
• DIP-switch for configuration of LFP (Link Fault Pass Through),
Half- or Full-Duplex, 10/100 Mb/s mode
• Power supply with 3.3 V included
• Operating temperature: 0° ~ 50° C
• Storage temperature: - 20° ~ 60° C
• Relative humidity: 5 ~ 90 % (not condensing)
• Robust metal housing
• Power consumption: 1.9 W
• Dimensions (LxWxH): ca. 74 x 51 x 20 mm
Προδιαγραφή τροφοδοσίας ρεύματος
• Wall power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.5 A
• Output: 3.3 V / 2.0 A
• Ground outside, plus inside
• Dimensions:
inside: ø ca.0.75 mm
outside: ø ca. 2.4 mm
length: ca. 8.2 mm
Απαιτήσεις συστήματος
• Device with one free RJ45 port
Περιεχόμενα συσκευασίας
• Media Converter
• Power supply
• User manual
Αρ. προϊόντος 86443
EAN: 4043619864430
Χώρα προέλευσης: Taiwan, Republic
of China
Συσκευασία: • White Box
Εικόνες
