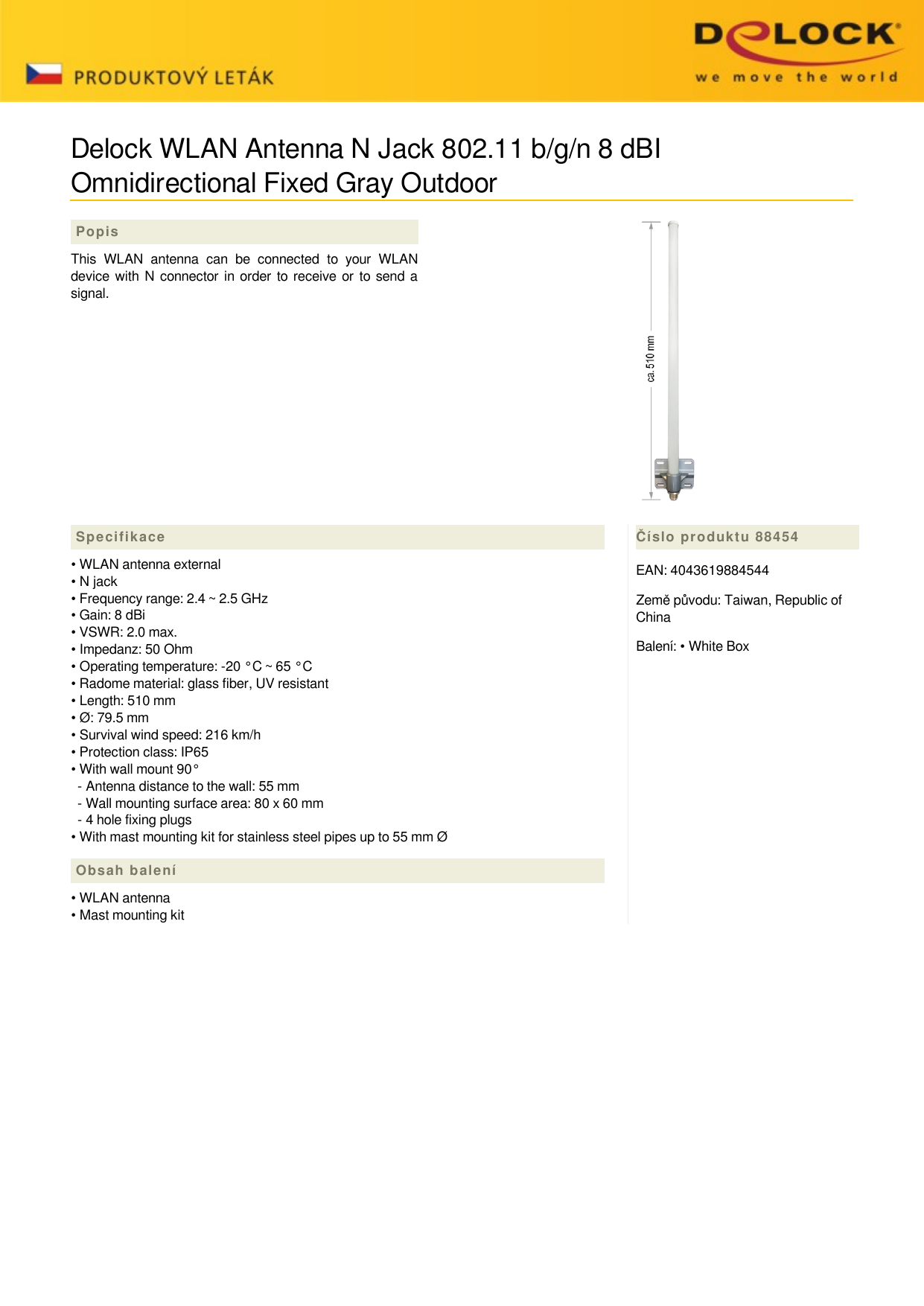

Delock 88454 WLAN Antenna N Jack 802.11 b/g/n 8 dBI Omnidirectional Fixed Gray Outdoor Data Sheet

Delock WLAN Antenna N Jack 802.11 b/g/n 8 dBI
Omnidirectional Fixed Gray Outdoor
Popis
This WLAN antenna can be connected to your WLAN
device with N connector in order to receive or to send a
signal.
Specifikace
• WLAN antenna external
• N jack
• Frequency range: 2.4 ~ 2.5 GHz
• Gain: 8 dBi
• VSWR: 2.0 max.
• Impedanz: 50 Ohm
• Operating temperature: -20 °C ~ 65 °C
• Radome material: glass fiber, UV resistant
• Length: 510 mm
• Ø: 79.5 mm
• Survival wind speed: 216 km/h
• Protection class: IP65
• With wall mount 90°
- Antenna distance to the wall: 55 mm
- Wall mounting surface area: 80 x 60 mm
- 4 hole fixing plugs
• With mast mounting kit for stainless steel pipes up to 55 mm Ø
Obsah balení
• WLAN antenna
• Mast mounting kit
Číslo produktu 88454
EAN: 4043619884544
Země původu: Taiwan, Republic of
China
Balení: • White Box
