Simplicity 5901381 Wiring Diagram

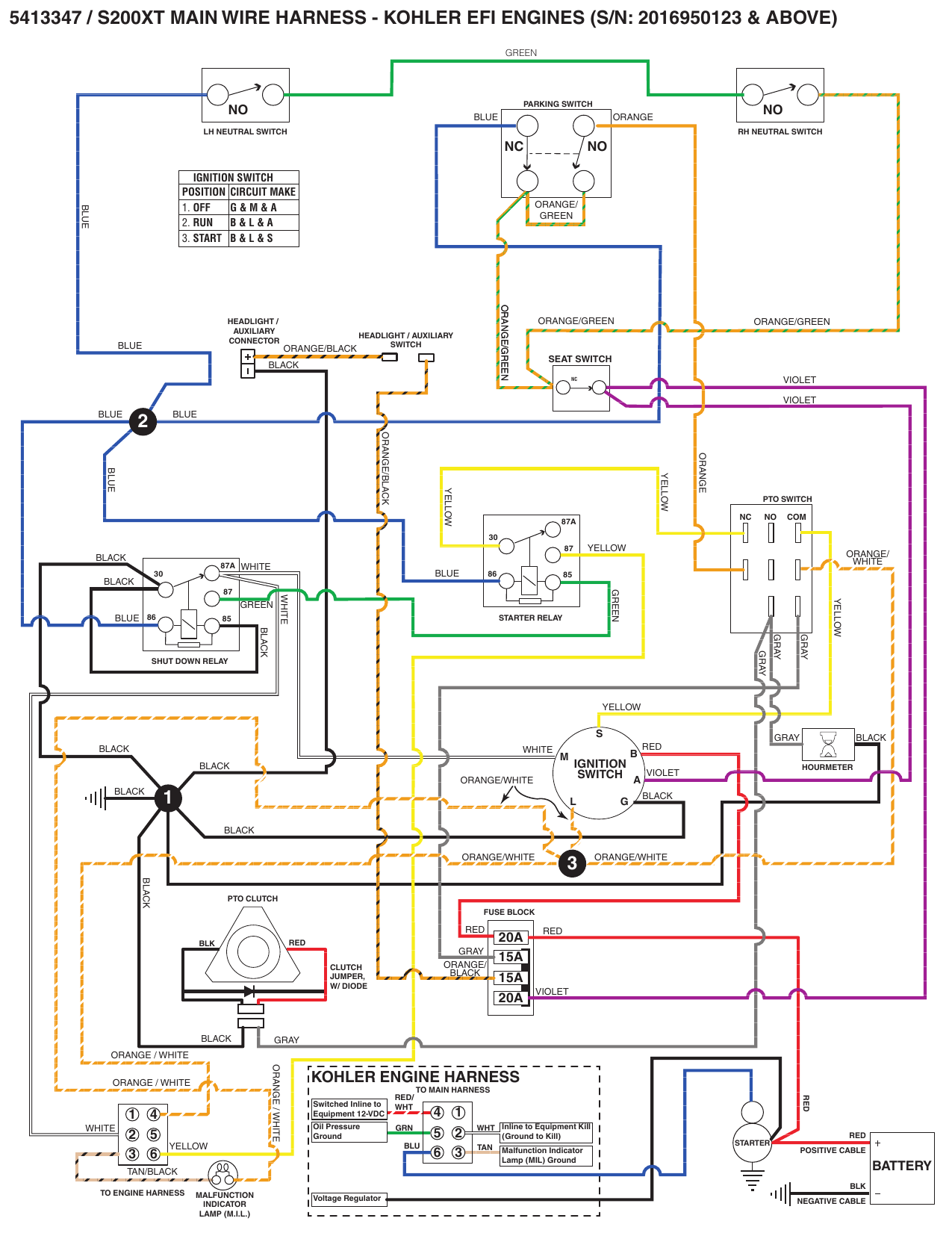

5413347 / S200XT MAIN WIRE HARNESS - KOHLER EFI ENGINES (S/N: 2016950123 & ABOVE)
GREEN
PARKING SWITCH
NO
BLUE
LH NEUTRAL SWITCH
NC
BLUE
IGNITION SWITCH
POSITION CIRCUIT MAKE
1. OFF
G&M&A
2. RUN
B&L&A
3. START B & L & S
BLUE
RH NEUTRAL SWITCH
NO
ORANGE/
GREEN
ORANGE/BLACK
ORANGE/GREEN
HEADLIGHT /
AUXILIARY
CONNECTOR
NO
ORANGE
HEADLIGHT / AUXILIARY
SWITCH
BLACK
ORANGE/GREEN
ORANGE/GREEN
SEAT SWITCH
VIOLET
NC
VIOLET
BLUE
BLUE
87A
30
BLACK
87A WHITE
30
BLACK
COM
YELLOW
ORANGE/
WHITE
85
STARTER RELAY
GRAY
GRAY
GRAY
BLACK
SHUT DOWN RELAY
NO
YELLOW
85
PTO SWITCH
NC
GREEN
WHITE
GREEN
BLUE 86
86
BLUE
87
87
ORANGE
YELLOW
YELLOW
BLUE
ORANGE/BLACK
2
YELLOW
S
BLACK
WHITE
BLACK
M
ORANGE/WHITE
1
BLACK
B
IGNITION
SWITCH A
L
G
GRAY
RED
BLACK
HOURMETER
VIOLET
BLACK
BLACK
3
ORANGE/WHITE
BLACK
PTO CLUTCH
FUSE BLOCK
RED
RED
BLK
GRAY
ORANGE/
BLACK
CLUTCH
JUMPER,
W/ DIODE
BLACK
ORANGE/WHITE
20A
15A
15A
20A
RED
VIOLET
GRAY
ORANGE / WHITE
1
2
3
4
5
6
YELLOW
KOHLER ENGINE HARNESS
Switched Inline to
Equipment 12-VDC
Oil Pressure
Ground
TAN/BLACK
TO ENGINE HARNESS
MALFUNCTION
INDICATOR
LAMP (M.I.L.)
Voltage Regulator
RED/
WHT
TO MAIN HARNESS
GRN
BLU
4
5
6
1
2
3
RED
WHITE
ORANGE / WHITE
ORANGE / WHITE
WHT Inline to Equipment Kill
(Ground to Kill)
TAN Malfunction Indicator
Lamp (MIL) Ground
STARTER
RED
POSITIVE CABLE
BLK
NEGATIVE CABLE
BATTERY
