Gerber D495958SS Specification

Gerber D495958SS Specification

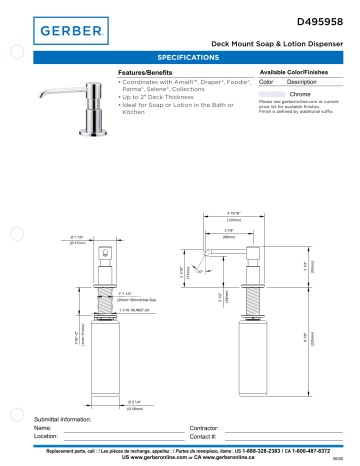

D495958
Deck Mount Soap & Lotion Dispenser
SPECIFICATIONS
Features/Benefits
Available Color/Finishes
• Coordinates with Amalfi™, Draper®, Foodie®,
Parma®, Selene®, Collections
• Up to 2" Deck Thickness
• Ideal for Soap or Lotion in the Bath or
Kitchen
Color
Description
Chrome
Please see gerberonline.com or current
price list for available finishes.
Finish is defined by additional suffix.
4 15/16"
(125mm)
3 7/8"
(98mm)
Ø 1 7/8"
3 1/4"
(83mm)
8 7/8"
(225mm)
2 1/2"
30º
(64mm)
3 1/16"
1"-1 1/2"
(25mm~38mm)Hole Size
(77mm)
(Ø 47mm)
1/16"~2"
(1mm~51mm)
1 1/16-18UNEF-2A
Ø 2 1/4"
(Ø 58mm)
Submittal Information:
Name:
Location:
Contractor:
Contact #:
Replacement parts, call : / Les pièces de rechange, appellez : / Partes de reemplazo, llame : US 1-888-328-2383 / CA 1-800-487-8372
US www.gerberonline.com or CA www.gerberonline.ca
06/20
