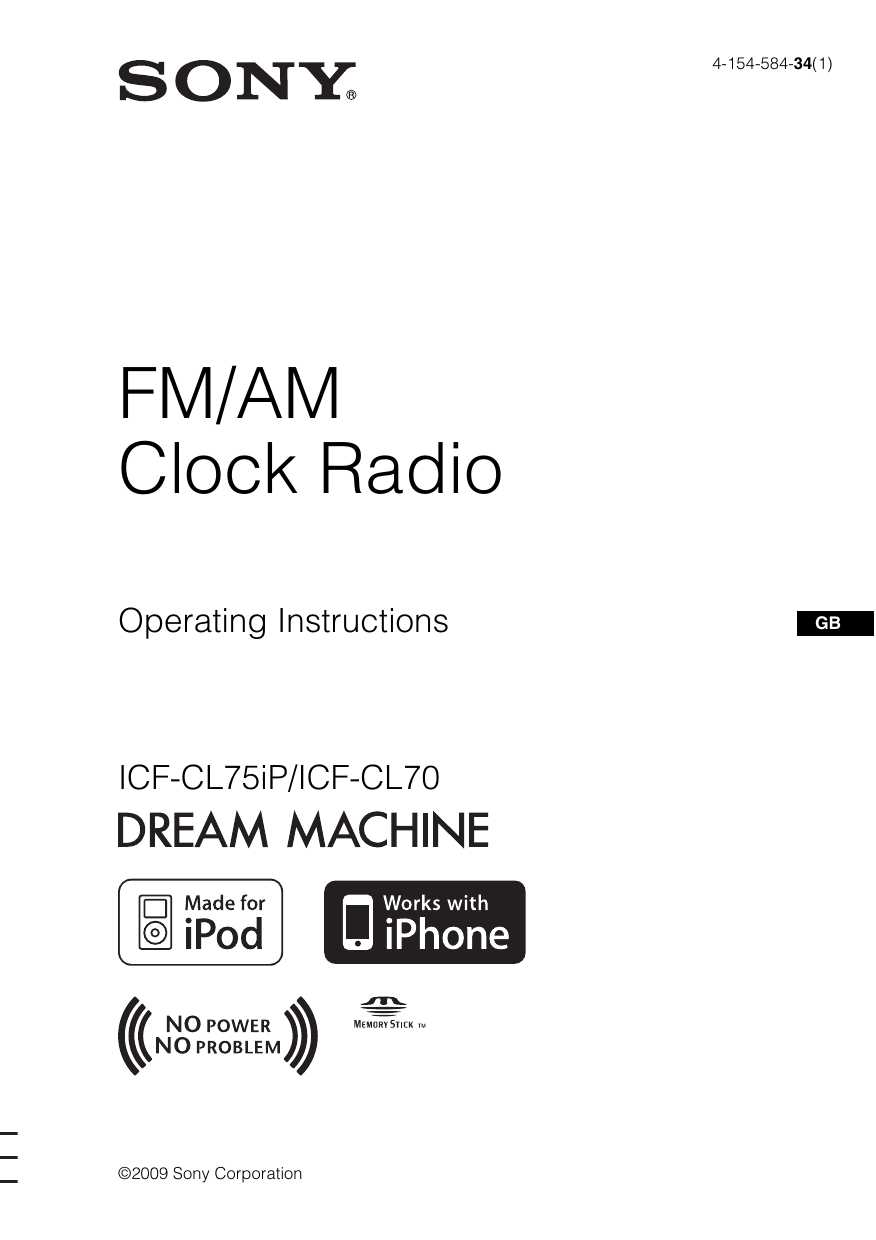

Sony ICF-CL75IP Owner Manual

4-154-584-34(1)
FM/AM
Clock Radio
Operating Instructions
ICF-CL75iP/ICF-CL70
©2009 Sony Corporation
GB
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire, do not cover the ventilation
of the apparatus with newspapers, tablecloths, curtains,
etc. And do not place lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not
expose this apparatus to dripping or splashing, and do
not place objects filled with liquids, such as vases, on
the apparatus.
As the main plug is used to disconnect the unit from the
mains, connect the unit to an easily accessible AC
outlet. Should you notice an abnormality in the unit,
disconnect the main plug from the AC outlet
immediately.
The unit is not disconnected from the AC power source
(mains) as long as it is connected to the wall outlet,
even if the unit itself has been turned off.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
Do not expose the batteries (battery pack or batteries
installed) to excessive heat such as sunshine, fire or the
like for a long time.
The nameplate and important information concerning
safety are located on the bottom exterior.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same type.
Notice for customers: the following
information is only applicable to
equipment sold in countries applying
EU directives
The manufacturer of this product is Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan. The
Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart, Germany. For any service
or guarantee matters please refer to the addresses given
in separate service or guarantee documents.
Disposal of Old Electrical
& Electronic Equipment
(Applicable in the
European Union and
other European countries
with separate collection
systems)
This symbol on the product or on its packaging
indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the
applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused by
inappropriate waste handling of this product. The
recycling of materials will help to conserve natural
resources. For more detailed information about
recycling of this product, please contact your local
Civic Office, your household waste disposal service or
the shop where you purchased the product.
Disposal of waste
batteries (applicable in
the European Union and
other European countries
with separate collection
systems)
This symbol on the battery or on the packaging
indicates that the battery provided with this product
shall not be treated as household waste.
On certain batteries this symbol might be used in
combination with a chemical symbol. The chemical
symbols for mercury (Hg) or lead (Pb) are added if the
battery contains more than 0.0005% mercury or
0.004% lead.
By ensuring these batteries are disposed of correctly,
you will help prevent potentially negative
consequences for the environment and human health
which could otherwise be caused by inappropriate
waste handling of the battery. The recycling of the
materials will help to conserve natural resources.
In case of products that for safety, performance or data
integrity reasons require a permanent connection with
an incorporated battery, this battery should be replaced
by qualified service staff only.
To ensure that the battery will be treated properly, hand
over the product at end-of-life to the applicable
collection point for the recycling of electrical and
electronic equipment.
For all other batteries, please view the section on how
to remove the battery from the product safely. Hand the
2GB
battery over to the applicable collection point for the
recycling of waste batteries.
For more detailed information about recycling of this
product or battery, please contact your local Civic
Office, your household waste disposal service or the
shop where you purchased the product.
If you have any questions or problems concerning your
unit, please consult your nearest Sony dealer.
Duplication, edition, or printing of a CD, TV
programs, copyrighted materials such as pictures
or publications, or any other materials except for
your own recording or creation is limited to private
or domestic use only. Unless you hold copyright or
have permission of copyright holders for the
materials to be duplicated, use of those materials
beyond this limit may infringe the provisions of the
copyright law and be subject to the copyright
holders claim for damages.
When using photo images with this clock radio,
pay special attention not to infringe the provisions
of the copyright law. Any unauthorized use or
modification of there’s portrait may also infringe
their rights.
For some demonstrations, performances, or
exhibits, photography may be forbidden.
Notes on LCD screen
• The displayed image on the screen is not identical in
picture quality and colors with the printed image
because phosphor methods or profiles differ. Please
regard the displayed image as just a reference.
• Do not press against the LCD screen. The screen may
be discolored and that may cause a malfunction.
• Exposing the LCD screen to direct sunlight for long
periods may cause malfunctions.
• The LCD screen is manufactured using extremely
high-precision technology, so over 99.99% of the
pixels are operational for effective use. However,
there may be some tiny black points and/or bright
points (white, red, blue or green in color) that
constantly appear on the LCD screen. These points
are normal in the manufacturing process and do not
affect the printing in any way.
• Images may trail across on the LCD screen in a cold
location. This is not a malfunction.
GB
Backup recommendations
To avoid potential risk of data loss caused by
accidental operation or malfunction of the clock
radio, we recommend that you save a backup copy
of your data.
Information
IN NO EVENT SHALL SELLER BE LIABLE
FOR ANY DIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY
NATURE, OR LOSSES OR EXPENSES
RESULTING FROM ANY DEFECTIVE
PRODUCT OR THE USE OF ANY PRODUCT.
Sony shall assume no responsibility for any
accidental or consequential damages or loss of the
recording contents which may be caused by use or
malfunction of the clock radio or memory card.
3GB
About this Operating
Instructions
• The example illustrations and images are of
the ICF-CL75iP, therefore may appear
different from illustrations, images and screen
indicators that actually appear on your clock
radio.
• “Note” indicates cautions and limitations
relevant to the correct operation of this unit.
• “Tip” indicates information that is useful to
know.
• The figures in parentheses indicate the
reference page for details on operation.
• The language used for on-screen displays are
English for all countries and regions.
• In this Operating Instructions, iPod is used as
a general reference to iPod functions on iPod
or iPhone, unless otherwise specified by the
text or illustrations (ICF-CL75iP only).
• Design and specifications of this unit and
accessories are subject to change without
notice.
4GB
Table of Contents
Features............................................ 6
Identifying the parts ........................ 8
Screen indicators .......................................10
Getting started
Checking the supplied items........ 11
Connecting the AM aerial and
AC power cord (mains lead) ... 11
Setting the clock............................ 12
Using this unit
Basic operations............................ 13
Home and Option menu ............................13
Adjusting the volume ................................13
Adjusting the brightness............................13
Changing the clock display type ...............14
Listening to the radio .................... 14
Presetting a station.....................................14
Using the timer function ............... 15
Setting an alarm.........................................15
Fun Wake-up .............................................17
Using the sleep timer.................................18
Enjoying music, video and
photos ....................................... 18
Importing files ...........................................18
Playing back music, video and setting the
background photo (wallpaper) ...........19
Using iPod & iPhone functions
(For ICF-CL75iP only) .............. 20
Compatible iPod models ...........................20
Operating iPod...........................................21
Additional information
General Settings ............................ 23
Troubleshooting ............................ 24
About the memory cards .............. 25
“Memory Stick” media..............................25
SD memory card........................................27
Precautions .................................... 28
Specifications ................................ 30
5GB
Features
This unit is multifunctional FM/AM clock radio with 7.0 inch LCD screen. As well as playing your
favorite music and video, you can also set a photo as wallpaper, etc. You can listen to your favorite
music, watch a video or view a slideshow at bed time and set your favorite alarm sound for when you
wake up.
Furthermore, when you insert iPod into the docking tray, you can operate iPod via this unit or iPod
directly (ICF-CL75iP only).
Clock
Music
Radio
Video
Alarm
Background photos
(Wallpaper)
Sleep
iPod & iPhone
Operability (8, 15)
• Various useful functions available in the 7.0 inch LCD screen.
• Easy to turn on or off by pressing the ALARM button.
• Quick and easy alarm time setting using the TIME SET lever.
Screen-display (10, 13)
• LCD screen allows you to check the clock easily.
• The brightness of night mode shifts to sleep mode automatically to coincide with your bed time.
• Triple time display allows you to view your current time and 2 alarm times, at a glance.
6GB
Playback function (18, 19)
• iPod, iPhone, memory card, internal memory, or USB device can be used to play back music and
video (iPod and iPhone functions only for ICF-CL75iP).
• You can listen to music with album artwork on the screen.
• 1 W × 1 W front speakers can be used to listen to sounds.
• You can save contents into the 1 GB internal memory.
Note
• You cannot display the album artwork of iPod or iPhone on this unit.
• You cannot display the cover photo for WMA content.
Background photos (19)
• Photos can be displayed as wallpaper on the screen, similar to a photo frame.
• Photo images can be played back as a slideshow.
Alarm/Sleep timer function (15)
• Using Fun Wake-up, you can wake up to your favorite recorded voice and photo.
• Nature Sound for relaxed listening and a good night’s sleep.
iPod & iPhone function (ICF-CL75iP only) (20)
• You can operate iPod or iPhone connected to the dock, and the connected iPod or iPhone will be
charged automatically.
• You can enjoy iPod or iPhone music and iPod or iPhone video by connecting to this unit.
7GB
Identifying the parts
For details, see the pages indicated in parentheses.
Front
A LCD screen
C Speaker
B ALARM A ON/OFF button (15)
D ALARM B ON/OFF button (15)
Rear
E AC power cord (mains lead) (11)
H AM ANTENNA terminals (11)
F
I
USB connector (18)
G FM wire aerial (15)
PRO/SD/MMC (Multi card slot) (18,
25)
J Battery holder (28)
8GB
Top
K SNOOZE/BRIGHTNESS button (13, 16)
• > PRESET+/B (Right): You can set the
tuning to minus and tune into a station by its
preset. You can select the relevant menu items.
Press and hold to fast forward.
• Operation procedure indicates with v/V/b/B
on the control button in this manual.
L Microphone (17)
M OFF x ALARM RESET button
N SLEEP button (18)
O ALARM SET button (15)
P HOME button (13)
Q BACK/iPod MENU button (ICF-CL75iP)/
BACK button (ICF-CL70)
• Return to the previous menu screen.
R Control button
• ENTER: You can select and fix menu items or
setting values.
• TUNING+/v (Up): You can set the tuning to
plus and tune into a station by its frequency. You
can select the relevant menu items.
• TUNING–/V (Down): You can set the tuning
to minus and tune into a station by its frequency.
You can select the relevant menu items.
• . PRESET–/b (Left): You can set the
tuning to plus and tune into a station by its
preset. You can select the relevant menu items.
Press and hold to rewind.
S OPTION button (13)
T DISPLAY button (14)
U iPod & iPhone u button (ICF-CL75iP)/
USB/MEMORY u button (ICF-CL70)
(22)
V USB/MEMORY u button (ICFCL75iP)/BAND button (ICF-CL70) (20)
W RADIO BAND button (ICF-CL75iP)/
RADIO button (ICF-CL70) (14)
X VOL+/VOL– button (13)
Note
• The iPod & iPhone u button (ICF-CL75iP)/ USB/
MEMORY u button (ICF-CL70) U, the USB/
MEMORY u button (ICF-CL75iP) V and the
VOL+ button X have a tactile dot.
9GB
Side
Y TIME SET A lever (15)
Z TIME SET B lever (15)
wj Docking tray for iPod & iPhone (21)
(ICF-CL75iP only)
Screen indicators
A Alarm A/Alarm B indicator (15)
D SLEEP timer indicator (18)
B Date (12)
E Status bar
C Time (12)
• Time is always displayed.
10GB
• Displays the file name, the source, and elapsed
time of the music or movie playing.
• Memory icon indicates as follows:
: Internal memory
: Memory card
: USB device
: iPod (ICF-CL75iP only)
3
Getting started
Connecting the AM
aerial and AC power cord
(mains lead)
1
2
Remove only the loop part from the
plastic stand.
Set up the AM loop aerial.
Getting started
Push down and hold
the terminal clamp
and insert the cord.
Checking the supplied
items
Make sure that the following items are supplied:
• FM/AM Clock Radio (1)
• AM loop aerial (1)
• Operating Instructions (this manual) (1)
• Warranty (1) (In some countries or regions, the
warranty is not supplied.)
• Universal dock adaptor for iPhone (1) / iPhone
3G (1) (ICF-CL75iP only)
• Sony CR2032 lithium battery (1) (In some
countries or regions, the lithium battery is
already set in the unit.)
Connect the cords to the AM aerial
terminals.
• Cord (A) or cord (B) can be connected to
either terminal.
4
Make sure the AM loop aerial is
connected firmly by pulling gently.
Note
• Do not place the AM loop aerial near the unit or other
AV equipment, as noise may result.
• The shape and the length of the aerial is designed to
receive AM signals. Do not dismantle or roll up the
aerial.
Tip
• See page 15 about determining the place for the aerial
and its orientation for good reception.
5
Connect the AC power cord to the wall
outlet (wall socket).
• The clock screen in the default setting
appears.
11GB
Getting started
Note
• The unit’s ATS (Automatic Time Set) function
automatically keeps the correct time and never
requires resetting. (UK model only)
• You can use this unit and the AC power cord (mains
lead) in any country or region where the power supply
is within 100 V to 240 V AC, 50 Hz/60 Hz.
Tip
• Though the clock is correctly set at the factory,
discrepancies may arise during transport or storage. If
necessary, set the clock to the correct time by
referring to “Setting the clock.” (UK model only)
• For details on setting language, refer to “General
Settings” (23).
To deactivate the Demo mode
When you connect the power cord to a wall
outlet (wall socket), the demo mode will start
automatically 5 seconds later.
If you want to deactivate the demo mode, press
the HOME button to select [General Settings],
then select [Video Setting], [Demo mode] and
[OFF].
Note
• If you do not operate the unit for about 1 minute, the
demo mode will start automatically, except when
playing back music and video.
Setting the clock
This unit automatically sets the date and time. If
this unit is initialized, you will need to set the
clock manually. (UK model only)
1
2
3
Press the HOME button.
Select [Clock Settings] and press the
ENTER button.
Select each of the settings as follows:
x Auto DST (Auto Summer Time)
(UK model only)
This unit automatically adjusts for daylight
savings time (summer time) by the default
setting. [ ] is displayed from the beginning of
daylight savings time (summer time) and
disappears at the end of daylight savings time
(summer time) automatically.
Note
• When [Auto DST] (Auto Summer Time) is set to on,
the clock advances 1 hour.
• You can be set [Auto DST] (Auto Summer Time)
manually as necessary. Customers living in a country
or region that does not use daylight savings time
(summer time) must cancel [Auto DST] (Auto
Summer Time) before using the unit.
x Date/Time
Adjust the date and time display manually with
v/V/b/B.
• b/B: Select the date and time.
v/V: Adjust the date and time.
Tip
• You can set the range of year from 2009 to 2099.
4
Press the ENTER button.
• The desired settings are made.
12GB
Using the Option menu
This function is useful for changing the current
setting easily while using any function by
pressing the OPTION button.
Using this unit
Basic operations
x Option menu list
This section describes basic operations of the
unit.
(14)
Select background photo
(20)
Begin slide show/Stop slide show
(20)
Select music
(19)
Using the Home menu
Select video
(19)
You can perform the various functions, such as
playing music, changing a settings, etc., easily
by pressing the HOME button.
Set current device to Alarm (A/B)
(16)
Home and Option menu
Using this unit
Set preset/Delete preset
Adjusting the volume
You can adjust the volume level from 0 to 30
using the VOL+ or VOL– buttons.
Adjusting the brightness
The brightness level is changed by pressing the
SNOOZE/BRIGHTNESS button repeatedly.
x Home menu list
For details, see the pages indicated in parentheses.
Music
High (default)
Middle
Low
(19)
Video
(19)
Background Photos
(19)
Radio
(14)
iPod & iPhone*
(20)
Import
(18)
Fun Wake-up
(17)
Alarm Settings
(15)
Clock Settings
(12)
General Settings
(23)
* [iPod & iPhone] is available on ICF-CL75iP only.
Night mode
(Press the OFF x
5 sec.
ALARM RESET
button)
Sleep mode
Tip
• When night mode is set with no operation on this unit,
the night mode is switches to the sleep mode 5
seconds later. If you want to return the clock screen,
press the SNOOZE/BRIGHTNESS button (High
brightness) or press the OFF x ALARM RESET
button (Night brightness).
• When the sleep mode is activated, the current photo
disappears and the background photo (wallpaper) is
black.
13GB
Changing the clock display
type
The clock display has four variations. You can
select the clock screen, the clock and photo
screen, the photo frame, or the music or radio
player screen.
1
Press the DISPLAY button repeatedly.
• Changes the clock display type cycles as
shown below.
Listening to the radio
1
Press the RADIO BAND button (ICFCL75iP) or the RADIO button (ICFCL70) to turn on the radio.
• Displays the radio screen.
2
3
4
Press the RADIO BAND button (ICFCL75iP) or the BAND button (ICF-CL70)
and select the FM/AM band.
Select a frequency with v/V.
To turn off the radio, press the OFF x
ALARM RESET button.
• Returns to the clock screen.
Note
• Radio frequency range differs depending on the
country or region. Make sure to match your current
location before using the radio. For details on the
frequency range, refer to “Specifications” (30).
Presetting a station
Note
• You can select the music or radio player screen
display type, while playing the radio or music.
1
2
Follow steps 1 to 3 in “Listening to the
radio” above to select the desired radio
station.
Press the OPTION button and select
[Set preset].
• Confirmation screen appears, the station
is stored into the new preset.
Note
• This unit stores stations in the order they are preset.
• The radio presetting data will not be lost by
disconnecting the AC power supply.
Tip
• v : Scans upward through the frequency bands.
V : Scans downwards through the frequency bands.
• Scanning starts from the currently tuned frequency.
When the frequency is received, scanning stops.
• To search for a preset number, you press b/B untile
the desired preset number appears.
• You can preset 20 FM stations and 10 AM stations
manually.
• If the preset number becomes full, delete the
unnecessary preset.
14GB
Deleting a preset
1
2
Using the timer function
Select the desired preset number with
b/B.
Press the OPTION button and select
[Delete preset].
The dual alarm function allows you to use two
individually set alarms. For each alarm, you can
set a favorite sound, or use an originally
recorded sound with a selected photo display.
Improving the reception
FM: Extend the FM wire aerial fully to increase
reception sensitivity.
AM: Connect the supplied AM loop aerial to
the unit. Rotate the aerial horizontally for
optimum reception.
Note
• Keep digital music players or mobile phones away
from the AM loop aerial or the FM aerial, as this may
lead to reception interference.
• When you are listening to the radio with iPod
connected to the unit or while charging iPod,
interference with radio reception may occur (ICFCL75iP only).
Setting an alarm
1
Press the ALARM SET button.
• Displays [Alarm Settings] screen.
2
3
Using this unit
• Confirmation screen appears, the selected
preset is deleted.
Select [Alarm A] or [Alarm B] and press
the ENTER button.
Set each of the settings as follows:
Note
• You can also press the HOME button to select [Alarm
Settings].
x Alarm A/Alarm B
Turn the alarm [ON] or [OFF]* with v/V.
* Factory default setting
Tip
Note
• If the FM radio is noisy, press the HOME button to
select [General Settings], then select [Radio Setting]
and [Mono]. The radio becomes clearer although the
sound becomes monaural.
• You can also turn the alarm on or off by pressing the
ALARM A ON/OFF or ALARM B ON/OFF button.
x Alarm Time
Set the alarm time with v/V/b/B.
Note
• You can also change the alarm time setting by turning
the TIME SET A or TIME SET B lever.
Tip
• To increase or decrease the alarm time, push the lever
up or down to increase or decrease the alarm time by
1 minute-increments. If you continuously hold the
lever, the alarm time increases or decreases by 10
minute-increments.
15GB
x Alarm Sound
Select your favorite alarm sound with v/V. This
unit is equipped with 7 alarm modes listed
below.
FM Radio
Sets the preset FM station.
AM Radio
Sets the preset AM station.
Buzzer
Sets the buzzer.
Press the OFF x ALARM RESET button to
deactivate the alarm. The alarm will sound again
at the same time the next day.
Note
Sets 5 types of nature sounds preinstalled in the internal memory
on this unit.
• When the alarm sounds, the original alarm screen
appears except [Fun Wake-up] alarm screen.
• For details on what to do in the event of a power
interruption, see page 29.
• If an alarm time comes while files are being
transferred, the alarm will sound after the transfer is
finished.
iPod**
Sets the iPod music.
Using the snooze function
Fun Wake-up
Sets your original voice and
photo (17).
You can doze for a few more minutes by using
the snooze function. Each time you can change
the snooze time by pressing the SNOOZE/
BRIGHTNESS button.
Music
Sets the desired music.
*
Nature Sound
* Factory default setting
** [iPod] is available on ICF-CL75iP only.
Alarm
sounds
Tip
• To set the current sound, press the OPTION button to
select [Set current device to Alarm (A)] or [Set
current device to Alarm (B)].
x Alarm Volume
Adjust the volume level from 0 to 30 with v/V.
The factory default setting is set to 8.
Note
• You cannot adjust the volume for buzzer.
x Alarm Date
Select the alarm date with v/V.
Everyday
Alarm sounds everyday.
Weekday*
Alarm sounds Monday to Friday.
Weekend
Alarm sounds Saturday or
Sunday.
* Factory default setting
4
Press the ENTER button.
• The desired settings are made.
16GB
Deactivating the alarm setting
10
20
30
40
50
Note
• The maximum snooze time is 60 minutes.
Tip
• To stop the snooze function, press the OFF x
ALARM RESET button.
60
Fun Wake-up
You can wake up by your original voice and a
photo as an alarm. If you want to set an alarm to
“Fun Wake-up”, refer to “Setting an alarm” on
page 15.
A Select
and press the ENTER button.
• Confirmation screen appears.
B Select [Yes] with b/B and press the
ENTER button.
• When recording starts, record into the
microphone.
Note
• Maximum recording time is 10 seconds. If you want
to stop during recording, select x.
• If you want to confirm the recorded voice, select N
and press the ENTER button.
1
2
3
4
Using this unit
Good morning!
x To record voice
Press the HOME button.
Select [Fun Wake-up].
Select the desired
,
, N setting
from [Fun-Wake up 1] to [Fun-Wake up
3] with b/B.
Set each of the settings as follows:
x To select a photo
A Select
button.
and press the ENTER
• Confirmation screen appears.
B Select the desired media with b/B and
press the ENTER button.
C Select the desired photo from the
thumbnail with v/V/b/B and press the
ENTER button.
• Selected photo appears in full screen.
D Select the desired photo by pressing b/
B and press the ENTER button.
• Confirmation screen appears.
E Select [Yes] with b/B and press the
ENTER button.
• The selected photo is set as the
background photo (wallpaper).
17GB
Using the sleep timer
You can easily set the sleep timer by pressing
the SLEEP button repeatedly.
Each time you press the SLEEP button, the
duration (in minutes) changes as follows:
120
90
60
30
20
10
Enjoying music, video
and photos
Importing files
1
OFF
Insert a memory card firmly into the
slot with its label side facing toward
you or connect a USB device to the rear
of this unit.
Tip
• [SLEEP] appears on the screen when the sleep timer
is set.
Nature Sound for a good night’s
sleep
Pre-installed nature sound gives you relaxation
and a good night’s sleep.
1
2
3
4
5
Press the HOME button.
Select [Music] and press the ENTER
button.
2
3
Select [Internal memory] and press the
ENTER button.
4
Select the desired nature sound files
and press the ENTER button.
5
Press the SLEEP button.
Press the HOME button.
Select [Import] and press the ENTER
button.
Select the desired media and press the
ENTER button.
Tick the desired multiple files with v/V
and press the ENTER button. Then
press B, to select [Import].
• Confirmation screen appears.
6
Select [Yes] with b/B and press the
ENTER button.
• Copying of the selected files to the
internal memory starts.
18GB
Note
Deleting files
1
2
3
4
Press the HOME button.
Select [General Settings] and select
[Delete files], then press the ENTER
button.
Select the internal memory and press
the ENTER button.
Tick the desired multiple files with v/V
and press the ENTER button. Then
press B to select [Delete].
Playing back music, video and
setting the background photo
(wallpaper)
1
2
3
4
Select [Yes] with b/B and press the
ENTER button.
Select [Music] or [Video] and
[Background Photos] and press the
ENTER button.
Select the desired media and press the
ENTER button.
Select the desired file and press the
ENTER button.
• Plays the selected file for music and
video.
Tip
• You can also play directly music or video by pressing
the USB/MEMORY u button.
• To set the background photo (wallpaper)
as follows:
• Confirmation screen appears.
5
Press the HOME button.
Using this unit
• For details on memory cards you can use with this
unit, see “About the memory cards” (25).
• Do not disconnect the AC power cord (mains lead)
from the wall outlet (wall socket) during the
operation. The file may be damaged.
• Remove a memory card from the slot or disconnect
the USB device from the USB connector in the
opposite direction from which it was inserted.
5
• The selected files are deleted from the
internal memory.
Select the desired photo and press the
ENTER button.
• Confirmation screen appears.
Tip
Note
• This unit cannot use data that has been encrypted or
compressed using, for instance, fingerprint
authentication or a password.
• Refer also to the connected device’s manual.
• Compatibility with all external devices are not
guaranteed.
• While playing or pausing music or video, you cannot
copy or delete files.
• You can display the next or previous photo by
pressing b/B.
• To change the music or video, press the OPTION
button to bring up [Option] menu, then select [Select
music] or [Select video].
• For details on changing each setting of music, video
and photo, refer to “General Settings” (23).
6
Select [Yes] with b/B and press the
ENTER button.
• The selected photo is set as the
background photo (wallpaper).
19GB
Note
• Check supported file formats beforehand, refer to
“Specifications” on page 30.
• You cannot display the cover photo for WMA
content.
• Photos are used only for the background photo
(wallpaper). The background photo cannot be played
back.
Tip
• To change the background photo (wallpaper), press
the OPTION button to bring up [Option] menu, then
[Select background photo].
• You can select from 6 pre-installed photographs in
the internal memory as wallpaper.
Setting the slideshow
Photos in the desired media are automatically
displayed one after another.
1
2
3
Using iPod & iPhone
functions (For ICFCL75iP only)
You can enjoy music, etc., from iPod by
connected to this unit. To use iPod, refer to the
user’s guide of your iPod.
Compatible iPod models
Compatible iPod models are as follows. Update
your iPod to use the latest software beforehand.
Press the OPTION button.
Select [Begin slide show].
Press the ENTER button.
• The slideshow starts with the selected
media.
Note
iPod nano 5th
generation
(video camera)
iPhone 3GS
iPod touch 2nd
generation
iPod nano 4th
generation (video)
iPhone 3G
iPod touch 1st
generation
• The factory default setting is 10 seconds for the
slideshow interval. If you want to change the interval,
see page 23.
Other operations for playing,
music and video
Play/Pause
Press the USB/MEMORY u
button.
Restart
Press the USB/MEMORY u
button.
Skip to previous/ Press >/..
the next
20GB
Fast forward/
rewind
Press and hold >/..
Stop
Press the OFF x ALARM
RESET button.
Operating iPod
You can play iPod music or iPod video content
by connecting to this unit. For details on iPod
operation, see the user’s guide of your iPod.
iPod classic
iPhone
iPod nano 2nd
generation
(aluminum)
1
Push the PUSH OPEN.
Using this unit
iPod nano 3rd
generation (video)
• The docking tray is ejected halfway.
2
iPod 5th generation
(video)
iPod nano 1st
generation
iPod 4th generation
(colour display)
iPod 4th
generation
Pull the docking tray all the way out.
iPod mini
Note
• iPod shuffle is not available on this unit.
• Sony cannot accept responsibility in the event that
data recorded to iPod is lost or damaged when using
iPod connected to this unit.
• iPod 4th generation (colour display) cannot play
photo.
21GB
3
Attach the adapter for your iPod/
iPhone.
Note
Universal dock adapter
For iPhone
For iPhone 3G
qs
qg
• If you are using iPhone or iPhone 3G, attach the
supplied universal dock adapter for iPhone or iPhone
3G before inserting into the connector. The adapter
number, qs or qg, is shown on the bottom-rear of the
supplied universal dock adapters. qs is for the
iPhone, and qg is for the iPhone 3G. Check the
adapter number before use.
4
5
Insert your iPod/iPhone into the
connector of the unit.
Press the iPod & iPhone u button.
• iPod starts playing.
Basic operation of this unit
To
Press
Stop iPod
OFF x ALARM RESET
button
Pause playback
iPod & iPhone u button. To
resume play, press it again.
Go to the next track
>
Go back to the
previous track
.
Locate a point while
listening to the
sound
> or . while playing
and hold it until you find the
point.
Go back to the
previous menu
BACK/iPod MENU button
Select a menu item
or a track for
playback
v/V
Execute the selected
menu or begin
playback
ENTER button
Note
Tip
• iPod touch/iPhone cannot play video automatically.
Please manually start playing video from the iPod
unit.
• You cannot display the album artwork of iPod or
iPhone on this unit.
• Another way to play iPod is by pressing the HOME
button to select [iPod & iPhone].
• You can operate the menu for iPod Touch and iPhone
when [Music] or [Video] is already selected.
Charging iPod
Displaying iPod photo
If you want to display iPod photo on this unit,
select [Video] in [iPod & iPhone] menu while
playing iPod.
You can use the unit as an iPod battery charger.
Charging begins when iPod is connected.
Setting iPod alarm
You can set an alarm sound from your iPod. For
details on how to set iPod sound as the alarm,
refer to “Setting an alarm” on page 15.
22GB
Additional information
General Settings
1
2
Select [General Settings] and press the
ENTER button.
Select each of the settings as follows:
x Language Setting
Select the language to be displayed with v/V.
Display
mode
Slide show
The entire photo is
displayed.
Fit to
screen*
The photo size fits in the
unit screen.
ON*
Plays the slideshow.
OFF
Cancels the slideshow.
Slide show
interval
10sec.*/1min./1hour/12hours/24hours
PreInstalled
Photos
ON*
When [Background
Photos] or [Fun Wakeup] is activated, preinstalled photos are
displayed.
OFF
Pre-installed photos are
not displayed.**
English*, Deutsch, Español,
Français, Italiano, Português,
Русский, Nederlands
Language
Setting
Full screen
mode
* Factory default setting
x Music Setting
Select the playing mode with v/V.
* Factory default setting
** If all photo files imported to this unit are deleted,
this setting is automatically set to [ON].
Normal*
Plays music without repeating.
Repeat
Plays music repeatedly.
x Radio Setting
Select the radio setting with v/V.
Repeat 1 Song
The current song is played
repeatedly.
AM channel step
* Factory default setting
10kHz
For the USA and Canada
9kHz
For Europe, Australia and New
Zealand
x Video Setting
Change the playing back mode with v/V.
Display
mode***
Full screen
mode
Displays an image
enlarged to full screen
size.**
Fit to
screen*
Zooms in on the center
of the image, sufficient
to fill the entire
screen.**
Demo mode ON*
OFF
Activates the demo
mode.
Deactivates the demo
mode.
Additional information
3
Press the HOME button.
x Photo Setting
Select the display mode for photo with v/V/b/
B.
FM Mono/Auto
Mono
Forces the radio to play in
monaural.
Auto*
Switches from stereo to monaural
automatically, in response to the
FM signal.
* Factory default setting
x Reset all settings
Resets the current settings to the default settings.
* Factory default setting
** The original image data will not change.
*** Display mode is not available while playing iPod/
iPhone Video.
23GB
x Format
Formatting deletes all the music, video and
photo files to free up space in the internal
memory.
Note
• Initializing the unit may be required depending on the
problem. In the event of this, the data stored on the
internal memory will be deleted.
• All files imported to the internal memory will be
deleted except pre-installed music and photos.
• Do not format the internal memory by connecting to
other external devices.
x Delete files
You can delete selected files in the internal
memory. Refer to “Deleting files” on page 19.
x Unit information
Display the information of this unit.
4
Press the ENTER button.
• The desired settings are made.
Troubleshooting
Should any problem persist after you have made
the following checks, consult your nearest Sony
dealer.
The power cannot be turned on.
• Insert the power plug properly.
Cannot hear sound from this unit.
• The volume is set too low. Turn up the volume.
The clock setting screen appears due to a
power interruption.
• The battery is low. Replace the battery.
Remove the old battery and install a new one.
When daylight savings time begins, the
clock does not employ the daylight
savings time automatically. (UK model
only)
• Make sure the clock is set correctly.
The alarm settings do not sound at the
preset alarm time.
• Check that [Alarm A] or [Alarm B] is properly
displayed.
The alarm settings are activated but there
is no sounds at the preset alarm time.
• Check the alarm the volume setting.
Music file in the USB device is not played.
• The USB device is not recognized, try another
USB device.
Cannot listen to the AM radio sound.
• Connect the AM loop aerial to this unit.
No photos are displayed on the screen.
• Insert a memory card or connect a USB device
properly.
• Insert a memory card containing photos or
connect an external device containing photos.
• Check the file formats that can be displayed.
Some images are not displayed.
• The unit can play, save, delete, or otherwise
handle up to 9,999 image files.
A photo was deleted accidentally.
• A photo cannot be recovered once it is deleted.
There is no sound from iPod (ICF-CL75iP
only).
• Make sure iPod is securely connected.
• Adjust the volume.
24GB
iPod cannot be operated with this unit
(ICF-CL75iP only).
About the memory cards
• Make sure iPod is securely connected.
iPod cannot be charged (ICF-CL75iP only).
• Make sure iPod is securely connected.
“Memory Stick” media
Types of “Memory Stick” media
that the clock radio can use
With the clock radio, you can use the following
types of “Memory Stick” media*1:
Type of “Memory Stick” media
“Memory Stick”*2 (Not compatible
with “MagicGate”)
Playback
Additional information
“Memory Stick” media are a compact, portable
IC recording medium with a large data capacity.
The types of “Memory Stick Duo” media that
can be used with the clock radio are listed in the
table below.
a
*2
“Memory Stick” (Compatible
with “MagicGate”)
a
“MagicGate Memory Stick”*5
a
“Memory Stick PRO”*2
a
“Memory Stick PRO DUO”
a
“Memory Stick PRO-HG”
–
“Memory Stick Micro”*3 (“M2”*4)
a
*1)
The clock radio supports FAT32. The clock radio
has been demonstrated as operable with a “Memory
Stick” media with a capacity of 32 GB or less
manufactured by Sony Corporation. However, we
do not guarantee the operations of all the “Memory
Stick” media.
*2)
The clock radio is equipped with a slot compatible
with both standard-size and Duo-size media.
Without a “Memory Stick Duo” media adaptor, you
can use both a standard-size “Memory Stick” media
and the compact-size “Memory Stick Duo” media.
25GB
*3)
When using a “Memory Stick Micro” media with
the clock radio, always insert it into an M2 adaptor.
*4)
“M2” is an abbreviation for “Memory Stick Micro”
media. In this section, “M2” is used to describe
“Memory Stick Micro” media.
*5)
Data reading/recording that requires “MagicGate”
copyright protection cannot be performed.
“MagicGate” is the general name of a copyright
protection technology developed by Sony using
authentication and encryption.
• The clock radio does not support 8 bit parallel data
transfer.
Notes on use
• For the latest information on the “Memory
Stick” media types that the clock radio
supports, see the “Memory Stick” media
compatibility information on the Sony web
site:
http://www.memorystick.com/en/support/
compatible.html
• Do not insert more than one “Memory Stick”
media at the same time, which may cause
trouble with the clock radio.
• If you use a “Memory Stick Micro” media with
the clock radio, “Memory Stick Micro” media
needs to be inserted into an “M2” adaptor.
• If you insert a “Memory Stick Micro” media
into the clock radio without an “M2” adaptor,
you may be unable to remove the “Memory
Stick Micro” media.
26GB
• If you insert a “Memory Stick Micro” media
into an “M2” adaptor, and insert the “M2”
adaptor into a “Memory Stick Duo” media
adaptor, the clock radio may not operate
properly.
• When you format a “Memory Stick” media,
use the format function of your clock radio. If
you format a “Memory Stick” media with your
computer, images may not be displayed
properly.
• When you format a “Memory Stick” media, all
the data including protected image files will be
erased. To avoid erasing important data by
accident, make sure to check the contents of
the “Memory Stick” media before formatting.
• You cannot record, edit or delete data if you
slide the write-protect switch to LOCK.
Write-protect switch
Write
enable
position
Write
protect
position
Place the label here.
• Do not attach any other material than the
supplied label on the labelling position.
When you attach the supplied label, be sure to
attach it to the labelling position. Be careful
that the label does not stick out.
SD memory card
*1)
The clock radio has been demonstrated as operable
with an SD memory card with a capacity of 2 GB or
smaller.
*2)
Some commercially available card adaptors have
projected terminals on the rear. This type of adaptor
may not work properly with the clock radio.
*3)
The clock radio has been demonstrated as operable
with an SDHC memory card with a capacity of 8
GB or less.
*4)
The clock radio has been demonstrated as operable
with an MMC standard memory card with a
capacity of 2 GB or less.
Notes on use
Data reading that requires copyright protection cannot
be performed.
• When using a card, make sure to check the
correct insertion direction of the card and the
correct insertion slot.
• When inserting the memory card, it will only
insert the portion of the way, so do not try to
force it as this could damage the memory card
and/or clock radio.
• Do not remove a card while the clock radio is
reading or writing data. Otherwise, data may
be rendered unreadable or erased.
• We recommend that you save a backup of
important data.
• Data processed with the computer may not be
displayed with the clock radio.
• When you carry or store a card, put it in the
case supplied with it.
• Do not touch the terminal of a card with your
hand or a metal object.
• Do not strike, bends or drop a card.
• Do not disassemble or modify a card.
• Do not expose a card to water.
• Do not use or store a card under the following
conditions:
– Locations beyond the required operational
conditions including locations such as the
hot interior of a car parked in the sun and/
or in the summer, the outdoors exposed to
direct sunlight, or a place near a heater.
– Humid locations or locations with
corrosive substances present
– Locations subject to static electricity or
electrical noises
Additional information
The SD memory card slot of the clock radio
allows you to use the following:
• SD memory card*1
• miniSD card, microSD card
(An adaptor is necessary.)*2
• SDHC memory card*3
• MMC standard memory card*4
We do not guarantee proper operations for all
types of SD memory cards and MMC standard
memory cards.
Notes on using a memory card
27GB
Replacing the battery
Precautions
• Operate the unit on the power source specified
in “Specifications.”
• To disconnect the AC power cord (mains
lead), pull it out by the plug, not the cord.
• Since a strong magnet is used for the speaker,
keep personal credit cards using magnetic
coding or spring-wound watches away from
the unit to prevent possible damage from the
magnet.
• Do not leave the unit in a location near a heat
source such as a radiator or airduct, or in a
place subject to direct sunlight, excessive dust,
mechanical vibration, or shock.
• Allow adequate air circulation to prevent
internal heat build-up. Do not place the unit on
a surface (a rug, a blanket, etc.) or near
materials (a curtain) which might block the
ventilation holes.
• Should any solid object or liquid fall into the
unit, unplug the unit and have it checked by
qualified personnel before operating it any
further.
• To clean the casing, use a soft cloth dampened
with a mild detergent solution.
• Never touch the wire of the external FM aerial
during a thunderstorm. Furthermore,
immediately disconnect the AC power cord
(mains lead) from the radio.
If you have any questions or problems
concerning your unit, please consult your
nearest Sony dealer.
28GB
1
2
3
4
5
Keep the AC plug connected to the wall
outlet (wall socket), remove the screw
that secures the battery holder at the
back of the unit using a screwdriver.
Open the battery holder.
Replace a new battery in the battery
holder with the + side facing up.
Close the battery holder and secure it
with the screw.
Press the HOME button and the
DISPLAY button at the same time in
[Home] menu screen to turn
off on
the screen.
Note
• When you replace the battery, do not disconnect the
plug from the wall outlet (wall socket). Otherwise,
the calendar, current time, alarm and station presets
will be initialized.
Note on the alarm in the event of
a power interruption
Note
• To keep accurate time, this unit contains a CR2032
battery inside of the unit as a backup power source. If
a power interruption occurs while the battery is weak,
the current time and alarm will be initialized. Replace
the battery with a Sony CR2032 lithium battery. Use
of another battery may cause a fire or explosion.
Note for customers in Europe
(except East Europe)
The clock is preset at the factory, and its
memory is powered by the preinstalled Sony
CR2032 battery. If the clock setting screen
appears in the display when the unit is connected
to AC outlet for the first time, the battery may be
weak. In this case, consult a Sony dealer. The
preinstalled CR2032 battery is considered part
of the product, and is covered by the warranty.
You are required to show “Note for customers in
Europe (except East Europe)” (in this
instruction) to a Sony dealer in order to validate
the warranty for this product.
• Wipe the battery with a dry cloth to assure a
good contact.
• Be sure to observe the correct polarity when
installing the battery.
• Do not hold the battery with metallic tweezers,
otherwise a short circuit may occur.
On trademarks
•
, “Memory Stick”,
, “Memory
Stick Duo”,
, “MagicGate
Memory Stick”, “Memory Stick PRO”,
, “Memory Stick PRO Duo”,
, “Memory Stick PRO-HG
Duo”,
, “Memory Stick
Micro”,
,
, “Memory StickROM”,
, “MagicGate”, and
are trademarks or registered
trademarks of Sony Corporation.
• iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
• iPhone is trademark of Apple Inc.
• “Made for iPod” means that an electronic accessory
has been designed to connect specifically to iPod and
has been certified by the developer to meet Apple
performance standards.
• “Works with iPhone” means that an electronic
accessory has been designed to connect specifically
to iPhone and has been certified by the developer to
meet Apple performance standards.
• Apple is not responsible for the operation of this
device or its compliance with safety and regulatory
standards.
• MPEG Layer-3 audio decoding technology licensed
from Fraunhofer IIS and Thomson Multimedia.
• Dream Machine is a trademark of Sony Corporation.
• No Power No Problem is a trademark of Sony
Corporation.
• All other companies and product names mentioned
herein may be the trademarks or registered
trademarks of their respective companies.
Furthermore, “™” and “®” are not mentioned in each
case in this manual.
Additional information
In the event of a power interruption, the alarm
will work until the battery is totally discharged.
However, certain functions will be affected as
follows:
• The backlight will not light up.
• If the alarm mode is set to any mode other than
buzzer, it will change to buzzer automatically.
• If a power interruption occurs while the alarm
is sounding, the alarm will stop.
• If the alarm is not stopped, the alarm will
sound for about 5 minutes.
• If “
” appears in the display, the alarm will
not sound in the event of power interruption.
Replace the battery if “
” appears.
• The snooze function will not work.
• During a power interruption, the alarm will
sound at the set time only once.
NOTES ON LITHIUM BATTERY
29GB
Specifications
x Radio section
Frequency range:
FM: 87.5 MHz - 108 MHz (0.05 MHz Channel
step)
AM: 531 kHz - 1,602 kHz (9 kHz Channel step)
Station Preset(s): 20 FM, 10 AM
x Alarm section
Alarm numbers: Dual
Weekend Alarm: Every day/Work day/Week
end
Snooze: 10 minutes intervals up to 1 Hour
Fun Wake up (Wake up Photo and recording
voice): Numbers: 3
Maximum recording time: 10 sec.
x iPod section (for ICF-CL75iP only)
DC out: 5 V
MAX: 500 mA
x General
LCD Size: 7 inch/WVGA (800 × 480)
Brightness: 4 steps (Hi, Mid, Lo, Night mode)
Speaker: ¢31.3 mm (1.2 inches) × 2
Rated impedance 8 Ω
Memory slot: Multi card slot (MS, MS PRO,
MS Duo, MS PRO Duo, SD, SDHC, MMC)/
USB
Internal memory size (User area): 1 GB (902
MB)
Audio:
MP3
Bit rate: 32 kbps - 320 kbps (VBRcompatible)
Sampling rate: 8 kHz - 48 kHz
WMA*1*2
Bit rate: 32 kbps - 192 kbps
Sampling rate: 8 kHz - 48 kHz
*1)
Support version 7.0, 8.0
*2)
Files with copyright protection cannot be played by
this unit.
Photo: JPEG (Maximum size: 4,096 × 4,096)
Slide show: 10 sec./1 min./1 hour/12 hours/24
hours
Video Compression Format:
MPEG-1
File Format: MP4 File Format, AVI File
Format
30GB
Extension: .mpg, .avi
Bit rate: Max. 4 Mbps
Frame rate: Max. 30 fps
Resolution: Max. 720 × 576
MPEG-4
File Format: MP4 File Format, AVI File
Format
Extension: .mp4, .avi
Profile: Advanced Simple Profile
Bit rate: Max. 4 Mbps
Frame rate: Max. 30 fps
Resolution: Max. 720 × 576
Motion-JPEG
Format: Quick Time Format, AVI Format
Extension: .mov, .avi
Resolution: Max. 640 × 480
Audio Compression Format:
AAC-LC (For MP4, AVI file format)
Channel: Max. 2 ch
Sampling rate: 24, 32, 44.1, 48 kHz
MPEG-3 (For AVI file format)
Channel: Max. 2 ch
Sampling rate: 24, 32, 44.1, 48 kHz
PCM (For MPEG-1)
Channel: Max. 2 ch
Sampling rate: 24, 32, 44.1, 48 kHz
Sleep: 10 min./20 min./30 min./60 min./90 min./
120 min.
Nature sound: Sea Waves, Birds, Rain, Brook,
Under the Sea
Power output: 1 W + 1 W (at 10% harmonic
distortion)
Power requirements:
For USA and Canada: 120 V AC, 60 Hz
For Europe, Australia and New Zealand:
230 V AC, 50 Hz
Power consumption: 18 W (Brightness Hi)
Back up battery: CR2032
Dimensions (Approx.): 205.6 × 148 × 119.5
mm (8 1/8 × 5 7/8 × 4 3/4 inches) (w/h/d)
(not including projecting parts and controls)
Mass (Approx.):
ICF-CL75iP: 1,010 g (2 lb 3.6 oz)
ICF-CL70: 950 g (2 lb 1.5 oz)
(including power supply unit)
Check the supplied items on page 11.
Printed in China

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
