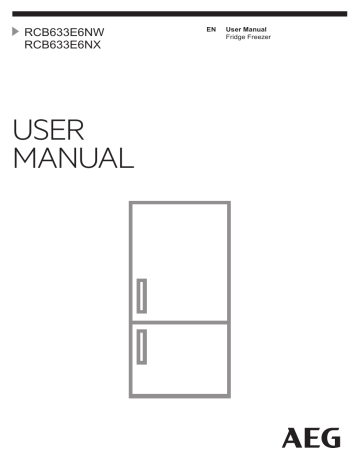

RCB633E6NW
RCB633E6NX
USER
MANUAL
EN
User Manual
Fridge Freezer
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION...................................................................................... 2
2. SAFETY INSTRUCTIONS.................................................................................... 4
3. INSTALLATION.....................................................................................................6
4. CONTROL PANEL................................................................................................9
5. DAILY USE......................................................................................................... 10
6. HINTS AND TIPS................................................................................................11
7. CARE AND CLEANING...................................................................................... 14
8. TROUBLESHOOTING........................................................................................ 14
9. NOISES...............................................................................................................18
10. TECHNICAL DATA........................................................................................... 19
11. INFORMATION FOR TEST INSTITUTES........................................................ 19
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
ENGLISH
3
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children aged from 3 to 8 years are allowed to load
and unload the appliance provided that they have
been properly instructed.
This appliance may be used by persons with very
extensive and complex disabilities provided that they
have been properly instructed.
Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
Do not let children play with the appliance.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments;
– By clients in hotels, motels, bed and breakfast and
other residential type environments.
To avoid contamination of food respect the following
instructions:
– do not open the door for long periods;
– clean regularly surfaces that can come in contact
with food and accessible drainage systems;
4
www.aeg.com
store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
When the appliance is empty for long period, switch it
off, defrost, clean, dry and leave the door open to
prevent mould from developing within the appliance.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
–
•
•
•
•
•
•
•
•
•
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
•
•
•
Remove all the packaging.
Do not install or use a damaged
appliance.
Follow the installation instructions
supplied with the appliance.
•
•
•
•
Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
Make sure the air can circulate
around the appliance.
At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
Before carrying out any operations on
the appliance (e.g. reversing the
ENGLISH
•
•
•
•
•
•
door), remove the plug from the
power socket.
Do not install the appliance close to
radiators or cookers, ovens or hobs.
Do not expose the appliance to the
rain.
Do not install the appliance where
there is direct sunlight.
Do not install this appliance in areas
that are too humid or too cold.
When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
The appliance contains a bag of
desiccant. This is not a toy. This is not
food. Please dispose of it
immediately.
2.2 Electrical connection
•
•
•
•
•
•
•
Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas
with a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
•
WARNING!
Risk of fire and electric
shock.
•
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
•
WARNING!
Do not use multi-plug
adapters and extension
cables.
•
The appliance must be earthed.
Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
Always use a correctly installed
shockproof socket.
Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
The mains cable must stay below the
level of the mains plug.
Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
5
•
•
•
•
•
•
•
•
Do not change the specification of this
appliance.
Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
Do not let hot items to touch the
plastic parts of the appliance.
Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
Do not store flammable gas and liquid
in the appliance.
Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
Do not touch the compressor or the
condenser. They are hot.
Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
Do not freeze again food that has
been thawed.
Follow the storage instructions on the
packaging of frozen food.
Wrap the food in any food contact
material before putting it in the freezer
compartment.
2.4 Internal lighting
WARNING!
Risk of electric shock.
6
www.aeg.com
•
Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
•
•
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
•
•
•
Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
•
•
•
•
•
2.6 Service
•
•
To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
Please note that self-repair or nonprofessional repair can have safety
consequences and might void the
guarantee.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets.
Please note that some of these spare
parts are only available to
professional repairers, and that not all
spare parts are relevant for all
models.
Door gaskets will be available for 10
years after the model has been
discontinued.
•
Disconnect the appliance from the
mains supply.
Cut off the mains cable and discard it.
Remove the door to prevent children
and pets to be closed inside of the
appliance.
The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
ENGLISH
7
D3
D1
3.1 Dimensions
W1
D2
W3
H2
H1
W2
* increased to 660 mm if the room
temperature is greater than 38°C
Overall dimensions ¹
H1
mm
1850
Overall space required in use ³
W1
mm
595
H2
mm
1950
D1
mm
647
W3
mm
765**
D3
mm
1189
¹ the height, width and depth of the
appliance without the handle and feet
Space required in use ²
H2
mm
1950
W2
mm
600*
D2
mm
684
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air, plus the space necessary
to allow door opening to the minimum
angle permitting removal of all internal
equipment
** increased to 795 mm if the room
temperature is greater than 38°C
8
www.aeg.com
3.2 Location
Refer to the installation
instructions for the
installation.
This appliance is intended to be used at
ambient temperature ranging from 10°C
to 43°C.
The correct operation of the
appliance can only be
guaranteed within the
specified temperature range.
This appliance is not intended to be used
as a built-in appliance.
In case of different installation from
freestanding respecting space required
in use dimensions, the appliance will
function correctly but energy
consumption might increase slightly.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
To ensure appliance's best functionality,
you should not install the appliance in the
nearby of the heat source (oven, stoves,
radiators, cookers or hobs) or in a place
with direct sunlight. Make sure that air
can circulate freely around the back of
the cabinet.
This appliance should be installed in a
dry, well ventilated indoor position.
To ensure best performance, if the
appliance is positioned below an
overhanging wall unit, the minimum
distance between the top of the cabinet
shall be maintained. Ideally, however,
the appliance should not be positioned
below overhanging wall units. One or
more adjustable feet at the base of the
cabinet ensure that the appliance stands
level.
CAUTION!
If you position the appliance
against the wall, use back
spacers provided or keep
the minimum distance
indicated in the installation
instructions.
CAUTION!
If you install the appliance
next to a wall, refer to the
installation instructions to
understand the minimum
distance between the wall
and the side of the appliance
where door hinges are to
provide enough space to
open the door when the
internal equipment is
removed (e.g. when
cleaning).
It must be possible to
disconnect the appliance
from the mains power
supply. The plug must
therefore be easily
accessible after installation.
3.3 Electrical connection
•
•
•
•
Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
The manufacturer declines all
responsibility if the above safety
precautions are not observed.
This appliance complies with the
E.E.C. Directives.
3.4 Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
CAUTION!
At every stage of reversing
the door protect the floor
from scratching with a
durable material.
ENGLISH
9
4. CONTROL PANEL
1
2
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
4.4 FROSTMATIC function
4
1.
2.
3.
4.
3
Temperature indicator LED
FROSTMATIC indicator
FROSTMATIC button
Temperature regulator
ON/OFF button
4.1 Switching on
1. Insert the plug into the wall socket.
2. Touch the temperature regulator
button if all LED indicators are off.
4.2 Switching off
Keep touching the temperature regulator
button for 3 seconds.
All indicators light off.
4.3 Temperature regulation
To operate the appliance, touch the
temperature regulator until the LED
corresponding to the required
temperature lights up. Selection is
progressive, varying from 2°C to 8°C.
Recommended setting is 4°C.
1. Touch temperature regulator.
Current temperature indicator blinks. Any
time you touch the temperature
regulator, the setting moves by one
position. The corresponding LED blinks
for a while.
2. Touch the temperature regulator until
the required temperature is selected.
The FROSTMATIC function is used to
perform pre-freezing and fast freezing in
sequence in the freezer compartment.
This function accelerates the freezing of
fresh food and, at the same time,
protects food products already stored in
the freezer compartment from
undesirable warming.
To freeze fresh food activate
the FROSTMATIC function
at least 24 hours before
placing the food to complete
pre-freezing.
To activate FROSTMATIC function press
the FROSTMATIC button. The
FROSTMATIC indicator switches on.
This function stops
automatically after 52 hours.
It is possible to deactivate the function at
any time by pressing FROSTMATIC
button again. The FROSTMATIC
indicator switches off.
4.5 Door open alarm
If the fridge door is left open for
approximately 5 minutes, the sound is
on.
During the alarm the sound can be
muted by pressing any button. The
sound switches off automatically after
around one hour to avoid disturbing.
The alarm deactivates after closing the
door.
10
www.aeg.com
5. DAILY USE
5.1 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf up until it
comes free.
2. Reposition as required.
5.4 Bottle rack
1. Place the bottles (with the opening
facing front) in the pre-positioned
shelf.
If the shelf is positioned
horizontally, place only
closed bottles.
5.2 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
5.3 Vegetable drawers
There are special drawers in the bottom
part of the appliance suitable for storage
of fruits and vegetables.
2. This shelf can be tilted to store
unsealed bottles. To obtain this
result, place front hooks of the shelf
one level higher than the rear hooks.
ENGLISH
5.5 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FROSTMATIC function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Store the fresh food evenly distributed in
the first and second compartment or
drawer from the top.
let the appliance run at least 3 hours with
the FROSTMATIC function switched on.
The freezer drawers ensure that it is
quick and easy to find the food package
you want. If large quantities of food are
to be stored, remove all drawers and
place the food on shelves.
Keep the food no closer than 15 mm
from the door.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
on rating plate under "rising
time", the defrosted food
must be consumed quickly
or cooked immediately then
cooled and then re-frozen.
The maximum amount of food that can
be frozen without adding other fresh food
during 24 hours is specified on the rating
plate (a label located inside the
appliance).
When the freezing process is complete,
the appliance automatically returns to the
previous temperature setting (see
"FROSTMATIC Function").
In this condition, the
temperature inside the
refrigerator might change
slightly.
5.6 Storage of frozen food
When activating an appliance for the first
time or after a period out of use, before
putting the products in the compartment
11
5.7 Thawing
Deep-frozen or frozen food, prior to
being consumed, can be thawed in the
refrigerator or inside a plastic bag under
cold water.
This operation depends on the time
available and on the type of food. Small
pieces may even be cooked still frozen.
6. HINTS AND TIPS
6.1 Hints for energy saving
•
•
•
•
•
Freezer: The internal configuration of
the appliance is the one that ensures
the most efficient use of energy.
Fridge: Most efficient use of energy is
ensured in the configuration with the
drawers in the bottom part of the
appliance and shelves evenly
distributed. Position of the door bins
does not affect energy consumption.
Do not open the door frequently or
leave it open longer than necessary.
Freezer: The colder the temperature
setting, the higher the energy
consumption.
Fridge: Do not set too high
temperature to save energy unless it
is required by the characteristics of
the food.
•
•
If the ambient temperature is high and
the temperature control is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice
formation on the evaporator. In this
case, set the temperature control
toward higher temperature to allow
automatic defrosting and to save
energy this way.
Ensure a good ventilation. Do not
cover the ventilation grilles or holes.
6.2 Hints for freezing
•
Activate FROSTMATIC function at
least 24 hours before placing the food
inside the freezer compartment.
12
www.aeg.com
•
•
•
•
•
•
•
•
•
Before freezing wrap and seal fresh
food in: aluminium foil, plastic film or
bags, airtight containers with lid.
For more efficient freezing and
thawing divide food into small
portions.
It is recommended to put labels and
dates on all your frozen food. This will
help to identify foods and to know
when they should be used before their
deterioration.
The food should be fresh when being
frozen to preserve good quality.
Especially fruits and vegetables
should be frozen after the harvest to
preserve all of their nutrients.
Do not freeze bottles or cans with
liquids, in particular drinks containing
carbon dioxide - they may explode
during freezing.
Do not put hot food in the freezer
compartment. Cool it down at room
temperature before placing it inside
the compartment.
To avoid increase in temperature of
already frozen food, do not place
fresh unfrozen food directly next to it.
Place food at room temperature in the
part of the freezer compartment
where there is no frozen food.
Do not eat ice cubes, water ices or ice
lollies immediately after taking them
out of the freezer. Risk of frostbites.
Do not re-freeze defrosted food. If the
food has defrosted, cook it, cool it
down and then freeze it.
6.3 Hints for storage of
frozen food
•
•
•
•
•
•
The medium temperature setting
ensures good preservation of frozen
food products.
Higher temperature setting inside the
appliance may lead to shorter shelf
life.
The whole freezer compartment is
suitable for storage of frozen food
products.
Leave enough space around the food
to allow air to circulate freely.
For adequate storage refer to food
packaging label to see the shelf life of
food.
It is important to wrap the food in such
a way that prevents water, humidity or
condensation from getting inside.
6.4 Shopping tips
After grocery shopping:
•
•
•
•
•
Ensure that the packaging is not
damaged - the food could be
deteriorated. If the package is swollen
or wet, it might have not been stored
in the optimal conditions and
defrosting may have already started.
To limit the defrosting process buy
frozen goods at the end of your
grocery shopping and transport them
in a thermal and insulated cool bag.
Place the frozen foods immediately in
the freezer after coming back from the
shop.
If food has defrosted even partially, do
not re-freeze it. Consume it as soon
as possible.
Respect the expiry date and the
storage information on the package.
Freezer compartment is the one
marked with
.
6.5 Shelf life for freezer compartment
Type of food
Shelf life (months)
Bread
3
Fruits (except citrus)
6 - 12
Vegetables
8 - 10
Leftovers without meat
1-2
ENGLISH
Type of food
13
Shelf life (months)
Dairy food:
Butter
Soft cheese (e.g. mozzarella)
Hard cheese (e.g. parmesan, cheddar)
6-9
3-4
6
Seafood:
Fatty fish (e.g. salmon, mackerel)
Lean fish (e.g. cod, flounder)
Shrimps
Shucked clams and mussels
Cooked fish
2-3
4-6
12
3-4
1-2
Meat:
Poultry
Beef
Pork
Lamb
Sausage
Ham
Leftovers with meat
9 - 12
6 - 12
4-6
6-9
1-2
1-2
2-3
6.6 Hints for fresh food
refrigeration
6.7 Hints for food
refrigeration
•
•
•
•
•
•
•
•
Good temperature setting that
ensures preservation of fresh food is
a temperature less than or equal to
+4°C.
Higher temperature setting inside the
appliance may lead to shorter shelf
life of food.
Cover the food with packaging to
preserve its freshness and aroma.
Always use closed containers for
liquids and for food, to avoid flavours
or odours in the compartment.
To avoid the cross-contamination
between cooked and raw food, cover
the cooked food and separate it from
the raw one.
It is recommended to defrost the food
inside the fridge.
Do not insert hot food inside the
appliance. Make sure it has cooled
down at room temperature before
inserting it.
To prevent food waste the new stock
of food should always be placed
behind the old one.
•
•
•
•
•
•
•
Fresh food compartment is the one
.
marked (on the rating plate) with
Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
Fruit and vegetables: clean thoroughly
(eliminate the soil) and place in a
special drawer (vegetable drawer).
It is advisable not to keep the exotic
fruits like bananas, mangos, papayas
etc. in the refrigerator.
Vegetables like tomatoes, potatoes,
onions, and garlic should not be kept
in the refrigerator.
Butter and cheese: place in an airtight
container or wrap in an aluminium foil
or a polythene bag to exclude as
much air as possible.
Bottles: close them with a cap and
place them on the door bottle shelf, or
(if available) on the bottle rack.
Always refer to the expiry date of the
products to know how long to keep
them.
14
www.aeg.com
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
compartment during normal use. The
defrost water drains out through a trough
into a special container at the back of the
appliance, over the motor compressor,
where it evaporates.
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
CAUTION!
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Periodic cleaning
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
2. Regularly check the door seals and
wipe them clean to ensure they are
clean and free from debris.
3. Rinse and dry thoroughly.
7.3 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.4 Defrosting of the freezer
The freezer compartment is frost free.
This means that there is no build up of
frost when it is in operation, neither on
the internal walls, nor on the foods.
7.5 Period of non-operation
When the appliance is not in use for long
period, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the doors open to prevent
unpleasant smells.
ENGLISH
15
8.1 What to do if...
Problem
Possible cause
Solution
The appliance does not op‐
erate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not con‐
nected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock‐
et. Contact a qualified elec‐
trician.
The appliance is noisy.
The appliance is not suppor‐ Check if the appliance
ted properly.
stands stable.
Acoustic or visual alarm is
on.
The cabinet has been re‐
cently switched on.
Refer to "Door Open Alarm"
or "High Temperature
Alarm".
The temperature in the appli‐ Refer to "Door Open Alarm"
ance is too high.
or "High Temperature
Alarm".
The door is left open.
The compressor operates
continually.
Close the door.
Temperature is set incorrect‐ Refer to "Control Panel"
ly.
chapter.
Many food products were
put in at the same time.
Wait a few hours and then
check the temperature
again.
The room temperature is too Refer to "Installation" chap‐
high.
ter.
Food products placed in the
appliance were too warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed cor‐
rectly.
Refer to "Closing the door"
section.
The FROSTMATIC function
is switched on.
Refer to "FROSTMATIC
function" section.
The compressor does not
start immediately after
pressing the "FROSTMAT‐
IC", or after changing the
temperature.
The compressor starts after
a period of time.
This is normal, no error has
occurred.
Door is misaligned or inter‐
feres with ventilation grill.
The appliance is not level‐
led.
Refer to installation instruc‐
tions.
16
www.aeg.com
Problem
Possible cause
Solution
Door does not open easily.
You attempted to re-open
the door immediately after
closing.
Wait a few seconds between
closing and re-opening of
the door.
Side panels of the appliance
are warm.
This is a normal state
caused by operation of the
heat exchanger.
Make sure the appliance in‐
stallation is done according
to the instructions given in
this user manual.
The lamp does not work.
The lamp is in stand-by
mode.
Close and open the door.
The lamp is defective.
Contact the nearest Author‐
ized Service Centre.
The door is not closed cor‐
rectly.
Refer to "Closing the door"
section.
The gasket is deformed or
dirty.
Refer to "Closing the door"
section.
Food products are not wrap‐
ped properly.
Wrap the food products bet‐
ter.
There is too much frost and
ice.
Temperature is set incorrect‐ Refer to "Control Panel"
ly.
chapter.
Appliance is fully loaded and Set a higher temperature.
is set to the lowest tempera‐ Refer to "Control Panel"
ture.
chapter.
Temperature set in the appli‐ Set a higher temperature.
ance is too low and the am‐ Refer to "Control Panel"
bient temperature is too
chapter.
high.
There is too much frost and
ice on food products in the
refrigerator.
Food products are placed
too close to the temperature
sensor.
Keep a distance between
food products and the tem‐
perature sensor (a rectangu‐
lar indent in the right wall of
the refrigerator between the
glass shelves).
Water flows on the rear plate During the automatic de‐
of the refrigerator.
frosting process, frost melts
on the rear plate.
This is correct.
There is too much con‐
densed water on the rear
wall of the refrigerator.
Door was opened too fre‐
quently.
Open the door only when
necessary.
Door was not closed com‐
pletely.
Make sure the door is closed
completely.
ENGLISH
Problem
17
Possible cause
Solution
Stored food was not wrap‐
ped.
Wrap food in suitable pack‐
aging before storing it in the
appliance.
Water flows inside the refrig‐ Food products prevent the
erator.
water from flowing into the
water collector.
Make sure that food prod‐
ucts do not touch the rear
plate.
The water outlet is clogged.
Clean the water outlet.
Water flows on the floor.
The melting water outlet is
not connected to the evapo‐
rative tray above the com‐
pressor.
Attach the melting water out‐
let to the evaporative tray.
Temperature cannot be set.
The "FROSTMATIC func‐
tion" is switched on.
Switch off "FROSTMATIC
function" manually, or wait
until the function deactivates
automatically to set the tem‐
perature. Refer to "FROST‐
MATIC function" section.
The temperature in the appli‐ The temperature is not set
ance is too low/too high.
correctly.
Set a higher/lower tempera‐
ture.
The door is not closed cor‐
rectly.
Refer to "Closing the door"
section.
The food products' tempera‐
ture is too high.
Let the food products tem‐
perature decrease to room
temperature before storage.
Many food products are stor‐ Store less food products at
ed at the same time.
the same time.
Some specific surfaces in‐
side the fridge compartment
are warmer at some times.
The door has been opened
often.
Open the door only if neces‐
sary.
The FROSTMATIC function
is switched on.
Refer to "FROSTMATIC
function" section.
There is no cold air circula‐
tion in the appliance.
Make sure that there is cold
air circulation in the appli‐
ance. Refer to "Hints and
Tips" chapter.
This is a normal state.
18
www.aeg.com
Problem
Possible cause
Solution
Temperature setting LEDs
flash at the same time.
An error has occurred in
measuring the temperature.
Contact the nearest Author‐
ised Service Centre. The
cooling system will continue
to keep food products cold,
but temperature adjustment
will not be possible.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
8.2 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
8.3 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer
to installation instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
9. NOISES
SSSRRR!
BRRR!
CLICK!
HISSS!
BLUBB!
ENGLISH
19
10. TECHNICAL DATA
The technical information is situated in
the rating plate on the internal side of the
appliance and on the energy label.
The QR code on the energy label
supplied with the appliance
provides a web link to the information
related to the performance of the
appliance in the EU EPREL database.
Keep the energy label for reference
together with the user manual and all
other documents provided with this
appliance.
It is also possible to find the same
information in EPREL using the link
https://eprel.ec.europa.eu and the model
name and product number that you find
on the rating plate of the appliance.
See the link www.theenergylabel.eu for
detailed information about the energy
label.
11. INFORMATION FOR TEST INSTITUTES
Installation and preparation of the
appliance for any EcoDesign verification
shall be compliant with EN 62552.
Ventilation requirements, recess
dimensions and minimum rear
clearances shall be as stated in this User
Manual at Chapter 3. Please contact the
manufacturer for any other further
information, including loading plans.
12. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
280158579-C-092021
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
