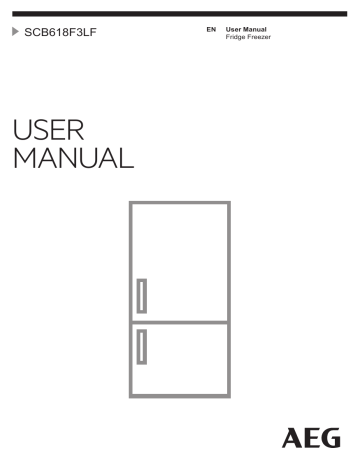

SCB618F3LF
USER
MANUAL
EN
User Manual
Fridge Freezer
2
www.aeg.com
CONTENTS
1. SAFETY INFORMATION............................................................................................. 2
2. SAFETY INSTRUCTIONS.............................................................................................4
3. INSTALLATION............................................................................................................ 6
4. CONTROL PANEL....................................................................................................... 9
5. DAILY USE.................................................................................................................... 9
6. HINTS AND TIPS........................................................................................................11
7. CARE AND CLEANING.............................................................................................13
8. TROUBLESHOOTING............................................................................................... 14
9. NOISES....................................................................................................................... 18
10. TECHNICAL DATA.................................................................................................. 18
11. INFORMATION FOR TEST INSTITUTES............................................................... 19
FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you
impeccable performance for many years, with innovative technologies that help
make life simpler – features you might not find on ordinary appliances. Please
spend a few minutes reading to get the very best from it.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.aeg.com/support
Register your product for better service:
www.registeraeg.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1.
SAFETY INFORMATION
Before the installation and use of the appliance,
carefully read the supplied instructions. The
manufacturer is not responsible for any injuries or
damage that are the result of incorrect installation or
ENGLISH
3
usage. Always keep the instructions in a safe and
accessible location for future reference.
1.1 Children and vulnerable people safety
•
•
•
•
•
•
•
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
Children aged from 3 to 8 years are allowed to load
and unload the appliance provided that they have
been properly instructed.
This appliance may be used by persons with very
extensive and complex disabilities provided that they
have been properly instructed.
Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
Do not let children play with the appliance.
Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•
•
This appliance is intended to be used in household
and similar applications such as:
– Farm houses; staff kitchen areas in shops, offices
and other working environments;
– By clients in hotels, motels, bed and breakfast and
other residential type environments.
To avoid contamination of food respect the following
instructions:
– do not open the door for long periods;
– clean regularly surfaces that can come in contact
with food and accessible drainage systems;
4
www.aeg.com
store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
Do not use water spray and steam to clean the
appliance.
Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
When the appliance is empty for long period, switch it
off, defrost, clean, dry and leave the door open to
prevent mould from developing within the appliance.
Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
–
•
•
•
•
•
•
•
•
•
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure
due to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate around
the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the
power supply. This is to allow the oil
to flow back in the compressor.
ENGLISH
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the
rain.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
• The appliance contains a bag of
desiccant. This is not a toy. This is not
food. Please dispose of it
immediately.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
WARNING!
Do not use multi-plug
adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
5
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas with
a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
• Do not change the specification of
this appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and
liquid in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the
freezer compartment.
6
www.aeg.com
2.4 Internal lighting
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
• Please note that self-repair or nonprofessional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets. Please
note that some of these spare parts
are only available to professional
repairers, and that not all spare parts
are relevant for all models.
• Door gaskets will be available for 10
years after the model has been
discontinued.
2.5 Care and cleaning
2.7 Disposal
WARNING!
Risk of electric shock.
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
WARNING!
Refer to installation
instruction document to
install your appliance.
WARNING!
Fix the appliance in
accordance with installation
instruction document to
avoid a risk of instability of
the appliance.
ENGLISH
7
D3
D1
3.1 Dimensions
D2
W1
W3
A
B
H1
W2
Space required in use ²
Overall dimensions ¹
H1
mm
1769
D2
mm
552
W1
mm
556
A
mm
1780
D1
mm
549
B
mm
36
¹ the height, width and depth of the
appliance without the handle and feet
Space required in use ²
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of the
cooling air
H2 (A+B)
mm
1816
Overall space required in use ³
W2
mm
560
H3 (A+B)
mm
1816
8
www.aeg.com
Overall space required in use ³
W3
mm
780
D3
mm
1085
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of the
cooling air, plus the space necessary to
allow door opening to the minimum
angle permitting removal of all internal
equipment
3.2 Location
To ensure appliance's best functionality,
you should not install the appliance in
the nearby of the heat source (oven,
stoves, radiators, cookers or hobs) or in a
place with direct sunlight. Make sure that
air can circulate freely around the back of
the cabinet.
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
3.5 Ventilation requirements
The airflow behind the appliance must
be sufficient.
5 cm
min.
200 cm2
3.3 Positioning
This appliance should be installed in a
dry, well ventilated indoor position.
min.
200 cm2
This appliance is intended to be used at
ambient temperature ranging from 10°C
to 43°C.
The correct operation of the
appliance can only be
guaranteed within the
specified temperature
range.
If you have any doubts
regarding where to install
the appliance, please turn to
the vendor, to our customer
service or to the nearest
Authorised Service Centre.
It must be possible to
disconnect the appliance
from the mains power
supply. The plug must
therefore be easily
accessible after installation.
3.4 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
CAUTION!
Refer to the installation
instructions for the
installation.
3.6 Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
CAUTION!
At every stage of reversing
the door protect the floor
from scratching with a
durable material.
ENGLISH
9
4. CONTROL PANEL
1
2
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
4.4 Frostmatic function
4
1.
2.
3.
4.
3
Temperature indicator LED
Frostmatic indicator
Frostmatic button
Temperature regulator
ON/OFF button
4.1 Switching on
1. Insert the plug into the wall socket.
2. Touch the temperature regulator
button if all LED indicators are off.
4.2 Switching off
Keep touching the temperature regulator
button for 3 seconds.
All indicators light off.
4.3 Temperature regulation
The Frostmatic function is used to
perform pre-freezing and fast freezing in
sequence in the freezer compartment.
This function accelerates the freezing of
fresh food and, at the same time,
protects food products already stored in
the freezer compartment from
undesirable warming.
To freeze fresh food activate
the Frostmatic function at
least 24 hours before placing
the food to complete prefreezing.
To activate Frostmatic function press the
Frostmatic button. The Frostmatic
indicator switches on.
This function stops
automatically after 52 hours.
It is possible to deactivate the function at
any time by pressing Frostmatic button
again. The Frostmatic indicator switches
off.
4.5 Door open alarm
To operate the appliance, touch the
temperature regulator until the LED
corresponding to the required
temperature lights up. Selection is
progressive, varying from 2°C to 8°C.
Recommended setting is 4°C.
If the fridge door is left open for
approximately 5 minutes, the sound is
on.
1. Touch temperature regulator.
Current temperature indicator blinks. Any
time you touch the temperature
regulator, the setting moves by one
position. The corresponding LED blinks
for a while.
2. Touch the temperature regulator until
the required temperature is selected.
The alarm deactivates after closing the
door.
5. DAILY USE
During the alarm the sound can be
muted by pressing any button. The
sound switches off automatically after
around one hour to avoid disturbing.
10
www.aeg.com
5.1 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf up until it
comes free.
2. Reposition as required.
5.4 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
Frostmatic function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
Store the fresh food evenly distributed in
all compartments or drawers.
The maximum amount of food that can
be frozen without adding other fresh
food during 24 hours is specified on the
rating plate (a label located inside the
appliance).
When the freezing process is complete,
the appliance automatically returns to
the previous temperature setting (see
"Frostmatic Function").
5.2 Movable shelves
The walls of the refrigerator are
equipped with a series of runners so that
the shelves can be positioned as desired.
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
5.3 Vegetable drawers
There are special drawers in the bottom
part of the appliance suitable for storage
of fruits and vegetables.
In this condition, the
temperature inside the
refrigerator might change
slightly.
5.5 Storage of frozen food
When activating an appliance for the first
time or after a period out of use, before
putting the products in the compartment
let the appliance run at least 3 hours with
the Frostmatic function switched on.
The freezer drawers ensure that it is quick
and easy to find the food package you
want. If large quantities of food are to be
stored, remove all drawers, except for
the bottom drawer which needs to be in
place to provide good air circulation.
Keep the food no closer than 15 mm
from the door.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
on rating plate under "rising
time", the defrosted food
must be consumed quickly
or cooked immediately then
cooled and then re-frozen.
ENGLISH
5.6 Thawing
Deep-frozen or frozen food, prior to
being consumed, can be thawed in the
refrigerator or inside a plastic bag under
cold water.
This operation depends on the time
available and on the type of food. Small
pieces may even be cooked still frozen.
11
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water.
2. Put the ice trays in the freezer
compartment.
5.7 Ice-cube production
This appliance is equipped with one or
more trays for the production of icecubes.
6. HINTS AND TIPS
6.1 Hints for energy saving
• Freezer: The internal configuration of
the appliance is the one that ensures
the most efficient use of energy.
• Fridge: Most efficient use of energy is
ensured in the configuration with the
drawers in the bottom part of the
appliance and shelves evenly
distributed. Position of the door bins
does not affect energy consumption.
• Do not open the door frequently or
leave it open longer than necessary.
• Freezer: The colder the temperature
setting, the higher the energy
consumption.
• Fridge: Do not set too high
temperature to save energy unless it
is required by the characteristics of
the food.
• If the ambient temperature is high
and the temperature control is set to
low temperature and the appliance is
fully loaded, the compressor may run
continuously, causing frost or ice
formation on the evaporator. In this
case, set the temperature control
toward higher temperature to allow
automatic defrosting and to save
energy this way.
• Ensure a good ventilation. Do not
cover the ventilation grilles or holes.
6.2 Hints for freezing
• Activate Frostmatic function at least
24 hours before placing the food
inside the freezer compartment.
• Before freezing wrap and seal fresh
food in: aluminium foil, plastic film or
bags, airtight containers with lid.
• For more efficient freezing and
thawing divide food into small
portions.
• It is recommended to put labels and
dates on all your frozen food. This will
help to identify foods and to know
when they should be used before
their deterioration.
• The food should be fresh when being
frozen to preserve good quality.
Especially fruits and vegetables
should be frozen after the harvest to
preserve all of their nutrients.
• Do not freeze bottles or cans with
liquids, in particular drinks containing
carbon dioxide - they may explode
during freezing.
• Do not put hot food in the freezer
compartment. Cool it down at room
temperature before placing it inside
the compartment.
• To avoid increase in temperature of
already frozen food, do not place
fresh unfrozen food directly next to it.
Place food at room temperature in
the part of the freezer compartment
where there is no frozen food.
• Do not eat ice cubes, water ices or ice
lollies immediately after taking them
out of the freezer. Risk of frostbites.
• Do not re-freeze defrosted food. If the
food has defrosted, cook it, cool it
down and then freeze it.
12
www.aeg.com
6.4 Shopping tips
6.3 Hints for storage of frozen
food
After grocery shopping:
• The medium temperature setting
ensures good preservation of frozen
food products.
Higher temperature setting inside the
appliance may lead to shorter shelf
life.
• The whole freezer compartment is
suitable for storage of frozen food
products.
• Leave enough space around the food
to allow air to circulate freely.
• For adequate storage refer to food
packaging label to see the shelf life of
food.
• It is important to wrap the food in
such a way that prevents water,
humidity or condensation from
getting inside.
• Ensure that the packaging is not
damaged - the food could be
deteriorated. If the package is swollen
or wet, it might have not been stored
in the optimal conditions and
defrosting may have already started.
• To limit the defrosting process buy
frozen goods at the end of your
grocery shopping and transport them
in a thermal and insulated cool bag.
• Place the frozen foods immediately in
the freezer after coming back from
the shop.
• If food has defrosted even partially,
do not re-freeze it. Consume it as
soon as possible.
• Respect the expiry date and the
storage information on the package.
6.5 Shelf life for freezer compartment
Type of food
Shelf life (months)
Bread
3
Fruits (except citrus)
6 - 12
Vegetables
8 - 10
Leftovers without meat
1-2
Dairy food:
Butter
Soft cheese (e.g. mozzarella)
Hard cheese (e.g. parmesan, cheddar)
6-9
3-4
6
Seafood:
Fatty fish (e.g. salmon, mackerel)
Lean fish (e.g. cod, flounder)
Shrimps
Shucked clams and mussels
Cooked fish
2-3
4-6
12
3-4
1-2
Meat:
Poultry
Beef
Pork
Lamb
Sausage
Ham
Leftovers with meat
9 - 12
6 - 12
4-6
6-9
1-2
1-2
2-3
ENGLISH
6.6 Hints for fresh food
refrigeration
• Good temperature setting that
ensures preservation of fresh food is a
temperature less than or equal to
+4°C.
Higher temperature setting inside the
appliance may lead to shorter shelf
life of food.
• Cover the food with packaging to
preserve its freshness and aroma.
• Always use closed containers for
liquids and for food, to avoid flavours
or odours in the compartment.
• To avoid the cross-contamination
between cooked and raw food, cover
the cooked food and separate it from
the raw one.
• It is recommended to defrost the food
inside the fridge.
• Do not insert hot food inside the
appliance. Make sure it has cooled
down at room temperature before
inserting it.
• To prevent food waste the new stock
of food should always be placed
behind the old one.
13
6.7 Hints for food refrigeration
• Meat (all types): wrap in a suitable
packaging and place it on the glass
shelf above the vegetable drawer.
Store meat for at most 1-2 days.
• Fruit and vegetables: clean
thoroughly (eliminate the soil) and
place in a special drawer (vegetable
drawer).
• It is advisable not to keep the exotic
fruits like bananas, mangos, papayas
etc. in the refrigerator.
• Vegetables like tomatoes, potatoes,
onions, and garlic should not be kept
in the refrigerator.
• Butter and cheese: place in an airtight
container or wrap in an aluminium foil
or a polythene bag to exclude as
much air as possible.
• Bottles: close them with a cap and
place them on the door bottle shelf,
or (if available) on the bottle rack.
• Always refer to the expiry date of the
products to know how long to keep
them.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brandnew product, then dried thoroughly.
CAUTION!
Do not use detergents,
abrasive powders, chlorine
or oil-based cleaners as they
will damage the finish.
CAUTION!
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Periodic cleaning
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe them clean to ensure they are
clean and free from debris.
3. Rinse and dry thoroughly.
7.3 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment during normal use. The
defrost water drains out through a trough
into a special container at the back of the
appliance, over the motor compressor,
where it evaporates.
14
www.aeg.com
It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
For this purpose use the tube cleaner
provided with the appliance.
7.4 Defrosting of the freezer
CAUTION!
Never use sharp metal tools
to scrape off frost from the
evaporator as you could
damage it.
Do not use a mechanical
device or any artificial means
to speed up the thawing
process other than those
recommended by the
manufacturer.
About 12 hours prior to
defrosting set a lower
temperature in order to
build up sufficient chill
reserve in case of any
interruption in operation.
A certain amount of frost will always form
on the freezer shelves and around the
top compartment.
Defrost the freezer when the frost layer
reaches a thickness of about 3-5 mm.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
1. Switch off the appliance or pull out
electrical plug from the wall socket.
2. Remove any stored food and put it in
a cool place.
CAUTION!
A temperature rise of the
frozen food packs during
defrosting may shorten
their safe storage life.
Do not touch frozen
goods with wet hands.
Hands can freeze to the
goods.
3. Leave the door open. Protect the
floor from the defrosting water e.g.
with a cloth or a flat vessel.
4. In order to speed up the defrosting
process, place a pot of warm water in
the freezer compartment. In addition,
remove pieces of ice that break away
before defrosting is complete.
5. When defrosting is complete, dry the
interior thoroughly.
6. Switch on the appliance and close
the door.
7. Set the temperature regulator to
obtain the maximum coldness and
run the appliance for at least 3 hours
using this setting.
Only after this time put the food back
into the freezer compartment.
7.5 Period of non-operation
When the appliance is not in use for long
period, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Defrost the appliance.
4. Clean the appliance and all
accessories.
5. Leave the doors open to prevent
unpleasant smells.
ENGLISH
15
8.1 What to do if...
Problem
Possible cause
Solution
The appliance does not operate.
The appliance is switched
off.
Switch on the appliance.
The mains plug is not connected to the mains socket
correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy.
The appliance is not suppor- Check if the appliance
ted properly.
stands stable.
Acoustic or visual alarm is
on.
The cabinet has been recently switched on.
Refer to "Door Open Alarm"
or "High Temperature
Alarm".
The temperature in the appliance is too high.
Refer to "Door Open Alarm"
or "High Temperature
Alarm".
The door is left open.
Close the door.
The compressor operates
continually.
Temperature is set incorrect- Refer to "Control Panel"
ly.
chapter.
Many food products were
put in at the same time.
Wait a few hours and then
check the temperature
again.
The room temperature is too Refer to "Installation" chaphigh.
ter.
Food products placed in the
appliance were too warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed correctly.
Refer to "Closing the door"
section.
The Frostmatic function is
switched on.
Refer to "Frostmatic function" section.
The compressor does not
The compressor starts after a This is normal, no error has
start immediately after
period of time.
occurred.
pressing the "Frostmatic", or
after changing the temperature.
Door is misaligned or interferes with ventilation grill.
The appliance is not levelled.
Refer to installation instructions.
16
www.aeg.com
Problem
Possible cause
Solution
Door does not open easily.
You attempted to re-open
the door immediately after
closing.
Wait a few seconds between
closing and re-opening of
the door.
The lamp does not work.
The lamp is in stand-by
mode.
Close and open the door.
The lamp is defective.
Contact the nearest Authorized Service Centre.
The door is not closed correctly.
Refer to "Closing the door"
section.
The gasket is deformed or
dirty.
Refer to "Closing the door"
section.
There is too much frost and
ice.
Food products are not wrap- Wrap the food products betped properly.
ter.
Temperature is set incorrect- Refer to "Control Panel"
ly.
chapter.
Appliance is fully loaded and Set a higher temperature.
is set to the lowest tempera- Refer to "Control Panel"
ture.
chapter.
Temperature set in the appli- Set a higher temperature.
ance is too low and the am- Refer to "Control Panel"
bient temperature is too
chapter.
high.
Water flows on the rear plate During the automatic deof the refrigerator.
frosting process, frost melts
on the rear plate.
This is correct.
There is too much condensed water on the rear
wall of the refrigerator.
Door was opened too frequently.
Open the door only when
necessary.
Door was not closed completely.
Make sure the door is closed
completely.
Stored food was not wrapped.
Wrap food in suitable packaging before storing it in the
appliance.
Water flows inside the refrig- Food products prevent the
erator.
water from flowing into the
water collector.
The water outlet is clogged.
Make sure that food products do not touch the rear
plate.
Clean the water outlet.
ENGLISH
17
Problem
Possible cause
Solution
Water flows on the floor.
The melting water outlet is
Attach the melting water
not connected to the evapo- outlet to the evaporative
rative tray above the comtray.
pressor.
Temperature cannot be set.
The "Frostmatic function" is
switched on.
Switch off "Frostmatic function" manually, or wait until
the function deactivates automatically to set the temperature. Refer to "Frostmatic function" section.
The temperature in the appliance is too low/too high.
The temperature is not set
correctly.
Set a higher/lower temperature.
The door is not closed correctly.
Refer to "Closing the door"
section.
The food products' tempera- Let the food products temture is too high.
perature decrease to room
temperature before storage.
Many food products are stor- Store less food products at
ed at the same time.
the same time.
The thickness of the frost is
greater than 4-5 mm.
Defrost the appliance.
The door has been opened
often.
Open the door only if necessary.
The Frostmatic function is
switched on.
Refer to "Frostmatic function" section.
There is no cold air circulation in the appliance.
Make sure that there is cold
air circulation in the appliance. Refer to "Hints and
Tips" chapter.
Some specific surfaces inside
the fridge compartment are
warmer at some times.
Temperature setting LEDs
flash at the same time.
This is a normal state.
An error has occurred in
measuring the temperature.
If the advice does not lead
to the desired result, call the
nearest Authorized Service
Centre.
Contact the nearest Authorised Service Centre. The
cooling system will continue
to keep food products cold,
but temperature adjustment
will not be possible.
8.2 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
18
www.aeg.com
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
8.3 Closing the door
2. If necessary, adjust the door. Refer to
installation instructions.
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
1. Clean the door gaskets.
9. NOISES
SSSRRR!
BRRR!
CLICK!
HISSS!
BLUBB!
10. TECHNICAL DATA
The technical information is situated in
the rating plate on the internal side of
the appliance and on the energy label.
The QR code on the energy label
supplied with the appliance
provides a web link to the information
related to the performance of the
appliance in the EU EPREL database.
Keep the energy label for reference
together with the user manual and all
other documents provided with this
appliance.
It is also possible to find the same
information in EPREL using the link
https://eprel.ec.europa.eu and the
model name and product number that
you find on the rating plate of the
appliance.
See the link www.theenergylabel.eu for
detailed information about the energy
label.
ENGLISH
19
11. INFORMATION FOR TEST INSTITUTES
Installation and preparation of the
appliance for any EcoDesign verification
shall be compliant with EN 62552.
Ventilation requirements, recess
dimensions and minimum rear clearances
shall be as stated in this User Manual at
Chapter 3. Please contact the
manufacturer for any other further
information, including loading plans.
12. ENVIRONMENTAL CONCERNS
Recycle materials with the symbol .
Put the packaging in relevant containers
to recycle it. Help protect the
environment and human health by
recycling waste of electrical and
electronic appliances. Do not dispose of
*
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
222377771-A-172020
www.aeg.com/shop
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
