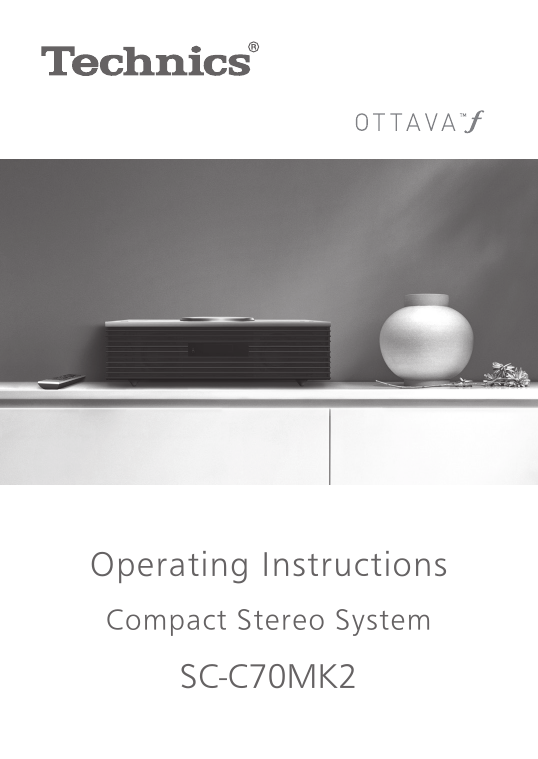

Operating Instructions
Compact Stereo System
SC-C70MK2
Music is borderless and timeless, touching
people’s hearts across cultures and
generations.
Each day the discovery of a truly emotive
experience from an unencountered sound
awaits.
Let us take you on your journey to rediscover
music.
Delivering the Ultimate Emotive
Musical Experience to All
At Technics we understand that the listening
experience is not purely about technology but
the magical and emotional relationship between
people and music.
We want people to experience music as it was
originally intended and enable them to feel the
emotional impact that enthuses and delights
them.
Through delivering this experience we want to
support the development and enjoyment of
the world’s many musical cultures. This is our
philosophy.
With a combination of our love of music and the
vast high-end audio experience of the Technics
team, we stand committed to building a brand
that provides the ultimate emotive musical
experience by music lovers, for music lovers.
Director
Michiko Ogawa
02
Thank you for purchasing this product.
Please read these instructions carefully before using
this product, and save this manual for future use.
•• About descriptions in these operating instructions
Pages to be referred to are indicated as “⇒ ○○”.
The illustrations shown may differ from your
unit.
Sales and Support Information
Customer Communications Centre
•• For customers within the UK: 0333 222 8777
•• For customers within Ireland: 01 447 5229
•• Monday–Friday 9:00 am – 5:00 pm, (Excluding
public holidays).
•• For further support on your product, please visit
our website: www.technics.com/uk/
Features
Improves the resolution and range
of sound
Newly developed woofer, tweeter and sound
focusing lens optimising for the tweeter adjust
the sound tuning quality and improve the
resolution and range of sound.
Space Tune Auto function
optimises the sound quality
Space Tune function adjusts the sound quality
according to the installation location or
room, and Space Tune Auto function use the
integrated microphone to make an automatic
measurement easily.
Wide compatibility of music
source can be easily accessed
The music contents such as Hi-res music
sources, the latest music streaming service,
Bluetooth®, AirPlay 2, USB, analogue-optical
input, CD, radio, etc. are widely available.
03
Table of contents
Read first
06
Please carefully read the “Safety precautions” of
this manual before use.
Control reference guide
16
This unit, Remote control
Connections
25
Antenna connection, AC mains lead connection,
Network settings
Operations
35
Playing back CDs, etc.
Settings
80
Sound adjustment, Other settings
Others
93
Troubleshooting, Specifications, etc.
04
Accessories
AC mains lead (1)
K2CT3DR00009
DAB antenna (1)
N1EYYY000015
Remote control (1)
N2QAYA000221
Batteries for remote control (2)
•• Product numbers provided in these operating
instructions are correct as of August 2020.
•• These may be subject to change.
•• Do not use AC mains lead with other equipment.
05
Read first
Safety precautions................................ 07
Warning..................................................... 07
Caution...................................................... 08
Installation............................................ 13
Installation..................................................13
Notes on the speakers.................................13
For optimum sound effects.........................13
Unit care.................................................... 14
To dispose of or transfer this unit................15
Table of contents ... 04
06
Read first
Safety precautions
Warning
Unit
•• To reduce the risk of fire, electric shock or product
damage,
Do not expose this unit to rain, moisture,
dripping or splashing.
Do not place objects filled with liquids, such as
vases, on this unit.
Use only the recommended accessories.
Do not remove covers.
Do not repair this unit by yourself. Refer
servicing to qualified service personnel.
Do not let metal objects fall inside this unit.
Do not place heavy items on this unit.
AC mains lead
•• To reduce the risk of fire, electric shock or product
damage,
Ensure that the power supply voltage
corresponds to the voltage printed on this unit.
Insert the mains plug fully into the socket outlet.
Do not pull, bend, or place heavy items on the
lead.
Do not handle the plug with wet hands.
Hold onto the mains plug body when
disconnecting the plug.
Do not use a damaged mains plug or socket
outlet.
•• The mains plug is the disconnecting device.
Install this unit so that the mains plug can be
unplugged from the socket outlet immediately.
•• Ensure the earth pin on the mains plug is securely
connected to prevent electrical shock.
An apparatus with CLASS I construction shall
be connected to a mains socket outlet with a
protective earth connection.
07
(Continued)
Caution
Unit
•• Do not place sources of naked flames, such as
lighted candles, on this unit.
•• This unit may receive radio interference caused by
mobile telephones during use. If such interference
occurs, please increase separation between this
unit and the mobile telephone.
•• This unit is intended for use in moderate and
tropical climates.
•• Do not put any objects on this unit. This unit
becomes hot while it is on.
•• This unit utilizes a laser. Use of controls or
adjustments or performance of procedures
other than those specified herein may result in
hazardous radiation exposure.
•• Do not look at the laser with an observation
optical system like magnifying glass, however it
does not affect the human health.
•• Keep magnetic items away from the product.
Powerful magnets inside the top cover and disc
tray part may damage debit cards, travel cards
(transit passes), clocks and other objects.
Placement
•• Place this unit on an even surface.
•• To reduce the risk of fire, electric shock or product
damage,
Do not install or place this unit in a bookcase,
built-in cabinet or in another confined space.
Ensure this unit is well ventilated.
Do not obstruct this unit’s ventilation openings
with newspapers, tablecloths, curtains, and
similar items.
Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive
vibration.
•• Do not lift or carry this unit by holding the top
cover or front of this unit. Doing so may cause
this unit to fall, resulting in personal injury or
malfunction of this unit.
Battery
•• Danger of explosion if battery is incorrectly
replaced. Replace only with the type
recommended by the manufacturer.
•• Mishandling of batteries can cause electrolyte
leakage and may cause a fire.
Remove the battery if you do not intend to use
the remote control for a long period of time.
Store in a cool, dark place.
Do not heat or expose to flame.
Do not leave the battery(ies) in a car exposed
to direct sunlight for a long period of time with
doors and windows closed.
Do not take apart or short circuit.
Do not recharge alkaline or manganese
batteries.
Do not use batteries if the covering has been
peeled off.
08
(Continued)
Do not mix old and new batteries or different
types at the same time.
•• When disposing of the batteries, please contact
your local authorities or dealer and ask for the
correct method of disposal.
•• Avoid the use in the following conditions
High or low extreme temperatures during use,
storage or transportation.
Replacement of a battery with an incorrect type.
Disposal of a battery into fire or a hot oven, or
mechanically crushing or cutting of a battery,
that can result in an explosion.
Extremely high temperature and/or extremely
low air pressure that can result in an explosion
or the leakage of flammable liquid or gas.
Speakers
•• Be cautious when children are near.
•• Do not insert a finger into the bass reflex ports on
the rear of this unit. Pay close attention to children
as doing so may cause personal injury.
•• Do not carry this unit by holding the subwoofer of
the bottom of this unit.
•• Do not touch the speaker diaphragm on the
bottom of this unit. Doing so may deform the
diaphragm, and as a result, sound may not be
output correctly.
(Back of product)
09
(Continued)
Caution for AC Mains Lead
(For the AC mains plug of three pins)
For your safety, please read the following text
carefully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 3-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 3-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on
the body of the fuse.
If the plug contains a removable fuse cover you
must ensure that it is refitted when the fuse is
replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type
of AC mains plug (figures A and B). Confirm the AC
mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1.Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
2.Replace the fuse and close or attach the fuse
cover.
Figure A
Figure B
Fuse
(3 ampere)
Fuse
(3 ampere)
10
(Continued)
Panasonic Corporation, a company having
its registered office of 1006, Oaza Kadoma,
Kadoma City, Osaka 571-8501, Japan,
automatically collects personal data such as IP
address and/or Device ID from your device as
soon as you connect it to the Internet. We do
this to protect our customers and the integrity
of our Service as well as to protect the rights or
property of Panasonic.
You have a right of access, rectification and
objection to in certain circumstances, a right
of erasure, restriction of processing, data
portability and a right to object to other
forms of processing. If you wish to exercise
any of the above rights and/or wish to know
more about the processing of your personal
data in this context, please refer to the full
text of our privacy policy displayed at the
support page of your device, http://panasonic.
jp/support/global/cs/audio/, http://www.
technics.com/support/ or contact our customer
communications/support number or address
described in the Pan European Guarantee
included in your device box to send you the full
text of our privacy policy.
Disposal of Old Equipment and Batteries
Only for European Union and countries
with recycling systems
These symbols on the products,
packaging, and/or accompanying
documents mean that used
electrical and electronic products
and batteries must not be mixed
with general household waste.
For proper treatment, recovery
and recycling of old products and
used batteries, please take them
to applicable collection points in
accordance with your national
legislation.
By disposing of them correctly, you
will help to save valuable resources
and prevent any potential negative
effects on human health and the
environment.
For more information about
collection and recycling, please
contact your local municipality.
Penalties may be applicable for
incorrect disposal of this waste, in
accordance with national legislation.
Note for the battery symbol
(bottom symbol):
This symbol might be used in
combination with a chemical
symbol. In this case it complies with
the requirement set by the Directive
for the chemical involved.
11
(Continued)
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that
this product is in compliance with the essential
requirements and other relevant provisions of
Directive 2014/53/EU.
Customers can download a copy of the original
DoC to our RE products from our DoC server:
https://www.ptc.panasonic.eu
Contact to Authorised Representative:
Panasonic Marketing Europe GmbH, Panasonic
Testing Centre, Winsbergring 15, 22525
Hamburg, Germany
Type of
wireless
Frequency
band
WLAN
2412 2472 MHz
5180 5320 MHz
5500 5700 MHz
5745 5825 MHz
Bluetooth®
2402 - 2480
MHz
Maximum
power
(dBm e.i.r.p.)
18 dBm
18 dBm
18 dBm
14 dBm
4 dBm
5.15 - 5.35 GHz band is restricted to indoor
operations only in the following countries.
12
Read first
Installation
Installation
•• Turn off all the equipment before connection and
read the appropriate operating instructions. Be
sure to raise this unit when moving, and do not
drag this unit.
•• Do not carry this unit by holding the subwoofer of
the bottom of this unit.
Notes on the speakers
•• These speakers do not have magnetic shielding.
Do not place them near TV, PC or other equipment
easily influenced by magnetism.
•• Playing music at high volumes for a long period
can cause damage to the system and shorten the
life of the system.
•• Decrease the volume in the following conditions to
prevent damage.
When playing distorted sound
When adjusting the sound quality
When turning on/off this unit
For optimum sound effects
The quality and volume of the bass sound, sound
localisation performance, sound ambience, etc. will
change depending on the installation location of
this unit, listening position, room conditions, and
other factors. Refer to the information below when
installing this unit.
Determining the installation location
•• Place this unit on a flat safe surface.
•• To minimise the gap in audio quality between left
and right, install this unit in the way that acoustic
conditions (reflection and absorption of sound)
around this unit can be the same.
Adjusting the distances between this unit and
the wall
•• If you install this unit close to a wall or a corner,
the bass sound will be more powerful, however,
if the unit is too close to it, sound localisation
performance and sound ambience may
deteriorate. If this occurs, adjust the distance
between this unit and the wall.
13
(Continued)
Adjusting with the Space Tune function
•• You can adjust the sound quality automatically
according to the installation location (near the
wall or the corner of the room). Press and hold
[SETUP] ([-SPACE TUNE AUTO]) to start the sound
adjustment.
•• The auto adjustment function is not available while
the headphone is connected.
•• A test tone outputs quite big while the
measurement is in progress.
•• To cancel the adjustment in the middle, press [ ].
•• When the adjustment is complete, “Success” is
displayed.
•• You can also start the adjustment by pressing
and holding [
] on the unit for 5 seconds.
Press [
] again while “Space Tune (Auto)” is
displayed.
Unit care
•• Pull out the AC mains lead from the socket before
maintenance. Clean this unit with a soft cloth. To
clean the top panel of this unit, use a soft cloth
such as cleaning cloth (optional), etc. and wipe it
horizontally along its texture.
•• When dirt is heavy, wring a wet cloth tightly to
wipe the dirt, and then wipe it with a soft cloth.
•• Do not use solvents including benzine, thinner,
alcohol, kitchen detergent, chemical wiper, etc.
Doing so may cause the exterior case to be
deformed or the coating to come off.
14
(Continued)
To dispose of or transfer this unit
This unit may contain private information. Before
disposing of or transferring this unit, perform the
following to delete the data, including personal or
secret information.
•• “To restore all the settings to the factory defaults”
(⇒ 95)
15
Control reference
guide
This unit (front)..................................... 17
This unit (rear)....................................... 19
Remote control..................................... 21
Using the remote control........................... 23
Remote control mode................................ 23
Table of contents ... 04
16
Control reference guide
This unit (front)
01
03
02
04
05
06 07
08
09
01 Standby/on switch (
)
•• Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
02 Top cover
(⇒ 38)
•• The magnet is built-in to keep the top cover
closing.
•• Do not apply too much force to the top
cover when sliding it. Doing so may cause
malfunction.
•• Do not leave the top cover open for a
prolonged period. Doing so will cause the lens
to become dirty.
03 Power indicator
•• Blue:The unit is on.
•• Off: The unit is in standby mode.
04 Remote control signal sensor
•• Reception distance:
Within approx. 7 m directly in front
•• Reception angle:
Approx. 30° left and right
05 Headphones jack
•• When a plug is connected, the speakers do not
output sound.
•• Excessive sound pressure from earphones and
headphones can cause hearing loss.
•• Listening at full volume for long periods may
damage the user’s ears.
06 Built-in microphone (for measurement)
07 Display
•• Input source, clock, playback status, etc. are
displayed. (⇒ 102)
17
(Continued)
08 Touch switches
•• [FAV]:
Select the favourite radio station or playlist
(DAB/DAB+, FM, Internet Radio, Podcasts, etc.)
(⇒ 81)
•• [SELECT]:
Switch the input source (⇒ 51, 55, 57, 60, 78)
•• [
], [
], [ ], [
]:
Playback operation buttons
•• Each time you press the switch, a beep sound
will be heard. (⇒ 88)
•• Do not put any objects on the top panel of this
unit.
09 Adjust volume
•• 0 (min) to 100 (max)
18
Control reference guide
This unit (rear)
11
12
13 14
15
16
18
17
11
10 Subwoofer
(Bottom)
•• Do not install this
unit on the rough
surface. Doing
so may cause the
subwoofer to be
damaged.
•• Do not hold the
subwoofer when
carrying this unit.
11 Bass reflex port
12 Product identification marking
•• The model number is indicated.
13 AC IN terminal (
(⇒ 27)
)
14 AUX IN terminal
(⇒ 78)
15 Optical digital input terminal
(⇒ 55)
16 USB-A terminal
DC 5 V 500 mA
•• Port for USB devices (⇒ 51)
17 LAN terminal
(⇒ 30)
19
(Continued)
18 DAB ANT/FM ANT terminal
(⇒ 26, 42, 46)
20
Control reference guide
Remote control
01
02
03
10
04
11
12
05
06
07
13
08
09
14
15
01 [
]: Standby/on switch
•• Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
02 [CD]/[RADIO]/[ -PAIRING]: Select the
device to be operated (⇒ 38, 42, 46, 48)
03 [>SELECT<]: Switch the input source
(⇒ 51, 55, 57, 60, 78)
04 [MENU]: Enter menu
(⇒ 40, 42, 44, 48, 52, 58, 61, 62, 69, 79)
05 [SETUP] ([-SPACE TUNE AUTO]): Enter setup
menu (⇒ 82)
•• Press and hold [SETUP] ([-SPACE TUNE AUTO])
to start the adjustment with the Space Tune
function. (⇒ 14)
06 [+VOL-]: Adjust the volume
•• 0 (min) to 100 (max)
21
(Continued)
07 [MUTE]: Mute the sound
•• Press [MUTE] again to cancel. “MUTE” is also
cancelled when you adjust the volume or when
you turn the unit to standby.
08 Playback operation buttons
09 [FAV]: Select the favourite radio station or
playlist (DAB/DAB+, FM, Internet Radio,
Podcasts, etc.)
•• You can register up to 9 favourite stations.
(⇒ 81)
10 [INFO]: View content information
•• Press this button to display the track, artist,
and album names, file type, sampling
frequency, and other information. (The
information varies depending on the input
source.)
11 [
], [
], [
], [
]/[OK]: Selection/OK
12 [RETURN]: Return to the previous display
13 [DIMMER]: Adjust the brightness of the
display, etc.
•• When the display is turned off, it will light up
for a few seconds only when you operate this
unit. Before the display turns off, “Display Off”
will be displayed for a few seconds.
•• Press repeatedly to switch the brightness.
14 [PGM]: Set the programme function
15 Numeric buttons, etc.
•• To select a 2-digit number
Example:
16: [ 10] > [1] > [6]
•• To select a 4-digit number
Example:
1234: [ 10] > [ 10] > [ 10] > [1] > [2] > [3] > [4]
•• [CLEAR]: Clear the entered value.
22
(Continued)
Using the remote control
2
1
R03/LR03, AAA
(Alkaline or manganese batteries)
Note
•• Insert the battery so the terminals ( and )
match those in the remote control.
•• Point it at the remote control signal sensor on this
unit. (⇒ 17)
•• Keep the batteries out of reach of children to
prevent swallowing.
Remote control mode
When other equipment responds to the supplied
remote control, change the remote control mode.
•• The factory default is “Mode 1”.
1 Press [SETUP].
2 Press [ ], [ ] to select “Remote
Control” and then press [OK].
•• The current remote control mode of this unit is
displayed.
3 When “Set Mode 1/2” is displayed,
change the remote control mode of the
remote control.
To set “Mode 1”:
Press and hold [OK] and [1] for at least
4 seconds.
To set “Mode 2”:
Press and hold [OK] and [2] for at least
4 seconds.
4 Point the remote control at this unit,
and press and hold [OK] for at least
4 seconds.
•• When the remote control mode is changed, the
new mode will appear on the display for a few
seconds.
23
(Continued)
■■When “Remote 1” or “Remote 2” is displayed
When “Remote 1” or “Remote 2” is displayed,
the remote control modes of this unit and remote
control are different. Perform step 3 above.
24
Connections
Antenna................................................. 26
Antenna connection.................................. 26
AC mains lead........................................ 27
AC mains lead connection.......................... 27
Network settings.................................. 28
Wired LAN connection............................... 30
Wireless LAN connection........................... 31
This unit’s name on the network
“Friendly Name”......................................... 34
To check the MAC address of this unit
“MAC Address”.......................................... 34
Table of contents ... 04
25
Connections
Antenna
•• This unit can receive DAB+ and FM stations
with the DAB antenna.
Antenna connection
Be sure to tighten
the nut fully.
Adhesive tape
(not supplied)
DAB indoor antenna (supplied)
•• Tape the antenna to a wall or column at the
position with the least amount of interference.
•• If radio reception is poor, use a DAB outdoor
antenna (not supplied).
26
Connections
AC mains lead
•• Use only the supplied AC mains lead.
•• Insert the plugs of the cables to be
connected all the way in.
•• Do not bend cables at sharp angles.
AC mains lead connection
Connect only after all other connections are
completed.
AC IN terminal
AC mains lead
(supplied)
To a household mains
socket
•• Wireless LAN (Wi-Fi®) setting may start when this
unit is turned on. If you stop the Wi-Fi setting,
select “No” in “Wi-Fi Setup” screen. Select “Yes”
to keep the Wi-Fi setting. (⇒ 31)
Note
•• This unit consumes a small amount of AC power
(⇒ 111) even when the unit is in standby mode.
Remove the plug from the main electrical outlet
if you will not be using the unit for an extended
period of time. Place the unit so the plug can be
easily removed.
27
Connections
Network settings
You can stream online music services or
music files from your smartphone/tablet to
this unit. To use these features, this system
must join the same internet-connected
network as the compatible device.
This unit can be connected to a router using a LAN
cable or built-in Wi-Fi®.
For a stable connection to the network, a wired
LAN connection is recommended.
Note
•• If you try to change the network settings
immediately after turning on this unit, it may
take some time until the network setup screen is
displayed.
•• If “Firmware update is available” is displayed after
the network connection is set up, the firmware for
this unit is available.
Refer to “Firmware updates” (⇒ 91) for details
on update.
For the update information, refer to the
following website.
www.technics.com/support/firmware/
■■Preparation
If you install the “Google Home” app on your
smartphone/tablet, you can set up a connection
using the application.
•• When using the Chromecast-enabled apps to play
music on this unit, set up a connection using the
“Google Home” app.
•• Make sure that the Wi-Fi function is activated on
your smartphones/tablet.
1 Install the “Google Home” app on your
smartphone/tablet.
•• To download the “Google Home” app, visit:
https://www.google.com/cast/setup/
28
(Continued)
2 Connect your smartphone/tablet to
the same network as this unit before
setting.
•• Make sure that the network is connected to the
Internet.
29
(Continued)
Wired LAN connection
LAN cable
(not supplied)
Broadband router, etc.
1 Disconnect the AC mains lead.
2 Connect this unit to a broadband router,
etc. using a LAN cable.
3 Connect the AC mains lead to this unit,
and press [ ]. (⇒ 27)
•• When the connection is established, “
displayed.
” is
4 Press [>SELECT<] to select “Chromecast
built-in”.
5 Start the “Google Home” app and
follow the on-screen instructions to set
up a connection. (⇒ 32)
Note
•• While the AC mains lead is disconnected, the LAN
cable must be connected or disconnected.
•• Use category 7 or above straight LAN cables (STP)
when connecting to peripheral devices.
•• Inserting any cable other than a LAN cable in the
LAN port can damage the unit.
•• When a LAN cable is connected, the Wi-Fi function
may be disabled.
30
(Continued)
Wireless LAN connection
■■Preparation
Disconnect the AC mains lead.
Disconnect the LAN cable.
Place this unit as close to the wireless router as
possible.
Connect the AC mains lead to this unit. (⇒ 27)
Note
•• The setting will be cancelled after the set time
limit. In that case, try the setting again.
•• To cancel this setting in the middle, press [ ] or
turn the unit to standby mode.
•• When the connection is established, “
” is
displayed.
Network setting for the first time using
the “Google Home” app
1 Press [
] to turn this unit on.
•• “Wi-Fi Setup” is displayed.
2 Press [ ], [ ] to select “Yes” and then
press [OK].
3 Start the “Google Home” app and
follow the on-screen instructions. (⇒ 32)
Note
•• This unit will be displayed as “Technics-SCC70MK2-****” if the device name is not set.
(“****” stands for characters unique to each set.)
•• You can check your network information (SSID,
MAC address and IP address) from the “Google
Home” app or “Technics Audio Center” app.
•• Some items on the “Google Home” app are
irrelevant to this unit.
•• When this unit is switched to standby mode and
turned on before the Wi-Fi setting is complete,
“Wi-Fi Setup” is displayed. Set “Wi-Fi Menu” to
“Off” to turn off the display.
31
(Continued)
Setting the network from the setup
menu
1 Press [>SELECT<] to select “Chromecast
built-in”.
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
•• When “Wi-Fi Menu” screen is displayed, press
[OK].
4 Press [ ], [ ] to select “On” and then
press [OK]. (The wireless LAN function
is enabled.)
5 Press [ ], [ ] to select “Wi-Fi Setup”
and then press [OK].
•• “Setting” is displayed.
6 Start the “Google Home” app and
follow the on-screen instructions.
(As follows)
■■Using the “Google Home” app
“Wi-Fi Setup”
(When using the Chromecast-enabled apps with this
unit)
You can set up a connection using the “Google
Home” app.
1 Start the “Google Home” app and
follow the on-screen instructions to set
up a connection.
•• When the connection is established, “Success”
is displayed.
“Fail” may be displayed if the connection was
not complete. Try this method again from the
setup menu. If “Fail” is still displayed, try other
methods.
2 Press [OK] to exit the setting.
Note
•• This unit will be displayed as “Technics-SCC70MK2-****” if the device name is not set.
(“****” stands for characters unique to each set.)
•• You can check your network information (SSID,
MAC address and IP address) from the “Google
Home” app or “Technics Audio Center” app.
•• Some items on the “Google Home” app are
irrelevant to this unit.
32
(Continued)
Streaming music over the network
This unit is compatible with Chromecast-enabled
apps. For detailed information of Chromecastenabled apps, visit:
g.co/cast/apps
You can also stream music files from the device
on your network to this unit by using the free app
“Technics Audio Center”. Download and install the
app from the website below.
www.technics.com/support/
■■Preparation
•• Complete the network settings. (⇒ 28)
(Make sure that the network is connected to the
Internet.)
•• Install the supported application on your device.
•• Connect the device to the network currently used
at home.
1 Start the Chromecast-enabled app or
“Technics Audio Center” app on your
device (smartphone, tablet, etc.), and
select this unit as the output speaker.
2 Play back the music.
Not all music streaming services are available in
all countries/regions. Registration/subscription
may be required, or fees may be charged to use
music streaming services. Services are subject to
change or be discontinued. For details, visit an
individual music streaming service’s website.
Important notice:
Before you dispose of or transfer this unit to a
third party, be sure to log out of your music
streaming services accounts to prevent
unauthorised use of your accounts.
33
(Continued)
This unit’s name on the network
“Friendly Name”
You can change this unit’s name on the network
(e.g. “Room 1” or “Living Room” etc.).
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
3 Press [ ], [ ] repeatedly to select
“Friendly Name” and then press [OK].
•• The current name of this unit is displayed. Press
[OK] to edit.
4 Press [ ], [ ], [ ], [ ] to input the
friendly name.
•• Only ASCII characters can be used.
•• “A” can be added when you press the [ ] at
the time of the last letter of the Friendly Name
is selected.
•• Press [CLEAR] to delete a letter.
•• Press [ 10] to insert a letter “A”.
•• Default name is “Technics-SC-C70MK2-****”.
“****” stands for a number that is unique to
each set.
5 Press [OK] to apply the settings.
6 Press [RETURN] to exit the settings.
•• When Friendly Name is not displayed properly,
delete and input the friendly name again. If the
problem still persists, restore all the settings to the
factory defaults. (⇒ 95)
To check the MAC address of this
unit
“MAC Address”
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to select
“Network” and then press [OK].
3 Press [ ], [ ] repeatedly to select “MAC
Address” (Wired/Wireless) and then
press [OK].
•• The MAC address of this unit is displayed.
4 Press [RETURN] to exit the screen.
34
Operations
Playing back CDs................................... 38
Operations during playback....................... 39
Repeat playback “Repeat”.......................... 40
Random playback “Random”..................... 40
Programme playback “PGM”......................41
Listening to DAB/DAB+........................ 42
Storing DAB/DAB+ stations....................... 42
Listening to the stored DAB/DAB+
stations...................................................... 42
Presetting DAB/DAB+ stations................... 43
Listening to preset DAB/DAB+ stations...... 43
Listening to the secondary service.............. 43
Display....................................................... 44
Automatic clock adjustment....................... 44
Manually tuning......................................... 45
Checking the DAB/DAB+ signal
reception quality........................................ 45
Listening to FM Radio........................... 46
Storing FM stations.................................... 46
Listening to a preset FM channel................ 46
Manual tuning and presetting.................... 47
For reducing noisy sound........................... 47
Radio Data System broadcasting................ 47
Using Bluetooth®.................................. 48
Bluetooth® transmission mode................... 49
Operations during playback....................... 50
Disconnecting a Bluetooth® device............ 50
Using USB device.................................. 51
Operations during playback....................... 52
Repeat playback “Repeat”.......................... 52
Random playback “Random”..................... 53
Add a track to playlist................................. 53
Calling up the playlist................................. 53
Deleting the track from playlist.................. 54
35
Using digital audio output device....... 55
Playing back music files on
the media server................................... 56
Playing back content stored on
the media server by controlling it
from this unit............................................. 57
Operations during playback....................... 57
Repeat playback “Repeat”.......................... 58
Random playback “Random”..................... 58
Operations using the dedicated app
“Technics Audio Center”............................ 58
Playing back content stored on
the media server by controlling it
from a DMC............................................... 59
Playing back Internet Radio and
Podcasts................................................. 60
Operations during playback........................61
Repeat playback “Repeat”...........................61
Random playback “Random”......................61
Adding a station to favourite list
“Add Favourites”........................................ 62
Call up the favourite station....................... 62
Deleting the favourite station
“Delete Favourites”.................................... 62
Operations using the dedicated app
“Technics Audio Center”............................ 63
Using AirPlay......................................... 64
Operations during playback....................... 65
Playing back music using Spotify
Connect................................................. 66
Using TIDAL........................................... 68
Operations during playback....................... 69
Repeat playback “Repeat”.......................... 69
Random playback “Random”..................... 70
Adding a track/album/artist, etc. to
favourite list
“Add Favourites”........................................ 70
Call up the favourite track/album/artist...... 70
Deleting the track/album/artist
“Delete Favourites”.................................... 71
Operations using the dedicated app
“Technics Audio Center”............................ 71
Using Deezer......................................... 72
Operations during playback....................... 73
Repeat playback “Repeat”.......................... 73
Random playback “Random”......................74
Adding a track/album/artist, etc. to
favourite list
“Add Favourites”.........................................74
Call up the favourite track/album/artist.......74
36
Deleting the track/album/artist
“Delete Favourites”.................................... 75
Operations using the dedicated app
“Technics Audio Center”............................ 75
Listening to music using
Chromecast-enabled app..................... 76
Using the auxiliary input...................... 78
Adjust the volume level
“Input Level”.............................................. 79
Table of contents ... 04
37
Operations
Playing back CDs
Insert the CD for music playback.
•• Refer to “Notes on CDs” (⇒ 106) for the
discs this unit can play back.
Lens
1 Press [ ] to turn this unit on.
2 Press [CD].
3 Open the top cover with a sliding
motion and then insert the CD.
•• The top cover can slide to the both sides.
•• Place the CD with its label facing up, and push
the centre of the CD until a clicking sound is
heard.
4 Close the top cover with a sliding
motion.
•• This unit cannot play back the CD while the top
cover is open.
5 Press [
].
■■To eject the CD
Open the top cover with a sliding motion.
Eject the CD.
•• Be careful not to hit the CD with the top cover.
•• Eject the CD after the CD has stopped turning.
38
(Continued)
Note
•• Be careful not to get your finger caught in the top
cover when opening/closing it.
•• Do not apply too much force to the top cover
when sliding it. Doing so may cause malfunction.
•• Do not leave the top cover open for a prolonged
period. Doing so will cause the lens to become
dirty.
•• Be careful not to touch the lens with your fingers.
•• The lens lights when the following operations
are performed with no CD inserted. This is not a
malfunction.
When turning the power on
When selecting “CD” as the input source
When opening and closing the top cover
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
Search
Press and hold [
View available
information
[INFO]
•• Press repeatedly to switch
the information.
]
][
39
]
] or [
].
(Continued)
Repeat playback
“Repeat”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Repeat” and then press [OK].
3 Press [ ], [ ] to select an item and then
press [OK].
1-Track:
Repeatedly plays only the selected track. (“1
displayed.)
All:
All tracks are repeated. (“ ” is displayed.)
” is
•• Setting contents are stored even when the input
source is switched.
Random playback
“Random”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Random” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• “RND” is displayed.
•• Setting contents are stored even when the input
source is switched.
•• During random playback, you cannot skip to the
previous track.
40
(Continued)
Programme playback
“PGM”
1 Press [PGM] in the stop mode.
•• “Program Mode” screen is displayed.
2 Press the numeric buttons to select
tracks.
•• Repeat this step to make further selections.
3 Press [
] to start playback.
Stop
Press [ ].
•• Programmed contents are
stored.
Check the
programmed
order
Press [
mode.
Add tracks
Do step 2 in the stop mode.
Clear the last
track
Press [CLEAR] in the stop
mode.
•• You cannot select and clear a
desired programmed track.
] or [
] in the stop
•• Press [PGM] in the stop mode to cancel the
programme mode, and the programme memory
will be stored.
•• To cancel the programme mode (The programme
memory will be cleared.)
Press [
] in the stop mode.
Press [
[OK].
], [
] to select “Yes” and then press
Note
•• The programme memory is cleared when replacing
the CD.
•• The programme mode is cancelled when the
random playback is set.
41
Operations
Listening to DAB/DAB+
Make sure that the DAB antenna is
connected. (⇒ 26)
Storing DAB/DAB+ stations
To listen to DAB/DAB+ broadcasts, the available
stations need to be stored in this unit.
•• This unit will automatically start scanning and
store the stations available in your region if the
memory is empty.
1 Press [RADIO] to select “DAB/DAB+”.
2 “Auto Scan” starts automatically.
•• “Scan Failed” is displayed if the auto scan is
unsuccessful. Locate the position with the best
reception (⇒ 26) and then re-scan DAB/DAB+
stations.
■■To re-scan DAB/DAB+ stations
When new stations are added or when the antenna
has been moved, perform the auto scan again.
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select “Auto
Scan” and then press [OK].
3 Press [ ], [ ] to select “Yes” and then
press [OK].
Listening to the stored DAB/DAB+
stations
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Tuning Mode” and then press [OK].
3 Press [ ], [ ] to select “Station” and
then press [OK].
4 Press [
], [
] to select the station.
•• You can also select the preset stations by
pressing the numeric buttons.
42
(Continued)
Presetting DAB/DAB+ stations
You can preset up to 20 DAB/DAB+ stations.
1 Press [RADIO] to select “DAB/DAB+”.
2 Press [PGM] while listening to a DAB
broadcast.
3 Press [
], [
] to select the desired
preset channel, and then press [PGM].
•• Presetting is not available when the station is not
broadcasting or when the secondary service is
selected.
•• The station occupying a channel is erased if
another station is preset in that channel.
Listening to preset DAB/DAB+
stations
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Tuning Mode” and then press [OK].
3 Press [ ], [ ] to select “Preset” and
then press [OK].
4 Press [
], [
] to select the station.
•• You can also select the preset stations by
pressing the numeric buttons.
•• To select the station by preset, make sure that the
station has already been preset manually.
Listening to the secondary service
Some DAB/DAB+ stations provide a secondary
service as well as the primary service. If the station
you are listening to is providing a secondary service,
“
” will be displayed.
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Secondary” and then press [OK].
3 Press [ ], [ ] to select “DAB
Secondary” and then press [OK].
•• The setting will be restored to the primary service
when changes are made (e.g. The station is
changed).
43
(Continued)
Display
The information switches on the display when
pressing [INFO] each time.
Dynamic label:
Information about the broadcast
PTY display:
Programme type
Ensemble label:
Name of the ensemble
Frequency display:
The frequency block and frequency are displayed.
Station name:
Name of the broadcasting station
Automatic clock adjustment
If the DAB broadcast includes time information, this
unit’s clock will be automatically updated.
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select “Auto
CLOCK Adj” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• Select “Off” to turn off the automatic clock
adjustment function.
44
(Continued)
Manually tuning
If “Scan Failed” is displayed after “DAB/DAB+” is
selected or after an auto scan, use this function to
scan a frequency block.
■■Preparation
•• Note down a frequency block that can be received
in your region (e.g., 12B 225.648 MHz).
•• Adjust the position of the DAB antenna.
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Manual Scan” and then press [OK].
3 Press [ ], [ ] to select the frequency
block that is receivable in your region
and then press [OK].
•• If “Scan Failed” is still displayed, repeat steps 1 to
3 until a station is stored. If the situation does not
improve, use an outdoor DAB antenna or consult
your dealer.
Checking the DAB/DAB+ signal
reception quality
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Signal Quality” and then press [OK].
•• The current frequency block is displayed and
then the reception quality is indicated.
•• Reception quality: 0 (poor) – 8 (excellent)
3 If the signal reception quality is poor,
move the antenna to a position where
the reception quality improves.
4 (To continue checking the quality of
other frequency blocks:)
Press [ ], [ ] again and select the
desired frequency.
5 Press [OK] to exit.
•• If the antenna has been adjusted, perform the
auto scanning and update the station memory.
45
Operations
Listening to FM Radio
Make sure that the antenna is connected.
(⇒ 26)
Storing FM stations
You can preset up to 30 channels.
•• A station previously stored is overwritten when
another station is selected for the same channel by
presetting.
1 Press [RADIO] repeatedly to select
“FM”.
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select “Auto
Preset” and then press [OK].
4 Press [ ], [ ] to select an item and then
press [OK].
Lowest:
To begin the auto preset with the lowest
frequency (FM 87.50).
Current:
To begin the auto preset with the current
frequency.
•• The tuner starts to preset all the stations it can
receive into the channels in ascending order.
•• The factory default is “Lowest”.
Listening to a preset FM channel
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Tuning Mode” and then press [OK].
3 Press [ ], [ ] to select “Preset” and
then press [OK].
4 Press [
], [
] or numeric buttons to
select the channel.
46
(Continued)
Manual tuning and presetting
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Tuning Mode” and then press [OK].
3 Press [ ], [ ] to select “Manual” and
then press [OK].
4 Press [
], [
] to tune to the required
station.
To start automatic tuning, press and hold [
] or
[
] until the frequency starts scrolling. Tuning
stops when a station is found.
■■To preset the channel
While listening to the radio broadcast, press
[PGM].
Press [
] or [
] to select the channel and
then press [PGM].
For reducing noisy sound
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select “FM
Mode” and then press [OK].
3 Press [ ], [ ] to select “Mono” and
then press [OK].
•• Select “Auto(Stereo)” in step 3 to return to stereo
broadcasts.
•• “Mono” is cancelled if the frequency is changed.
Radio Data System broadcasting
The unit can display the text data transmitted by the
radio data system available in some areas.
Note
•• Radio Data System is available only when stereo
works in reception.
•• Radio Data System displays may not be available if
reception is poor.
47
Operations
Using Bluetooth®
You can listen to the sound from the
Bluetooth® audio device from this unit
wirelessly.
•• Refer to the operating instructions of the
Bluetooth® device for details.
Bluetooth® device
■■Pairing a Bluetooth® device
•• Turn on the Bluetooth® feature of the device and
place the device near this unit.
•• If a Bluetooth® device is already connected,
disconnect it. (⇒ 50)
1 Press [ -PAIRING].
•• When “Pairing” is indicated on the display,
proceed to step 5.
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select
“Pairing” and then press [OK].
4 Press [ ], [ ] to select “Yes” and then
press [OK].
•• “Pairing” is displayed, and this unit waits for
registering.
5 Select “Technics-SC-C70MK2-****” from
the Bluetooth® device’s menu.
•• The name of the connected device is indicated
on the display.
•• The MAC address “****” (“****” stands for a
character that is unique to each set.) may be
displayed before “Technics-SC-C70MK2-****” is
displayed.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
48
(Continued)
Note
•• You can also enter pairing mode by pressing and
holding [ -PAIRING] when the input source is
“Bluetooth”.
•• If prompted for the passkey, input “0000”.
•• You can register up to 8 devices with this unit. If a
9th device is paired, the device that has not been
used the longest may be replaced.
•• While “Standby Mode” is set to “On” (⇒ 89), this
unit automatically turns on when a Bluetooth®
connection is established to this unit from a paired
Bluetooth® device.
■■Listening to music stored on a Bluetooth®
device
1 Press [ -PAIRING].
•• “Ready” or “Pairing” is indicated on the display.
2 Select “Technics-SC-C70MK2-****” from
the Bluetooth® device’s menu.
•• The name of the connected device is indicated
on the display.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
3 Start playback on the Bluetooth® device.
Note
•• This unit can only be connected to one device at a
time.
•• When “Bluetooth” is selected as the input source,
this unit will automatically try and connect to the
last connected Bluetooth® device. (“Linking” is
displayed during this process.)
Bluetooth® transmission mode
1 Press [ -PAIRING].
•• If a Bluetooth® device is already connected,
disconnect it.
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select “Link
Mode” and then press [OK].
4 Press [ ], [ ] to select the mode and
then press [OK].
Mode1:
Emphasis on connectivity
Mode2:
Emphasis on sound quality (default)
Note
•• Select “Mode1” if the sound is interrupted.
49
(Continued)
Operations during playback
Stop
Pause
•• Press again to resume.
Skip
Search
Press and hold [
] or [
].
Note
•• To use this unit’s remote control/touch switches
with a Bluetooth® device, the Bluetooth® device
must support AVRCP (Audio Video Remote Control
Profile). Depending on the status of the device,
some controls may not work.
•• When enjoying video contents with this
function, the video and audio output may not be
synchronised.
Disconnecting a Bluetooth® device
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Disconnect?” and then press [OK].
3 Press [ ], [ ] to select “Yes” and then
press [OK].
Note
•• The Bluetooth® device will be disconnected if a
different audio source is selected.
50
Operations
Using USB device
You can connect a USB device to the unit
and play back music stored on the USB
device.
•• Refer to “USB” (⇒ 107) for information
about the USB device this unit can play
back.
USB device
1 Connect a USB device to the unit.
•• USB device with a thickness of 8 mm or less can
be connected.
8 mm or less
•• Depending on a thickness of USB device, you
may not connect USB device while LAN cable is
connected.
2 Press [>SELECT<] repeatedly to select
“USB”.
•• The folder/content selection screen will be
displayed.
3 Press [ ], [ ] to select an item and then
press [OK].
•• Repeat this step to make further selections.
•• Press [RETURN] to return to the previous folder.
51
(Continued)
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
Search
Press and hold [
View
available
information
[INFO]
•• Press repeatedly to switch the
information.
]
][
]
] or [
].
•• This operation may not be available for some
formats.
Repeat playback
“Repeat”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Repeat” and then press [OK].
3 Press [ ], [ ] to select an item and then
press [OK].
1-Track:
Repeatedly plays only the selected track. (“1
displayed.)
All:
All tracks in the folder are repeated. (“ ” is
displayed.)
” is
•• Setting contents are stored even when the input
source is switched.
52
(Continued)
Random playback
“Random”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Random” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• “RND” is displayed.
•• All tracks may not be played back. Set the repeat
playback (“All”).
•• Setting contents are stored even when the input
source is switched.
Add a track to playlist
You can add your favourite track to playlist.
1 Press [ ], [ ] to select a track to add.
2 Press [MENU].
3 Press [ ], [ ] to select “Add to Playlist”
and then press [OK].
•• “Added” is displayed after adding.
•• You can add up to 1000 tracks to playlist.
Note
•• The playlist cannot be played back properly with
the other USB device except the registered one.
When the contents of USB device is changed or
another USB device is connected, delete all tracks
and add them again.
•• The setting is deleted when AC mains lead is
disconnected. It may also be deleted when this
unit is turned off while “Standby Mode” is set to
or “Off”.
Calling up the playlist
1 Press [ ], [ ] to select “Playlist” and
then press [OK].
•• Press [RETURN] to return to the previous folder.
2 Press [ ], [ ] to select a track and then
press [OK].
53
(Continued)
Deleting the track from playlist
1 Press [ ], [ ] to select “Playlist” and
then press [OK].
•• Press [RETURN] to return to the previous folder.
2 Press [ ], [ ] to select a track to delete.
3 Press [MENU].
4 Press [ ], [ ] to select “Delete One”
and then press [OK].
•• Select “Delete All” and press [OK] to delete all
tracks from playlist.
•• “Deleted” is displayed after deleting.
•• “Empty” is displayed if no track is registered to the
playlist.
54
Operations
Using digital audio output
device
You can connect a DVD player, etc. with
optical digital audio cable (not supplied) and
play back music.
Optical digital audio
cable
(not supplied)
DVD player, etc.
1 Disconnect the AC mains lead.
2 Connect this unit and a DVD player etc.
3 Connect the AC mains lead to this unit.
(⇒ 27)
4 Press [ ] to turn this unit on.
5 Press [>SELECT<] repeatedly to select
“OPT”.
6 Start playback on the connected device.
Note
•• The digital audio input terminal of this unit can
only detect the following linear PCM signals. For
details, refer to the operating instructions of the
connected device.
Sampling frequency:
32/44.1/48/88.2/96 kHz
Number of quantisation bits:
16/24 bit
55
Operations
Playing back music files on the
media server
You can share music files stored in the
media server (PC, Network Attached
Storage, etc.) connected to your home
network, and enjoy the contents with this
unit.
■■Preparation
•• Complete the network settings. (⇒ 28)
•• Connect the device to be used to the network of
this unit.
•• To use Windows Media® Player
Add the contents and folder to the libraries
of the Windows Media® Player 11 or 12, or a
smartphone, etc.
Playlist of Windows Media® Player can play back
only the contents that are stored in the libraries.
To use Windows Media® Player for streaming,
you need to configure it in advance.
56
(Continued)
Playing back content stored on
the media server by controlling it
from this unit
1 Press [>SELECT<] repeatedly to select
“DMP”.
•• The server selection screen will be displayed.
2 Press [ ], [ ] to select a media server
on the network, and then press [OK].
•• The folder/content selection screen will be
displayed. Repeat this step to make further
selections.
•• Folders/content may be displayed in different
order from the order on the server, depending
on its specifications.
3 Press [ ], [ ] to select an item and then
press [OK].
Note
•• The connected server and its contents may not
be displayed properly depending on its condition.
(e.g. soon after adding the contents to the server,
etc.)
Please try again later. For details, refer to the
operating instructions of the device.
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
Search
Press and hold [
View
available
information
[INFO]
•• Press repeatedly to switch the
information.
]
][
57
]
] or [
].
(Continued)
Repeat playback
“Repeat”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Repeat” and then press [OK].
3 Press [ ], [ ] to select an item and then
press [OK].
1-Track:
Repeatedly plays only the selected track. (“1
displayed.)
All:
All tracks are repeated. (“ ” is displayed.)
” is
•• Setting contents are stored even when the input
source is switched.
Random playback
“Random”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Random” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• “RND” is displayed.
•• All tracks may not be played back. Set the repeat
playback (“All”).
•• Setting is available even when the input source is
switched.
Operations using the dedicated
app
“Technics Audio Center”
If you install the dedicated app “Technics Audio
Center” (free of charge) on your tablet/smartphone,
you can control this unit using a wide variety of
functions.
For details, visit:
www.technics.com/support/
58
(Continued)
Playing back content stored on
the media server by controlling it
from a DMC
By controlling a DMC (Digital Media Controller)
compatible device, you can play back music stored
on the media server on this unit (DMR—Digital
Media Renderer).
1 Press [ ] to turn this unit on.
2 Operate the DMC compatible device and
connect to this unit.
•• The device name of this unit will be displayed as
“Technics-SC-C70MK2-****”*1, 2.
•• For details on how to use DMC compatible
devices, refer to the operating instructions of
the devices or the software.
Note
•• When you operate DMC, playback of other audio
sources will stop and media server output will have
priority.
•• Depending on the contents and the connected
equipment, operations or playback may not be
possible.
•• This unit does not guarantee connection with
all DMC applications. Use the dedicated app
“Technics Audio Center”.
*1:“****” stands for a digit that is unique to each
set.
2:
* The device name can be changed from “This
unit’s name on the network”. (⇒ 34)
59
Operations
Playing back Internet Radio
and Podcasts
This unit supports an audio broadcasting
service transmitted via the Internet, and
Internet Radio and Podcasts can be played
back.
■■Preparation
•• Complete the network settings. (⇒ 28)
Make sure that the network is connected to the
Internet.
1 Press [>SELECT<] repeatedly to select
“Internet Radio” / “Podcasts”.
•• When “Internet Radio” / “Podcasts” is selected
as the source, this unit will automatically try and
connect to the last selected station.
2 Press [ ], [ ] to select a station and
then press [OK].
•• Repeat this step to make further selections
according to the genre, region, etc.
•• The station that does not broadcast cannot be
played back. (It will be skipped or return to the
list.)
Note
•• Internet Radio and Podcasts may be suspended or
be otherwise unavailable without notice.
•• Internet Radio may not be played back properly
depending on the network condition.
60
(Continued)
Operations during playback
Stop
[
Pause
(Podcasts)
[
]
•• Press again to resume.
Skip
[
Search
(Podcasts)
Press and hold [
] (Returns to the list.)
][
]
] or [
].
Repeat playback
“Repeat”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Repeat” and then press [OK].
3 Press [ ], [ ] to select an item and then
press [OK].
1-Track:
Repeatedly plays only the selected track. (“1
displayed.)
All:
All tracks are repeated. (“ ” is displayed.)
” is
•• Repeat playback is not available for the content of
“Internet Radio”.
•• Setting contents are stored even when the input
source is switched.
Random playback
“Random”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Random” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• “RND” is displayed.
•• Random playback is not available for the content
of “Internet Radio”.
•• All tracks may not be played back. Set the repeat
playback (“All”).
•• Setting is available even when the input source is
switched.
61
(Continued)
Adding a station to favourite list
“Add Favourites”
You can add a station to favourite list and call up
the station easily.
1 Press [ ], [ ] to select a station to add
and then press [OK].
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select “Add
Favourites” and then press [OK].
•• “Added” is displayed after registering.
Call up the favourite station
1 Press [ ], [ ] repeatedly to select
“Favorites” and then press [OK].
•• “Favorites” is displayed on the first layer. Press
[RETURN] to return to the previous folder.
2 Press [ ], [ ] to select the station and
then press [OK].
•• “Empty” is displayed if no item is registered to the
favourite list.
Deleting the favourite station
“Delete Favourites”
1 Press [ ], [ ] repeatedly to select
“Favorites” and then press [OK].
•• “Favorites” is displayed on the first layer. Press
[RETURN] to return to the previous folder.
2 Press [ ], [ ] to select a station to
delete from the favourite list.
3 Press [MENU].
4 Press [ ], [ ] repeatedly to select
“Delete Favourites” and then press [OK].
5 Press [ ], [ ] to select “Yes” and then
press [OK].
•• “Deleted” is displayed after deleting.
•• “Empty” is displayed if no station is registered to
the favourite list.
62
(Continued)
Operations using the dedicated
app
“Technics Audio Center”
If you install the dedicated app “Technics Audio
Center” (free of charge) on your tablet/smartphone,
you can control this unit using a wide variety of
functions.
For details, visit:
www.technics.com/support/
63
Operations
Using AirPlay
You can play back music stored on iOS
device, etc. using AirPlay.
■■Preparation
•• Complete the network settings. (⇒ 28)
•• Connect the iOS device or PC to the same network
as this unit.
1 (iOS device)
Start the “Music” (or iPod) app.
(PC)
Start “iTunes”.
2 Select “Technics-SC-C70MK2-****”*1, 2
from the AirPlay icon (e.g.
).
•• If the device name is set on the “Google Home”
app, the set name is displayed.
3 Start play.
•• Check the volume settings before starting the
playback.
•• When AirPlay is used for the first time, the volume
may be output at the maximum setting.
•• The playback will start with a slight delay.
*1:“****” stands for a number that is unique to
each set.
*2:The device name can be changed from “This
unit’s name on the network”. (⇒ 34)
64
(Continued)
Operations during playback
Pause
[ ][
•• Press [
Skip
[
View
available
information
[INFO]
•• Press repeatedly to switch the
information.
][
]
] again to resume.
]
•• You can also operate on the connected iOS
device/PC.
Note
•• Volume changes on the iOS device or iTunes will
apply to this unit. (Refer to the iTunes Help for the
required settings in iTunes.)
•• Playback of other audio sources will stop and
AirPlay output will have priority.
•• With some iOS and iTunes versions, it may not
be possible to restart the AirPlay playback if the
selector is changed or the unit is turned to standby
mode, during the AirPlay playback. In this case,
select a different device from the AirPlay icon of
the Music app or iTunes and then re-select this unit
as the output speakers.
•• AirPlay will not work when playing back videos on
iTunes.
65
Operations
Playing back music using
Spotify Connect
This unit is compatible with Spotify Connect
for the online music service (Spotify). You
can play music from the music streaming
service of Spotify by operating your
smartphone, tablet, etc.
■■Preparation
•• Complete the network settings. (⇒ 28)
Make sure that the network is connected to the
Internet.
•• Connect the device to be used to the network of
this unit.
Use your phone, tablet or computer as a
remote control for Spotify.
Go to spotify.com/connect to learn how
66
(Continued)
Note
•• The device name of this unit will be displayed as
“Technics-SC-C70MK2-****”*1, 2.
•• If the device name is set on the “Google Home”
app, the set name is displayed.
•• Registration/subscription is required.
•• Spotify Premium requires a usage charge.
•• Services, icons, and specifications are subject to
change.
1:
* “****” stands for a number that is unique to
each set.
*2:The device name can be changed from “This
unit’s name on the network”. (⇒ 34)
67
Operations
Using TIDAL
You can play music from the music
streaming service, TIDAL on this unit
by operating the dedicated application
“Technics Audio Center” (free of charge) on
your smartphone, tablet, etc.
For details of TIDAL, visit the following
website.
www.tidal.com
■■Preparation
•• Install the latest “Technics Audio Center” on your
device (smartphone, tablet, etc.). For details, visit:
www.technics.com/support/
•• Connect this unit and your device on which
“Technics Audio Center” has been installed to the
network connected to the internet. For details,
refer to their operating instructions.
•• When TIDAL is used for the first time, log into
TIDAL. Perform the following steps for login.
Start “Technics Audio Center” on your device
(smartphone, tablet, etc.).
Select “TIDAL” from “Technics Audio Center”.
Log into TIDAL. (If you do not have an account,
you need to register the account.)
68
(Continued)
1 Press [>SELECT<] repeatedly to select
“TIDAL”.
•• When TIDAL is used for the first time, “Operate
via App” is displayed. Use the dedicated app
“Technics Audio Center” for operating.
2 Press [ ], [ ] to select an item and then
press [OK].
•• Repeat this step to make further selections.
•• Press [RETURN] to return to the previous folder.
•• Folders/content may be displayed in different
order from the order on the connected device,
depending on its specifications.
Note
•• Depending on the country or region, playback may
not be available.
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
Skip
[
Search
Press and hold [
]
][
]
] or [
].
Repeat playback
“Repeat”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Repeat” and then press [OK].
3 Press [ ], [ ] to select an item and then
press [OK].
1-Track:
Repeatedly plays only the selected track. (“1
displayed.)
All:
All tracks are repeated. (“ ” is displayed.)
” is
•• Setting contents are stored even when the input
source is switched.
69
(Continued)
Random playback
“Random”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Random” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• “RND” is displayed.
•• All tracks may not be played back. Set the repeat
playback (“All”).
•• Setting contents are stored even when the input
source is switched.
Adding a track/album/artist, etc.
to favourite list
“Add Favourites”
You can add a track/album/artist, etc. to favourite
list and call up the content easily.
1 Press [ ], [ ] to select a content to add
and then press [OK].
•• Repeat this step to make further selections.
•• Press [RETURN] to return to the previous folder.
•• Folders/content may be displayed in different
order from the order on the connected device,
depending on its specifications.
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select “Add
Favourites” and then press [OK].
•• “Added” is displayed after registering.
Call up the favourite
track/album/artist
1 Press [ ], [ ] repeatedly to select
“Favorites” and then press [OK].
•• “Favorites” is displayed on the first layer. Press
[RETURN] to return to the previous folder.
2 Press [ ], [ ] to select the content and
then press [OK].
•• “Empty” is displayed if no item is registered to the
favourite list.
70
(Continued)
Deleting the track/album/artist
“Delete Favourites”
1 Press [ ], [ ] repeatedly to select
“Favorites” and then press [OK].
•• “Favorites” is displayed on the first layer. Press
[RETURN] to return to the previous folder.
2 Press [ ], [ ] to select a content to
delete from the favourite list.
3 Press [MENU].
4 Press [ ], [ ] repeatedly to select
“Delete Favourites” and then press [OK].
5 Press [ ], [ ] to select “Yes” and then
press [OK].
•• “Deleted” is displayed after deleting.
•• “Empty” is displayed if no item is registered to the
favourite list.
Operations using the dedicated
app
“Technics Audio Center”
You start the playback using “Technics Audio
Center” on your tablet/smartphone.
•• If you select TIDAL from “Technics Audio
Center” on your tablet/smartphone, the input is
automatically switched to TIDAL.
•• For details, visit:
www.technics.com/support/
71
Operations
Using Deezer
You can play music from the music
streaming service, Deezer on this unit
with the dedicated application “Technics
Audio Center” (free of charge) on your
smartphone, tablet, etc.
For details of Deezer, visit the following
website.
www.deezer.com
■■Preparation
•• Install the latest “Technics Audio Center” on your
device (smartphone, tablet, etc.).
For details, visit:
www.technics.com/support/
•• Connect this unit and your device on which
“Technics Audio Center” has been installed to the
network connected to the internet. For details,
refer to their operating instructions.
•• When Deezer is used for the first time, log into
Deezer. Perform the following steps for login.
Start “Technics Audio Center” on your device
(smartphone, tablet, etc.).
Select “Deezer” from “Technics Audio Center”.
Log into Deezer. (If you do not have an account,
you need to register the account.)
72
(Continued)
1 Press [>SELECT<] repeatedly to select
“Deezer”.
•• When Deezer is used for the first time, “Operate
via App” is displayed. Use the dedicated app
“Technics Audio Center” for operating.
2 Press [ ], [ ] to select an item and then
press [OK].
•• Repeat this step to make further selections.
•• Press [RETURN] to return to the previous folder.
•• Folders/content may be displayed in different
order from the order on the connected device,
depending on its specifications.
Note
•• Some operations may not be available depending
on the music streaming service.
Operations during playback
Stop
[
Pause
[
]
•• Press again to resume.
]
Skip
[
Search
Press and hold [
][
]
] or [
].
Repeat playback
“Repeat”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Repeat” and then press [OK].
3 Press [ ], [ ] to select an item and then
press [OK].
1-Track:
Repeatedly plays only the selected track. (“1
displayed.)
All:
All tracks are repeated. (“ ” is displayed.)
” is
•• Setting contents are stored even when the input
source is switched.
73
(Continued)
Random playback
“Random”
1 Press [MENU].
2 Press [ ], [ ] repeatedly to select
“Random” and then press [OK].
3 Press [ ], [ ] to select “On” and then
press [OK].
•• “RND” is displayed.
•• All tracks may not be played back. Set the repeat
playback (“All”).
•• Setting contents are stored even when the input
source is switched.
Adding a track/album/artist, etc.
to favourite list
“Add Favourites”
You can add a track/album/artist, etc. to favourite
list and call up the content easily.
1 Press [ ], [ ] to select a content to add
and then press [OK].
•• Repeat this step to make further selections.
•• Press [RETURN] to return to the previous folder.
•• Folders/content may be displayed in different
order from the order on the connected device,
depending on its specifications.
2 Press [MENU].
3 Press [ ], [ ] repeatedly to select “Add
Favourites” and then press [OK].
•• “Added” is displayed after registering.
Call up the favourite
track/album/artist
1 Press [ ], [ ] repeatedly to select
“Favorites” and then press [OK].
•• “Favorites” is displayed on the first layer. Press
[RETURN] to return to the previous folder.
2 Press [ ], [ ] to select the content and
then press [OK].
•• “Empty” is displayed if no item is registered to the
favourite list.
74
(Continued)
Deleting the track/album/artist
“Delete Favourites”
1 Press [ ], [ ] repeatedly to select
“Favorites” and then press [OK].
•• “Favorites” is displayed on the first layer. Press
[RETURN] to return to the previous folder.
2 Press [ ], [ ] to select a content to
delete from the favourite list.
3 Press [MENU].
4 Press [ ], [ ] repeatedly to select
“Delete Favourites” and then press [OK].
5 Press [ ], [ ] to select “Yes” and then
press [OK].
•• “Deleted” is displayed after deleting.
•• “Empty” is displayed if no item is registered to the
favourite list.
Operations using the dedicated
app
“Technics Audio Center”
You start the playback using “Technics Audio
Center” on your tablet/smartphone.
•• If you select Deezer from “Technics Audio
Center” on your tablet/smartphone, the input is
automatically switched to Deezer.
•• For details, visit:
www.technics.com/support/
75
Operations
Listening to music using
Chromecast-enabled app
This unit is compatible with Chromecast-enabled
apps. For detailed information of Chromecastenabled apps, visit:
g.co/cast/apps
■■Preparation
•• Complete the network settings. (⇒ 28)
Make sure that the network is connected to the
Internet.
•• Install a Chromecast-enabled app on your device
(smartphone, tablet, etc.).
•• Connect the device to the network currently used
at home.
1 Start the Chromecast-enabled app on
your device (smartphone, tablet, etc.)
and select this unit as the connecting
device.
•• The input source is automatically switched to
“Casting”.
2 Play back the music.
Not all music streaming services are available in
all countries/regions. Registration/subscription
may be required, or fees may be charged to use
music streaming services. Services are subject to
change or be discontinued. For details, visit an
individual music streaming service’s website.
76
(Continued)
Important notice:
Before you dispose of or transfer this unit
to a third party, be sure to log out of your
music streaming services accounts to prevent
unauthorised use of your accounts.
77
Operations
Using the auxiliary input
You can connect a portable audio player,
etc. with an analogue audio cable (not
supplied) and play back music.
Analogue audio cable
(φ3.5 mm)
(not supplied)
Portable audio player, etc.
1 Disconnect the AC mains lead.
2 Connect this unit and a portable audio
player, etc.
3 Connect the AC mains lead to this unit.
(⇒ 27)
4 Press [ ] to turn this unit on.
5 Press [>SELECT<] repeatedly to select
“AUX”.
6 Start playback on the connected device.
78
(Continued)
Adjust the volume level
“Input Level”
If the volume of the auxiliary input is high, setting to
“Low” may improve the volume level.
1 Press [MENU].
2 Press [OK].
3 Press [ ], [ ] repeatedly to select
“Low” and then press [OK].
Note
•• The factory default is “High”.
79
Settings
Using the favourite function................ 81
Registering your favourite station or
playlist to [FAV].......................................... 81
Sound adjustment................................ 82
Adjusting BASS/MID/TREBLE
“Tone Control”........................................... 82
Adjusting the sound quality according
to the installation location “Space Tune”.... 83
Playing back more natural-sounding
audio “RE-MASTER”................................... 83
Sleep timer “SLEEP”................................... 83
Clock and Timer.................................... 84
Setting the clock “CLOCK”......................... 84
Play timer................................................... 85
Other settings....................................... 87
Auto off function “Auto Off”..................... 87
Auto dimming function “Auto DIMMER”.... 88
Illumination on the top cover
“ILLUMINATION”....................................... 88
Operation sound setting “Beep”................ 88
Clock display in standby mode
“Standby Display”...................................... 88
Network standby “Standby Mode”............ 89
Network settings “Network”...................... 89
Changing the character encoding
“E Asian Character”................................... 90
Touch switch setting “Touch Switch”......... 90
Switching clock indication
“CLOCK Indication”.................................... 90
Checking the model name “Model No.”..... 90
Checking the firmware version
“F/W Version”............................................ 90
Firmware updates “F/W Update”............... 91
Table of contents ... 04
80
Settings
Using the favourite function
Registering your favourite station
or playlist to [FAV]
You can register your favourite station or playlist
(DAB/DAB+, FM, Internet Radio, Podcasts, etc.)
and call up the station easily by pressing [FAV]. (You
can also register it by pressing [FAV] on the touch
switch.)
1 Switch the input source (DAB/DAB+, FM,
Internet Radio, Podcasts, etc.).
2 Press and hold [FAV] while the favourite
station or playlist is played back.
•• The registration screen is displayed.
3 Press [ ], [ ] to select the number
(1 - 9) to register and then press [OK].
•• “Memorised” is displayed when the registration
is completed. (Confirm that the station
broadcasts if “Failed” is displayed.)
•• A station previously stored is overwritten
when another station is selected for the same
number.
•• To cancel this setting in the middle, press
[RETURN].
Calling up the favourite station
1 Press [FAV].
2 Press the registered number (1 - 9) and
then press [OK].
•• You can also call up the station by pressing
[FAV] repeatedly. (Switches to the registered
station.)
•• The input source automatically switches to the
registered station.
•• “Empty” is displayed if no item is registered to
the favourite list.
81
Settings
Sound adjustment
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to
select the menu and then press
[OK].
3 Press [ ], [ ], [ ], [ ] to set,
and press [OK].
Adjusting BASS/MID/TREBLE
“Tone Control”
You can adjust the tone of this unit. Each tonal
range (BASS/MID/TREBLE) can be adjusted.
•• To enable this function, select “On (adjustment)”.
•• Each level can be adjusted between “- 10” and
“+ 10”.
•• “TONE” is displayed after setting.
82
(Continued)
Adjusting the sound quality
according to the installation
location
“Space Tune”
You can adjust the sound quality according to the
installation location (near the wall or the corner of
the room).
Free:
No objects (wall, etc.) around this unit
Wall:
There is a wall behind this unit.
Corner:
This unit is in the corner of the room.
Note
•• Using the dedicated app “Technics Audio Center”
(free of charge) on your iOS device, you can
measure the location between your iOS device and
this unit. Set “Space Tune” to “Measured” after
measuring with iOS device.
For details, visit:
www.technics.com/support/
Playing back more naturalsounding audio
“RE-MASTER”
Re-mastering expands the playback band and
achieves a higher bit depth to reproduce natural and
expansive sounds close to original music sources.
•• The factory default is “Off”.
•• Depending on the content, the sound may not be
re-mastered even when setting to “On”.
Sleep timer
“SLEEP”
The sleep timer can turn the unit to standby mode
after a set time. (30 minutes/60 minutes/
90 minutes/120 minutes/Off)
•• “SLEEP” is displayed after setting.
83
Settings
Clock and Timer
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to
select the menu and then press
[OK].
3 Press [ ], [ ], [ ], [ ] to set,
and press [OK].
Setting the clock
“CLOCK”
The time is displayed for 20 seconds when
selecting “CLOCK”. (Press [OK] to access
the clock setting screen.) Press [ ], [ ] to
set the time on the clock/day setting
screen.
•• To set the clock with the numeric buttons
e.g.) 16:05
[1] > [6] > [0] > [5]
•• Pressing [ ], [ ] to set the day or clock type (AM/
PM).
Note
•• The clock is reset if a power failure occurs or the
AC mains lead is removed.
•• Set the clock regularly to maintain accuracy.
•• Using the dedicated app “Technics Audio Center”
(free of charge) on your tablet/smartphone, you
can update the time information of this unit.
For details, visit:
www.technics.com/support/
84
(Continued)
Play timer
You can set the timer so this unit turns on at a set
time every day.
■■Preparation
•• Set the clock. (⇒ 84)
•• Prepare the selected music source (CD, Radio, USB
device, etc.).
•• Tune the station/channel (for radio).
Note
•• Using the dedicated app “Technics Audio Center”
(free of charge) on your tablet/smartphone, you
can also set the timer.
For details, visit:
www.technics.com/support/
Turning the timer on
“Play Timer Setting”
Set the desired volume.
Press [ ], [ ] to select “On” and then press [OK]
to store the volume.
•• The clock icon is displayed.
•• “Adjust CLOCK” is displayed when the clock is
not set.
•• “Adjust Play Timer” is displayed when the play
timer is not set.
Turn the unit to standby mode.
•• The timer is enabled after turning this unit to
standby mode.
•• At the set time, the music source starts to play
at a low volume and the volume increases
gradually to the preset level.
•• To turn the timer off, select “Off” in step 2
(above).
Note
•• This unit can be used as normal even after the
timer is set, however:
Turn the unit to standby mode before the timer
start time.
Even if the audio source or the volume is
changed, the timer will still use the audio source
and volume that was set when the timer was
turned on.
•• You can set the repeat playback for “CD” or “USB”.
The favourite station registered by [FAV] can be
also played back.
•• To adjust the volume when the timer is turned on,
set “Play Timer Setting” from “Off” to “On” after
selecting the volume.
•• After starting the timer, this unit is turned off
automatically at the finishing time even when
using this unit as normal.
85
(Continued)
Setting the timer
“Play Timer Adj.”
The current settings are displayed when selecting
“Play Timer Adj.” and pressing [OK]. Press [OK]
again to access the timer setting screen, and the
screen starts blinking.
Press [ ], [ ] or numeric buttons to set the
starting time and then press [OK].
Press [ ], [ ] or numeric buttons to set the
finishing time and then press [OK].
Press [ ], [ ] to select the music source,
volume, day of week and then press [OK].
•• The repeating setting is as following.
“Everyday”: S
ame time everyday
“Once”: One time
“SAT, SUN”: Every Saturday and Sunday
“MON to FRI”: Every Monday to Friday
■■To display the timer settings
After setting, you can confirm the setting time,
music source, etc. by selecting “Play Timer Adj.” and
pressing [OK].
•• You can also confirm them in standby mode by
pressing [INFO].
86
Settings
Other settings
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to
select the menu and then press
[OK].
3 Press [ ], [ ], [ ], [ ] to set,
and press [OK].
Auto off function
“Auto Off”
While the setting is set to “On”, this unit
automatically enters standby mode for saving
energy, if no sound output without operation such
as pressing buttons, etc. for approx. 20 minutes.
•• When the input source is “DAB/DAB+” or “FM”,
this function does not work.
•• The factory default is “On”. To disable this
function, select “Off”.
Note
•• The setting is stored even if the power is turned
off and on.
•• “Auto Off” is displayed 3 minutes before this unit
is turned off.
87
(Continued)
Auto dimming function
“Auto DIMMER”
While the setting is set to “On”, this unit temporarily
adjust the brightness of the display, power indicator,
etc., if no sound output without operation such as
pressing buttons, etc. for approx. 20 minutes.
•• The factory default is “On”.
Illumination on the top cover
“ILLUMINATION”
The top cover illuminates when this unit is turned
on. (The light of top cover turns off when the top
cover is opened.)
•• The factory default is “Mode2”. To disable this
function, select “Off”.
Mode1:
The top cover always illuminates.
Mode2:
The top cover illuminates only when a playable CD
is inserted and the input source is “CD”.
Operation sound setting
“Beep”
You can turn the beep sound on/off for the touch
switch operation.
•• The factory default is “On”. To disable this
function, select “Off”.
Clock display in standby mode
“Standby Display”
You can set the clock display in standby mode.
On (CLOCK):
Displays the clock in standby mode.
•• The clock indicator moves every certain period
of time.
•• When the display is turned off by pressing
[DIMMER], the clock is not displayed. (The clock
is displayed for several seconds when pressing
[INFO].)
Off:
No display (The clock is displayed for several
seconds when pressing [INFO].)
•• The factory default is “Off”.
88
(Continued)
Network standby
“Standby Mode”
When this function is set to “On”, then this unit
automatically turns on in the following cases.
When a Bluetooth® connection is established to
this unit from a paired Bluetooth® device.
When playback operations are performed on this
unit from a device connected to the network.
•• The factory default is “On”. To disable this
function, select “Off”.
Network settings
“Network”
Wi-Fi setting
“Wi-Fi Menu”
The wireless LAN function can be enabled or
disabled.
•• The factory default is “On”.
Displaying the network icon
“Network Indicator”
Set to “Off” to turn the network icon (Wired LAN /
Wireless LAN) off from the display.
•• The factory default is “On”.
Wi-Fi signal strength
“Signal Level”
To check the Wi-Fi signal strength where this system
is located.
•• The signal strength is shown as 3 (max) - 2 - 1. If
the indicator shows “2” or “1”, change the position
or angle of your wireless router or this system, and
see if the connection improves.
•• If “0” is displayed, this system cannot establish a
link with the wireless router.
89
(Continued)
Changing the character encoding
“E Asian Character”
You can change the character encoding of track
names, artist names and other information when
they are not displayed as they should be.
Type 1(日本):
Priority is given to Japanese. (default)
Type 2(简体字):
Priority is given to Chinese (Simplified).
Touch switch setting
“Touch Switch”
Activate/deactivate the touch-switch controlling.
•• The factory default is “On”.
Switching clock indication
“CLOCK Indication”
You can select the clock indication type.
24-hour:
24-hour clock
12-hour:
12-hour clock
•• The factory default is “24-hour”.
Checking the model name
“Model No.”
The model name is displayed.
Checking the firmware version
“F/W Version”
The version of the installed firmware is displayed.
90
(Continued)
Firmware updates
“F/W Update”
Occasionally, Panasonic may release updated
firmware for this unit that may add or improve the
way a feature operates. These updates are available
free of charge.
•• For the update information, refer to the following
website.
www.technics.com/support/firmware/
Downloading takes approx. 15 minutes.
Do not disconnect the AC mains lead or turn
this unit to standby while updating.
Do not disconnect the USB flash memory
while updating.
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
Note
•• During the update process, no other operations
can be performed.
•• If there are no updates, “Firmware is Up To Date”
is displayed. (No need to update it.)
•• Updating the firmware may reset the settings of
this unit.
Update via Internet
■■Preparation
•• Connect this unit to the network. (⇒ 28)
Make sure that the network is connected to the
Internet.
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to select “F/W
Update” and then press [OK].
3 Press [ ], [ ] to select “Internet” and
then press [OK].
4 Press [ ], [ ] to select “Yes” and then
press [OK].
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
•• When the update has finished successfully,
“Success” is displayed.
5 Press [
] to turn this unit off and on.
91
(Continued)
Update via USB flash memory
■■Preparation
•• Download the latest firmware on the USB flash
memory. For details, refer to the following
website.
www.technics.com/support/firmware/
1 Connect the USB flash memory with
new firmware.
2 Press [SETUP].
3 Press [ ], [ ] repeatedly to select “F/W
Update” and then press [OK].
4 Press [ ], [ ] to select “USB” and then
press [OK].
5 Press [ ], [ ] to select “Yes” and then
press [OK].
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
•• When the update has finished successfully,
“Success” is displayed.
6 Press [
] to turn this unit off and on.
Note
•• Downloading may take longer depending on the
USB flash memory.
92
Others
Troubleshooting.................................... 94
Heat buildup of this unit............................. 94
Do you have the latest firmware
installed?................................................... 94
To restore all the settings to
the factory defaults.................................... 95
General...................................................... 95
Disc............................................................ 97
Radio......................................................... 97
USB............................................................ 98
Bluetooth®................................................. 98
Network..................................................... 99
Music streaming service............................101
Remote control.........................................101
Touch switches..........................................102
Messages..................................................102
Playable media.................................... 106
Notes on CDs........................................... 106
USB...........................................................107
About Bluetooth®............................... 108
Licenses................................................ 109
Specifications.......................................111
Table of contents ... 04
93
Others
Troubleshooting
Before requesting service, make the
following checks. If you are uncertain about
some of the check points, or if the solutions
indicated in the following guide do not
resolve the issue, then consult your dealer
for instructions.
Heat buildup of this unit
This unit becomes warm while in use.
•• Be careful when touching the bottom of this unit
because the bottom of this unit may be hot. For
installation or unit care, disconnect the AC mains
lead, wait for at least 3 minutes.
Do you have the latest firmware
installed?
Panasonic is constantly improving the unit’s
firmware to ensure that our customers are enjoying
the latest technology. (⇒ 91)
94
(Continued)
To restore all the settings to the
factory defaults
When the following situations occur, reset the
memory:
•• There is no response when buttons are pressed.
•• You want to clear and reset the memory contents.
1 Press [SETUP].
2 Press [ ], [ ] repeatedly to select
“Initialization” and then press [OK].
3 Press [ ], [ ] to select “Yes” and then
press [OK].
•• A confirmation screen appears. Select “Yes” in
the following steps to restore all the settings to
defaults.
4 Press [ ], [ ] to select “Yes” and then
press [OK] again.
Note
•• If the setup menu cannot be entered, disconnect
the AC mains lead and reconnect while pressing
and holding [
] after approx. 3 minutes or
later for restoring all the settings to the factory
defaults. (“Initialized” is displayed.)
General
The unit does not work.
Operations are not done properly.
•• One of the unit’s safety devices, etc. may have
been activated.
Press [
] on the unit to switch the unit to
standby.
•• If the unit does not switch to standby, press
[
] on the unit for at least 5 seconds. The
unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead,
wait for at least 3 minutes, then reconnect it.
Press [
] on the unit to switch on. (It may take
some time for this unit to be turned on.)
•• If the unit still cannot be operated, consult the
dealer.
•• The remote control may not work properly.
(⇒ 101)
•• The touch switch operation may be disabled.
Check the setting. (⇒ 90)
95
(Continued)
A “humming” sound can be heard during
playback.
•• An AC mains lead of another device or fluorescent
light is near the cables. Turn off other appliances,
or keep them away from the cables of this unit.
•• A strong magnetic field near a TV or other device
may adversely affect the audio quality. Keep this
unit away from such a location.
•• The speakers may output noise when a device
nearby is emitting powerful radio waves, such as
when a mobile phone is on a call.
No sound.
•• Check the volume of this unit and the connected
device.
•• Check to see if the cable connections to the input
and output terminals are incorrect. If this is the
case, turn this unit to standby and reconnect the
cables correctly.
•• Check to see if the correct input source is selected.
•• Insert the plugs of the cables to be connected all
the way in.
•• Playback of multi-channel content is not
supported.
•• The digital audio input terminal of this unit can
only detect linear PCM signals. For details, refer to
the operating instructions of the device.
Playback does not start.
•• Depending on your environment or connected
devices, it may take some time.
•• Check to see if the format of the file is supported.
For supported formats, refer to “File format”.
(⇒ 115)
The unit turns to standby mode automatically.
•• Is the auto off function turned on? (⇒ 87)
•• This unit incorporates a protection circuit to
prevent damage caused by heat buildup. When
you use this unit at a high volume level for a long
period of time, it may turn off automatically. Wait
for this unit to cool down before turning on this
unit again. (For approximately 3 minutes)
The settings are reset to the factory defaults.
•• Updating the firmware may reset the settings.
96
(Continued)
Disc
Incorrect display or play does not start.
•• Make sure that the disc is compatible with this
unit. (⇒ 106)
•• There is moisture on the lens. Wait for about an
hour and then try again.
•• Unfinalised CD-R and CD-RW cannot be played
back.
•• WMA/MP3 is not supported. Refer to “Notes on
CDs” (⇒ 106) for information about the discs this
unit can play back.
Playback takes time to start.
•• It may take some time for the disc to load if there
are a lot of tracks on it.
Radio
DAB+ reception is poor.
•• Keep the antenna away from computers,
televisions, other cables and cords.
•• Use an outdoor antenna (⇒ 26).
Static or noisy reception is heard while listening
to a radio broadcast.
•• Confirm the antenna is properly connected. (⇒ 26)
•• Adjust the position of the antenna.
•• Keep a certain amount of distance between the
antenna and AC mains lead.
•• Use an outdoor antenna if there are buildings or
mountains nearby. (⇒ 26)
•• Turn off the TV or other audio players or separate
it from this unit.
•• Keep this unit away from mobile phones if there is
interference.
97
(Continued)
USB
The USB drive or its contents cannot be read.
•• The USB drive format or its contents is/are not
compatible with the unit. (⇒ 107)
No response when [
] is pressed.
•• Disconnect the USB device and then reconnect
it. Alternatively, turn the unit to standby and on
again.
Slow operation of the USB flash drive.
•• Large file size or high memory USB flash drive
takes longer time to read.
•• It may take some time if there are a lot of files or
folders on it.
Cannot display the information properly.
•• Track names, etc. may not be displayed properly.
Bluetooth®
Pairing cannot be completed.
•• Check the Bluetooth® device condition.
The device cannot be connected.
•• The pairing of the device was unsuccessful or the
registration has been replaced. Try re-pairing the
device. (⇒ 48)
•• This unit might be connected to a different device.
Disconnect the other device and try re-pairing the
device.
The device is connected, but audio cannot be
heard through this unit.
•• For some built-in Bluetooth® devices, you have to
set the audio output to “SC-C70MK2” manually.
Read the operating instructions for the device for
details.
The sound is interrupted.
•• The device is out of the 10 m communication
range. Bring the Bluetooth® device closer to this
system.
•• Remove any obstacle between this system and the
device.
•• Other devices that use the 2.4 GHz frequency
band (wireless router, microwaves, cordless
phones, etc.) are interfering. Bring the Bluetooth®
device closer to this system and distance it from
the other devices.
•• Select “Mode1” for stable communication. (⇒ 49)
98
(Continued)
Network
Cannot connect to the network.
•• Confirm the network connection and settings.
(⇒ 28)
•• If the network is set to be invisible, make the
network visible while you set up the network for
this unit or make a wired LAN connection.
•• This system’s Wi-Fi security supports WPA2™.
Your wireless router must therefore be WPA2™
compatible. For details on the security supported
by your router and how to change the settings,
please refer to the operating instructions or
contact your internet service provider.
•• Make sure that the multicast function on the
wireless router is enabled.
•• The wireless LAN environment or radio
interference in your area may cause connection
problem. In this case, try another connection
method. If the problem persists, make a wired
LAN connection. (⇒ 30)
•• While the AC mains lead is disconnected, the LAN
cable must be connected or disconnected.
Cannot select this system as the output
speakers.
•• Make sure that the devices are connected to the
same network as this unit.
•• Reconnect the devices to the network.
•• Turn the wireless router off and then on.
•• Turn this unit to standby and on, and then select
this system as the output speakers again.
99
(Continued)
Playback does not start.
The sound is interrupted.
•• If using the 2.4 GHz band on the wireless router,
simultaneous use with other 2.4 GHz devices, such
as microwaves, cordless telephones, etc., may
result in connection interruptions. Increase the
distance between this unit and these devices.
If your wireless router supports 5 GHz band, try
using the 5 GHz band.
•• Do not place this system inside a metal cabinet, for
it might block the Wi-Fi signal.
•• If the playback stops, check the playback status on
the device.
•• Place this system closer to the wireless router.
•• Check the Wi-Fi signal strength using “Signal
Level” and adjust location of this unit and the
wireless router. (⇒ 89)
•• If several wireless devices are simultaneously using
the same wireless network as this unit, try turning
off the other devices or reducing their wireless
network usage.
•• Reconnect the devices to the network.
•• Turn the wireless router off and then on.
•• With some iOS and iTunes versions, it may not
be possible to restart the AirPlay playback if the
selector is changed (e.g. “CD”) or this unit is in
standby mode, during the AirPlay playback. In this
case, select a different device from the AirPlay icon
of the Music App or iTunes and then re-select this
system as the output speakers. (⇒ 64)
•• If the above solutions do not solve the problem,
make a wired LAN connection for all connected
devices which have LAN terminal (this unit,
Network Attached Storage, media server, etc.).
(⇒ 30)
The media server and its contents are not
displayed.
•• The connected media server and its contents
may not be displayed properly depending on its
condition (e.g. soon after adding the contents to
the server, etc.). Try again later. For details, refer to
the operating instructions of the media server.
Cannot find music files stored on the PC.
•• When you play back music files over a network,
those that are not registered to its network
server are not displayed. For details, refer to the
operating instructions for your server.
Cannot display the information properly.
•• Track names, etc. may not be displayed properly.
100
(Continued)
Music streaming service
Playback does not start.
The sound is interrupted.
•• The station that does not broadcast cannot be
played back. (It will be skipped or return to the
list.)
•• Internet Radio may not be played back properly
depending on the network condition.
•• Depending on the internet connection
environment, the sound may be interrupted or it
may take some time to play back.
•• Internet Radio is an audio broadcasting service
transmitted via the Internet. Depending on the
broadcaster or condition of the transmitting, the
sound quality may vary.
•• Service may not be available depending on the
country or area.
•• The services through Network Service are
operated by their respective service providers, and
service may be discontinued either temporarily or
permanently without notice.
Cannot display the information properly.
•• Station names, countries, regions, genres, track
names, album names, etc. which are managed by
the service provider, may not be displayed properly
depending on the broadcasting information.
Remote control
The remote control does not work properly.
•• The batteries are depleted or inserted incorrectly.
(⇒ 23)
•• To avoid interference, please do not put any
objects in front of signal sensor. (⇒ 17)
•• If the remote control mode of the remote control
differs from that of this unit, match the mode of
the remote control to the mode of this unit. (⇒ 23)
101
(Continued)
Touch switches
The touch switches do not work.
The touch switch operations are not done
properly.
•• The touch switch operation may be disabled.
Check the setting. (⇒ 90)
•• If this unit detects an abnormality of the touch
switches such as putting any objects on or
applying too much force on the touch switch, the
switches may not work temporarily.
Wait for at least 5 seconds, then press the
touch switch again.
If the touch switch cannot be activated, turn
this unit off and then on.
Messages
Adjust CLOCK
•• Set the clock before setting the timer. (⇒ 84)
Adjust Play Timer
•• Set the starting time and finishing time of the
timer. (⇒ 86)
Auto Off
•• The unit has been left unused for about
20 minutes and will shut down within a minute.
Press any button to cancel it.
Checking Device
•• The unit is checking the connected USB device.
After this display has disappeared, start operating.
Connect to Network
•• Connect this unit to the network and then wait for
the start of the Firmware Update via Internet.
(⇒ 91)
Connect USB Device
•• Download the latest firmware on the USB flash
memory and try again. (⇒ 92)
Download Fail
•• The firmware download has failed. Press any
button to exit. Please try again later.
•• The server cannot be found. Press any button to
exit. Make sure that the network is connected to
the internet.
102
(Continued)
Empty
•• The selected folder is empty. Move tracks into the
folder and retry the operation.
•• The server is not found on the network. Check to
see if the server is connected to the same network
as this unit, and retry the connection to this unit.
(⇒ 28)
•• No Internet Radio station is registered to the
favourite list. Add a station to the list. (⇒ 62)
•• No station or playlist is registered to [FAV]. Add an
item to the list. (⇒ 81)
Error
•• Incorrect operation is performed. Read the
instructions and try again.
Fail
•• Network connection is not complete. Try the
setting again. (⇒ 28)
•• The adjustment of “Space Tune (Auto)” is failed.
Disconnect the headphones before starting the
adjustment. (⇒ 14)
Firmware update is available
•• The firmware (free of charge) for this unit is
available.
Press [OK].
Press [ ], [ ] to select “Yes” and then press
[OK].
•• The progress is displayed as “Updating %”
while updating. (“ ” stands for a number.)
•• Do not disconnect the AC mains lead or turn
this unit to standby while updating. (⇒ 91)
•• When the update has finished successfully,
“Success” is displayed.
Press [
] to turn this unit off and on.
•• For the update information, refer to the following
website.
www.technics.com/support/firmware/
“F
” (“ ” stands for a number.)
•• An abnormality has occurred. (If this unit detects
an abnormality, the protection circuit is activated,
and the power may be turned off automatically.)
Is this unit placed in an extremely hot place?
Wait a few seconds and then turn the unit
on again. (The protection circuit will be
deactivated.)
If the problem persists, write down the displayed
number, disconnect the AC mains lead and consult
your dealer.
Load Fail
•• The firmware cannot be found on the USB flash
memory.
•• Download the latest firmware on the USB flash
memory and try again. (⇒ 92)
103
(Continued)
No Device
•• No USB device is connected.
•• Connect the USB device to be played. (⇒ 51)
•• The connected USB device is not supported.
•• The format of the file on the USB device is not
supported.
For supported formats, refer to “File format”.
(⇒ 115)
No Disc
•• No CD is inserted.
•• Insert the disc to be played (⇒ 38).
No Network Available
•• This unit is not connected to the network.
•• Check the network connection. (⇒ 28)
No Play
•• The disc cannot be played back.
•• Insert the disc to be played (⇒ 106).
Not Valid
•• The function you have tried to use is not available
with the current settings. Check the steps and
settings.
Operate via App
•• Operation from the unit or remote control is not
available.
•• Use the connected device or application for
operating.
PGM Full
•• The number of programmed tracks is more than
24.
Please Wait
•• This is displayed, for example, when this unit is
turned to standby/on. (For up to approx. 1 minute
and 30 seconds)
Reading
•• The unit is checking the CD information. After this
display has disappeared, start operating.
“Remote ” (“ ” stands for a number.)
•• The remote control and this unit are using
different modes.
Change the mode on the remote control. (⇒ 23)
Searching
•• The unit is checking the media server on the
network.
This track is not available.
•• Some content may not be available on the music
streaming service, etc.
Touch Switch Off
•• The touch switch operation of this unit is disabled.
(⇒ 90)
104
(Continued)
Unlocked
•• “OPT” is selected, but no device is connected.
Check the connection with the device. (⇒ 55)
•• The sampling frequency components, etc. of the
audio signals are not input correctly.
For supported formats, refer to “File format”
(⇒ 115)
USB Over Current Error
•• USB device is drawing too much power.
Disconnect the USB device and turn the unit to
standby and on again. (⇒ 51)
Wi-Fi Setup
•• Select “Yes” and press [OK] to enter the network
setting. (⇒ 31)
To exit the network setting, select “No” and
press [OK].
105
Others
Playable media
Notes on CDs
■■Compatible CD
•• A disc with the CD Logo.
•• This unit can play back discs that conform to the
CD-DA format.
•• The unit may not be able to play some discs due to
the condition of the recording.
•• Before playback, finalise the disc on the device it
was recorded on.
■■CDs that cannot be used
•• CDs with irregular shapes, such as heart shapes
(Use of such CDs may cause malfunction.)
■■CDs that are not guaranteed to operate with
this unit
•• Discs with illegally copied data and those that do
not conform to industry standards
•• DualDiscs (Discs that record data such as music
and images on both sides)
■■Disc formats supported by this unit
Commercially available CDs
(CD-DA)
Support
CD-R/CD-RW(CD-DA)
Support
CD-R/CD-RW(MP3)
Not support
CD-R/CD-RW(WMA)
Not support
■■This unit’s lens
Use the lens cleaner (not supplied) to clean the
unit’s lens.
■■Clean discs
DO
DO NOT
Wipe with a damp cloth and then wipe dry with a
dry cloth.
■■Disc handling precautions
•• Handle discs by the edges to avoid inadvertent
scratches or fingerprints on the disc.
•• Do not use disc cleaning sprays, benzine, thinner,
static electricity prevention liquids or any other
solvent.
•• Do not attach labels or stickers to discs.
•• Do not use the following discs:
Discs with exposed adhesive from removed
stickers or labels (rented discs, etc.).
Discs that are badly warped or cracked.
Irregularly shaped discs, such as heart shapes.
106
(Continued)
USB
•• This unit does not guarantee connection with all
USB devices.
•• FAT16, FAT32 and NTFS file systems are
supported.
•• This unit supports USB 2.0 high speed.
•• Connect a USB device with a thickness of 8 mm or
less.
•• USB devices may not be recognised by this unit
when connected using the following:
a USB hub
a USB extension cable
•• It is not possible to use USB card reader/writers.
•• This unit cannot record music to a USB device.
•• Not all files on the USB device may be read if there
are some files not supported.
•• About supported format, refer to “File format”
(⇒ 115)
■■Folder and file structure
The unit plays back only the music files in the
selected folder. Select the folder containing the
tracks that you want to play back.
•• Nothing is played back if you select a folder
without music files, such as the folder
in the
diagram below. (“Empty” is displayed.)
Example:
Folder
Music file
Music 1
Music 2
Music 3
Music 4
Music 5
107
Others
About Bluetooth®
Panasonic bears no responsibility for data and/
or information that is compromised during a
wireless transmission.
Frequency band used
•• This system uses the 2.4 GHz frequency band.
Certification of this device
•• This system conforms to frequency restrictions and
has received certification based on frequency laws.
Thus, a wireless permit is not necessary.
•• The actions below are punishable by law in some
countries:
Taking apart or modifying the system.
Removing specification indications.
Restrictions of use
•• Wireless transmission and/or usage with all
Bluetooth® equipped devices is not guaranteed.
•• All devices must conform to standards set by
Bluetooth SIG, Inc.
•• Depending on the specifications and settings of a
device, it can fail to connect or some operations
can be different.
•• This system supports Bluetooth® security features.
But depending on the operating environment and/
or settings, this security is possibly not sufficient.
Transmit data wirelessly to this system with
caution.
•• This system cannot transmit data to a Bluetooth®
device.
Range of use
•• Use this device at a maximum range of 10 m.
The range can decrease depending on the
environment, obstacles or interference.
Interference from other devices
•• This system may not function properly and
troubles such as noise and sound jumps may arise
due to radio wave interference if this system is
located too close to other Bluetooth® devices or
the devices that use the 2.4 GHz band.
•• This system may not function properly if radio
waves from a nearby broadcasting station, etc. is
too strong.
Intended usage
•• This system is for normal, general use only.
•• Do not use this system near an equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals,
laboratories, etc.).
108
Others
Licenses
The Wi-Fi CERTIFIED™ Logo is a certification
mark of Wi-Fi Alliance ®.
Use of the Works with Apple badge means
that an accessory has been designed to work
specifically with the technology identified in the
badge and has been certified by the developer to
meet Apple performance standards.
Apple and AirPlay are trademarks of Apple Inc.,
registered in the U.S. and other countries.
This product is compatible with AirPlay 2. iOS
11.4 or later is required.
Google, Google Home and Chromecast built-in
are trademarks of Google LLC.
The Google Assistant is not available in certain
languages and countries.
Android and Google Play are trademarks of
Google Inc.
Windows is a trademark or a registered
trademark of Microsoft Corporation in the United
States and other countries.
Windows Media and the Windows logo
are trademarks or registered trademarks of
Microsoft Corporation in the United States and/
or other countries. This product is protected by
certain intellectual property rights of Microsoft
Corporation and third parties. Use or distribution
of such technology outside of this product is
prohibited without a license from Microsoft or an
authorized Microsoft subsidiary and third parties.
Mac and OS X are trademarks of Apple Inc.,
registered in the U.S. and other countries.
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Panasonic
Corporation is under license. Other trademarks
and trade names are those of their respective
owners.
“DSD” is a registered trademark.
109
(Continued)
FLAC Decoder
Copyright (C) 2000, 2001, 2002, 2003, 2004,
2005, 2006, 2007, 2008, 2009 Josh Coalson
Redistribution and use in source and binary
forms, with or without modification, are
permitted provided that the following conditions
are met:
Redistributions of source code must retain the
above copyright notice, this list of conditions
and the following disclaimer.
Redistributions in binary form must reproduce
the above copyright notice, this list of
conditions and the following disclaimer in the
documentation and/or other materials provided
with the distribution.
Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used
to endorse or promote products derived from
this software without specific prior written
permission.
THIS SOFTWARE IS PROVIDED BY THE
COPYRIGHT HOLDERS AND CONTRIBUTORS
“AS IS” AND ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, BUT NOT
LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE FOUNDATION OR
CONTRIBUTORS BE LIABLE FOR ANY DIRECT,
INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS
OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND
ON ANY THEORY OF LIABILITY, WHETHER
IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE)
ARISING IN ANY WAY OUT OF THE USE OF
THIS SOFTWARE, EVEN IF ADVISED OF THE
POSSIBILITY OF SUCH DAMAGE.
The Spotify Software is subject to third party
licenses found here: https://www.spotify.com/
connect/third-party-licenses.
110
Others
Specifications
■■GENERAL
Power supply
AC 220 V to 240 V,
50/60 Hz
Power consumption
45 W
Power consumption
in standby mode
(Network Standby
Off & No clock
display)
0.2 W
Power consumption
in standby mode
(Network Standby
On & No clock
display)
2.0 W*1
Dimensions
(W×H×D)
450 mm × 143 mm ×
280 mm
Mass
Approx. 8.0 kg
Operating
temperature range
0 °C to 40 °C
Operating humidity
range
35 % to 80 % RH
(no condensation)
*1: Wired LAN or Wireless LAN
■■AMPLIFIER SECTION
Output power
Front speaker (L/R):
30 W + 30 W
(1 kHz, T.H.D. 1.0 %, 6 Ω,
20 kHz LPF)
Subwoofer:
40 W
(70 Hz, T.H.D. 1.0 %, 4 Ω,
20 kHz LPF)
111
(Continued)
■■TUNER SECTION
Frequency Modulation (FM)
Preset memory
30 stations
Frequency range
87.50 MHz to 108.00 MHz
(50 kHz step)
Antenna terminals
75 Ω (unbalanced)
DAB
DAB memories
20 channels
Frequency band
(wavelength)
Band III (All Band III):
5A to 13F (174.928 MHz to
239.200 MHz)
Sensitivity
*BER 4x10 -4
Min requirement: –98 dBm
DAB external
antenna terminal
F-Connector (75 Ω)
■■DISC SECTION
Playable Disc
(8 cm or 12 cm)
CD, CD-R, CD-RW
Pickup
Wavelength
790 nm (CD)
Laser power
CLASS 1
Format
CD-DA
■■SPEAKER SECTION
Front speaker (L/R)
Type
2 way, 2 speaker (Closed)
Woofer
8 cm × 1/ch, Cone type
Tweeter
2 cm × 1/ch, Dome type
Subwoofer
Type
1 way,
1 speaker (Bass reflex)
Subwoofer
12 cm × 1, Cone type
112
(Continued)
■■Bluetooth® SECTION
Bluetooth® system
specification
Bluetooth® Ver.4.2
Wireless equipment
classification
Class 2 (2.5 mW)
Supported profiles
A2DP, AVRCP
Supported codec
AAC, SBC
Frequency band
2.4 GHz band FH-SS
Operating distance
Approx. 10 m Line of
sight*2
*2: Prospective communication distance
Measurement environment:
Temperature 25 °C/Height 1.0 m
Measure in “Mode1”
■■TERMINALS SECTION
Headphones Jack
Stereo, φ3.5 mm
USB
REAR USB
Type A Connector
Support Memory
Capacity
2 TB (max)
Maximum number
of folders (albums)
800
Maximum number
of files (songs)
8000
File system
FAT16, FAT32, NTFS
USB port power
DC OUT 5 V 0.5 A (max)
Ethernet interface
LAN
(100BASE-TX/10BASE-T)
AUX Input
Stereo, φ3.5 mm Jack
Digital Input
Optical digital input
(Optical terminal)
Format support
LPCM
113
(Continued)
■■FORMAT SECTION
USB-A
USB Standard
USB 2.0 high-speed
USB Mass Storage class
Wi-Fi SECTION
Standard
IEEE802.11a / b / g / n / ac
Frequency Band
2.4 GHz band
5 GHz band
Security
WPA2™,
Mixed mode WPA2™/
WPA™
•• The WLAN feature of this product shall exclusively
be used inside buildings.
114
(Continued)
■■File format
This unit supports the following file formats.
•• This unit does not support the playback of copyprotected music files.
•• Playback of all files in formats supported by this
unit is not guaranteed.
•• Playback of a file in a format not supported by
this unit may cause choppy audio or noise. In such
cases, check to see if this unit supports the file
format.
•• This unit does not support VBR (Variable Bit Rate)
playback.
•• Some of the connected devices (servers) may
be capable of converting files in formats not
supported by this unit and output them. For
details, refer to the operating instructions for your
server.
•• File information (sampling frequency, etc.) shown
by this unit and playback software may differ from
each other.
Extension
MP3
.mp3
32/44.1/
48 kHz
16 to
320 kbps
AAC
.m4a
.aac
32/44.1/48/
88.2/96 kHz
16 to
320 kbps
.wav
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
.flac
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
.aiff
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
ALAC
.m4a
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
DSD
.dff
.dsf
2.8/5.6/
11.2 MHz
WAV
FLAC
AIFF
Sampling
frequency
File format
Bit rate/
Number of
quantisation bits
USB-A
115
(Continued)
Extension
MP3
.mp3
32/44.1/
48 kHz
16 to
320 kbps
AAC
.m4a
.aac
32/44.1/48/
88.2/96 kHz
16 to
320 kbps
.wav
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
.flac
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
.aiff
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24/32 bit
ALAC
.m4a
32/44.1/48/
88.2/96/
176.4/192/
352.8/384 kHz
16/24 bit
DSD
.dff
.dsf
2.8/5.6/
11.2 MHz
WAV
FLAC
AIFF
Sampling
frequency
File format
Bit rate/
Number of
quantisation bits
LAN (DMR)*
*: Whether or not each music file can be played
back over your network is determined by the
network server even if the format of the file
is listed above. For example, if you are using
Windows Media Player 11, not all music files on
the PC are playable. You can play back only those
added to the library of Windows Media Player 11.
Note
•• Specifications are subject to change without
notice.
•• Mass and dimensions are approximate.
116
EU
Headquarter Address:
Panasonic Corporation
Kadoma, Osaka, Japan
Authorized Representative in Europe:
Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg,
Germany
Panasonic Corporation
Web Site: http://www.panasonic.com
En
TQBM0624
© Panasonic Corporation 2020
M0920YY0

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
