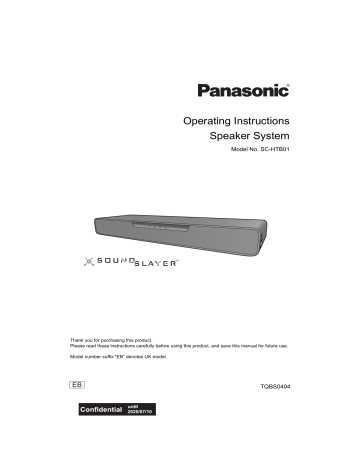

Operating Instructions
Speaker System
Model No. SC-HTB01
Thank you for purchasing this product.
Please read these instructions carefully before using this product, and save this manual for future use.
Model number suffix “EB” denotes UK model.
EB
TQBS0404
2020/07/10
Safety precautions
WARNING
CAUTION
Unit
Unit
• To reduce the risk of fire, electric shock or product damage,
– Do not expose this unit to rain, moisture, dripping or splashing.
– Do not place objects filled with liquids, such as vases, on
this unit.
– Use the recommended accessories.
– Do not remove covers.
– Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
• Do not place sources of naked flames, such as lighted
candles, on this unit.
• This unit may receive radio interference caused by mobile
telephones during use. If such interference occurs, please
increase separation between this unit and the mobile
telephone.
• This unit is intended for use in moderate climates.
• Product Identification Marking is located on the rear of the
unit.
AC mains lead
• To reduce the risk of fire, electric shock or product damage,
– Ensure that the power supply voltage corresponds to the
voltage printed on AC adaptor.
– Insert the mains plug fully into the socket outlet.
– Do not pull, bend, or place heavy items on the lead.
– Do not handle the plug with wet hands.
– Hold onto the mains plug body when disconnecting the plug.
– Do not use a damaged mains plug or socket outlet.
• The mains plug is the disconnecting device.
Install this unit so that the mains plug can be unplugged
from the socket outlet immediately.
Placement
• Place this unit on an even surface.
• To reduce the risk of fire, electric shock or product damage,
– Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit is
well ventilated.
– Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
– Do not expose this unit to direct sunlight, high
temperatures, high humidity, and excessive vibration.
• Do not place this unit and other devices (Blu-ray disc
recorder, external HDD, etc.) directly on top of each other,
as this may cause HDD failure or data damage.
Button-type battery (Lithium battery)
• Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60 oC or incinerate.
Button-type battery (Lithium battery)
• Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
• Insert with poles aligned.
• Mishandling of batteries can cause electrolyte leakage and
may cause a fire.
– Remove the battery if you do not intend to use the remote
control for a long period of time. Store in a cool, dark
place.
– Do not heat or expose to flame.
– Do not leave the battery(ies) in a car exposed to direct
sunlight for a long period of time with doors and windows
closed.
• When disposing of the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
WARNING
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
The remote control supplied with this product contains a coin/
button cell battery. If the coin/button cell battery is swallowed,
it can cause severe internal burns in just 2 hours and can lead
to death. Keep new and used batteries away from children. If
the battery compartment does not close securely, stop using
the remote control and keep it away from children. If you think
batteries might have been swallowed or placed inside any
part of the body, seek immediate medical attention.
Avoid the use in the following conditions
• High or low extreme temperatures during use, storage or
transportation.
• Replacement of a battery with an incorrect type.
• Disposal of a battery into fire or a hot oven, or mechanically
crushing or cutting of a battery, that can result in an explosion.
• Extremely high temperature and/or extremely low air
pressure that can result in an explosion or the leakage of
flammable liquid or gas.
AC adaptor
• The AC adaptor operates on AC between 100 V and 240 V.
But obtain a suitable plug adaptor if the plug does not fit the
AC mains socket.
• The illustrations shown may differ from your unit.
• Operations in this operating instructions are described mainly with the remote control, but you can perform
the operations on this system if the controls are the same.
2
About Bluetooth®
Caution for AC Mains Lead
(For the AC mains plug of three pins)
Panasonic bears no responsibility for data and/or
information that is compromised during a wireless
transmission.
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved
by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body of the
fuse.
If the plug contains a removable fuse cover you must ensure that it
is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local
dealer.
∫ Frequency band used
This system uses the 2.4 GHz frequency band.
∫ Certification of this device
• This system conforms to frequency restrictions and has
received certification based on frequency laws. Thus, a
wireless permit is not necessary.
• The action below are punishable by law in some countries:
– Taking apart or modifying the unit.
– Removing specification indications.
∫ Restrictions of use
Before use
Remove the connector cover.
• Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
• All devices must conform to standards set by Bluetooth SIG,
Inc.
• Depending on the specifications and settings of a device, it
can fail to connect or some operations can be different.
• This system supports Bluetooth® security features. But
depending on the operating environment and/or settings,
this security is possibly not sufficient. Transmit data
wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth® device.
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and follow
the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Figure B
Fuse cover
∫ Range of use
2.
Use this device at a maximum range of 10 m.
The range can decrease depending on the environment,
obstacles or interference.
Replace the fuse and close or attach the fuse cover.
Figure A
Fuse
(5 ampere)
Figure B
∫ Interference from other devices
Fuse
(5 ampere)
• This system may not function properly and troubles such as
noise and sound jumps may arise due to radio wave
interference if this system is located too close to other
Bluetooth® devices or the devices that use the 2.4 GHz
band.
• This system may not function properly if radio waves from a
nearby broadcasting station, etc. are too strong.
Accessories
∫ Intended usage
• This system is for normal, general use only.
• Do not use this system near equipment or in an environment
that is sensitive to radio frequency interference (example:
airports, hospitals, laboratories, etc).
Check the supplied accessory before using this system.
1 Remote control (with a battery)
(N2QAYC000133)
1 AC mains lead
(K2CT2CA00007)
1 AC adaptor
(TXH0016AA)
• Product numbers are correct as of June 2020. These may be
subject to change.
• Do not use AC mains lead and AC adaptor with other equipment.
• Do not use any other AC mains lead and AC adaptors except the
supplied one.
3
Table of contents
Safety precautions ...................................................................................................................................... 2
Accessories ................................................................................................................................................. 3
About Bluetooth® ......................................................................................................................................... 3
Before use
Control reference guide............................................................................................................................... 5
• This system (Front / Sides)................................................................................................................... 5
• This system (Rear) ............................................................................................................................... 5
• Remote control ..................................................................................................................................... 6
Preparation
Connections ................................................................................................................................................ 7
• Basic connection .................................................................................................................................. 8
• Connection with the TV ........................................................................................................................ 9
Operation
Using this system .......................................................................................................................................11
Bluetooth® connection ............................................................................................................................... 12
Linked operations with the TV (VIERA Link “HDAVI ControlTM”) ............................................................... 13
Sound menu.............................................................................................................................................. 14
• 3D SURROUND ................................................................................................................................. 14
• CLEAR-MODE DIALOG ..................................................................................................................... 14
• SOUND MODE................................................................................................................................... 15
• Audio format ....................................................................................................................................... 15
Other settings that may be needed ........................................................................................................... 16
• Remote control code .......................................................................................................................... 16
• Automatic power off function (Auto Power Down) .............................................................................. 16
• Turning off the VIERA Link (HDMI) (HDAVI ControlTM) function ........................................................ 16
• Bluetooth® Standby............................................................................................................................. 17
• Switching the Bluetooth® communication mode ................................................................................. 17
• Switching dual audio broadcasts ........................................................................................................ 17
• Adjusting the difference between images and audio (Audio delay function) ...................................... 18
• Turning off the volume limitation......................................................................................................... 18
• Dynamic range compression .............................................................................................................. 19
• Dialogue control ................................................................................................................................. 19
Other
Troubleshooting......................................................................................................................................... 20
Unit care.................................................................................................................................................... 22
License...................................................................................................................................................... 22
Specifications ............................................................................................................................................ 22
4
Before use
Control reference guide
This system (Front / Sides)
1
2
3
4
5
1
LED indicators
3
4
The currently-selected device is indicated by the
lighting of the corresponding indicator.
• Selects the connected device (The device changes
each time this button is pressed)
• Registers Bluetooth® devices
A
(Bluetooth®) indicator (lights up blue)
B CLR DIALOG indicator (lights up green)
C 3D SRND indicator (lights up green)
D GN-GAME/AV OR-TV indicator
– TV: lights up orange (OR)
– GAME/AV: lights up green (GN)
2
Adjust the volume of this system (> 11)
[INPUT / j PAIRING] button
5
Remote control signal sensor
Distance:
Within approx. 7 m directly in front
Angle:
Approx. 20e up and down and approx. 30e
left and right
Standby/on switch (Í/I)
Press to switch the unit from on to standby mode or
vice versa. In standby mode, the unit is still
consuming a small amount of power.
This system (Rear)
1
2
5
1
2
3
*
3
4
6
DC IN (19.5 V) terminal
Firmware update
(FOR UPDATE 5 V
500 mA) terminal*
OPTICAL DIGITAL AUDIO IN (TV) terminal
4
5
6
Ventilation holes
HDMI AV OUT (TV (ARC)) terminal
HDMI AV IN (GAME/AV) terminal
Note about firmware updates
Use the firmware update terminal to update the version of this system through a USB memory device. (Not used for normal
operations.) For more details about version updates, refer to the support site below.
https://panasonic.jp/support/global/cs/
(This site is in English only.)
5
Before use
Remote control
∫ Before using for the first time
Remove the insulation sheet A.
5
ヤロンチュリモロヰヨ
6
1
2
ヴヶャヸヰヰョユン
7
ヴヵモワュモンュ
ヮヶヴリヤ
8
ヤリワユヮモ
ヨモヮユ
3
4
1
2
3
4
5
ピュチヴヶンンヰヶワュ
∫ To replace a button-type battery
Battery type: CR2025 (Lithium battery)
9

Turn this system on or off (> 11)
Select the input source (> 11)
“TV” -------------------------------------# “GAME/AV”
^----------- “ ” (Bluetooth®) !--------}
Select the Bluetooth® device as the source
(> 11)
Select the sound mode (> 15)
Adjust the bass (adjustable in four steps)

• Set the button-type battery with its (i) mark facing
upward.
Lowest
• The symbols on the supplied remote control represent
the following:
Warning (refer to Operating Instructions for the
button cell battery)
Highest
6
7
8
Turn CLR DIALOG (CLEAR-MODE DIALOG)
function on or off
Adjust the volume of this system (> 11)
Mute the sound (> 11)
• If press and hold this button, switch the brightness
of the LED indicators (Dimmer)
9
Turn 3D SRND (3D SURROUND) function on or
off
6
Preparation
Connections
• Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead for this system to the socket outlet until all connections have been
completed.
• Purchase an HDMI cable rated as “High-Speed HDMI Cable”. Operation is not possible with a cable that does not
meet the HDMI standards.
This system supports 3D content.
• You can connect a 3D-compatible TV and a 3D-compatible Blu-ray disc recorder/player to this system and enjoy
spectacular 3D images of commercially-available Blu-ray discs and other storage media.
This system supports HDR (High Dynamic Range) pass-through of 4K (50p/60p) signals.
• An HDMI cable that supports 18 Gbps is required to enjoy 4K (50p/60p) HDR content.
• You can connect a 4K-compatible TV and a 4K-compatible Blu-ray disc recorder/player to this system and enjoy
smooth high-definition pictures even on a large screen. (Two HDMI cables that support 18 Gbps are required.)
• When selecting this system from a PC, etc., select “SOUNDSLAYER” as the audio output device.
• Do not place this system directly on top of another device, such as a Blu-ray disc recorder.
• Keep magnetised items away. Magnetised cards, watches, etc., can be damaged if placed too close to this system.
• The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always “live” as long as
the AC adaptor is connected to an electrical outlet.
• This system consumes a small amount of AC power (> 22) even when it is turned off. In the interest of power
conservation, if you will not be using this system for a long time, unplug it from the household mains socket.
• If there is no signal for 20 minutes, this system automatically switches to standby. (Auto Power Down)
This function can be turned off. For details, refer to “Automatic power off function (Auto Power Down)” (> 16).
• The symbols on the supplied AC adaptor represent the following:
AC
DC
Class II equipment (The construction of the product is double-insulated.)
7
Preparation
Basic connection
• When connecting with a PC monitor that has a resolution other than Full HD or 4K (WQHD, etc.), connect directly to
the PC using a DP cable (A) (optional).
HDMI IN
(ARC)
TV
PC monitor
HDMI IN
HDMI cable
(not supplied)
This system (rear)
A
PC/Game device etc.
HDMI cable
(not supplied)
AC adaptor
(supplied)
HDMI OUT
AC mains lead
(supplied)
To a household mains
socket
Changing the settings of the PC/Game device etc.
(The instructions below use a PC as an example.)
To connect this system and the PC with an HDMI cable, you need to change the PC settings to output sound
correctly from this system.
• For details, refer to the operating instructions for the PC for details.
1
Connect this system and the PC with an HDMI cable. (> 7)
• After connecting this system and the PC, turn them on.
2
Set the PC’s sound output destination to “SOUNDSLAYER”.
• Confirm that the CEC linking function of each connected device is ON.
• When you connect to a device that does not have the CEC linking function, audio output settings may be required on the connected
device.
• Please also follow the steps above after adding a new device, reconnecting to the PC or restoring the default settings.
8
Preparation
Connection with the TV
Verify if the TV’s HDMI terminal is labelled “HDMI (ARC)”.
What is ARC?
ARC is an abbreviation of “Audio Return Channel”, also known as HDMI ARC. It refers to one of the HDMI functions. When
you connect the terminal labelled “ARC” and this system, TV pictures and sound can be enjoyed with a single HDMI cable.
Labelled “HDMI (ARC)”
Not Labelled “HDMI (ARC)”
This system (rear)
This system (rear)
A
B
A
B
C
Be sure to connect to the
HDMI IN TV’s ARC compatible
(ARC) terminal.
HDMI IN
DIGITAL AUDIO OUT
(OPTICAL)
To a household mains socket
To a household mains socket
A AC adaptor (supplied)
B HDMI cable (not supplied)
A AC adaptor (supplied)
B HDMI cable (not supplied)
C Optical digital audio cable (not supplied)
Changing the settings of your TV
To connect this system and the TV with an HDMI cable, you need to change the TV settings to output sound correctly
from this system. The instructions below use a Panasonic TV (VIERA) as an example.
• The operating procedure and the names of on-screen displays differ depending on the TV (VIERA). Refer to the
operating instructions or electronic operating instructions for the TV (VIERA) for details.
1
Connect this system and the TV with an HDMI cable. (> 7)
• After connecting this system and the TV, turn them on.
2
Set the TV’s sound output destination to “Home Cinema”.
• Check to see if the VIERA Link setting of each device is turned on.
• Please also follow the steps above after adding a new device, reconnecting to the TV or restoring the default settings.
9
Preparation
Connection with players, etc., supporting HDR10+ and Dolby VisionTM
This system does not support HDR10+ and Dolby VisionTM. When connecting to a player, TV, etc., that supports
HDR10+ or Dolby VisionTM, use the following connection.
• The name of the terminal may be different depending on the device that supports HDR10+. Refer to the operating
instructions of the supporting device for details.
• If you connect this system and are then unable to view Netflix, use the following connection.
• VIERA Link does not work when you use this connection. (> 13)
This system (rear)
C
A
B
E
HDMI
HDMI
(VIDEO OUT) (AUDIO OUT)
DIGITAL AUDIO OUT
(OPTICAL)
D
To a household mains socket
A
B
C
D
E
AC adaptor (supplied)
HDMI cable (not supplied)
Optical digital audio cable (not supplied)
HDMI cable (not supplied)
Player, etc., supporting HDR10+
For more details about other connection methods, refer to the support site below.
https://panasonic.jp/support/global/cs/
(This site is in English only.)
10
Operation
Using this system
Preparation
• Turn on the TV and/or connected device.
ヤロンチュリモロヰヨ
1
2
ヴヶャヸヰヰョユン
ヴヵモワュモンュ
ヮヶヴリヤ
ヤリワユヮモ
ヨモヮユ
ピュチヴヶンンヰヶワュ
1
2
Press [Í] to turn on this system.
Select the source.
Press
[INPUT]
[
]
To select
“TV” -----------------------------# “GAME/AV”
^------- “ ” (Bluetooth®) !------}
“
” (Bluetooth®)
∫ When “ ” is selected as the source
On the Bluetooth® device:
Select this system as the output source of the
connected Bluetooth® device and start the playback.
∫ When “GAME/AV” is selected as the source
On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.
∫ To mute the sound
Press [MUTE].
• While muting, the CLR DIALOG indicator, 3D SRND indicator,
and GN-GAME/AV OR-TV indicator blink simultaneously.
• To cancel, press the button again or adjust the volume.
• Muting is cancelled if this system is turned off.
∫ To adjust the volume of this system
Press [i VOL j].
• Volume range: 0 to 100
• Each input mode retains a separate volume setting.
• When adjusting the volume, the LED indicators blink from left to
right (i) or from right to left (j).
• When you reach either the maximum level or the minimum level,
the CLR DIALOG indicator, 3D SRND indicator, and GN-GAME/
AV OR-TV indicator blink 3 times.
If this system does not operate as expected, returning the settings to the factory preset may solve the
problem. (> 20, “To return to the factory defaults.”)
• If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.
• The maximum volume levels of the TV and this system may differ.
• Switch the TV’s input to the TV tuner to select the TV as the video and audio source while playing the device
connected to the HDMI AV OUT (TV (ARC)) terminal. In addition, when VIERA Link (HDMI) is turned off, switch the
input of this system to TV mode.
• To select the TV as the audio source while playing the device connected to the OPTICAL DIGITAL AUDIO IN (TV)
terminal, switch the input of the TV to the TV tuner.
• When playing back equipment connected to the HDMI AV IN terminal, to switch audio/video to the TV, switch input on
the TV to the TV tuner. If VIERA Link (HDMI) (> 13) is not enabled, also switch the input of this system to TV.
11
Operation
Bluetooth® connection
By using the Bluetooth® connection, you can listen to
the sound from the Bluetooth® audio device from this
system wirelessly.
Connecting a paired Bluetooth®
device
• Refer to the operating instructions of the Bluetooth® device for
further instruction on how to connect a Bluetooth® device.
1
• If the “ ” indicator lights, a Bluetooth® device is
already connected with this system. Disconnect it.
(> below)
Preparation
• Turn on the Bluetooth® feature of the device and place
the device near this system.
2
Bluetooth® pairing
1
” indicator flashes quickly, go to step 3.
Press and hold [ ] until the “ ”
indicator flashes quickly.
• If the “
3
Select “SOUNDSLAYER” from the
Bluetooth® device’s Bluetooth® menu.
∫ Disconnecting a Bluetooth® device
Press and hold [ ] until the “ ” indicator flashes.
Press [ ] to select “ ”.
• If the “
2
Press [ ] to select “ ”.
• This system can only be connected to one device at a time.
” indicator flashes slowly, repeat step 2.
Select “SOUNDSLAYER” from the
Bluetooth® device’s Bluetooth® menu.
• If prompted for the passkey on the Bluetooth®
device, enter “0000”.
• Once the Bluetooth® device is connected, the “
indicator stops flashing and lights up.
”
• You can register up to 8 devices with this system. If a 9th device
is paired, the device that has not been used for the longest time
will be replaced.
12
Operation
Linked operations with the
TV (VIERA Link “HDAVI
ControlTM”)
∫ Automatic input switching
When the following operations are performed, this
system will automatically change the input to the
corresponding source.
– When play starts on an HDMI connected device.*
– When the TV input is changed.
What is VIERA Link “HDAVI Control”?
* If the speaker output setting on the TV is set to this system, the
TV and this system turn on automatically (Power on link).
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under “HDAVI
Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the operating
instructions for connected equipment for
operational details.
• Some operations are not available
∫ Power off link
When the TV is turned off, this system also turns off
automatically. (This function does not work when
Bluetooth® is the source.)
∫ Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically
adjusted by adding time-lag to the audio output,
enabling you to enjoy smooth audio for the picture.
What you can do with VIERA
Link “HDAVI Control”
• The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and
the VIERA Link is set to on.
To make sure that the audio is output from this
system, turn this system on by using the TV’s remote
control and selecting home cinema from the speaker
menu of VIERA Link menu.
The availability and function of the settings may vary
depending on the TV. Refer to the operating
instructions for the TV for details.
Note
• VIERA Link “HDAVI Control”, based on the control functions
provided by HDMI which is an industry standard known as HDMI
CEC (Consumer Electronics Control), is a unique function that
we have developed and added. As such, its operation with other
manufacturers’ equipment that supports HDMI CEC cannot be
guaranteed.
• This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI Control
compatible equipment. This standard is compatible with
Panasonic’s conventional HDAVI equipment.
• Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
∫ Speaker control
You can select whether audio output is from this
system or the TV speakers by using the TV menu
settings.
Home cinema
This system is active.
• When this system is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn this system on.
• You can control the volume setting of this system using
the volume or mute button on the TV remote control.
• If you turn off this system, TV speakers will be
automatically activated.
• Audio will automatically be output from this system if the
TV is compatible to VIERA Link “HDAVI Control 4” or
later.
TV
TV speakers are active.
13
Operation
Sound menu
3D SURROUND
CLEAR-MODE DIALOG
This system not only pushes the sound field out to the
left and right, but also upwardly to help realise an
immersive sound effect.
e.g., Impression of the 3D surround effect
You can listen to audio with a sense of coherence with
the video because the audio is heard from the
direction of the TV screen for sources such as
dialogue from dramas and commentary from sports
broadcasts. You can also make the dialogue easier to
hear when enjoying at a low volume, such as late at
night when you are concerned about disturbing others
with noise, not just at normal volume levels.
(Factory default: Off)
Press [CLR DIALOG].
• The CLR DIALOG indicator and the GN-GAME/AV ORTV indicator (green) blink twice and CLEAR-MODE
DIALOG turns on.
Press [3D SURROUND].
To turn CLEAR-MODE DIALOG off
Press [CLR DIALOG].
The GN-GAME/AV OR-TV indicator (green) blinks
twice and the 3D SURROUND function turns off.
• The GN-GAME/AV OR-TV indicator (green) blinks twice
and CLEAR-MODE DIALOG turns off.
To turn the 3D SURROUND function on
Press [3D SURROUND].
• After the CLR DIALOG indicator and GN-GAME/AV ORTV indicator (green) blink twice, the 3D SRND indicator§
lights and the 3D SURROUND function turns on.
§ The indicator lights green when playing back objectbased audio format content with Dolby Atmos® or
DTS:X®.
The indicator lights orange when playing back with
3D SURROUND effects added to content other than
the above, including TV broadcasts, using Dolby
Atmos® or DTS® Virtual:XTM technology.
Note
• The surround effect depends on the source.
• 3D SURROUND effects do not work on high-resolution sources
of 88.2 kHz or greater. You can play back the source as is.
(When you press [3D SURROUND], the CLR DIALOG indicator
(orange) and the GN-GAME/AV OR-TV indicator (orange) blink
twice.
• When the 3D SRND indicator does not light green even when
playing back object-based audio format content with Dolby
Atmos® or DTS:X®, check whether the digital audio output setting
of the connected device is “Auto” or “Bitstream”. (When using a
Panasonic Blu-ray Disc recorder/player)
14
Operation
SOUND MODE
Audio format
Select the sound mode to suit the TV programme or
connected equipment.
You can view the current audio format.
1
∫ To select a sound mode
You can change the sound mode by pressing the
appropriate button.
2
• Confirm that the 3D SRND indicator and the GN-GAME/AV ORTV indicator (green) blink twice.
Press and hold [VOL j] on this system and [CLR
DIALOG] on the remote control at the same time
for 4 or more seconds.
Confirm that the LED indicators blink (5 seconds).
(The LED indicators indicate the audio signal
currently being received)
Audio
format
STANDARD
MUSIC
Best suited for dramas and comedy
shows.
Enhance the sound of musical instruments
and songs.
This mode is suited to high resolution
sound sources.
CINEMA
Produces three-dimensional sound unique
to movies.
GAME
This mode enables you to enjoy a sound
field that suits gaming in a personal
environment. You can enjoy three different
modes to match the game genre (> below).
Dolby AudioTM
Dolby Atmos®
DTS®
DTS:X®
Other than
the above
Switching the [GAME] mode
When you press [GAME], the LED indicators blink and
the current mode is displayed. When you press [GAME]
again during the setting, the 3D SRND and GN-GAME/AV
OR-TV indicators blink twice and the setting changes in
the following order:
GAME1 # GAME2 # GAME3 # GAME1 (repeats)
Green
Green
GAME1
Mode suited to RPG (role-playing games).
Orange
Green
GAME2
Mode suited to FPS (first-person shooter
games).
Orange
Orange
GAME3
Enhances voices. Mode that makes
people’s voices easier to hear.
• The setting is maintained until it is changed again.
15
Indicators
Operation
Other settings that may be
needed
Automatic power off function
(Auto Power Down)
The following operations are not usually required to
enjoy the TV, films, and music when using this
system. Change the settings as required by the way
this system is used.
(Factory default: Enabled)
This function turns off this system automatically when
it has been left for 20 minutes or more without an
input signal and without any operations being
performed. Use the following procedure to switch
between enable and disable.
• When using the remote control, face it at the remote
control signal sensor.
1
Remote control code
(Factory default: Remote control code 1)
If other Panasonic audio products are operated
inadvertently by the remote control of this system, set
this system and the remote control to “Remote control
code 2” with the following procedure.
1
2
3
Turn off the other Panasonic audio product.
Press and hold [VOL j] and [MUTE] on the
remote control at the same time for 4 or more
seconds.
Confirm that all the LED indicators blink once
(about 10 seconds).
Enabled
2
• All the LED indicators blink once (about 10 seconds)
and the remote control code switches to 1.
Disabled
Press [i SUBWOOFER] again while the current
status is being indicated (about 20 seconds).
• The setting changes each time you press the button.
The display returns to the normal one about 20 seconds
after the operation.
Turning off the VIERA Link (HDMI)
(HDAVI ControlTM) function
• The remote control code switches to 2.
To return the remote control code to 1
Press and hold [VOL i] and [MUTE] on the remote
control at the same time for 4 or more seconds.
Press and hold [VOL j] on this system and
[i SUBWOOFER] on the remote control at the
same time for 4 or more seconds.
(The LED indicators indicate the current mode)
(Factory default: On)
When operations become unstable when HDMI
compatible devices from other manufacturers are
connected, use the following procedure to make
settings so that VIERA Link (HDMI) (> 13) is not
used.
1
2
Press and hold [VOL j] on this system and
[MUTE] on the remote control at the same time
for 4 or more seconds.
Confirm that all the LED indicators blink once.
• The ARC function no longer works when you make the
settings so that VIERA Link (HDMI) is not used.
Make sure you connect with an optical digital audio
cable (optional) to listen to the audio from the TV in this
case.
• To make the VIERA Link (HDMI) function to work again,
return the settings of this system to the factory defaults.
(> 20)
16
Operation
Bluetooth® Standby
Switching dual audio broadcasts
(Factory default: Enabled)
Use the following procedure to switch dual audio
broadcasts between the primary audio channel and
the secondary audio channel.
When this function is enabled, this system
automatically turns on when a Bluetooth® connection
is established from a paired Bluetooth® device.
1
Enabled
2
1
Press and hold [VOL j] on this system and
[SUBWOOFER j] on the remote control at the
same time for 4 or more seconds.
(The LED indicators indicate the current mode)
2
Setting
value
Disabled
Switching the Bluetooth®
communication mode
You can switch the Bluetooth® communication mode.
Using the following procedure, you can switch
between the default Mode 2 (priority given to sound
quality) and Mode 1 (priority given to connectivity).
Set the input of this system to “
”
(Cancel connection of the device.)
Press and hold [VOL j] on this system and
[STANDARD] on the remote control at the same
time for 4 or more seconds.
(The LED indicators indicate the current mode.)
Mode 1
3
Secondary
audio
channel
Primary
audio
channel and
secondary
audio
channel
(Factory default: Mode 2)
2
Indicators
Primary
audio
channel
Press [SUBWOOFER j] again while the current
status is being indicated (about 20 seconds).
• The setting changes each time you press the button.
The display returns to the normal one about 20 seconds
after the operation.
1
Confirm that the audio output of the connected
device is set to bitstream (AAC).
Press and hold [MUSIC] on the remote control for
4 or more seconds.
(The LED indicators indicate the current mode.)
3
Press [MUSIC] again while the current status is
being indicated (about 20 seconds).
• The setting changes in the following order each time you
press [MUSIC].
“Primary audio channel”
→ “Secondary audio channel”
→ “Primary audio channel and secondary audio channel”
→ “Primary audio channel” (repeats)
Mode 2
Press [STANDARD] again while the current
status is being indicated (about 10 seconds).
• The setting changes each time you press the button.
The display returns to the normal one about 10 seconds
after the operation.
17
Operation
3
Adjusting the difference between
images and audio (Audio delay
function)
(Factory default: Auto)
This function delays the output of audio when you can
perceive a difference between the images and audio
when playing back a connected device. Adjust the
level while checking whether the images and audio
match.
• The delay time will not get shorter if you select a setting
value that is shorter than the time required to process
the audio signal. The time required for processing
signals depends on the audio format.
1
2
Press and hold [CLR DIALOG] on the remote
control for 4 or more seconds. (The LED
indicators indicate the current mode.)
Press [CLR DIALOG] while the current status is
being indicated (about 10 seconds).
• Switch to a status where you can select a setting
other than “Not Auto(Minimum to 300 msec)”.
Setting
value
(msec)
Press either [i SUBWOOFER] or
[SUBWOOFER j] while the current status is
being indicated.
The setting changes in the following order each time
you press [i SUBWOOFER]. (The setting changes in
the reverse order if you press [SUBWOOFER j].)
“Minimum” →”25 msec” → “50 msec” → “75 msec” →
… → “300 msec” (Maximum)
The display returns to the normal one about
10 seconds after the operation.
To return the audio delay to “Auto”
Press [CLR DIALOG] in step 2.
• The
(Bluetooth®) indicator lights and the setting
switches to “Auto”.
• When set to “Auto”, if a Panasonic TV (VIEARA) that
supports VIERA Link (HDMI) Ver.3 or later is connected,
the audio is automatically delayed to bring it closer to
the images.
• This operation is not available when input is “
(Bluetooth®)”.
Indicators
Turning off the volume limitation
(Factory default: Enabled)
Auto
Minimum
25 to 75
100 to 175
200 to 275
This function limits the excessive output of volume.
When this function is used, if the volume exceeds 50
when this system is turned off, then the volume is set
to 50 when it is turned on again. You can set this
system not to use the function using the following
procedure.
1
2
Press and hold [VOL i] on this system and
[MUTE] on the remote control at the same time
for 4 or more seconds.
Confirm that all the LED indicators blink once.
• To enable the volume limiting function again, return the
settings of this system to the factory defaults. (> 20)
300
(Maximum)
18
Operation
Dynamic range compression
Dialogue control
(Factory default: On)
(Factory default: Off)
This function compresses the differences in volume
between the lowest sound that is not lost to noise and
the highest sound where there is no distortion,
allowing small sounds to remain perceivable even
when there are effects that involve high volume
levels. (Dynamic range compression)
When playing back content compatible with DTS:X®,
you can adjust the dialogue in films and the vocals in
music to a level of your liking. (8 steps: Off, 1 to 7)
1
2
Press and hold the following buttons on the
remote control for 4 or more seconds.
1
[CINEMA]: “Auto” is set.
The dynamic range of the audio is compressed
automatically. (only for Dolby® TrueHD audio)
Setting
value
[GAME]: “On” is set.
The dynamic range of the audio is compressed
according to the intentions of the content.
Indicators
OFF
[3D SURROUND]: “Off” is set.
The dynamic range of the audio is not
compressed.
2
Press and hold [INPUT] on the remote control for
4 or more seconds.
(The LED indicators indicate the current mode.)
Press [i SUBWOOFER] or [SUBWOOFER j]
while the current status is being indicated (about
10 seconds).
1
Confirm that the 3D SRND indicator and the GNGAME/AV OR-TV indicator blink twice.
2
• This function is only enabled when the input signals are Dolby
AudioTM (Dolby® Digital, Dolby Digital PlusTM, Dolby® TrueHD),
Dolby Atmos®, or DTS®.
3
4
5
6
7
The setting changes in the following order each time
you press [i SUBWOOFER]. (The setting changes in
the reverse order if you press [SUBWOOFER j].)
“Off” → “1” → “2” → … → “7” (Maximum)
The display returns to the normal one about
10 seconds after the operation.
• This setting works only on content that is compatible
with DTS:X® dialogue control.
19
Other
Troubleshooting
Before requesting service, make the following checks.
If you are in doubt about some of the check points, or if
the solutions indicated in the following guide do not solve
the problem, consult your dealer for instructions.
To return to the factory defaults.
If this system does not operate as expected,
returning the settings to the factory preset may
solve the problem.
While this system is on, press and hold [Í/I] on this
system for more than 4 sec. (All the indicators will blink
twice when this system is reset.)
• The remote control code will return to “1” when this
system is returned to the factory preset. To change the
remote control code, refer to page 16.
The remote control does not work properly.
• It may be necessary to set the code of the remote
control again after changing the battery of the remote
control. (> 16)
Other Panasonic audio products are operated
inadvertently by the remote control of this
system.
The TV’s sound is not heard from this system.
No sound (or image) is output even after the
connected device starts playback.
• Check the connections to the other device. (> 7)
• Turn this system off and then on again.
• If this system is connected to a TV with an HDMI cable,
check that the TV’s HDMI terminal is labelled “HDMI
(ARC)”. If not, TV sound cannot be output from this
system. When using a TV with an HDMI terminal that is
not labelled “ARC”, connect the DIGITAL AUDIO OUT
(OPTICAL) of the TV and the OPTICAL DIGITAL AUDIO
IN (TV) terminal using an optical digital audio cable (not
supplied).
• If this system is connected to a Panasonic TV (VIERA),
when you turn on this system by operating it directly,
sound may not be output from it. In this case, turn on
this system via VIERA Link by operating the remote
control of the TV (VIERA).
• If the connections are correct, there might be a problem
with the cables. Redo the connections with different
cables.
• Check the audio output settings on the connected
device.
• Use the following procedure to check for the input signal
from the connected device.
1
2
• Set this system and the remote control to “Mode 2”.
(> 16)
This system is automatically switched to standby
mode.
Press [INPUT] to switch to the input source for
the input signal you want to check.
Press and hold [VOL j] on this system and
[CINEMA] on the remote control at the same
time for 4 or more seconds.
The CLR DIALOG indicator blinks and the 3D
SRND indicator lights.
Lights orange: There is an audio signal being input.
Lights green: There is no audio signal being input.
• There is a function that turns off this system
automatically when it has been left for 20 minutes
without an input signal and without any operations.
(Auto power down) (> 16)
The selected input source lights.
This system does not operate correctly.
• Is the HDMI cable connected to the IN and OUT
terminals the other way around?
Turn off this system, and disconnect the AC mains lead
and reconnect the HDMI cable.
• The remote control code is different on this system and
the remote control if the GN-GAME/AV OR-TV indicator
repeats a pattern of blinking twice and turning off three
times. Set the remote control code again. (> 16)
20
– If there is no audio signal being input, it is possible
that there is a problem with the connection cable.
Try connecting with another cable if you have one.
If sound is still not output, there is either a problem
with the settings on the connected device or there
is a malfunction. Refer to the operating instructions
for the connected device.
– If there is an audio signal being input, it is possible
that this system is malfunctioning. Turn this
system off, unplug the AC adaptor, and then
consult your dealer.
– This operation is not available when input is “
(Bluetooth®)”.
Other
VIERA Link (HDMI) related operations no longer
function properly.
• This may occur when the HDMI connections are
changed, after a power failure or after the AC mains
lead has been removed. Try the following:
– After connecting the TV (VIERA) and this system with
an HDMI cable and turning on the TV (VIERA),
disconnect the AC mains lead of this system while
leaving the system turned on, and reconnect the AC
mains lead.
Images and sounds cease. There are interruptions
to the audio.
The power of this system turns off automatically.
(When this system detects a problem, a safety
measure is activated and this system
automatically switches to standby mode.)
• Turn down the volume and try turning this system off
and on again. If you are unable to turn this system off
and on again, try unplugging the AC adaptor then
plugging it in again.
• Is the volume extremely high?
If so, lower the volume.
• Is this system placed in an extremely hot place?
If so, move this system to a cooler place and wait a few
moments and then try to turn it on again.
• Reduce the volume and take other steps to solve the
issue, then wait a while before turning this system on
again. (The protection circuitry will be released.)
• Depending on the combination of the TV and the
connected device used, when the TV is turned off and
on or the input is switched, audio may be temporarily
disabled.
• If the CLR DIALOG indicator and the 3D SRND indicator
light up and the GN-GAME/AV OR-TV indicator keeps
blinking, HDCP 2.2 is not supported by the HDMI
terminal or setup of the TV. Refer to the operating
instructions of the TV for details.
• If you connect this system and are then unable to view
Netflix content, connect the playback device and the TV
directly. (> 10)
21
For further dedicated help, support and advice
about this system please visit:
https://panasonic.jp/support/global/cs/
(This site is in English only.)
If the GN-GAME/AV OR-TV indicator rapidly blinks
continuously, turn this system off, unplug the AC
adaptor, and then consult your dealer.
Advise them of the state of the LED indicators when
contacting them.
Other
Specifications
Unit care
∫ Clean this system with a soft, dry cloth
GENERAL
• When dirt is heavy, wring a cloth moistened in water
tightly to wipe the dirt, and then wipe it with a dry cloth.
• Never use alcohol, paint thinner or benzine to clean this
system.
• Before using chemically-treated cloth, carefully read the
instructions that came with the cloth.
Power supply
DC 19.5 V 3.34 A
(AC adaptor)
AC 100 V to 240 V, T1.4 A, 50/60 Hz
∫ To dispose or transfer this system
This system may keep the user settings information in
this system. If you discard this system either by
disposal or transfer, then follow the procedure to
return all the settings to the factory presets to delete
the user settings.
Power consumption
Approx. 24 W
Power consumption in standby mode
When “Network Standby”* is “OFF”
Approx. 0.22 W
When “Network Standby”* is “ON”
Approx. 0.25 W
• The operation history may be recorded in the memory of
this system.
When “VIERA Link Standby” is “ON”
Approx. 0.23 W
When “Bluetooth® Standby” is “ON”
License
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license.
Other trademarks and trade names are those of their respective
owners.
For DTS patents, see http://patents.dts.com..
Manufactured under license from DTS, Inc.
DTS, the Symbol, DTS and the Symbol together, DTS:X, the DTS:X
logo, Virtual:X, and the DTS Virtual:X logo are registered trademarks
or trademarks of DTS, Inc. in the United States and/or other
countries.
© DTS, Inc. All Rights Reserved.
Approx. 0.25 W
Dimensions (WkHkD)
Approx. 430 mm k 52 mm k 130 mm
(Including protrusion)
Approx. 431 mm k 52 mm k 132 mm
Mass
Approx. 1.8 kg
Operating Condition
Operating temperature range
0 oC to r40 oC
Operating humidity range
35 % to 80 % RH (no condensation)
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D
symbol are trademarks of Dolby Laboratories.
The product with the Hi-Res Audio logo is conformed to
Hi-Res Audio standard defined by Japan Audio Society.
The logo is used under license from Japan Audio Society.
The terms HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI
Licensing Administrator, Inc. in the United States and other countries.
HDAVI ControlTM is a trademark of Panasonic Corporation.
AMPLIFIER SECTION
RMS OUTPUT POWER (non-simultaneous drive)
Total RMS OUTPUT POWER
80 W
FRONT SPEAKER (L/R)
25 Wi25 W (1 kHz, T.H.D. 10.0 %, 6 ≠, 20 kHz LPF)
SUBWOOFER
30 W (100 Hz, T.H.D. 10.0 %, 3 ≠, 20 kHz LPF)
SOUNDSLAYER Logo is a trademark of Panasonic Corporation.
Other system names and product names appearing in this document
are in general the registered trademarks or trademarks of the
respective developer companies.
Note that the TM mark and ® mark do not appear in this document.
22
Other
SPEAKER SECTION
FRONT SPEAKER(L/R) Built in
Full range
Tweeter
Total Impedance
FORMAT SECTION
4 cm cone type k1/ch
1.4 cm dome type k1/ch
6≠
SUB WOOFER Built in
Sub Woofer
Impedance
Passive Radiator
8 cm cone type k1/ch
3≠
8 cm k2
Bluetooth® SECTION
HDMI
[GAME/AV]
LPCM (Max 7.1 ch)
Dolby® Digital, Dolby® TrueHD,
Dolby Digital PlusTM, Dolby Atmos®,
DTS®, DTS® Digital SurroundTM,
DTS® Digital SurroundTM | ES Discrete 6.1,
DTS® Digital SurroundTM | ES Matrix 6.1,
DTS® 96/24,
DTS-HD® High Resolution Audio,
DTS-HD® Master Audio, DTS® Express,
DTS:X®
Version
Bluetooth® Ver. 2.1+EDR
Wireless Equipment Classification
Class 1
Supported Profile
A2DP
Supported Codec
SBC
Frequency Band
2.4 GHz band FH-SS
Operating Distance
Approx. 10 m Line of sight
[TV (ARC)]
LPCM (2 ch)
Dolby® Digital, Dolby Digital PlusTM,
Dolby Atmos® (Dolby Digital PlusTM),
DTS®, DTS® Digital SurroundTM,
DTS® Digital SurroundTM | ES Discrete 6.1,
DTS® Digital SurroundTM | ES Matrix 6.1,
DTS® 96/24
TERMINALS SECTION
HDMI AV input [GAME/AV]
Input connector
1
Type A (19 Pin)
HDMI AV output [TV(ARC)]
Output connector
1
Type A (19 Pin)
Optical digital input (Optical terminal)
1
USB Port FOR UPDATE
1
Optical digital input
LPCM (2 ch)
Dolby® Digital,
DTS®, DTS® Digital SurroundTM,
DTS® Digital SurroundTM | ES Discrete 6.1,
DTS® Digital SurroundTM | ES Matrix 6.1,
DTS® 96/24
Sampling frequency
HDMI
[GAME/AV]
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
176.4 kHz, 192 kHz
[TV (ARC)]
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Optical digital input
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
* “Network Standby” means “Bluetooth®” and “VIERA Link”
(Control for HDMI function).
When the other connected devices are turned off.
• Design and specifications are subject to change without notice.
• Mass and dimensions are approximate.
• Total harmonic distortion is measured by a digital spectrum
analyzer.
• This unit supports “HDAVI Control 5” function.
23
Other
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and
other relevant provisions of Directive 2014/53/EU.
Customers can download a copy of the original DoC to our RE products from our DoC server:
http://www.ptc.panasonic.eu
Contact to Authorized Representative: Panasonic Marketing Europe GmbH,
Panasonic Testing Centre, Winsbergring 15, 22525 Hamburg, Germany
Type of wireless
Frequency band
Maximum power
(dBm e.i.r.p.)
Bluetooth®
2402 - 2480 MHz
10 dBm
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and prevent any potential
negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
(Note for the battery symbol (bottom symbol)):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
24
Sales and Support Information
Customer Communications Centre
• For customers within the UK: 0344 844 3899
• For customers within Ireland: 01 289 8333
• Monday–Friday 9:00 am–5:00 pm (Excluding public holidays).
• For further support on your product, please visit our website:
www.panasonic.co.uk
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with ease and confidence by phoning our Customer
Communications Centre Monday–Friday 9:00 am–5:00 pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our
website for further details.
Manufactured by:
Panasonic Corporation
Kadoma, Osaka, Japan
Authorized Representative in Europe: Panasonic Marketing Europe GmbH
Panasonic Testing Centre
Winsbergring 15, 22525 Hamburg, Germany
EU
Panasonic Corporation
http://www.panasonic.com
C Panasonic Corporation 2020
TQBS0404
F0720MH0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
