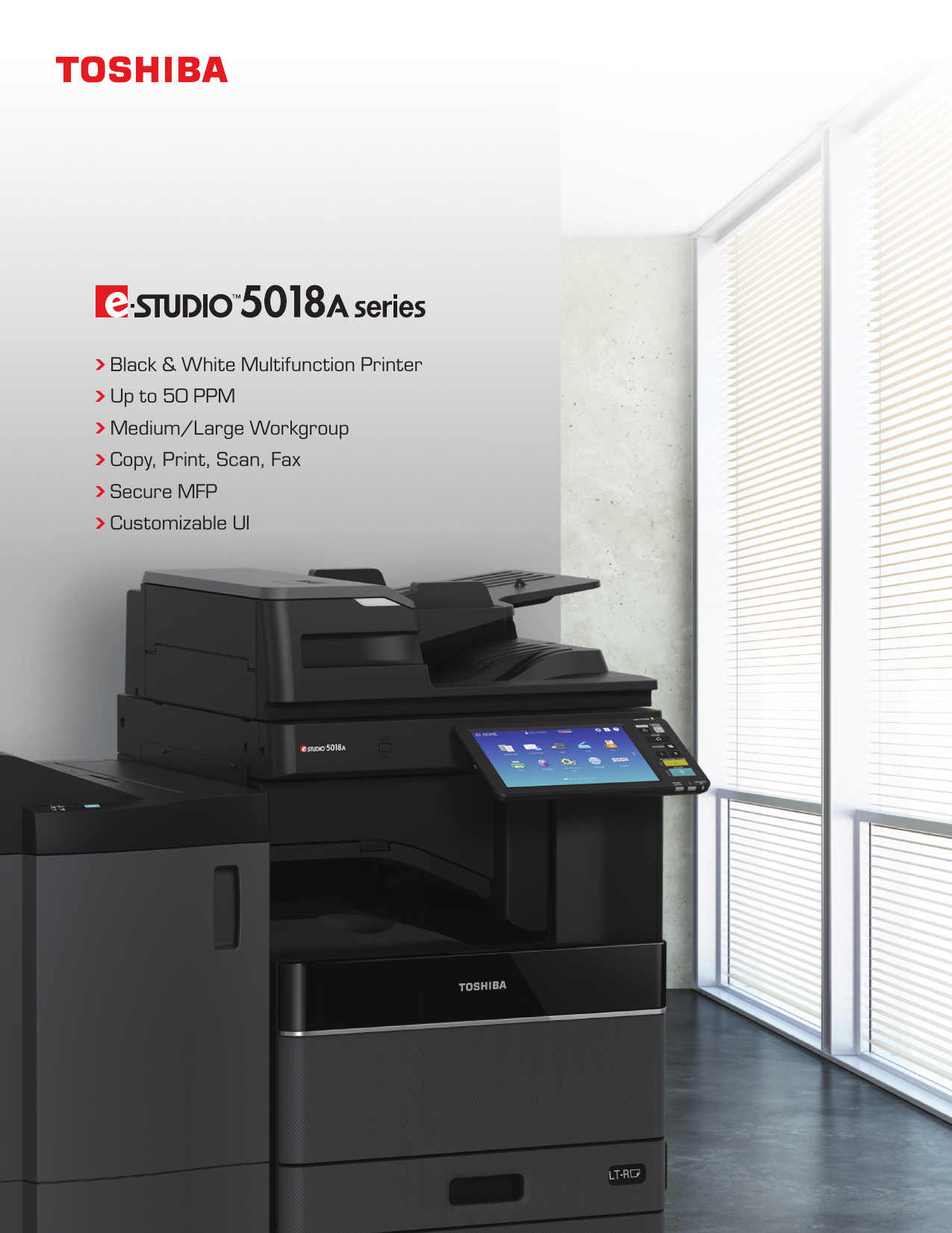

Toshiba e-Studio 5018A Series Blsck & White Multifiction Printer User Manual

 lack & White Multifunction Printer
B
p to 50 PPM
U
edium/Large Workgroup
M
opy, Print, Scan, Fax
C
ecure MFP
S
ustomizable UI
C
e-STUDIO3518A/e-STUDIO4518A/e-STUDIO5018A
CONNECT, INTEGRATE, SIMPLIFY, AND MORE.
Technology for every workplace; delivering advanced
functionality, ease of use, and peace of mind.
Every business is unique. That’s why Toshiba offers the
latest customizable solutions that can be tailored to
meet your needs. Toshiba solutions help you simplify
complex tasks while managing diverse information—
efficiently and safely to maximize your productivity.
Toshiba’s latest series delivers on our commitment to collaborate
with clients to provide tailored, cost-effective solutions
that meet your print, document management and content
needs while helping you to meet your green objectives.
•• Speeds of 35, 45 and 50 PPM
•• High-volume and high toner yields
•• Advanced e-BRIDGE Next technology
•• Fast dual-core processor
Produce more with less effort.
The Toshiba e-STUDIO5018A Series is designed
to put a fast, efficient, secure MFP in the hands of
workgroups looking to improve productivity.
•• Impressive resolution providing 2,400 dpi
(Equivalence) x 600 dpi (with smoothing)
•• A time-saving, high-speed, high-capacity
300-sheet Dual-Scan Document Feeder
•• A high toner yield minimizes end-user intervention
and enables long uninterrupted runs
Elevate streamlines complicated multi-step
processes into automated, one-touch functions.
We know you have work to do and at Toshiba we’ve
introduced a new concept designed to make your job
easier and more productive by personalizing the MFP user
interface around your specific business processes.
Elevate enables customized and automated workflow
presenting the user with convenient one-touch functions
addressing only the tasks they use most. This results in
simple operation and improved efficiency leading to an
overall cost savings. Let Toshiba Elevate your productivity.
•• Customize and automate workflows specifically
around your business processes
•• Boost productivity by reducing manual and
paper intensive processes in the office
•• Personalize the user interface by department
to deliver the utmost efficiency
•• Cost savings and greater efficiency through
improved workflow and productivity
•• Clear away clutter and confusion on home screen
by presenting only the tasks used most
Simple, smart and stylish.
A larger 10.1” tablet-style touch screen with an
embedded web browser is easy to use, and
customizable to meet your needs, enhancing the
sleek and modern look of the complete series.
A COMPACT DESIGN THAT
LEAVES NOTHING OUT.
Workgroups can now get a lot more done using fewer resources and
less space. The compact design of the e-STUDIO5018A Series is
packed with useful functions, lots of options and elegant style.
Advanced e-BRIDGE Next Technology enables the
MFP to drive Toshiba’s internally developed solutions
or those from a third party with ease.
Auto Skew Correction ensures your scanned documents, using
any of the document feeder options are reproduced accurately.
First Copy Out Time clocks in at blazing fast speeds of up to 3.6 seconds.
Embedded Optical Character Recognition (OCR)
simplifies the creation of searchable PDFs or editable
document formats such as Microsoft® Word™.
Job Reservation will queue up multiple copy or print
jobs so users can send jobs whenever.
Saddle/Fold Capabilities offer saddle-stitch finishing
and the ability to fold without stapling.
Notifications Feature takes the hassle out of checking
for depleted supplies or maintenance needs.
Service Module Design significantly reduces the
cost and time spent servicing the MFP.
Print Around eliminates printing bottlenecks by allowing
other print jobs to go around one job that’s held-up
due to requiring a specific paper size or type.
Paper Volume Indicators on the front panel make it easy to
see the paper sizes, types and levels in each cassette.
Print-from USB lets you print PDF and JPG files straight
from your USB drive and the MFP will scale document
to fit the available paper size if necessary.
e-BRIDGE Plus for USB Storage is great for capturing
a file quickly when you’re on the go.
Scan Preview allows you to review your scanned documents digitally,
even rotate and change pages prior to sending to file or email.
Fax Preview saves valuable resources by letting you
view received faxes prior to printing them.
TOSHIBA TECHNOLOGY
AT WORK FOR YOU.
At Toshiba, we work hard to make your work easier, and more productive.
In fact, we haven’t even mentioned all of our impressive features, like
PCL 6, PS3, XPS support and Universal Drivers that offer connectivity
to Windows®, Macintosh® and more. Then there are driver plug-ins such
as e-BRIDGE Job Point that splits large jobs over multiple machines,
e-BRIDGE Job Replicator for the creation of multi-part forms and
documents, e-BRIDGE Job Separator for batch printing with any app, and
e-BRIDGE Job Build to print different documents together as a single job.
Responsibility for the Planet
Innovation that is truly innovative makes certain
that our environment is part of the equation,
which is why we’re always looking for ways to
be even more environmentally responsible.
•
•
Security for Your Business
We’re constantly looking for new ways to make your work, and ours, safer,
and more secure.
•
•• A 320GB Self-Encrypting Drive (SED) with Automatic Drive Invalidation
(ADI) & Data Overwrite capability provides top level security
•• Available FIPS 140-2 Validated SED exceeds government requirements
•• IPsec is available to securely encrypt data sent to and from the MFP
•• HCD-PP Certified ensures that the MFP has met rigorous security
assurance requirements to safeguard your digital document
Toshiba’s new e-BRIDGE Plus apps, including e-BRIDGE Plus for
OneDrive® for Business, e-BRIDGE Plus for SharePoint® Online and
e-BRIDGE Plus for Exchange Online let users scan to and print from
Microsoft’s cloud-based services directly at the front panel of the
e-STUDIO MFP or their mobile device. This includes Word™, Excel® and
PowerPoint® (docx, xlsx, pptx) documents stored in OneDrive® accounts
or SharePoint® locations. When combined with our embedded OCR
feature, documents can be scanned into popular Office™ formats as well.*
With Google Cloud Print™ support, you can securely print over the web
from anywhere, anytime—including your phone—to an e-STUDIO5018A
Series MFP, e-BRIDGE Plus for Google Drive™, e-BRIDGE Plus for
OneDrive®, e-BRIDGE Plus for DropBox®, and e-BRIDGE Plus for
box™ address all of the popular cloud-based mobility apps.*
*Your network settings and/or access control may vary depending on
network environment when installing e-BRIDGE Plus applications.
For details, please consult Toshiba’s sales person.
**Available three applications; e-BRIDGE Plus for OneDrive® for Business, e-BRIDGE
Plus for SharePoint® Online and e-BRIDGE Plus for Exchange Online.
•
•
ENERGY STAR® V2.0 certified
RoHS compliance, the use of
recycled plastics, and Super
Sleep (0.6W) Mode work
to help the environment
EPEAT Gold Registered
for greener electronics,
designed to help
purchasers choose
products that reduce
environmental impact
The new e-STUDIO models’
Typical [weekly] Electrical
Consumption or TEC value is
exceptionally low, equating to an environmentally
friendly product with a low operating cost
e-BRIDGE Plus for Green Information
provides users with a graphical display at
the MFP of their environmental contribution
to promote more effective use
THE FEATURES YOU
EXPECT, AND MORE.
1Document Feeder Options
KA5005PC
1
Dual-Scan Document Feeder (DSDF)
Reversing Automatic Document Feeder (RADF)
Platen Cover
2
2Accessory Tray & Keyboard Options
GR1330
GR9000
GR1340
Accessory Tray
Bluetooth Keyboard
10-Key Numeric Keypad
3
3Finishing Options
MJ5015
50-Sheet Inner Finisher
50-Sheet Console Finisher
50-Sheet Saddle-Stitch Finisher
Job Separator
4 Additional Paper Options
Paper Feed Pedestal
2,000-Sheet Large Capacity Feeder
Additional Drawer Module for PFP
Envelope Cassette
Additional Option Highlights
•• Embedded OCR Enabler
•• Multi-Station Print Enabler
•• Wireless LAN/Bluetooth
4
•• IPsec Security Enabler
•• Single & Dual-Line Facsimile
•• Hidden Card Reader Pocket
The e-STUDIO5018A Series includes all the features you would expect from a top-quality MFP, along with a few new ones.
In Control with the Greatest of Ease
Special Envelope Cassette
Advanced e-BRIDGE Next Technology
Add What You Need, All at Once
A larger tiltable, touch swipe 10.1” color panel works
like a tablet or smartphone interface so you can find
whatever you need by just swiping your finger.
Built on Linux®, this latest generation e-BRIDGE Next
architecture features an Embedded Web Browser, a
dual-core processor, up to 4GB RAM, and a 320GB
SED enabling the MFP to easily drive Toshiba’s internally
developed solutions or even third-party applications.
Double the Scan Speed
A 300-sheet high-speed, high-capacity Dual-Scan
Document Feeder (DSDF) produces up to 120 IPM
simplex and 240 IPM duplex. A conventional RADF
is available for less scan-intensive businesses.
Keep your envelopes firmly in place for accurate
printing from start to finish with an envelope
cassette that holds up to 60 sheets at a time.
1,200 sheet paper capacity comes standard, but if you
need more, just add two optional 550-sheet cassettes or a
tandem LCF for 2,000 LT only for a total capacity of 3,200.
High Volume, High Toner Yield
The monthly copy volume reaches up to 150,000 and an equally
impressive toner yield tops out at 43,900 at 5% coverage.
Multi-Station Print Enabler
Toshiba’s internally developed Multi-Station Print Enabler, now
with support of up to 50 e-STUDIO devices, allows users to
send print jobs from their desktop and retrieve them by simply
swiping their card and authenticating at any convenient MFP.
Main Specifications
Copy SystemIndirect Electrostatic Photographic Method/OPC/Laser Printing/
Heat Roller Fusing
Display10.1” Color WSVGA Touch Screen Tilting Display
Copy Speed
35/45/50 PPM (LT)
First Copy Out
3.6/3.6/3.6 Seconds
Warm-Up Time
Approx. 20 Seconds
Copy Resolution
2,400 x 600 dpi with Smoothing
Stack Feed Bypass
3.9” x 5.8” to LD, Envelope
Multiple Copying
Up to 999 Copies
Paper Capacity
Standard 1,200 Sheets/Max. 3,200 Sheets
Original Feed
Optional 300-Sheet DSDF or 100-Sheet RADF
Scan Speed & WeightsDSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color),
Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond
RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond,
Duplex: 13.3-41.8 lb Bond
Max. Original Size
LD
Paper Feed Sizes
Drawer 1: 550 Sheets-ST-R to LD
Drawer 2: 550 Sheets-ST-R to LD
Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to 11" x 17"
Opt. 550-Sheet Paper Feed Pedestal-ST-R to 11” x 17”
Opt. 550-Sheet Drawer for PFP-ST-R to 11” x 17”
Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG
Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only
Paper Weights Standard: 550 Sheets x 2-16 lb Bond-140 lb Index
Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index
Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index
Opt. 550-Sheet Drawer for PFP-16 lb Bond-140 lb Index
Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index
Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond
DuplexStandard Automatic Duplex Unit (16 lb Bond-140 lb Index)
Reproduction Ratio
25% to 400%
Max Duty CycleMax. 125K/150K/150K Month
Weight
Approx. 125.2 lb
Approx. Dimensions 23” (W) x 23” (D) x 31” (H))
Toner Yield
43.9K @ 5%
Power Source
120 Volts, 50/60 Hz, 12 Amps
Power Consumption Maximum 1.5kW (120V)
CPU
Intel Atom™ 1.33GHz (Dual-Core)
4GB
Memory
Hard Disk Drive
320GB Self-Encrypting Drive FIPS 140-2 Validated (Opt.)
e-BRIDGE Next Print Specifications
PDL
PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Speed
35/45/50 Pages Per Minute (LT)
Print Resolution600 x 600 dpi (1 bit) or 2,400 (Equivalence) x 600 dpi (with Smoothing) (ALL
PDL), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only
Operating SystemsWindows Server® 2008 R2, R2 SP1, 2008/SP2, Windows® 7,8.1,10,Windows
Server® 2012/R2, Windows Server® 2016, Macintosh® (macOS x 10.7.4, 10.8,
10.9, 10.10, 10.11, 10.12, 10.13), Unix®, Linux®
Network ProtocolsTCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments,
EtherTalk for Macintosh® Environments
Printing ProtocolsSMB, LPR/LPD, IPP (Ver.2.0) w/Authentication, AppleTalk® PAP or EtherTalk,
Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP
Print DriversWindows Server® 2008 SP2 (32-bit, 64-bit) Windows Server® 2008 R2 SP1
(64-bit), Windows Server® 2016, Windows® 7 SP1 (32-bit, 64-bit), Windows®
8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit,
64-bit), macOS X 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13
InterfaceRJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed), Optional
802.11b/g/n, Wireless LAN, Optional Bluetooth
Wireless DeviceAirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android
(Available via Apple® App Store or Google Play)
Device Management TopAccess, EFMS 6.30 (e-BRIDGE Fleet Management Software)
Account ControlUp to 10,000 Users or 1,000 Departments Supports User Authentication
(on Device), Login Name/Password (via Windows® Domain) or Login Name/
Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function
Accessibility FeaturesTilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen
Timeout and Audible Beep Message Alerts
Designs and specifications subject to change without notice. Specifications may vary by conditions
of use and/or environmental usage. For best results and reliable performance, always use supplies
manufactured or designated by Toshiba. Not all options and accessories may be available at the
time of product launch. Please contact a local Authorized Toshiba Dealership for availability. Toner
yields are estimates based on 5% coverage, letter-size page. Driver and connectivity feature support
varies by client/network operating system. Product names may be trademarks of their respective
companies. AirPrint® and the AirPrint® logo are trademarks of Apple Inc. This is a Class 1 laser
product complying with IEC60825-1. All company and/or product names are trademarks and/or
registered trademarks of their respective manufacturers in their markets and/or countries.
© 2020 Toshiba America Business Solutions, Inc. Electronic Imaging Division
Inv. Code 22337 5018A Series Brochure 7.5K PG 6/20
Security FeaturesUser Authentication, On-Board Data Scramble Function, SCEP, Disable
e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC
Address Filtering (10 Sets), Network Service Control, Network Port Control,
SMB Packet Signing, SSL /TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS,
SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/
IEC15408)*, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities,
Password Policy, Password Lock, Password Expiration, Self Testing, Job
Access Control, Log Access Control for Job Log, Security Stamp, Role Based
Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity
Check Function, Image Log, Card Authentication, NFC Authentication
*Conformance with HCD-PPv1.0 in High Security Mode.
Environmental Stds.ENERGY STAR® (V2.0), EPEAT Gold, Californian Proposition 65
CertificationWHQL (Windows® 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell®, Citrix®,
SAP, AirPrint® and Mopria®
Scan Specifications
Scan SpeedDSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color)
RADF Scan: Up to 73 IPM (Monochrome or Color)
Scan Modes
Standard: Full Color, Auto Color, Monochrome, Grayscale
Scan Resolution
600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi
File FormatsMonochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable
PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)
Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim
PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX
(Opt.), PPTX (Opt.)
Image Compression Color/Grayscale: JPEG (High, Middle, Low)
Facsimile Specifications
Compatibility
Data Compression
Transmission Speed
Fax Modem Speed
Memory Transmission
Scan Speed
Super G3
MH/MR/MMR/JBIG
Approx. 3 Seconds Per Page
Up to 33.6 Kbps
100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job
0.7 Seconds Per Page, Maximum 73 IPM
e-Filing Specifications
Operation Method
Color Touch Screen Control Panel or Client PC
Number of Boxes
1 Public Box, 200 Private User Boxes
Capacity of Boxes 100 Folders Per Box, 400 Documents Per Folder/Box,
200 Pages Per Document
Accessories (Options)
Platen & Document Feeder Options
DSDF
MR4000B
RADF
MR3031B
Platen Cover
KA5005PC
Additional Paper Options
Paper Feed Pedestal
Drawer Module
Envelope Cassette Option
Large Capacity Feeder
Finishing Options
Inner Finisher
50-Sheets Staple Finisher
Hole Punch Unit for
MJ1109B/MJ1110B
Bridge Kit
Job Separator
eS3518A/4518A/5018A
Connectivity/Security Options
FAX Unit/2nd Line for FAX Unit
Wireless LAN/Bluetooth
Bluetooth Keyboard
Corporate Office
East Coast
Midwest
South
West Coast
Web Site
KD1058B
MY1048B
MY1049B
KD1059B
MJ1042
MJ1109
MJ1110
MJ6011
MJ6105
KN5005
MJ5015
Accessory Tray
Panel 10-Key Option
Card Reader Holder
FIPS HDD Option
USB Hub
Meta Scan Enabler
IPsec Enabler
Unicode Font Enabler
Embedded OCR Enabler
Per Seat License
Multi-Station Print Enabler
Per Seat License
SharePoint® Connector
Exchange Connector
Google Docs™ Connector
Miscellaneous Options
Stand
Accessible Arm
Work Tray
Harness Kit for Coin Controller
Manual Pocket
GR1330
GR1340
GR1320
GE1230
GR1310
GS1010
GP1080
GS1007
GS1080
GS1090
GB1440
GB1450
GB1540
STAND5005
KK2550
KK5005
GQ1280
KK5008
GD1370N
GN4020
GR9000
25530 Commercentre Drive, Lake Forest, CA 92630
Tel: 949-462-6000
959 Route 46 East, 5th Floor, Parsippany, NJ 07054
Tel: 973-316-2700
8770 W. Bryn Mawr Ave., Suite 700, Chicago, IL 60631
Tel: 773-380-6000
2037 Bakers Mill Rd., Dacula, GA 30019
Tel: 678-546-9385
25530 Commercentre Drive, Lake Forest, CA 92630
Tel: 949-462-6000
www.business.toshiba.com

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
