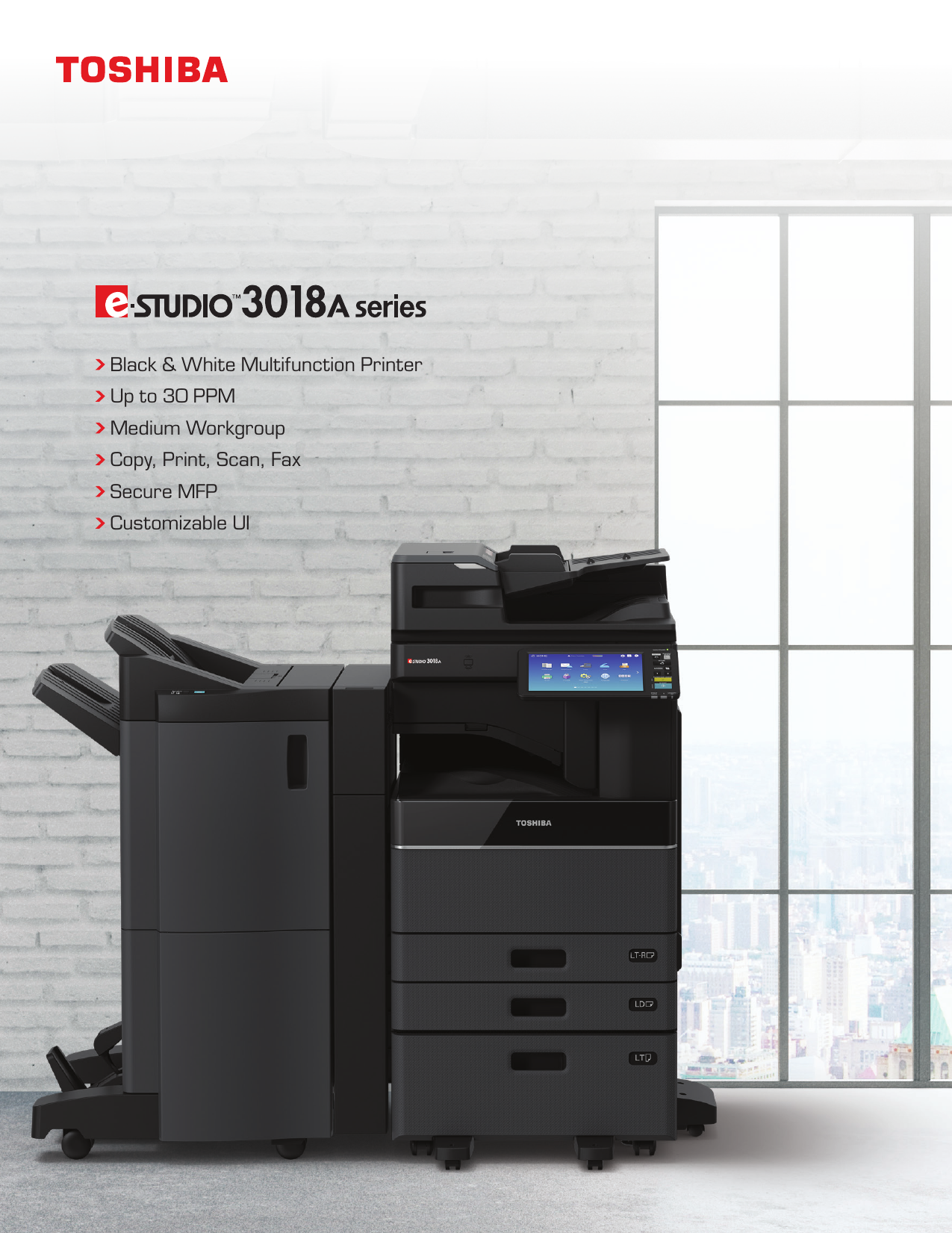

Toshiba e-Studio 3018A Series Black & White Multifiction Printer Specification

Black & White Multifunction Printer
Up to 30 PPM
Medium Workgroup
Copy, Print, Scan, Fax
Secure MFP
Customizable UI
Main Specifications
Copy SystemIndirect Electrostatic Photographic Method/OPC/Laser Printing/
Heat Roller Fusing
Display10.1” Color WSVGA Touch Screen Tilting Display
Copy Speed
20/25/30 PPM (LT)
First Copy Out
4.3/4.3/4.3 Seconds
Warm-Up Time
Approx. 20 Seconds
Copy Resolution
2,400 x 600 dpi with Smoothing
Stack Feed Bypass
3.9” x 5.8” to LD, Envelope
Multiple Copying
Up to 999 Copies
Paper Capacity
Standard 1,200 Sheets/Max. 3,200 Sheets
Original Feed
Optional 300-Sheet DSDF or 100-Sheet RADF
Scan Speed & WeightsDSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color),
Simplex: 9.3-110 lb Bond, Duplex: 9.3-110 lb Bond
RADF Scan: Up to 73 IPM (Monochrome or Color): Simplex: 9.3-41.8 lb Bond,
Duplex: 13.3-41.8 lb Bond
Max. Original Size
LD
Paper Feed SizesDrawer 1: 550 Sheets-ST-R to LD
Drawer 2: 550 Sheets-ST-R to LD
Stack Feed Bypass: 100 Sheets-3.9” x 5.8” to 11” x 17”
Opt. 550-Sheet Paper Feed Pedestal-ST-R to 11” x 17”
Opt. 550-Sheet Drawer for PFP-ST-R to 11” x 17”
Opt. Envelope Cassette for PFP-Approx. 60 Envelopes/550 Sheets-ST-R to LG
Opt. 2,000-Sheet Tandem LCF (Pedestal Type)-LT Only
Paper Weights Standard: 550 Sheets x 2-16 lb Bond-140 lb Index
Stack Feed Bypass: 100 Sheets-14 lb Bond-140 lb Index
Opt. 550-Sheet Paper Feed Pedestal-16 lb Bond-140 lb Index
Opt. 550-Sheet Drawer for PFP-16 lb Bond-140 lb Index
Opt. Envelope Cassette for PFP-16 lb Bond-140 lb Index
Opt. 2,000-Sheet Tandem LCF (Pedestal Type), 17-28 lb Bond
DuplexStandard Automatic Duplex Unit (16 lb Bond-140 lb Index)
Reproduction Ratio
25% to 400%
Max Duty CycleMax. 80K/100K/120K Month
Weight
Approx. 125.2 lb
Approx. Dimensions 23” (W) x 23” (D) x 31” (H))
Toner Yield
43.9K @ 5%
Power Source
120 Volts, 50/60 Hz, 12 Amps
Power Consumption Maximum 1.5kW (120V)
CPU
Intel Atom™ 1.33GHz (Dual-Core)
Memory
2GB, Max 4GB
Hard Disk Drive
320GB Self-Encrypting Drive FIPS 140-2 Validated (Opt.)
e-BRIDGE Next Print Specifications
PDL
PCL5e, PCL5c, PCL6 (PCL XL), PS3, PDF, XPS, JPEG
Print Speed
20/25/30 Pages Per Minute (LT)
Print Resolution600 x 600 dpi (1 bit) or 2,400 (Equivalence) x 600 dpi (with Smoothing) (ALL
PDL), 1,200 x 1,200 dpi (2 bit) or 3,600 x 1,200 dpi (with Smoothing) PS3 Only
Operating SystemsWindows Server® 2008 R2, R2 SP1, 2008/SP2, Windows® 7,8.1,10,Windows
Server® 2012/R2, Windows Server® 2016, Macintosh® (macOS x 10.7.4, 10.8,
10.9, 10.10, 10.11, 10.12, 10.13), Unix®, Linux®
Network ProtocolsTCP/IP (IPv4, IPv6), NetBIOS over TCP/IP, IPX/SPX® for Novell® Environments,
EtherTalk for Macintosh® Environments
Printing ProtocolsSMB, LPR/LPD, IPP (Ver.2.0) w/Authentication, AppleTalk® PAP or EtherTalk,
Port 9100 (Bi-Directional), NetWare P-SERVER LPD w/ iPrint, WS Print, FTP
Print DriversWindows Server® 2008 SP2 (32-bit, 64-bit) Windows Server® 2008 R2 SP1
(64-bit), Windows Server® 2016, Windows® 7 SP1 (32-bit, 64-bit), Windows®
8.1 (32-bit, 64-bit), Windows Server® 2012/R2 (64-bit), Windows® 10 (32-bit,
64-bit), macOS X 10.7.4, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13
InterfaceRJ-45 Ethernet (10/100/1000 Base-T), USB 2.0 (High-Speed), Optional
802.11b/g/n, Wireless LAN, Optional Bluetooth
Wireless DeviceAirPrint®, Mopria®, e-BRIDGE Print & Capture Application on iOS and Android
(Available via Apple® App Store or Google Play)
Device Management TopAccess, EFMS 6.30 (e-BRIDGE Fleet Management Software)
Account ControlUp to 10,000 Users or 1,000 Departments Supports User Authentication
(on Device), Login Name/Password (via Windows® Domain) or Login Name/
Password (via LDAP Server) for Copy, Print, Scan, Fax, List, and User Function
Accessibility FeaturesTilt Front Panel, Job Programs, Universal Grip for Paper Trays, Disable Screen
Timeout and Audible Beep Message Alerts
Designs and specifications subject to change without notice. Specifications may vary by conditions
of use and/or environmental usage. For best results and reliable performance, always use supplies
manufactured or designated by Toshiba. Not all options and accessories may be available at the
time of product launch. Please contact a local Authorized Toshiba Dealership for availability. Toner
yields are estimates based on 5% coverage, letter-size page. Driver and connectivity feature support
varies by client/network operating system. Product names may be trademarks of their respective
companies. AirPrint® and the AirPrint® logo are trademarks of Apple Inc. This is a Class 1 laser
product complying with IEC60825-1. All company and/or product names are trademarks and/or
registered trademarks of their respective manufacturers in their markets and/or countries.
© 2020 Toshiba America Business Solutions, Inc. Electronic Imaging Division
Inv. Code 22348 3018A Series Spec Sheet 7.5K PG 6/20
Security FeaturesUser Authentication, On-Board Data Scramble Function, SCEP, Disable
e-Filing, Disable Copy, Disk Overwrite, IP Address Filtering (10 Sets), MAC
Address Filtering (10 Sets), Network Service Control, Network Port Control,
SMB Packet Signing, SSL /TLS (HTTP, IPP, LDAP, SMTP, POP, FTP, DPWS,
SYSLOG), IPsec (IKEv1, IKEv2), Security Mode Change, CC Certified (ISO/
IEC15408)*, IEEE802.1X (Wired/Wireless), Digital Signature for Client Utilities,
Password Policy, Password Lock, Password Expiration, Self Testing, Job
Access Control, Log Access Control for Job Log, Security Stamp, Role Based
Access Control, Secure PDF, Digital Signature for Firmware Update, Integrity
Check Function, Image Log, Card Authentication, NFC Authentication
*Conformance with HCD-PPv1.0 in High Security Mode.
Environmental Stds.ENERGY STAR® (V2.0), EPEAT Gold, Californian Proposition 65
CertificationWHQL (Windows® 7, 8, 8.1, 10, 2008 R2, 2012, 2012 R2), Novell®, Citrix®,
SAP, AirPrint® and Mopria®
Scan Specifications
Scan SpeedDSDF Scan: Up to 240 IPM Duplex, 120 IPM Simplex (Monochrome or Color)
RADF Scan: Up to 73 IPM (Monochrome or Color)
Scan Modes
Standard: Full Color, Auto Color, Monochrome, Grayscale
Scan Resolution
600 dpi, 400 dpi, 300 dpi, 200 dpi, 150 dpi, 100 dpi
File FormatsMonochrome: TIFF-Multi/Single Page, PDF-Multi/Single Page, Searchable
PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX (Opt.), PPTX (Opt.)
Color/Grayscale: JPEG, TIFF-Multi/Single Page, PDF-Multi/Single Page, Slim
PDF, Searchable PDF (Opt.), XPS-Multi/Single Page, DOCX (Opt.), XLSX
(Opt.), PPTX (Opt.)
Image Compression Color/Grayscale: JPEG (High, Middle, Low)
Facsimile Specifications
Compatibility
Data Compression
Transmission Speed
Fax Modem Speed
Memory Transmission
Scan Speed
Super G3
MH/MR/MMR/JBIG
Approx. 3 Seconds Per Page
Up to 33.6 Kbps
100 Jobs (with HDD), 2,000 Destinations Max. 400 Destinations /Job
0.7 Seconds Per Page, Maximum 73 IPM
e-Filing Specifications
Operation Method
Color Touch Screen Control Panel or Client PC
Number of Boxes
1 Public Box, 200 Private User Boxes
Capacity of Boxes 100 Folders Per Box, 400 Documents Per Folder/Box,
200 Pages Per Document
Accessories (Options)
Platen & Document Feeder Options
DSDF
MR4000
RADF
MR3031B
Platen Cover
KA5005PC
Additional Paper Options
Paper Feed Pedestal
Drawer Module
Envelope Cassette Option
Large Capacity Feeder
Finishing Options
Inner Finisher
50-Sheets Staple Finisher
Saddle-Stitch Finisher
Hole Punch Unit for MJ1042B
Hole Punch Unit for
MJ1109B/MJ1110B
Bridge Kit
Job Separator
eS2018A/2518A/3018A
Connectivity/Security Options
FAX Unit/2nd Line for FAX Unit
Wireless LAN/Bluetooth
Bluetooth Keyboard
Corporate Office
East Coast
Midwest
South
West Coast
Web Site
KD1058B
MY1048B
MY1049B
KD1059B
MJ1042B
MJ1109B
MJ1110B
MJ6011
MJ6105
KN5005
MJ5014
GD1370N
GN4020
GR9000
Accessory Tray
Panel 10-Key Option
Card Reader Holder
4GB Memory Option
FIPS HDD Option
USB Hub
Meta Scan Enabler
IPsec Enabler
Unicode Font Enabler
Embedded OCR Enabler
Per Seat License
Multi-Station Print Enabler
Per Seat License
SharePoint® Connector
Exchange Connector
Google Docs™ Connector
Monotype Font Option
Miscellaneous Options
Stand
Accessible Arm
Work Tray
Harness Kit for Coin Controller
Manual Pocket
GR1330
GR1340
GR1320
GC1410
GE1230
GR1310
GS1010
GP1080
GS1007
GS1080
GS1090
GB1440
GB1450
GB1540
GB2050
STAND5005
KK2550
KK5005
GQ1280
KK5008
