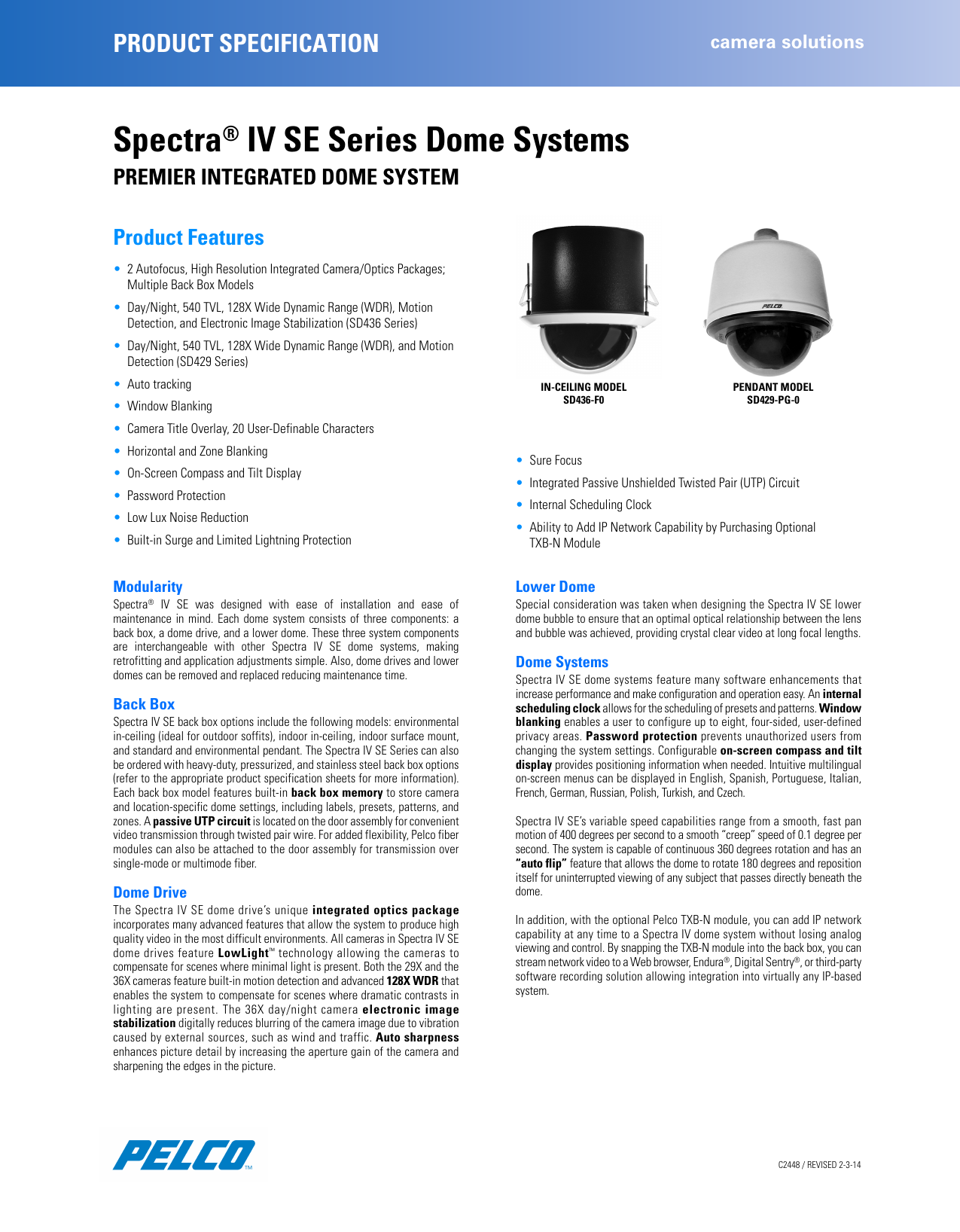

PRODUCT SPECIFICATION
camera solutions
Spectra® IV SE Series Dome Systems
PREMIER INTEGRATED DOME SYSTEM
Product Features
• 2 Autofocus, High Resolution Integrated Camera/Optics Packages;
Multiple Back Box Models
• Day/Night, 540 TVL, 128X Wide Dynamic Range (WDR), Motion
Detection, and Electronic Image Stabilization (SD436 Series)
• Day/Night, 540 TVL, 128X Wide Dynamic Range (WDR), and Motion
Detection (SD429 Series)
• Auto tracking
• Window Blanking
IN-CEILING MODEL
SD436-F0
PENDANT MODEL
SD429-PG-0
• Camera Title Overlay, 20 User-Definable Characters
• Horizontal and Zone Blanking
• On-Screen Compass and Tilt Display
• Password Protection
• Low Lux Noise Reduction
• Sure Focus
• Integrated Passive Unshielded Twisted Pair (UTP) Circuit
• Internal Scheduling Clock
• Built-in Surge and Limited Lightning Protection
• Ability to Add IP Network Capability by Purchasing Optional
TXB-N Module
Modularity
Lower Dome
Spectra® IV SE was designed with ease of installation and ease of
maintenance in mind. Each dome system consists of three components: a
back box, a dome drive, and a lower dome. These three system components
are interchangeable with other Spectra IV SE dome systems, making
retrofitting and application adjustments simple. Also, dome drives and lower
domes can be removed and replaced reducing maintenance time.
Special consideration was taken when designing the Spectra IV SE lower
dome bubble to ensure that an optimal optical relationship between the lens
and bubble was achieved, providing crystal clear video at long focal lengths.
Back Box
Spectra IV SE back box options include the following models: environmental
in-ceiling (ideal for outdoor soffits), indoor in-ceiling, indoor surface mount,
and standard and environmental pendant. The Spectra IV SE Series can also
be ordered with heavy-duty, pressurized, and stainless steel back box options
(refer to the appropriate product specification sheets for more information).
Each back box model features built-in back box memory to store camera
and location-specific dome settings, including labels, presets, patterns, and
zones. A passive UTP circuit is located on the door assembly for convenient
video transmission through twisted pair wire. For added flexibility, Pelco fiber
modules can also be attached to the door assembly for transmission over
single-mode or multimode fiber.
Dome Drive
The Spectra IV SE dome drive’s unique integrated optics package
incorporates many advanced features that allow the system to produce high
quality video in the most difficult environments. All cameras in Spectra IV SE
dome drives feature LowLight ™ technology allowing the cameras to
compensate for scenes where minimal light is present. Both the 29X and the
36X cameras feature built-in motion detection and advanced 128X WDR that
enables the system to compensate for scenes where dramatic contrasts in
lighting are present. The 36X day/night camera electronic image
stabilization digitally reduces blurring of the camera image due to vibration
caused by external sources, such as wind and traffic. Auto sharpness
enhances picture detail by increasing the aperture gain of the camera and
sharpening the edges in the picture.
Dome Systems
Spectra IV SE dome systems feature many software enhancements that
increase performance and make configuration and operation easy. An internal
scheduling clock allows for the scheduling of presets and patterns. Window
blanking enables a user to configure up to eight, four-sided, user-defined
privacy areas. Password protection prevents unauthorized users from
changing the system settings. Configurable on-screen compass and tilt
display provides positioning information when needed. Intuitive multilingual
on-screen menus can be displayed in English, Spanish, Portuguese, Italian,
French, German, Russian, Polish, Turkish, and Czech.
Spectra IV SE’s variable speed capabilities range from a smooth, fast pan
motion of 400 degrees per second to a smooth “creep” speed of 0.1 degree per
second. The system is capable of continuous 360 degrees rotation and has an
“auto flip” feature that allows the dome to rotate 180 degrees and reposition
itself for uninterrupted viewing of any subject that passes directly beneath the
dome.
In addition, with the optional Pelco TXB-N module, you can add IP network
capability at any time to a Spectra IV dome system without losing analog
viewing and control. By snapping the TXB-N module into the back box, you can
stream network video to a Web browser, Endura®, Digital Sentry®, or third-party
software recording solution allowing integration into virtually any IP-based
system.
C2448 / REVISED 2-3-14
TECHNICAL SPECIFICATIONS
CAMERA/OPTICS
Day/Night (36X)
Day/Night (29X)
Signal Format
NTSC (DD436)
PAL (DD436-X)
NTSC (DD429)
PAL (DD429-X)
Scanning System
2:1 Interlace
2:1 Interlace
Image Sensor
Effective Pixels
NTSC
PAL
1/4-inch EXview HAD™
1/4-inch EXview HAD
768 (H) X 494 (V)
752 (H) X 582 (V)
768 (H) X 494 (V)
752 (H) X 582 (V)
Horizontal Resolution
NTSC
PAL
>540 TV Lines
>540 TV Lines
>540 TV Lines
>540 TV Lines
Lens
f/1.4 (focal length, 3.3 ~ 119 mm)
f/1.4 (focal length, 3.4 ~ 98.6 mm)
Zoom
36X optical, 12X digital
29X optical, 12X digital
Zoom Speed (optical range)
3.2/4.6/6.6 seconds
3.2/4.6/6.6 seconds
Horizontal
Angle of view
Focus
57.2° at 3.3 mm wide zoom;
1.7° at 119 mm telephoto zoom
Automatic with manual override
55.8° at 3.4 mm wide zoom;
1.7° at 98.6 mm telephoto zoom
Automatic with manual override
0.55 lux at 1/60 sec (color)
0.018 lux at 1/2 sec (color)
0.0048 lux at 1/2 sec (B-W)
0.55 lux at 1/60 sec (color)
0.018 lux at 1/2 sec (color)
0.0048 lux at 1/2 sec (B-W)
0.45 lux at 1/50 sec (color)
0.015 lux at 1/1.5 sec (color)
0.004 lux at 1/1.5 sec (B-W)
0.45 lux at 1/50 sec (color)
0.015 lux at 1/1.5 sec (color)
0.004 lux at 1/1.5 sec (B-W)
Maximum Sensitivity at 35 IRE
NTSC/EIA
PAL/CCIR
Sync System
Internal/AC line lock, phase adjustable using remote control, Internal/AC line lock, phase adjustable using remote control,
V-Sync
V-Sync
White Balance
Automatic with manual override
Automatic with manual override
Shutter Speed
NTSC
PAL
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
Automatic (electronic iris)/Manual
1/2 ~ 1/30,000
1/1.5 ~ 1/30,000
Iris Control
Automatic iris control with manual override
Automatic iris control with manual override
Gain Control
Automatic/OFF
Automatic/OFF
Video Output
1 Vp-p, 75 ohms
1 Vp-p, 75 ohms
Video Signal-to-Noise
>50 dB
>50 dB
Wide Dynamic Range
128X
128X
Electronic Image Stabilization
Integrated/Selectable
—
Auto Sharpness
Integrated/Selectable
Integrated/Selectable
TECHNICAL SPECIFICATIONS
DOME DRIVE FEATURES
• 256 Presets
• ±0.1° Preset Accuracy
• Electronic Image Stabilization (36X model)
• Image Enhancement (36X model)
• Multilingual Menus (English, Spanish, Portuguese, Italian, French,
German, Russian, Polish, Turkish, and Czech)
• RJ-45 Data Port for Software Update and Setup
• On-Screen Compass, Tilt, and Zoom Display
• Resume After Alarm: Allows the Dome to Return to a Previously
Configured State After Alarm Acknowledgement or to its Previous
Position Before Alarm
• Multiple Park and Power-Up Action
• Patterns: Up to 8, On-Screen, User-Defined Configurable Patterns;
Includes Pan, Tilt, Zoom, and Preset Functions
• Proportional Pan/Tilt: Continually Decreases Pan/Tilt Speeds in Proportion
to Depth of Zoom
• 400°/sec Pan Preset Speed and 200°/sec Tilt Preset Speed
• Variable Scan Speed: Scan Speed Can Be Configurable Between
1 to 40°/sec
• Rotating Discreet Liner with Sealed Fixed Bubble
• Pan Motion Allows 0.1 to 150°/sec Pan Speed
• Window Blanking: Up to 8, Four-Sided, User-Defined Shapes
• Configurable Limit Stops for Auto/Random/Frame Scan Modes
• 8 Zones (configurable in size) Can Be Labeled with up to 20 Characters
Each or Set to Output Blank Video
• Autosensing Protocol (Coaxitron®, RS-422 Pelco P and Pelco D,
Sensormatic®, Vicon®); Accepts Other Control Protocols with Optional
Translator Card
• 7 Alarm Inputs
• 1 Auxiliary (Form C) Relay Output and 1 Open Collector Auxiliary Output
(can be alternately configured to operate upon alarm)
• Digital Position and Zoom Control and Feedback through Pelco D Protocol
• Configurable Locations of Labels and On-Screen Displays
• “Auto Flip” Rotates Dome 180° at Bottom of Tilt Travel
• Action on Alarm: Alarms Can Be Individually Configured for 3 Priority
Levels, to Initiate a Stored Pattern, or to Go to an Associated Preset
When Received
• Configurable Zoom Speeds
• Low Lux Noise Reduction (reduces noise in low light)
• Built-in Menu System for Setup of Configurable Functions
WINDOW BLANKING
WIDE DYNAMIC RANGE
Window blanking allows a
user to configure up to
eight, four-sided, user-defined
areas that cannot be viewed
by the operator of the dome
system. A blanked area will
move with pan and tilt
functions and automatically
adjust in size as the lens
zooms telephoto and wide.
The WDR setting balances the
brightest and darkest sections
of a scene to produce a picture
that provides more detail.
BEFORE
AFTER
BEFORE
AFTER
TECHNICAL SPECIFICATIONS
BACK BOX FEATURES
7.6 (19.3)
1.6
(4.0)
Surface Mount (Indoor)
• Built-in Memory Stores Camera/Dome Settings
• Available in Black or White Finish
8.7
(22.0)
• Quick Disconnect to Dome Drive
• Injection-Molded Plastic
• Integrated Passive UTP
5.9 (15.0)
7.5 (19.0)
In-Ceiling (Indoor)
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Suspended or Hard Ceiling Applications
5.2
(13.2)
• Requires 5.25-Inch Space Above Ceiling and 3.25 Inches Below
• Minimum Ceiling Thickness 0.5-Inch; Maximum 1.75 Inches
• Quick Disconnect to Dome Drive
3.5
(8.8)
• Aluminum Construction
• Suitable for Use in Environmental Air Handling Spaces
5.9 (15.0)
• Integrated Passive UTP
8.2 (20.8)
9.9 (25.2)
Environmental In-Ceiling
• Built-in Memory Stores Camera/Dome Settings
• Single Back Box for Hard Ceiling Applications
4.4
(11.0)
• Requires 4.4-Inch Space Above Ceiling and 4.3 Inches Below
• Includes Heater and Fan
• Minimum Ceiling Thickness 0.5-Inch; Maximum 1.75 Inches
4.3
(10.9)
• Quick Disconnect to Dome Drive
5.9 (15.0)
8.6 (21.8)
• Aluminum Construction
• Integrated Passive UTP
Standard and Environmental Pendant
• Standard and Environmental Models
• Built-in Memory Stores Camera/Dome Settings
• Standard Pendant Available in Black or Gray Finish; Environmental
Pendant Gray Finish Only
10.6
(26.9)
• Quick Disconnect to Dome Drive
• Aluminum Construction
(ENVIRONMENTAL DOME
WITH SUN SHROUD SHOWN)
5.9 (15.0)
• Environmental Model Includes Sun Shield, Fan, and Heater
8.6 (21.8)
• Integrated Passive UTP
NOTE: VALUES IN PARENTHESES ARE CENTIMETERS;
ALL OTHERS ARE INCHES.
Note: The Spectra IV SE Series can be ordered with heavy-duty, pressurized, and stainless steel back box options. Refer to the appropriate product specification sheets
for more information.
TECHNICAL SPECIFICATIONS
MECHANICAL (Dome Drive Only)
GENERAL
Pan Movement
Vertical Tilt
Manual Pan/Tilt Speeds
Pan
Construction
Back Box
Surface Mount
In-Ceiling
Pendant
Dome Drive
Bubble
Light Attenuation
Smoked
Clear
Cable Entry (Back Box)
In-Ceiling and
Surface Mount
Pendant
Weight (approximate)
Back Box
Surface Mount
In-Ceiling
Environmental
In-Ceiling
Standard Pendant
Environmental Pendant
Dome Drive
Lower Dome
Surface Mount
In-Ceiling
Pendant and
Environmental
In-Ceiling
Environment
Surface Mount
In-Ceiling
Environmental In-Ceiling
Pendant, Standard
and Environmental
Operating Temperature
Surface Mount and
Indoor In-Ceiling
Standard Pendant
Maximum
Tilt
Preset Speeds
Pan
Tilt
360° continuous pan rotation
Unobstructed +2° to –92°
0.1° to 80°/sec manual operation,
150°/sec Turbo
0.1° to 40°/sec manual operation
400°/sec
200°/sec
For variable-speed operation, an appropriate
controller is required (with nonvariable speed
control, Spectra IV SE pan/tilt speed is
20°/sec)
ELECTRICAL
Input Voltage
Input Power
24 VAC
24 VDC
Fuse
Auxiliary Outputs
Alarm Inputs
18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal
23 VA nominal (without heater);
73 VA nominal (with heater)
0.7 A nominal (without heater);
3 A nominal (with heater)
1.25 A
2
7
CERTIFICATIONS/RATINGS/PATENTS
•
•
•
•
•
•
CE, Class B
FCC, Class B
UL/cUL Listed
C-Tick
S Mark for Argentina
Meets NEMA Type 4X, IP66 when installed properly (BB4-F-E, BB4-PB,
BB4-PG, and BB4-PG-E)
• Meets NEMA Type 1, IP40 (BB4-SMW, BB4-SMB, and BB4-F)
• U.S. Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2;
7,161,615 B2
Minimum
Environmental In-Ceiling
and
Environmental Pendant
Maximum
Minimum
TS2
Plastic
Aluminum
Aluminum
Aluminum, thermo plastic
Acrylic
f/0.5 light loss
Zero light loss
0.75-inch conduit fitting
Through 1.5-inch NPT pendant mount
Unit
Shipping
0.7 lb (0.32 kg)
1.5 lb (0.68 kg)
2 lb (0.90 kg)
2 lb (0.90 kg)
2.1 lb
2.4 lb
3.5 lb
3.3 lb
3 lb
4 lb
5 lb
5 lb
(0.95 kg)
(1.09 kg)
(1.59 kg)
(1.48 kg)
(1.36 kg)
(1.81 kg)
(2.27 kg)
(2.27 kg)
0.4 lb (0.18 kg)
0.2 lb (0.09 kg)
1 lb (0.45 kg)
1 lb (0.45 kg)
0.6 lb (0.27 kg)
2 lb (0.90 kg)
Indoor
Indoor
Outdoor
Indoor/outdoor
0° to 50°C (32° to 122°F)
(Assumes no wind chill factor)
45°C (113°F) absolute maximum;
35°C (95°F) sustained maximum
–4°C (25°F) sustained minimum
(Assumes no wind chill factor)
60°C (140°F) absolute maximum;
50°C (122°F) sustained maximum
–51°C (–60°F) absolute minimum; prevents
icing at sustained minimum of –45°C (–50°F);
de-ices 2.5 mm (0.1 inch) within 3 hours after
power-up
–34° to 74°C (–29.2° to 165°F)
Per NEMA TS2, para. 2.1.5.1, using fig. 2.1 test profile
Effective Projected
Area (EPA)
52.07 square cm (20.5 square inches), without
mount
(47 square inches), with IWM Series mount
RELATED PRODUCTS
OPTIONAL ACCESSORIES
DD5-FM
Fixed camera mount adapter. Interchangeable
with all Spectra IV dome drives.
IPS-CABLE
Remote monitor cable and software kit
consisting of the Spectra IV remote monitor
interface cable and necessary software for
use with a PC. Refer to www.pelco.com for a
list of compatible devices.
IPS-RDPE-2*
Remote data port. 24 VAC, wall/pole mount
video/data breakout box. Allows ground-level
control/configuration and software upgrades
when used with the IPS-CABLE.
TXB Series*
Translator boards for AD™ Manchester,
Hernis, Bosch® (Philips, Burle), TASS, and
NTCIP protocols.
TXB-N Series*
Network-based communication module that
allows you to control and monitor Spectra IV
dome systems over an IP network (in-ceiling
and pendant models only). When TXB-N is
installed in the camera’s back box, the camera
system supports Web and Endura
connectivity, and open architecture
connectivity to third-party software. TXB-N
allows simultaneous access to the camera
from both an analog and IP-based control
point.
FS85011A*
Fiber transmitter sends 1 unidirectional
composite video channel and 1 bidirectional
data channel over 1 multimode or singlemode fiber optical cable.
LD5F-2†
Flush in-ceiling lower dome with chrome
bubble (f/2.0 light loss).
LD5F-3†
Flush in-ceiling lower dome with gold bubble
(f/2.0 light loss).
LD53PB-2†
Pendant lower dome with black trim and
chrome bubble (f/2.0 light loss).
LD53PB-3†
Pendant lower dome with black trim and gold
bubble (f/2.0 light loss).
*If TXB or FS85011A boards are installed, remote upload of system software
will not be possible.
† Not recommended for outdoor use due to possible light reflections.
RELATED PRODUCTS
RECOMMENDED MOUNTS
RECOMMENDED POWER SUPPLIES
Surface Mount Domes
PASMB
MCS Series
WCS Series
SD53SM-P
In-Ceiling Domes
SD5-P
SCA1
Pendant adapter for surface mount dome,
black
2' x 2' drop ceiling panel for BB4-SMW and
BB4T-SMW series back boxes; replaces 2' x 2'
ceiling tile; aluminum construction
2' x 2' drop ceiling panel, aluminum
construction; replaces 2' x 2' ceiling tile
Support rails for BB4-F; for use in ceiling tile
applications
Pendant Domes
BB5-PCA-BK*
Pendant conduit adapter, black
BB5-PCA-GY*
Pendant conduit adapter, gray
IWM Series
Wall mount, with or without integral 24 VAC,
100 VA transformer; black or gray finish; can
be adapted for corner, parapet, or pole
applications
MRCA
Ceiling mount, black
PP4348
Parapet roof mount
PP350/PP351
Parapet wall/roof mount
SWM Series
Compact wall mount, black or gray finish; can
be adapted for corner or pole applications
*Not suitable for use with heavy-duty, pressurized, or stainless steel Spectra
domes.
Indoor, 24 VAC power supply
Outdoor, 24 VAC power supply
Refer to individual power supply specifications for more information.
SYSTEM AND COMPONENT MODELS
SYSTEM MODEL NUMBERS
Type
Surface Mount
Back Box Color
Lower Dome
White
Smoked
SD436-SMW-0
SD436-SMW-0-X
SD429-SMW-0
Clear
SD436-SMW-1
SD436-SMW-1-X
SD429-SMW-1
SD429-SMW-1-X
Smoked
SD436-SMB-0
SD436-SMB-0-X
SD429-SMB-0
SD429-SMB-0-X
Clear
SD436-SMB-1
SD436-SMB-1-X
SD429-SMB-1
SD429-SMB-1-X
Black
In-Ceiling, Indoor
Black
In-Ceiling, Environmental*
Pendant, Standard
Black
Black
Light Gray
Pendant, Environmental*
Light Gray
36X Day/Night (NTSC)
36X Day/Night (PAL)
29X Day/Night (NTSC)
29X Day/Night (PAL)
SD429-SMW-0-X
Smoked
SD436-F0
SD436-F0-X
SD429-F0
SD429-F0-X
Clear
SD436-F1
SD436-F1-X
SD429-F1
SD429-F1-X
SD429-F-E0-X
Smoked
SD436-F-E0
SD436-F-E0-X
SD429-F-E0
Clear
SD436-F-E1
SD436-F-E1-X
SD429-F-E1
SD429-F-E1-X
Smoked
SD436-PB-0
SD436-PB-0-X
SD429-PB-0
SD429-PB-0-X
Clear
SD436-PB-1
SD436-PB-1-X
SD429-PB-1
SD429-PB-1-X
Smoked
SD436-PG-0
SD436-PG-0-X
SD429-PG-0
SD429-PG-0-X
Clear
SD436-PG-1
SD436-PG-1-X
SD429-PG-1
SD429-PG-1-X
Smoked
SD436-PG-E0
SD436-PG-E0-X
SD429-PG-E0
SD429-PG-E0-X
Clear
SD436-PG-E1
SD436-PG-E1-X
SD429-PG-E1
SD429-PG-E1-X
COMPONENT MODEL NUMBERS
Back Box
BB4-SMB
BB4-SMW
BB4-F
BB4-F-E
BB4-PB
BB4-PG
BB4-PG-E
Surface mount, black
Surface mount, white
In-ceiling, black
In-ceiling, black, environmental
Pendant mount, black, standard
Pendant mount, gray, standard
Pendant mount, gray,
environmental
Lower Dome†
Dome Drive
DD429
DD429-X
DD436
DD436-X
DD5-FM
Day/Night (NTSC) camera (29X)
Day/Night (PAL) camera (29X)
Day/Night (NTSC) camera (36X)
Day/Night (PAL) camera (36X)
Removable, fixed mount bracket only (camera and
lens not included); interchangeable with all
Spectra IV dome drives
LD53SMB-0
LD53SMB-1
LD53SMW-0
LD53SMW-1
LDHQF-0
LDHQF-1
LDHQPB-0
LDHQPB-1
Smoked, surface, black
Clear, surface, black
Smoked, surface, white
Clear, surface, white
Smoked, in-ceiling
Clear, in-ceiling
Smoked, pendant, black
Clear, pendant, black
Notes:
To order a fixed mount dome system, refer to the component models above and select one each of the following options: back box (BB4-F), dome drive (DD5-FM), plus choice of
lower dome (LDHQF-0, LDHQF-1).
For environmental applications, you must order an environmental back box (BB4-F-E or BB4-PG-E).
DD5-FM accepts camera and lens combinations including a BNC connector up to 12.70 x 6.99 x 6.99 cm (5.00" D x 2.75" W x 2.75" H).
*Environmental dome systems include a heater and a fan, and the environmental pendant also includes a sun shield.
†Use the pendant lower domes with the environmental in-ceiling and environmental pendant back boxes.
Pelco, Inc.
625 W. Alluvial Ave., Fresno, CA 93711 United States
USA & Canada Tel (800) 289-9100 Fax (800) 289-9150
International Tel +1 (559) 292-1981 Fax +1 (559) 348-1120
www.pelco.com
Pelco, the Pelco logo, and other trademarks associated with Pelco products referred
to in this publication are trademarks of Pelco, Inc. or its affiliates. ONVIF and the
ONVIF logo are trademarks of ONVIF Inc. All other product names and
services are the property of their respective companies.
Product specifications and availability are subject to change without notice.
©Copyright 2014, Pelco, Inc. All rights reserved.

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
