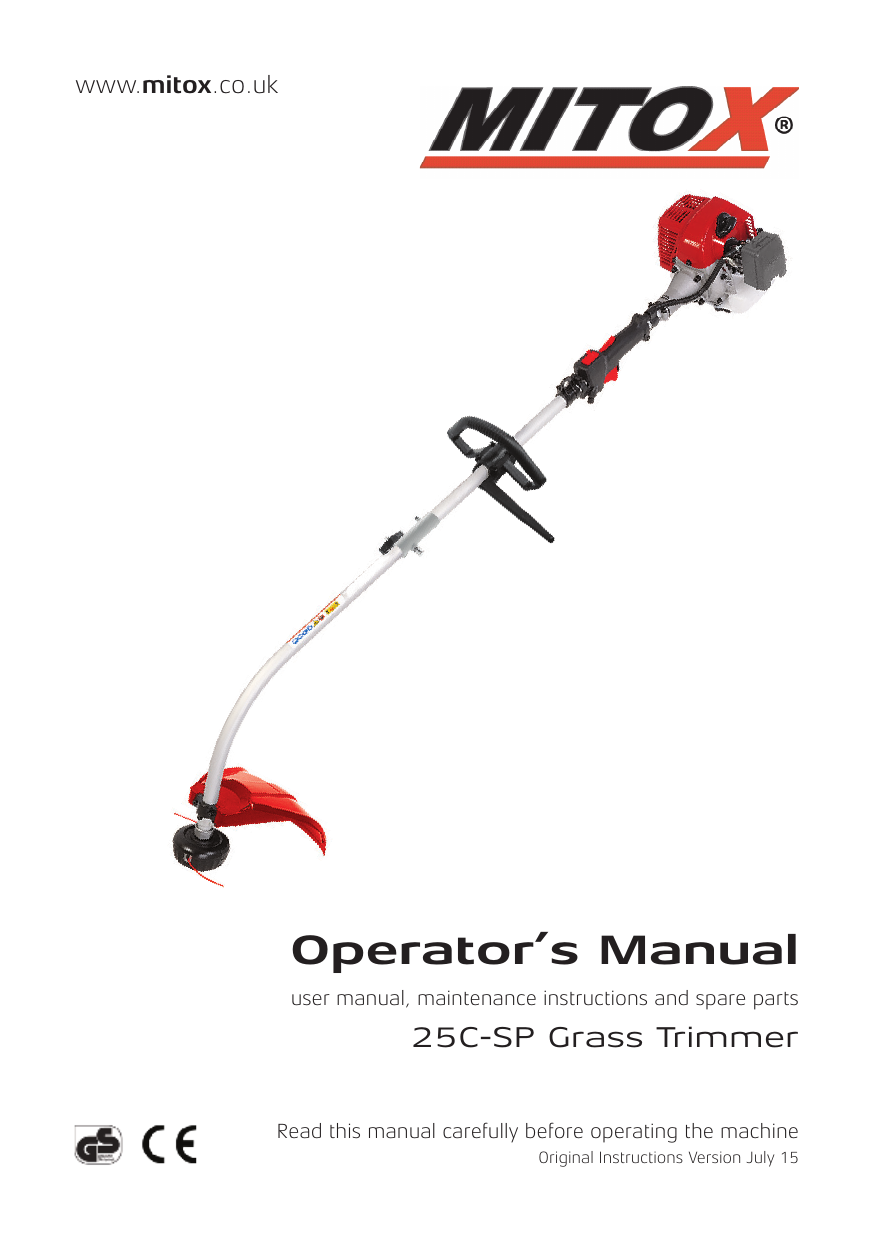

Mitox 25C-SP Select Petrol Grass Trimmer OPERATOR'S MANUAL

www.mitox.co.uk
Operator’s Manual
user manual, maintenance instructions and spare parts
25C-SP Grass Trimmer
Read this manual carefully before operating the machine
Original Instructions Version July 15
25C-SP Grass Trimmer
PRODUCT DESCRIPTION
14
12
13
9
7
10
11
8
6
4
5
15
5
3
1
2
This Grass Trimmer is a 2 stroke fast running power tool and is designed to be used
in a domestic application for trimming new growth.
2
Original Instructions Version July 15
25C-SP Grass Trimmer
Component Location
1
NYLON CUTTER HEAD
CONTAINS REPLACEABLE NYLON TRIMMING LINE
2
CUT-OFF KNIFE
TRIMS NYLON FILAMENT TO THE CORRECT LENGTH
3
SHIELD
MOUNTED JUST ABOVE THE CUTTING ATTACHMENT
HELPS PROTECT THE OPERATOR
4
D-HANDLE
CAN BE ADJUSTED AT YOUR CONVENIENCE FOR COMFORT
5
DRIVE SHAFT ASSEMBLY
CONTAINS A FLEXIBLE DRIVE SHAFT
6
IGNITION SWITCH
ON AND OFF SWITCH
7
SAFETY LEVER
TO PREVENT ACCIDENTAL OPERATION OF THE THROTTLE
8
THROTTLE TRIGGER
SPRING LOADED TO RETURN TO IDLE WHEN RELEASED
9
PURGE BULB
PUSH THE PURGE BULB TO REMOVE THE AIR FROM
THE FUEL SYSTEM
10
FUEL CAP
11
FUEL TANK
CONTAINS FUEL AND FUEL FILTER
12
AIR FILTER COVER
CONTAINS REPLACEABLE FELT ELEMENT
13
CHOKE
TO HELP IN COLD STARTING
14
STARTER HANDLE
PULL TO START THE ENGINE
15
COUPLING JOINS THE POWER UNIT TO THE GRASS TRIMMER ATTACHMENT
Warnings in the Manual
This mark indicates instructions which must be followed in order to prevent accidents which could
lead to serious bodily injury or death.
This mark indicates instructions which must be followed or it leads to mechanical failure,
breakdown, or damage.
This mark indicates hints or useful directions in the use of the product.
Original Instructions Version July 15
3
25C-SP Grass Trimmer
Safety Symbols
Warning: Danger, Caution
Read the documentation and safety instructions which are
provided in this user manual.
When operating this machine, use protective equipment such
as goggles, helmet and ear defenders.
Wear security shoes and gloves.
Check the condition of the working area to avoid any accident
by hitting hidden obstacles such as stumps, stones, cans, or
broken glass.
Hot surface: Risk of burn.
Danger: Risk of intoxication.
Danger: Risk of fire or explosion
Directive 2000-14/CE. Guaranteed noise levels
Beware of objects being thrown from the operating zone
Warning: Keep all people, animals and vulnerable objects at
least 15 metres from the working area.
4
Original Instructions Version July 15
25C-SP Grass Trimmer
Never modify the cutter in any way. Improper use of any
cutter can cause serious or fatal injury.
Not for use with metal blades.
Taking Care of Warning Labels
Always keep warning labels clean and free of scratches, which might make them illegible or
difficult to read. If the warning labels provided with your grass trimmer become damaged, peel
off, or otherwise become illegible or difficult to read, order new labels from the authorised
servicing dealer and replace the damaged labels. When applying new labels, first wipe away any
dirt and dry the surface before applying the new label in the same place as the original label.
Explanation of Symbols on the Machine
For safe operation and maintenance, symbols are carved in relief on the machine:
FUEL TANK
Fuel tank 2 stroke mix
Position: Fuel cap
CHOKE OPERATION
Starting mode when the engine is hot (choke off).
Position: Air cleaner cover.
Starting mode when the engine is cold (choke on).
Position: Air cleaner cover.
Original Instructions Version July 15
5
25C-SP Grass Trimmer
Safety Precautions
Introduction
Read this Owner/Operator Manual carefully. Be sure you understand how to operate this grass
trimmer properly before you use it. Failure to do so could result in serious injury.
Keep this manual handy so that you may refer to it later whenever any questions arise. Also note
that you are able to contact the dealer from whom you purchased the product for assistance.
Always include this manual when selling, lending, or otherwise transferring the ownership of this
product.
This product has been designed to be used as a grass trimmer power tool as described previously
and it should never be used for any other purpose; doing so could result in unforeseen accidents
and injuries occurring. Only approved Mitox accessories should be used with this product.
When using this grass trimmer for the first time, take the grass trimmer to a wide, clear, open
space, start the engine, and practice handling the grass trimmer until you are sure that you will
be able to handle it properly in actual operation.
You should never use this grass trimmer when under the influence of alcohol, suffering from
exhaustion or lack of sleep, suffering from drowsiness as a result of having taken medicine, or at
any other time when your judgement might be impaired or that you might not be able to operate
the grass trimmer properly and in a safe manner.
Never allow children or anyone unable to fully understand the directions given in this manual to
use this grass trimmer.
When planning your work schedule, allow plenty of time to perform the work and allow plenty of
time for rest. Limit the amount of time you continuously use the grass trimmer to 30~40 minutes
per session and take 10~20 minutes of rest between work sessions. Also, try to keep the total
amount of work performed in a single day to 2 hours.
Never run the engine indoors as the exhaust gases contain harmful carbon monoxide.
6
Original Instructions Version July 15
25C-SP Grass Trimmer
Never use the grass trimmer in conditions as described
below:
When the ground is slippery or when other conditions exist which might make it difficult to
maintain a steady posture while using the grass trimmer.
At night, at times of heavy fog, or at any other times when your field of vision is limited and it
would be difficult to gain a clear view of the area where the grass trimmer is to be used. In heavy
rain, during lightning storms, at times of strong or gale-force winds, or at any other times when
weather conditions might make it unsafe to use this product.
Lack of sleep, tiredness, or physical exhaustion results in lower attention spans, and this in turn
can lead to accidents and injury.
Work Clothing and Safety Equipment
When using the grass trimmer, you should wear proper clothing and protective equipment.
•
•
•
•
•
•
Helmet
Protection goggles or face protector
Ear protectors
Thick work gloves
Non-slip sole work boots
When using your grass trimmer, always wear strong, durable, work clothing; shirts
should be long-sleeved and trousers should be full-length.
Safety and Operation
This grass trimmer is equipped with a very sharp blade.
Improper handling can cause accidents which may in turn lead to serious injury or death. For
this reason, you should always be careful to adhere to the following instructions when using your
Original Instructions Version July 15
7
25C-SP Grass Trimmer
grass trimmer.
Never hold the grass trimmer in a way in which the cutting head is pointing towards someone
else.
Never allow the cutting head to come into contact with your body.
Always turn off the engine before adjusting the grass trimmer, or at any time when coming into
close proximity with the cutting head.
Always wear thick work gloves when adjusting the grass trimmer.
Safe Handling of Fuel
The engine of the grass trimmer is designed to run on a two stroke oil/fuel mixture.
This fuel is highly flammable, never store cans of fuel or refill the fuel tank in any place where
there is a source of heat or fire, which might ignite the fuel.
Do not smoke whilst operating the grass trimmer or refilling, keep lit cigarettes away from the
grass trimmer at all times.
When refilling the fuel tank always stop the engine first and carefully make sure that there are no
sparks or naked flames anywhere nearby before refuelling.
If any fuel spillage occurs during refuelling, use a dry rag to wipe any fuel which has been spilled
onto the grass trimmer before starting the engine.
After refuelling, screw the fuel cap back tightly onto the fuel tank and carry the grass trimmer to a
spot 5 metres or more away from where it was refuelled before starting the engine.
8
Original Instructions Version July 15
25C-SP Grass Trimmer
Before Operating the Grass Trimmer
Before beginning work, carefully check the work area and remove any obstacles. Within a
perimeter of 15 metres of the work area should be considered a hazardous area into which noone should enter while the grass trimmer is being used, and when necessary this area should be
marked with a warning rope, warning signs, or other forms of warning.
When work is to be performed simultaneously by two or more operators, care should also be
taken to constantly look around to check the presence and locations of other operators within the
work area to maintain a safe distance between each operator.
Before beginning work, each component of the grass trimmer should be checked to make sure
that it is in proper working order, make sure that there are no loose screws or bolts, fuel leaks,
ruptures, dents, broken guards or any other problems which might interfere with safe operation.
Keep all parts of your body away from the cutting head when the engine is running.
Before Starting the Engine
Carefully check the work area to make sure that no obstacles exist within a perimeter of 15
metres around the grass trimmer before starting the engine.
To start the engine, place the grass trimmer onto the ground in a flat clear area and hold it firmly
in place to ensure that neither the cutting head nor the throttle come into contact with any
obstacles when the engine starts.
After starting the engine, make sure that the cutting head stops moving when the throttle trigger
is released (idle). If the cutting head continues to move when the engine is at idle, adjust the
idle screw on the carburettor to a point where the cutting head stops moving, if this cannot be
achieved, take the grass trimmer to your authorised service dealer for adjustment.
Original Instructions Version July 15
9
25C-SP Grass Trimmer
Avoid Noise Problems
Check and follow the local regulations for sound levels and hours of operation for garden
machinery.
In general, operate grass trimmers between 8 am and 5 pm on weekdays and 9 am to 5 pm at
weekends.
Avoid using the grass trimmer late at night and/or early in the morning.
Safety when using the Grass Trimmer
When using the grass trimmer, grip the handles firmly with both hands, place your feet slightly
apart so your weight is distributed evenly across both legs, and always maintain a steady even
posture while working.
•
•
•
•
•
•
•
•
•
•
10
Maintain full engine speed when cutting.
Never allow other persons to come within the work area as doing so might expose
them to danger.
Keep work area clear of all persons, particularly small children and pets. Injury may
result from flying debris.
If grass or other objects get caught in the grass trimmer during operation, always stop
the engine before removing the object.
Never touch the spark plug or plug HT cable while the engine is in
operation, doing so may result in an electrical shock.
Never touch the exhaust, spark plug, or any metallic parts while the
engine is in operation or immediately after shutting down the engine.
These parts reach high temperatures during operation and doing so
could result in serious burns.
When you finish cutting in one location and wish to continue work in another area, stop
the engine.
Always remove fuel from the fuel tank before transportation to prevent fuel spillage.
Never leave the grass trimmer exposed to direct sunlight as this can heat the fuel tank
and may cause a discharge of fuel, and flood the engine.
Be careful not to hit the nylon cutting head against stones or the ground.
Original Instructions Version July 15
25C-SP Grass Trimmer
Two-Stroke Fuel
Fuel is very flammable. Do not smoke or bring any flame or sparks near fuel.
Always stop the engine and allow it to cool before refuelling.
Refuel outdoors on bare ground, restart engine at least 5m away from the refuelling stop.
The engine is lubricated by oil mixed into petrol. Prepare a mixture of unleaded petrol and semisynthetic two-stroke oil that meets the specifications of: API TC, ISO-L-EGC, JASO FC (Low Smoke)
oil.
Recommended mixing ratio is 40:1.
FUEL WITH NO OIL (RAW PETROL) will cause severe damage to the engine which is not
covered by the manufacturer’s warranty.
Use fresh, unleaded petrol (90 RON) and semi-synthetic oil specially made for high performance
two-stroke engines. Mix in a ratio of 40 parts petrol to 1 part of oil.
By using two-stroke oil specially made for two-stroke engines you will reduce the formation of ash
and carbon deposits on the spark plug, piston, exhaust muffler and cylinder as well as reducing
emissions of harmful exhaust gases.
Oil FOR 4-CYCLE ENGINES should not be used as two-stroke lubrication oil as it can cause fouling
of the spark plug, exhaust port blocking, piston ring sticking and other internal engine damage.
NOTE
Due to increased Ethanol content in petrol we recommend the use
of B3C Ethanol Shield 2-Stroke Oil, or Ethanol Shield Fuel Stabiliser
to protect your MITOX® engine against the harmful effects of
Ethanol.
Visit www.b3cfuel.co.uk for more information.
Original Instructions Version July 15
11
25C-SP Grass Trimmer
Fuel Storage
Mixed two-stroke fuel (without Ethanol Shield) which has been left unused for a period of one
month or more may damage the carburettor and result in the engine failing to start or operate
correctly.
When storing the grass trimmer for a period of more than one month, empty the fuel tank, and
run the engine to empty the carburettor of fuel.
Two stroke fuel can cause deterioration of rubber and/or plastic components during prolonged
storage.
It is important to only use good quality, fresh fuel mix.
Fuelling
Shake the fuel container to thoroughly mix the two-stroke oil and petrol.
Clean dirt from around the fuel cap before removing.
Pour two-stroke fuel into the fuel tank with a filtered funnel, up to 80% of the fuel tanks capacity.
Replace the fuel cap and tighten securely. Spilled fuel must be wiped away from the grass
trimmer before starting the engine.
Move at least 5m away from the refuelling area before restarting the engine.
When refilling the tank, always turn off the engine and allow it to cool down. Take a careful look
around to make sure that there are no sparks or open flames anywhere nearby before refuelling.
12
Original Instructions Version July 15
25C-SP Grass Trimmer
Assembly of the Grass Trimmer
The blade fitted to the guard is sharp and can cause injury, always wear gloves.
Installing the Guard
Plate B
Shaft
Bracket A
Guard
To install the guard to the shaft, locate the shield using bracket A as a locating point, and secure using plate B and 2 screws.
Original Instructions Version July 15
13
25C-SP Grass Trimmer
Installing the Loop Handle Assembly (L Models)
Upper Handle
Fixing Screws (4)
Drive Shaft
To Engine
Rubber Block
Lower Handle
Drive Shaft To
Cutter Head
• Fix the loop-handle to the shaft over the rubber block provided. Adjust to a comfortable working position then tighten the fixing screws securely.
14
Original Instructions Version July 15
25C-SP Grass Trimmer
Installing the Nylon Head
(b)
•
(a)
Hold the dust cover (a) with the spanner supplied to stop the shaft rotating and screw the
trimmer head (b) clockwise onto the drive shaft until tight.
Original Instructions Version July 15
15
25C-SP Grass Trimmer
Installing the Curved Shaft Attachment
Attachment
shaft
Locking
hole
Clamp
Locking pin
4
3
1
2
6
7
5
•
•
•
•
•
16
Pull out the locking pin (1) and twist (2) to lock in the outer position (3).
Loosen the clamp by turning the handle (4).
Insert the attachment shaft, lining up the locking hole with the locking pin . Twist the locking pin (5) to release it from the outer position. You may need to twist the
attachment shaft to ensure that the locking pin engages with the locking hole (6).
Tighten the clamp by turning the handle (7).
Original Instructions Version July 15
25C-SP Grass Trimmer
Using the Grass Trimmer
Nylon Head
•
Cut the grass in 1.5 metre widths, keeping the machine well balanced.
•
Avoid engaging stones, piles of earth, small pieces of wood or anything that could be
hidden or difficult to see in the grass. If a large object is accidentally struck, if the cutting
head gets blocked, overloaded or stringy material gets wrapped in the cutting head,
reduce the engine speed so the engine idles. Make sure that the cutting head has
stopped rotating, switch off the engine and remove the material.
•
Put the grass trimmer on the ground and check that the cutting head has not been
damaged. If necessary, change the cutting head. If the head is only wrapped by vegetation, remove by hand and clean the cutting head.
•
Always wear safety gloves for this operation and ensure the engine is switched off and
the head is stationary.
•
When the 2 nylon cords become too short, accelerate the engine and bump the nylon
head on the ground. Automatically the 2 nylon cords will feed out and be cut to the
correct length. Repeat the operation if necessary.
Original Instructions Version July 15
17
25C-SP Grass Trimmer
Operation
Keep clear of the cutter head as it may start moving when the engine starts.
Starting the Engine
CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when
the cord is extended, this can damage the starter mechanism.
Cold Engine Starting
Rest the unit on a flat, firm surface. Keep the cutting head off the ground and clear of surrounding
objects as it may start moving when starting the engine. Set the throttle to “fast idle” as follows
(1) Depress and hold the safety lock lever. (2) Squeeze and hold the throttle lever. (3) Depress the
throttle lock button (Fig 3 -e). (4) While holding down the throttle lock button, release the throttle
lever and safety lock lever. (5) Release the throttle lock button.
(c)
(a)
(b)
Fig 1 - Push the air purge bulb (a) until
fuel is visible in the clear return fuel
line (b)
(d)
(e)
Fig 3 - Set the ignition switch (d) to the
START (I) position. (e) is the throttle lock
button.
18
Fig 2 - Move the choke lever (c) to the
closed (
) position.
Fig 4 - While holding the unit, pull out
the starter rope firmly until engine fires
(indicated by a ‘cough’ from the engine).
Original Instructions Version July 15
25C-SP Grass Trimmer
(f)
Fig 5 - Move the choke lever (f) to the
open (
) position.
Fig 6 - Pull the starter rope until the engine
starts, then squeeze the throttle briefly to
release the fast idle control and return the
engine to idle.
Allow the engine to warm up before use. When cutting, always use the Grass Trimmer on full
throttle.
NOTE Avoid pulling the rope to its full travel or releasing the recoil handle when the recoil rope is
extended. Such actions can cause starter failure.
Hot Engine Starting
•
•
•
•
Set the ignition switch to the START ( I ) position.
Check the clear return fuel line. If the line is empty, push the air purge bulb until fuel is
visible in the clear return fuel line.
Pull the starter rope until the engine starts.
If the engine does not start after 5 pulls, use the Cold Start procedure.
Overchoking
Should the engine become flooded due to overchoking, turn the ignition switch off, unscrew the
spark plug, wipe it dry or replace.
Stopping the Engine
NOTE
Set the engine to idling by releasing the throttle lever.
Set the ignition switch to the off position ‘’O’’ (STOP).
If the engine fails to stop, set the choke lever to the closed position to stall the engine; do not use
the machine until the ignition switch is repaired.
Original Instructions Version July 15
19
25C-SP Grass Trimmer
Running In
During the first ten hours of work, avoid running the engine at maximum speed for a prolonged
period until all the components have bedded in, after the engine has been run in, it will reach its
maximum power.
Transportation
Never transport the Grass Trimmer with the engine running. An engine that is running
could be accidently accelerated causing the blade to engage.
Make sure the blade safety guards are in place when transporting the Grass Trimmer.
When carrying by hand, the cutting head should be pointing backwards.
Ensure the Grass Trimmer is secure when transporting in a vehicle and the tank is drained of fuel.
Maintenance
IMPORTANT
After every use, check that all nuts, bolts and screws are securely fastened and tighten if
necessary.
In the event of an accident, breakdown or blockage, ensure the engine is turned off before any
work is carried out to rectify this.
Make sure the engine has stopped and is cool before performing any service to the machine.
Contact with moving cutting head or hot muffler may result in a personal injury.
Fuel Filter
Every 15 hours of operation, using a wire hook, take the fuel filter from the fuel tank and clean or
replace with a new fuel filter.
20
Original Instructions Version July 15
25C-SP Grass Trimmer
Spark Plug
Poor starting or misfiring is often caused by a fouled or defective spark plug, clean and reset the
gap to 0.65 mm, or replace the spark plug with BPMR7A as necessary.
Air Filter
(b)
(a)
(c)
Before using the grass trimmer, check the air filter (a). Being clogged, will reduce the engine
performance.
Remove the air filter cover by unscrewing the filter cover release (b) and opening the filter cover
(c). clean the filter element in warm, soapy water, dry completely before installing. If the element
is broken or shrunk, replace with a new one.
Original Instructions Version July 15
21
25C-SP Grass Trimmer
Carburettor
(a)
The carburettor mixture setting has been set at the factory and will not need adjusting.
Adjusting the idle speed: If adjustment is necessary turn the T screw (a) clock wise until the
cutting head starts to move, then turn the screw T anticlockwise until the cutting head stops.
If the idle speed cannot be adjusted to stop the cutting head moving at idle, contact
your dealer for repair before use.
Safety Lock
(c)
(b)
The safety lock is to prevent the throttle lever from accidentally being engaged. The throttle lever
(b) can only be pressed in if the safety lock (c) is held down. Check if the safety lock and throttle
lever returns to its original position and the engine returns to idling when you release your hand
from the handle.
Any defects contact your nearest service agent for repairs before using the machine.
22
Original Instructions Version July 15
25C-SP Grass Trimmer
Replacing the Nylon Cord
Check to see if the nylon head is damaged before replacing the cord. If you can see serious traces
of wear or damage, you must replace the complete nylon head.
(f)
(b)
(f)
(c)
(d)
(e)
(a)
(i)
(g)
(h)
1. Stop the engine.
2. Open the nylon head by pushing on the catch, (a), and lifting the cover (b).
3. Pull the bobbin out of the nylon head and take out the rest of the nylon cords.
4. Cut a new length of cord, 2.0mm Ø and 3 meters long.
5. Fold the new cord in half and place the centre of the fold (c) into the clip (d) in the empty bobbin.
6. Wind the line in the direction of the arrows on the bobbin, with half of the line above and half
below the divider (e). Maintain an even and firm tension onto the bobbin, being careful not to twist
the line.
6. After winding the cord, insert both ends into the notches on the bobbin, (f).
7. Put the filled bobbin back into the carrier (g). Release the cords from the notches in the bobbin
and thread them into the eyelets in the carrier (h). The cords should stick out appx 15 cm either
side.
8. Refit the carrier to the head (i), ensuring it is securely clicked into place.
Never use a cutting device other than those supplied by the manufacturer. (Steel cord is never
allowed) Always use original spare parts in order to benefit from continuous warranty.
Original Instructions Version July 15
23
25C-SP Grass Trimmer
Troubleshooting
Engine will not start, power loss:
•
•
•
•
•
•
Check that the fuel tank is not empty. Fill with mixed fuel.
The fuel does not reach the carburettor. Change the fuel filter in the fuel tank.
There is water in the fuel. Drain and clean the fuel system.
The air filter is dirty. Clean or replace the air filter.
There are carbon deposits in the exhaust muffler restricting the engine. Clean or change
the muffler.
Spark plug is worn. Replace spark plug.
Service Schedule
Component
Procedure
Fuel leaks /
spillage
Wipe up
Fuel tank, filter
Inspect /
clean
Idle adjust
screw
See p.22
Spark plug
BPMR7A
Clean and
readjust
plug gap
Before
use
Every 25
Hours
Every 50
Hours
Note
X
Replace if
necessary
X
X
Adjust
carburettor
if necessary
X
GAP .025”
(0.60.7mm)
Replace, if
necessary
X
Cylinder fins,
Intake air
cooling vent
Clean
Muffler, Spark
arrestor,
cylinder
exhaust port
Clean
Throttle lever,
ignition switch
Check
operation
X
Air filter
Clean
X
Screws, nuts,
bolts
Tighten /
replace
X
24
Every 15
Hours
X
X
Not
adjustment
screws
Original Instructions Version July 15
25C-SP Grass Trimmer
Specifications
Model
25C-SP Special Edition
Engine type
1E34F-4 (air cooled 2-stroke petrol engine)
Power (max.)
0.75Kw
Engine displacement
25.4cc
Idling speed
3100 ± 300
Engine maximum speed no load
Grass Trimmer 9000 rpm
Cutting diameter
Nylon Head 430mm
Cutting Line Diameter
2.0mm
Fuel
Mixture (Petrol 40: Oil 1)
Fuel tank Volumes
0.9L
Net weight (without fuel/harness)
6.3
Noise LWA dB(A)
110.4
Spark plug
BPMR7A
Carburetor
Diaphragm Type
Original Instructions Version July 15
25
25C-SP Grass Trimmer
Parts Diagram - Engine
26
Original Instructions Version July 15
25C-SP Grass Trimmer
Parts List - Engine
ID No.
Part Number
Description
1
MIGB/T2671.2 M5X16
SCREW M5X16
2
MIGB/T93 M5
SPRING WASHER M5
3
MIGB/T97.1 M5
WASHER M5
4
MIGB/T2671.2 M5X25
SCREW M5X25
5
MIGB/T93 M5
SPRING WASHER M5
6
MIGB/T97.1 M5
WASHER M5
7
MITBC260AD.01.00.00-10
BUSHING
8
MITBC260D.01.12.00-00
RECOIL STARTER ASSY
9
MITBC260D.01.00.02-00
STARTER RATCHET ASSY
10
MIGB/T97.1 M8
FLAT WASHER M8
11
MIYD38-3.01.01.02-00
OIL SEAL 12X22X7
13
MITBC260D.01.01.00-3
GASKET - CRANKCASE
14
MIGB/T276 6001
BEARING 6001
16
MIGB/T1099 3X3.5X10
SEMI-CIRCULAR KEY 3X3.5X10
17
MITBC260D.01.03.03-00
BEARING 6001 8×11×11
18
MIYD38-3.01.03.00-4
PISTON PIN CIRCLIP
19
MIGJB25D.01.03.00-2
PISTON PIN
20
MIGJB25D.01.03.02-00
PISTON
21
MIGJB25D.01.03.00-1
PISTON RING
22
MITBC260D.01.00.00-4
GASKET - CYLINDER
23
MITBC261D.01.00.00-1
CYLINDER
24
MIGB/T2671.2 M5X20
SCREW M5X20
25
MIGB/T93 M5
SPRING WASHER M5
26
MIGB/T97.1 M5
WASHER M5
27
SPBPMR7A
SPARK PLUG (NGK BPMR7A OR EQUIV)
28
MITBC260AD.01.00.00-2
ENGINE COVER
29
MITBC260D.01.11.02-00
WIRE
30
MITBC430D.01.11.00-1
SPARK PLUG COVER
31
MITBC260D.01.11.01-00
IGNITION COIL
32
MIGB/T2671.2 M5X20
SCREW M5X20
33
MIGB/T93 M5
SPRING WASHER M5
Original Instructions Version July 15
27
25C-SP Grass Trimmer
Parts List - Engine
ID No.
Part Number
Description
34
MIGB/T97.1 M5
WASHER M5
35
MIGB/T119.2 5X10
PIN 5X10
37
MIGB/T2671.2 M5X30
SCREW M5X30
38
MIGB/T93 M5
SPRING WASHER M5
39
MIGB/T97.1 M5
WASHER M5
40
MIYD38-3.01.01.02-00
OIL SEAL 12X22X7
41
MITBC260D.01.10.00-00
FLYWHEEL
42
MIGB/T6177.2 M8X1
NUT M8X1
43
MIGJB25D.01.00.00-15
WAVE SPRING WASHER
44
MITBC260D.01.00.03-00
CLUTCH ASSEMBLY
45
MIGJB25D.01.00.00-15
WAVE SPRING WASHER
46
MIGJB25D.01.00.00-14
BOLT FOR CLUTCH
47
MIGB/T119.2 4X12
PIN 4X12
48
MITBC260D.01.01.00-4
FLYWHEEL COVER
49
MIGB/T2671.2 M5X20
SCREW M5X20
50
MIGB/T93 M5
SPRING WASHER M5
51
MIGB/T97.1 M5
WASHER M5
52
MITBC260D.01.14.01-00
CLUTCH DRUM ASSEMBLY
53
MIGB/T893.1 35
CIRCLIP (SIZE 35)
54
MIGB/T276 6202-2Z
BEARING 6202
55
MIGB/T894.1 15
STOP RING (SIZE 15)
56
MITBC260D.01.14.00-1
CLUTCH DRUM HOUSING
57
MIGB/T2671.2 M6X20
SCREW M6X20
58
MIGB/T93 M6
LOCK WASHER M6
59
MIGB/T97.1 M6
FLAT WASHER M6
60
MITBC430D.01.14.00-2
ANTIVIBE RUBBER
61
MITBC430D.01.14.00-4
CLAMP RH
62
MITBC430D.01.14.00-3
CLAMP LH
63
MIGB/T2671.2 M5X25
SCREW M5X25
64
MIGB/T93 M5
SPRING WASHER M5
65
MIGB/T97.1 M5
WASHER M5
28
Original Instructions Version July 15
25C-SP Grass Trimmer
Parts List - Engine
ID No.
Part Number
Description
66
MIGB/T2671.2 M5X12
SCREW M5X12
67
MIGB/T93 M5
SPRING WASHER M5
68
MIGB/T97.1 M5
WASHER M5
69
MIGB/T2671.2 M5X55
SCREW M5X55
70
MIGB/T93 M5
SPRING WASHER M5
71
MIGB/T97.1 M5
WASHER M5
72
MITBC226D.1-2
MUFFLER COVER
73
MITBC260D.01.09.00-00
MUFFLER
74
MIGB/T2672 M4X14
SCREW M4X14
75
MIGB/T93 M4
WASHER M4
76
MIGB/T97.1 M4
PLAIN WASHER M4
77
MITBC260AD.01.00.00-8
HEAT SHEILD
78
MITBC260AD.01.00.00-6
GASKET - MUFFLER
79
MIGB/T2671.2 M5X12
SCREW M5X12
80
MIGB/T93 M5
SPRING WASHER M5
81
MIGB/T97.1 M5
WASHER M5
82
MIGB/T2671.2 M5X12
SCREW M5X12
83
MIGB/T93 M5
SPRING WASHER M5
84
MIGB/T97.1 M5
WASHER M5
85
MITBC260D.01.00.00-5
GASKET
86
MITBC260D.01.00.01-00
MANIFOLD
87
MIGB/T2671.2 M5X20
SCREW M5X20
88
MIGB/T93 M5
SPRING WASHER M5
89
MIGB/T97.1 M5
WASHER M5
90
MIGJB25D.01.00.00-6
GASKET
91
MITBC260D.01.06.00-00
CARBURETTOR
92
MIGJB25D.01.08.00-00
AIR FILTER ASSY
93
MIGB/T2671.2 M5X50
SCREW M5X50
94
MIGB/T93 M5
SPRING WASHER M5
95
MIGB/T97.1 M5
WASHER M5
96
MITBC430D.01.13.01-00
FUEL CAP ASSY
Original Instructions Version July 15
29
25C-SP Grass Trimmer
Parts List - Engine
ID No.
Part Number
Description
97
MITBC260D.01.13.00-1
FUEL TANK
98
MITBC430D.01.13.00-2
AV RUBBER
99
MITBC260D.01.00.00-7
BRACKET- FUEL TANK
100
MIGB/T2671.2 M5X25
SCREW M5X25
101
MIGB/T93 M5
SPRING WASHER M5
102
MIGB/T97.1 M5
WASHER M5
103
MITBC430D.01.13.00-5
RETURN PIPE
104
MITBC430D.01.13.00-3
GROMMET
105
MITBC430D.01.13.00-4
FUEL PIPE
106
MITD38-3.03.04-00
FUEL FILTER
30
Original Instructions Version July 15
25C-SP Grass Trimmer
Parts Diagram - Shaft
Original Instructions Version July 15
31
25C-SP Grass Trimmer
Parts List - Shaft
ID No.
Part Number
Description
1
MITTR260SJ.03.02-00
OUTER SHAFT - UPPER
4
MITTR261DJ.03.03-00
COUPLING
5
MIGB/T70.1 M5X25
CAP HEAD SCREW M5X25
6
MIGB/T93 M5
SPRING WASHER M5
7
MIGB/T97.1 M5
WASHER M5
8
MIGB/T70.1 M5X12
BOLT M5X12
9
MIGB/T93 M5
SPRING WASHER M5
10
MIGB/T97.1 M5
WASHER M5
11
MIGB/T5781 M6X50
BOLT M6X50
12
MIGB/T96 M6
WASHER M6
13
MITBC431DJ.03.03-7
LOCK KNOB
14
MIGB/T923 M6
NUT M6
15
MITBC431DJ.03.03-3
LOCK ASSY
16
MITTR260SJ.03.01-3
SPRING WASHER
17
MITTR260SJ.03.01-1
CURVE TUBING
18
MIGB/T6170 M5
NUT M5
19
MIGB/T70.1 M5X8
SCREW M5X8
20
MIGB/T93 M5
SPRING WASHER M5
21
MIGB/T97.1 M5
WASHER M5
22
MIGB/T70.1 M5X14
CAP HEAD SCREW M5X14
23
MIGB/T93 M5
SPRING WASHER M5
24
MIGB/T97.1 M5
WASHER M5
25
MITTR260SJ.06.00-2
GUARD CLAMP
26
MITTR260SJ.06.00-1
TRIMMER GUARD
27
MITTR260SJ.06.00-3
CUTTING BLADE
28
MIGB/T70.1 M5X14
CAP HEAD SCREW M5X14
29
MIGB/T93 M5
SPRING WASHER M5
30
MIGB/T97.1 M5
WASHER M5
31
MITTR260SJ.02.01-00
STRING HEAD ASSEMBLY
32
MITTR260SJ.03.04-3
NUT COVER
33
MITTR260SJ.03.04-1
HOUSING BEARING
32
Original Instructions Version July 15
25C-SP Grass Trimmer
Parts List - Shaft
ID No.
Part Number
Description
34
MITTR260SJ.03.06-00
BEARING 11X15X12.5
35
MITTR260SJ.03.04-2
OUTPUT SHAFT
36
MITTR260SJ.03.04-00
DRIVE ASSY
37
MITTR261SJ.03.00-2
LINER
38
MITTR260SJ.03.05-2
EYELET
39
MITTR261SJ.03.08-00
FLEXIBLE SHAFT
40
MIGB/T70.1 M5X30
CAP HEAD SCREW M5X30
41
MIGB/T93 M5
SPRING WASHER M5
42
MIGB/T97.1 M5
WASHER M5
43
MITBC430S.05.01-1
LOOP HANDLE - UPPER
44
MITBC430S.05.01-3
AV RUBBER
45
MITBC430S.05.01-2
LOOP HANDLE - LOWER
46
MIGB/T6170 M5
NUT M5
47
MITTR260SJ.02.00-1
FOAM GRIP
48
MITBC430DJ.03.00-1
DRIVE SHAFT - UPPER
49
MIGB/T6170 M5
NUT M5
51
MITBC430S.05.02-4
THROTTLE SPRING
52
MITBC430S.05.05-00
CABLE (A)
53
MITBC430S.05.06-00
CABLE (B)
54
MITBC430S.05.02-8
CONDUIT
55
MITBC430S.05.03-00
THROTTLE CABLE
57
MIGB/T2671.2 M5X22
SCREW M5X22
58
MIGB/T845 ST4.2X19
SCREW ST4.2X19
59
MITBC430S.05.02-3
THROTTLE TRIGGER
60
MITBC430S.05.04-00
SWITCH
61
MITBC430S.05.02-5
LOCK TRIGGER
62
MITBC430S.05.02-00
THROTTLE ASSY
Original Instructions Version July 15
33
25C-SP Grass Trimmer
34
Original Instructions Version July 15
25C-SP Grass Trimmer
Original Instructions Version July 15
35
25C-SP Grass Trimmer
CONDITIONS OF WARRANTY
The manufacturer warrants the product against faulty materials and workmanship for a period
of 1 year from the date of first purchase. The warranty is applicable when the product is used in
a “home owner” application. If products are used for commercial or professional purposes, the
warranty period is for 3 months from the date of first purchase. Warranty does not extend to
failure due to fair wear and tear.
The manufacturer undertakes to replace, any spare parts that are classified as defective by an
appointed Mitox service dealer. The manufacturer will not accept liability for the replacement of
the machine, either partially or wholly, and /or consequential damages and /or interest charges
either directly or indirectly.
Warranty does not cover failure due to:
Insufficient maintenance.
Incorrect fuel mixture and stale fuel.
Abnormal use or accidental damage.
Incorrect assembly, adjustment or operation of the product.
Spare parts that are subject to wear e.g. safety parts, blades, blade supports, bearings, cables,
guards, deflectors, spark plugs, air filters etc.
Neither does warranty extend to:
Freight and packing costs.
Use of non-genuine spare parts i.e. those from another manufacturer.
Use of the machine for any other purpose than that for which it was designed.
Use and maintenance of the machine in a manner not described in the owner’s manual.
As part of our policy of continuous product improvement, we reserve the right to alter or
amend this specification without notice. As a result, the product may differ from the information
contained herein but any alteration will only be implemented without notice if it is classified as an
improvement to the above specification.
READ THE MANUAL CAREFULLY BEFORE OPERATING THE MACHINE
When ordering spare parts, please quote the part number, this can be found in the parts list
included in this manual. Retain the receipt of purchase without which no warranty can be offered.
Mitox Garden Machinery
Wincanton Business Park
Wincanton
Somerset
BA9 9RS
36
Original Instructions Version July 15

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
