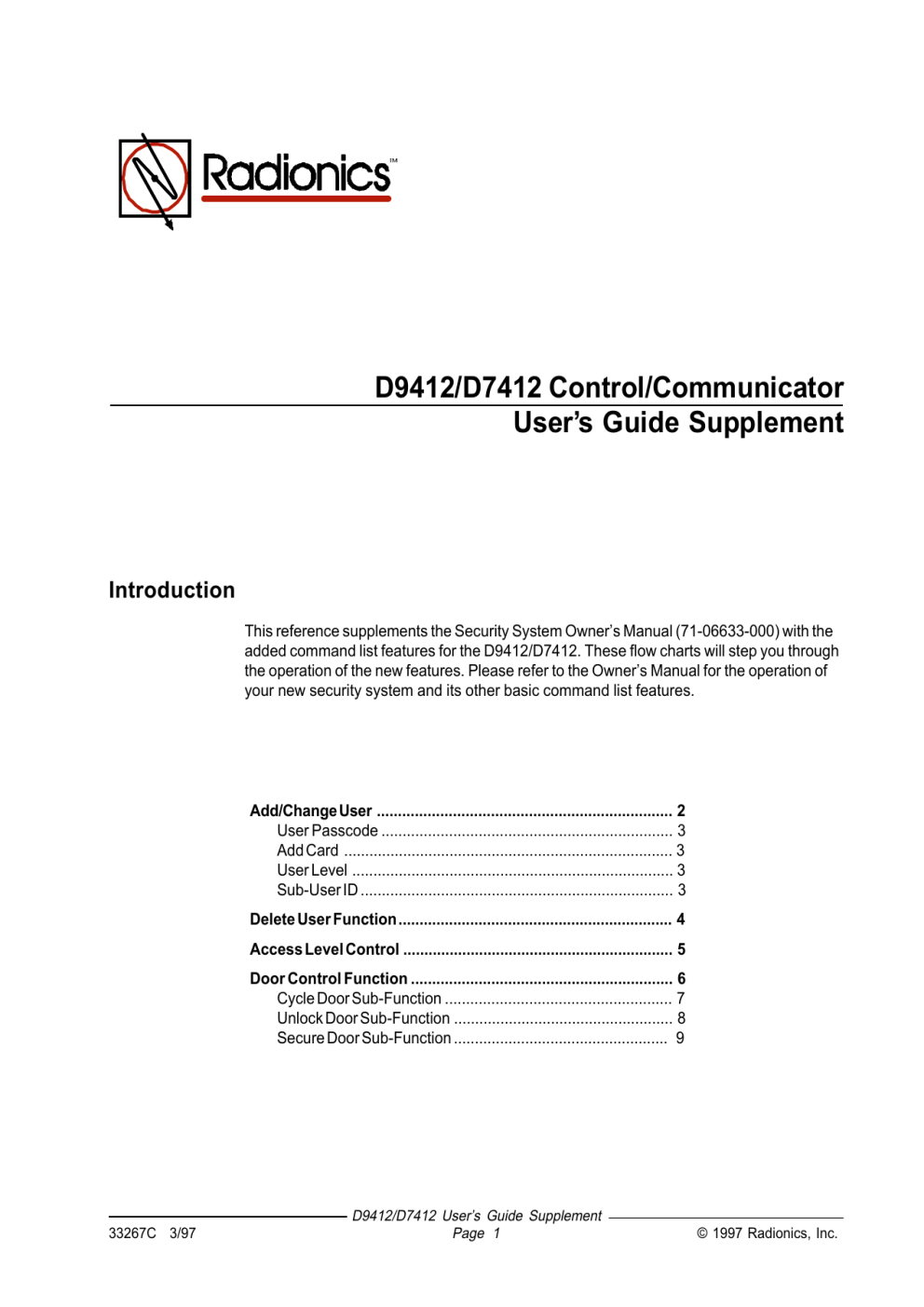

D9412/D7412 Control/Communicator
User’s Guide Supplement
Introduction
This reference supplements the Security System Owner’s Manual (71-06633-000) with the
added command list features for the D9412/D7412. These flow charts will step you through
the operation of the new features. Please refer to the Owner’s Manual for the operation of
your new security system and its other basic command list features.
Add/Change User ...................................................................... 2
User Passcode ..................................................................... 3
Add Card .............................................................................. 3
User Level ............................................................................ 3
Sub-User ID .......................................................................... 3
Delete User Function................................................................. 4
Access Level Control ................................................................ 5
Door Control Function .............................................................. 6
Cycle Door Sub-Function ...................................................... 7
Unlock Door Sub-Function .................................................... 8
Secure Door Sub-Function ................................................... 9
33267C 3/97
D9412/D7412 User’s Guide Supplement
Page 1
© 1997 Radionics, Inc.
ADD/CHANGE USER FUNCTION
Use this function to add a passcode/card to
your system without assistance from your
security company. You need to know which
user numbers are available, the authority
level you want to assign to the new user, and
the areas in which it will be valid before you
add it. The D9412 has available up to 249
Users; the D7412 has available 99 Users.
IDLE TEXT
Press the MENU key to enter the
Function Menu (or press CMD 46
to go directly to ENTER USER #)
then press
NEXT
until
ADD USER ?
ENTER
ENTER USER #
Key in user number
NEXT
PREV
USER NUM:
###
ENTER
PREV
NEXT
User Text
PREV
ENTER
If User Number exists
ADD PASSCODE ?
ESC
CHANGE PASSCODE ?
PREV
NEXT
If User Number exists
ESC
ADD CARD ?
PREV
ESC
NEXT
CHANGE CARD ?
ADD LEVEL ?
If User Number exists
PREV
ESC
33267C 3/97
NEXT
SUB USER ID ?
D9412/D7412 User’s Guide Supplement
Page 2
CHANGE LEVEL ?
© 1997 Radionics, Inc.
ADD CARD
USER PASSCODE
If New User Number
ADD PASSCODE ?
If User Number Exists
CHANGE PASSCODE?
ENTER
If New Card
If Card Exists
ADD CARD ?
CHANGE CARD ?
ENTER
ENTER NEW CODE
ENTER
Key in passcode
PRESENT CARD
ENTER
Card Presented at Reader
NEW CODE * * * * *
*
CARD ADDED
CARD CHANGED
ENTER
ENTER AGAIN
ENTER
NEW CODE * * * * *
*
ENTER
PASSCODE ADDED
PASSCODE CHANGED
SUB-USER ID
SU B U SER ID?
ENTER
SU B U SER #?
USER LEVEL
If New User Number
VALID AREA #?
If User Number Exists
Key in 1, 2, or 3
CHANGE LEVEL ?
ENTER
ENTER
AREA #
#?
ENTER
When all area
assignments
have been made
PRESENT CARD
Card Presented at Reader
CARD ADDED
ENTER
LEVEL ADDED
PRESENT CARD
If Sub User Number Exists
CARD CHANGED
LEVEL CHANGED
NOTE: At the end of each function the user may press theESC key to return to the
ENTER U SER # prom pt. To return to idle text, you must press theESC key again.
33267C 3/97
D9412/D7412 User’s Guide Supplement
Page 3
© 1997 Radionics, Inc.
DELETE USER FUNCTION
IDLE TEXT
Press the MENU key to enter the
Function Menu (or press CMD 53
to go directly to ENTER USER #)
then press
NEXT
until
When using this function to delete user’s out
of the system, more information is now
provided during the process to make sure
you are deleting the correct user.
DELETE USER ?
ENTER
Note: display will show
NOT IN USE
ESC
ENTER USER #
if user number is not in
the system
PREV
NOTE
NEXT
Pressing PREV shows the previous User
Number or User Name in the user list.
Pressing NEXT shows the next User
Number or User Name in the user list.
USER NUM:
###
ESC
ENTER
PREV
NEXT
User Text
ESC
ENTER
DELETE USER ### ?
NOTE :
ENTER
Pressing ESC while within the DELETE USER
function, returns the user to the ENTER USER #
display prompt.
USER DELETED
Pressing ESC while at the ENTER USER #
display prompt, returns the user to the DELETE USER
prompt in the function menu.
33267C 3/97
ESC
D9412/D7412 User’s Guide Supplement
Page 4
ESC
2 second timeout
© 1997 Radionics, Inc.
ACCESS LEVEL CONTROL
Use this function to manually enable/disable
access authority levels assigned to users. This
function can be used to temporarily disable a
user's access level instead of deleting and
adding the user.
IDLE TEXT
Press the MENU key to
enter the Function Menu
then press
NEXT
until
ACCESS LEVEL CTL
ENTER
ENTER LEVEL:
Enter Access Authority Level #
ENTER
If Access Level is
currently disabled:
LEVEL
# ENABLE?
Pressing ENT will enable the
level chosen and return you
to the ENTER LEVEL: prompt
If Access Level is
currently enabled:
LEVEL # DISABLE?
Pressing ENT will disable the
level chosen and return you
to the ENTER LEVEL: prompt
NOTE: Pressing the ESC key twice will exit you out of this function.
After 20 seconds of inactivity, the system returns to idle text.
33267C 3/97
D9412/D7412 User’s Guide Supplement
Page 5
© 1997 Radionics, Inc.
DOOR CONTROL FUNCTION
To access the Door Control function, press
COMMAND 46 or press the MENU key and the
NEXT key until DOOR CONTROL? appears,
then press the ENT key. Three functions are
nested inside the Door Control function: Cycle
Door, Unlock Door, and Secure Door. The
flowchart shown below describes the process of
how to navigate through this function.
IDLE TEXT
Press the MEN U key to enter the
Function Menu (or press CMD 46
to go directly to CYCLE DOO R?)
then press
NEXT
until
DOOR CONTROL ?
PREV
ESC
ENTER
C YCL E DOO R ?
NEXT
ENTER
CYCLE 1 2 3 4 5 6 7 8
ESC
(See Note 2)
PREV
ESC
UNLOCK D OOR ?
NEXT
ENTER
UNLOCK 1 2 3 4 5 6 7 8
ESC
(See Note 2)
PREV
ESC
SECURE DOO R ?
NEXT
SECURE 1 2 3 4 5 6 7 8
ESC
(See Note 2)
N OTE:
Pressing ESC while within any one of the sub-functions
(CYCLE DO OR, UNLO CK DO OR,
SECURE DOO R), returns the user to the top
level display prompt for that sub-funtion.
Pressing ESC while at the top level display
prompt of any sub-funtion (C YCL E DOO R, UNLOCK
D OOR , SECURE DO OR ), returns the user to the
D OOR CO NTROL ? prompt in the function menu.
33267C 3/97
ENTER
C YCL E DOO R?
N OTE 2:
# = Door is normal (available)
- = Door is not active, not in scope,
or user does not have access
level authority
C = Door is on timed door sequence
U = Strike and shunt are latched active
(held open)
X = Strike and shunt are deactivated
(secured)
D9412/D7412 User’s Guide Supplement
Page 6
© 1997 Radionics, Inc.
CYCLE DOOR SUB-FUNCT ION
User’s m ay use this function to mom entarily unlock the access door to allow a person
an area. The am ount of tim e the door stays unlocked is program med by your security
company.
20 second
time out
CYCLE DOOR ?
IDLE TEXT
ENTER
NOTE: Display shows
the status of each
door. (Door 8 is
currently activated to
allow access .)
NEXT -- UNLOCK DOOR ?
PREV -- SECURE DOOR ?
ES C
Displa y rema ins until
ano ther ke y is pressed
CYCLE 1 2 3 4 5 6 7 C
Enter doo r #
to cycle
Is door ready to
cycle (i.e., not
secured or
unlocked)?
No
Yes
NOTE: Display replaces door number with
"C" while door is open. Door num ber returns
when door is closed and strike is deactivated.
NOTE: PressingESC a t a ny po int,
retu rn s the user to the UNLOCK DOOR
displa y prom pt.
33267C 3/97
D9412/D7412 User’s Guide Supplement
Page 7
© 1997 Radionics, Inc.
UNLOCK DOOR SUB-FUNCTION
Use r’s m ay u se this functio n to kee p the door unlocked to allow free access. Th is
fu nction is u sed to lock the doo r back to n orma l operatio
20 second
tim eout
UNLOCK DOOR ?
IDLE TEXT
ENTER
ESC
NEXT -- SECURE DOOR ?
PREV -- CYCLE DOOR ?
ESC
UNLOCK 1 2 3 4 5 6 7 8
Enter do or to
un lock
Is door
secured or
not available
to unlock?
Yes
No
Yes
(relock door)
Is door
unlocked?
NOTE: Display replaces
"U" with door number.
No
(unlock door)
NOTE: Display replaces
door number with "U".
33267C 3/97
D9412/D7412 User’s Guide Supplement
Page 8
© 1997 Radionics, Inc.
SECURE DOOR SUB-FUNCTION
The Secure Door function can be used to prohibit
access to users regardless of their access authority level.
20 second
timeout
SECURE DOOR ?
IDLE TEXT
ENTER
ESC
NEXT -- CYCLE DOOR ?
PREV -- UNLOCK DOOR ?
ESC
SECURE 1 2 3 4 5 6 7 8
Enter door to
secure
Is door
available?
No
Yes
Yes
(return door
to normal)
Is door
already
secured?
NOTE: Display replaces
X" with door number.
No
(secure door)
NOTE: Display replaces
door number with "X".
33267C 3/97
D9412/D7412 User’s Guide Supplement
Page 9
© 1997 Radionics, Inc.
™ The Radionics logo is a registered trademark of Radionics
© 1997 Radionics, Inc., Salinas, CA, USA. All rights reserved.
Radionics, Inc., PO Box 80012, Salinas, California 93901-0012
