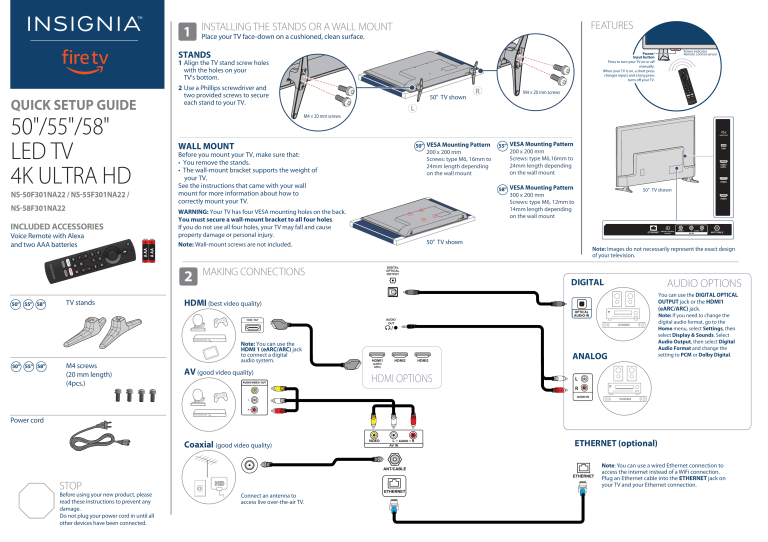

Insignia NS-55F301NA22 55" Class F30 Series LED 4K UHD Smart Fire TV Quick Setup Guide

1
FEATURES
INSTALLING THE STANDS OR A WALL MOUNT
Place your TV face-down on a cushioned, clean surface.
STANDS
1 Align the TV stand screw holes
with the holes on your
TV's bottom.
2 Use a Phillips screwdriver and
two provided screws to secure
each stand to your TV.
QUICK SETUP GUIDE
50"/55"/58"
LED TV
4K ULTRA HD
M4 × 20 mm screws
AUDIO OUT
WALL MOUNT
Before you mount your TV, make sure that:
• You remove the stands.
• The wall-mount bracket supports the weight of
your TV.
See the instructions that came with your wall
mount for more information about how to
correctly mount your TV.
NS-58F301NA22
INCLUDED ACCESSORIES
AAA
AAA
+ +
TV stands
50" VESA Mounting Pattern
55" VESA Mounting Pattern
200 x 200 mm
Screws: type M6, 16mm to
24mm length depending
on the wall mount
200 x 200 mm
Screws: type M6,16mm to
24mm length depending
on the wall mount
USB
HDMI1
(ARC)
HDMI2
58" VESA Mounting Pattern
50” TV shown
300 x 200 mm
Screws: type M6, 12mm to
14mm length depending
on the wall mount
WARNING: Your TV has four VESA mounting holes on the back.
You must secure a wall-mount bracket to all four holes.
If you do not use all four holes, your TV may fall and cause
property damage or personal injury.
Note: Wall-mount screws are not included.
2
50" 55" 58"
50" TV shown
M4 × 20 mm screws
NS-50F301NA22 / NS-55F301NA22 /
Voice Remote with Alexa
and two AAA batteries
HDMI3
ETHERNET
50" TV shown
MAKING CONNECTIONS
AUDIO/VIDEO OUT
R
ANT/CABLE
You can use the DIGITAL OPTICAL
OUTPUT jack or the HDMI1
(eARC/ARC) jack.
SOUNDBAR
/
AV (good video quality)
L AUDIO
AV IN
AUDIO OPTIONS
DIGITAL
AUDIO
OUT
M4 screws
(20 mm length)
(4pcs.)
VIDEO
DIGITAL
OPTICAL
OUTPUT
HDMI (best video quality)
Note: You can use the
HDMI 1 (eARC/ARC) jack
to connect a digital
audio system.
DIGITAL OPTICAL
OUTPUT
Note: Images do not necessarily represent the exact design
of your television.
OPTICAL
AUDIO IN
50" 55" 58"
Power indicator
Remote control sensor
Power/
Input button
Press to turn your TV on or off
manually.
When your TV is on, a short press
changes inputs and a long press
turns off your TV.
HDMI1
HDMI2
HDMI3
ANALOG
Note: If you need to change the
digital audio format, go to the
Home menu, select Settings, then
select Display & Sounds. Select
Audio Output, then select Digital
Audio Format and change the
setting to PCM or Dolby Digital.
(eARC/
ARC)
HDMI OPTIONS
L
R
AUDIO IN
SOUNDBAR
Power cord
Coaxial (good video quality)
VIDEO
L AUDIO
AV IN
R
ETHERNET (optional)
ANT/CABLE
ETHERNET
STOP
Before using your new product, please
read these instructions to prevent any
damage.
Do not plug your power cord in until all
other devices have been connected.
HD
Connect an antenna to
access live over-the-air TV.
ETHERNET
Note: You can use a wired Ethernet connection to
access the internet instead of a WiFi connection.
Plug an Ethernet cable into the ETHERNET jack on
your TV and your Ethernet connection.
TURNING ON YOUR TV
3
4
COMPLETE THE ONSCREEN SETUP
Your TV should automatically pair to your new Voice Remote with Alexa.
1 Plug the power cord into the back
of your TV and a power outlet.
1 If your remote is not paired, press
. If you continue to have issues, re-insert or replace the batteries and try again.
AAA
+
+
2 Select your Wi-Fi network from the displayed network list.
AAA
Note: If your Wi-Fi network is password protected, enter your network password using the on-screen keyboard.
If your network is hidden, select the Join Other Network tile.
A Smarter TV Is Here
4K Picture Quality, Fire TV Experience Built-in,
Voice Remote with Alexa
2 Remove the remote control
cover and install the batteries.
3 Select your experience: Full (recommended) or Basic.
• Select Full to access live TV, over tens of thousands of streaming movies and TV episodes, thousands of apps, and Alexa skills.
To get started, sign into or sign up for a free Amazon account.
• Select Basic to access live TV and the six preset streaming apps. Alexa and the full Appstore are not included.
Access Your Favorite Content – All Through One
Home Screen
Fire TV seamlessly integrates live over-the-air TV and
streaming channels on a unified home screen.
3 Press
4 If you connected your TV to an antenna or cable wall jack:
A Go to Settings > Live TV > Channel Scan.
B Follow the on-screen instructions to scan for channels.
Endless Entertainment – Netflix, Prime Video, YouTube,
Hulu, HBO Max, and more
Watch over 500,000 streaming movies and TV episodes with
access to tens of thousands of channels, apps, and Alexa skills.
on your Voice Remote with Alexa.
Note: To browse and watch live TV, use the On Now row or press
on your remote.
Voice Remote with Alexa
Just press and ask to easily find, launch, and control movies
and TV shows.
4 Follow the on-screen instructions.
Full Experience required to access all features described.
USING YOUR VOICE REMOTE WITH ALEXA
FIND YOUR USER GUIDE ONLINE
Voice
Power
Turns your TV on or off. When your TV is off,
the LED indicator on the front of your TV lights red.
Holding down the Voice button activates the
Alexa-enabled microphone on the remote, and
initiates voice input. Releasing the Voice button
ends voice input. With Alexa, you can use your
voice to search for content, control playback,
and more. (Alexa Voice Service requires an
Amazon account).
Navigation
1 Go to www.insigniaproducts.com.
2 Use the search bar to find NS-50F301NA22, NS-55F301NA22
or, NS-58F301NA22.
3 Select Support & Downloads.
4 Next to User Guide, select the language you want.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
Check out our Support Community at
http://community.insigniaproducts.com/ for helpful information
from other Insignia TV owners.
WE’RE HERE FOR YOU
www.insigniaproducts.com
For customer service, call: 1-877-467-4289 (U.S./Canada)
CONTACT AMAZON FIRE TV CUSTOMER SERVICE
www.amazon.com/deviceservices/support
Navigate on-screen (up, down, left, and right).
Select
Home
Takes you to the Home Screen. A long press
activates the Quick Settings Overlay.
Confirms a selection or action.
Menu
Activates contextual commands on the screen.
Back
Returns you to the previous screen.
Rewind
Rewind (long press) and skip back (short press).
Behavior varies by app.
Volume Keys
Volume + increases the volume, and
Volume - decreases the volume.
Guide
Opens the live TV Channel Guide.
Mute
Mutes the sound.
Prime Video
Launches Prime Video from any screen
or when your TV is off.
App 1
Launches App 1 from any screen or when
your TV is off.
Play / Pause
Resumes or pauses playback.
Forward
Fast forward (long press) and skip ahead
(short press). Behavior varies by app.
Channel
Channel  goes to the next live TV channel, and
channel  goes to the previous live TV channel.
Settings (gear)
Activates quick settings overlay.
Recents
Opens a row of recently watched content so you
can easily switch between content.
Netflix
For DTS patents,
see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, DTS Studio
Sound, and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United
States and other countries.
© 2020 DTS, Inc. ALL RIGHTS RESERVED.
AMAZON TERMS & POLICIES
Before using Fire TV Edition, please read the terms located at
www.amazon.com/deviceservices/support. Please also read all terms and policies for
services related to Fire TV Edition, including but not limited to Amazon's Privacy Notice
located at www.amazon.com/privacy, Amazon's Conditions of Use located at
www.amazon.com/conditionsofuse, and any other terms or usage provisions available at
www.amazon.com/deviceservices/support.
All terms, rules, notices, policies, and provisions are, collectively, the “Agreements.” By using Fire TV
Edition, you agree to be bound by the terms of the Agreements.
Amazon, Fire, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.
Certain services are subject to change at any time, may not be available in all areas and
languages, or in 4K UHD, and may require separate subscriptions or withdrawal.
Launches Netflix from any screen or when your
TV is off.
App 2
Launches App 2 from any screen or when your
TV is off.
Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation. Manufactured under license from Dolby Laboratories.
Confidential unpublished works.
Copyright © 1992–2020 Dolby Laboratories. All rights reserved.
U.S. and Canada:
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A.
©2021 Best Buy. All rights reserved.
V2 ENGLISH 21-0337
