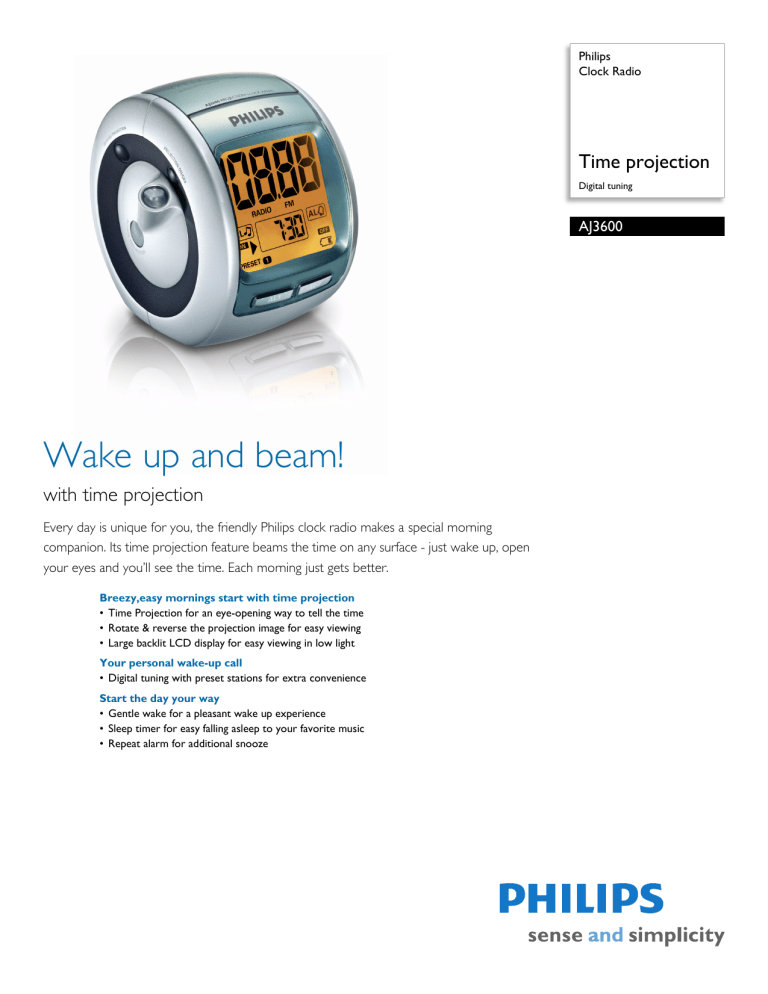

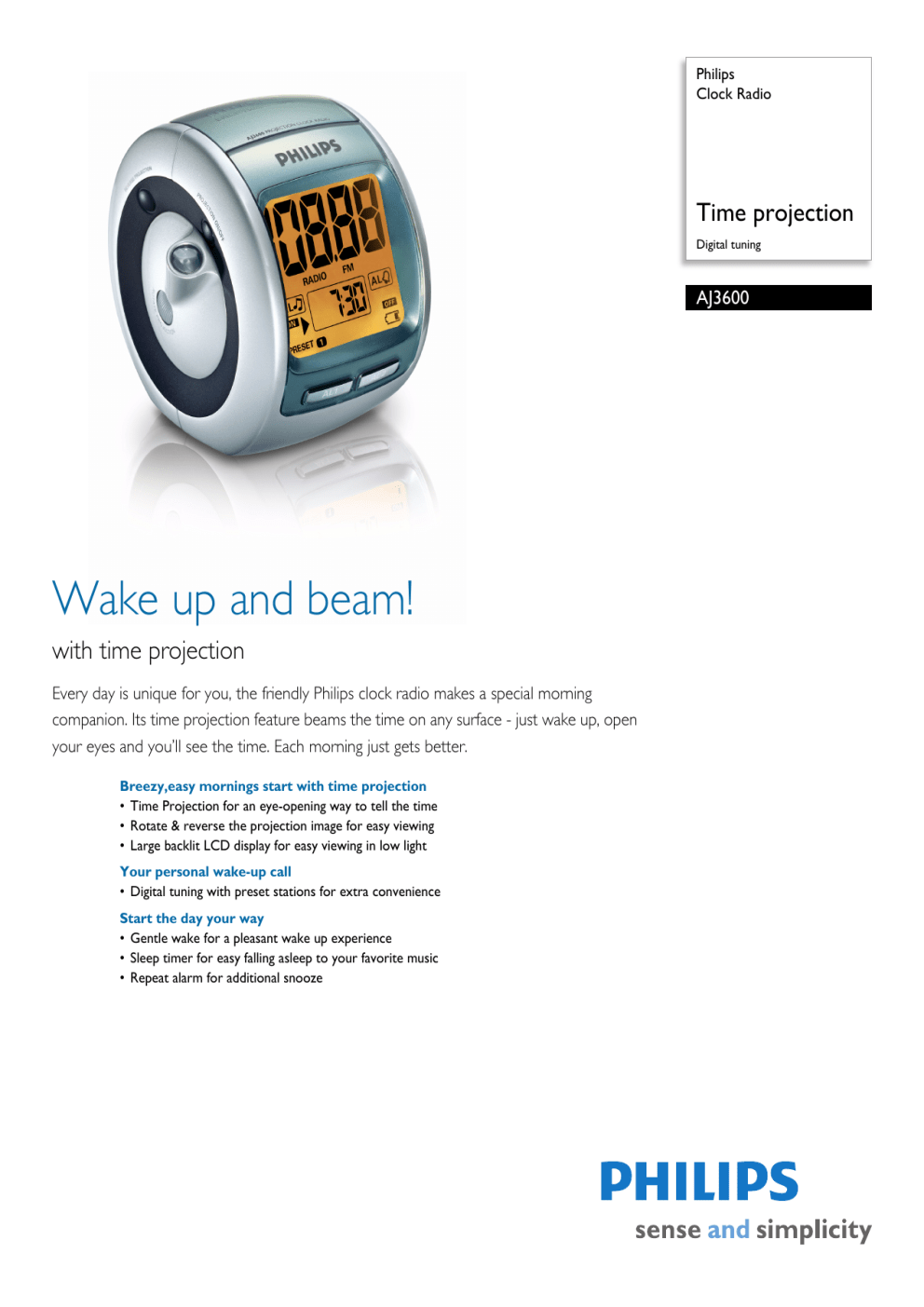

Philips AJ3600/37 Clock Radio Product Datasheet

Philips
Clock Radio
Time projection
Digital tuning
AJ3600
Wake up and beam!
with time projection
Every day is unique for you, the friendly Philips clock radio makes a special morning
companion. Its time projection feature beams the time on any surface - just wake up, open
your eyes and you’ll see the time. Each morning just gets better.
Breezy,easy mornings start with time projection
• Time Projection for an eye-opening way to tell the time
• Rotate & reverse the projection image for easy viewing
• Large backlit LCD display for easy viewing in low light
Your personal wake-up call
• Digital tuning with preset stations for extra convenience
Start the day your way
• Gentle wake for a pleasant wake up experience
• Sleep timer for easy falling asleep to your favorite music
• Repeat alarm for additional snooze
AJ3600/37
Clock Radio
Time projection Digital tuning
Specifications
Highlights
Sound
Accessories
Tuner/Reception/Transmission
Dimensions
• Sound system: mono
• Volume control: up/down
• Output power: 80 mW RMS
• Station presets: 10
• Tuner bands: FM, AM
• Tuner enhancement: auto digital tuning
Convenience
• Alarms: 24 hour alarm reset, buzzer alarm, dual
alarm, gentle wake, radio alarm, repeat alarm
(snooze)
• Backlight color: orange
• Clock enhancements: time projection
• Display Digits: 4
• Display enhancements: brightness control
• Clock: Digital, sleep timer
• Display type: LCD display
• Cables/Connection: power cord
• Others: User Manual
• Warranty: Warranty Certificate
•
•
•
•
•
•
•
•
Gross weight: 0.44 kg
Packaging depth: 158 mm
Packaging height: 100 mm
Packaging width: 222 mm
Weight: 0.7 kg
Main unit depth: 110 mm
Main unit height: 105 mm
Main unit width: 95 mm
Power
•
•
•
•
Battery type: AA size (LR6)
Battery voltage: 1.5 V
Number of batteries: 4
Power type: AC Input
•
Time Projection
Time Projection lets you project the time on any
surface at any angle. The innovative projection system
ensures that the time will always be positioned and
orientated correctly. Unlike conventional LCD
displays, the negative LCD display allows light to pass
through without significant distortion. A powerful LED
luminously lights up the negative LCD to project the
light within a certain distance. With its accurate lens,
the clock projects the image and even adjusts the focus
to your satisfaction. No need to get up and check the
time - just open your eyes!
Rotate & reverse the image
Rotate & reverse the projection image for easy
viewing
Large backlit LCD display
Backlit LCD display ensures easy viewing and
operation in low light conditions, and provides clear
information at a glance.
Digital tuning with presets
Simply tune into the station that you want to preset,
press and hold the preset button to memorize the
frequency. With preset radio stations that can be
stored, you can quickly access your favorite radio
station without having to manually tune the
frequencies each time.
Gentle wake
Start your day right by waking up gently to a gradually
escalating alarm volume. Normal alarm sounds with a
preset volume are either too low to wake you up or
are so uncomfortably loud that you are rudely jolted
awake. Choose to wake up to your favorite music,
radio station or buzzer alarm. Gentle wake's alarm
volume gradually increases from subtly low to
reasonably high in order to gently rouse you.
Sleep Timer
Sleep timer lets you decide how long you want to
listen to music or a radio station of your choice before
falling asleep. Simply set a time limit (up to 1 hour) and
choose a CD or radio station to listen to while you
drift off to sleep. The set will continue to play for the
selected duration and then automatically switch off to
a power-efficient, silent stand-by mode. Sleep Timer
lets you fall asleep to your favorite CD or radio DJ
without counting sheep or worrying about wasting
power.
Repeat alarm
To counter oversleeping, the Philips Clock radio has a
snooze feature. Should the alarm ring and you wish to
continue sleeping a bit longer, simply press the Repeat
Alarm button once and go back to sleep. Nine minutes
later the alarm will ring again. You can continue to
press the Repeat Alarm button every nine minutes
until you turn off the alarm altogether.
Issue date 2011-04-28
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 1.0.5
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 51066
UPC: 6 09585 16782 7
