KitchenAid KRCB 6050 Fridge/freezer combination Program Chart

501970801005_GB
30-11-2007
8:52
Pagina 1

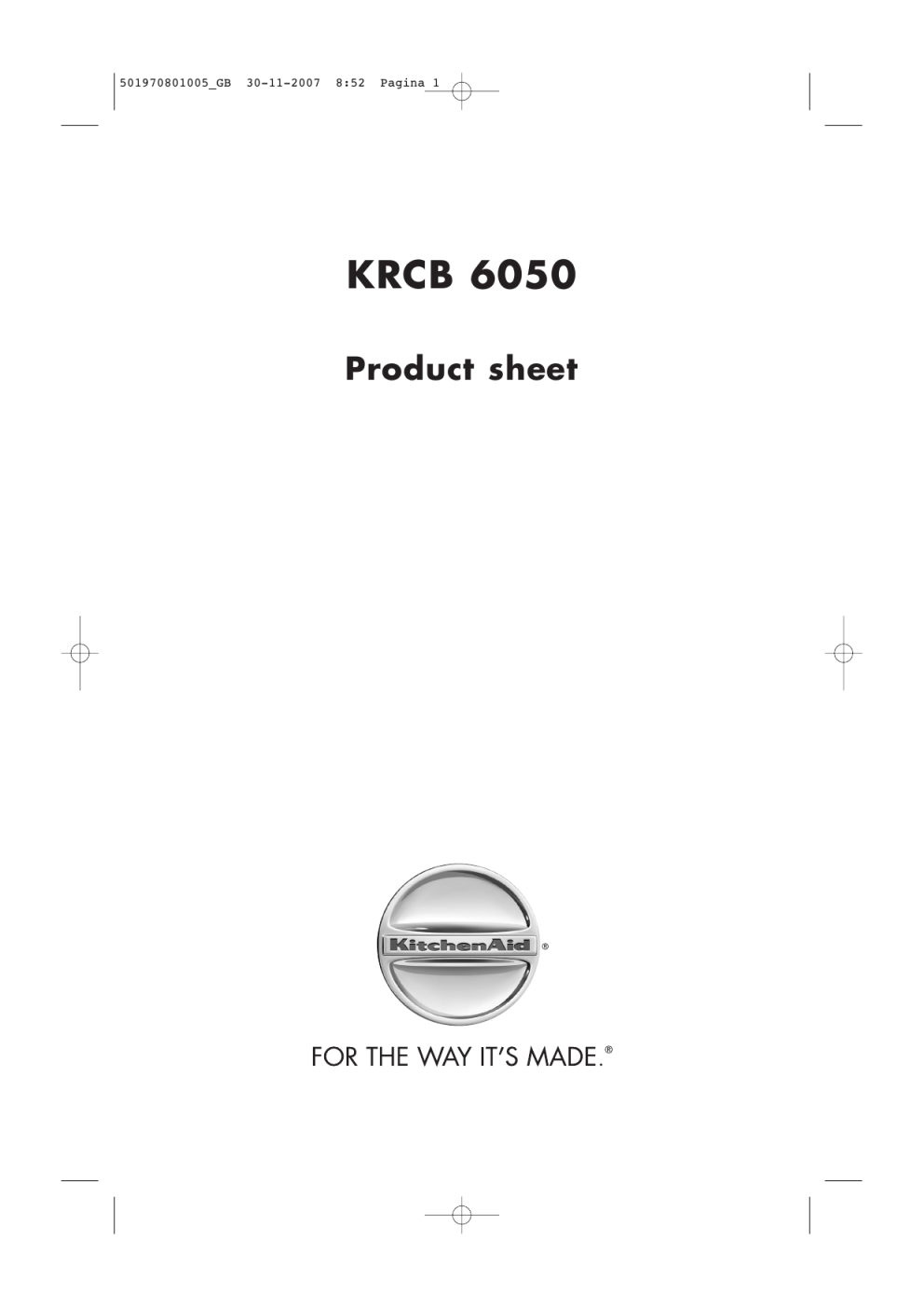

KRCB 6050
Product sheet
501970801005_GB
30-11-2007
8:52
Pagina 2
501970801005_GB
30-11-2007
8:52
Pagina 3
Product sheet
Carefully read the instructions before using the appliance.
A. Refrigerator compartment
1. Crisper drawers
2. Crisper shelf (fish, meat, dairy products,
cheese)
3. Shelves / Shelf zone (cooked foods)
B. Freezer compartment
12. Upper basket (freezing area)
13. Frozen/deep frozen food storage
compartment
14. Ice cube tray (inside basket)
15. Freezer compartment inner door
Least cold zone
Intermediate temperature zone
Coldest zone
4.
5.
Light unit (depending on the model)
Product control panel (depending on the
model)
6. Upper door tray (butter)
7. Door trays
8. Bottle rack
9. Bottle holder (if provided)
10. Rating plate (at the side of crisper)
11. Fan (if provided)
Notes: The number of shelves and shape the of accessories may vary according to the model. All the
shelves, door trays and racks are removable.
Caution: The refrigerator/freezer accessories must not placed in a dishwasher.
3
501970801005_GB
30-11-2007
8:52
Pagina 4
Control panel
Freezer compartment
1. Appliance On/Off button
2. Freezer temperature increase button
3. Freezer temperature decrease button
4. Freezer temperature display
10. Red alarm light
11. Alarm deactivation button
12. “Extra” load function yellow light
13. “Extra” load function button
Refrigerator compartment
5. Refrigerator compartment On/Off button
(“Vacation” function)
6. “Vacation” function green light
7. Refrigerator compartment temperature
display
8. Refrigerator temperature increase button
9. Refrigerator temperature decrease button
14. “Party” function yellow light
15. “Party” function button
CONTROL PANEL LOCK
The control panel can be locked after selecting the temperature of the refrigerator and freezer
compartments.
Press the keys (8) and (9) at the same time for at least 3 seconds and an acoustic alarm will signal
activation of the function. At this point the entire control panel will remain locked except for the Alarm
key (11); if any key is pressed, an acoustic signal will sound and the message “CL” will appear on the
freezer temperature display while the key is pressed. To unlock the control panel, proceed as above,
pressing the buttons (8) and (9) at the same time for at least 3 seconds.
Note: The ambient air temperature, frequency of door opening and position of the appliance can affect
the temperatures inside the refrigerator and freezer compartments. Therefore these factors should
therefore be taken into account when setting temperatures.
Replacing the lamp
Always disconnect the refrigerator from the power
supply before replacing any light bulbs.
1. Loosen the screw and remove the diffuser.
2. When replacing the lamp, remember that this
appliance is fitted with a special lamp (max.
25W with bayonet connector, only available
from the After-sales Service); to remove the
lamp, pull it outwards as indicated by the arrow
(do not unscrew it).
4
501970801005_GB
30-11-2007
8:52
Pagina 5
501970801005_GB
30-11-2007
8:52
Pagina 6
501970801005_GB
30-11-2007
8:52
Pagina 7
501970801005_GB
30-11-2007
Printed in Italy
11/07
5019 708 01005
8:52
Pagina 8
