Whirlpool WME36222 X Refrigerator Program Chart

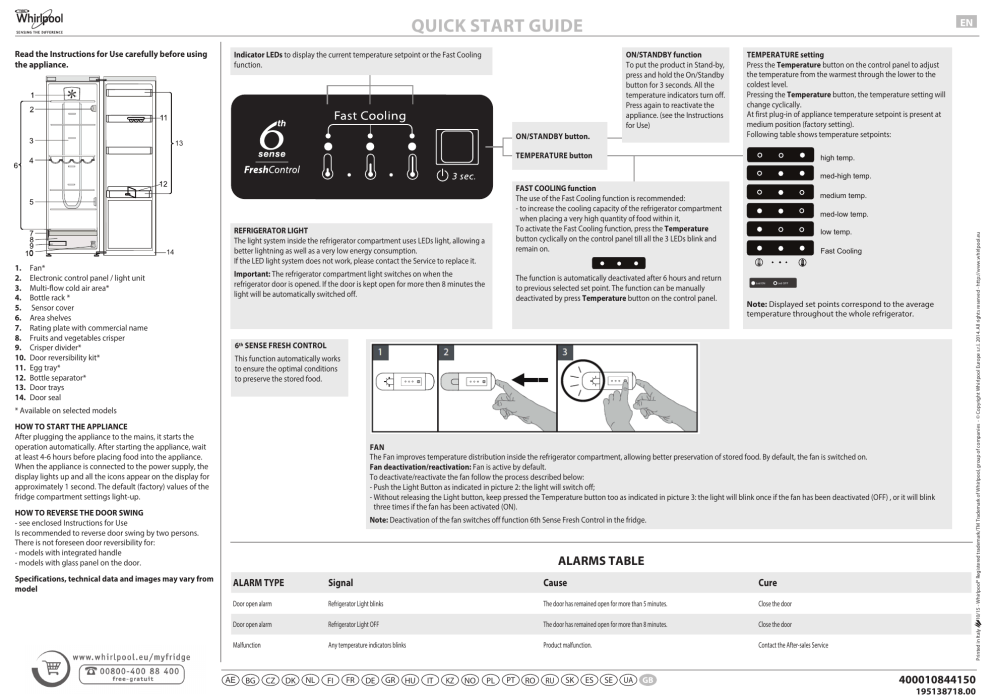

QUICK START GUIDE
Indicator LEDs to display the current temperature setpoint or the Fast Cooling
function.
ON/STANDBY function
To put the product in Stand-by,
press and hold the On/Standby
button for 3 seconds. All the
temperature indicators turn off.
Press again to reactivate the
appliance. (see the Instructions
for Use)
ON/STANDBY button.
13
high temp.
TEMPERATURE button
Led ON
14
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Fan*
Electronic control panel / light unit
Multi-flow cold air area*
Bottle rack *
Sensor cover
Area shelves
Rating plate with commercial name
Fruits and vegetables crisper
Crisper divider*
Door reversibility kit*
Egg tray*
Bottle separator*
Door trays
Door seal
TEMPERATURE setting
Press the Temperature button on the control panel to adjust
the temperature from the warmest through the lower to the
coldest level.
Pressing the Temperature button, the temperature setting will
change cyclically.
At first plug-in of appliance temperature setpoint is present at
medium position (factory setting).
Following table shows temperature setpoints:
Led OFF
med-high temp.
high temp.
medium temp.
med-high temp.
FAST COOLING function
med-low temp.
The use of the Fast Cooling function is recommended:
low temp. compartment
- to increase the cooling capacity of the refrigerator
when placing a very high quantity of food within it,
To activate the Fast Cooling function, press the Temperature
button cyclically on the control panel till all the 3 LEDs blink and
remain on.
REFRIGERATOR LIGHT
The light system inside the refrigerator compartment uses LEDs light, allowing a
better lightning as well as a very low energy consumption.
If the LED light system does not work, please contact the Service to replace it.
Important: The refrigerator compartment light switches on when the
refrigerator door is opened. If the door is kept open for more then 8 minutes the
light will be automatically switched off.
The function is automatically deactivated after 6 hours and return
to previous selected set point. The function can be manually
deactivated by press Temperature button on the control panel.
medium temp.
med-low temp.
low temp.
Fast Cooling
Led ON
Led OFF
Note: Displayed set points correspond to the average
temperature throughout the whole refrigerator.
6th SENSE FRESH CONTROL
This function automatically works
to ensure the optimal conditions
to preserve the stored food.
* Available on selected models
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, it starts the
operation automatically. After starting the appliance, wait
at least 4-6 hours before placing food into the appliance.
When the appliance is connected to the power supply, the
display lights up and all the icons appear on the display for
approximately 1 second. The default (factory) values of the
fridge compartment settings light-up.
HOW TO REVERSE THE DOOR SWING
- see enclosed Instructions for Use
Is recommended to reverse door swing by two persons.
There is not foreseen door reversibility for:
- models with integrated handle
- models with glass panel on the door.
Specifications, technical data and images may vary from
model
Note: Deactivation of the fan switches off function 6th Sense Fresh Control in the fridge.
ALARMS TABLE
ALARM TYPE
Signal
Cause
Cure
Door open alarm
Refrigerator Light blinks
The door has remained open for more than 5 minutes.
Close the door
Door open alarm
Refrigerator Light OFF
The door has remained open for more than 8 minutes.
Close the door
Malfunction
Any temperature indicators blinks
Product malfunction.
Contact the After-sales Service
AE
BG
CZ
DK
NL
FI
FR
DE
GR
HU
IT
KZ
NO
PL
PT
RO
RU
SK
ES
SE
UA
GB
Printed in Italy
FAN
The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food. By default, the fan is switched on.
Fan deactivation/reactivation: Fan is active by default.
To deactivate/reactivate the fan follow the process described below:
- Push the Light Button as indicated in picture 2: the light will switch off;
- Without releasing the Light button, keep pressed the Temperature button too as indicated in picture 3: the light will blink once if the fan has been deactivated (OFF) , or it will blink
three times if the fan has been activated (ON).
10/15 - Whirlpool® Registered trademark/TM Trademark of Whirlpool, group of companies - © Copyright Whirlpool Europe s.r.l. 2014. All rights reserved - http://www.whirlpool.eu
Read the Instructions for Use carefully before using
the appliance.
EN
400010844150
195138718.00
