Indesit SI8 1Q WD Refrigerator Program Chart

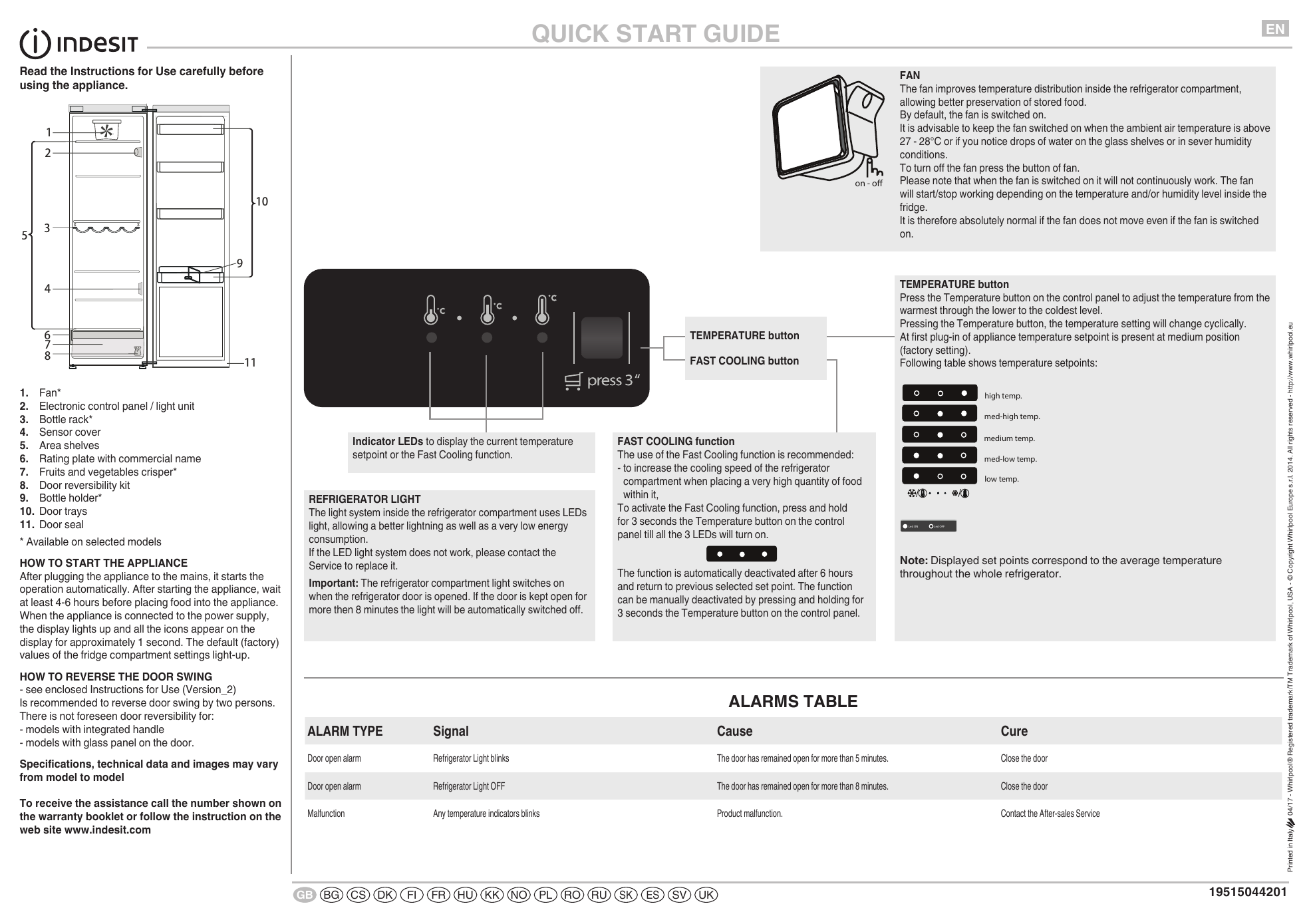

QUICK START GUIDE
EN
Read the Instructions for Use carefully before
using the appliance.
1
2
on - off
10
5
3
X
X
FAN
The fan improves temperature distribution inside the refrigerator compartment,
allowing better preservation of stored food.
By default, the fan is switched on.
It is advisable to keep the fan switched on when the ambient air temperature is above
27 - 28°C or if you notice drops of water on the glass shelves or in sever humidity
conditions.
To turn off the fan press the button of fan.
Please note that when the fan is switched on it will not continuously work. The fan
will start/stop working depending on the temperature and/or humidity level inside the
fridge.
It is therefore absolutely normal if the fan does not move even if the fan is switched
on.
TEMPERATURE button
Press the Temperature button on the control panel to adjust the temperature from the
warmest through the lower to the coldest level.
Pressing the Temperature button, the temperature setting will change cyclically.
At first plug-in of appliance temperature setpoint is present at medium position
(factory setting).
Following table shows temperature setpoints:
4
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
TEMPERATURE button
FAST COOLING button
11
Fan*
Electronic control panel / light unit
Bottle rack*
Sensor cover
Area shelves
Rating plate with commercial name
Fruits and vegetables crisper*
Door reversibility kit
Bottle holder*
Door trays
Door seal
* Available on selected models
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, it starts the
operation automatically. After starting the appliance, wait
at least 4-6 hours before placing food into the appliance.
When the appliance is connected to the power supply,
the display lights up and all the icons appear on the
display for approximately 1 second. The default (factory)
values of the fridge compartment settings light-up.
HOW TO REVERSE THE DOOR SWING
- see enclosed Instructions for Use (Version_2)
Is recommended to reverse door swing by two persons.
There is not foreseen door reversibility for:
- models with integrated handle
- models with glass panel on the door.
Specifications, technical data and images may vary
from model to model
To receive the assistance call the number shown on
the warranty booklet or follow the instruction on the
web site www.indesit.com
Led ON
high temp.
Led OFF
Led ON
high temp.
Led OFF
med-high temp.
med-high temp.
Indicator LEDs to display the current temperature
setpoint or the Fast Cooling function.
REFRIGERATOR LIGHT
The light system inside the refrigerator compartment uses LEDs
light, allowing a better lightning as well as a very low energy
consumption.
If the LED light system does not work, please contact the
Service to replace it.
Important: The refrigerator compartment light switches on
when the refrigerator door is opened. If the door is kept open for
more then 8 minutes the light will be automatically switched off.
medium temp.
FAST COOLING function
The use of the Fast Cooling function ismed-low
recommended:
temp.
- to increase the cooling speed of the refrigerator
low
temp.
compartment when placing a very high quantity of food
within it,
To activate the Fast Cooling function, press and hold
for 3 seconds the Temperature button on the control
panel till all the 3 LEDs will turn on.
The function is automatically deactivated after 6 hours
and return to previous selected set point. The function
can be manually deactivated by pressing and holding for
3 seconds the Temperature button on the control panel.
medium temp.
med-low temp.
low temp.
Led ON
high temp.
Led OFF
med-high temp.
Note: Displayed set points correspond
to the average temperature
medium temp.
throughout the whole refrigerator.
med-low temp.
low temp.
ALARMS TABLE
ALARM TYPE
Signal
Cause
Cure
Door open alarm
Refrigerator Light blinks
The door has remained open for more than 5 minutes.
Close the door
Door open alarm
Refrigerator Light OFF
The door has remained open for more than 8 minutes.
Close the door
Malfunction
Any temperature indicators blinks
Product malfunction.
Contact the After-sales Service
Printed in Italy
6
7
8
04/17 - Whirlpool® Registered trademark/TM Trademark of Whirlpool, USA - © Copyright Whirlpool Europe s.r.l. 2014. All rights reserved - http://www.whirlpool.eu
