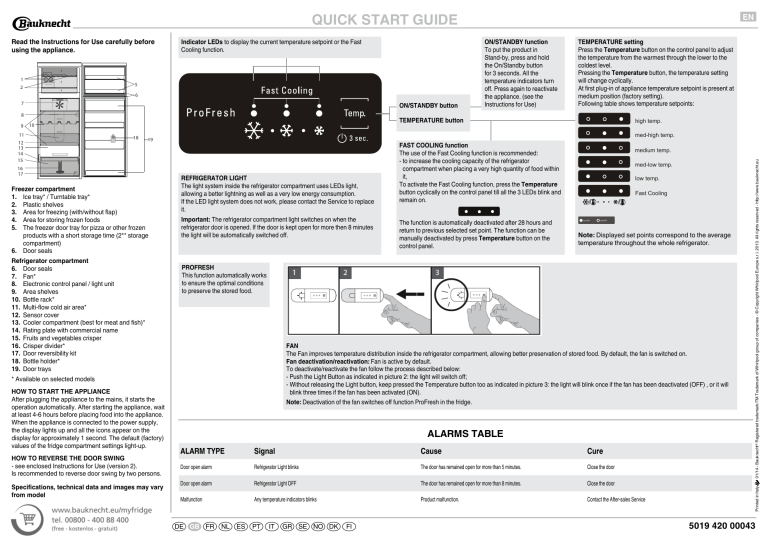

Bauknecht KDN 4540 A+ PT Fridge/freezer combination Program Chart

QUICK START GUIDE
3
1
4
2
4
5
6
ON/STANDBY button
7
8
9
TEMPERATURE button
10
11
12
13
14
15
Led ON
18
19
16
17
Freezer compartment
1. Ice tray* / Turntable tray*
2. Plastic shelves
3. Area for freezing (with/without flap)
4. Area for storing frozen foods
5. The freezer door tray for pizza or other frozen
products with a short storage time (2** storage
compartment)
6. Door seals
Refrigerator compartment
6. Door seals
7. Fan*
8. Electronic control panel / light unit
9. Area shelves
10. Bottle rack*
11. Multi-flow cold air area*
12. Sensor cover
13. Cooler compartment (best for meat and fish)*
14. Rating plate with commercial name
15. Fruits and vegetables crisper
16. Crisper divider*
17. Door reversibility kit
18. Bottle holder*
19. Door trays
REFRIGERATOR LIGHT
The light system inside the refrigerator compartment uses LEDs light,
allowing a better lightning as well as a very low energy consumption.
If the LED light system does not work, please contact the Service to replace
it.
Important: The refrigerator compartment light switches on when the
refrigerator door is opened. If the door is kept open for more then 8 minutes
the light will be automatically switched off.
HOW TO REVERSE THE DOOR SWING
- see enclosed Instructions for Use (version 2).
Is recommended to reverse door swing by two persons.
Specifications, technical data and images may vary
from model
TEMPERATURE setting
Press the Temperature button on the control panel to adjust
the temperature from the warmest through the lower to the
coldest level.
Pressing the Temperature button, the temperature setting
will change cyclically.
At first plug-in of appliance temperature setpoint is present at
medium position (factory setting).
Following table shows temperature setpoints:
high temp.
high temp.
med-high temp.
med-high temp.
medium temp.
FAST COOLING function
The use of the Fast Cooling function is recommended:
med-low temp.
- to increase the cooling capacity of the refrigerator
low temp. of food within
compartment when placing a very high quantity
it,
To activate the Fast Cooling function, press the Temperature
button cyclically on the control panel till all the 3 LEDs blink and
remain on.
The function is automatically deactivated after 28 hours and
return to previous selected set point. The function can be
manually deactivated by press Temperature button on the
control panel.
medium temp.
med-low temp.
low temp.
Fast Cooling
Led ON
Led OFF
Note: Displayed set points correspond to the average
temperature throughout the whole refrigerator.
PROFRESH
This function automatically works
to ensure the optimal conditions
to preserve the stored food.
FAN
The Fan improves temperature distribution inside the refrigerator compartment, allowing better preservation of stored food. By default, the fan is switched on.
Fan deactivation/reactivation: Fan is active by default.
To deactivate/reactivate the fan follow the process described below:
- Push the Light Button as indicated in picture 2: the light will switch off;
- Without releasing the Light button, keep pressed the Temperature button too as indicated in picture 3: the light will blink once if the fan has been deactivated (OFF) , or it will
blink three times if the fan has been activated (ON).
* Available on selected models
HOW TO START THE APPLIANCE
After plugging the appliance to the mains, it starts the
operation automatically. After starting the appliance, wait
at least 4-6 hours before placing food into the appliance.
When the appliance is connected to the power supply,
the display lights up and all the icons appear on the
display for approximately 1 second. The default (factory)
values of the fridge compartment settings light-up.
Led OFF
ON/STANDBY function
To put the product in
Stand-by, press and hold
the On/Standby button
for 3 seconds. All the
temperature indicators turn
off. Press again to reactivate
the appliance. (see the
Instructions for Use)
Note: Deactivation of the fan switches off function ProFresh in the fridge.
ALARMS TABLE
ALARM TYPE
Signal
Cause
Cure
Door open alarm
Refrigerator Light blinks
The door has remained open for more than 5 minutes.
Close the door
Door open alarm
Refrigerator Light OFF
The door has remained open for more than 8 minutes.
Close the door
Malfunction
Any temperature indicators blinks
Product malfunction.
Contact the After-sales Service
DE GB FR
NL
ES
PT
IT
GR SE NO DK
FI
