Whirlpool ADP 931/2 WH Dishwasher Program Chart

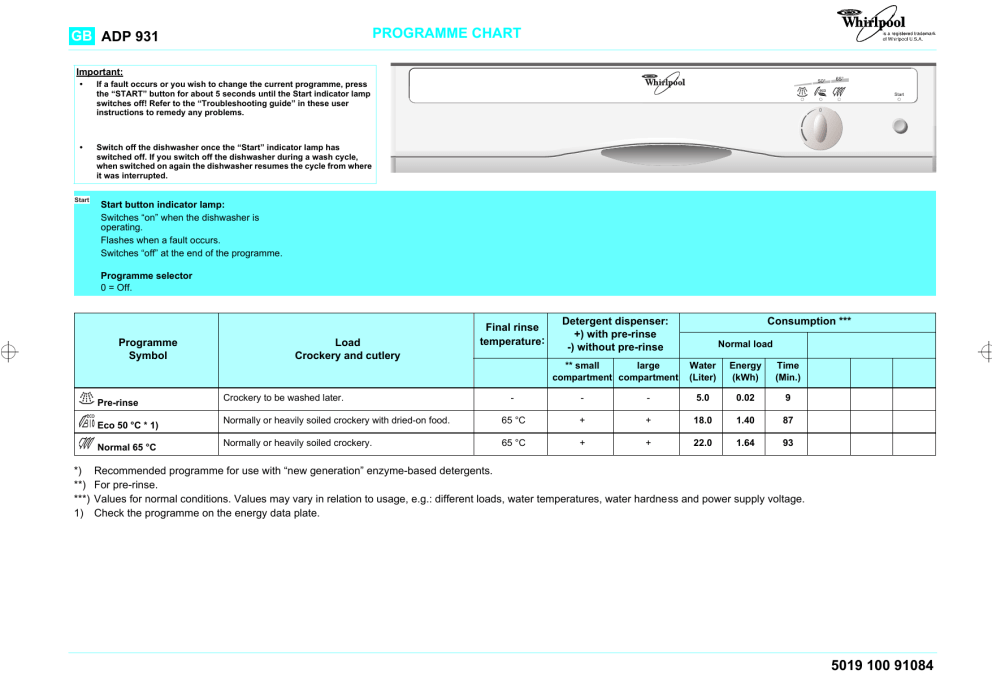

PROGRAMME CHART
GB ADP 931
Important:
•
•
Start
50°
If a fault occurs or you wish to change the current programme, press
the “START” button for about 5 seconds until the Start indicator lamp
switches off! Refer to the “Troubleshooting guide” in these user
instructions to remedy any problems.
65°
eco
Start
0
Switch off the dishwasher once the “Start” indicator lamp has
switched off. If you switch off the dishwasher during a wash cycle,
when switched on again the dishwasher resumes the cycle from where
it was interrupted.
Start button indicator lamp:
Switches “on” when the dishwasher is
operating.
Flashes when a fault occurs.
Switches “off” at the end of the programme.
Programme selector
0 = Off.
Programme
Symbol
Load
Crockery and cutlery
Final rinse
temperature:
Detergent dispenser:
+) with pre-rinse
-) without pre-rinse
** small
large
compartment compartment
Pre-rinse
Eco 50 °C * 1)
Normal 65 °C
*)
**)
***)
1)
Consumption ***
Normal load
Water
(Liter)
Energy
(kWh)
Time
(Min.)
-
-
-
5.0
0.02
9
Normally or heavily soiled crockery with dried-on food.
65 °C
+
+
18.0
1.40
87
Normally or heavily soiled crockery.
65 °C
+
+
22.0
1.64
93
Crockery to be washed later.
Recommended programme for use with “new generation” enzyme-based detergents.
For pre-rinse.
Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.
Check the programme on the energy data plate.
5019 100 91084
Quick reference guide
GB
Also refer to the "Dishwasher loading instructions" which contain detailed information and useful tips.
Crockery holder:
•
Daily check list:
1. Turn on the tap.
2. Arrange crockery so that items do not
touch each other.
3. Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
4. Fill the detergent dispenser and
check the salt and rinse aid levels.
5. Close the dishwasher door.
•
Upper rack
Down: cups and long-stemmed
glasses.
Up: plates.
Height adjustment:
(The dishwasher is delivered with the
upper rack in the top position).
The rack height can also be changed
when loaded.
•
To lower: pull out the two side handles
and gently lower the rack.
•
To raise: pull up the two side handles
until the rack clicks into place.
•
The rack must be level on both
sides.
Tips:
Crockery:
• Load crockery upside down on the
racks.
Cutlery:
• The cutlery basket can be removed
to increase available space.
• Place the cutlery unsorted in the
cutlery basket with the handles
positioned downwards.
• To avoid the risk of injury on sharp
knives and forks, cutlery can also be
placed in the basket with the handles
positioned upwards.
Cups:
• Load cups at an angle to facilitate
water circulation.
Silver cutlery:
• Always hand wash silver cutlery
immediately after use. Follow the
detergent manufacturer's directions
on the detergent pack.
Important:
• Only load the appliance with
dishwasher-proof crockery and
cooking utensils.
• Certain wooden and aluminium
articles may discolour.
• Glued, plastic utensils may be heat
sensitive.
• Tin may become dull.
• Decorated crockery (unglazed) may
fade.
• Glasses may become dull.
Lower rack
Plate holders:
•
•
•
The plate holders may be removed to
increase available space.
To remove, pull the handle up.
To reposition, simply insert in the
required position (normal or
crosswise).
Cutlery basket: the cutlery basket
may be removed to increase
available space.
