Whirlpool ADP972/2 WHM Dishwasher Program Chart

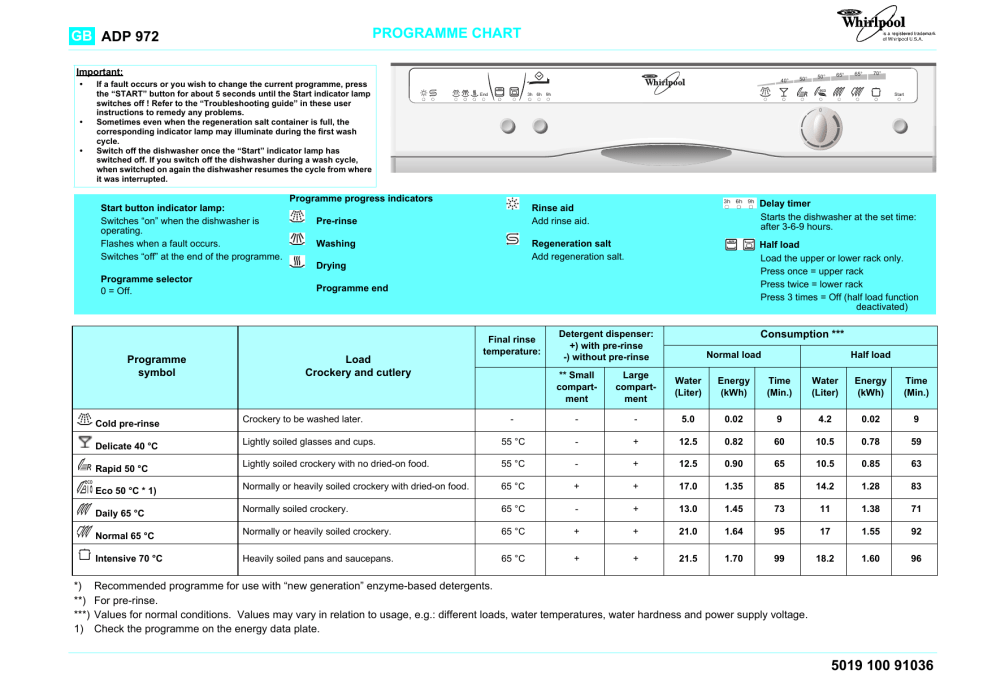

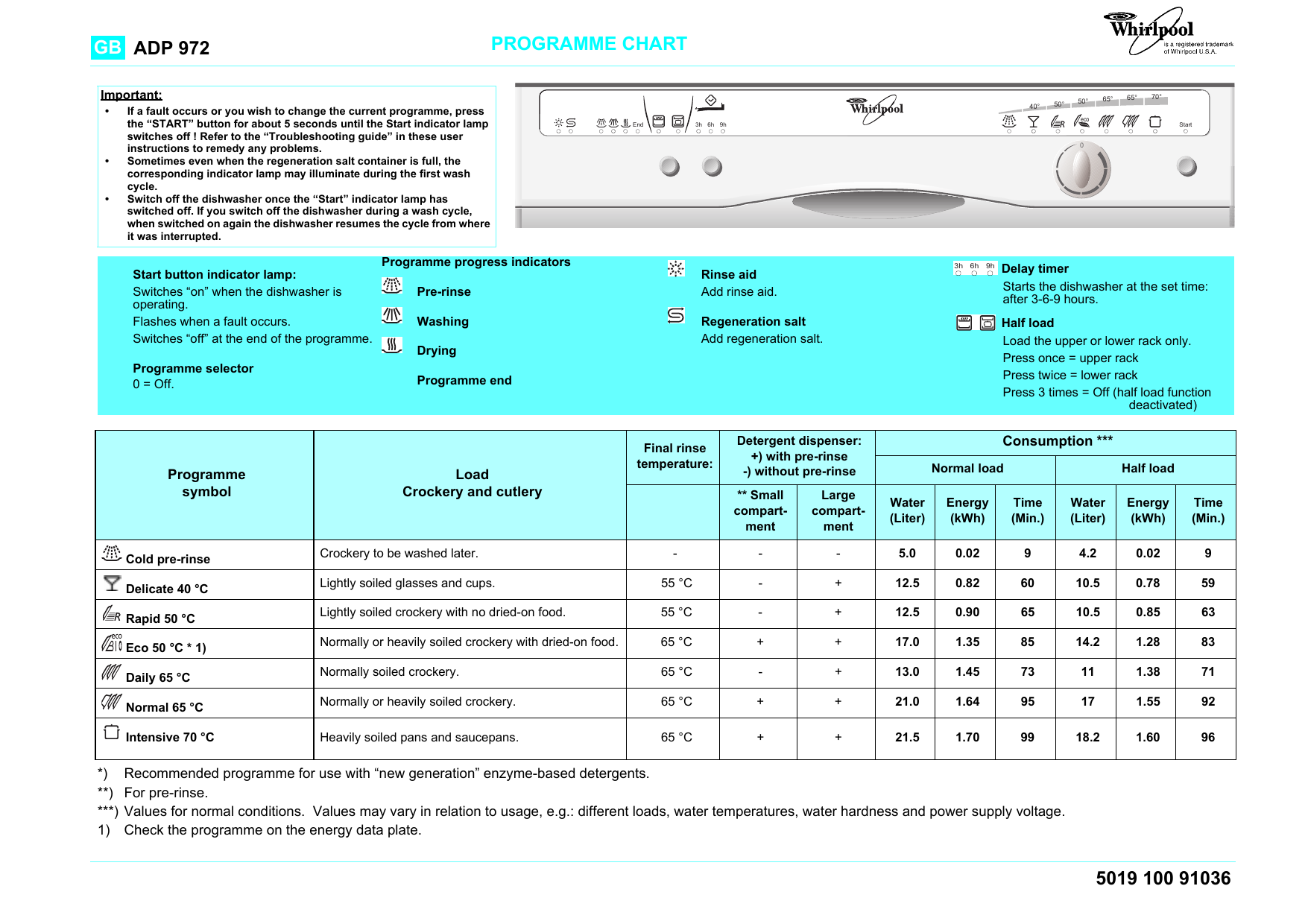

PROGRAMME CHART
GB ADP 972
Important:
•
•
•
If a fault occurs or you wish to change the current programme, press
the “START” button for about 5 seconds until the Start indicator lamp
switches off ! Refer to the “Troubleshooting guide” in these user
instructions to remedy any problems.
Sometimes even when the regeneration salt container is full, the
corresponding indicator lamp may illuminate during the first wash
cycle.
Switch off the dishwasher once the “Start” indicator lamp has
switched off. If you switch off the dishwasher during a wash cycle,
when switched on again the dishwasher resumes the cycle from where
it was interrupted.
40°
End
Programme
symbol
3h 6h
Rinse aid
Add rinse aid.
Pre-rinse
Washing
9h
Regeneration salt
Add regeneration salt.
Cold pre-rinse
*)
**)
***)
1)
Crockery to be washed later.
70°
Start
Final rinse
temperature:
Delay timer
Starts the dishwasher at the set time:
after 3-6-9 hours.
Half load
Load the upper or lower rack only.
Press once = upper rack
Press twice = lower rack
Press 3 times = Off (half load function
deactivated)
Programme end
Load
Crockery and cutlery
65°
0
Drying
Programme selector
0 = Off.
65°
50°
eco
3h 6h 9h
Programme progress indicators
Start button indicator lamp:
Switches “on” when the dishwasher is
operating.
Flashes when a fault occurs.
Switches “off” at the end of the programme.
50°
Detergent dispenser:
+) with pre-rinse
-) without pre-rinse
Consumption ***
Normal load
Half load
** Small
compartment
Large
compartment
Water
(Liter)
Energy
(kWh)
Time
(Min.)
Water
(Liter)
Energy
(kWh)
Time
(Min.)
-
-
-
5.0
0.02
9
4.2
0.02
9
Delicate 40 °C
Lightly soiled glasses and cups.
55 °C
-
+
12.5
0.82
60
10.5
0.78
59
Rapid 50 °C
Lightly soiled crockery with no dried-on food.
55 °C
-
+
12.5
0.90
65
10.5
0.85
63
Eco 50 °C * 1)
Normally or heavily soiled crockery with dried-on food.
65 °C
+
+
17.0
1.35
85
14.2
1.28
83
Daily 65 °C
Normally soiled crockery.
65 °C
-
+
13.0
1.45
73
11
1.38
71
Normal 65 °C
Normally or heavily soiled crockery.
65 °C
+
+
21.0
1.64
95
17
1.55
92
Intensive 70 °C
Heavily soiled pans and saucepans.
65 °C
+
+
21.5
1.70
99
18.2
1.60
96
Recommended programme for use with “new generation” enzyme-based detergents.
For pre-rinse.
Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.
Check the programme on the energy data plate.
5019 100 91036
Quick reference guide
GB
Also refer to the "dishwasher loading instructions" which contain detailed information and useful tips.
Crockery holder:
Daily check list:
1. Turn on the tap.
2. Arrange crockery so that items do not
touch each other.
3. Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
4. Fill the detergent dispenser and
check the salt and rinse aid levels.
5. Close the dishwasher door.
Tips:
Crockery:
• Load crockery upside down on the
racks.
Cutlery:
• The cutlery basket can be removed
to increase available space.
• Place the cutlery unsorted in the
cutlery basket with the handles
positioned downwards.
• To avoid the risk of injury on sharp
knives and forks, cutlery can also be
placed in the basket with the handles
positioned upwards.
Cups:
• Load cups at an angle to facilitate
water circulation.
Silver cutlery:
• Always hand wash silver cutlery
immediately after use.
Follow the detergent manufacturer's
directions on the detergent pack.
Important:
• Only load the appliance with
dishwasher-proof crockery and
cooking utensils.
• Certain wooden and aluminium
articles may discolour.
• Glued, plastic utensils may be heat
sensitive.
• Tin may become dull.
• Decorated crockery (unglazed) may
fade.
• Glasses may become dull.
•
•
Upper rack
Down: cups and long-stemmed glasses.
Up: plates.
Glass holder:
•
•
•
The glass holder can be moved
sideways.
Down: short glasses.
Up: long-stemmed glasses.
Cutlery holder for long utensils:
•
•
•
Up:
glass holder (gently lift up and release).
Down:
large cutlery (gently lift up)
Place knives with blades facing
downwards.
Half load:
Loading the upper rack only.
•
Upper rack: the cutlery basketsmay
be inserted or removed as required.
•
Remove the cutlery baskets from the
lower rack.
Height adjustment:
Cutlery basket:
Loading the upper rack for a half
load.
Lower rack:
Plate holders:
•
•
•
The plate holders may be removed to
increase available space.
To remove, pull the handle up.
To reposition, simply insert in the
required position (normal or
crosswise).
(The dishwasher is delivered with the
upper rack in the top position).
The rack height can also be changed
when loaded.
•
To lower: pull out the two side handles
and gently lower the rack.
•
To raise: pull up the two side handles
until the rack clicks into place.
•
The rack must be level on both
sides.
Half load:
Loading the lower rack only.
•
Greater washing power for plates and
saucepans.
•
The cutlery baskets may be inserted
or removed as required.
Cutlery basket: the cutlery basket
may be removed to increase
available space.
