Bauknecht GSF 4631 WS Dishwasher Program Chart

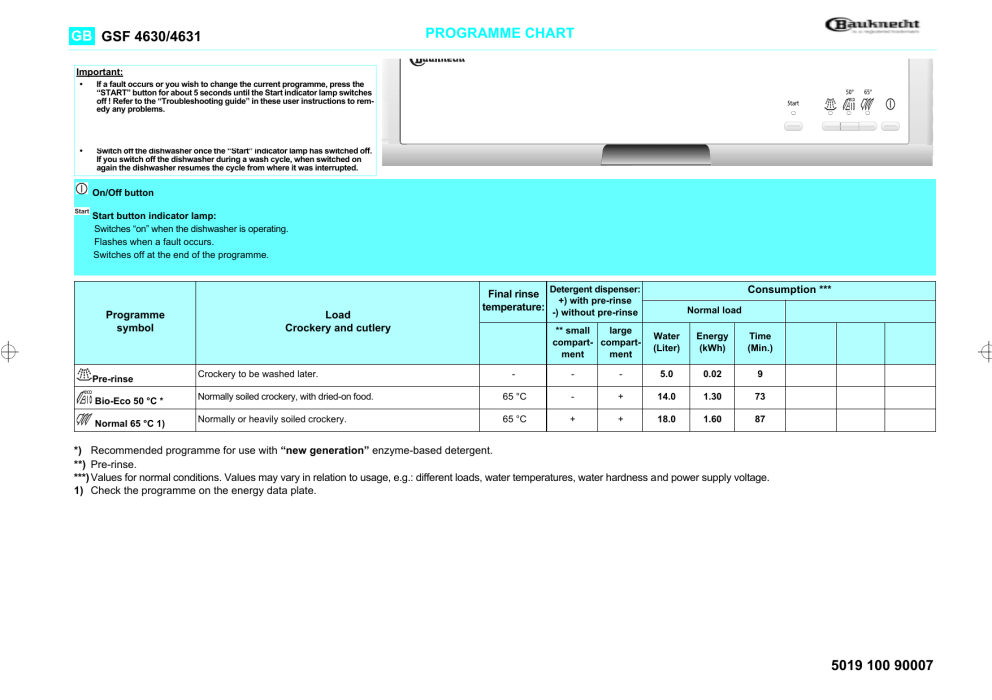

PROGRAMME CHART
GB GSF 4630/4631
Important:
•
If a fault occurs or you wish to change the current programme, press the
“START” button for about 5 seconds until the Start indicator lamp switches
off ! Refer to the “Troubleshooting guide” in these user instructions to remedy any problems.
•
Switch off the dishwasher once the “Start” indicator lamp has switched off.
If you switch off the dishwasher during a wash cycle, when switched on
again the dishwasher resumes the cycle from where it was interrupted.
On/Off button
Start
Start button indicator lamp:
Switches “on” when the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Detergent dispenser:
Programme
symbol
Load
Crockery and cutlery
** small
large
compart- compartment
ment
Normal load
Water
(Liter)
Energy
(kWh)
Time
(Min.)
-
-
-
5.0
0.02
9
Normally soiled crockery, with dried-on food.
65 °C
-
+
14.0
1.30
73
Normally or heavily soiled crockery.
65 °C
+
+
18.0
1.60
87
Pre-rinse
Crockery to be washed later.
Bio-Eco 50 °C *
Normal 65 °C 1)
Consumption ***
Final rinse
+) with pre-rinse
temperature: -) without pre-rinse
*) Recommended programme for use with “new generation” enzyme-based detergent.
**) Pre-rinse.
***) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.
1) Check the programme on the energy data plate.
5019 100 90007
Quick reference guide
GB
Also refer to the "dishwasher loading instructions" which contain detailed information and useful tips.
Crockery holder:
•
Daily check list:
1. Turn on the tap.
2. Arrange crockery so that items do not
touch each other.
3. Make sure the water jet can reach all
loaded items and that the spray arms
turn freely.
4. Fill the detergent dispenser and check
the salt and rinse aid levels.
5. Close the dishwasher door.
•
Upper rack
Down: cups and long-stemmed
glasses.
Up: plates.
Glass holder:
•
•
•
The glass holder can be moved sideways.
Down: short glasses.
Up: long-stemmed glasses.
Tips:
Crockery:
• Load crockery upside down on the
racks.
Cutlery:
• The cutlery basket can be removed
to increase available space.
• Place the cutlery unsorted in the cutlery basket with the handles positioned downwards.
• To avoid the risk of injury on sharp
knives and forks, cutlery can also be
placed in the basket with the handles
positioned upwards.
Cups:
• Load cups at an angle to facilitate water
circulation.
Silver cutlery:
• Always hand wash silver cutlery
immediately after use. Follow the
detergent manufacturer's directions
on the detergent pack.
Important:
• Only load the appliance with dishwasher-proof crockery and cooking utensils.
• Certain wooden and aluminium articles may discolour.
• Glued, plastic utensils may be heat
sensitive.
• Tin may become dull.
• Decorated crockery (unglazed) may
fade.
• Glasses may become dull.
Height adjustment:
(The dishwasher is delivered with the
upper rack in the top position).
The rack height can also be changed
when loaded.
•
To lower: pull out the two side handles
and gently lower the rack.
•
To raise: pull up the two side handles
until the rack clicks into place.
The rack must be level on both sides.
Plate holders:
•
•
•
The plate holders may be removed to
increase available space.
To remove, pull the handle up.
To reposition, simply insert in the
required position (normal or crosswise).
Lower rack:
Cutlery basket: the cutlery basket
may be removed to increase available space
